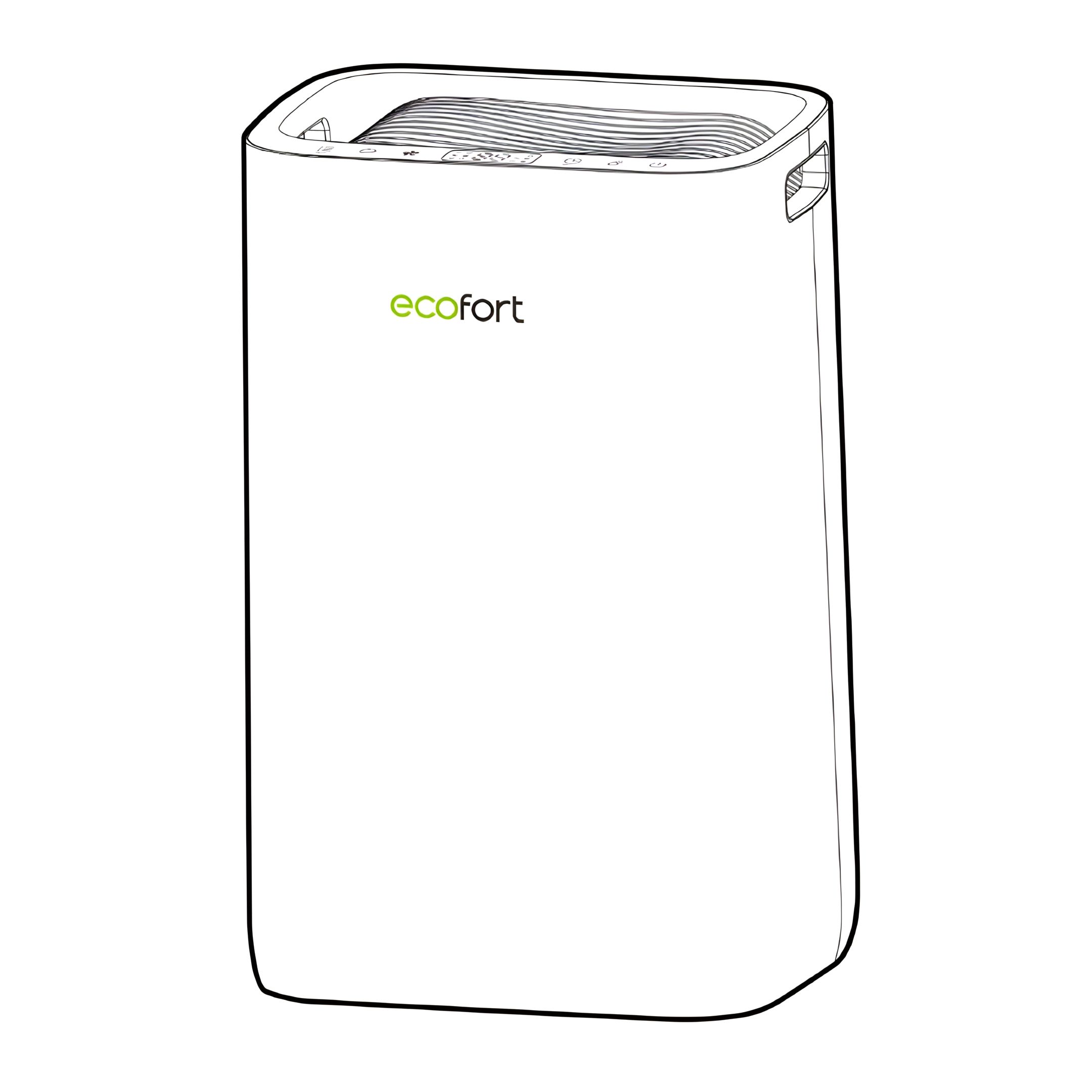

ecoQ DryAir 20L Energy Saver

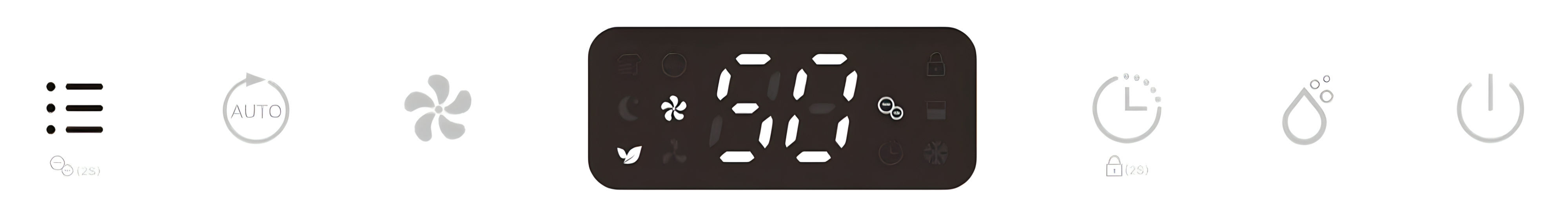

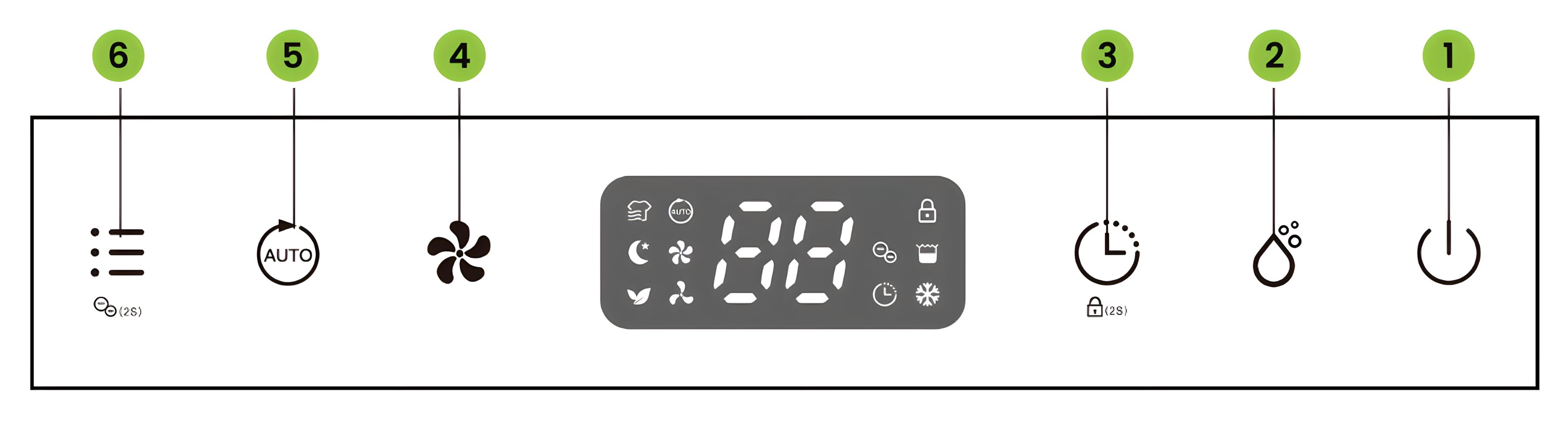

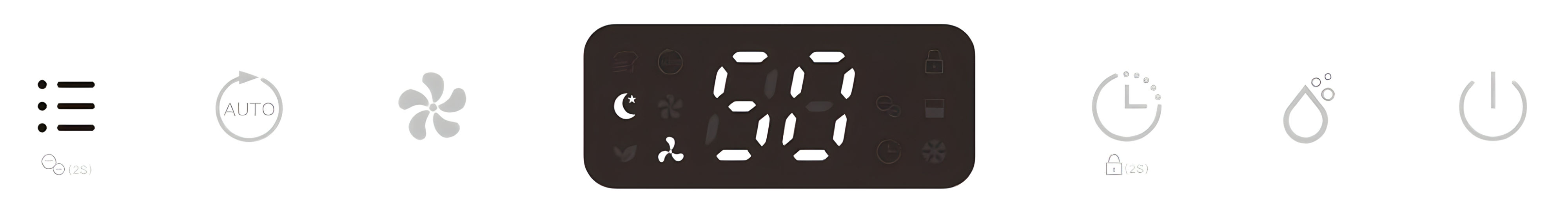

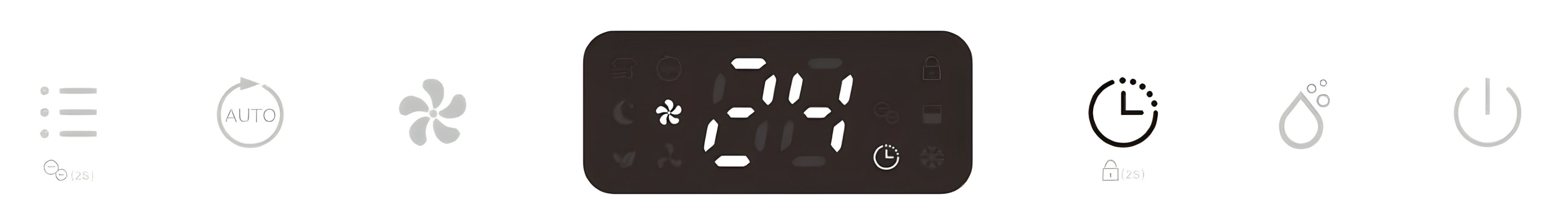

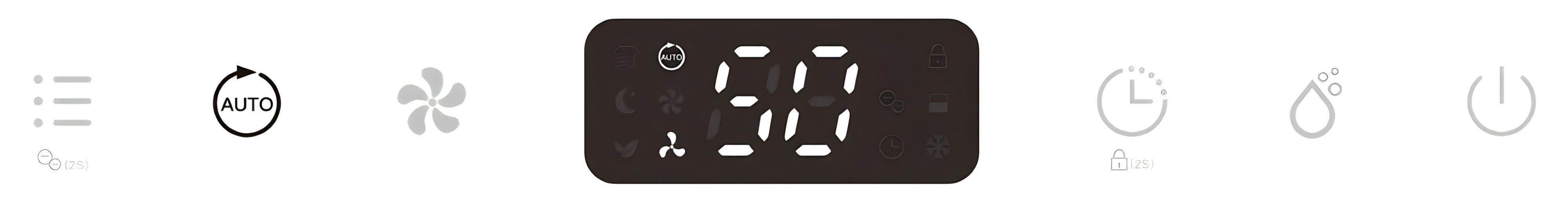

1. Power Button
2. Humidity Button
3. Timer Button / Lock Button
4. Fan Speed Button
5. Auto Button
6. Mode Button / Ionizer Button

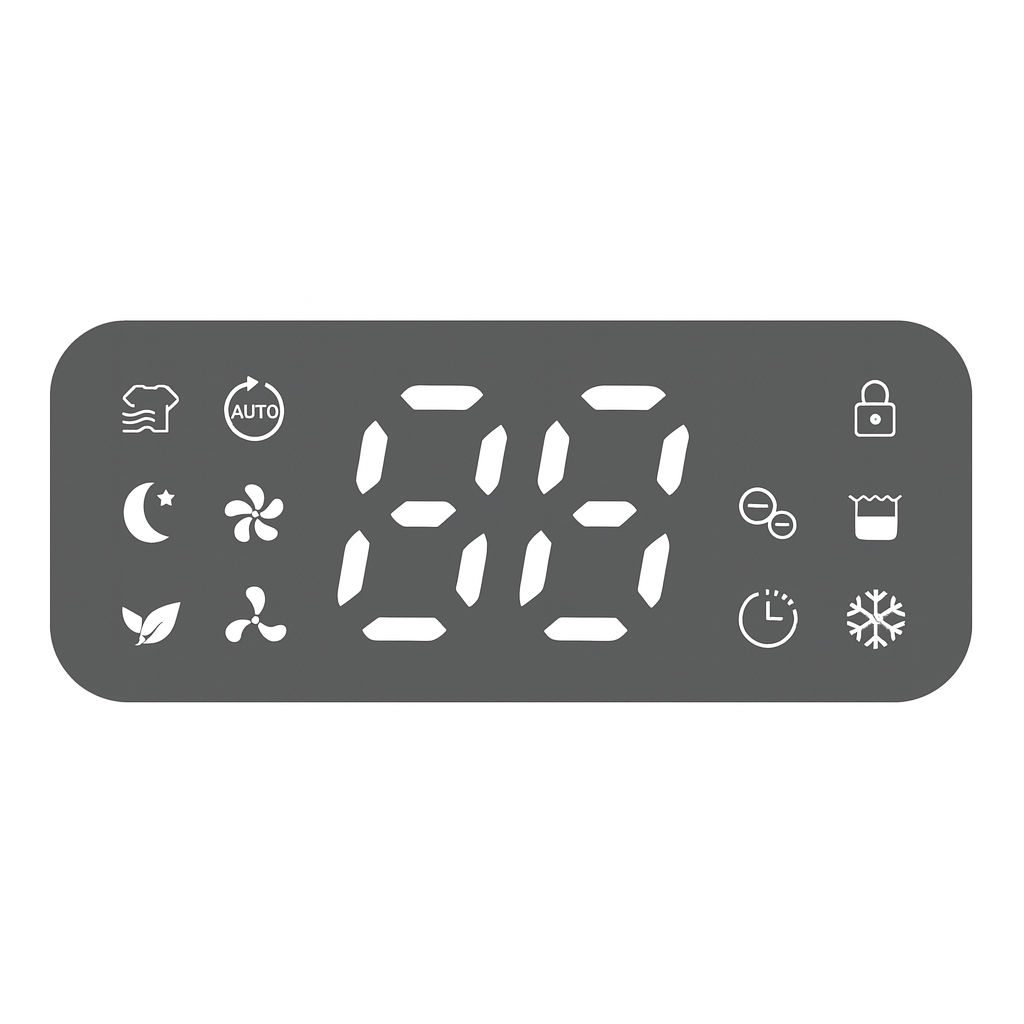

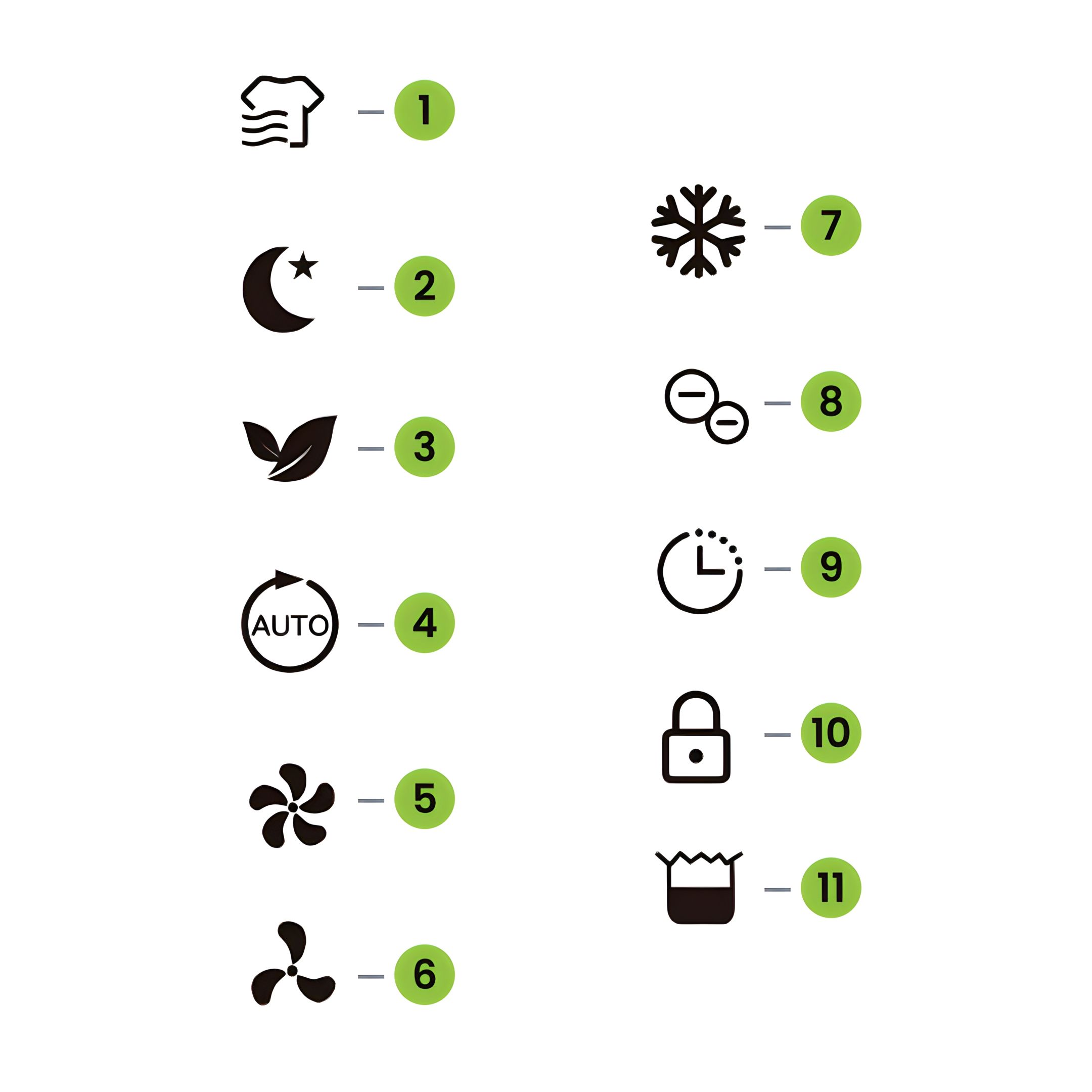

1. Laundry Drying Indicator
2. Night mode Indicator
3. Air Purifying Indicator
4. Auto Indicator
5. High Fan Speed Indicator
6. Low Fan Speed Indicator
7. Defrosting Indicator
8. Ionizer indicator
9. Timer Indicator
10. Lock Indicator
11. Tank Full Indicator

• Connect the mains lead to the power socket.

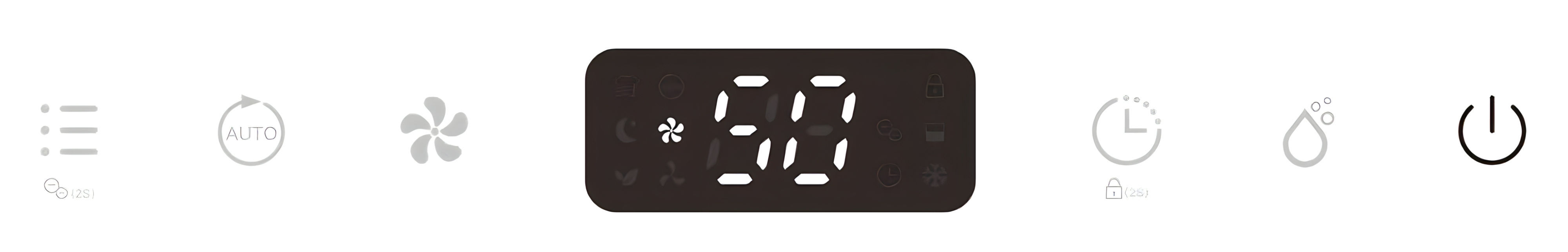

• Press power button once to turn on the unit. By default, it runs on Manual Dehumidifying Mode.

• Press Power button once again to turn off the unit.

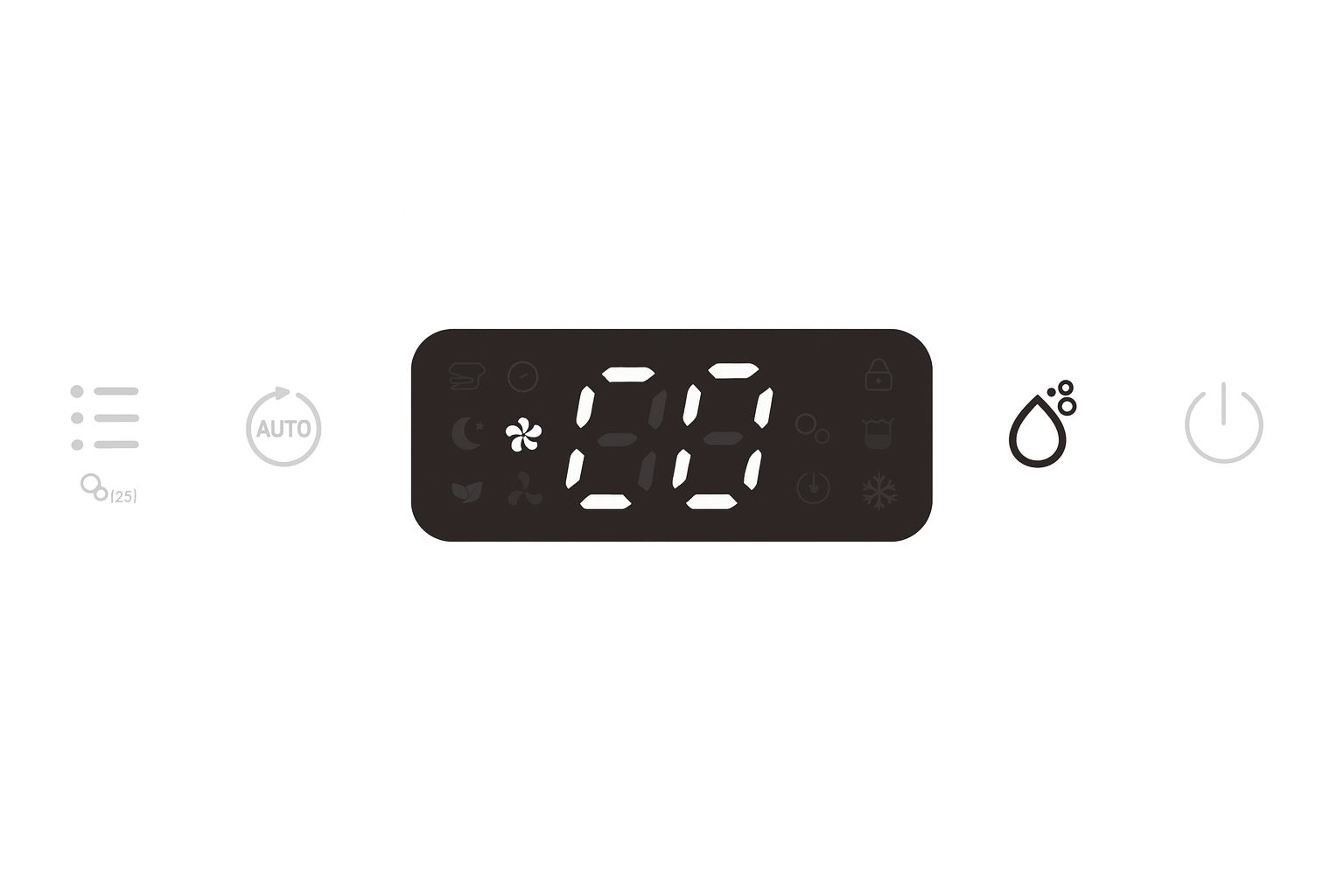

• Press Manual button once to enter Manual Dehumidifying Mode or to select desired level of humidity from CO-30%-35%-40%-45%-50%-55%-60%-65%-70%-75%-80%-CO

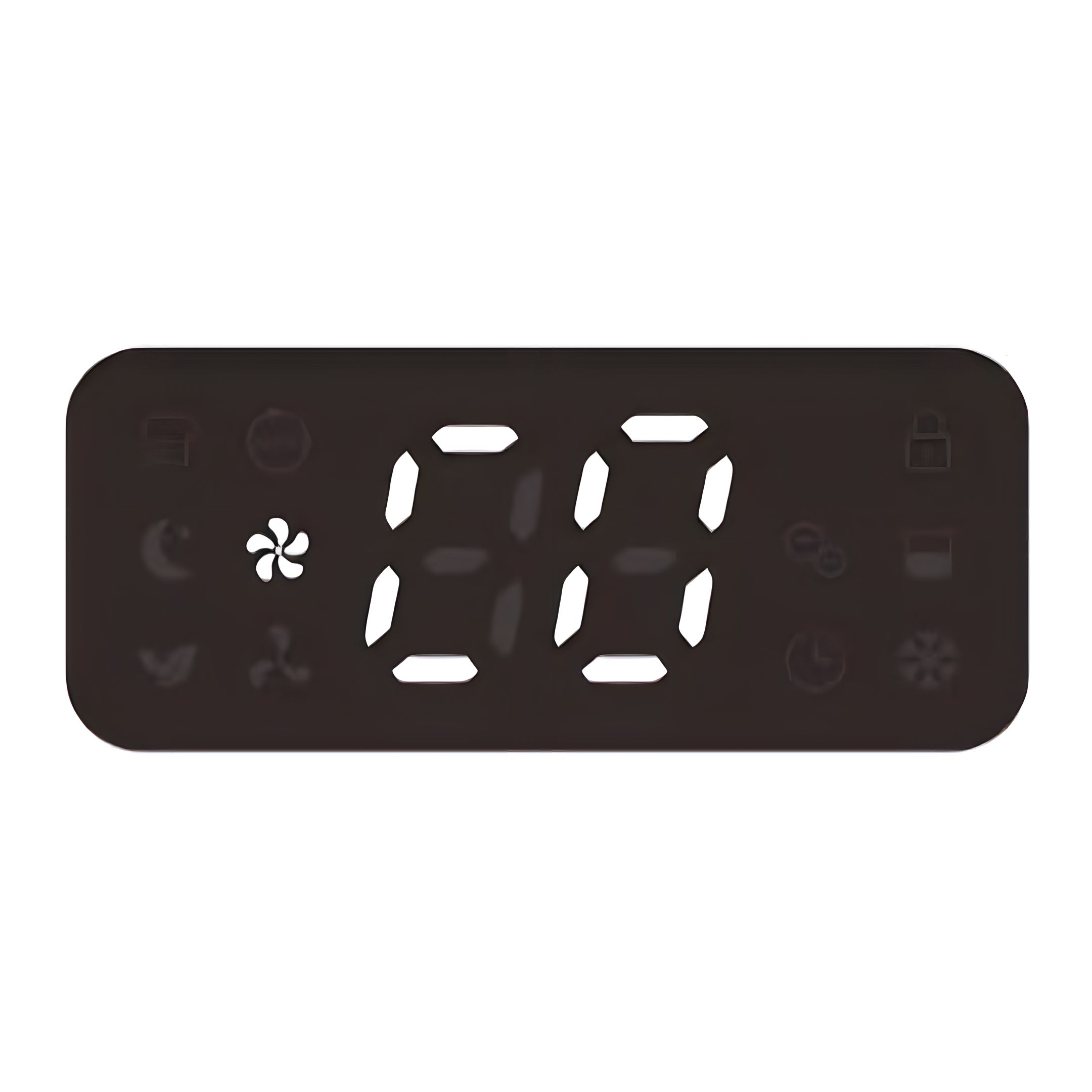

• CO stands for continuous operation (continuous dehumidification).

Note:

• If ambient humidity is lower than 30%, display shows LO.

• If ambient humidity is higher than 90%, display shows HI.

Switching logic

1. Once the target value is reached, the compressor and fan switch off immediately.
2. After 55 minutes, the fan switches on.
3. After 60 minutes, the H/T sensor switches on (five minutes after the fan) and measures the humidity.
4. If the humidity is above the target value, the compressor switches on and dehumidification starts again.
5. If the humidity is not above the target value, the fan switches off.
6. The next check starts again after 55 minutes.

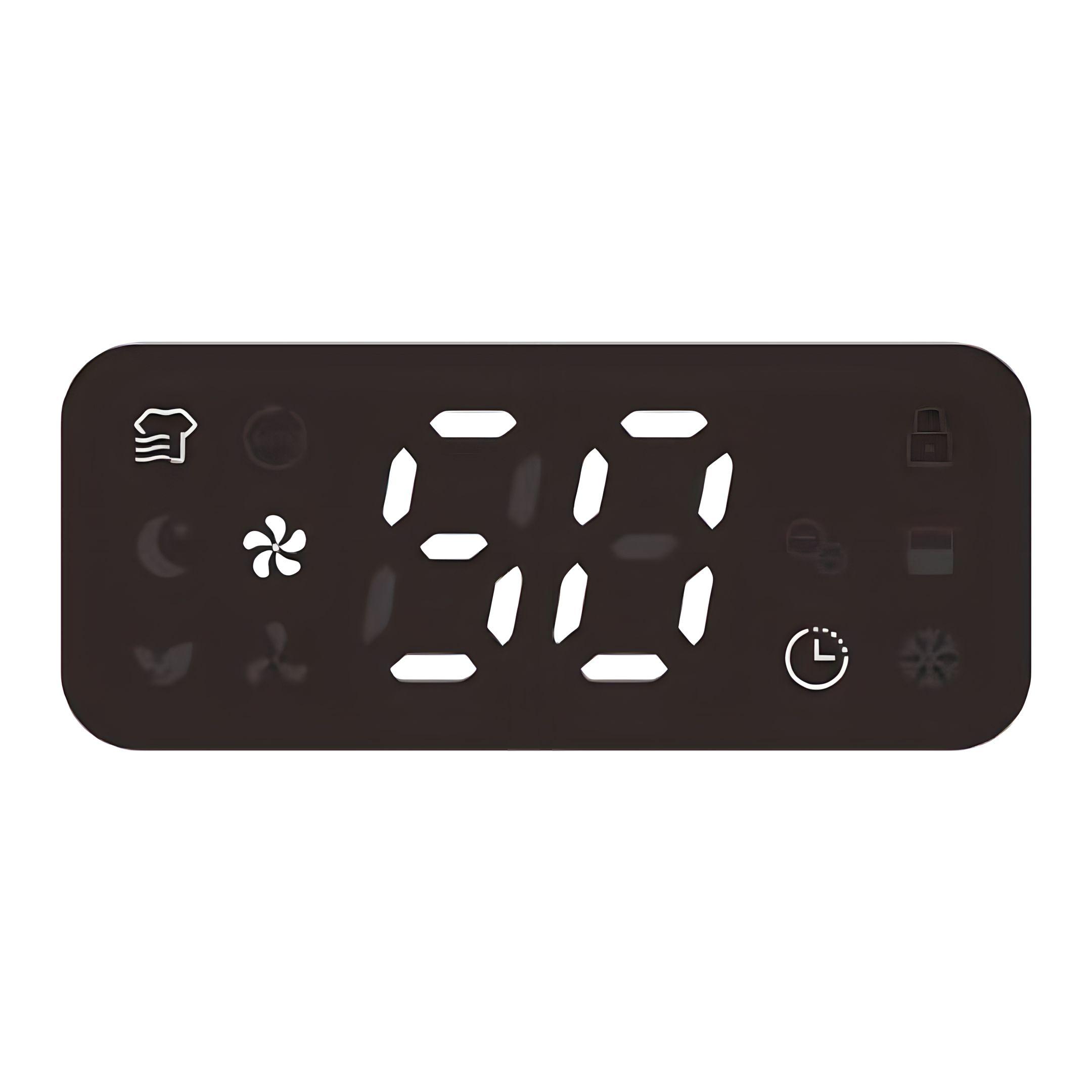

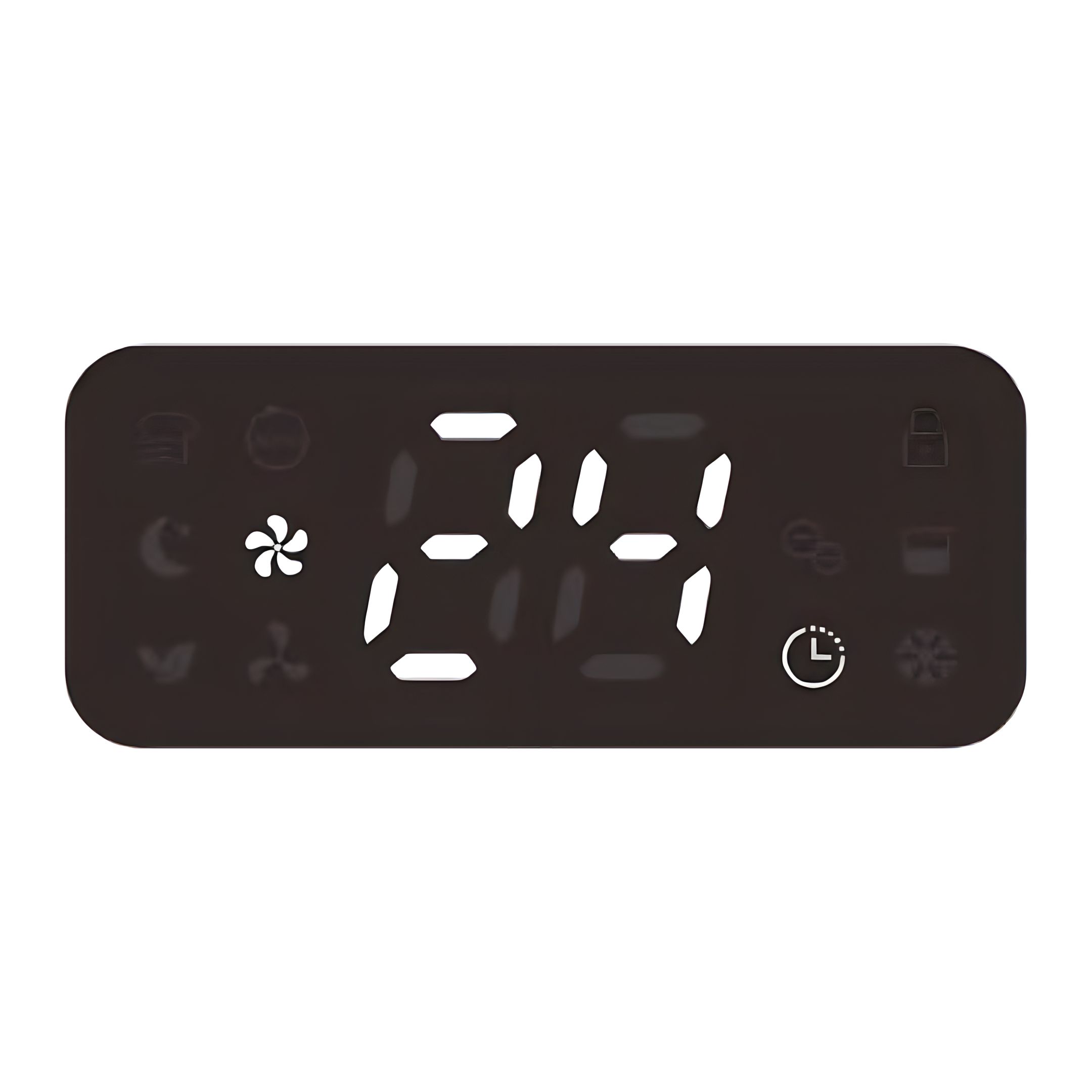

When the unit is switched on, press the Timer button repeatedly to select your preferred automatic shutoff duration. The corresponding indicator will be shown on the display.

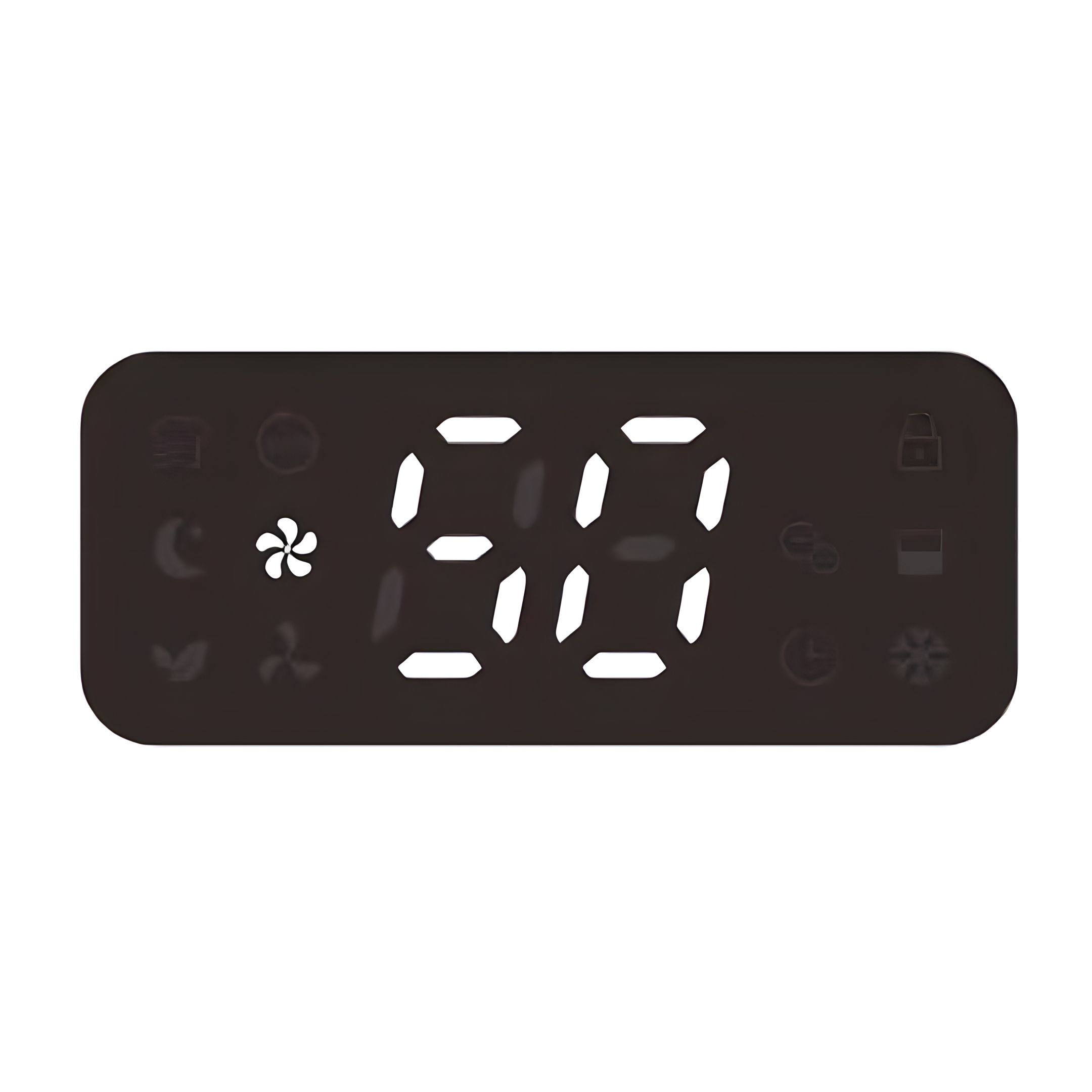

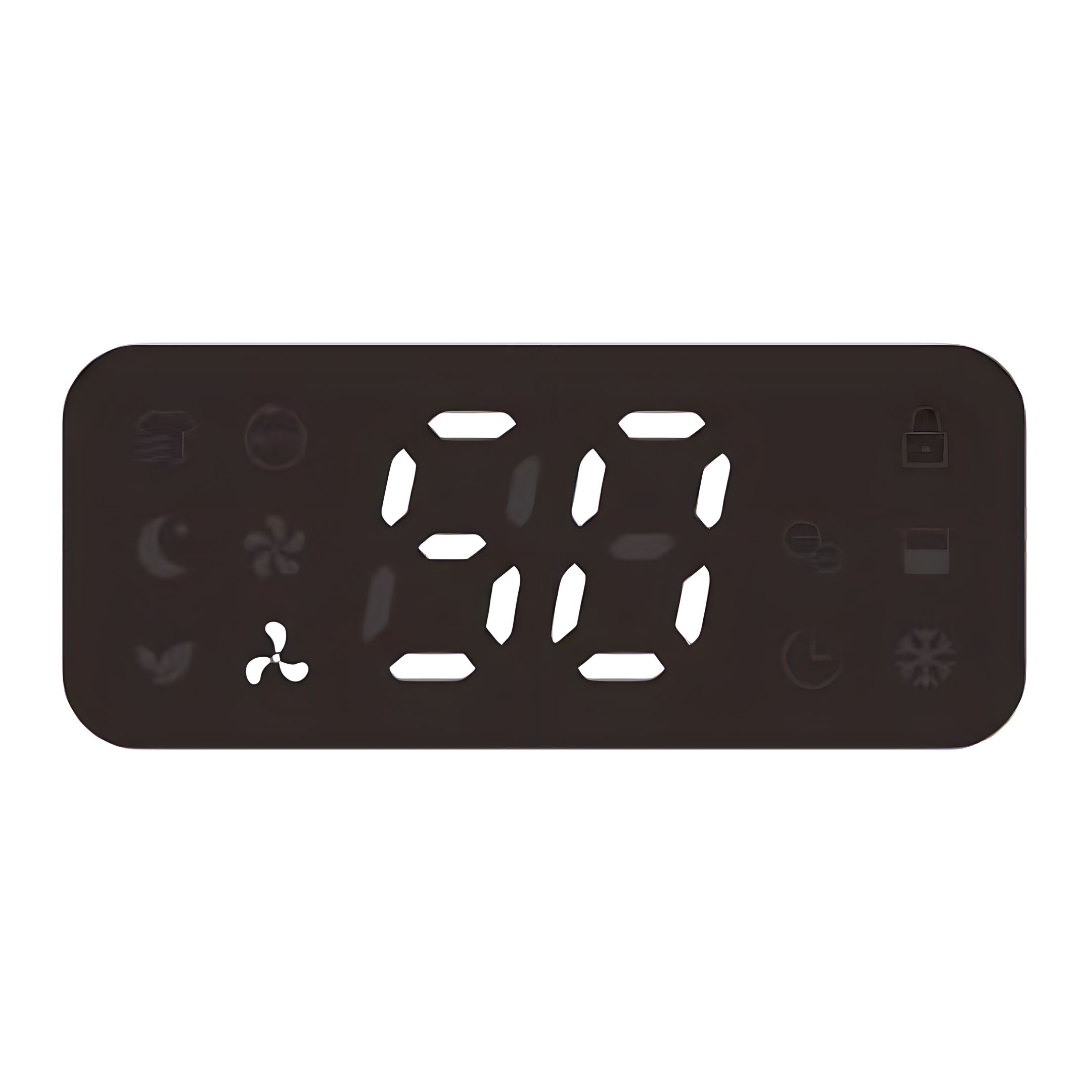

Press the Fan Speed button to select your preferred fan speed setting of low and high to meet the different usage requirements.

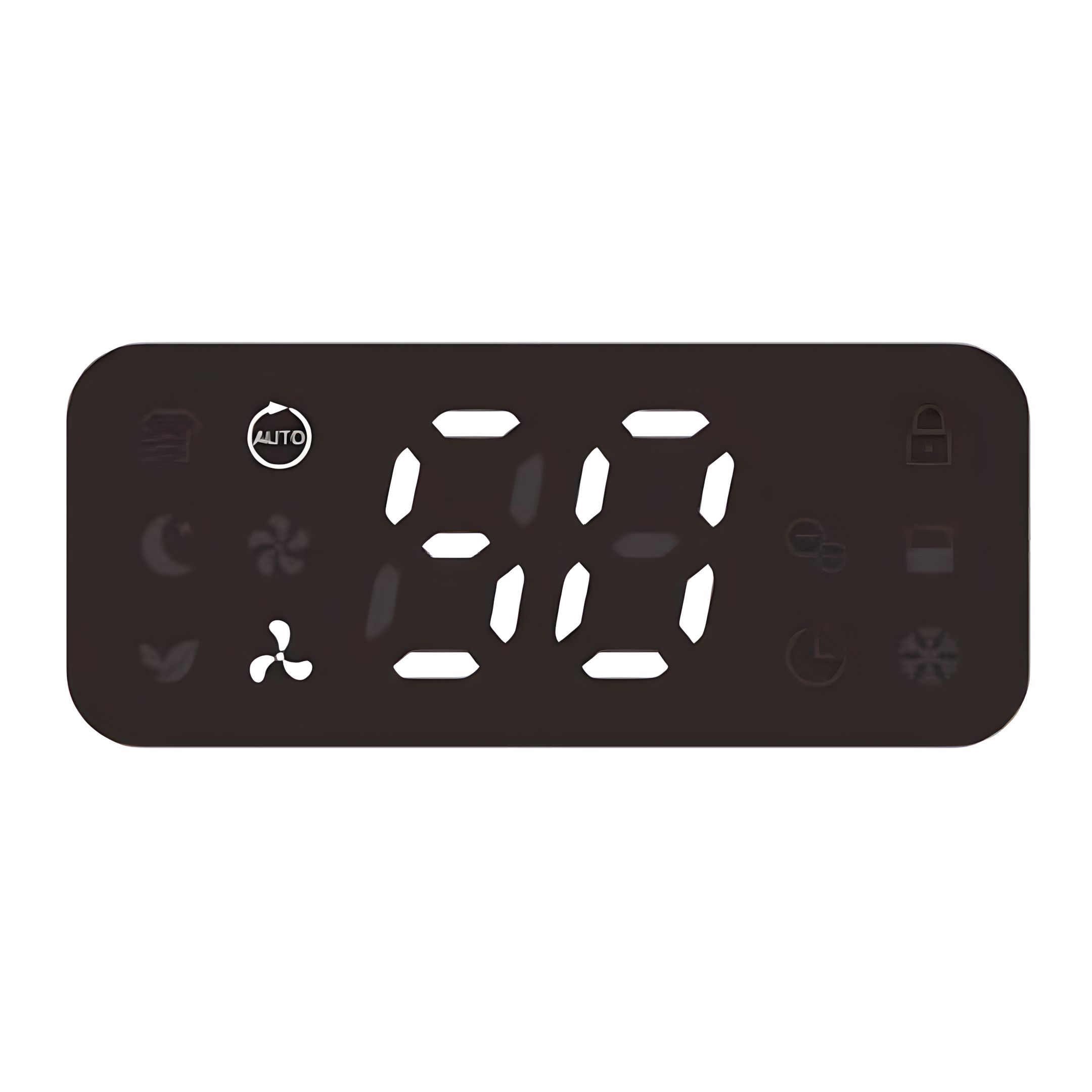

Press the Auto button to enter the Auto Dehumidifying Mode, the unit runs automatically according to the ambient humidity detected in the air, as below:

• Detected ambient humidity: RH above 65%

  1. Compressor: operating
  2. Fan speed: high

• Detected ambient humidity: 55% to 65%

  1. Compressor: operating
  2. Fan speed: low

• Detected ambient humidity: RH below 55%

  1. Compressor: not operating
  2. Fan speed: off

Note: Manual humidity setting is disabled in Auto mode.

Auto mode check cycle

1. If the humidity drops below 55%, the compressor and fan switch off.
2. After 55 minutes, the fan switches on.
3. After 60 minutes, the H/T sensor switches on (five minutes after the fan) and measures the humidity.
4. If the humidity is above 55%, the compressor starts and the unit dehumidifies again.
5. If the humidity is at or below 55%, the fan switches off.
6. The next check starts again after 55 minutes.

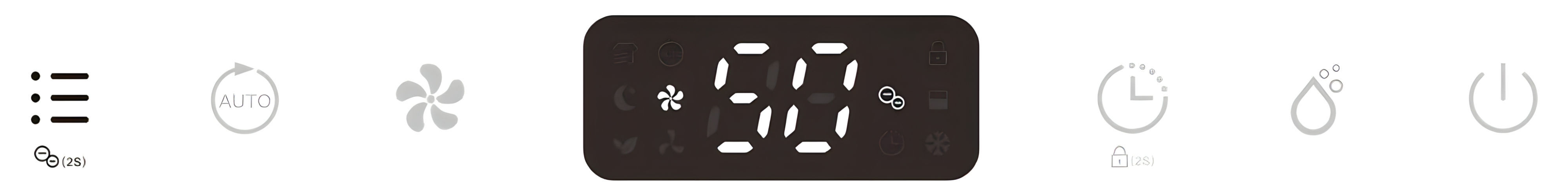

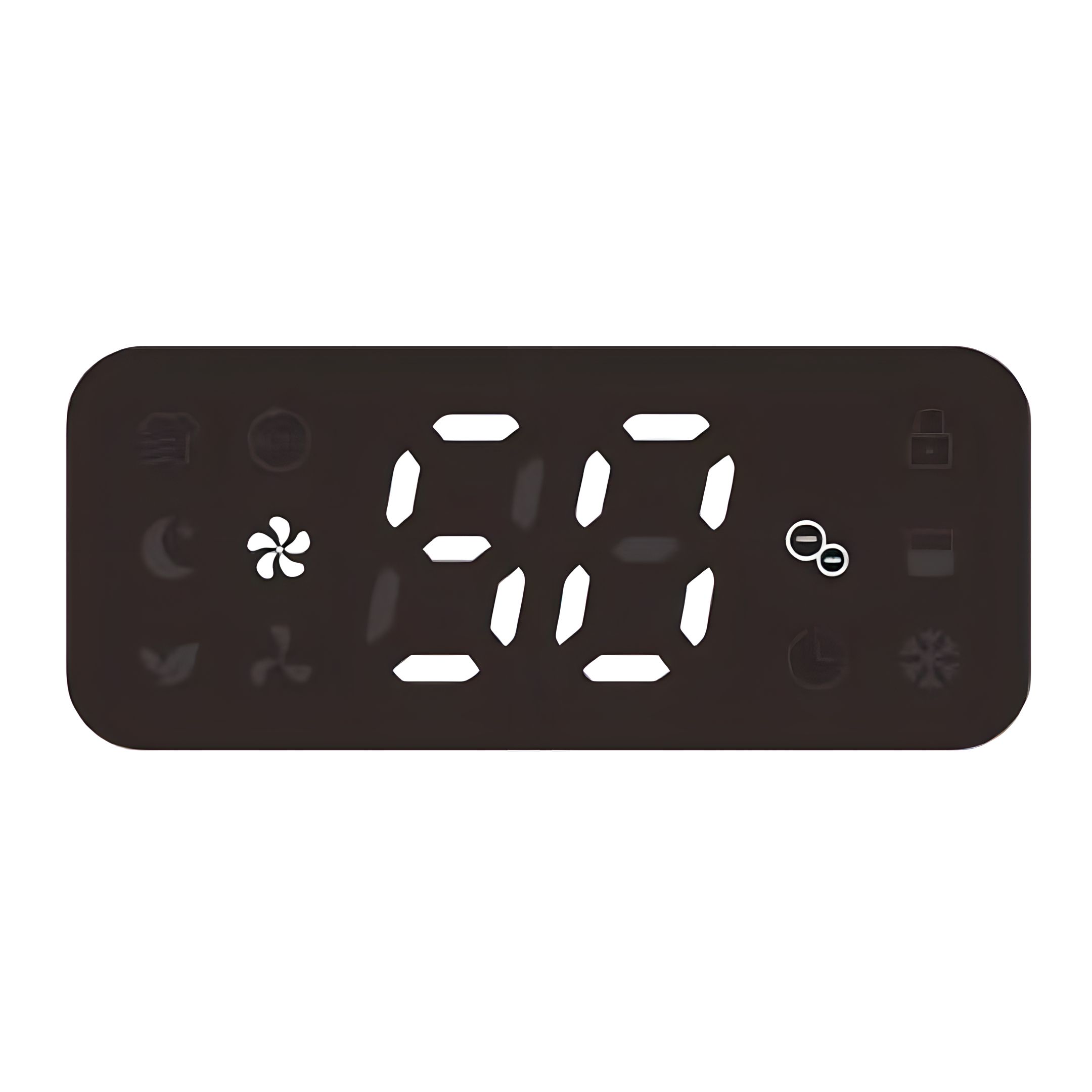

• Press and hold Mode button for 2 seconds to activate the ion function.

• Built-in ionizer can produce negative ions to freshen up the air quality and to promote air purification through the elimination of airborne allergens and germs.

Note: If the fan stops working, ionizer function will automatically be deactivated.

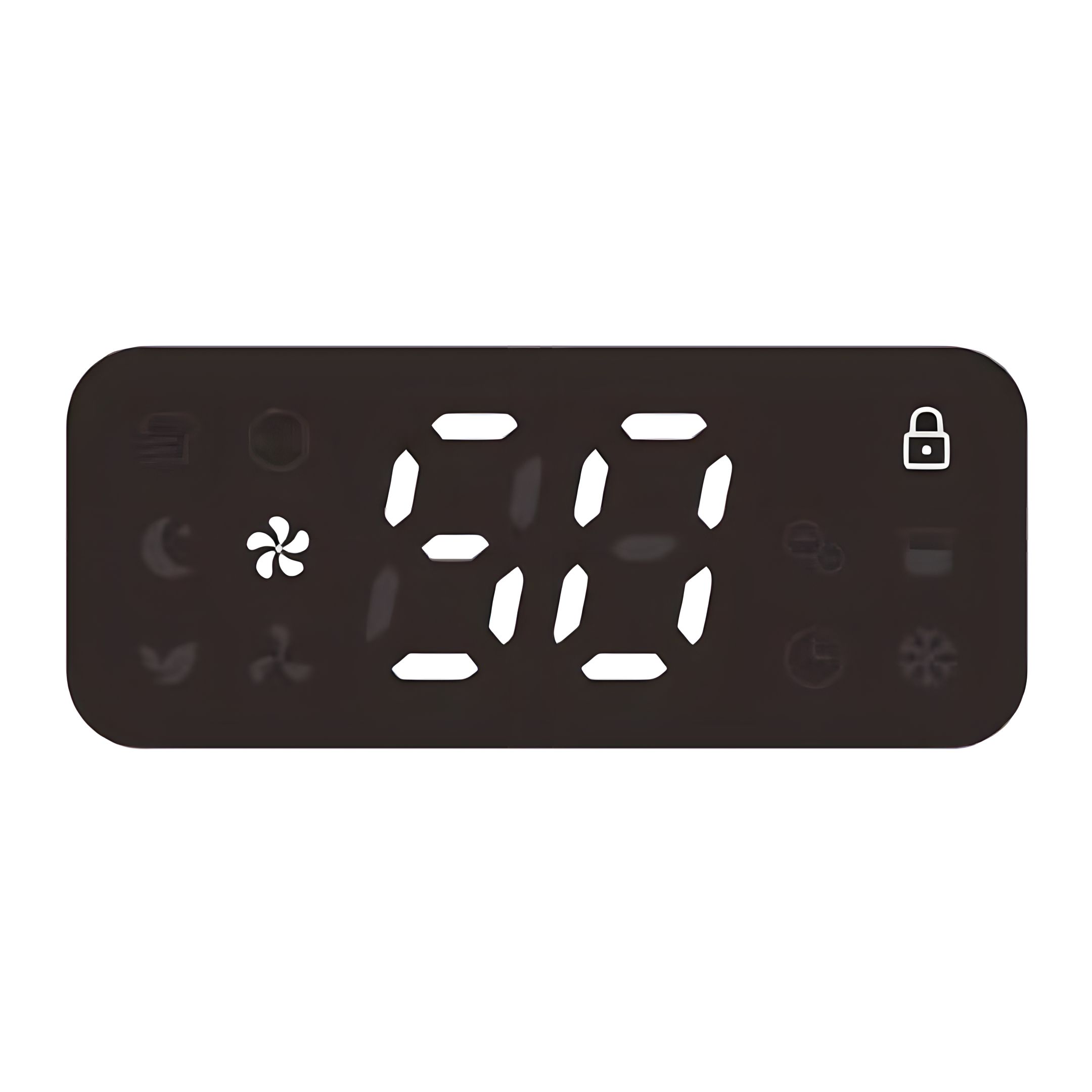

• To prevent the mishandling by young children, unit is equipped with a Lock function.

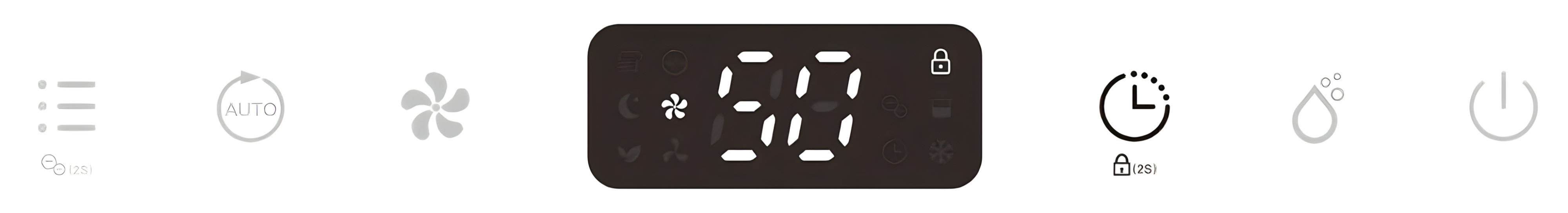

• Press Timer button for 2 seconds to activate or deactivate the Lock function.

Note: After activating the Lock function, the Lock indicator will be displayed on screen.

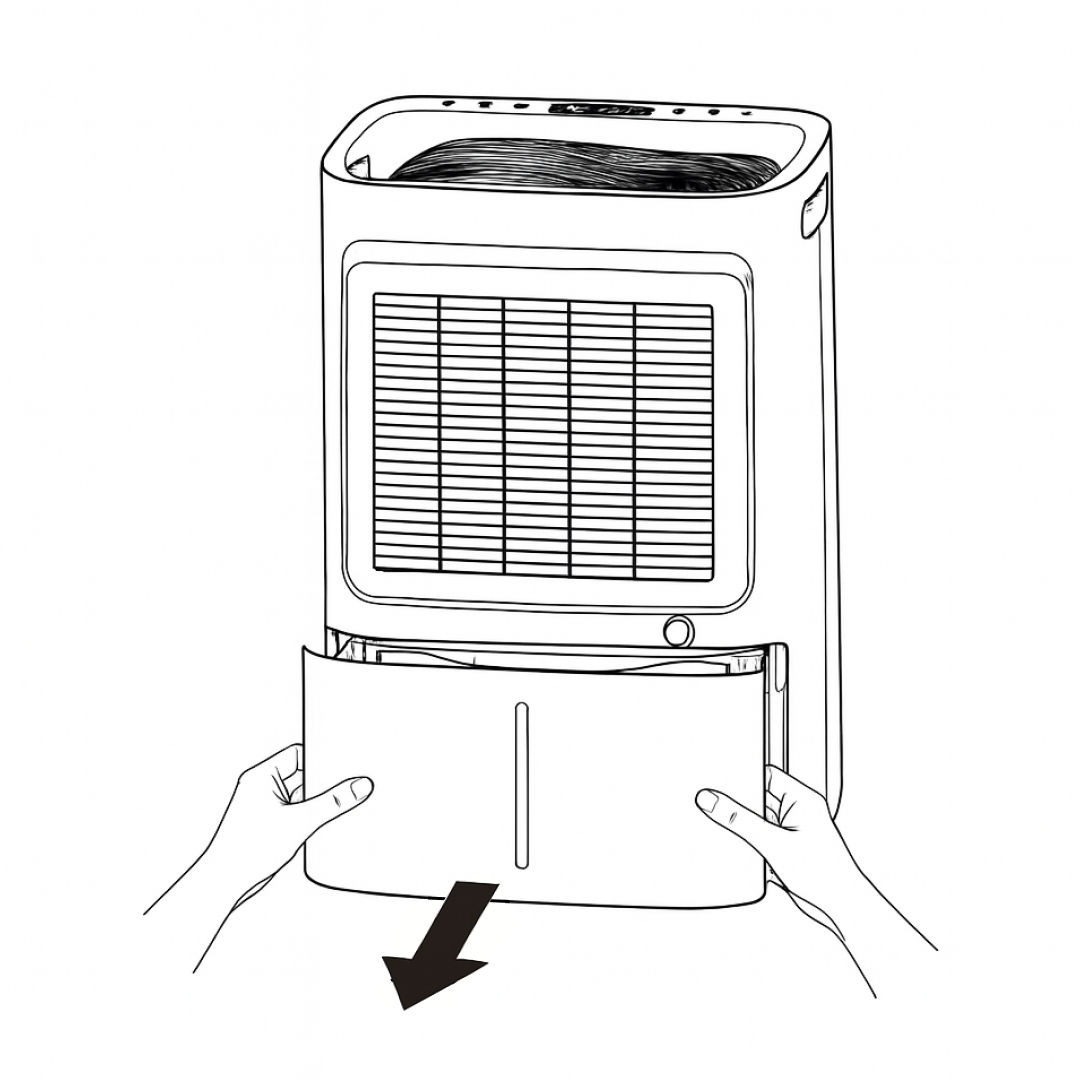

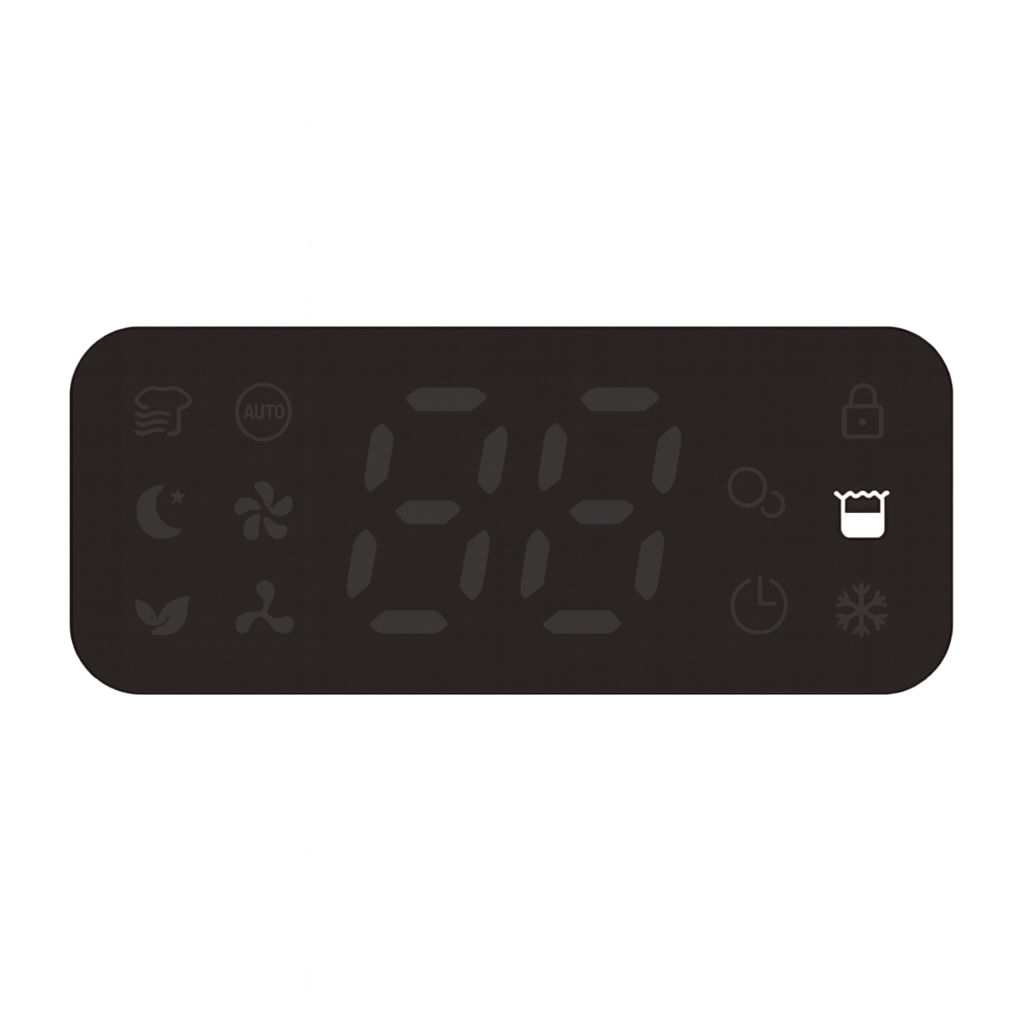

When the water tank becomes full during normal use, the unit shuts off automatically with tank full indicator on the screen and the buzzer sounds 5 times.

Note: If water tank is removed or not placed properly, this will also occur.

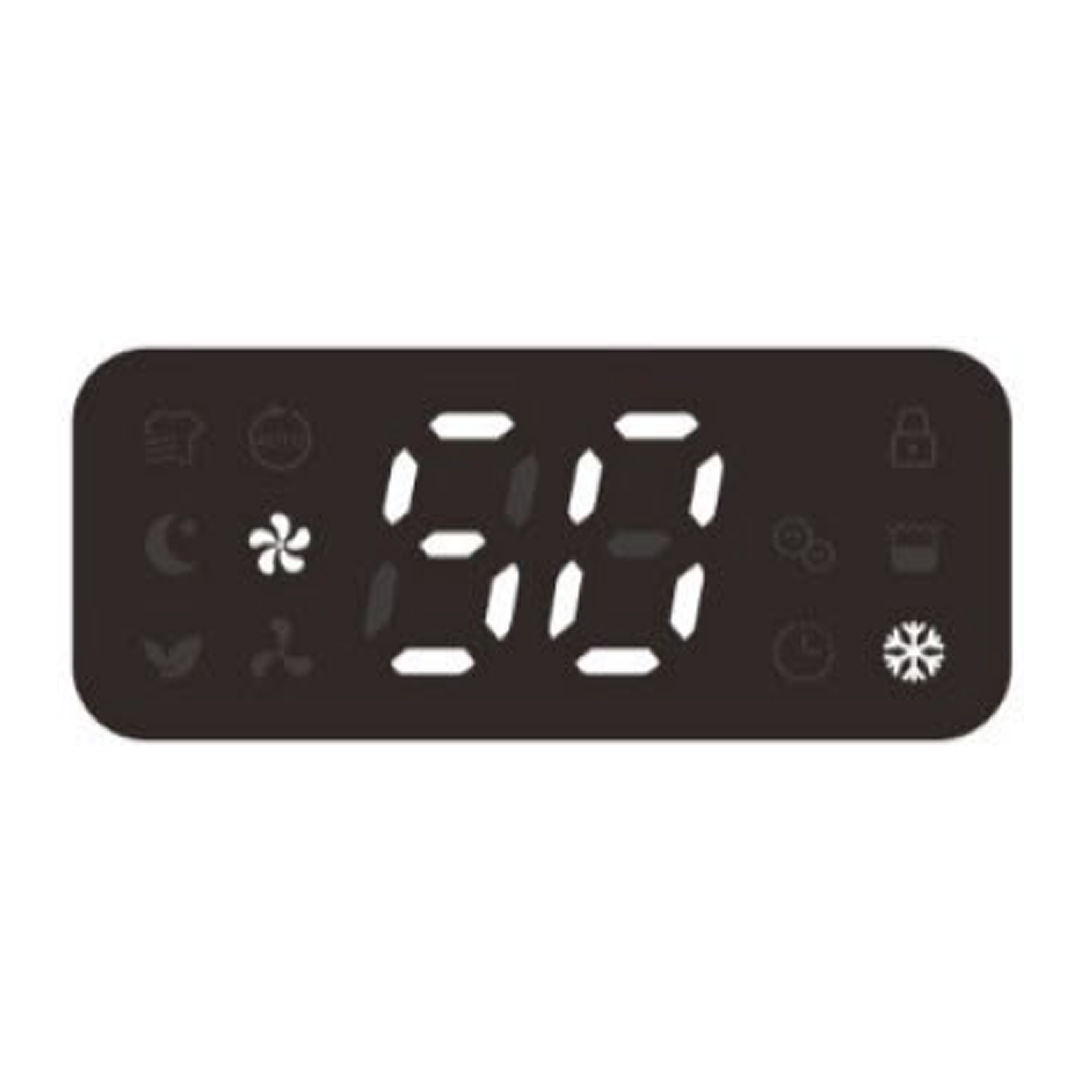

• The unit is equipped with an automatic defrost feature.
• When room temperature is too low, compressor shuts off and unit runs on high fan speed setting until the frost has disappeared, no other setting can be made for this feature.
• Its corresponding indicator will be displayed on screen.

• Press Mode button once to select the Laundry Drying mode.
• Its corresponding Laundry Drying indicator will be displayed on screen.
• The unit works in continuous dehumidification with high fan speed for 6 hours then switch off automatically.

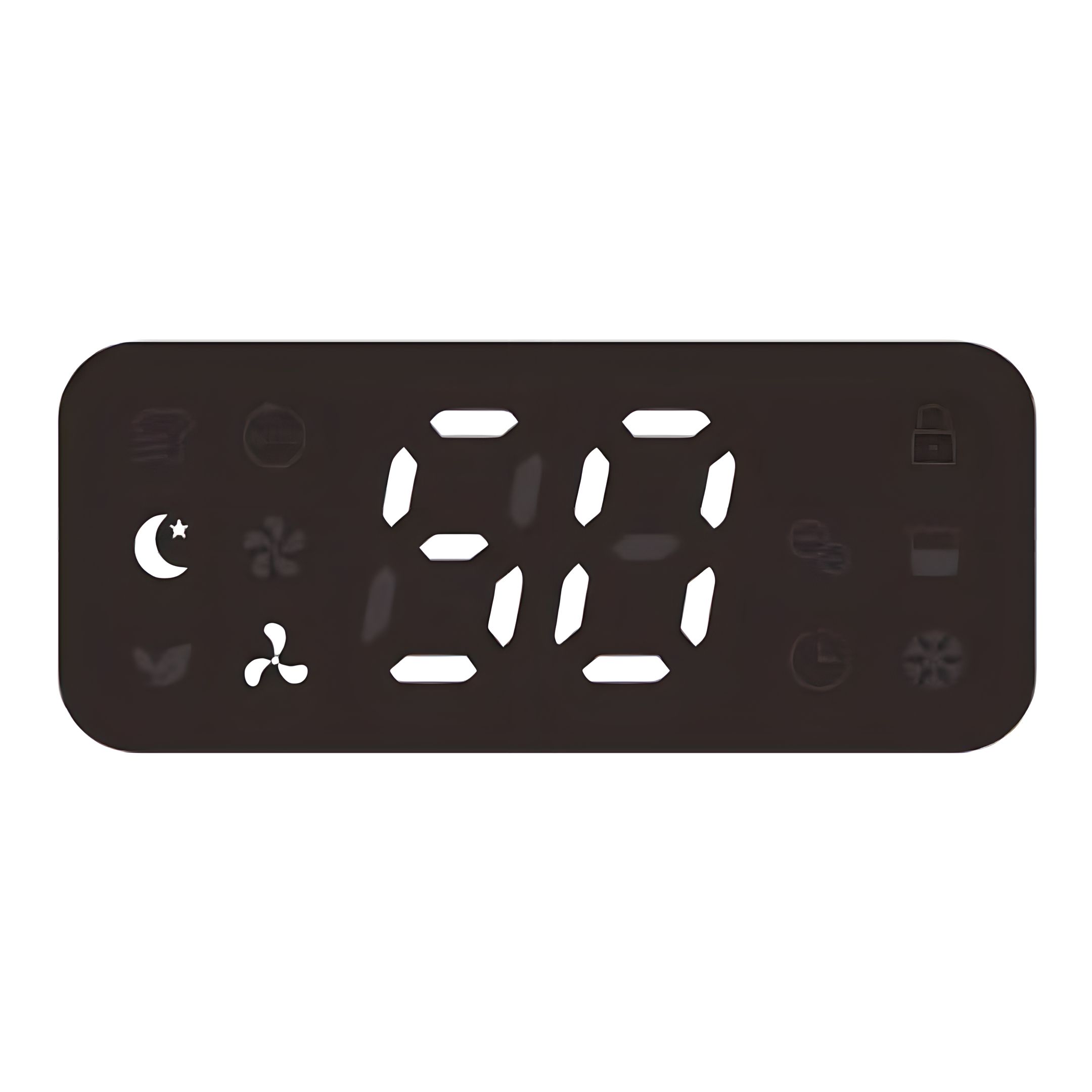

• Press Mode button twice to select the Night mode.

• Its corresponding Night mode indicator will be displayed on screen.

• The unit works in previous mode but in low fan speed and 10 seconds later, all indicators will be off.

Note: In Night Mode, press any button once to wake up the display. Press again to operate as usual.

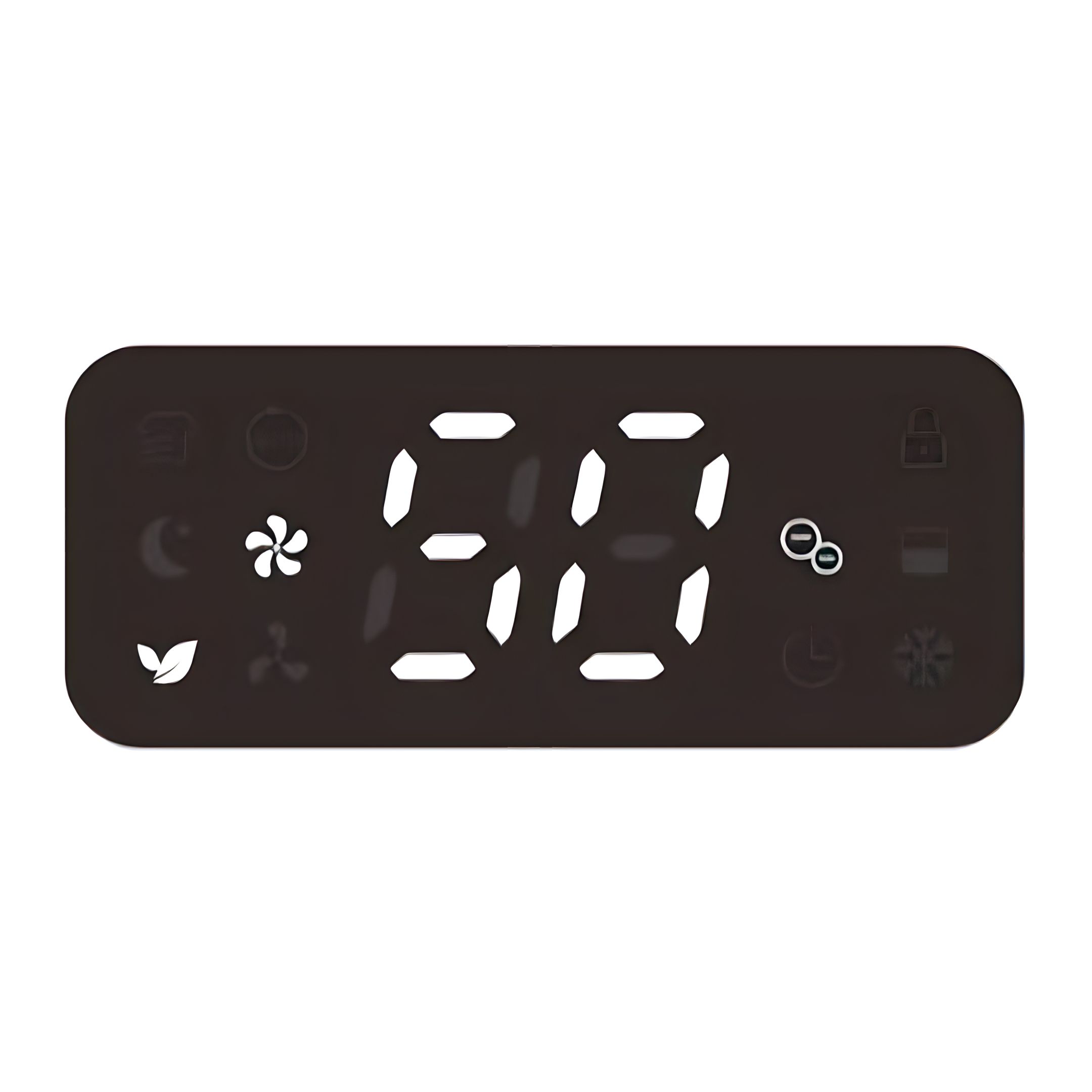

• Press Mode button 3 times to select the Air Purifying mode.
• Its corresponding Air Purifying indicator and lonizer indicator will be displayed on screen.
• The unit works with high fan speed without dehumidifying, anion function start working as well.

Note: Anion function can be switched off by pressing and holding the Mode button for 2 seconds.

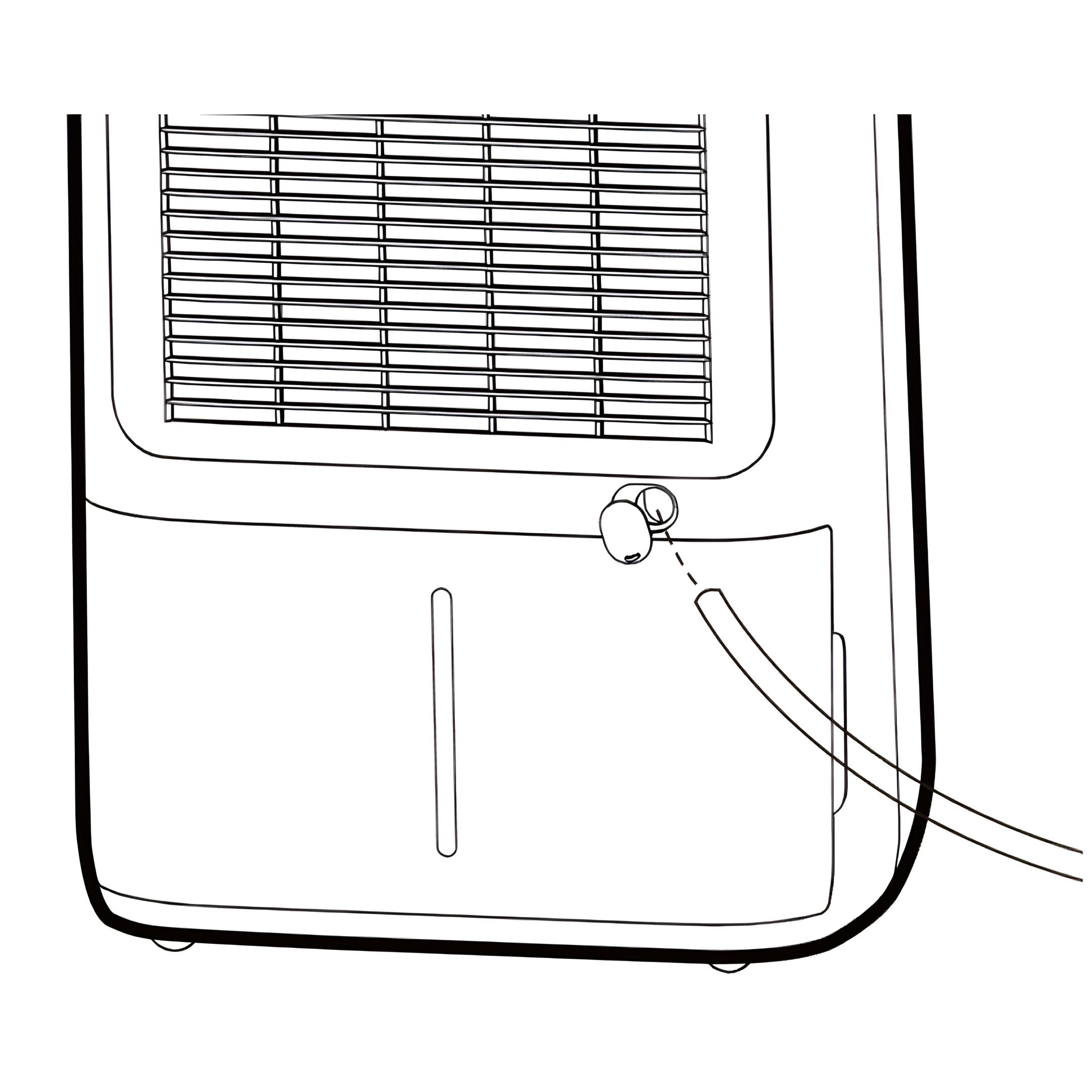

Remove the rubber plug covering the drain hose connection.

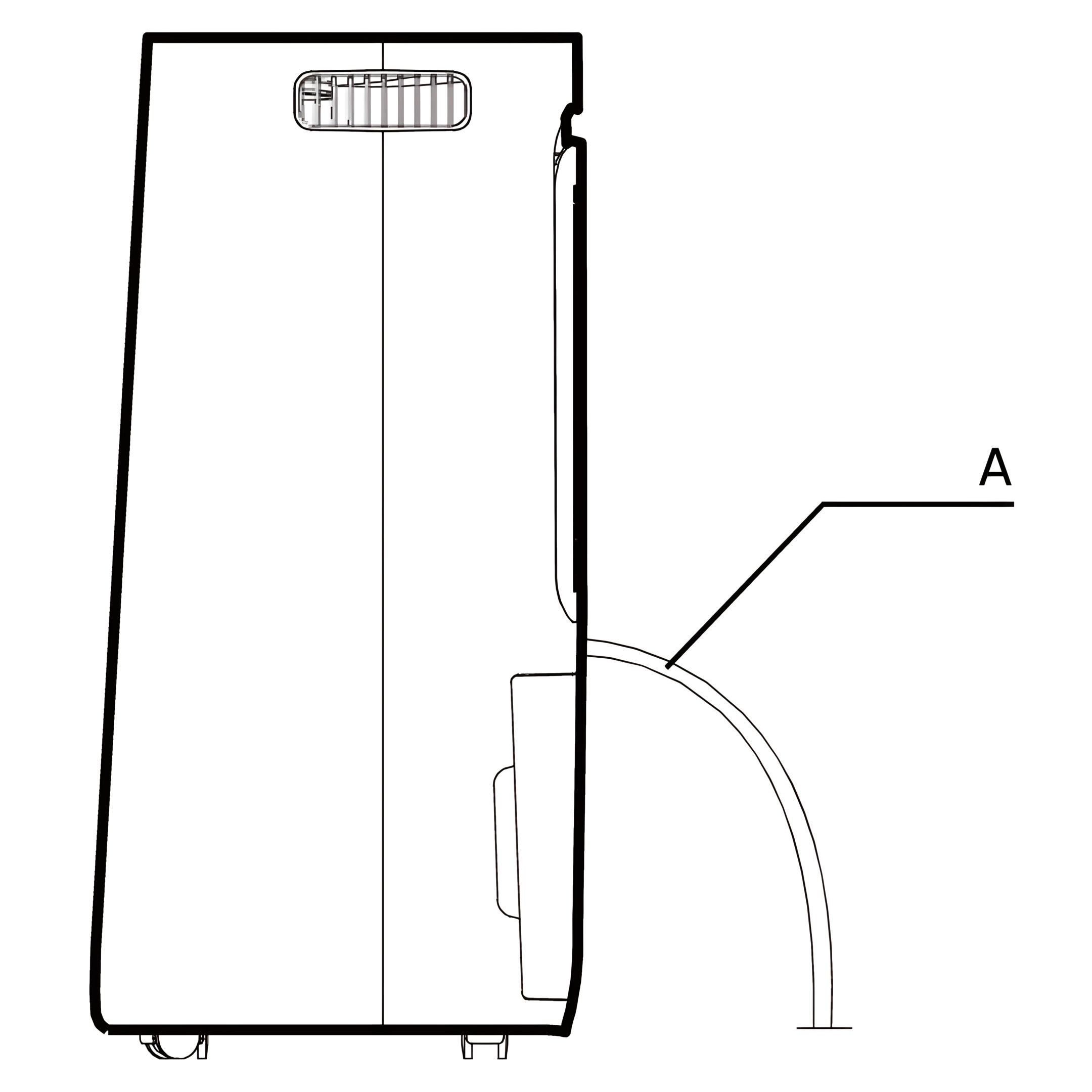

Connect a suitable drain hose (A)(14 mm inner diameter) through the drainage outlet.

Ensure that the hose is secure and tight to prevent leakage.

To ensure the effectiveness of the dehumidifier, it is recommended to clean the unit at least every two weeks.

1. Turn the dehumidifier off and pull out the plug before cleaning.

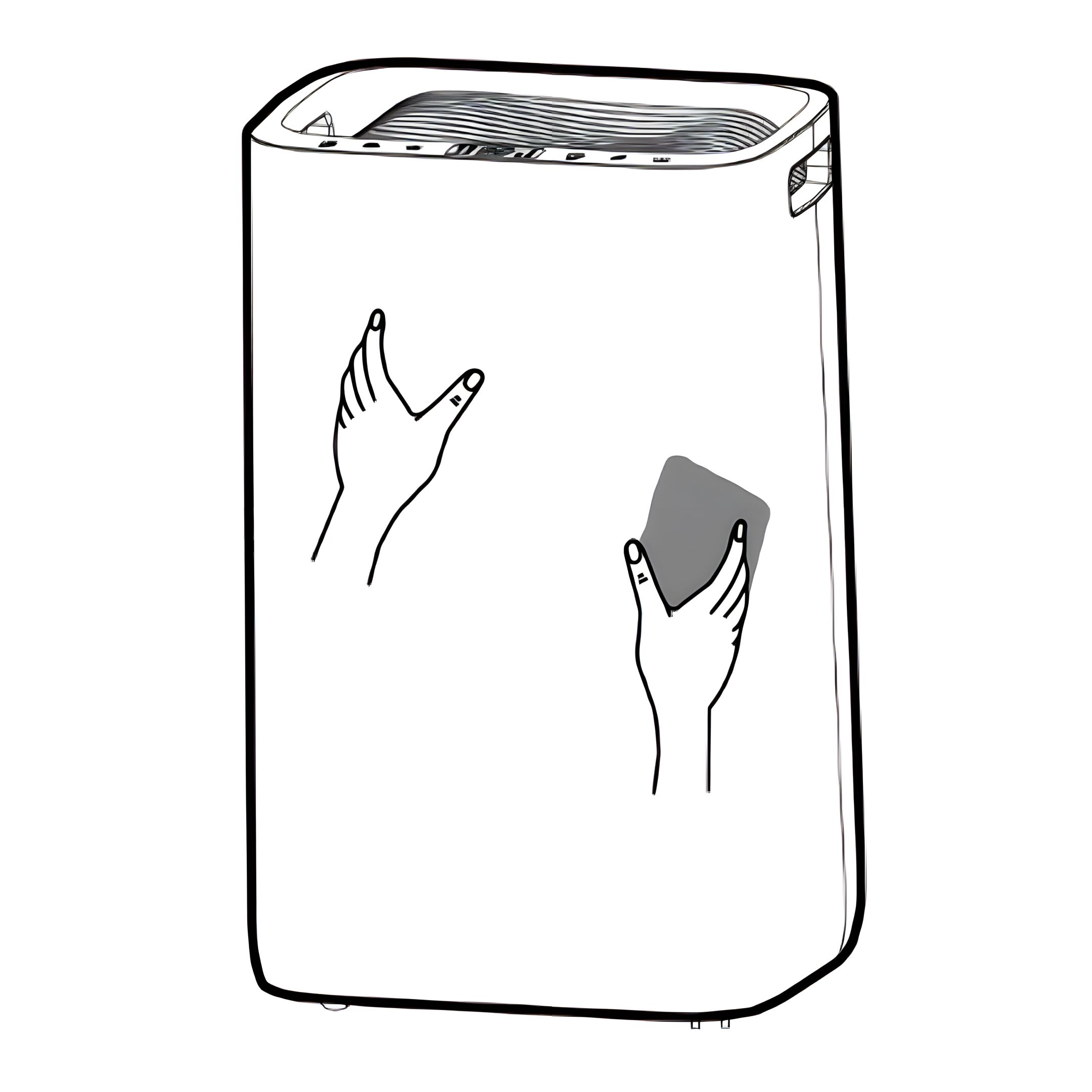

2. Use a soft cloth to gently wipe the outer case to remove dust.
3. Vacuum clean the air inlet and outlet grilles of the dehumidifier.

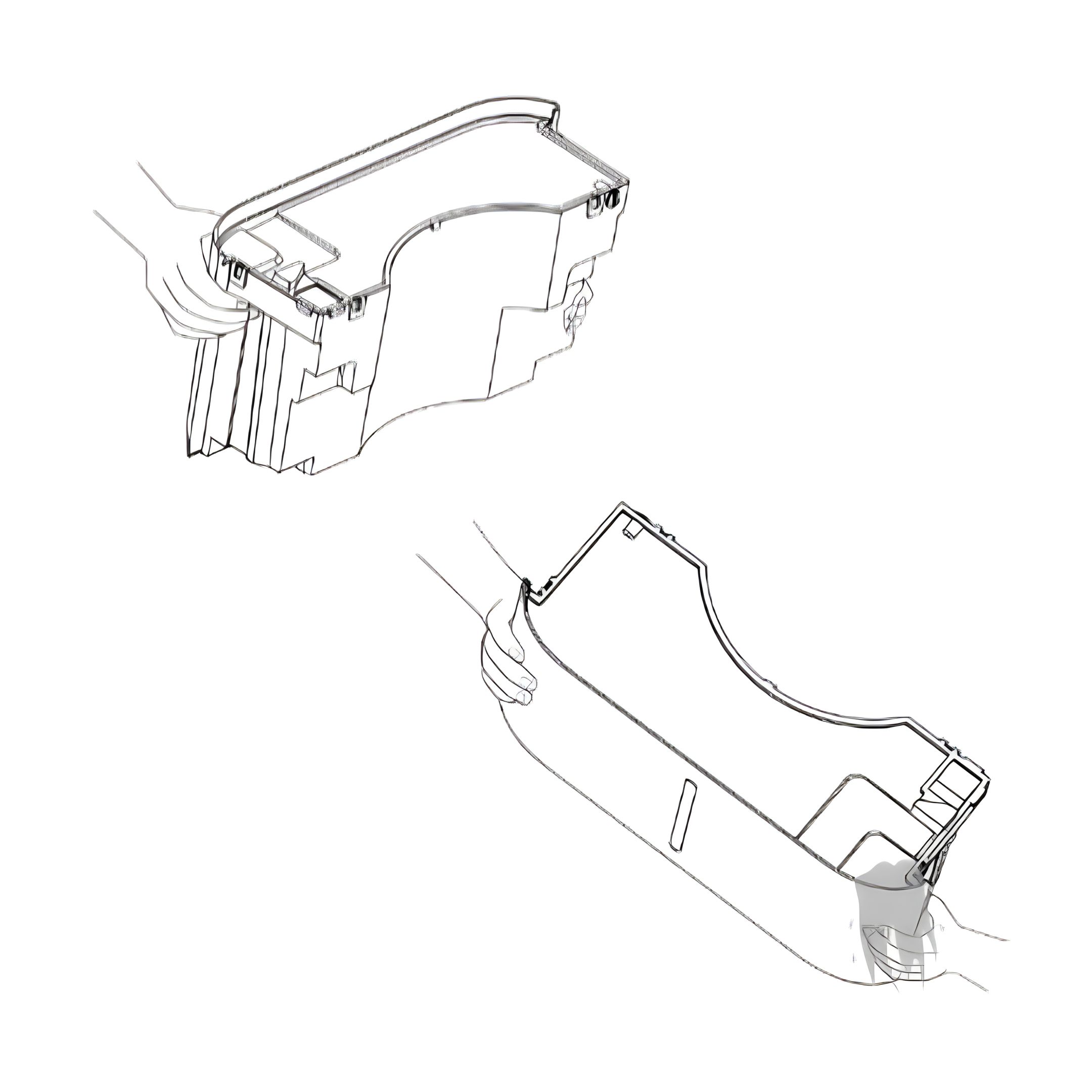

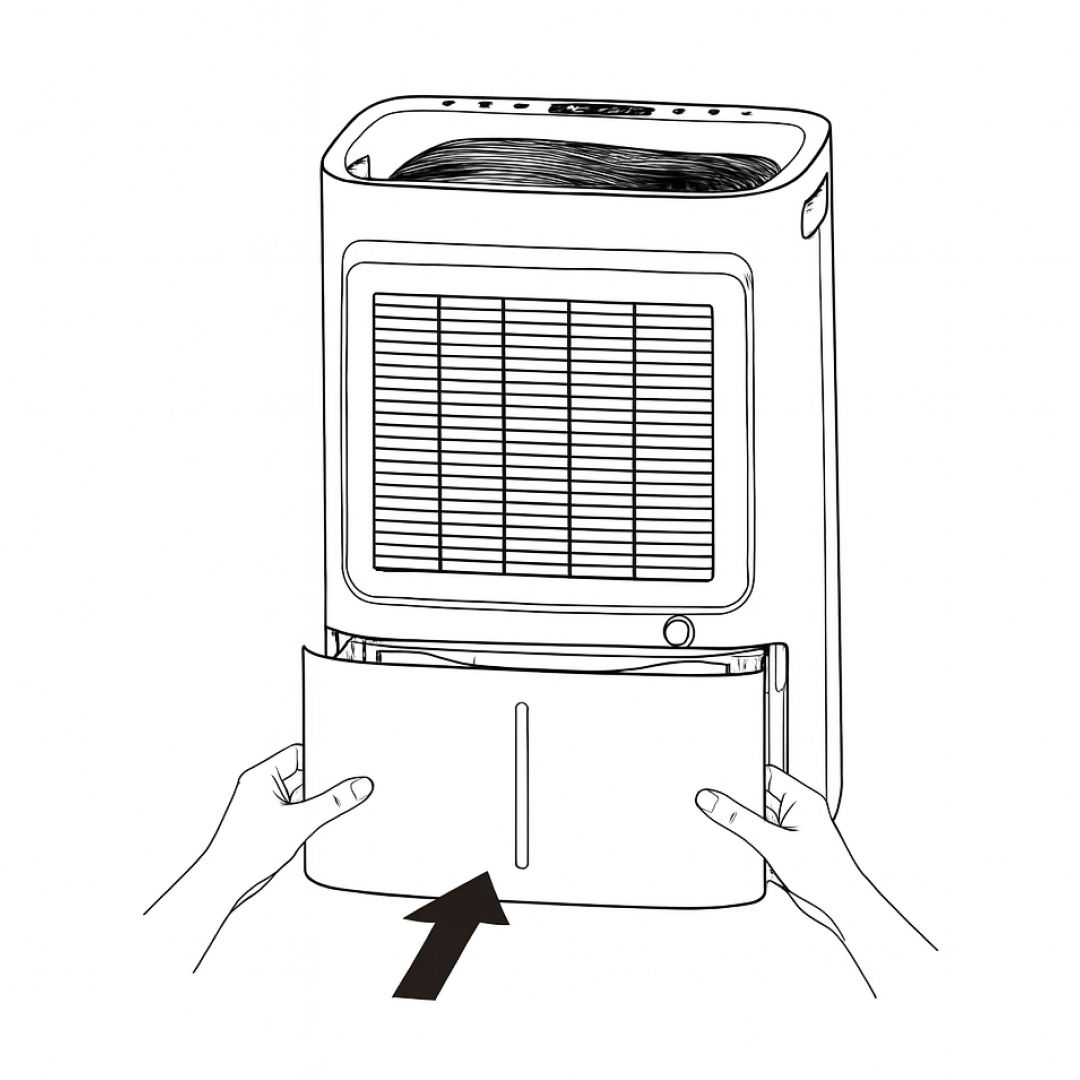

4. Remove the water tank and wash it by hand using a mild detergent.
5. Rinse it with Clean Water.

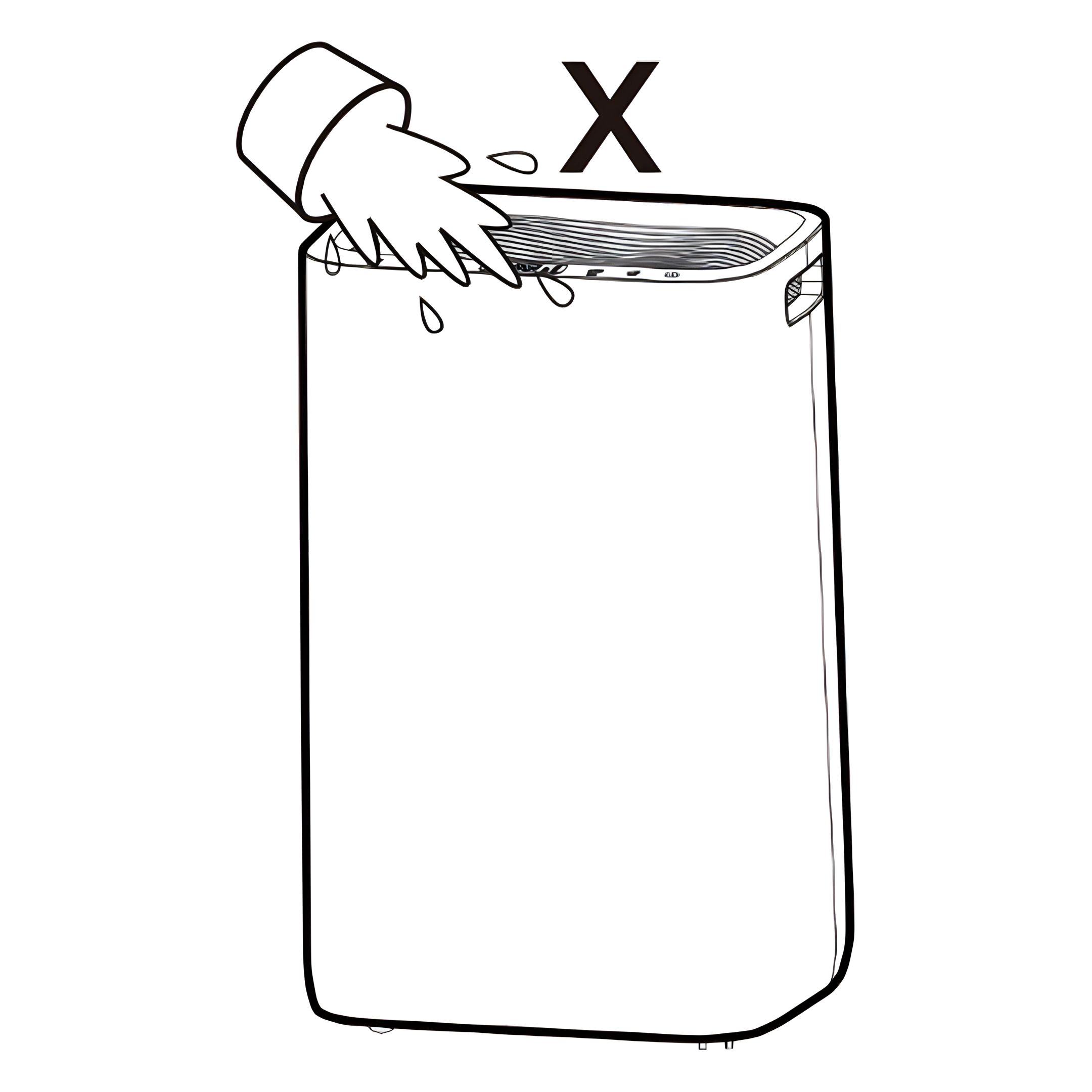

Note: Do not spray water directly onto the unit.

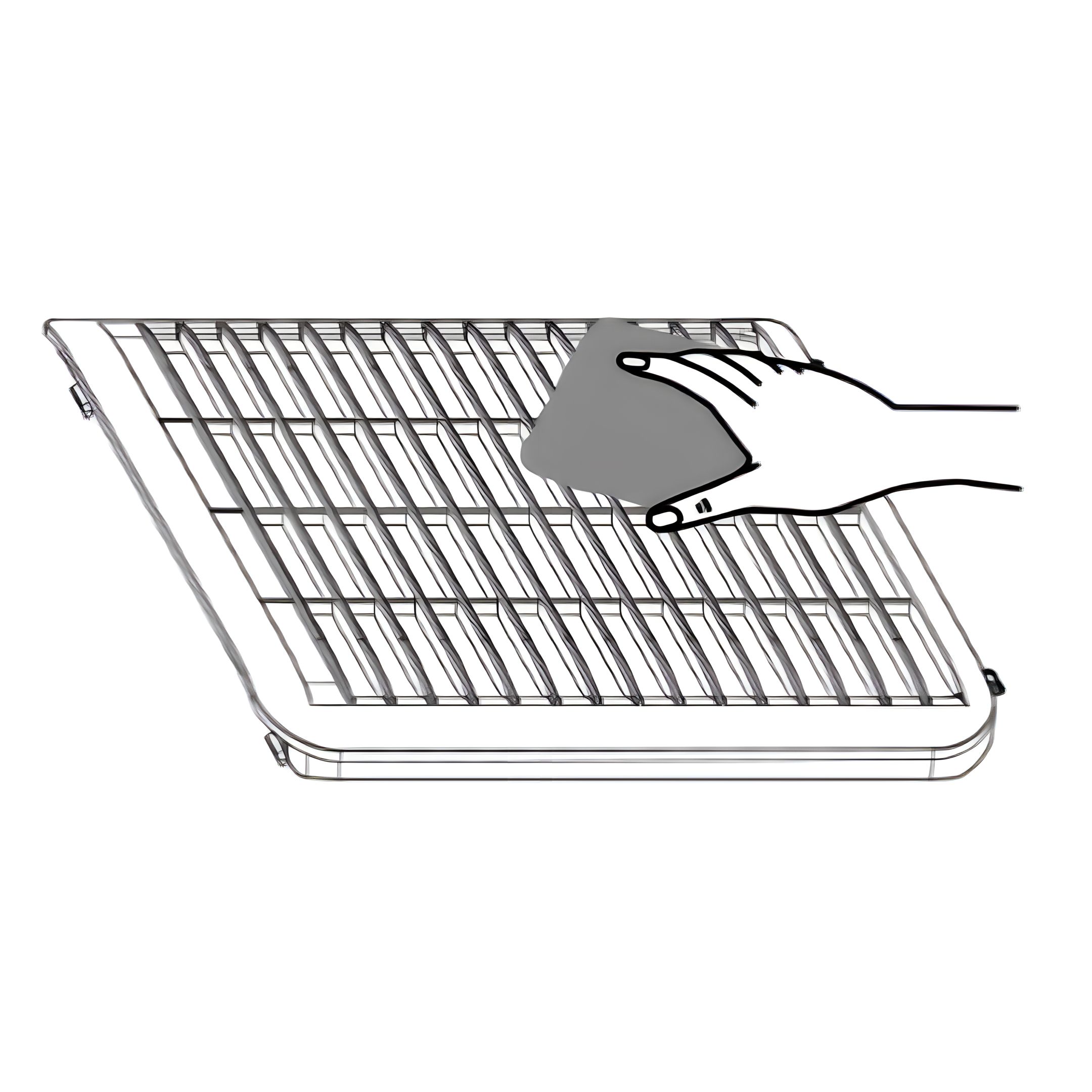

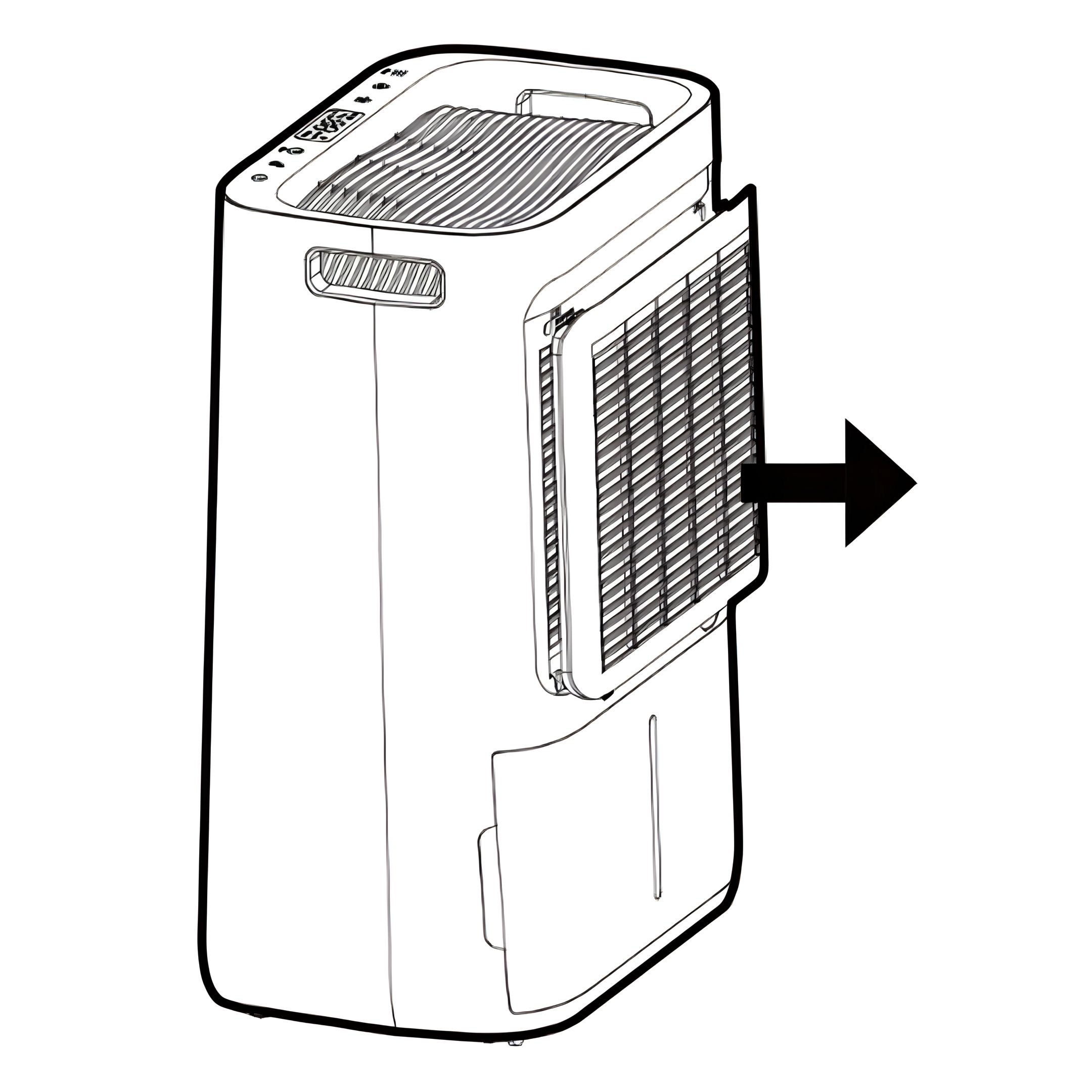

1. Remove the inlet frame from the back.

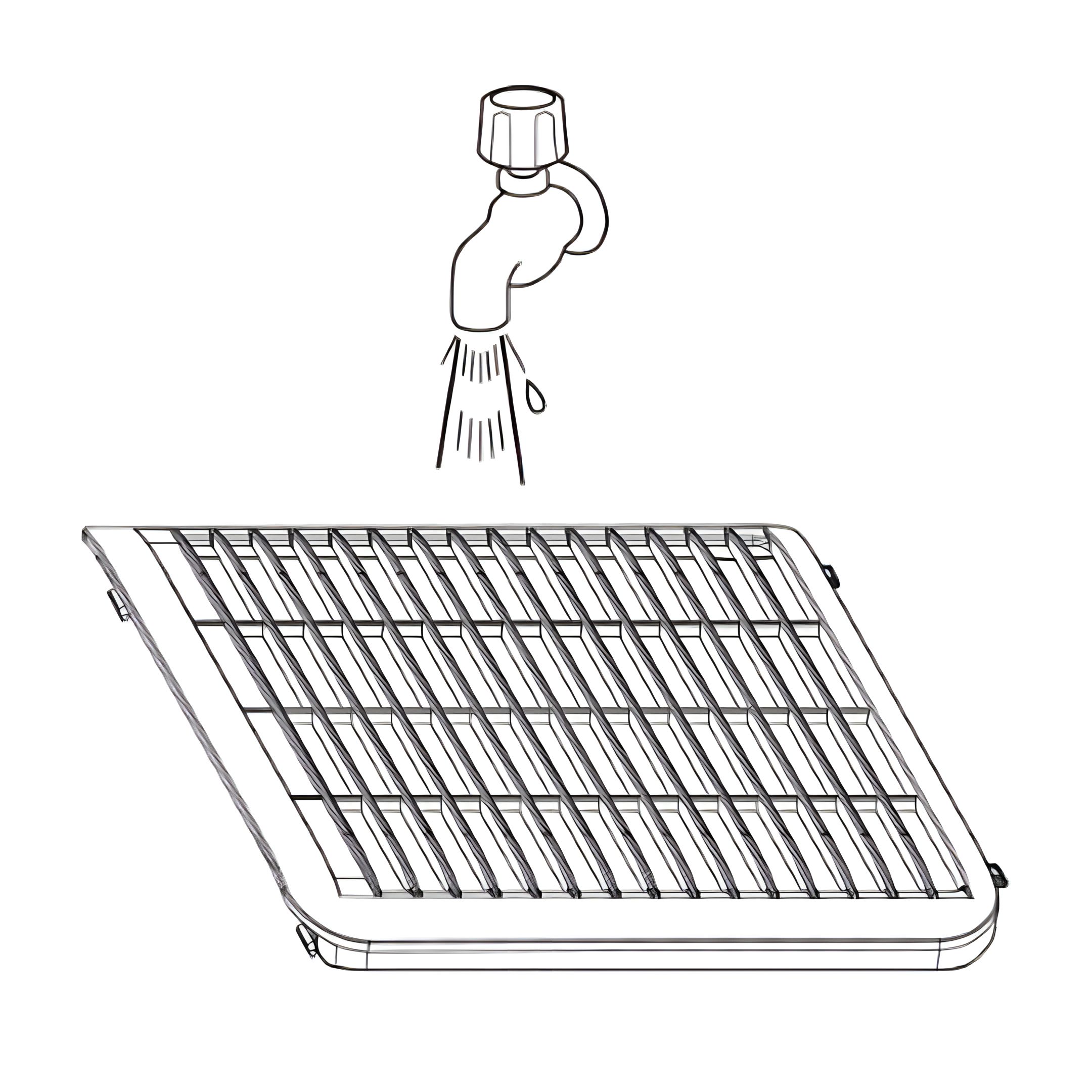

2. Wash the filter frame carefully in warm water, use a mild detergent if necessary.

Note: Do not wash the filter frame in a dishwasher.

1. Rinse the filter frame in clean water and let it dry before reinserting it.
2. Fit the filter frame back onto the unit.

Note: DO NOT use the dehumidifier without the Air Filter Frame in place.
