GRLLR Rotisserie: Assembly and Operation Manual

Step-by-step guide for safely assembling and operating the GRLLR Rotisserie for Prime Barbecues. Includes important safety warnings, electrical grounding instructions, assembly guidance, and warranty information in multiple languages.

Product Information

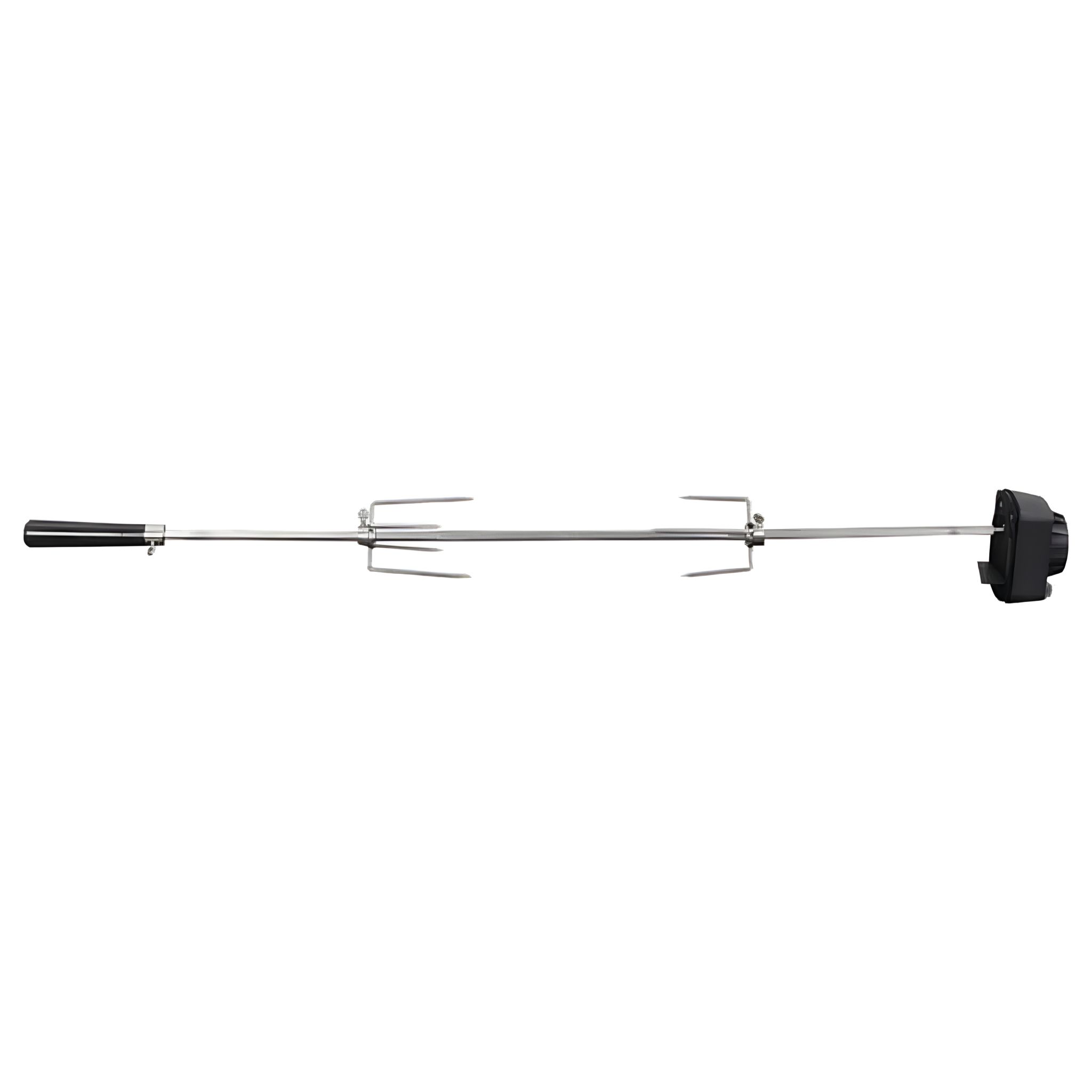

Rotisserie for Prime Gas Barbecues

Upgrade your grilling experience with the GRLLR Rotisserie for Prime Gas Barbecues.

This size adjustable rotisserie effortlessly cook tender, juicy meats like a pro as the rotisserie slowly turns, ensuring even heat distribution for mouthwatering results every time. Perfect for roasts, chickens, and more.

View product
SKU
GR-24-ROT
Collection Prime
Made For Prime G3S, Prime G4S, Prime G5S, Prime G4 Build-in
Product Size Adjustable
Rated Power 4W
Maximum Carry Weight 15 Kg

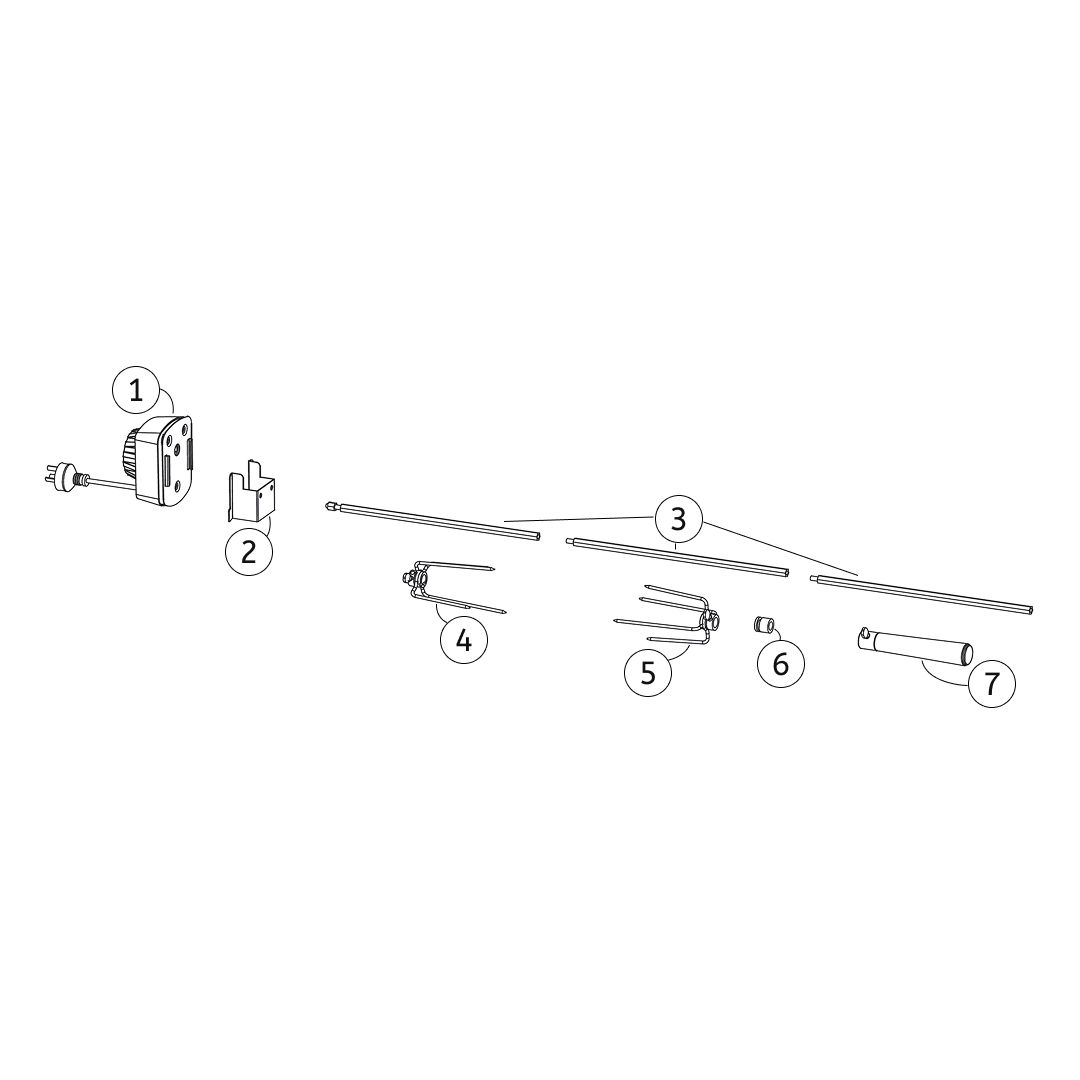

Materials

Rotisserie Motor
1 Piece(s)
Motor Bracket
1 Piece(s)
Spit Rods
3 Piece(s)
Fork (Left)
1 Piece(s)
Fork (Right)
1 Piece(s)
Collar / Fastening Nut
1 Piece(s)
Handle
1 Piece(s)

  1. Assembly

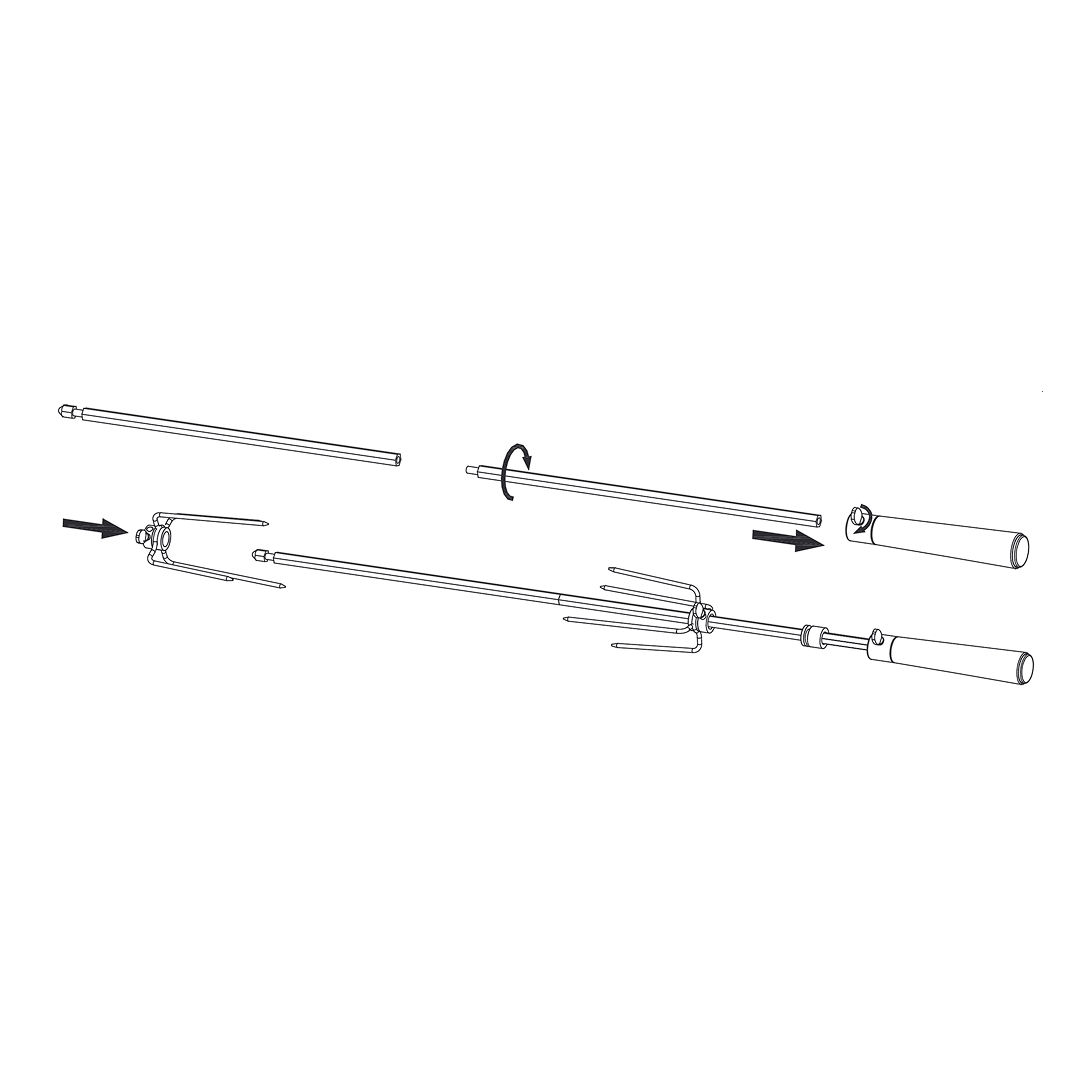

    1. Assemble the Rotisserie Spit (G3S)

    • Detach all Spit Rod Sections (3) by twisting them apart. Remove the Handle (7).

    • Slide the Collar (6) onto the end of the Spit Rod (3).

    • Insert the Right Fork (5) onto the Spit Rod (3) and secure it.

    • Connect the remaining Spit Rod Section (3) and insert the Left Fork (4).

    • Reattach the Handle (7) to the end of the Spit Rod (3) and tighten securely.

    Parts used:

    • Spit Rods | 3 | 2×
    • Fork (Right) | 5 | 1×
    • Fork (Left) | 4 | 1×
    • Collar | 6 | 1×
    • Handle | 7 | 1×

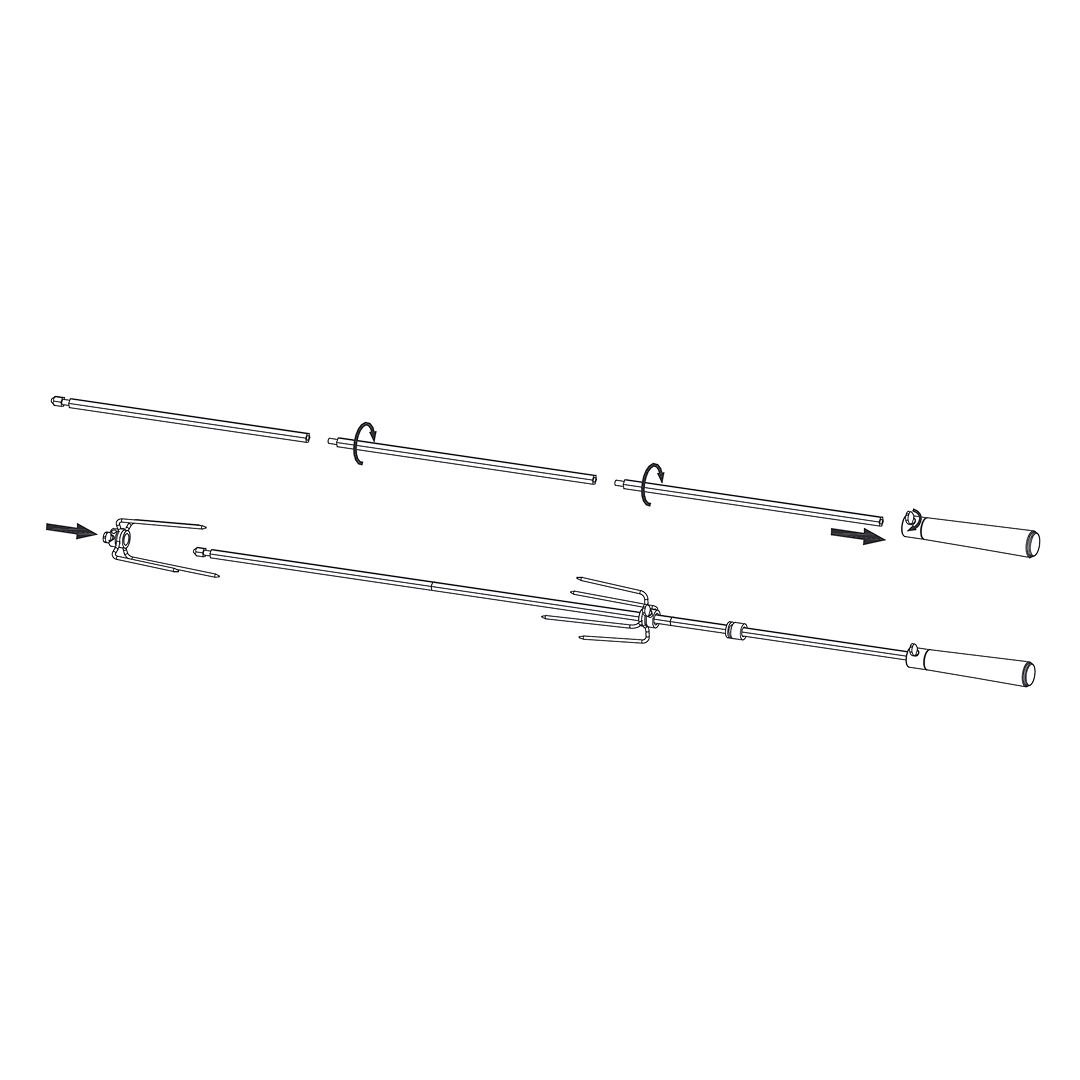

  2. 2. Assemble the Rotisserie Spit (G4S / G5S)

    • Detach all Spit Rod Sections (3) by twisting them apart. Remove the Handle (7).

    • Slide the Collar (6) onto the end of the Spit Rod (3).

    • Insert the Right Fork (5) onto the Spit Rod (3) and secure it.

    • Connect the remaining Spit Rod Sections (3) one by one until fully assembled.

    • Insert the Left Fork (4) onto the Spit Rod (3).

    • Reattach the Handle (7) to the end of the Spit Rod (3) and tighten securely.

    Parts used:

    • Spit Rods | 3 | 3×

    • Fork (Right) | 5 | 1×

    • Fork (Left) | 4 | 1×

    • Collar | 6 | 1×

    • Handle | 7 | 1×

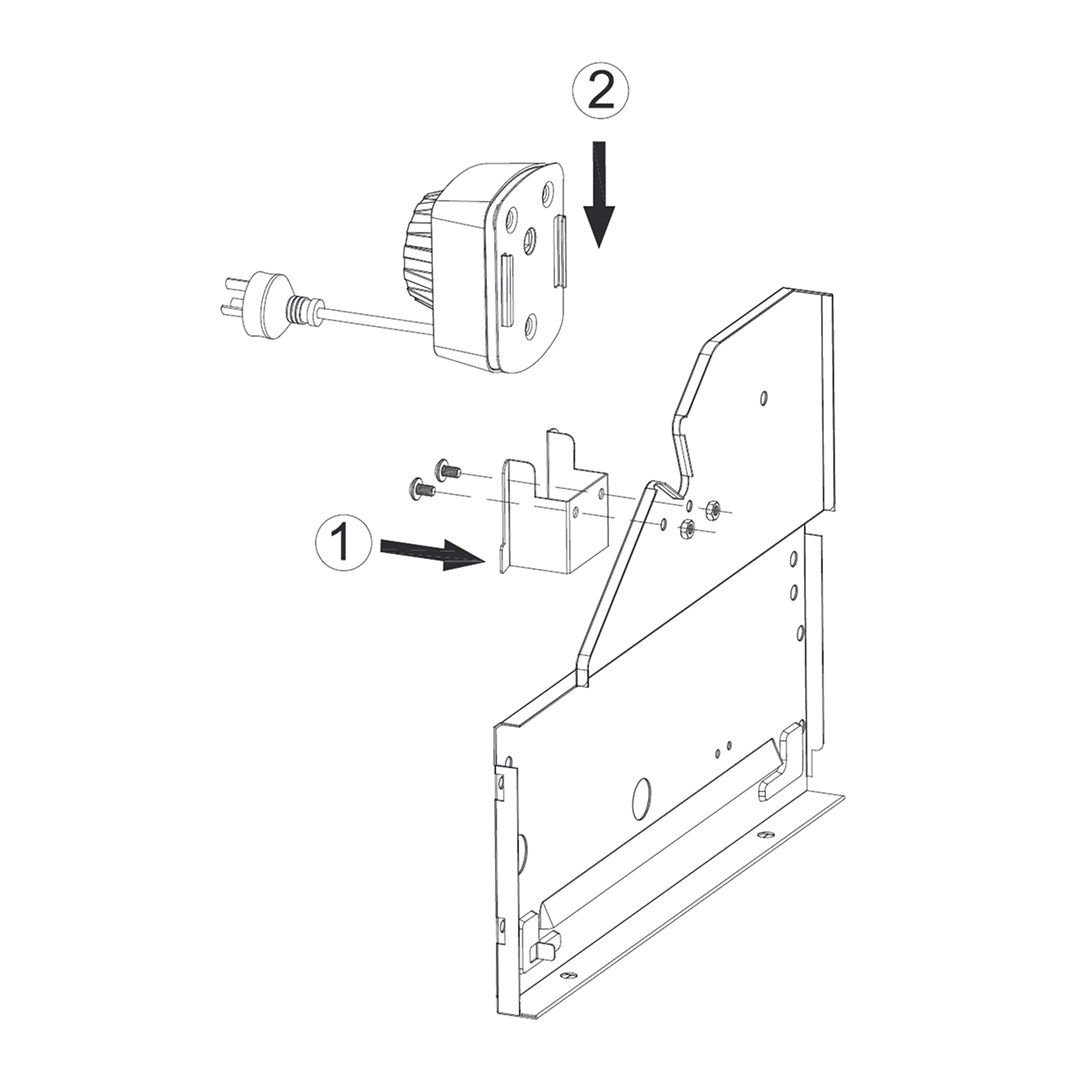

  3. 3. Install the Motor Bracket and Motor

    • Attach the Motor Bracket (1) to the side panel of the grill using the provided screws and washers.

    • Ensure the bracket is tightly secured and level.

    • Slide the Rotisserie Motor (2) down into the mounted bracket until it locks in place.

    Parts used:

    • Motor Bracket | 1 | 1×

    • Rotisserie Motor | 2 | 1×

    • Screws and Washers | 2×

  4. 4. Insert the Spit Rod into the Motor

    • Slide the assembled Spit Rod (3) into the opening of the Rotisserie Motor (2).

    • Ensure the rod is securely engaged with the motor drive socket and is centered over the grill.

    Parts used:

    • Spit Rods | 3 | 3×

    • Rotisserie Motor | 2 | 1×

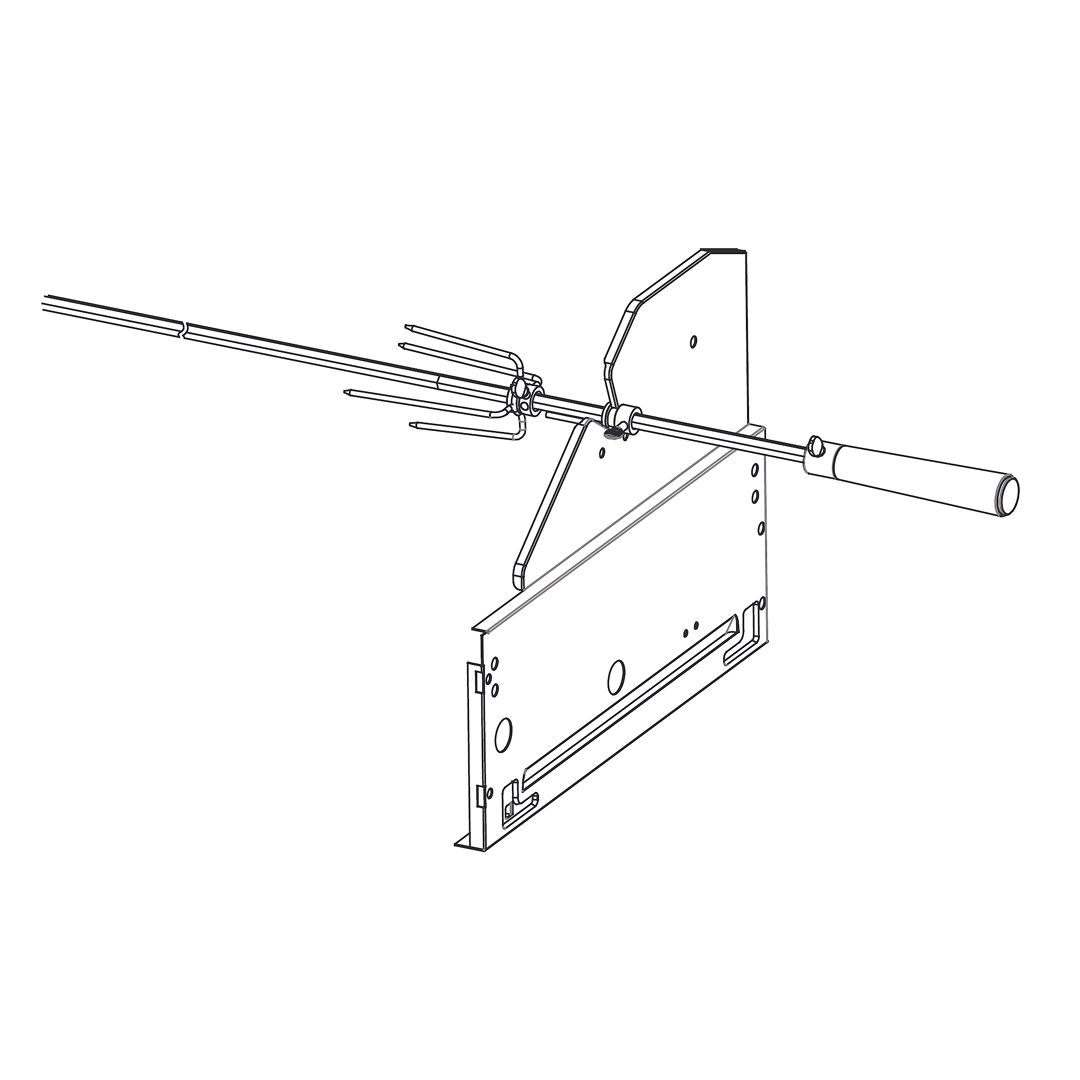

  5. 5. Position and Balance the Rotisserie Assembly

    • Insert the Spit Rod (3) with food securely fastened between both Forks (4 and 5).

    • Rest the opposite end of the rod on the grill’s support notch.

    • Ensure the rod is level and properly balanced before switching on the Rotisserie Motor (2).

    • Adjust fork positions if needed for even rotation.

    Parts used:

    • Spit Rods | 3 | 3×

    • Fork (Left) | 4 | 1×

    • Fork (Right) | 5 | 1×

    • Rotisserie Motor | 2 | 1×

    • Handle | 7 | 1×

  6. Warranty

    6. Warranty

    • The warranty period for this product will be in accordance with the standard legal warranty applicable in the country of purchase.

    • Please make sure to save your receipt in order to qualify for warranty claims.

    • For warranty claims or spare parts, please contact: customerservice@grllr.com

    • To register your GRLLR product, please go to www.grllr.com
