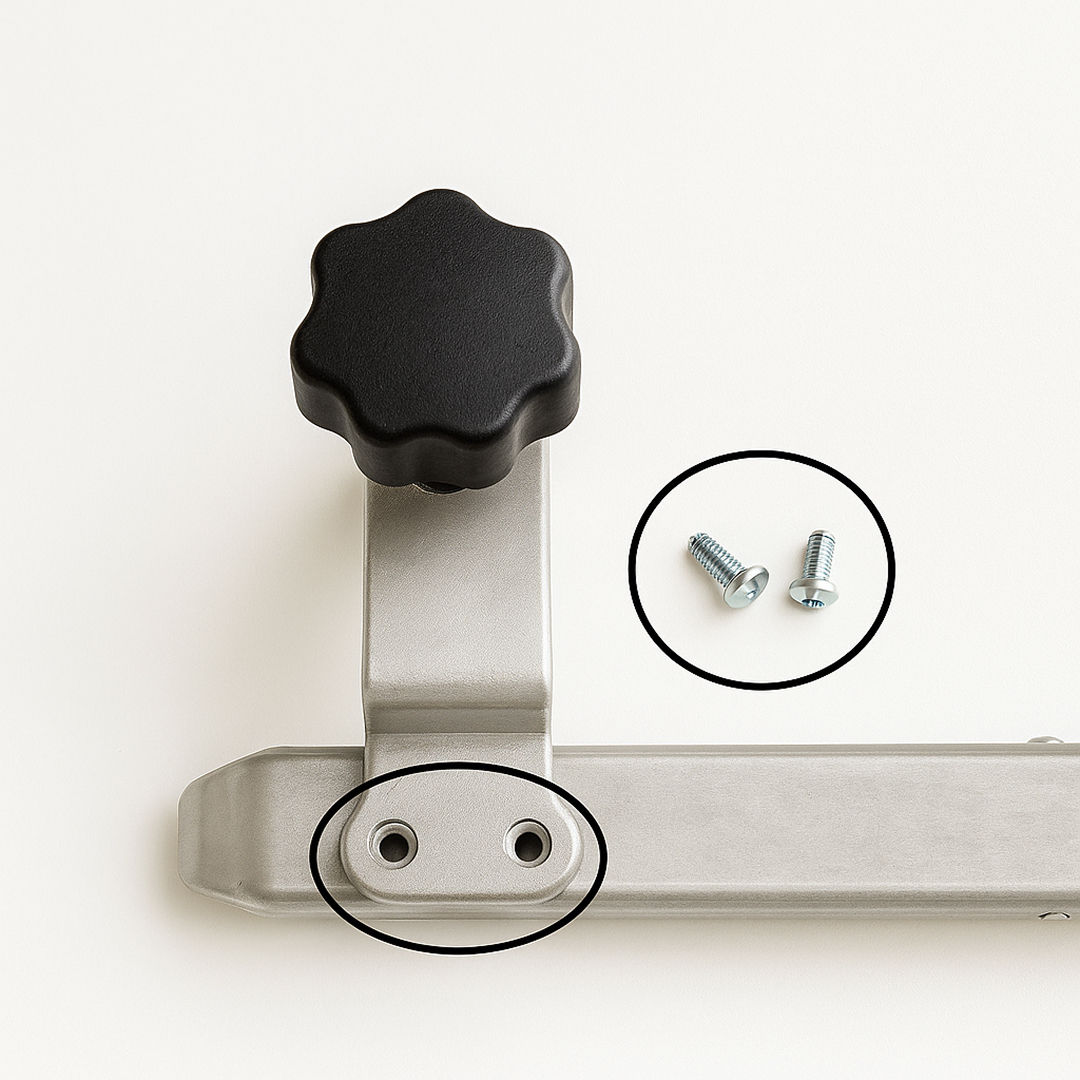

1. Step One
Remove the two tiny screws on each side of the main body and place the casters over the holes.
Instructions by
monstershop

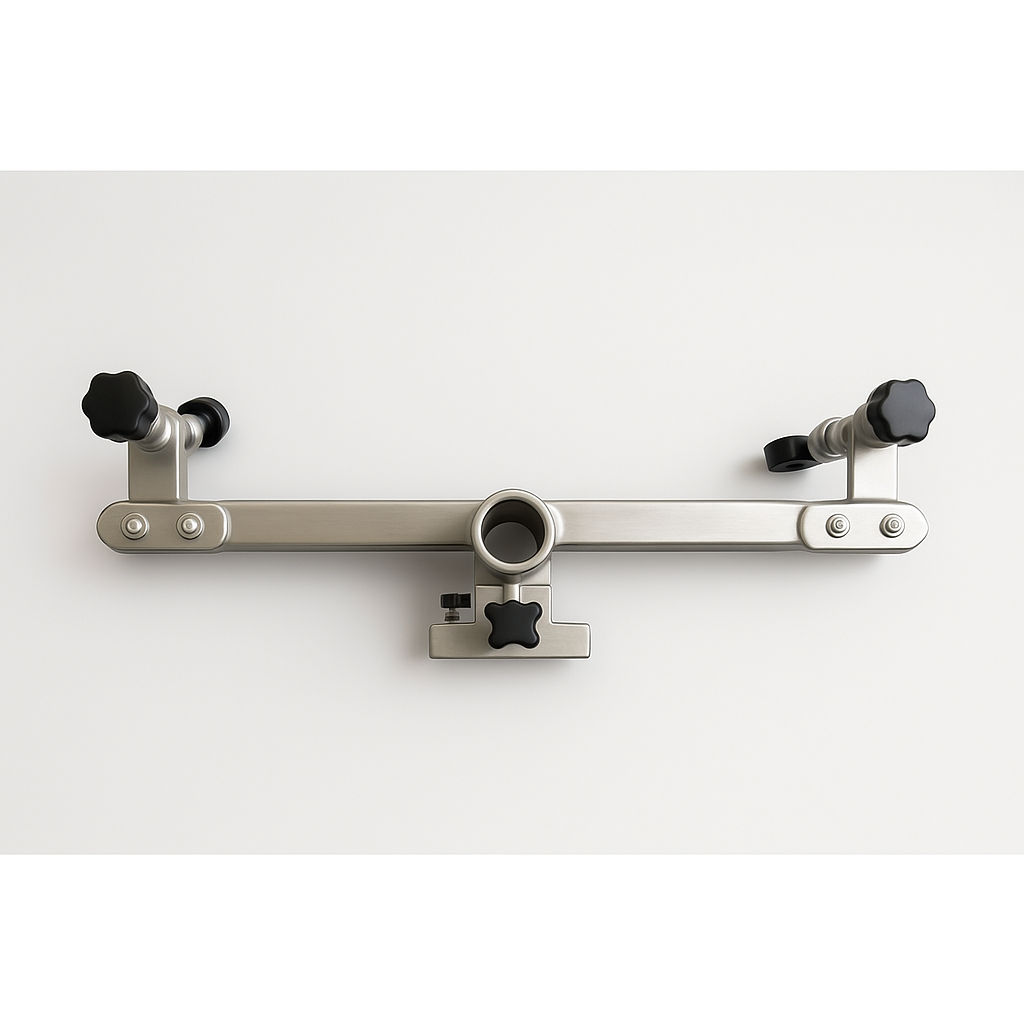

80L Industrial Vacuum Floor Nozzle
The 80L Industrial Vacuum Floor Nozzle by MAXBLAST is designed for efficient wet cleaning of large areas like halls, shops, and stockrooms. It features adjustable casters for uneven floors, easy attachment and removal, and is a labor-saving device ideal for cleaning companies or individual use. Ensure to read the safety advice and assembly instructions before use.
Product Information
80L Vacuum Floor Nozzle Attachment
Keep your floors looking brand new with this industrial vacuum attachment which makes wet and dry vacuuming easy! Great for any professional cleaning company this vacuum lets you fight dirt on a commercial scale.
Simply attach the nozzle to the bottom of a MaxBlast 80L Vacuum and glide across all floor surfaces.
Don’t worry about back ache as this attachment means you can push the vacuum around by the handle bar saving you from arching your back!
- Dimensions
- 58cm x 17cm x 11cm
- Weight
- 1.82kg
- Materials
- Plastic ABS
- SKU
- 211652
GPSR Information
UK
**Manufacturer:**Monster Group UK Limited, Monster House, 19-23 Alan Farnaby Way, Industrial Estate Sheriff Hutton, York YO60 6PG, England.
**Person Responsible:**Rana Harvey, Monster Group UK Limited, Monster House, 19-23 Alan Farnaby Way, Industrial Estate Sheriff Hutton, York YO60 6PG. +441347878880
EU
Manufacturer: Monster Group BV, Van Heemskerckweg 28A & B, Venlo 5928LL, Netherlands. +441347878880
Person Responsible: Rana Harvey, Monster Group BV, Van Heemskerckweg 28A & B, Venlo 5928LL, Netherlands.

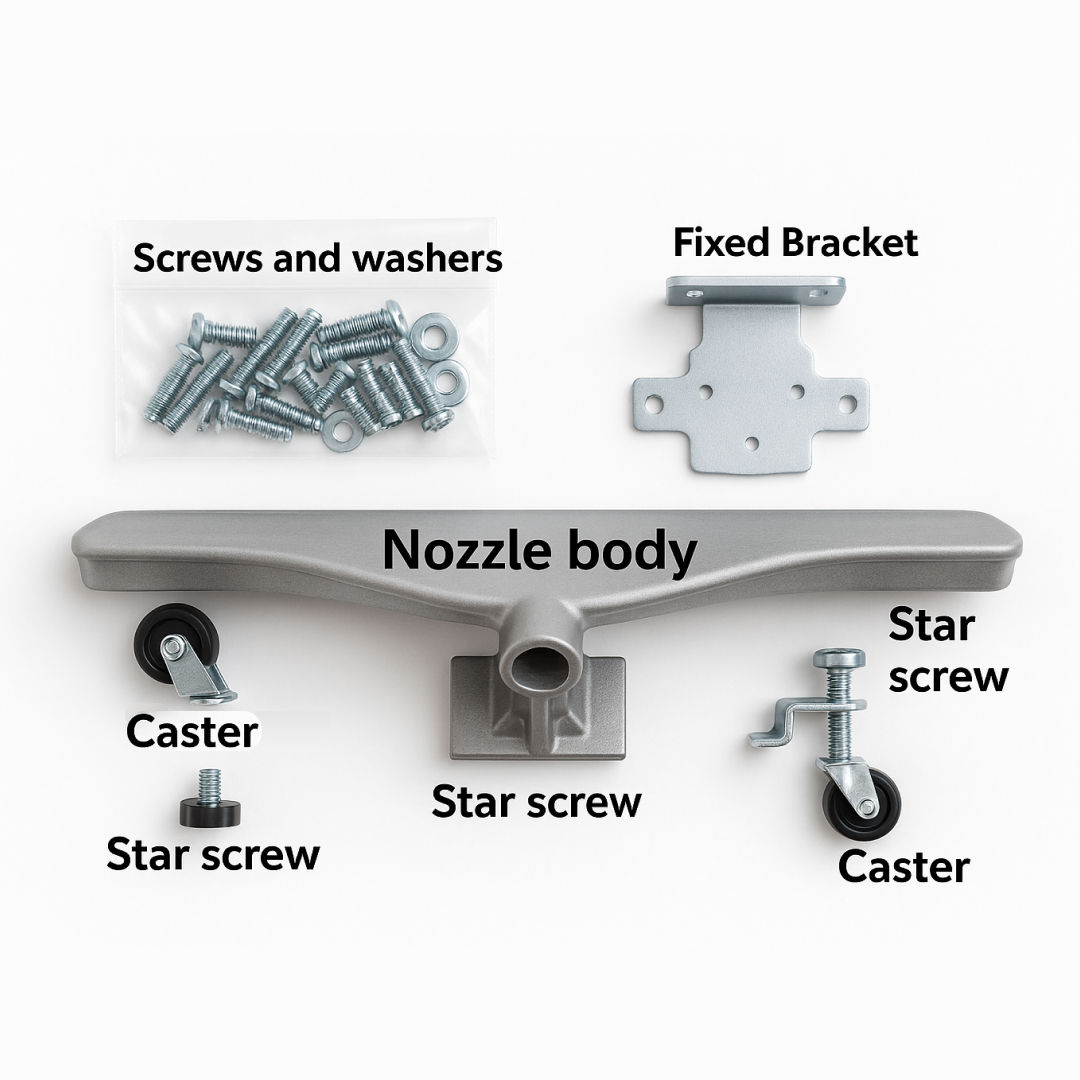

Materials
- Nozzle Body with Start Screw
- 1 Piece(s)
- Casters
- 2 Piece(s)
- Screws and Washers Bag
- 1 Piece(s)
- Fixed Bracket
- 1 Piece(s)
- Star Screws
- 3 Piece(s)
-
Assembly
-
2. Step Two
Replace the screws. Two on each side. The casters should sit as pictured.
-
3. Step Three

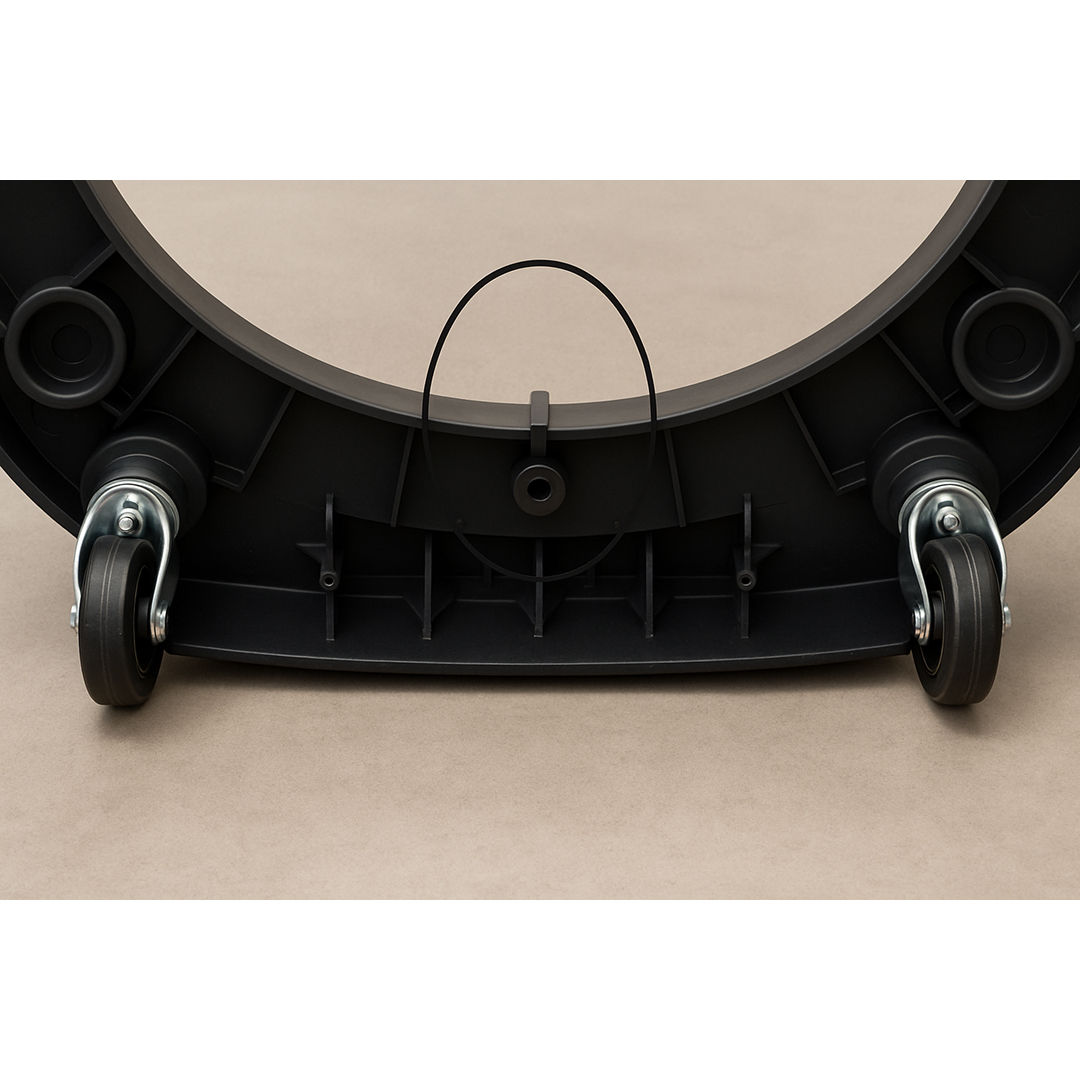

Remove the vacuum from it’s pedestal and turn over care- fully to reveal the place underneath where the fitted bracket should now be secured.
-
4. Step Four

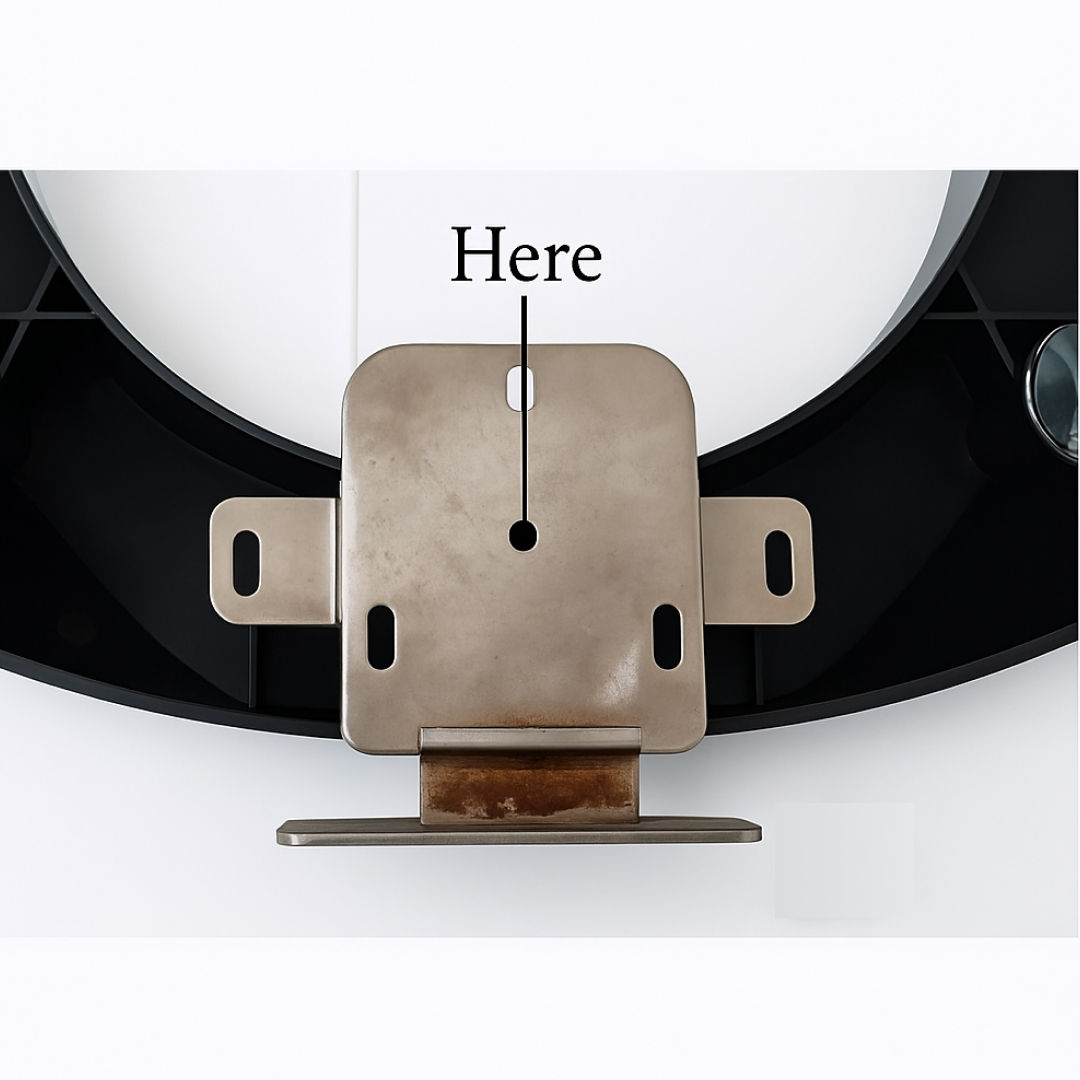

Place the Fixed Bracket over the hole in the very middle of the front of the underneath of the pedestal of the vacuum cleaner.
-
5. Step Five

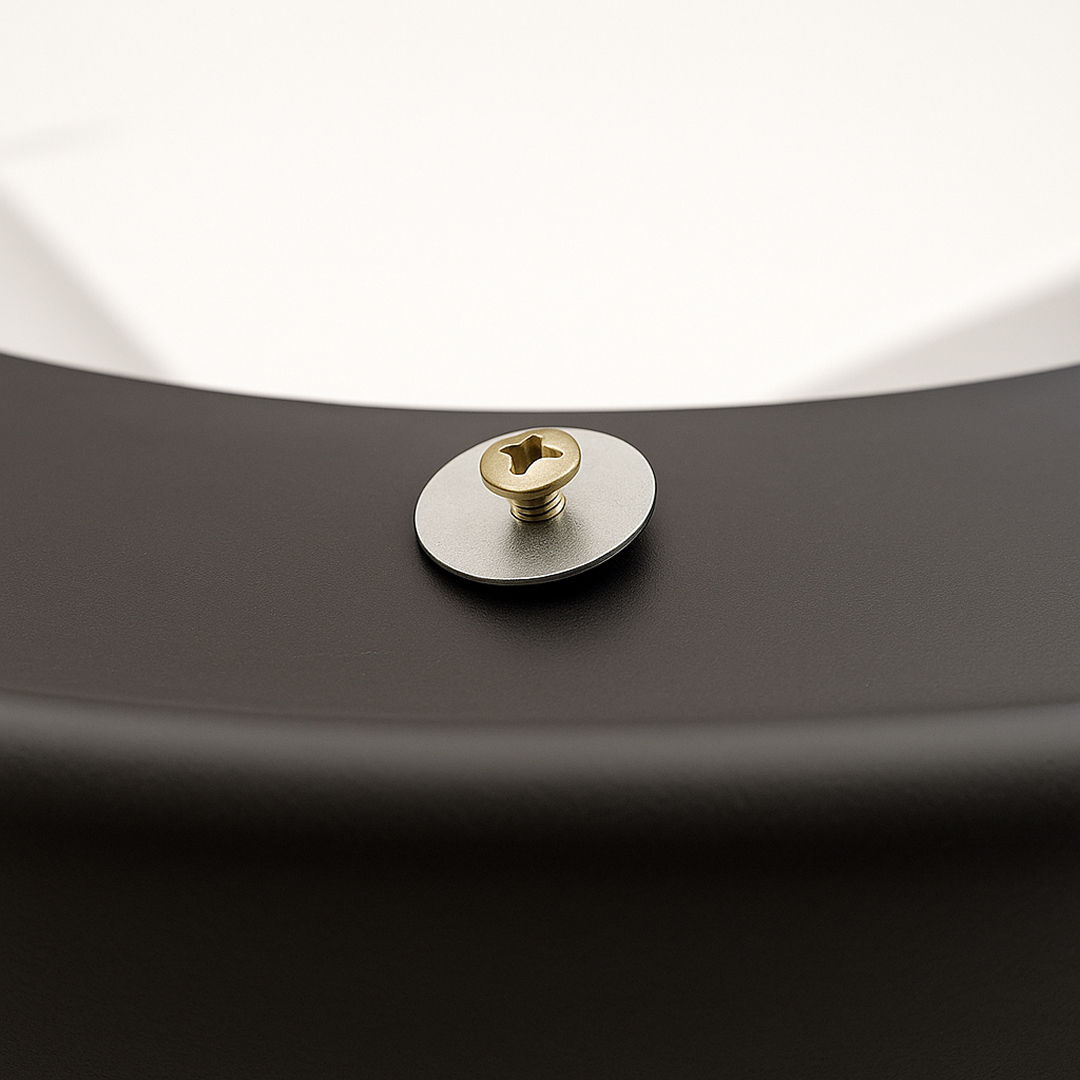

Take one of the included screws and a washer and place them through the same hole as in Step 3 but through the top of the pedestal and into the fixed bracket as show in Step 4.
-
6. Step Six

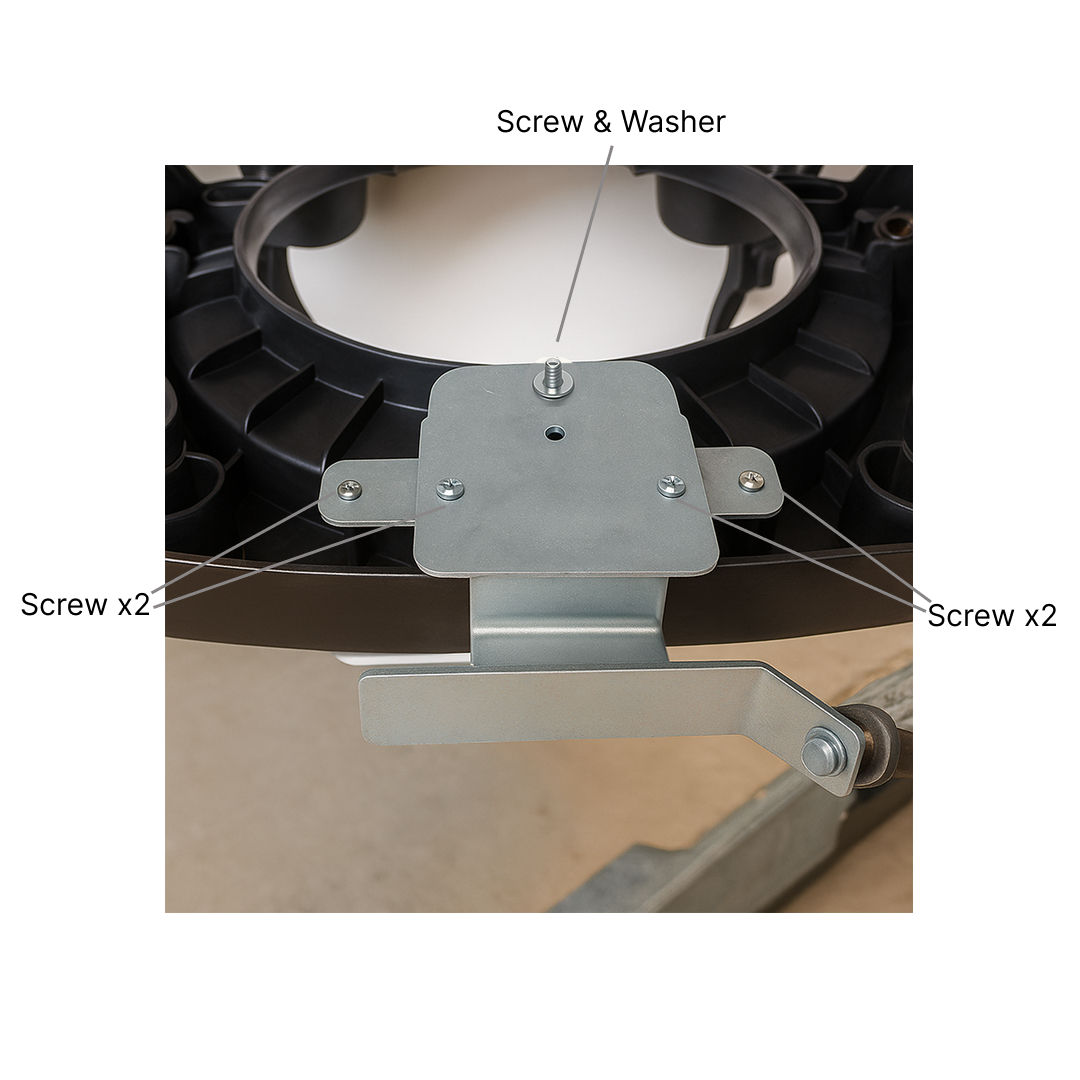

Secure the fixed bracket with four screws and one screw and washer as shown.
-
7. Step Seven

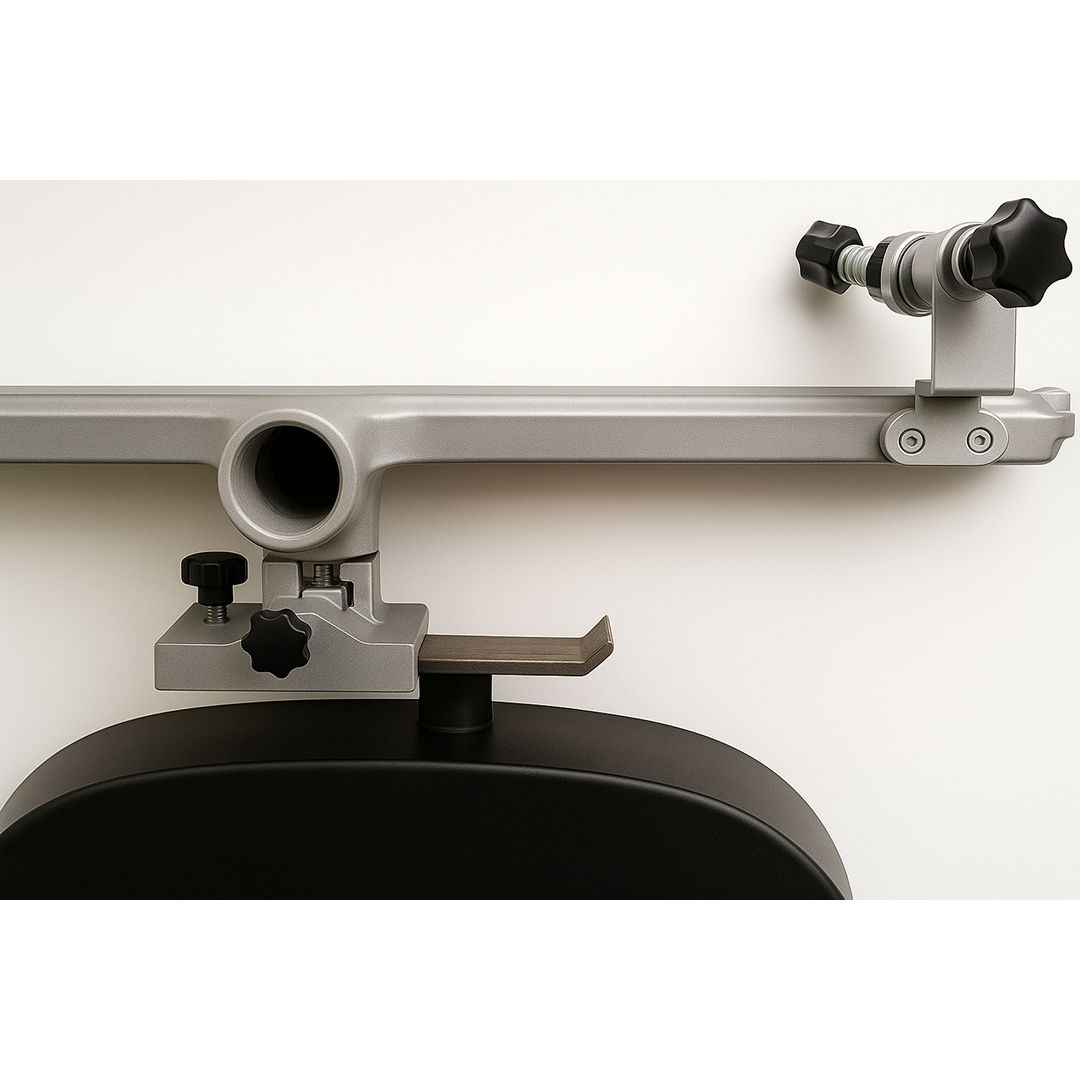

Slide the body of the nozzle onto the fixed bracket and secure with the star screw.
-
8. Step Eight

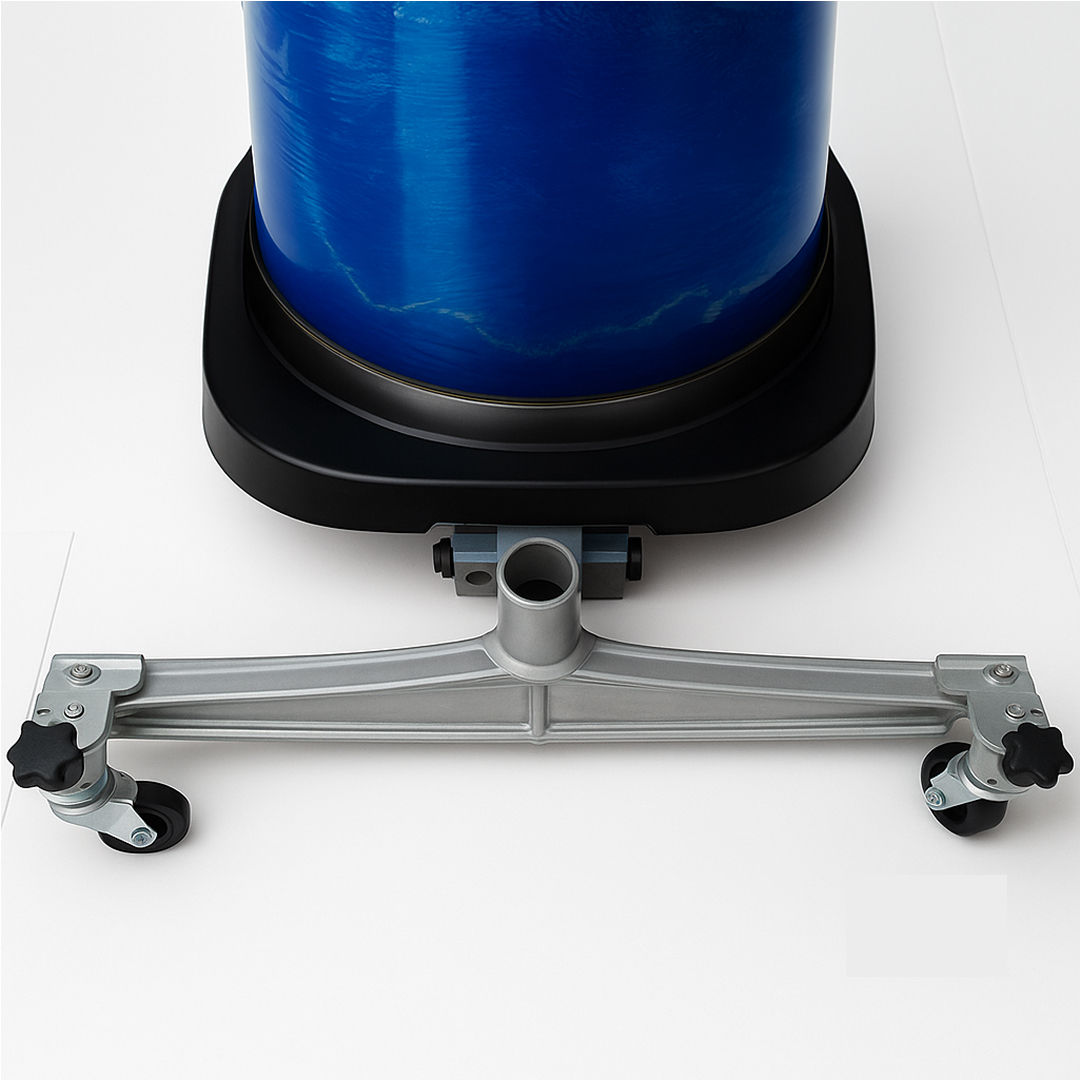

Adjust the star screws above the casters to make them sit on the floor evenly.
-
Troubleshooting
9. Resolution Guide
Q: There are parts missing from my order.
A: If there appears to be any part missing from your package contact our Customer Support team within 7 days of receipt. Details are on the Contact Us page.
Q: The vacuum has lost suction.
A: Ensure the vacuum is empty, the filter is clean and there are no blockages in the hose or nozzle attachment.
Q: The caster wheels aren’t moving smoothly.
A: Make sure the wheels are clean. Remove the nozzle attachment from the fixed bracket, scrub the wheels with a hard brush, remove any sticky stuff carefully with a butter knife, clean with cleaning spray and then a tiny bit of rubbing alcohol to finish. Your wheels should now run smoothly.
Please read through the guide below if you have any issues or faults with your device. The information covers and resolves the majority of frequently asked questions.
For all other issues please contact our Customer Support department via the details on the Contact page.
