Flat Towel Radiator

Transform your bathroom into a sanctuary of warmth and luxury with our state-of-the-art flat panel towel rail radiators in anthracite - a perfect blend of timeless elegance and modern efficiency.

Product Information

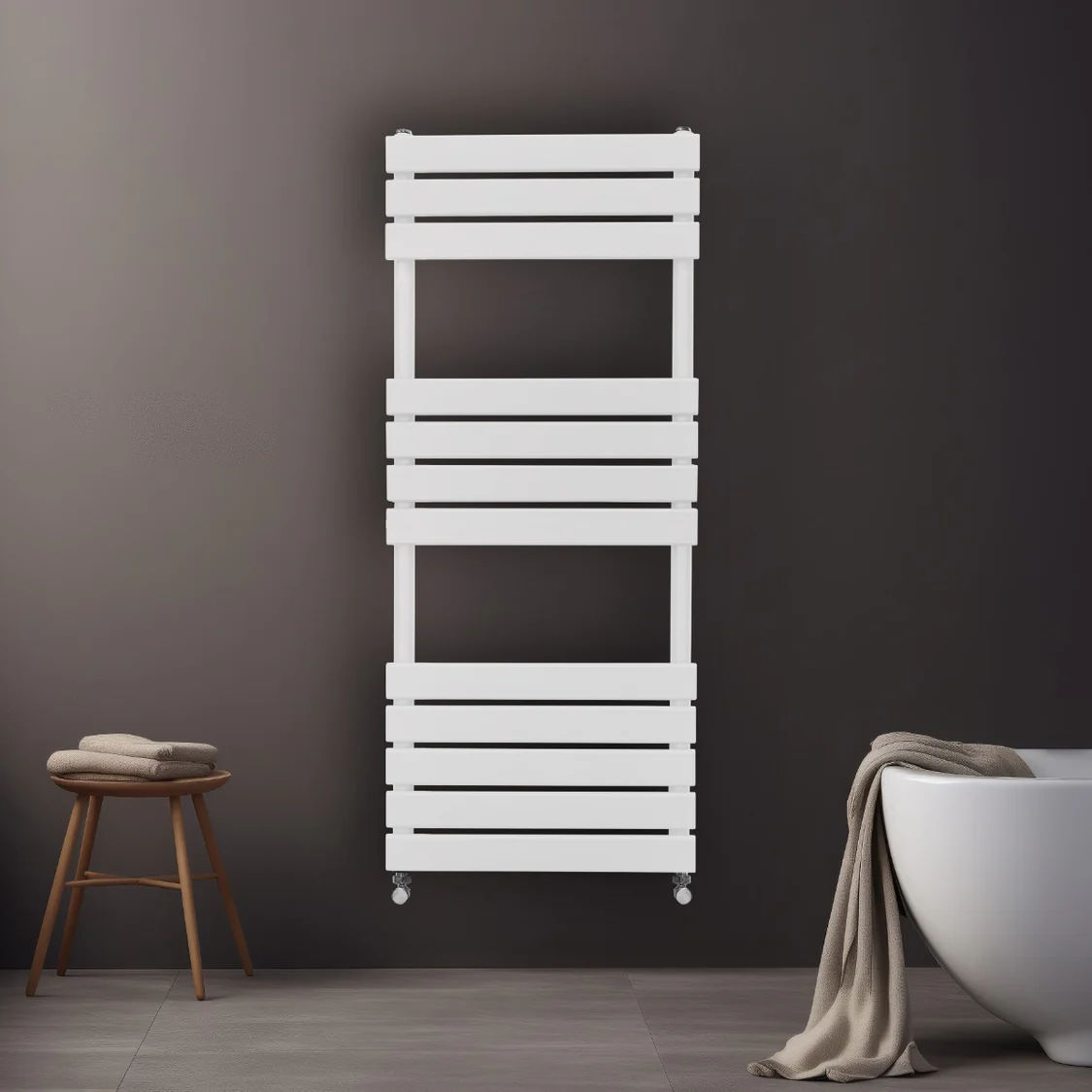

Flat Panel Towel Radiator

Crafted with precision from premium 1.5mm carbon steel, these radiators are not only built to last but also designed to impress. Standing tall at 1200mm and spanning 450mm in width, they offer versatility in placement, fitting seamlessly into various spaces with ease.

SKU: 213134,213145

	213134 / 213134
Colour	Anthracite Grey / White
Weight	12.35kg
Material	1.5mm Carbon Steel
Finish	Triple Layered Powder Coating
Height	1200mm / 120cm / 47.2”
Width	450mm / 45cm / 17.7”
Raidator Depth	90mm / 9cm / 3.5”
Gap Between Panels	10mm / 1cm / 0.4”
Individual Panel Size	60mm x 450mm
Number Of Panels	12
Panel Section Layout	3 + 4 + 5
BTU Rating @ 50	1490
BTU Rating @ 60	1892
Inlets/Outlets Size	Standard 0.5" BSP Bore
Compatibility	All UK & EU Heating Systems
Testing	BS EN 442 & ISO9001:2015 Standards CE Certificate: CE & UKCA

GPSR Information

Manufacturer: Monster Group UK Limited, Monster House 19-23 Alan Farnaby Way, Industrial Estate Sheriff Hutton, York YO60 6PG
Person Responsible: Rana Harvey, Monster Group UK Limited, Monster House 19-23 Alan Farnaby Way, Industrial Estate Sheriff Hutton, York YO60 6PG, England, +441347878880

Manufacturer: Monster Group BV, Van Heemskerckweg 28A & B, Venlo 5928LL Netherlands +441347878880
Person Responsible: Rana Harvey, Monster Group BV, Van Heemskerckweg 28A & B, Venlo 5928LL, Netherlands, +44134787888

Safety Advice

Ensure you have read and fully understood the instruction manual and safety advice before using this product.
Do not use this product for any purpose other than its intended use.
Do not discard the packaging until all included parts have been located and confirmed.
Inspect the product carefully for any signs of damage before installation. Do not install or use the product if it is damaged.
This product is only suitable for use in indirect/sealed central heating systems, including combi boilers. Do not connect this radiator to an open-vented system.
This product must be installed by a qualified plumber, central heating engineer, or another fully competent professional in accordance with all relevant building regulations and industry standards.
Before installation, ensure that the heating system is fully drained to prevent water damage and injury.
All pipework connections must be securely fitted and checked for leaks before turning the heating system back on.
Do not overtighten fittings, as excessive force may damage the radiator or pipework.
Ensure the wall and fixings used can safely support the full weight of the towel radiator when filled with water.
The fixings provided are only suitable for solid brick walls. If installing on other surfaces, such as plasterboard or stud walls, ensure appropriate fixings and reinforcements are used to prevent failure.
If the towel radiator is floor-mounted, ensure the surface is level and capable of supporting the weight to prevent instability.
Do not install the towel radiator near combustible materials, electrical outlets, or heat-sensitive items.
Allow adequate space around the radiator to ensure proper heat distribution and prevent overheating of nearby objects.
Always wear appropriate personal protective equipment (PPE), such as gloves and safety glasses, when handling or installing the radiator.
Towel radiators can become extremely hot during use. Avoid direct contact with the surface while in operation to prevent burns.
Do not overload the radiator with heavy or excessive towels, as this may impact heat distribution and could damage the unit.
Do not cover or obstruct the radiator, as this may cause overheating and reduce efficiency.
Regularly inspect the radiator, pipework, and valves for any signs of leaks, corrosion, or damage. Any issues should be addressed by a qualified professional.
If bleeding the radiator, follow the manufacturer’s instructions carefully and use the correct tools to avoid damaging the bleed valve.
Ensure the system pressure is maintained within the range specified by the boiler manufacturer.
Do not use chemical cleaners or descalers that are not explicitly approved for use with towel radiators, as incompatible substances may cause internal damage or corrosion.
If removing or replacing the radiator, ensure that the heating system is properly drained to prevent water damage.
In the event of a suspected leak, turn off the heating system immediately and consult a professional.
Do not modify the radiator, pipework, or mounting brackets, as this may compromise safety and void any warranty.
Keep children and vulnerable individuals away from the radiator, especially when in use, to prevent accidental burns or injuries.
If the radiator will not be used for an extended period, ensure the heating system is properly maintained to prevent corrosion and system failures.

Materials

Part	Qty
Radiator	1 Piece(s)
Brackets	4 Piece(s)
Leg Connectors	4 Piece(s)
8mm Screws	4 Piece(s)
8mm Grub Screws	4 Piece(s)
55mm Screws	4 Piece(s)
Wall Plugs & Screws	4 Piece(s)

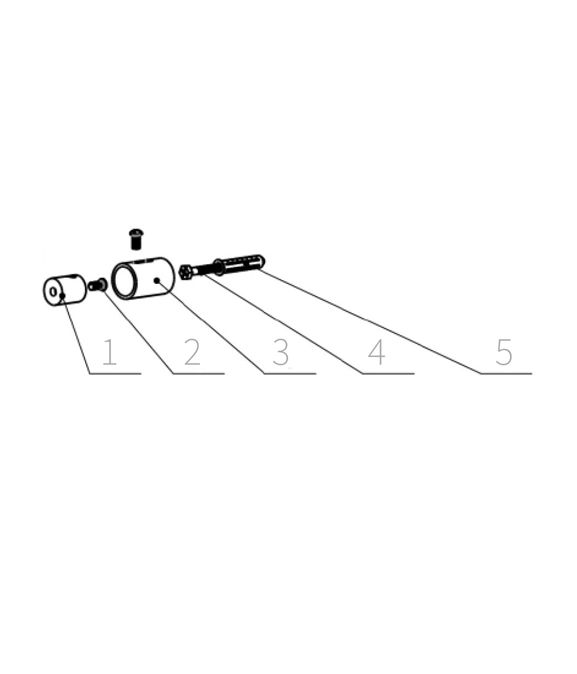

1.
Radiator Legs

8mm Screws

Brackets

55mm Screws

Wall Plugs
2.

Ensure you have all the parts needed to attach the radiator to the wall. Allow a qualified professional to install the radiator.
3.

Fit all four connectors to the legs (1) on the towel radiator by using the 8mm screws (2).
4.

Measure and mark out the mounting position of where the towel radiator is going to be fitted on the wall. Drill a hole where you have marked out in preparation for the brackets to be attached.
5.

Now attach the brackets (3) onto the wall using the 55mm screws (4) and wall plugs (5).
6.

Now push the towel radiator onto the brackets fitted to the wall and secure it in place using the 8mm grub screws through the hole in the bracket. Ensure this has a tight fix.
7.

Please ensure the valves are fitted as per the diagrams.
8. Troubleshooting

WHAT DO I DO IF THERE ARE MISSING PARTS FROM MY ORDER?

If there appears to be any part missing from your order, contact our friendly and helpful Customer Support Team within 7 days of receipt.
9. Maintenance
This product can only be used at PN 1MPa (10g/cm2 , 10 Bar). It should only be filled with water, and at a temperature below 100°C (212°F).

If the temperature exceeds 48°C (or 120°F), please provide a warning sign near the product to avoid accidental burning.

To ensure you can enjoy your radiator for as long as possible, it is essential you first flush your heating system with a central heating cleanser, this will clear any waste from the system. Following the cleansing of the system you must protect the system with a central heating inhibitor. These two simple steps will greatly increase the efficiency and lifespan of your central heating system. Failure to complete these steps increases the chances of pinhole leaks, and will also invalidate the guarantee on your radiator.
