1. Assembling the Base

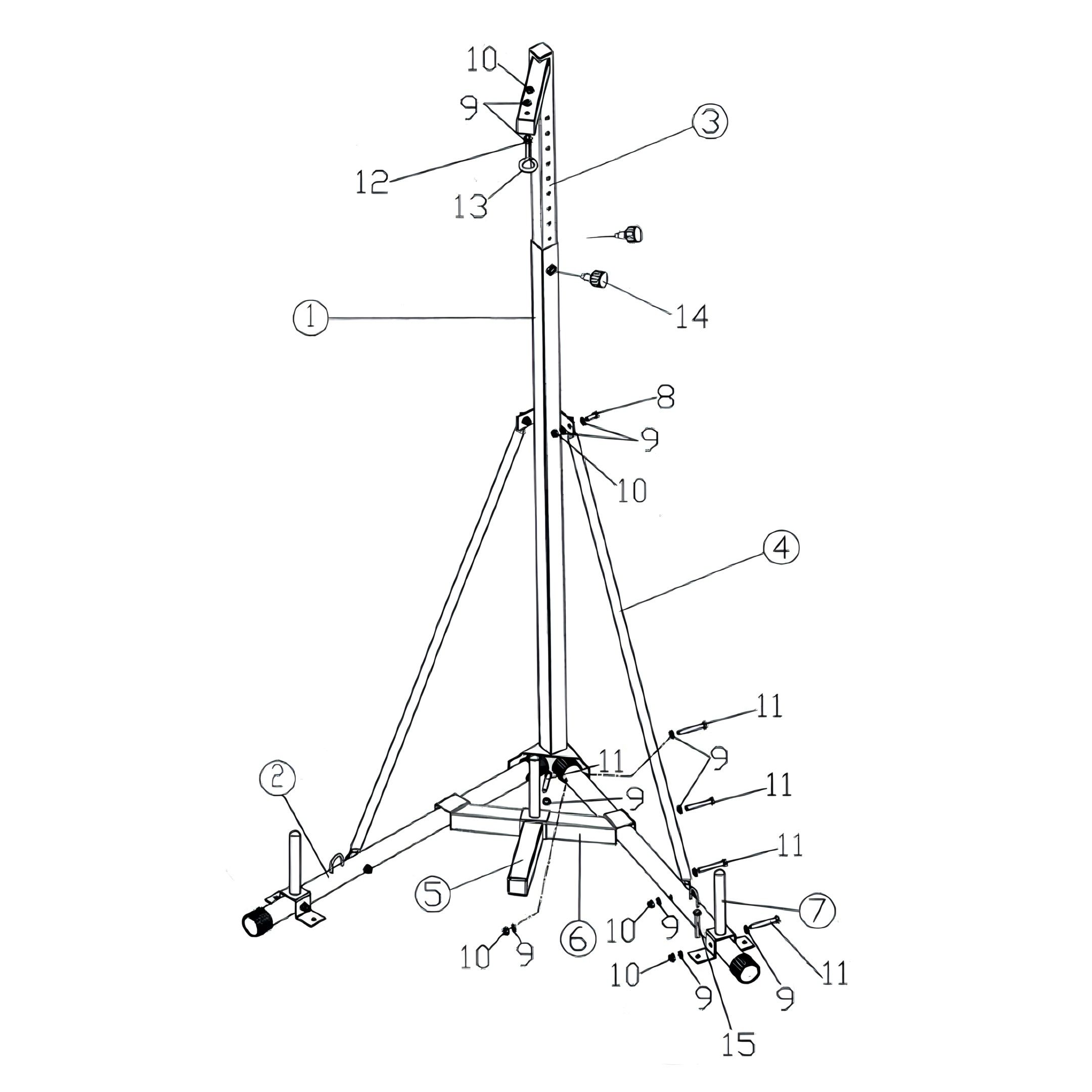

Place the Middle Barbell Tube (No.5) on the Lower Transverse Rod (No.6) and secure it with screws.
Instructions by
monstershop
Folding Punch Bag Stand Frame
Instructions for assembling, installing, and using the Monster Shop Folding Punch Bag Stand Frame, designed for high-intensity training with a heavy punch bag. It includes safety advice, troubleshooting tips, and product specifications to ensure proper setup and use.
Product Information

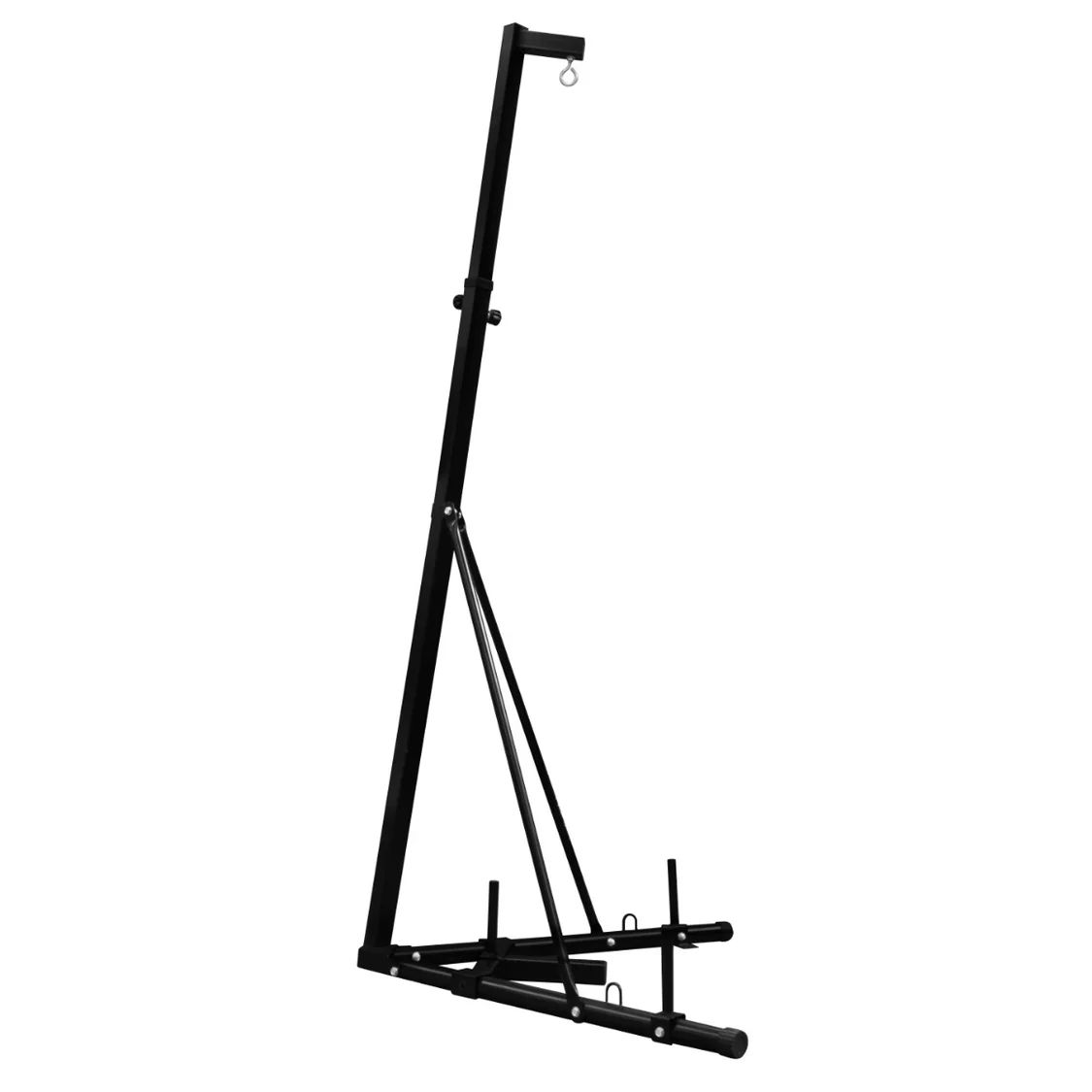

Folding Punch Bag Stand Frame
This Monster Shop high-quality Folding Punch Bag Stand Frame is designed to be used for a heavy punch bag. This Folding Punch Bag Stand Frame is adjustable and ready for use in high-intensity training. This product is flat-packed, and is supplied with all the fixings required for self-assembly.
- SKU
- 211914
| Dimensions | 100 (D) x 135 (W) x 182-230 (H) cm |
| Weight | approx. 20kg |
| Material | Steel and Plastic |
| Adjustable height range | 182–230 cm |
| Base width | 48 cm (19″) |
| Maximum load capacity | 68 kg (150 lbs) |
GPSR Information
UK
Manufacturer: Monster Group UK Limited, Monster House 19-23 Alan Farnaby Way, Industrial Estate Sheriff Hutton, York YO60 6PG
Person Responsible: Rana Harvey, Monster Group UK Limited, Monster House 19-23 Alan Farnaby Way, Industrial Estate Sheriff Hutton, York YO60 6PG, England, +441347878880
EU
Manufacturer: Monster Group BV, Van Heemskerckweg 28A & B, Venlo 5928LL Netherlands +441347878880
Person Responsible: Rana Harvey, Monster Group BV, Van Heemskerckweg 28A & B, Venlo 5928LL, Netherlands, +44134787888
Tools
| Part | Qty |
|---|---|
| Gloves | 1 |
Materials
| Part | Qty |
|---|---|
| Vertical Rod | 1 |
| Bottom pipe | 2 |
| Adjustment bracket | 1 |
| Supporting tube | 2 |
| Middle barbell tube | 1 |
| Lower transverse rod | 1 |
| Barbell tube | 2 |
| Bolt M10*25 | 2 |
| Flat washer 10 | 21 |
| Nut 10 | 9 |
| Bolt M10*70 | 9 |
| Hexagon Nut 10 | 1 |
| Hook | 1 |
| Pop pin | 2 |
| M10 Expansion screw | 2 |
-
Assembly
-
2. Attaching the Bottom Pipes
Attach the Bottom Pipes (No.2) to both sides of the Lower Transverse Rod (No.6) and secure them with screws.
-
3. Securing the Supporting Tubes
Fix the two ends of the Supporting Tubes (No.4) to the Vertical Rod (No.1) and the Bottom Pipes (No.2) using screws.
-
4. Installing the Barbell Tubes
Attach the Barbell Tubes (No.7) to the Bottom Pipes (No.2) and secure the bracket with expansion screws.
-
5. Attaching the Hook
Fix the Hook (No.13) to the front end of the Adjustment Bracket (No.3).
-
6. Inserting and Adjusting the Adjustment Bracket
Insert the Adjustment Bracket (No.3) into the Vertical Rod (No.1) and secure it with the Pop Pin (No.14). Adjust the height as needed.
-
Troubleshooting
7. Resolution Guide
What do I do if there are missing parts from my order?
If there appears to be any part missing from your order, contact our friendly and helpful Customer Support Team within 7 days of receipt.
For all other issues, please contact our Customer Support Team.
- Tel: 01347 878 887
- Email: help@monstershop.co.uk
