Galwix Racking

Add style to your storage with Galwix galvanised steel racking. Each 90cm unit features 5 heavy-duty MDF shelves (175kg each), adjustable heights, and a sleek boltless design. Sold as a 2-pack (180cm wide total) — perfect for garages, offices, or utility rooms.

Product Information

Galwix Racking System

The Galwix Racking System is a storage solution suited for garages, warehouses, stock rooms and workshops.

This racking is made from heavy duty steel and is 100% bolt-less, making it easy to assemble and only requiring the use of a rubber mallet. The galvanised finish makes this racking durable and it will maintain its excellent condition for even longer.

The Galwix Racking Unit can even be halved to create two work benches or smaller shelves.

View product

SKU: 10710
Dimensions: 90cm W x 30cm D x 180cm H
Capacity: 175 KG

GPSR Information

Manufacturer: Monster Group UK Limited, Monster House 19-23 Alan Farnaby Way, Industrial Estate Sheriff Hutton, York YO60 6PG
Person Responsible: Rana Harvey, Monster Group UK Limited, Monster House 19-23 Alan Farnaby Way, Industrial Estate Sheriff Hutton, York YO60 6PG, England, +441347878880

Manufacturer: Monster Group BV, Van Heemskerckweg 28A & B, Venlo 5928LL Netherlands +441347878880
Person Responsible: Rana Harvey, Monster Group BV, Van Heemskerckweg 28A & B, Venlo 5928LL, Netherlands, +44134787888

Safe Working Practice

Please read through the safe working practice to ensure prevention of injury or damage to the device.

Do not use the Galwix Racking in areas of high temperature or humidity as the MDF boards are untreated and may warp or become uneven.
Do not use corrosive cleaning equipment when cleaning your Galwix racking as this may erode the paint.
Do not exceed the shelving capacities, detailed on the Specification page. Please Note: These capacities are based on the weight distributed across the whole shelf.
Always keep the weight evenly distributed to avoid damage to the rack or MDF and to prevent the rack from falling over.
Wear gloves when assembling this shelving to protect your hands.
Be careful when using a hammer to assemble these Galwix Racks.
Ensure that each beam is properly hammered into place before continuing with the assembly process.
Be sure that each MDF board is slotted into the shelf correctly before you begin storage on the racking.
Treat the MDF boards with varnish or mould prevention products if using in a humid environment.

Tools

Part	Qty
Rubber Mallet	1
Screwdriver	1

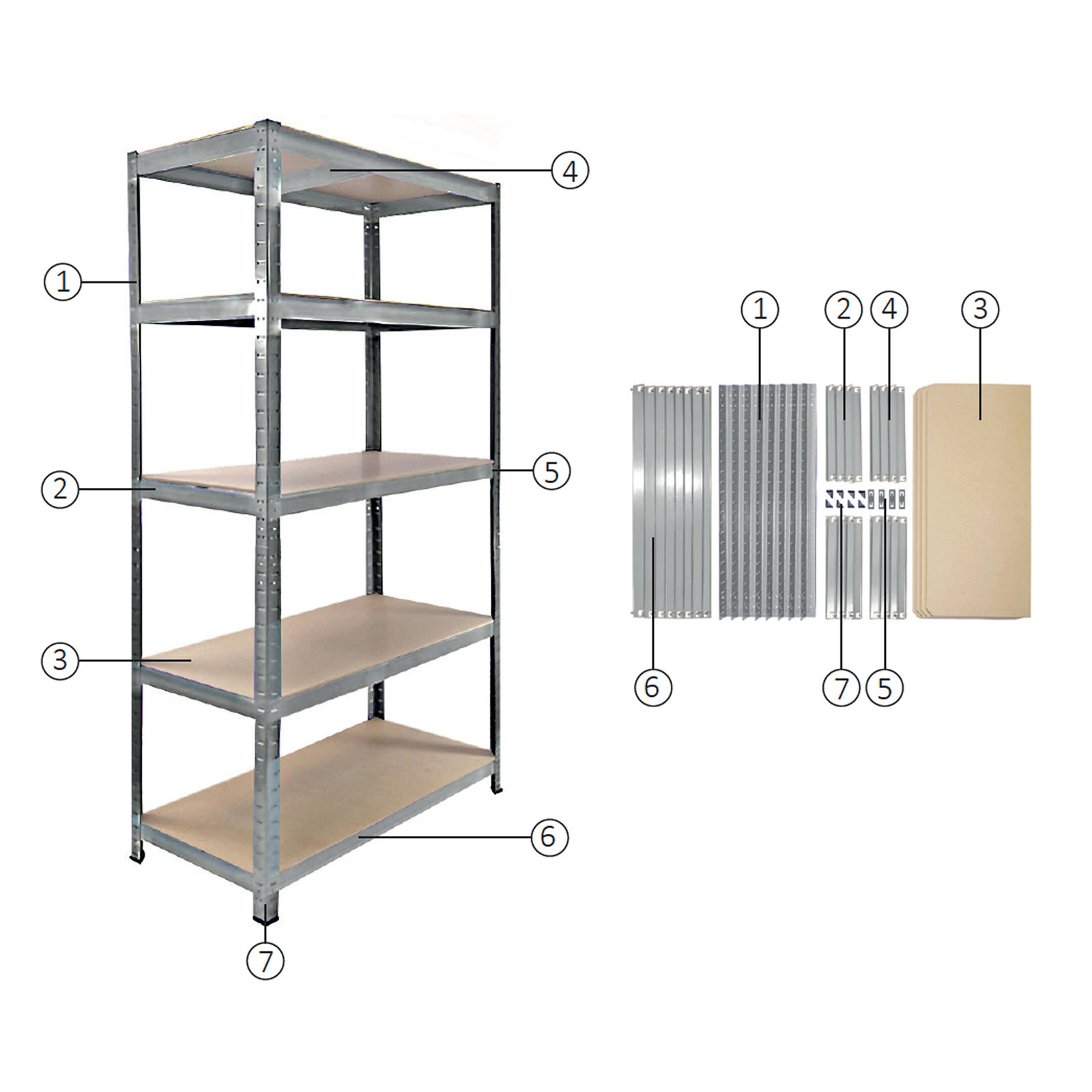

Materials

L-shaped upright beams: 16 Piece(s)
Short beams: 20 Piece(s)
MDF boards: 5 Piece(s)
Beam connectors: 8 Piece(s)
Long beams: 20 Piece(s)
Moulded feet: 16 Piece(s)
Bay connectors: 6 Piece(s)

1. Organize and Prepare Parts

Group all parts together and lay them out on the floor for easy access during assembly.
2. Attach Feet to Upright Beams

Attach the 4 moulded feet to the end of 4 L-shaped upright beams.
3. Create U-Shaped Frames
Take two L-shaped upright beams and attach a short beam across the bottom to connect them, forming a U shape.

Push the T-bar locking mechanisms into the slots on the upright beams and hammer them into place.

Repeat this process with the other two upright beams.

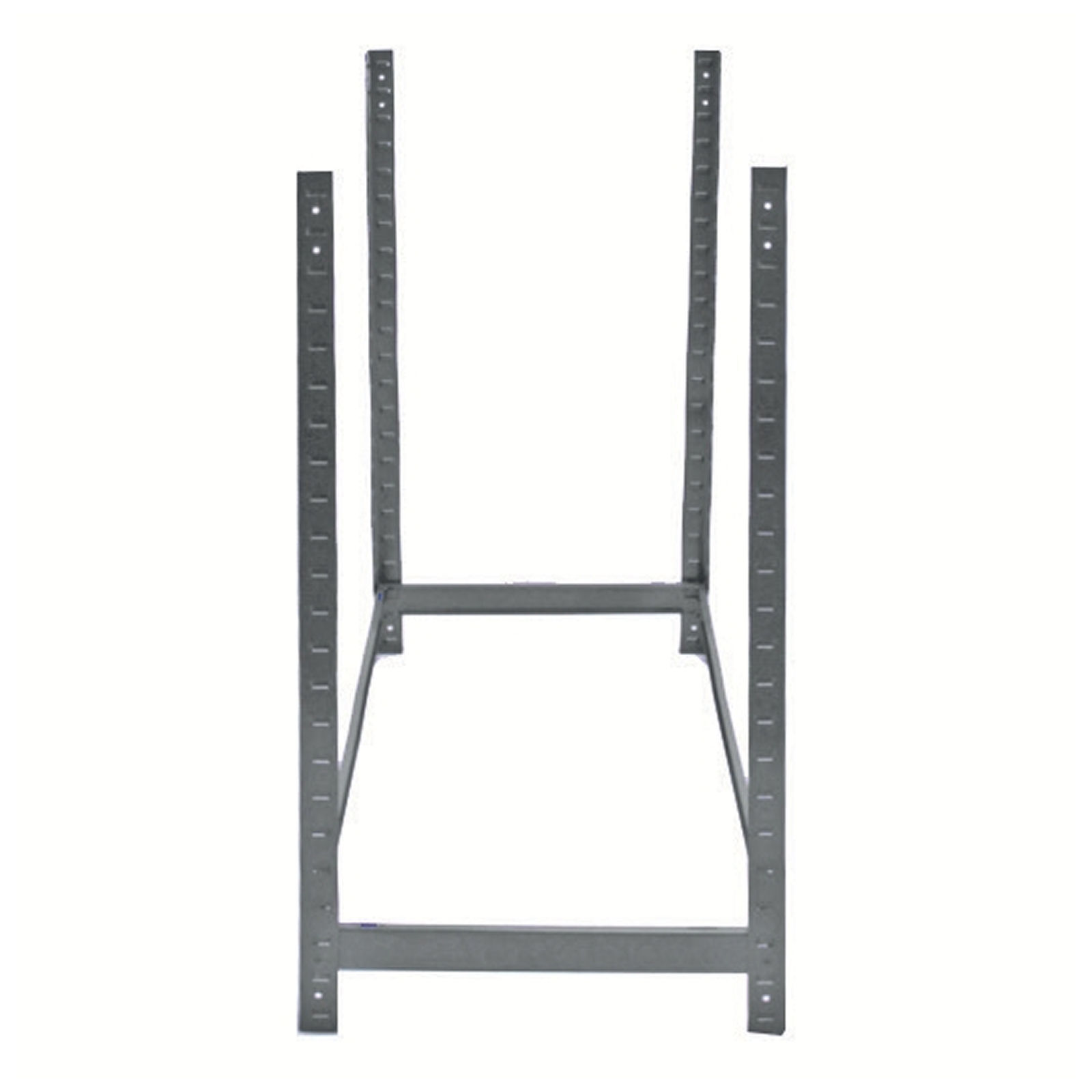

4. Connect U-Shaped Frames with Long Beams
Repeat again with two long beams, this time across the front and back of the rack, connecting the two U shapes together.

Ensure all beams forming each shelf are level to maintain a straight shelf.

Slot the central shelf support before adding the MDF board for each shelf.

Please Note: Please treat the MDF boards with varnish or mould prevention products to prolong the life of the product.
5. Add First Shelf

Slot one MDF board into the metal shelf to complete the first shelf.

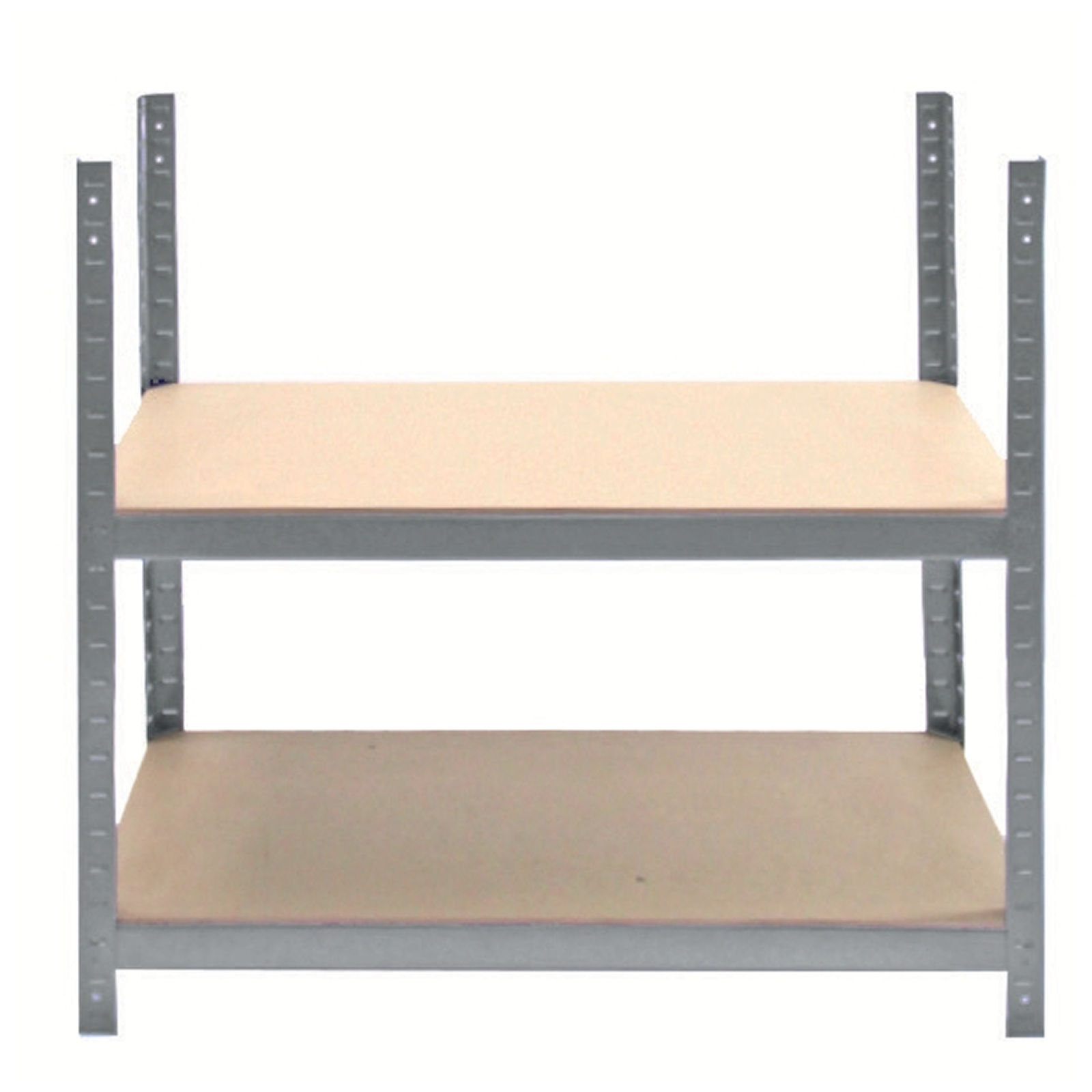

6. Build Additional Shelves
Repeat the process on either side of the rack, first with two small beams for the sides, then with two long beams for the front and back.

Slot another MDF board onto the second shelf.

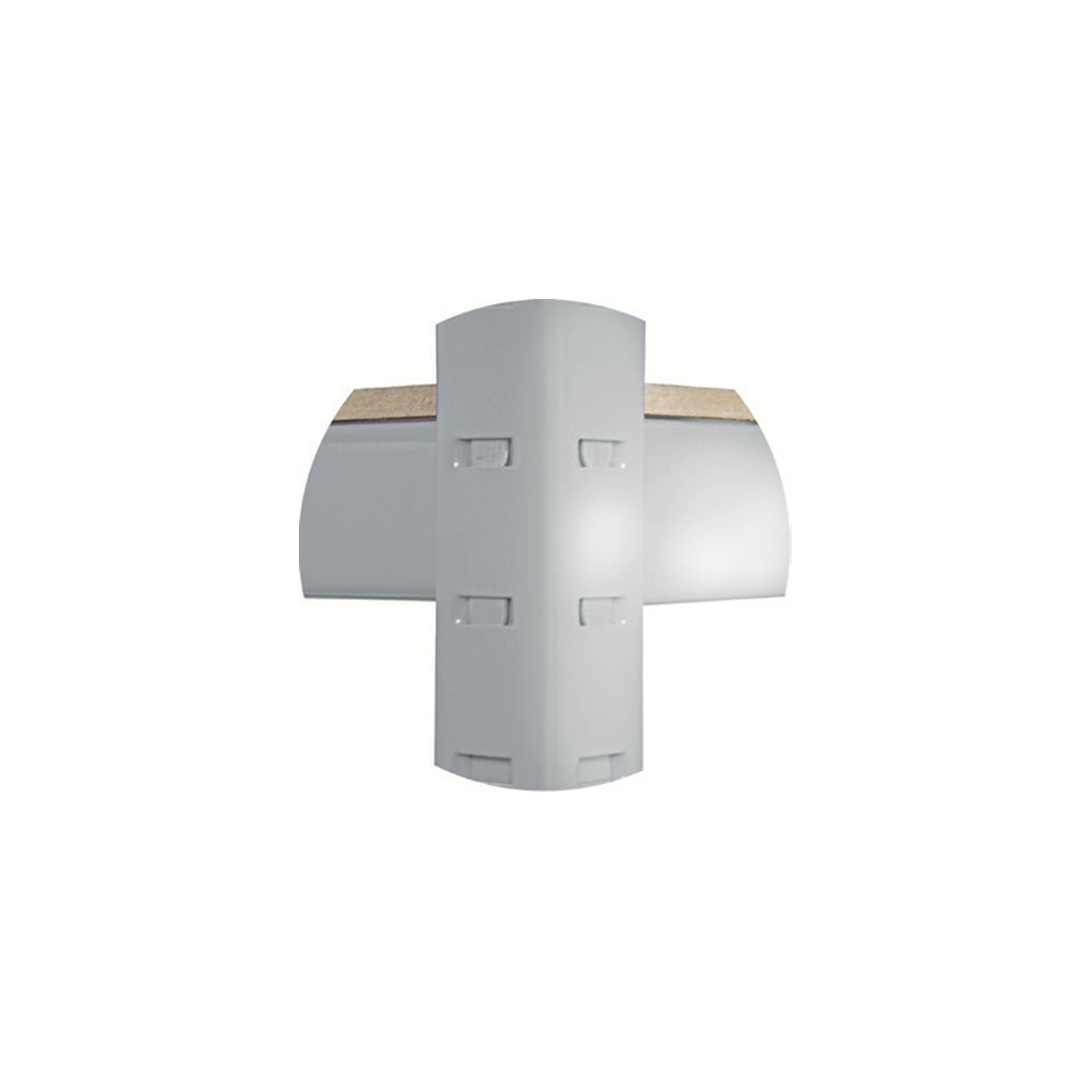

7. Attach Beam Connectors

Attach a beam connector to each of the upright corner beams by pushing the T-bars into the slots and hammering them into place.

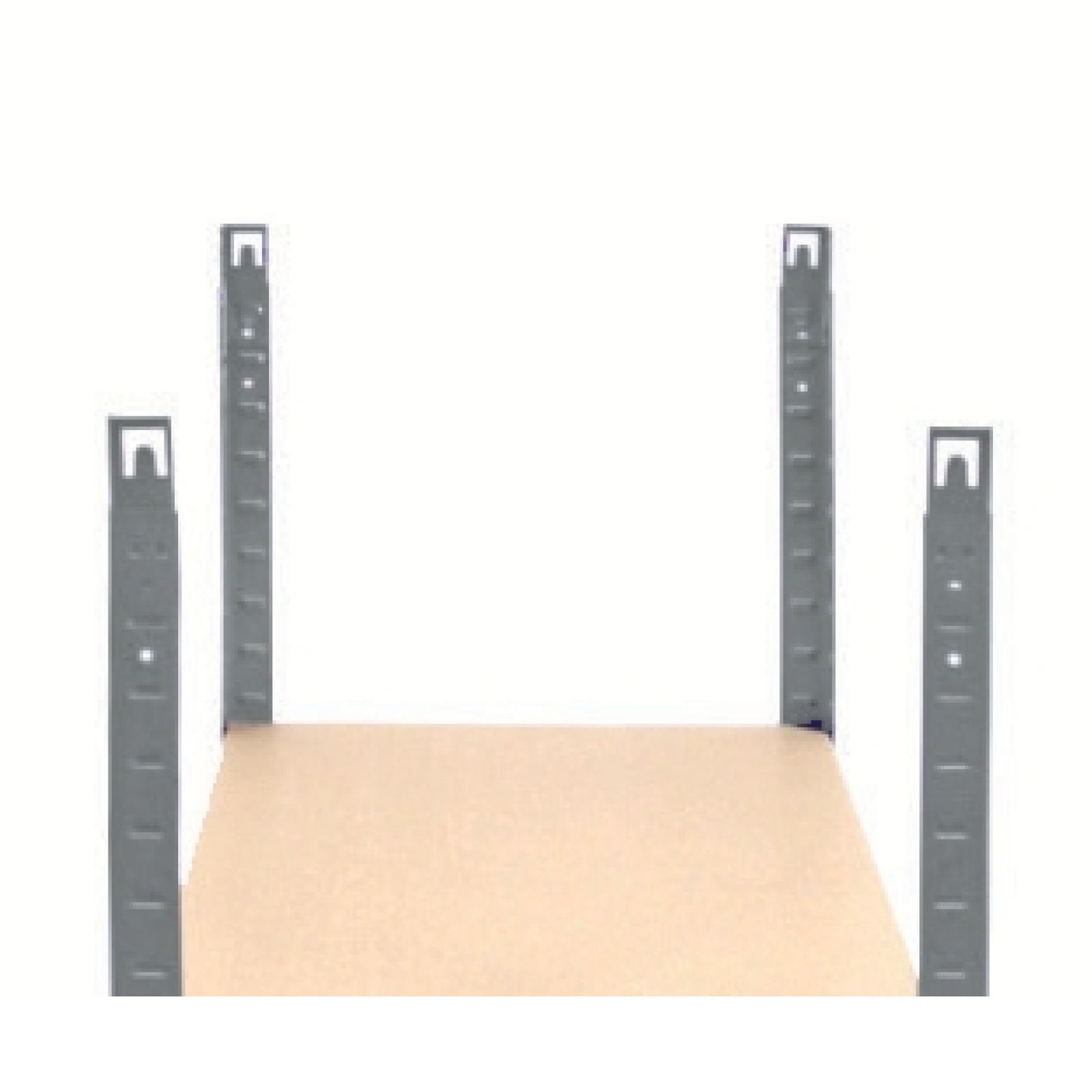

8. Attach Remaining Upright Beams

Attach the remaining 4 L-shaped upright beams to the connectors.

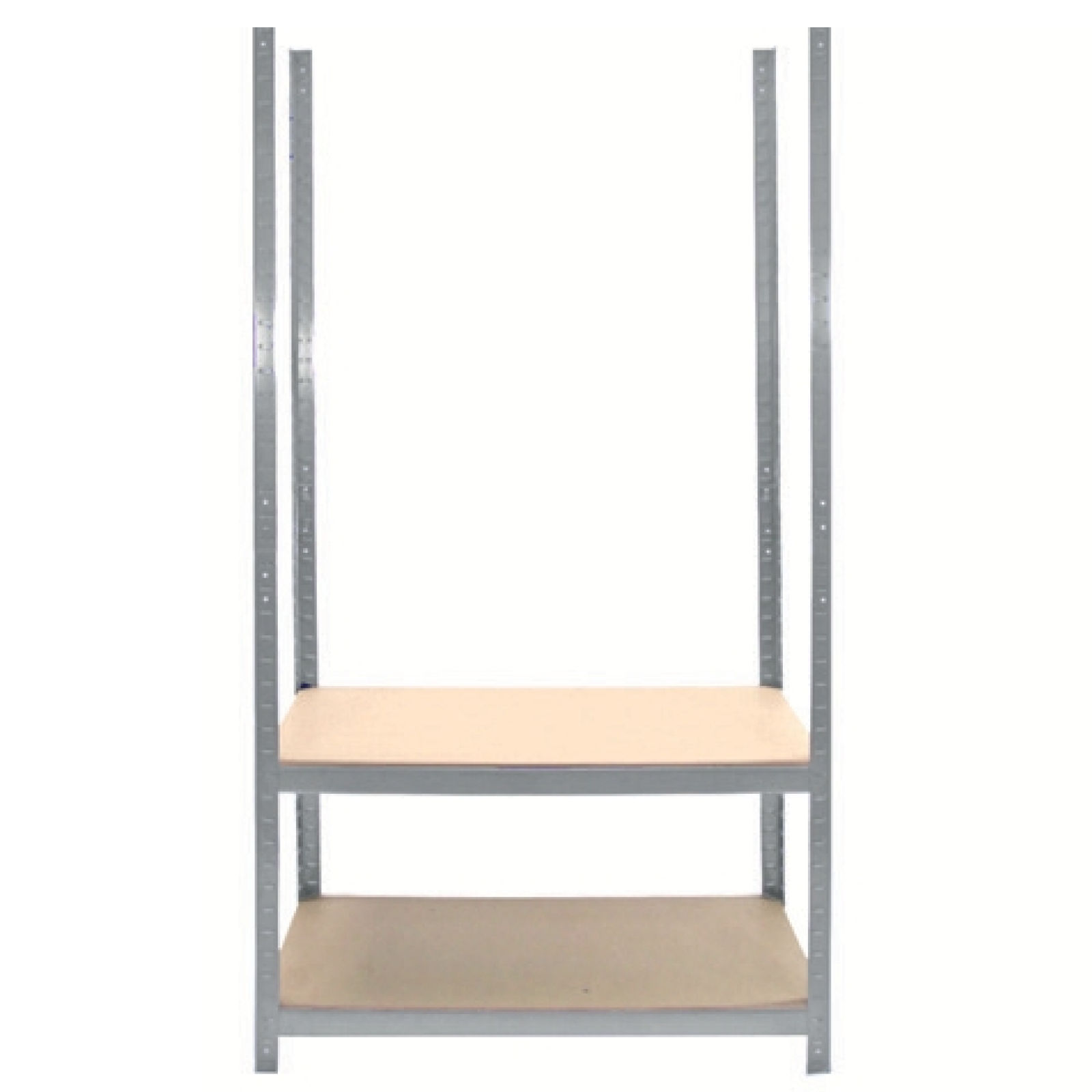

9. Complete Shelf Assembly
Continue building the rest of the shelves by attaching the short beams at the sides first, then the long beams at the front and back.

Slot in each of the remaining MDF boards as you go.

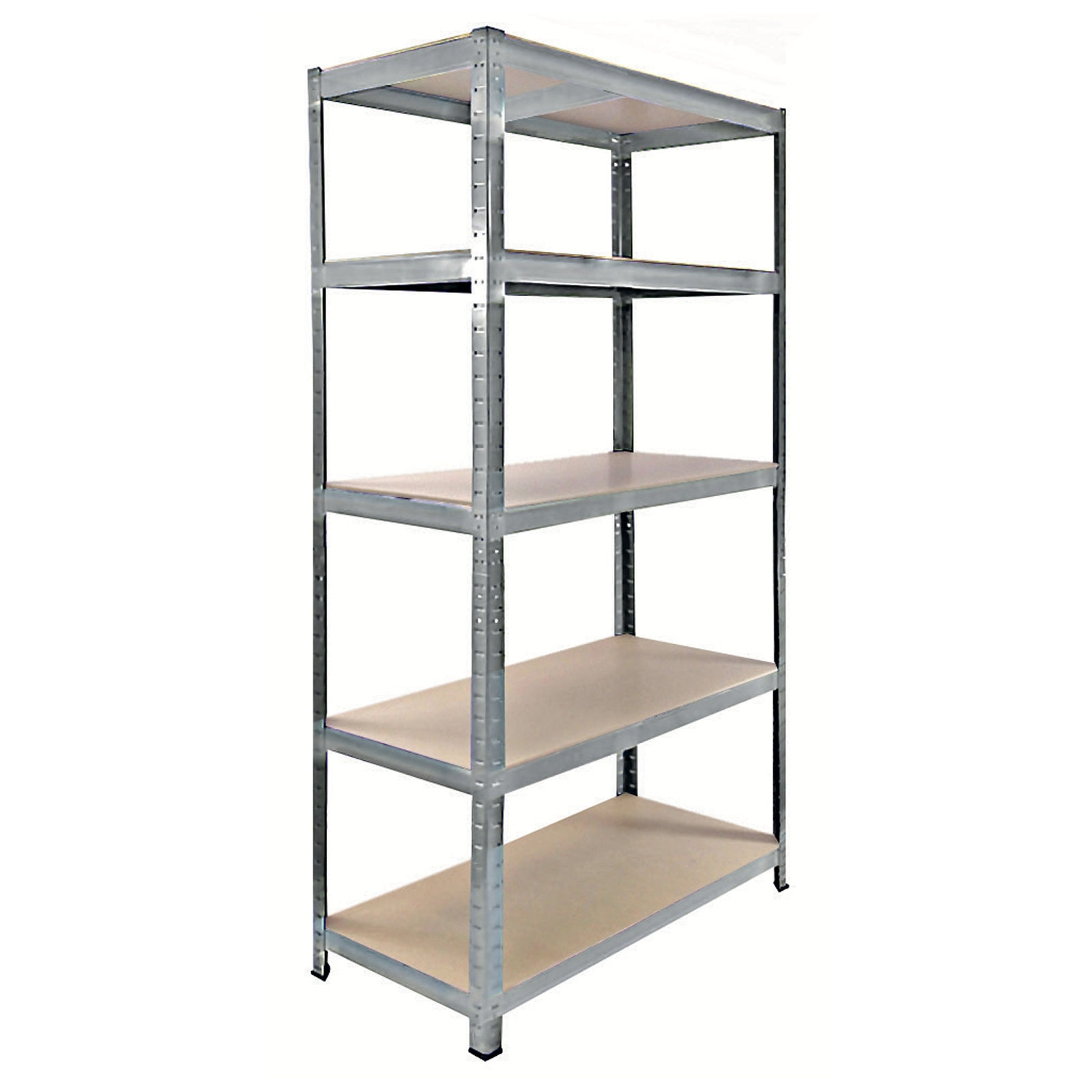

10. Final Check
Ensure all components are securely in place and the structure is stable.

Your Galwix Racking System should now be complete.
11. Resolution Guide

Please read through the guide below if you have any issues or faults with your racking.

Q: There are parts missing from my order.
A: If there appears to be any part missing from your package contact our Customer Support team via the details on the Contact page within 7 days of receipt.

Q: The MDF has begun to warp or change shape.
A: Do not use this racking for storage in a humid environment as the included MDF is untreated and is therefore susceptible to bend in an extremely damp or warm room. Other MDF can cut and used by the customer.

Q: What kind of tools should I use to assemble the Galwix Racking?
A: The only tools required to assemble the Galwix Racking Bay is a rubber mallet, which are available to purchase through the Monster Shop website or via our Sales team, details available on the Contact page.

Q: The T-bar locking mechanism on the long or short beams are bent or stick out from the slots on the upright beams.
A: Sometimes T-bar locks can be bent or stick out from the upright beams and will therefore not push into the slot fully. Separate the long or short beam from the upright. Take a screw driver and push it against the T-bar lock to bend the metal hooks until it is straight, and can fit into the slot on the upright beam.

Q: I’m worried the MDF shelves might grow mould in my garage.
A: We recommend you treat the MDF with mould prevention products. They are very accessible and cheap from good DIY stores.
