Instructions by Monstershop L-Shaped Camper Van Bed
Monstershop
monstershop

Instructions by

monstershop

L-Shaped Camper Van Bed

214282

Product Information

L-Shaped Camper Van Bed

This Monster Shop high-quality L-Shaped Camper Van Bed is designed to be used as a sofa bed.

This L-Shaped Camper Van Bed provides two large storage compartments under the seats and features two storage nets to provide plenty of space to house all your camping essentials.

This product is flat-packed, and is ideal for DIY van conversions and is supplied with all the fixings required for self-assembly. The L-Shaped Camper Van Bed is made from strong and resistant Birch Plywood with an unfinished surface ready for you to customise.

View product
Dimensions
Length: 1800mm, Height: 405mm, Depth: 650mm (Extends to 1100mm), Total bed size: 1800mm x 1200mm
Weight
42kg (50kg including Cushions)
Materials
15mm Birch Plywood
Capacity
Maximum Weight Capacity: 300kg
SKU
214282
Total bed size 1800mm x 1200mm
Seat Cushion Dimensions 1800 (L) x 670 (D) x 75mm (H)
Back Cushion Dimensions 1800 (L) x 650 (D) x 75mm (H)
Cushion Material 90 High-density Sponge Base with Linen Cover
Wheel arch clearance up to 350mm at the back of the bed

GPSR Information

UK

  • Manufacturer: Monster Group UK Limited, Monster House 19-23 Alan Farnaby Way, Industrial Estate Sheriff Hutton, York YO60 6PG

  • Person Responsible: Rana Harvey, Monster Group UK Limited, Monster House 19-23 Alan Farnaby Way, Industrial Estate Sheriff Hutton, York YO60 6PG, England, +441347878880

EU

  • Manufacturer: Monster Group BV, Van Heemskerckweg 28A & B, Venlo 5928LL Netherlands +441347878880

  • Person Responsible: Rana Harvey, Monster Group BV, Van Heemskerckweg 28A & B, Venlo 5928LL, Netherlands, +44134787888

Tools

Part Qty
Cross Head Screwdriver 1
Gloves 1
Respiratory PPR (rated P2 as a minimum) 1

Materials

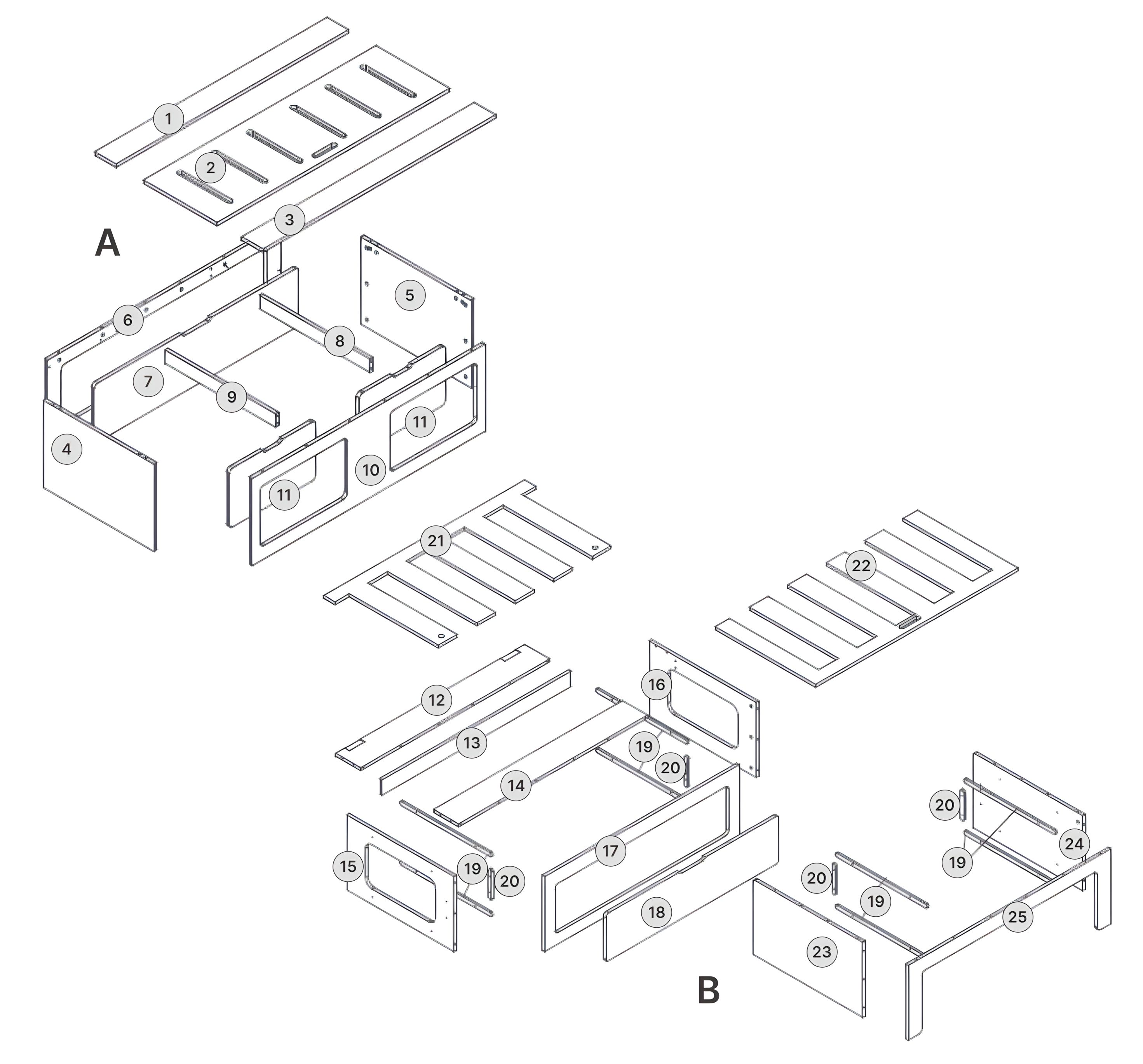

Box A: Part 1 – Left Bench Front Rail
1 Piece(s)
Box A: Part 2 – Left Bench Lift-Up Lid
1 Piece(s)
Box A: Part 3 – Left Bench Back Rail
1 Piece(s)
Box A: Part 4 – Left Bench Side Panel (Front)
1 Piece(s)
Box A: Part 5 – Left Bench Side Panel (Back)
1 Piece(s)
Box A: Part 6 – Left Bench Top Frame (Surround)
1 Piece(s)
Box A: Part 7 – Door (Left Bench)
1 Piece(s)
Box A: Part 8 – Left Bench Inner Support Rails
2 Piece(s)
Box A: Part 9 – Left Bench Center Rail
1 Piece(s)
Box A: Part 10 – Left Bench Front Panel with Cutouts
1 Piece(s)
Box A: Part 11 – Doors (Left Bench)
2 Piece(s)
Box B: Part 12 – Sliding Support Rail (Pull-Out Section)
1 Piece(s)
Box B: Part 13 – Pull-Out Slat Front Connector
1 Piece(s)
Box B: Part 14 – Right Bench Center Rail
1 Piece(s)
Box B: Part 15 – Right Bench Side Panel (Front) with Cutout
1 Piece(s)
Box B: Part 16 – Right Bench Side Panel (Back) with Cutout
1 Piece(s)
Box B: Part 17 – Right Bench Lid Frame
1 Piece(s)
Box B: Part 18 – Door
1 Piece(s)
Box B: Part 19 – Slat Guides
8 Piece(s)
Box B: Part 20 – Spacer Blocks for Slat Guides
4 Piece(s)
Box B: Part 21 – Slatted Pull-Out Bed Platform
1 Piece(s)
Box B: Part 22 – L-Shaped Slatted Top Platform
1 Piece(s)
Box B: Part 23 – Right Bench Rear Panel
1 Piece(s)
Box B: Part 24 – Right Bench Inner Back Panel with Slat Tracks
1 Piece(s)
Box B: Part 25 – L-Shaped Support Frame (Final Platform Base)
1 Piece(s)
Box A: Part A - Connecting Bolt

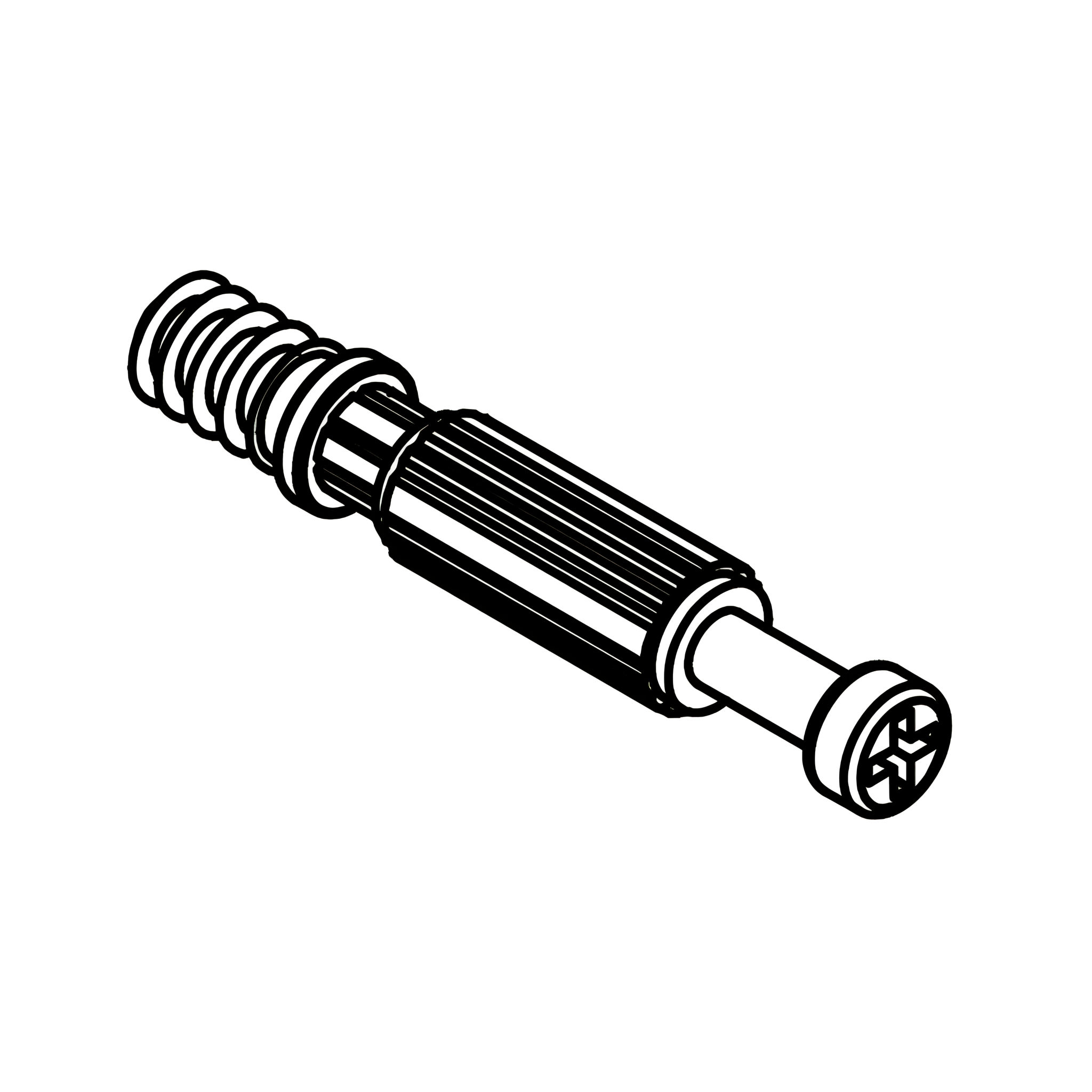

44 Piece(s)
Box A: Part B - Cam lock

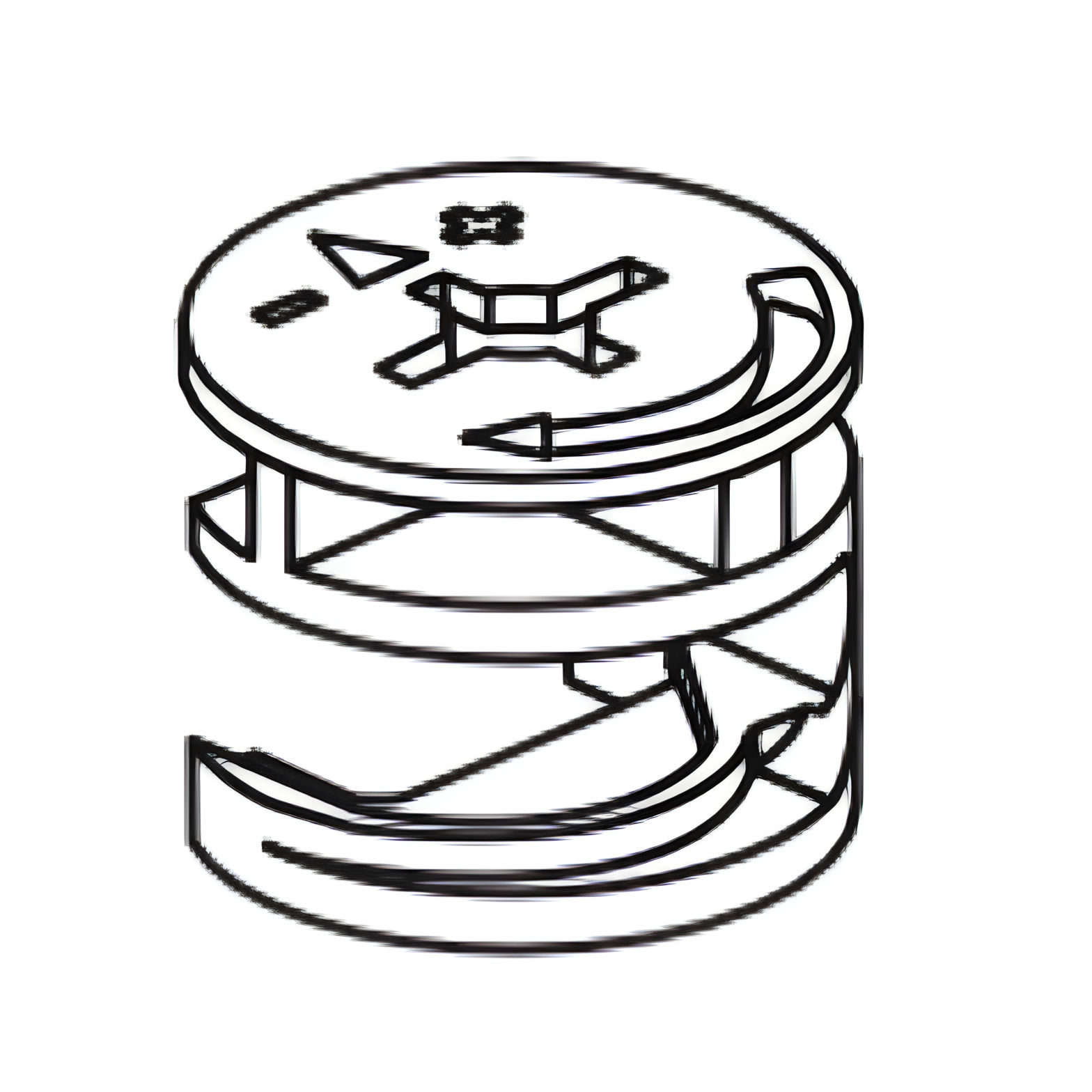

44 Piece(s)
Box A: Part D - Support

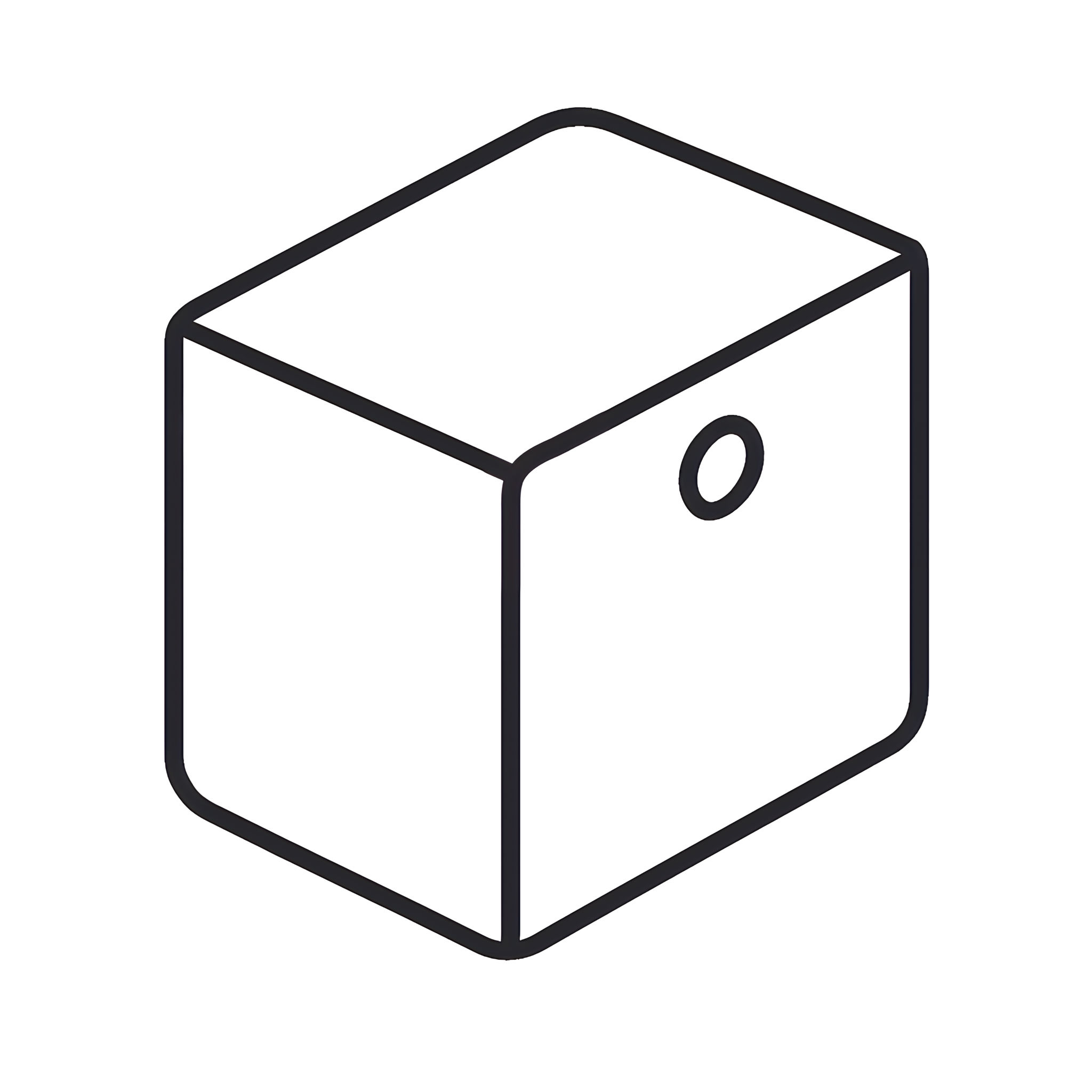

4 Piece(s)
Box A: Part F - Screw 4 x 12mm

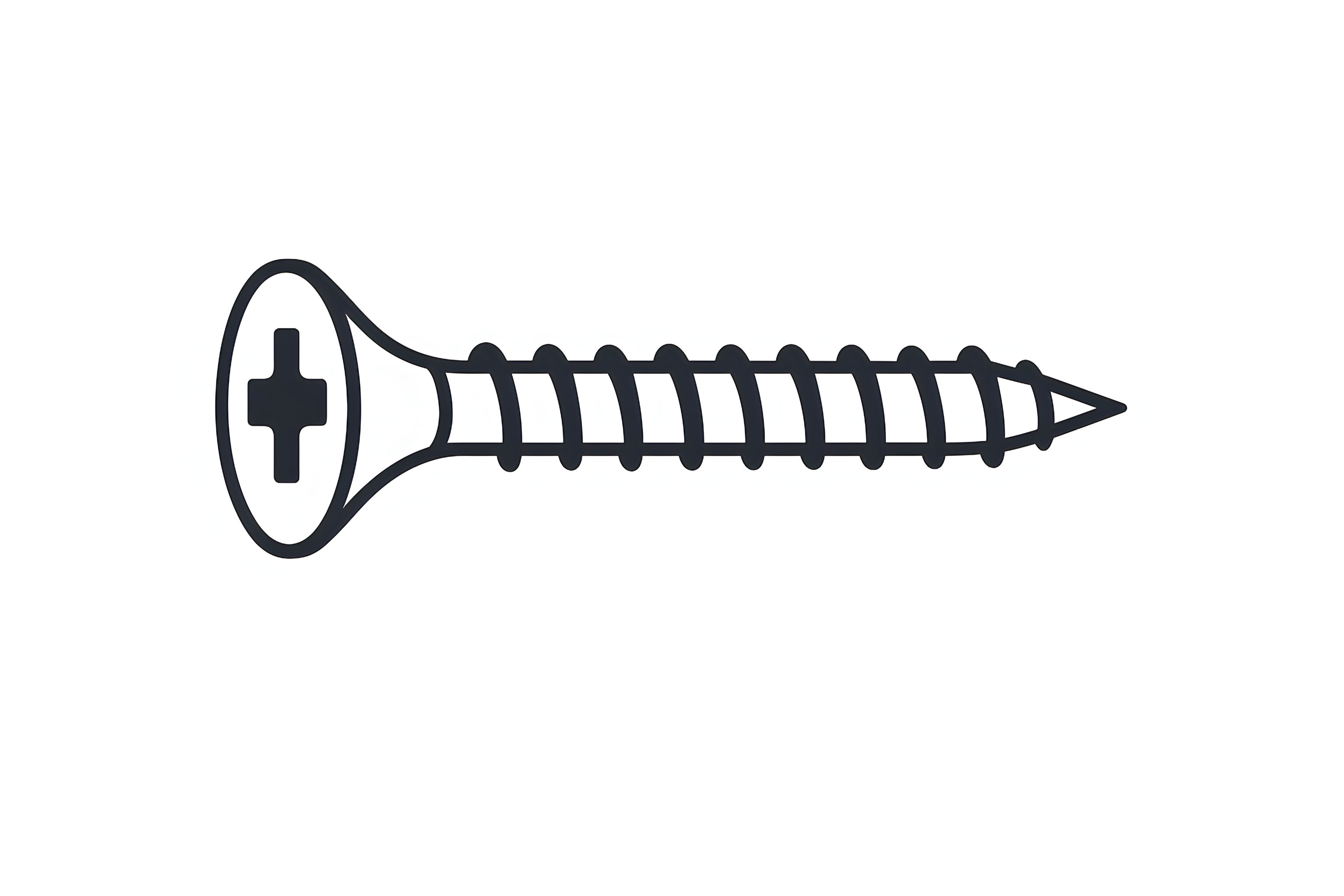

16 Piece(s)
Box A: Part G - Screw 3.5 x 25mm

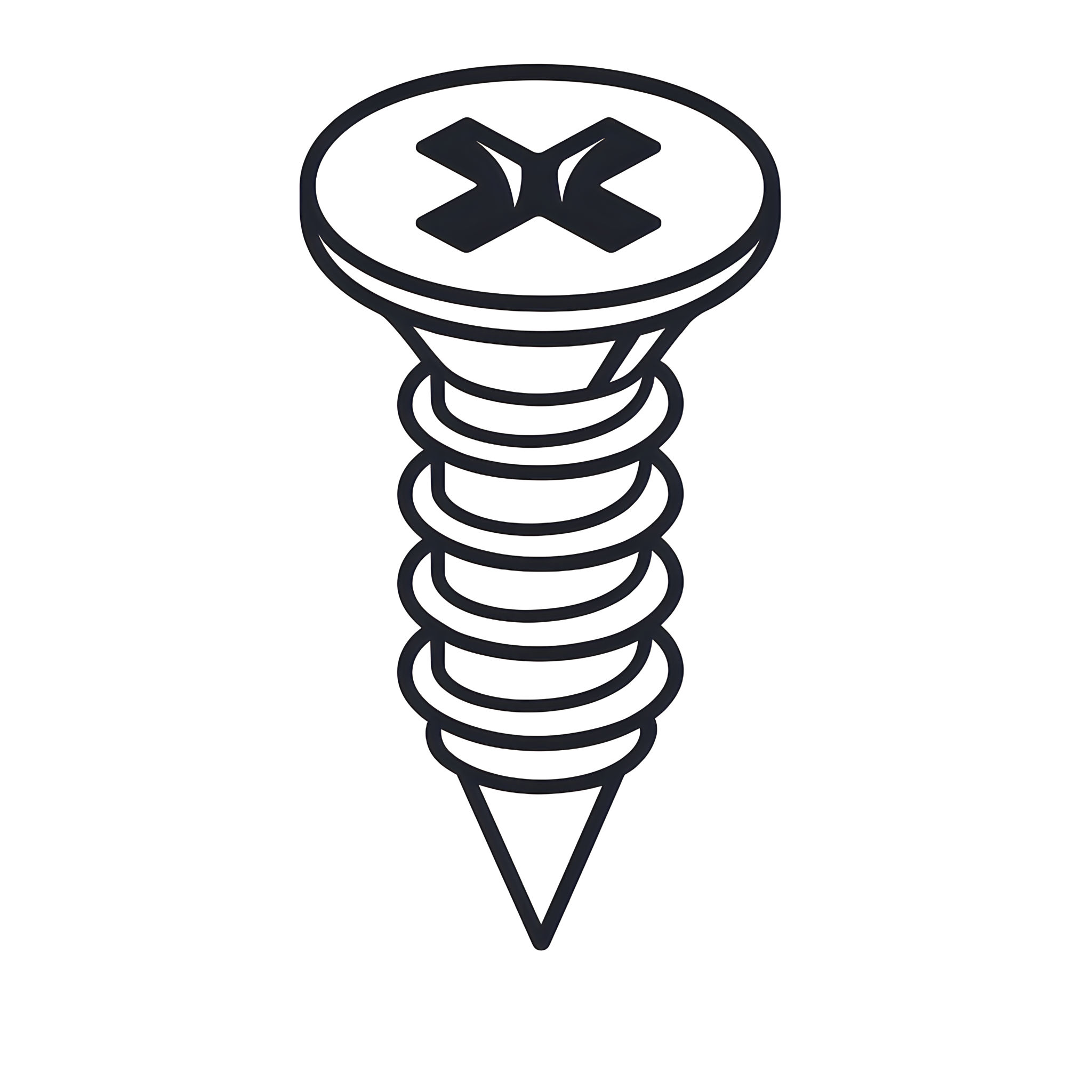

25 Piece(s)
Box A: Part H - Corner Bracket

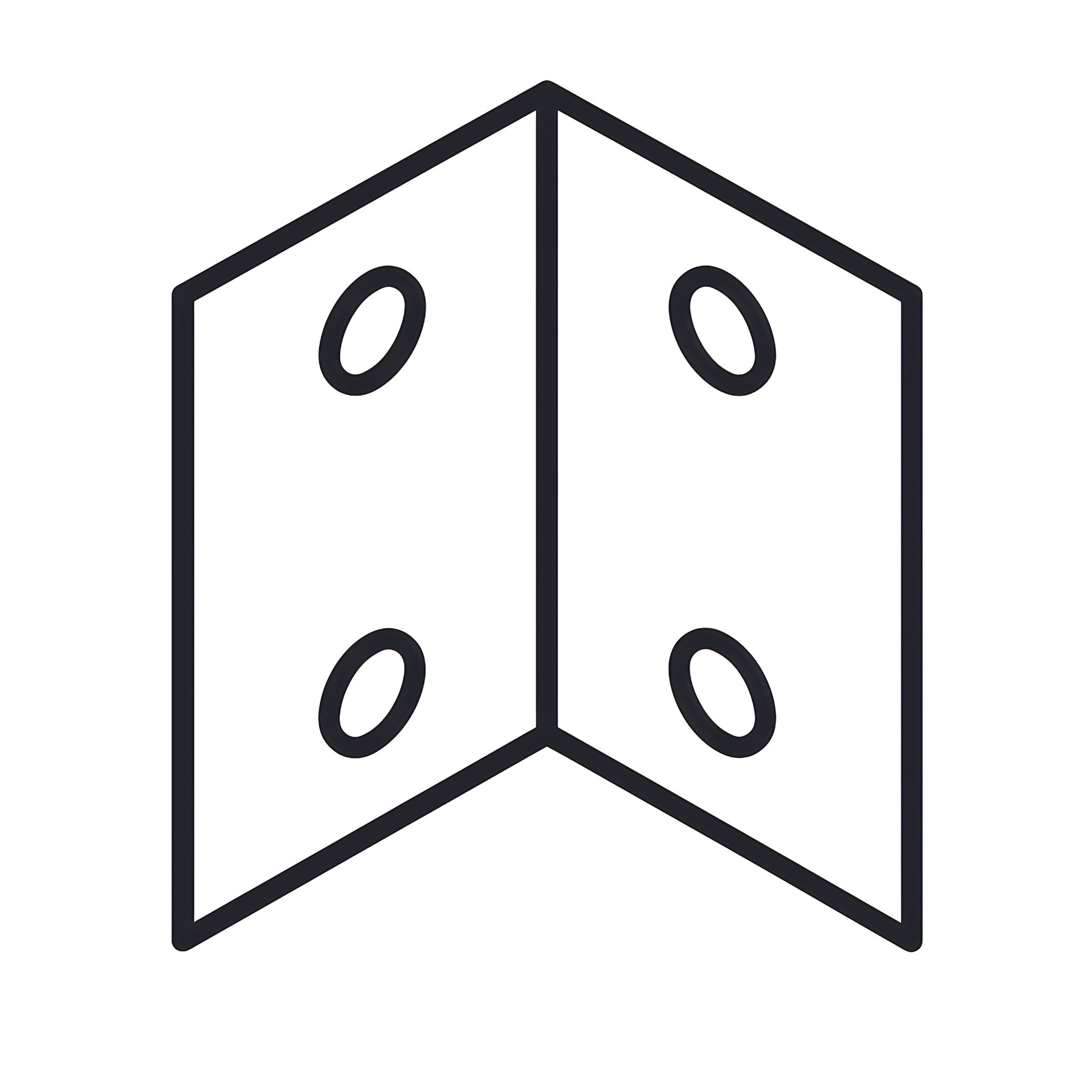

4 Piece(s)
Box A: Part K - 90º Hinge
6 Piece(s)
Box B: Part A - Connecting Bolt
50 Piece(s)
Box B: Part B - Cam lock
50 Piece(s)
Box B: Part C - Screw 3.5 x 20mm
24 Piece(s)
Box B: Part D - Support
2 Piece(s)
Box B: Part E - Hinge
2 Piece(s)
Box B: Part F - 4x 12mm Screw
32 Piece(s)
Box B: Part G - 3.5x25mm Screw
2 Piece(s)
Box B: Part H - Corner Bracket
4 Piece(s)
Box B: Part K - 90º Hinge
2 Piece(s)

  1. Troubleshooting

    1. What do I do if there are missing parts from my order?

    If there appears to be any part missing from your order, contact our friendly and helpful Customer Support Team within 7 days of receipt.

    For all other issues, please contact our customer support team.
Previous stepCopy link to sharePrint / PDFNext step
