1. Prepare the Components
Identify all parts: L-shaped upright beams, long beams, short beams, corner brackets, and MDF boards.
Instructions by
monstershop
Q-Rax Heavy Duty Racking System
Upgrade your storage with Q-Rax 160cm wide boltless racking! Each of the 4 shelves holds up to 350kg and assembles in minutes. Size: 160x60x160cm.
Product Information
Q-Rax Heavy Duty Racking System
The Q-Rax Heavy Duty Racking System is a perfect storage solution suited towards garages, warehouses, stock rooms and workshops.
The racking frame is made from quality 1.2mm heavy duty steel and can hold a massive 350KG per shelf - in total a whopping 1400KG! Finished with four layers of powder coated paint, this durable racking bay will maintain its excellent condition for even longer.
The Q-Rax Heavy Duty Racking System is 100% bolt-less, making it easy to assemble and only requiring the use of a rubber mallet.
Each Q-Rax Heavy Duty Racking System can even be halved to create two work benches or smaller shelves – a quick and easy adaptation to suit your needs.
- Dimensions
- 160cm W x 60cm D x 160cm H
- Materials
- 1.2mm Steel, untreated MDF boards
- Weight
- 50kg
- Capacity
- 350kg of evenly distributed weight
- SKU
- 23353, 23352
Tools
| Part | Qty |
|---|---|
| Rubber Mallet | 1 |
Materials
- L-Shaped Upright Beam
- 4 Piece(s)
- Long Beam
- 8 Piece(s)
- Short Beam
- 8 Piece(s)
- Middle Shelf Supports
- 8 Piece(s)
- MDF Board
- 4 Piece(s)
- Moulded Feet
- 4 Piece(s)
-
-

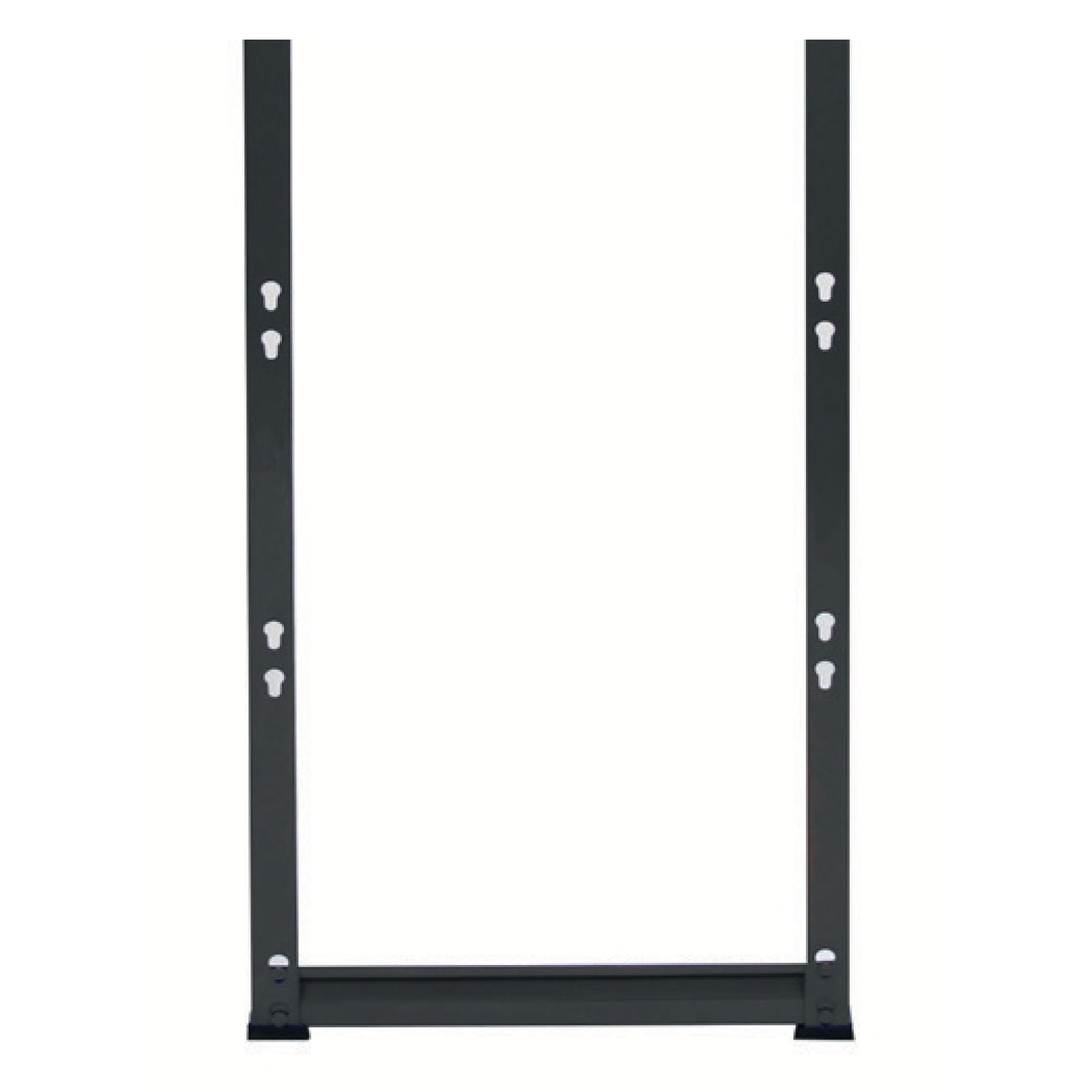

2. Frame Assembly
- Position two L-Shaped Upright Beams vertically to form one side of the frame.
- Connect them by attaching a Short Beam at the bottom using the rivet slots—this will stabilize the base.
- Repeat the process to assemble the second side frame.
- Then, connect both side frames by attaching a Long Beam to the top and bottom on each side, forming the basic rectangular structure.
-

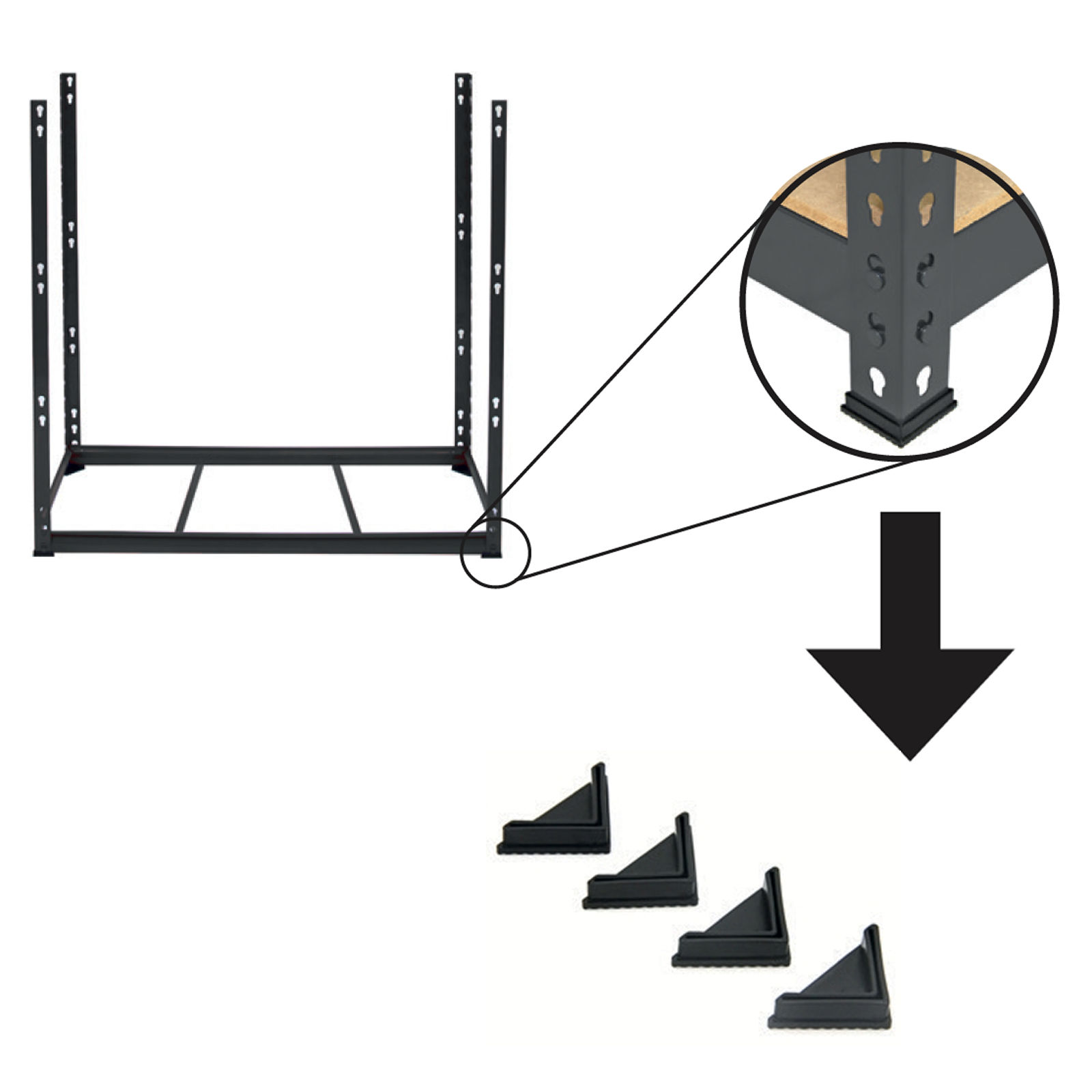

3. Attach the Moulded Feet
- Locate the Moulded Feet components.
- Attach the Moulded Feet to the bottom of each Upright Beam. Ensure they are securely fitted to provide stability.
-

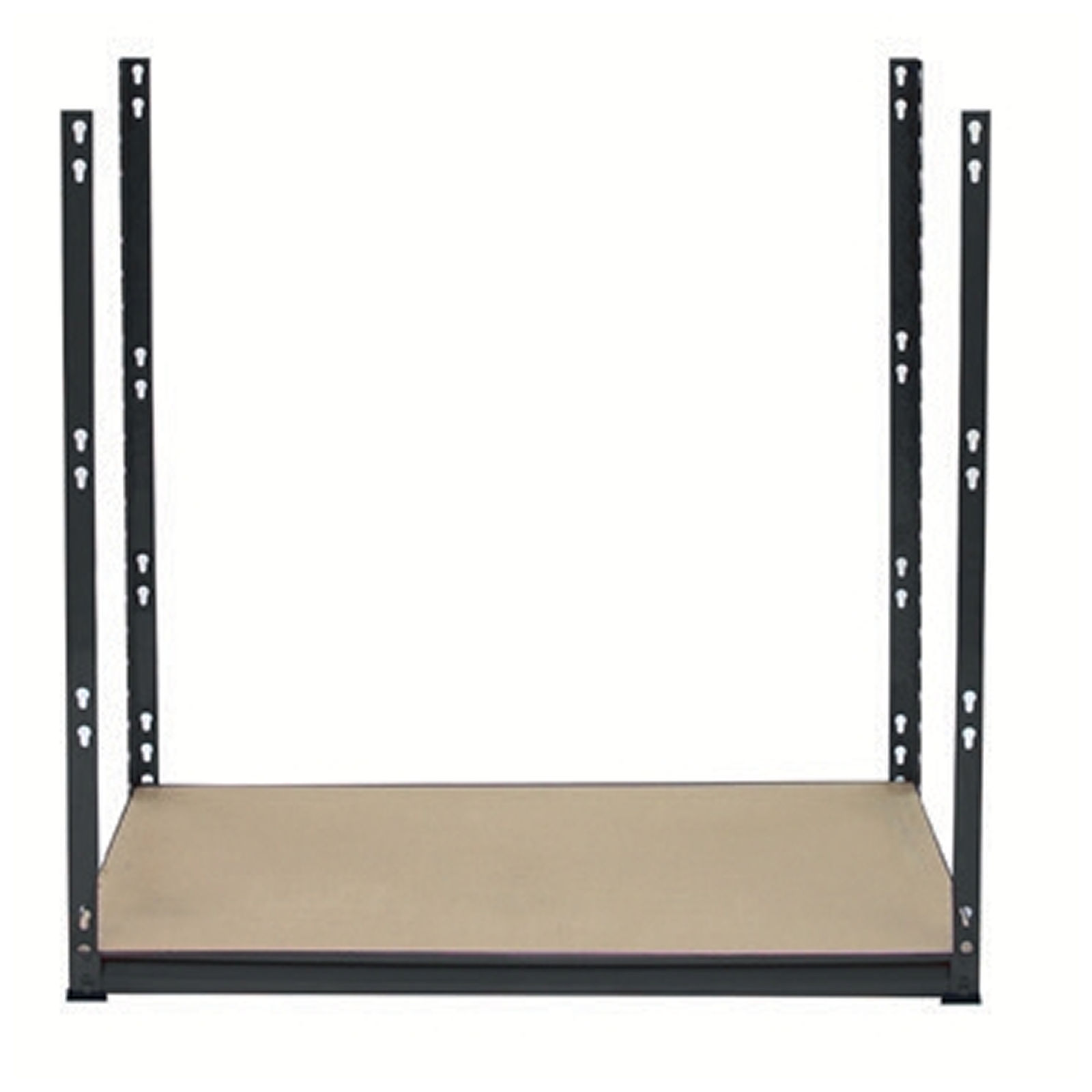

4. Place MDF Board
- Lay the MDF board onto the frame.
- Ensure the board is securely placed on the beams.
-

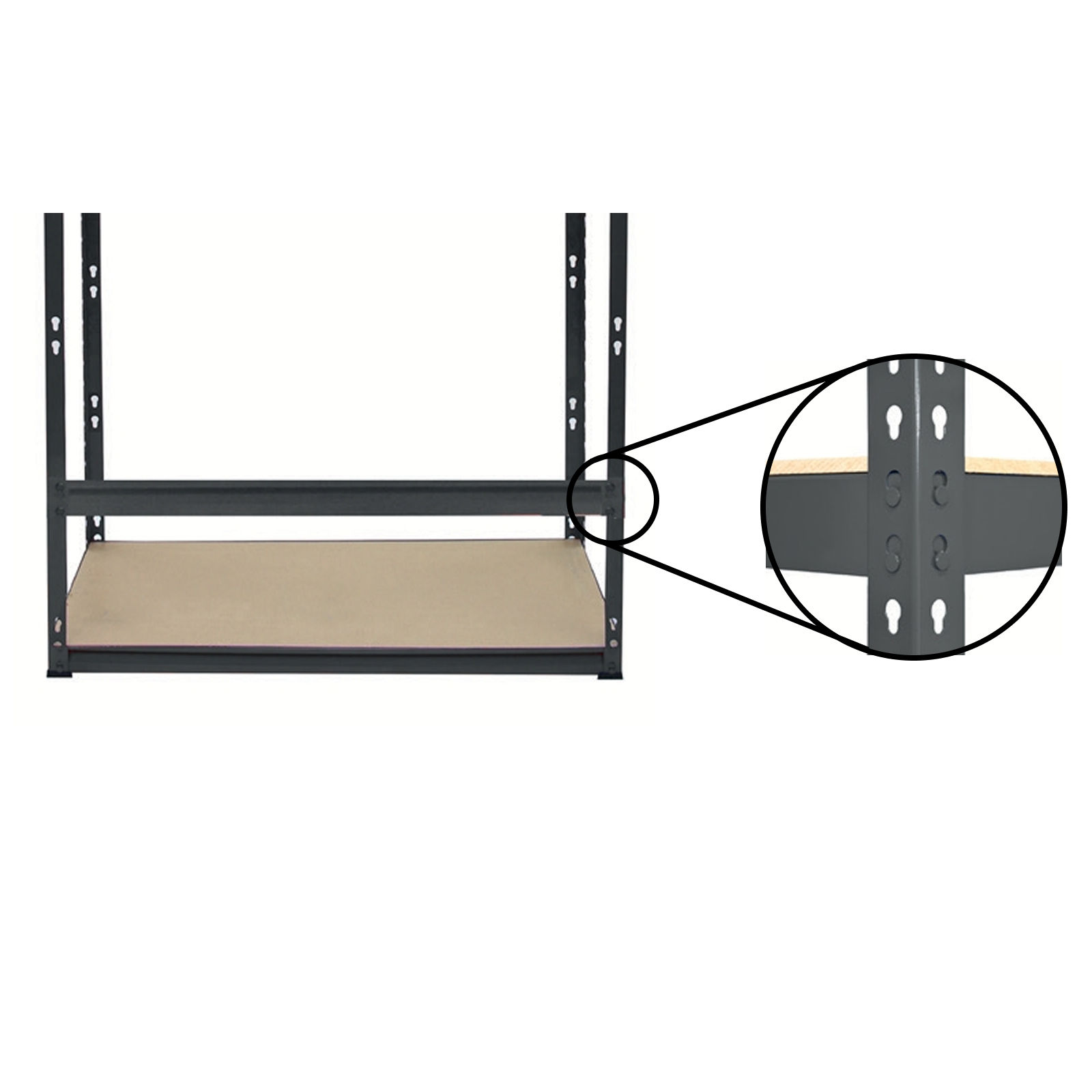

5. Install the Second Shelf
- Choose your desired height for the next level and align a Long Beam on each side between the upright beams.
- Insert the rivets into the corresponding keyhole slots and press down to lock them securely in place, as shown in the zoomed-in detail.
-

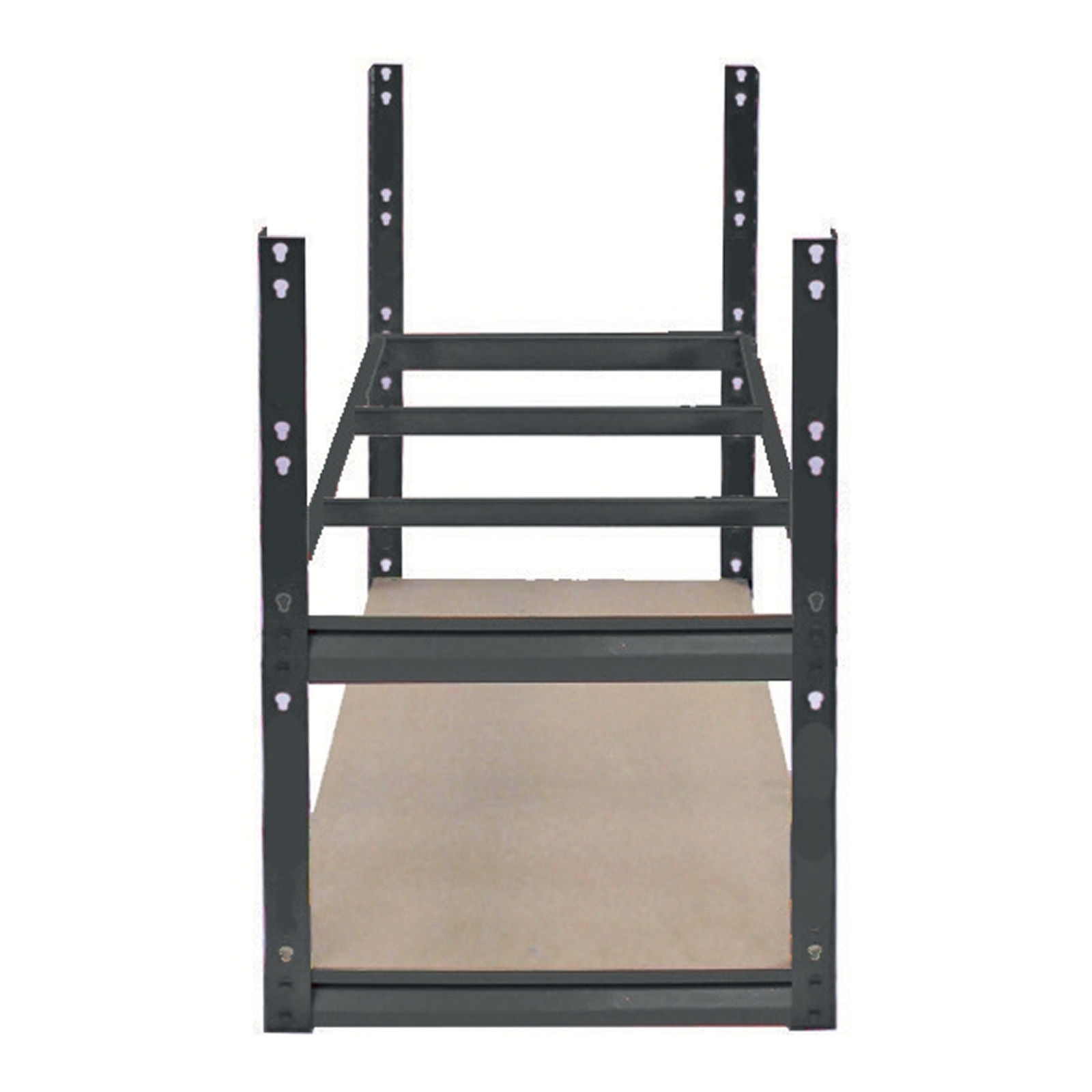

6. Add Short Beams and Central Shelf Supports
- Attach additional Short Beams on both sides of the upright frame.
- Attach the Central Shelf Supports to complete this second level.
- Ensure all beams are positioned evenly across both sides for each level to keep the structure balanced.
-

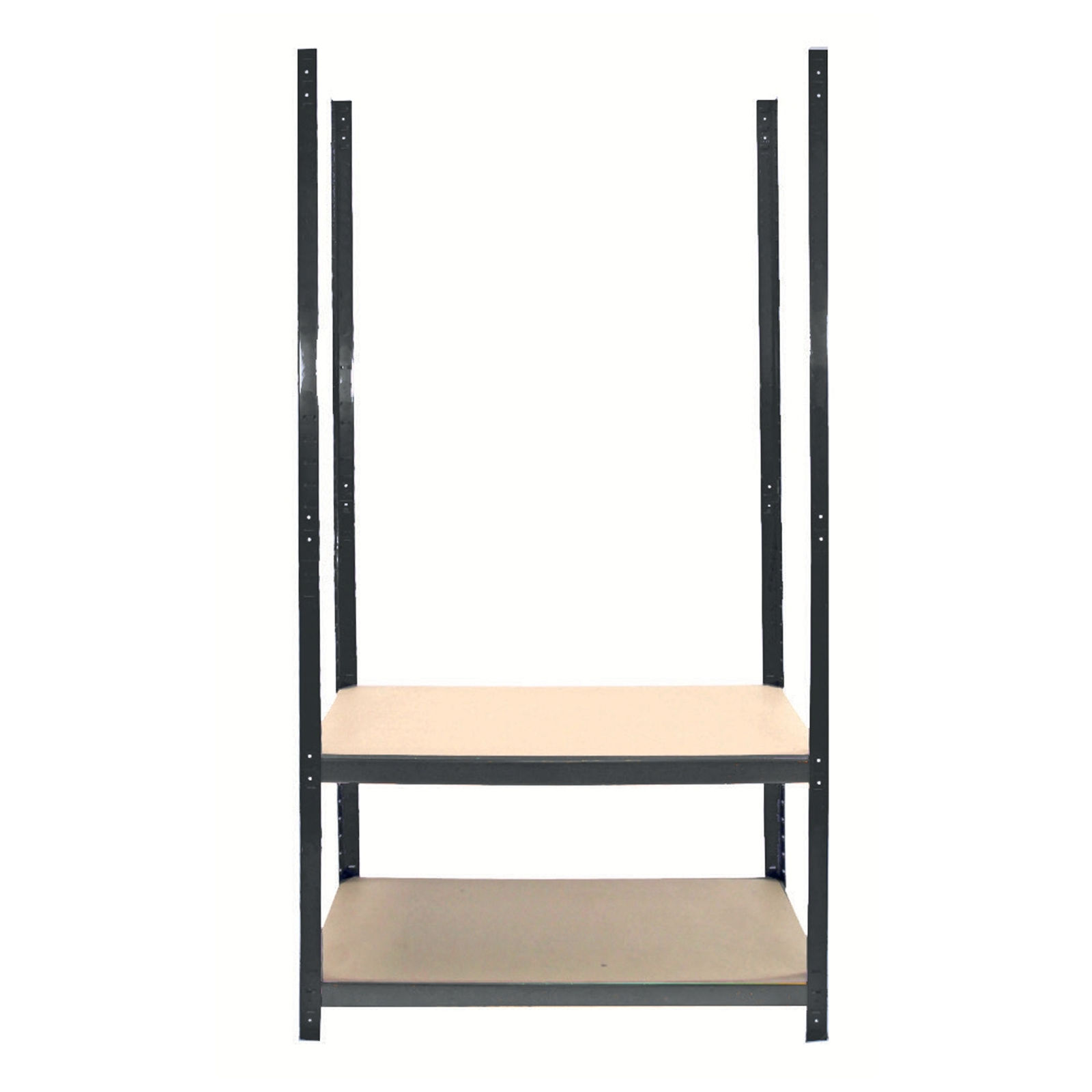

7. Place MDF Board
- Lay the MDF board onto the frame.
- Ensure the board is securely placed on the beams.
-

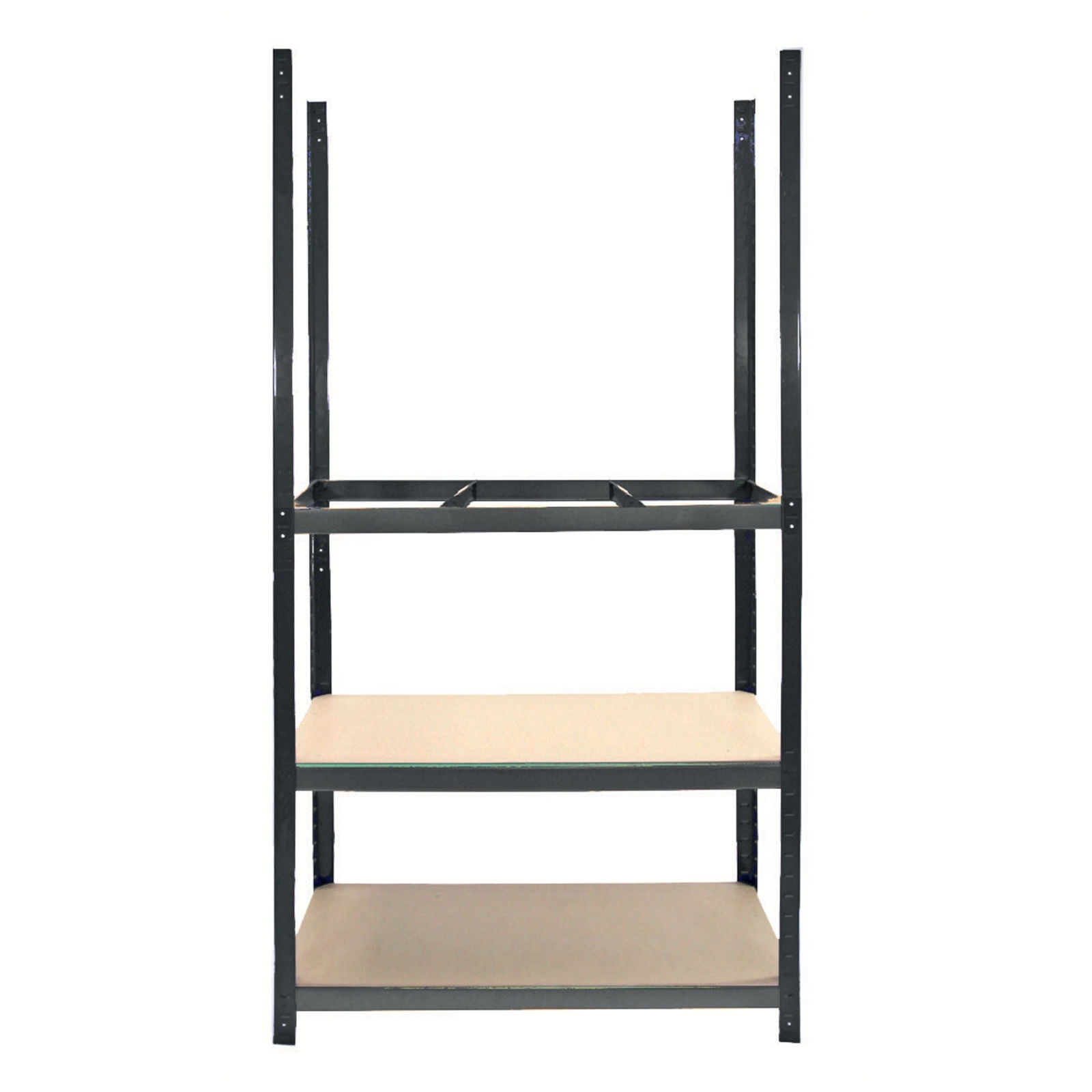

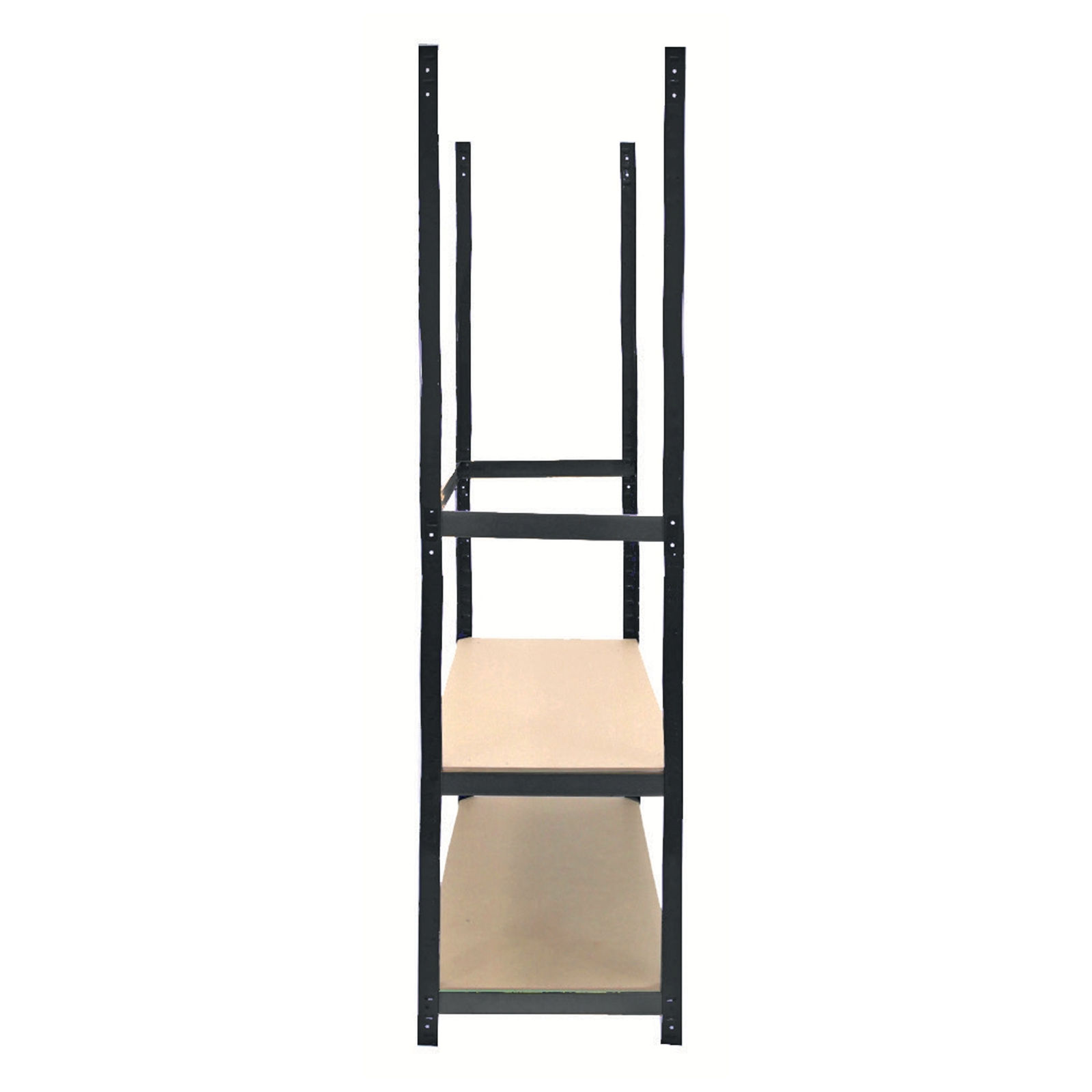

8. Add the Next Shelf Level
- Decide where you want the next shelf to be positioned.
- Attach Short Beams between the upright beams on both sides at the selected height.
- Then, connect the sides by adding Long Beams at the front and back to complete the rectangular frame for the shelf.
- Make sure all beams are level and securely locked into the rivet slots before proceeding
-
9. Add the Central Shelf Supports
Insert the Central Support Bars across the middle of the frame at the newly added shelf level.
-

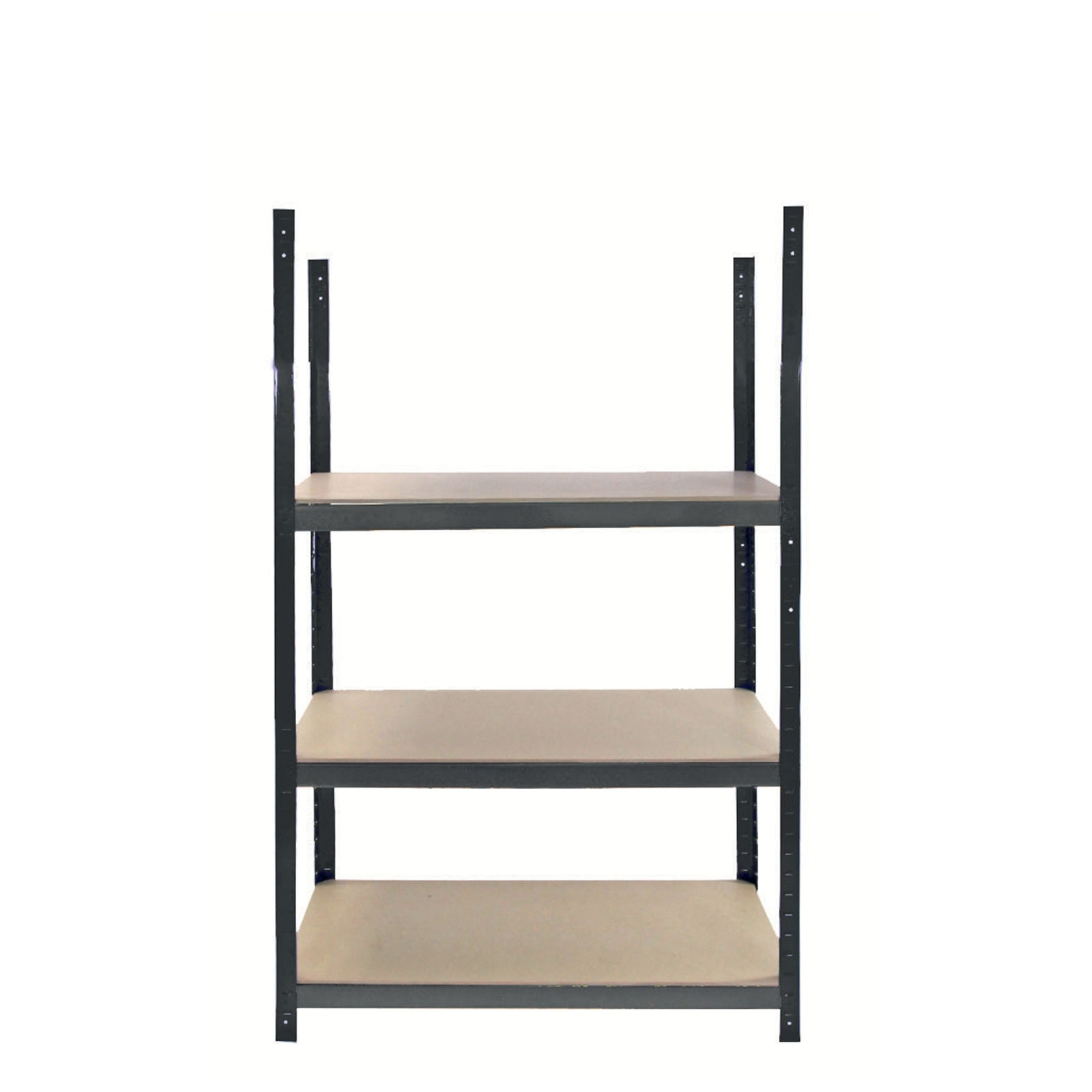

10. Place MDF Board
- Lay the MDF board onto the frame.
- Ensure the board is securely placed on the beams.
-
11. Add the Last Shelf
- Decide where you want the next shelf to be positioned.
- Attach Short Beams between the upright beams on both sides at the selected height.
- Then, connect the sides by adding Long Beams at the front and back to complete the rectangular frame for the shelf.
- Make sure all beams are level and securely locked into the rivet slots before proceeding
-
12. Add the Central Shelf Support
Insert the Central Support Bars across the middle of the frame at the newly added shelf level.
-

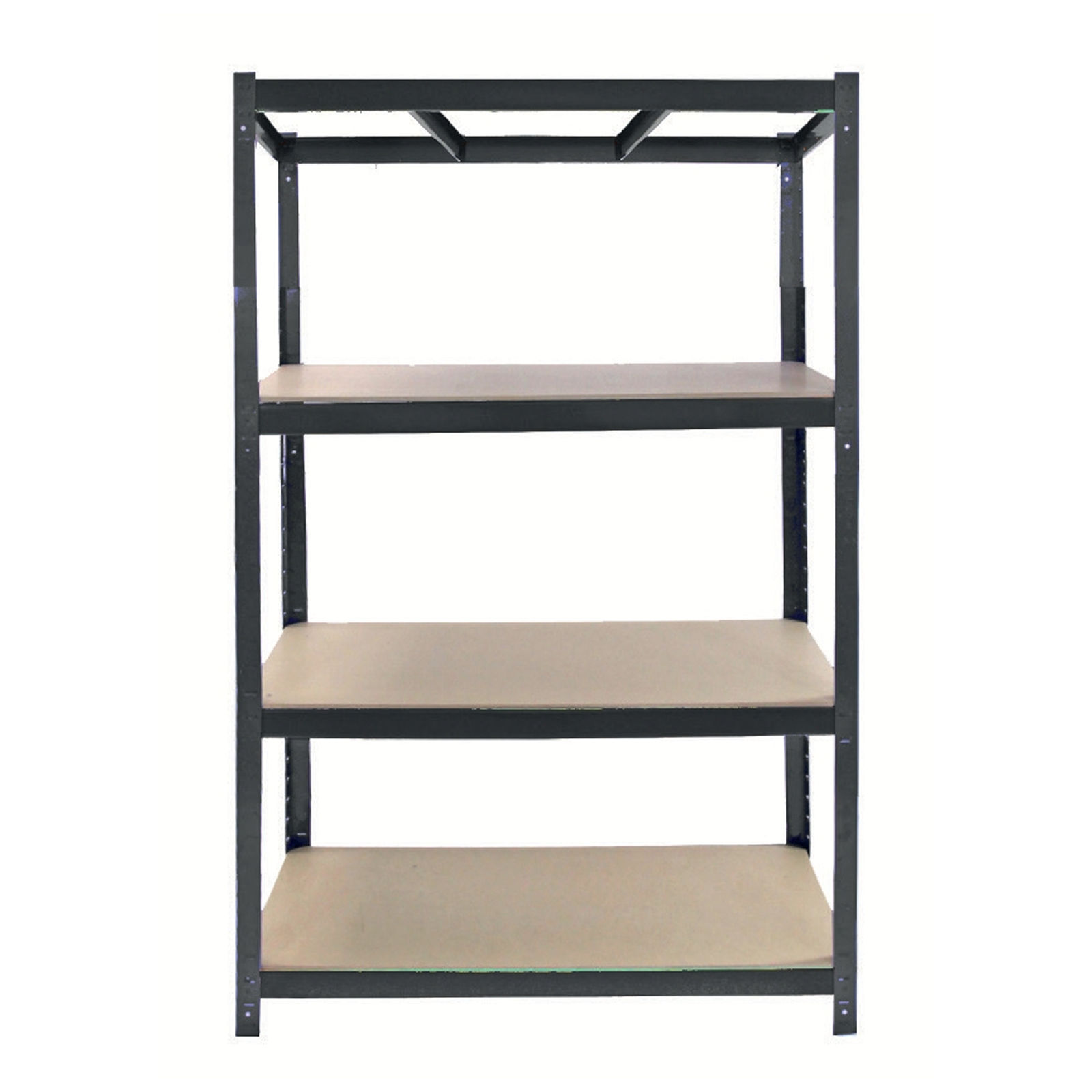

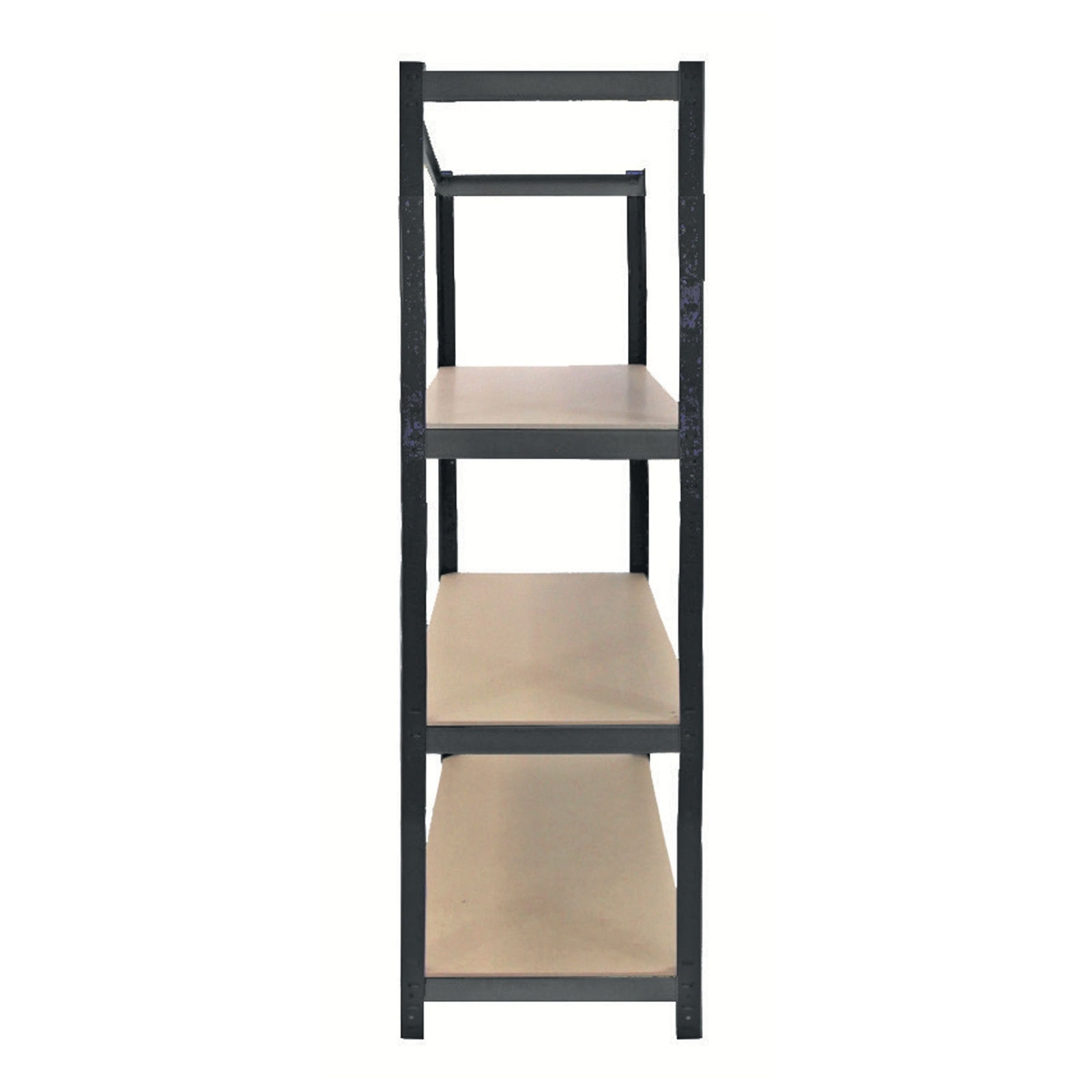

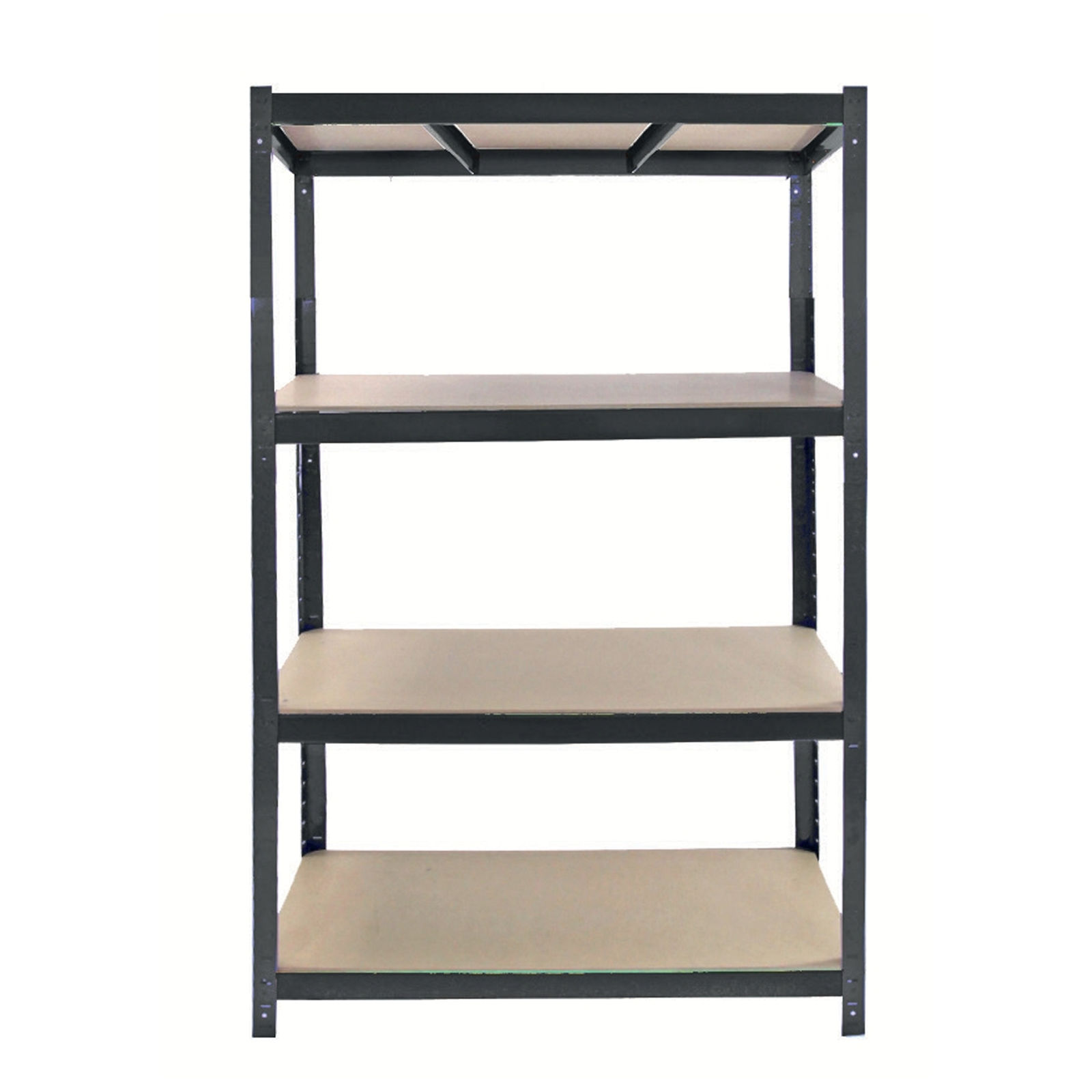

13. Complete the Final Shelf
- Place the MDF Shelf Panel onto the top shelf frame, resting it securely over the long and short beams with central supports beneath.
- Double-check all beams and connections to ensure everything is locked in and level.
- Your Q-Rax Heavy Duty Racking System is now fully assembled and ready for use!
