1. Unpacking and Checking Parts
Remove all pieces of the ramp from the packaging and ensure you have everything listed:
- 1 x Ramp
- 2 x PVC Handles (pre-attached to ramp)
- 4 x Nuts and Bolts
- 1 x Ramp Top Plate
- 1 x Ratchet Strap.
Instructions by
monstershop
T-Mech Foldable Motorbike Ramp
Detailed instructions for assembling, installing, and using the T-Mech Foldable Motorbike Ramp, ensuring safe and efficient loading and unloading of motorbikes onto trailers or vans.
Product Information

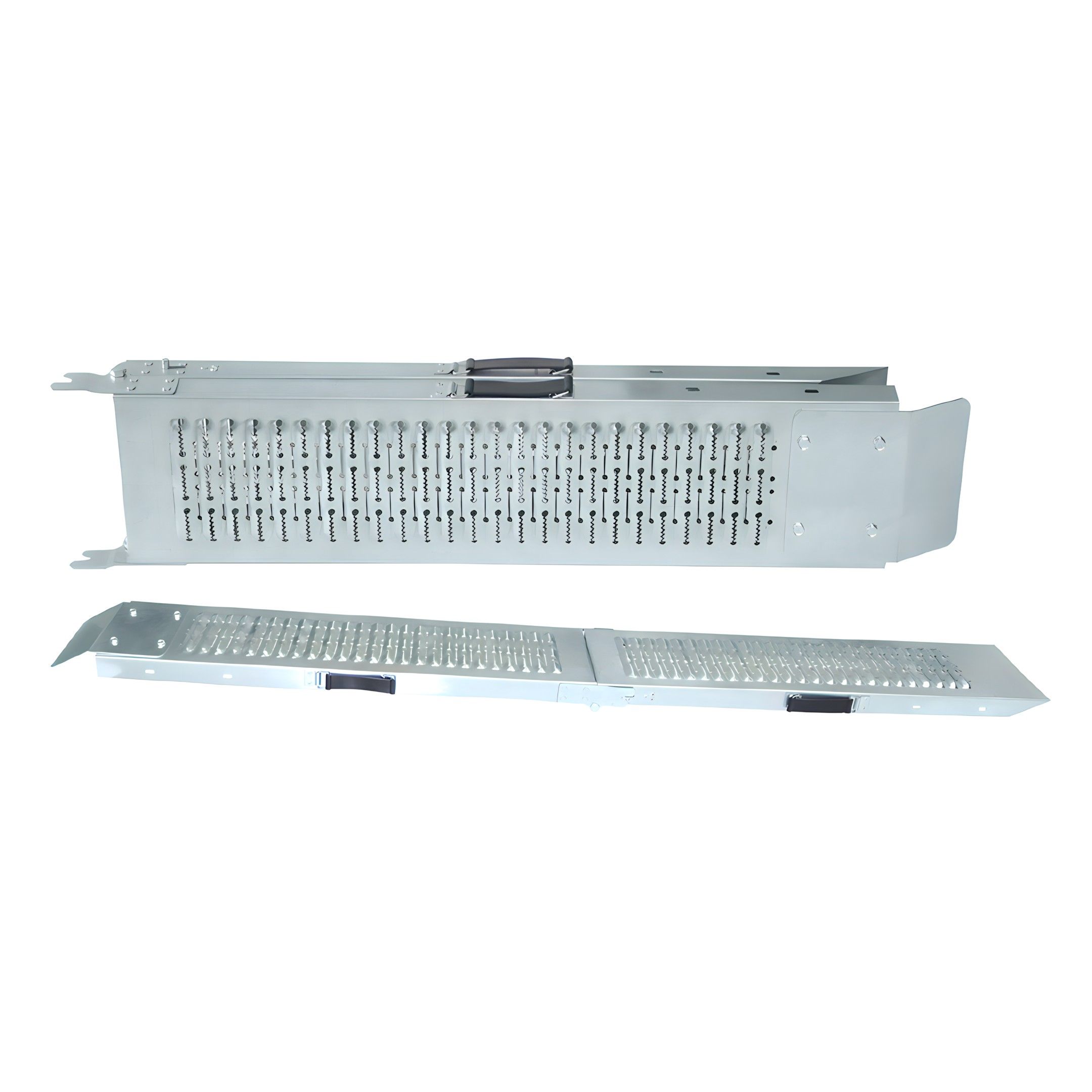

Foldable Motorbike Ramp
The T-Mech foldable Motorbike Ramp is a strong and stable ramp perfect for loading and unloading your bike onto a trailer or van. The non-slip serrated grip makes this ramp ideal, even in wet weather conditions. Made from A3 steel, the T-Mech motorbike ramp is durable and strong.
- Materials
- A3 steel, zinc plated
- SKU
- 27056
Materials
| Part | Qty |
|---|---|
| Ramp | 1 |
| PVC Handles (Pre attached to ramp) | 2 |
| Nuts and Bolts | 4 |
| Ramp top plate | 1 |
| Ratchet strap | 1 |
-
Assembly
-
2. Extending the Ramp
Extend the ramp fully until you hear a click sound, indicating that it has locked into place.
-
3. Align Top Plate
Once the ramp is fully extended take the Ramp Top Plate, place it on top of the ramp and line up the 4 holes on the ramp with the 4 holes on the plate.
-
4. Bolt Plate in Place
Once lined up; insert the bolt from the top, into the plate and through the ramp and loosly secure with a nut. Repeat 4 times until the plate is loosly secured then in turn fully tighten each nut.
Once assembled the ramp is straight forward to use.
-
Usage
5. Unfold Ramp
Unfold it by carefully pulling both ends apart, once this is complete you will hear a click as the locking mechanism locks the ramp in the open position.
-
6. Secure Before Use
Secure the ramp before unloading and/or loading use the ratchet strap provided and ensure the Ramp Top Plate is supported to it cannot slip or move.
-
7. Fold and Store
When you have finished using the ramp you will need to pull down on the locking bar located on the underneath of the ramp to release the locking mechnism. This will allow the ramp to be folded back in half to be stored until it’s next needed.
-
Troubleshooting
8. Resolution Guide
What do I do if there are missing parts from my order?
If there appears to be any part missing from your order, contact our friendly and helpful Customer Support Team within 7 days of receipt.
For all other issues, please contact our Customer Support Team.
