1. Attaching Plastic Sleeves for Bottom Shelf
Attach plastic black sleeves for the bottom shelf to all 4 uprights. Make sure the sleeves are at the same position on all uprights.
Instructions by
monstershop
Wire Racking
Add extra storage with this 5-tier chrome wire shelving unit. Tool-free assembly, sleek design, and durable build—perfect for home, garage, or office.
Product Information
KuKoo Wire Racking Unit
This KuKoo Wire Racking unit will exceed your expectations, not only does it have 5 adjustable wire shelves each one is able to hold up to 200kgs.
The KuKoo Wire Racking unit is available in 5 different sizes and made from high quality Chrome Plated Carbon Steel for incredible strength.
- SKU
- 211620, 211621, 211622, 211623, 211624
- Materials
- Chrome Plated Carbon Steel
GPSR Information
UK
Manufacturer: Monster Group UK Limited, Monster House 19-23 Alan Farnaby Way, Industrial Estate Sheriff Hutton, York YO60 6PG
Person Responsible: Rana Harvey, Monster Group UK Limited, Monster House 19-23 Alan Farnaby Way, Industrial Estate Sheriff Hutton, York YO60 6PG, England, +441347878880
EU
Manufacturer: Monster Group BV, Van Heemskerckweg 28A & B, Venlo 5928LL Netherlands +441347878880
Person Responsible: Rana Harvey, Monster Group BV, Van Heemskerckweg 28A & B, Venlo 5928LL, Netherlands, +44134787888
Tools
| Part | Qty |
|---|---|
| Rubber Mallet | 1 |
Parts diagram
- A - Wire Shelves
- 5 Piece(s)
- B - Upper Uprights
- 4 Piece(s)
- Lower Uprights
- 4 Piece(s)
- Double Threaded Upright Connector
- 4 Piece(s)
- C - Black Sleeves
- 40 Piece(s)
- D - Feet
- 4 Piece(s)
-
-

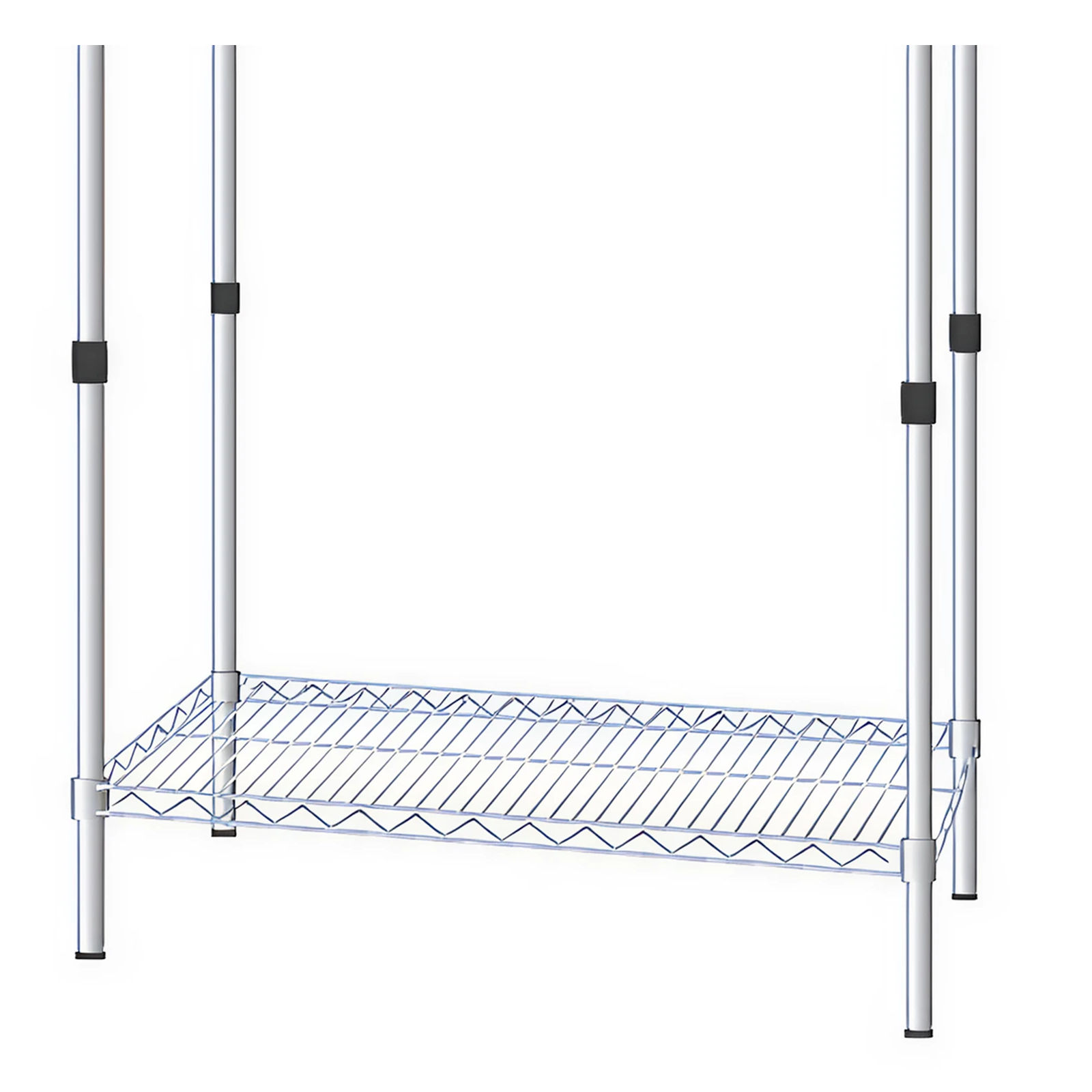

2. Inserting Uprights Through Shelf Holes
Insert the uprights through the holes of the shelf one-by-one and secure the shelf in place with a rubber mallet.
-
3. Attaching Sleeves for Second Shelf
Attach plastic black sleeves at the desired height for the second shelf.
-

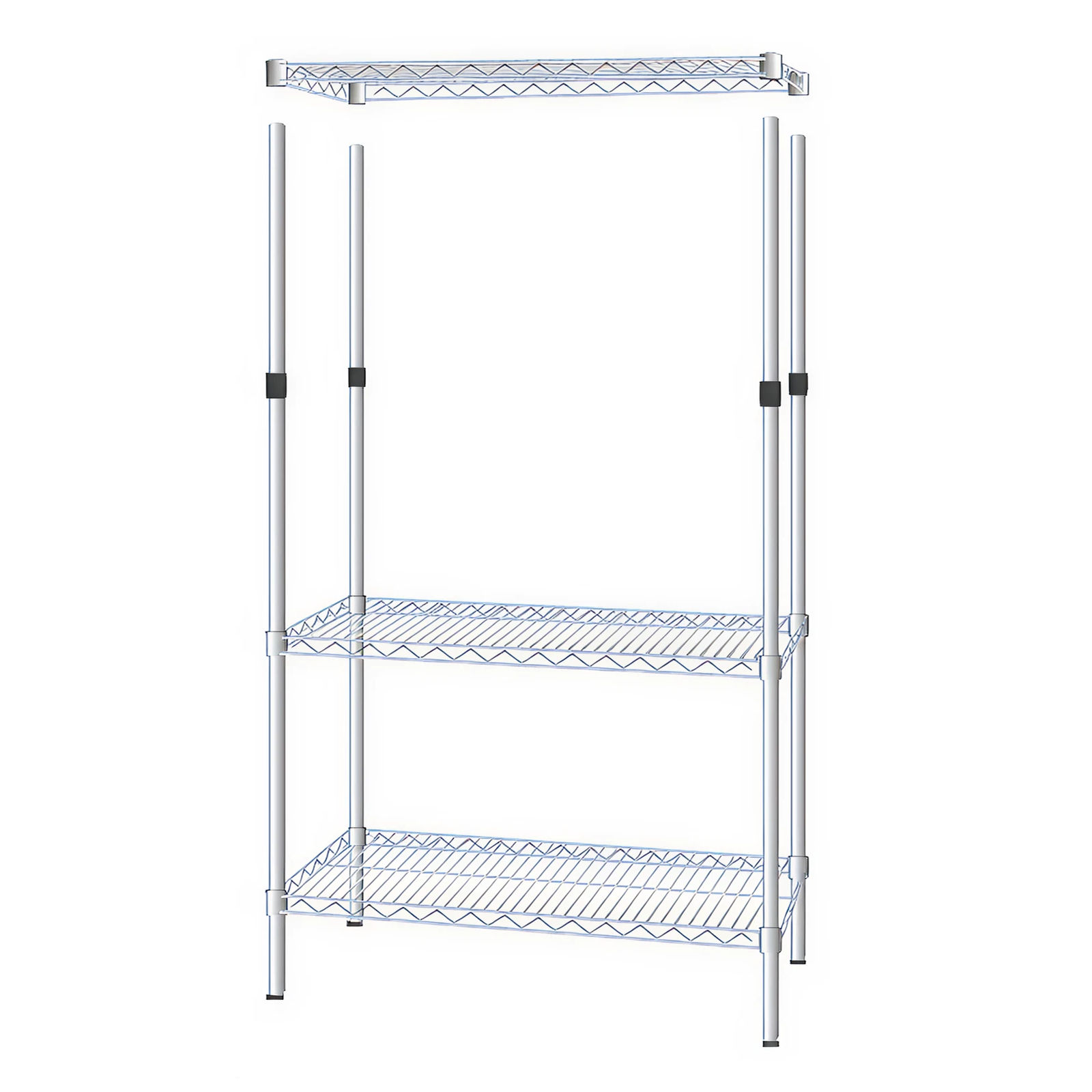

4. Assembling the Shelves
Put the next shelf on the uprights, slide to the plastic black sleeves and secure with the mallet. Repeat steps 3 and 4 until you complete all levels.
-

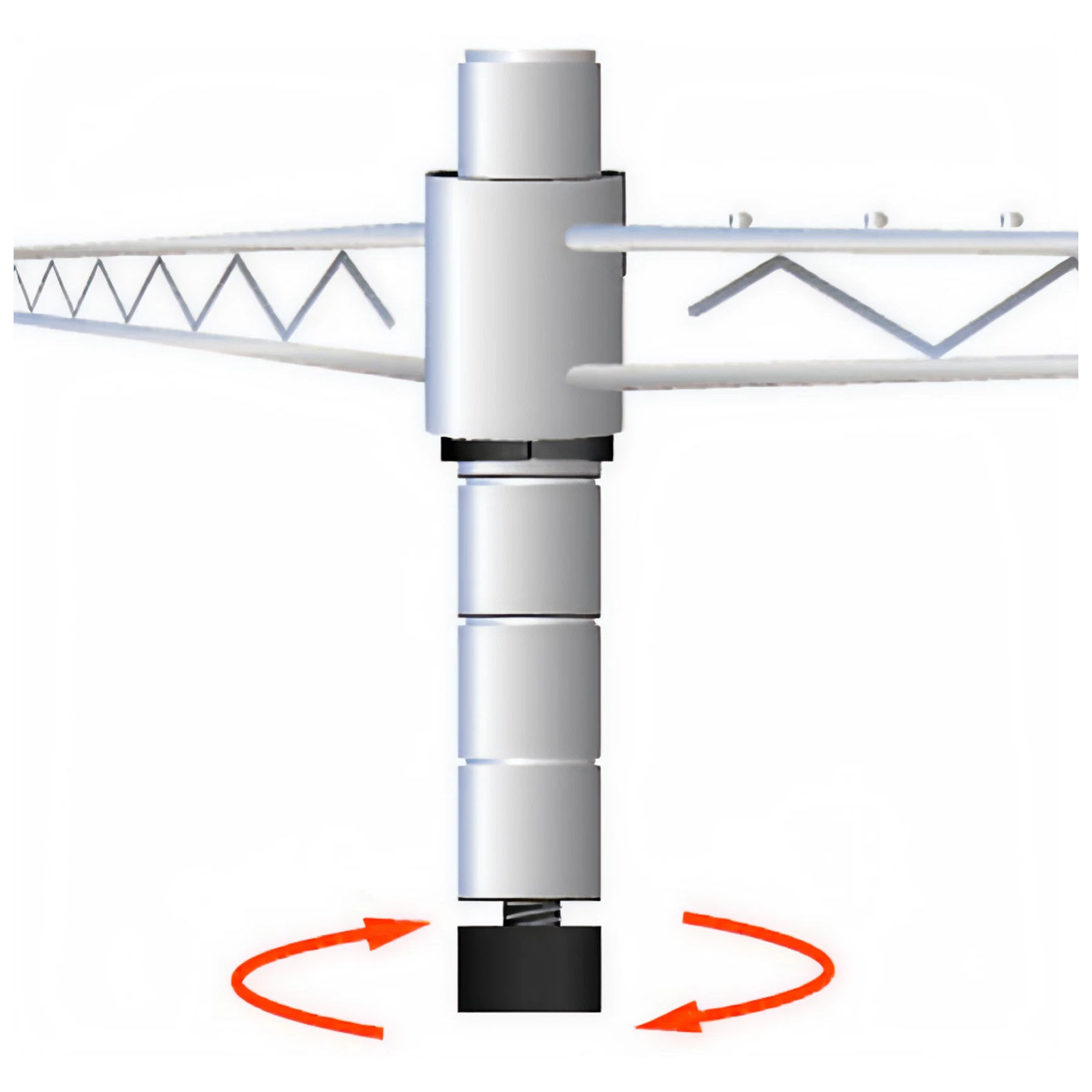

5. Adjusting the Feet
Adjust the feet if necessary or if the floor is uneven.
-
6. Resolution Guide
- WHAT DO I DO IF THERE ARE MISSING PARTS FROM MY ORDER?
If there appears to be any part missing from your order, contact our friendly and helpful Customer Support Team within 7 days of receipt.
FOR ALL OTHER ISSUES, PLEASE CONTACT OUR CUSTOMER SUPPORT TEAM.
