Educational Etching Press 2642 BB

Detailed instructions for the installation, use, and maintenance of the Educational Etching Press 2642 BB by RGM.

Product Information

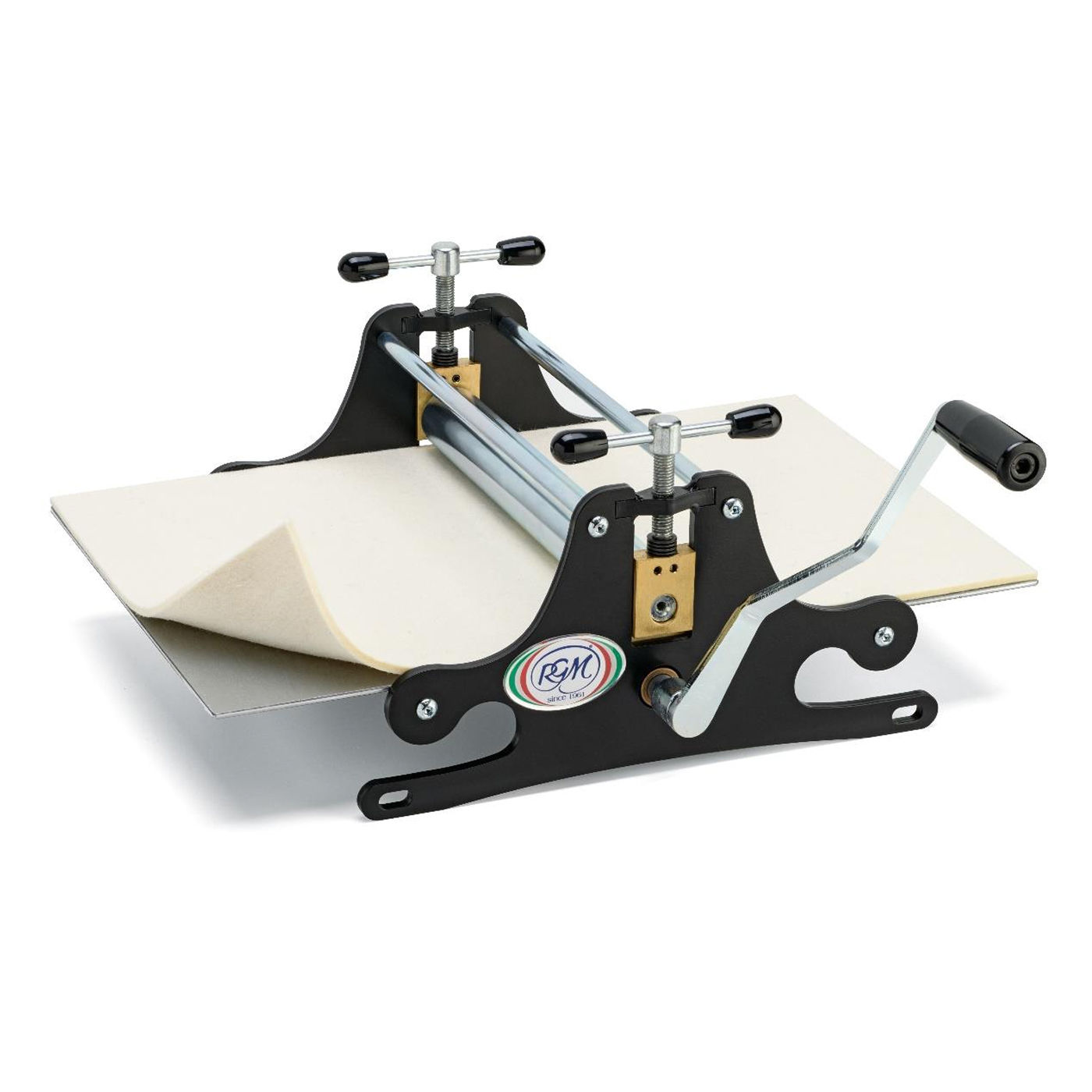

Torchio Scolastico 2642 BB

The manual press 2642 BB, designed for intaglio printing, was created by RGM for school use in collaboration with professionals. It is a simple tool to use that achieves excellent print quality thanks to the precision of the mechanical details and the use of high-quality materials.

The main features of the 2642 BB press are:

  • A steel structure with a smooth upper roller and a knurled lower drive roller with a diameter of 35 mm.
  • A support plate 27 x 42 x 0.3 cm in galvanised iron with a corresponding felt thickness of 3/5 mm.
  • A drive lever;
  • Two screws to adjust the pressure of the rollers.
Weight
11 kg
Models
TC.2642BB

Tools

Part Qty
Allen key (3 mm) 1
Allen key (4 mm) 1
Clamps (optional) 1
Lubricating oil bottle (optional) 1

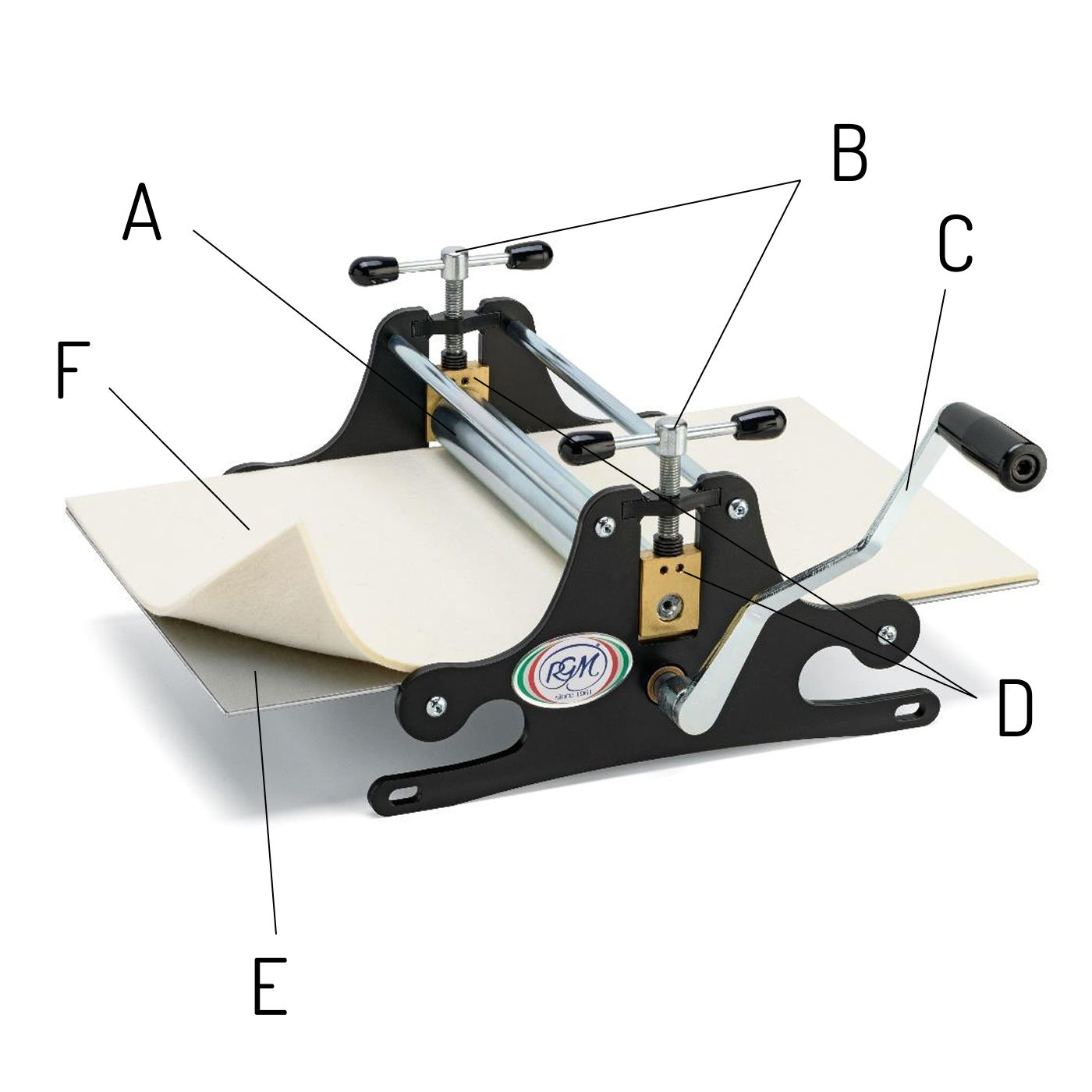

Descrizione

Upper roller
Pressure Screws
Drive Lever
Parts to oil
Sliding iron plate
Felt

  1. 1. Commissioning

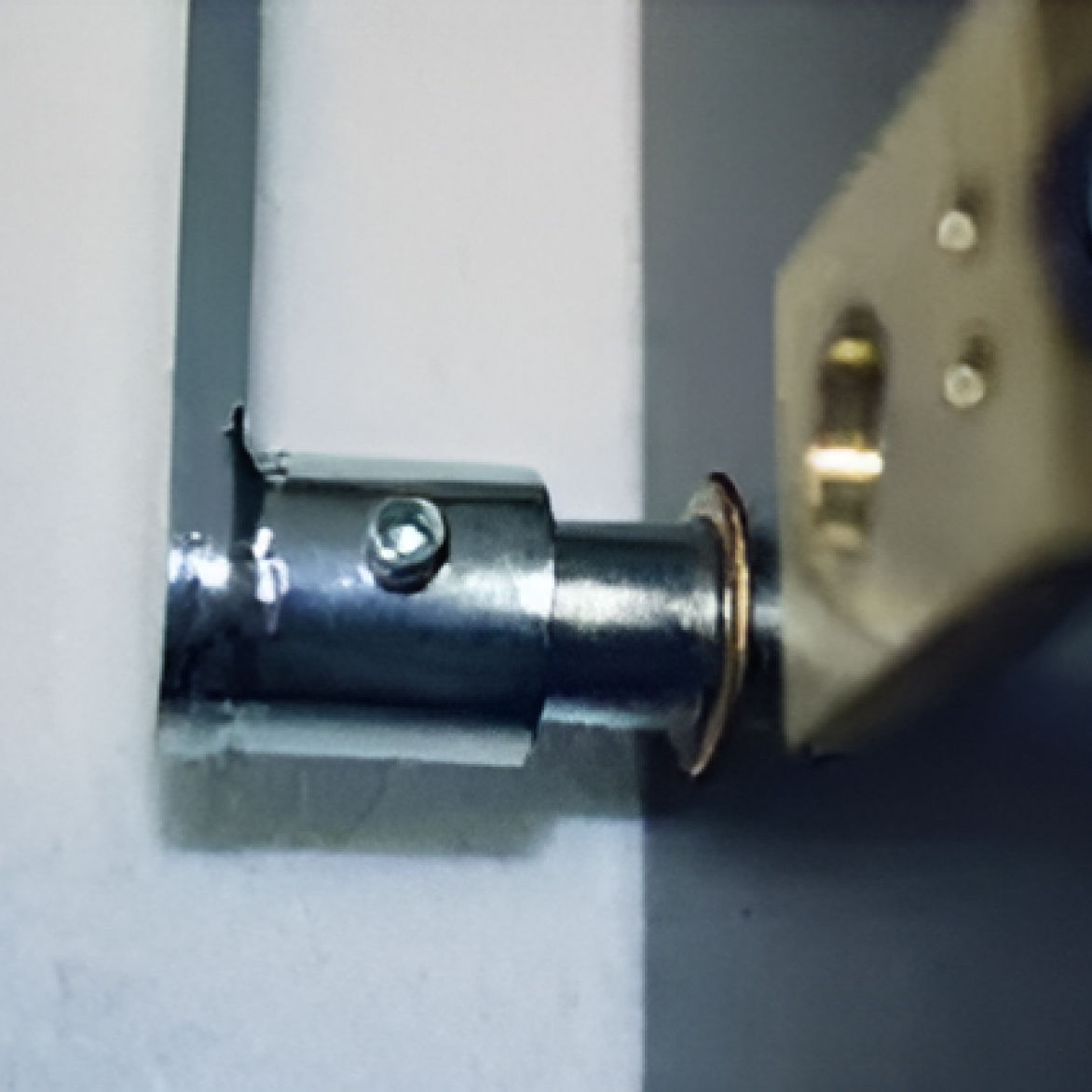

    Perno
    • Check that the mechanical parts of the press and the packaging have not been damaged during transport
    • Secure the press to the table with the two clamps
    • Insert the lever for rotating the lower roller

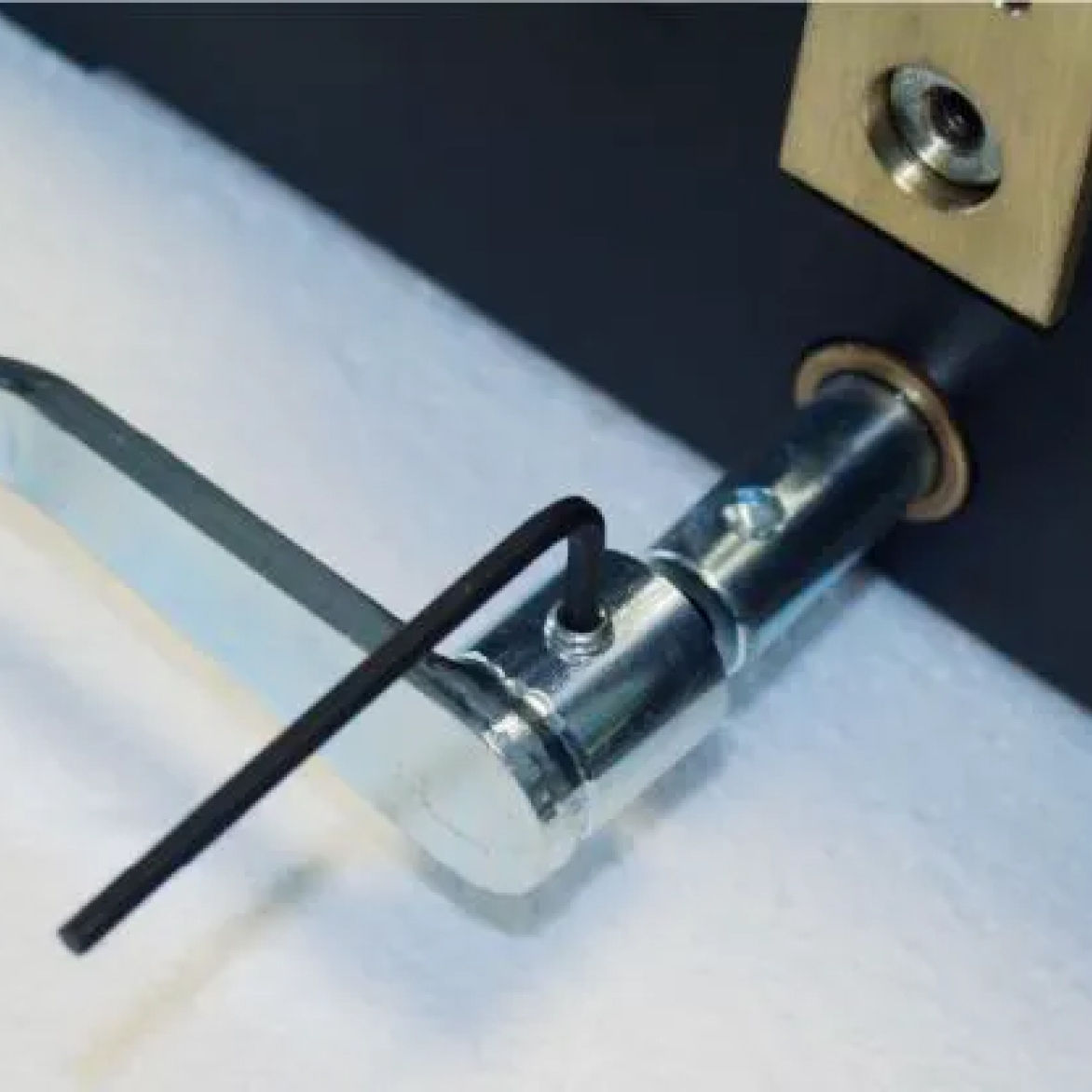

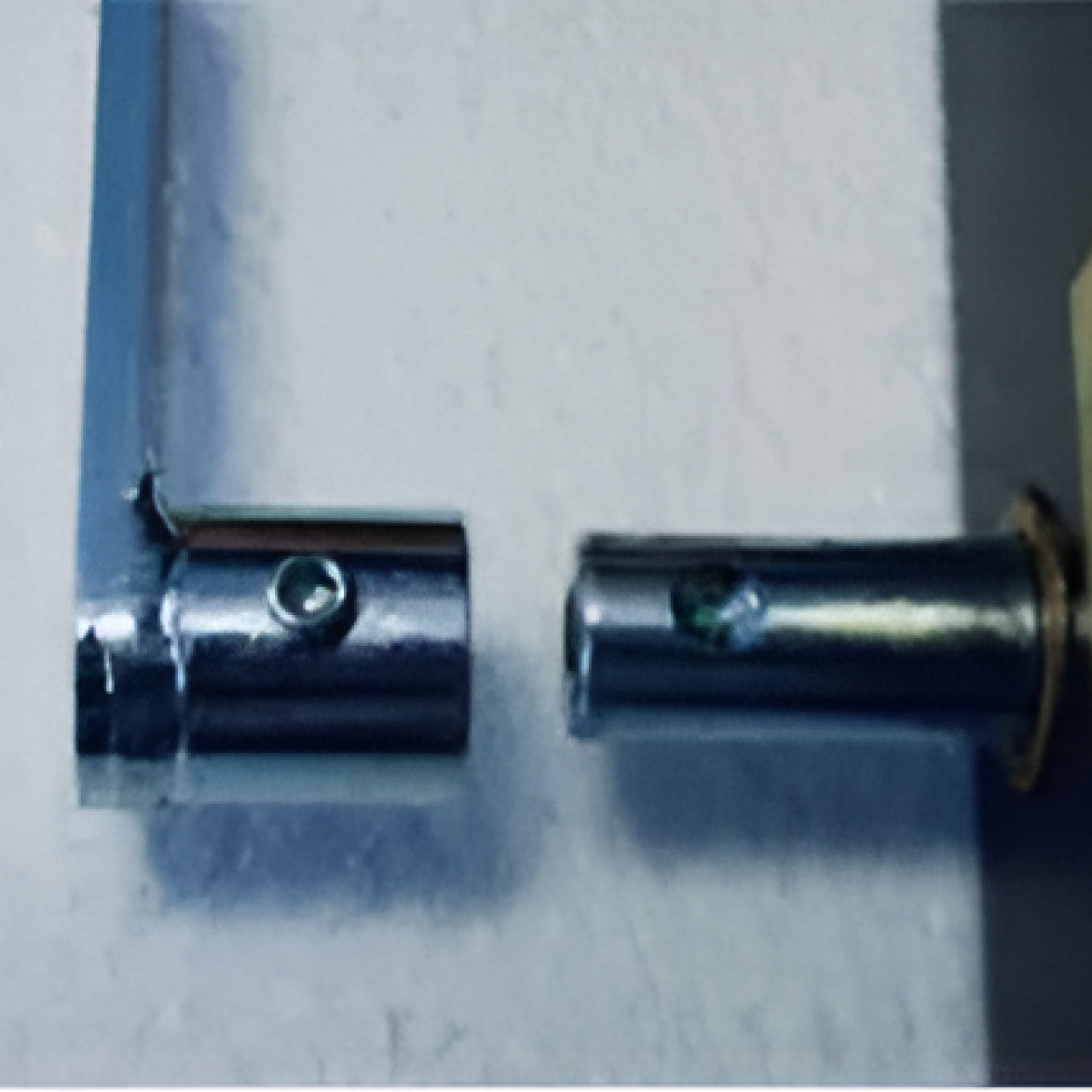

    • Tighten the side screw with the supplied key, taking great care to fix it in the shaft cavity, ensuring that all parts are screwed and well tightened (see following photos)
    • Oil only the rotating mechanical parts
    • Turn the pressure screws clockwise and counterclockwise to bring the upper roller into a parallel position with the lower roller
    • Remove the iron plate and clean it (NOTE: if necessary, for better traction, sand the part of the support surface in contact with the knurled lower roller to make it rougher)
    • Clean the rollers with a cloth and do not oil them
    • Reposition the iron plate
    • Place the felt over the support surface
    • Adjust the pressure of the press
    • Perform the printing
    • Once the work is finished, clean the press and store it inside its box in a dry place, thus preventing it from being damaged.

  2. 2. Usage

    =?UTF-8?Q?Piano_d=E2=80=99appoggio?=

    To obtain a print from an engraved and inked plate, proceed as follows:

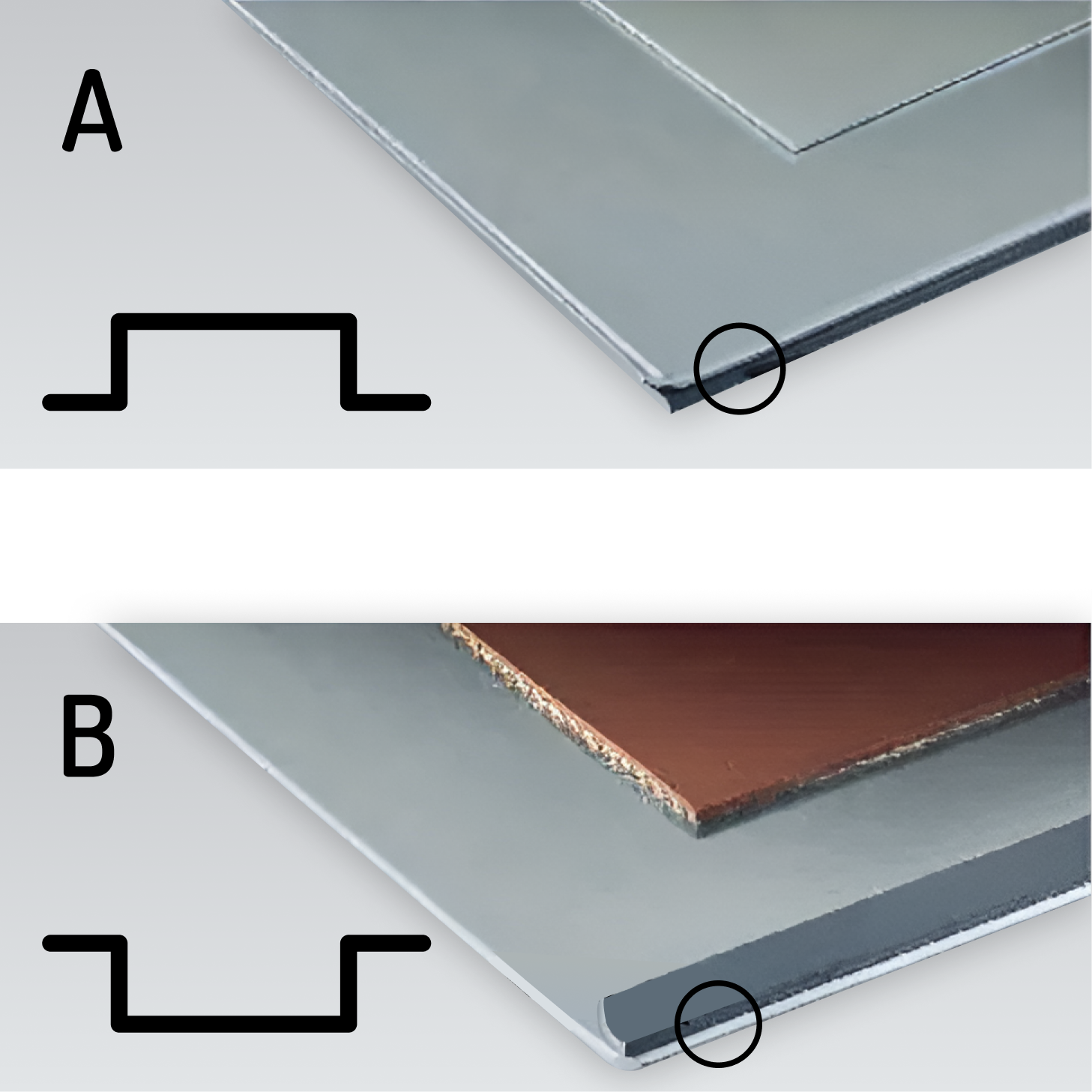

    • To print with the engraved zinc plate, position the support surface in version A (with the side spacers facing downwards); to print with linoleum, flip the support surface to version B (with the side spacers facing upwards).
    • Adjust the pressure screws by turning them clockwise and counterclockwise, keeping the upper roller parallel to the lower one until adequate roller pressure for printing is achieved.
    • Lift the felt backwards from the support surface.
    • Place the engraved plate on the iron surface with the inked side facing upwards, then lay a dampened sheet of paper suitable for printing and replace the felt.
    • Turn the lever to ensure the surface moves with continuity and at a constant speed.
    • Advance the sliding surface until it surpasses the edge of the paper, lift the felt and remove the printed sheet (the print will appear as a mirror image of the plate; if the effort for the printing pass is excessive, slightly loosen the pressure screws).
    • Repeat the above procedure for subsequent prints.

  3. 3. Troubleshooting

    If the upper roller and the lower roller do not rotate:

    • Check the parallelism between the rollers.
    • Check and lubricate the rotation points.
    • Thoroughly clean all parts.

    If there are issues with the pressure screws:

    • Clean and lubricate them well.
    • Ensure that the upper roller is parallel to the lower one.
    • Check that the roller carriage is free and lubricated.

    If the support surface struggles to slide:

    • Sand the part in contact with the knurled lower roller.
    • Release pressure from the screws.
    • If the lower roller spins freely and does not touch the support surface, increase the pressure of the screws in small increments.
    • Degrease with a specific product.

  4. 4. Routine Maintenance

    1. Periodically check the flange fixing screws to ensure they are tight.
    2. Also tighten the lever set screw with the supplied wrench.
    3. Daily lubricate the two rollers at the point of rotation.
