Chateaux Wooden Bed Frame

Assembly instructions for Chateaux Wooden Bed Frame by Time4Sleep

Product Information

Chateaux Wooden Bed Frame

Inspired by classic French Farmhouse style design the Chateaux bed finished in White, Black and Natural Oak is a versatile design that will work equally well in a traditional or contemporary design.

The bed has a sprung slatted base for extra comfort and support.

One of the best value beds on the market today, this bed represents outstanding value at these special introductory prices.

The underbed clearance on this bed frame is 19cm approx.

View product

SKU: Chat46White,Chat50White,Chat46Black,Chat50Black,Chat46NatOak,Chat50Natoak
Colors: Black, White, Natural Oak

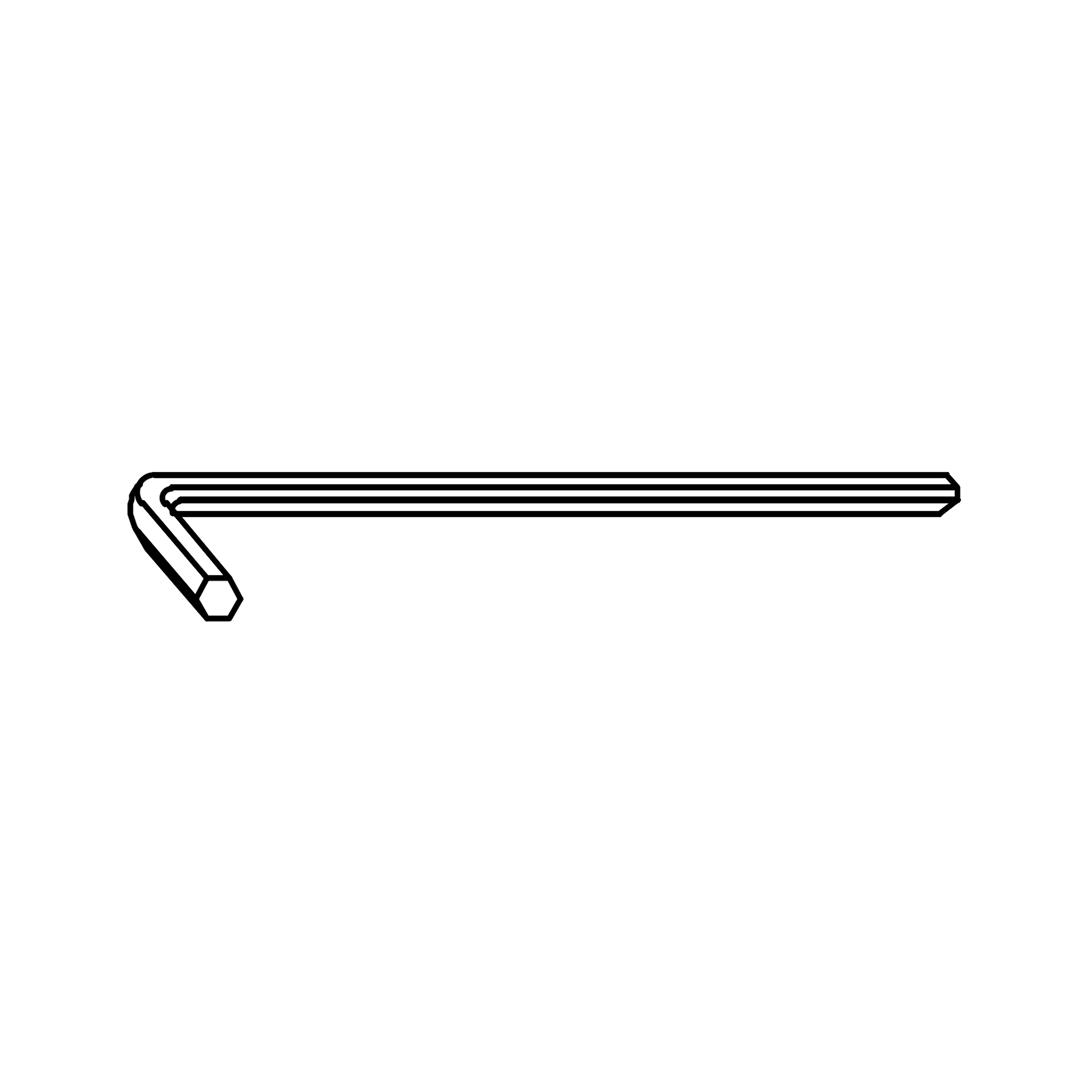

Tools

Materials

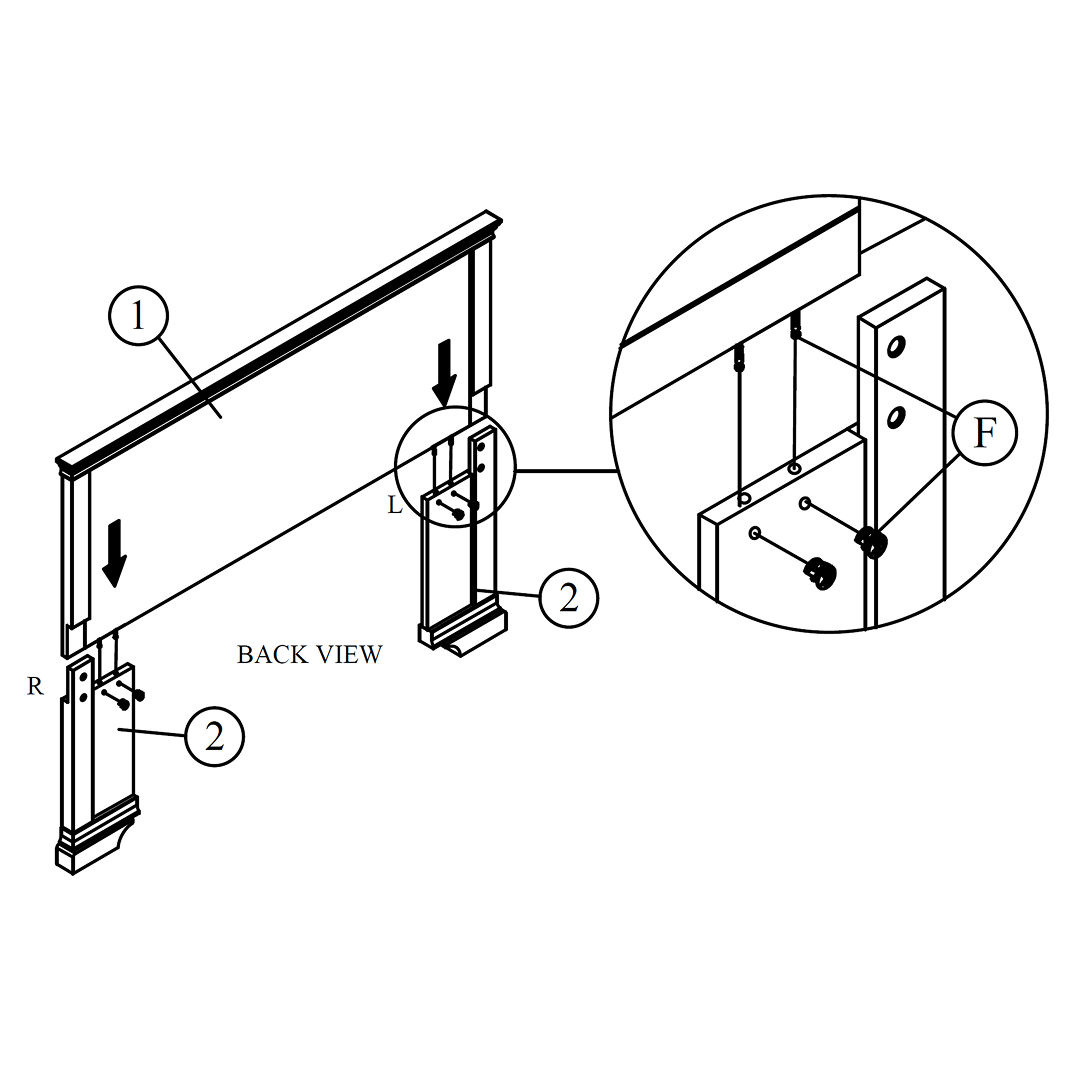

1. Attach Bottom Headboard Legs

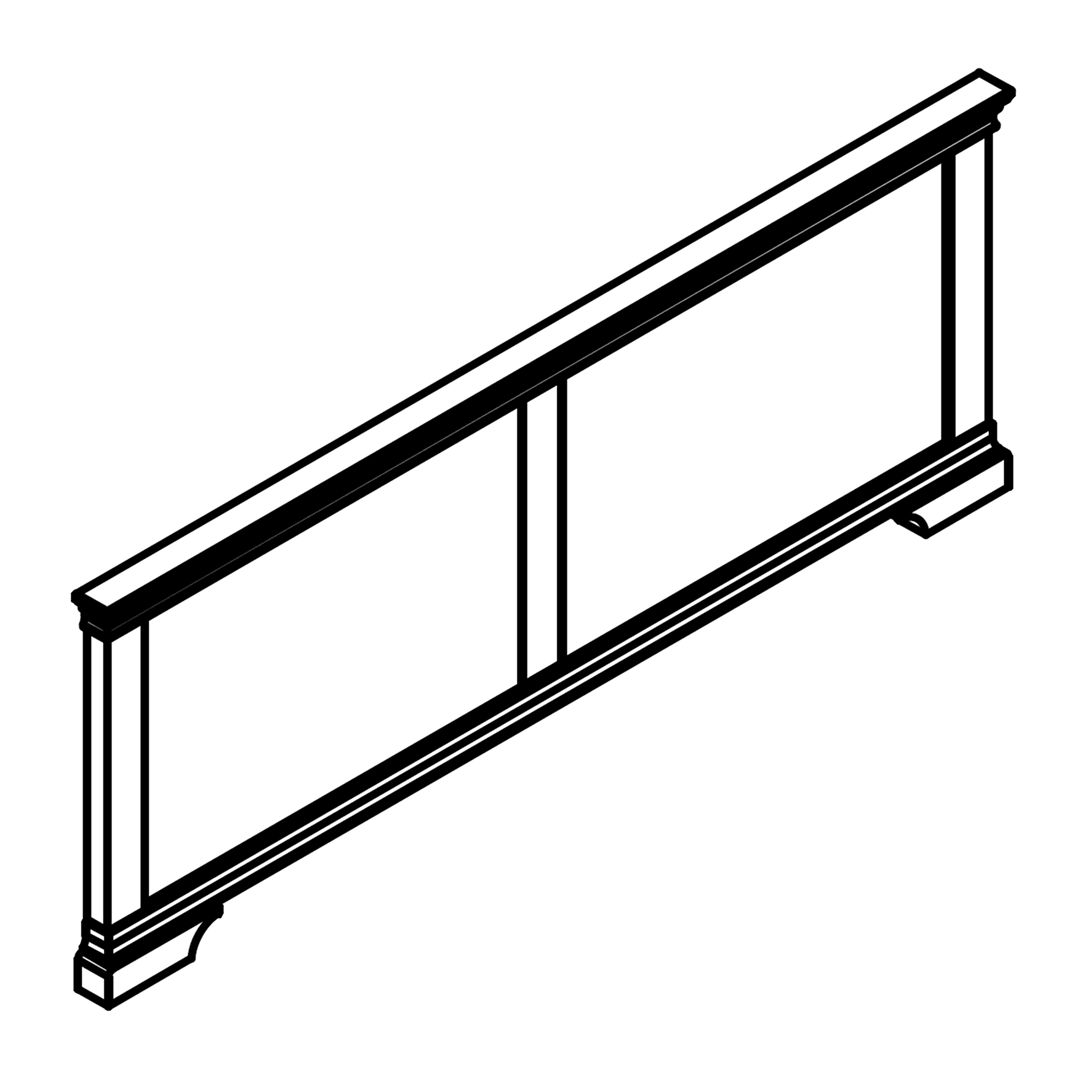

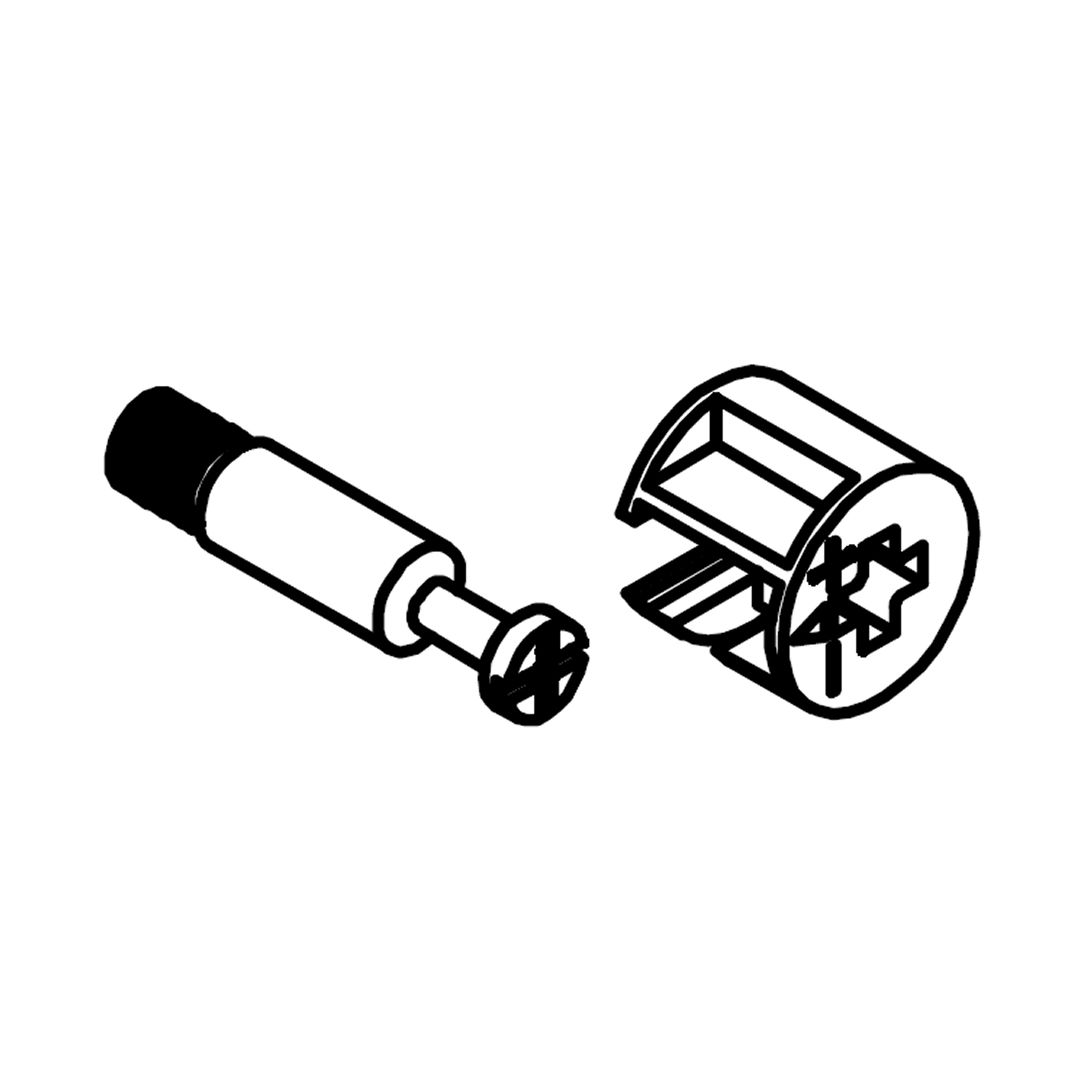

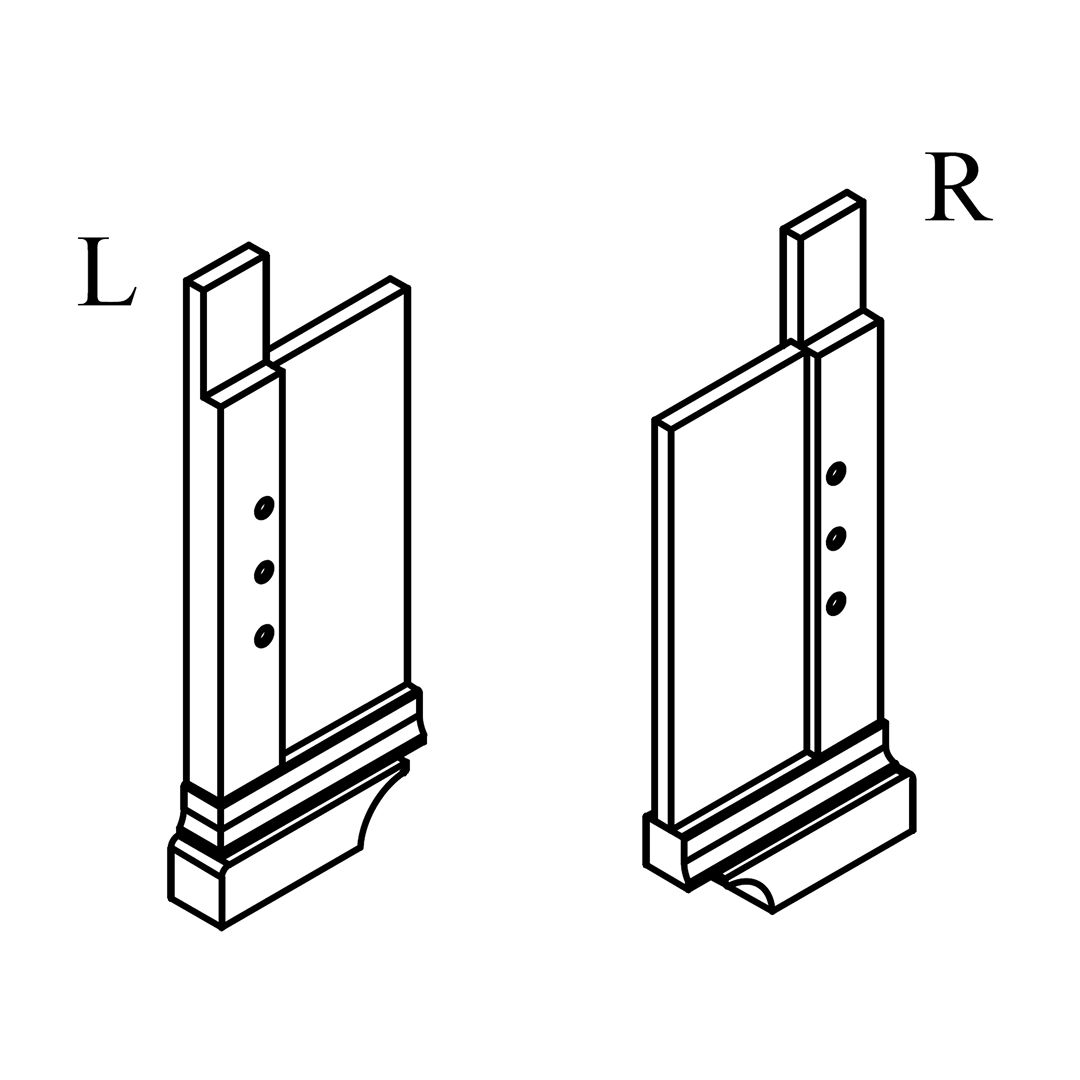

Fix head bottom leg left & right to the head board top with minifix 'F' as shown .
2. Secure Headboard and Legs

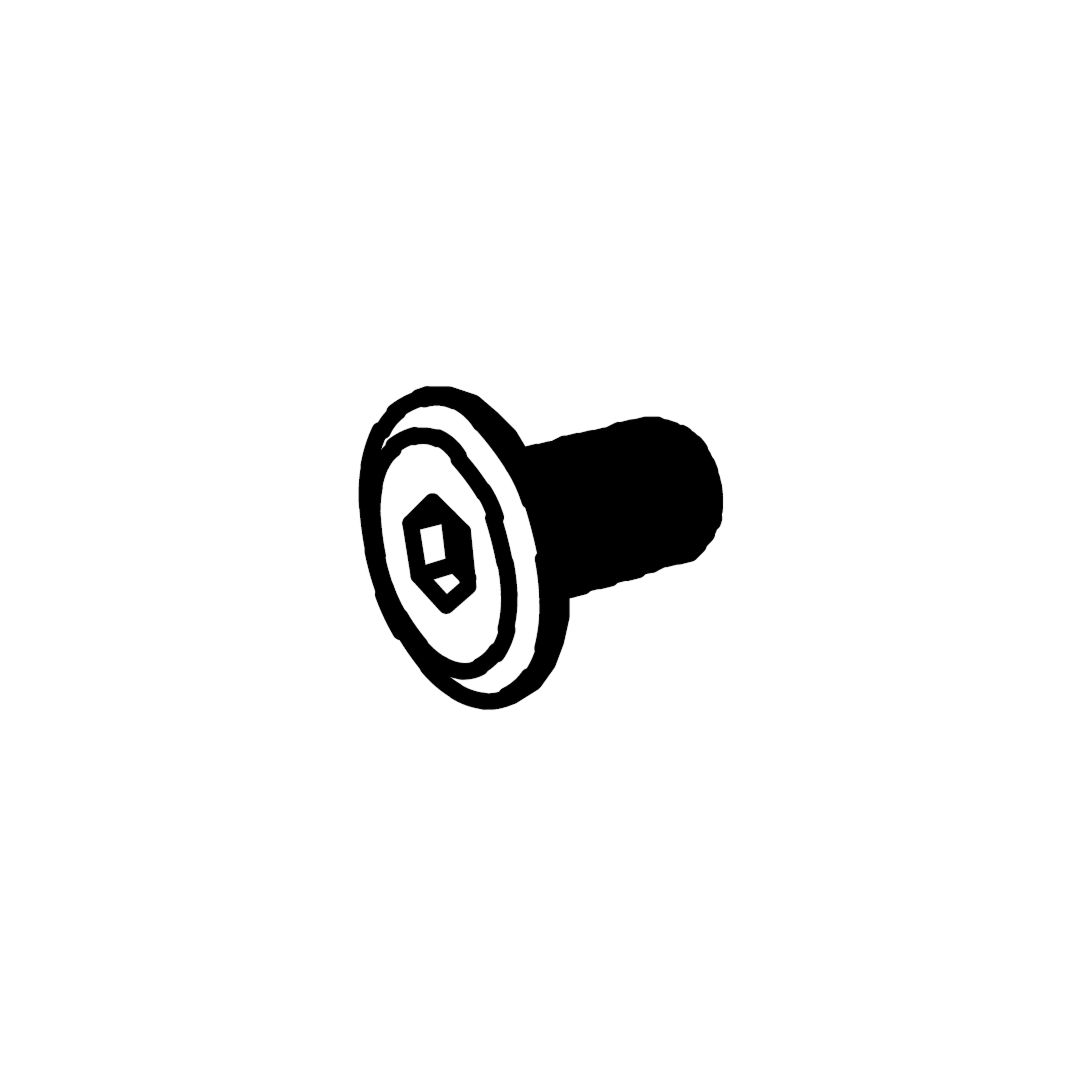

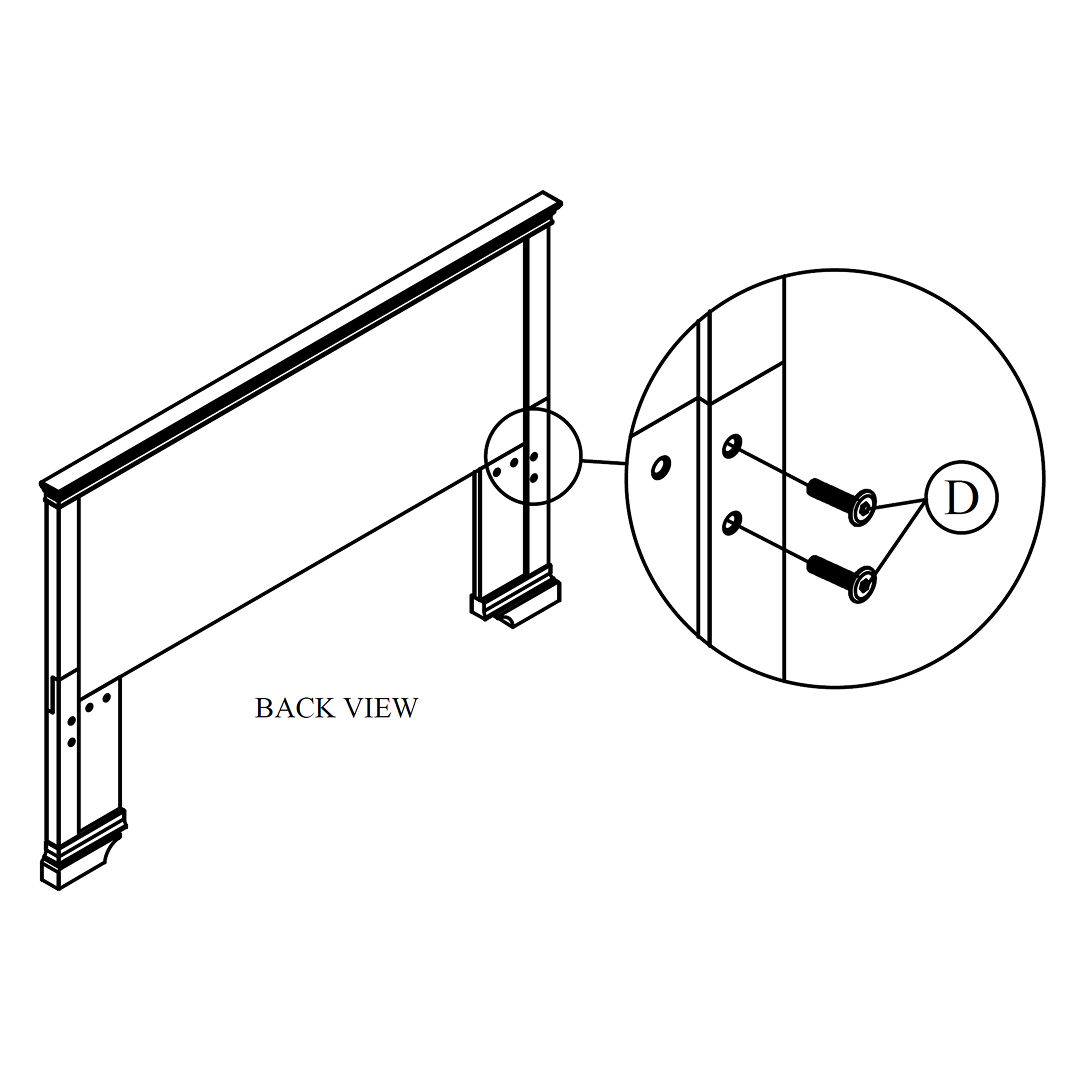

Fix bolts 'D' to the headboard top and head bottom leg as shown.

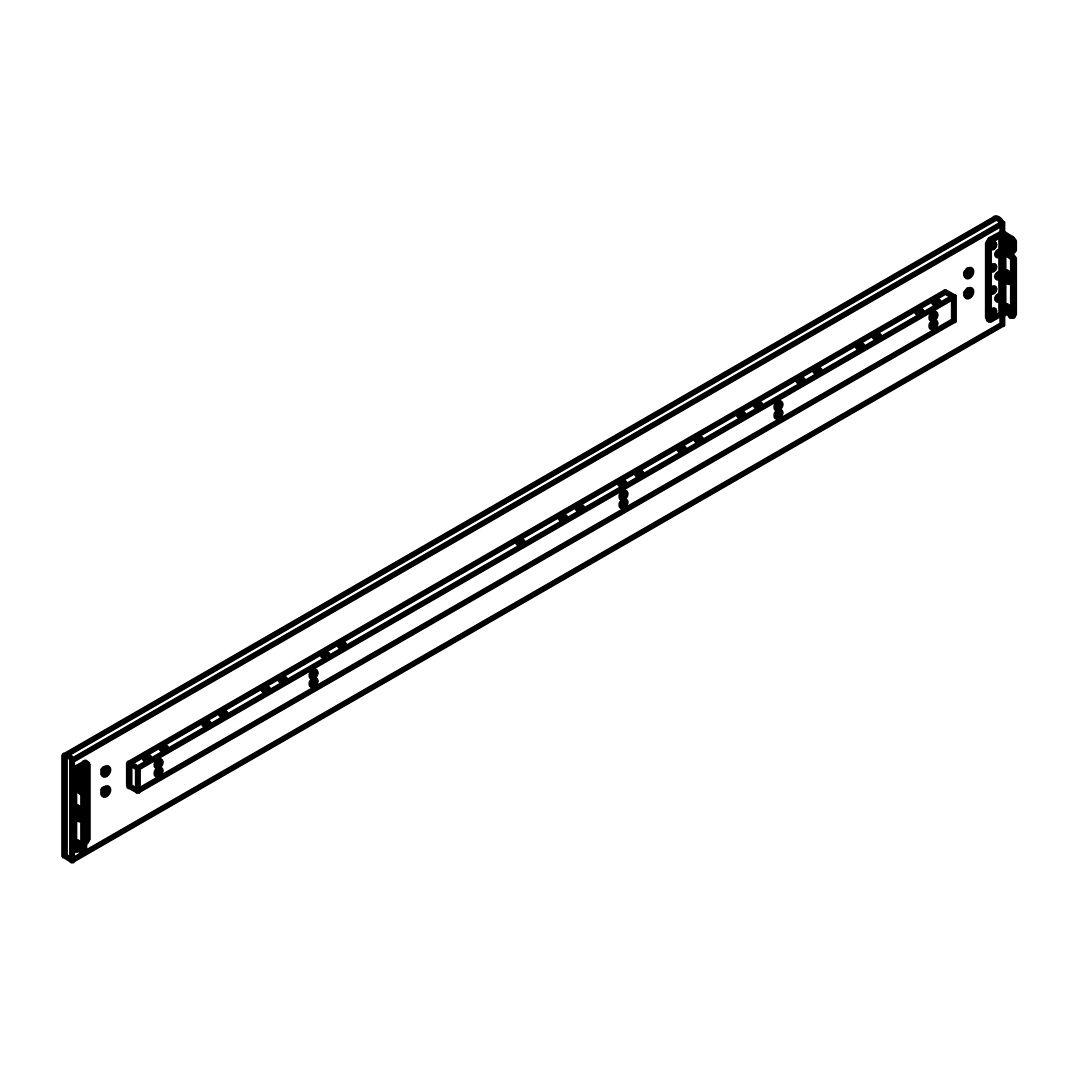

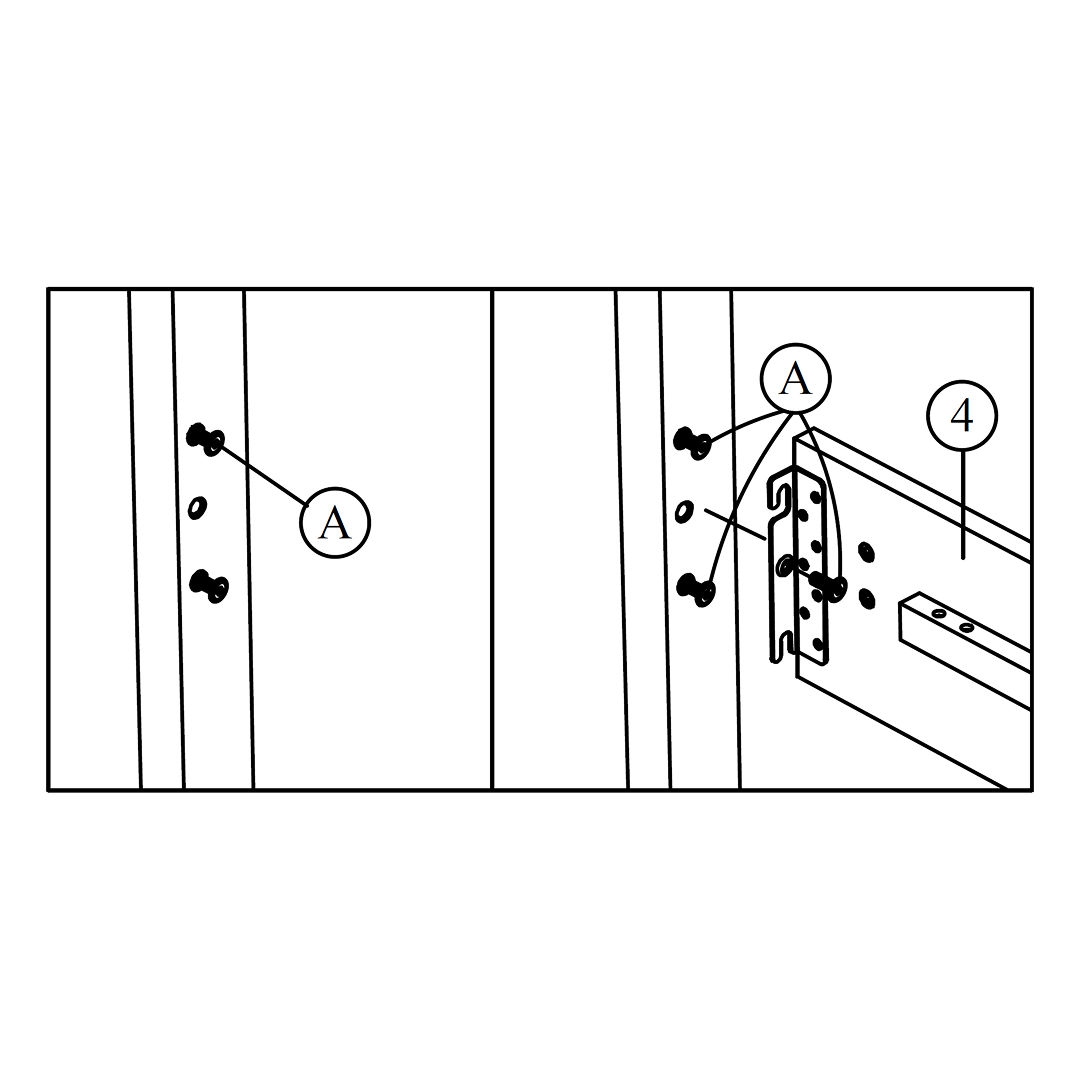

3. Attach Side Rails

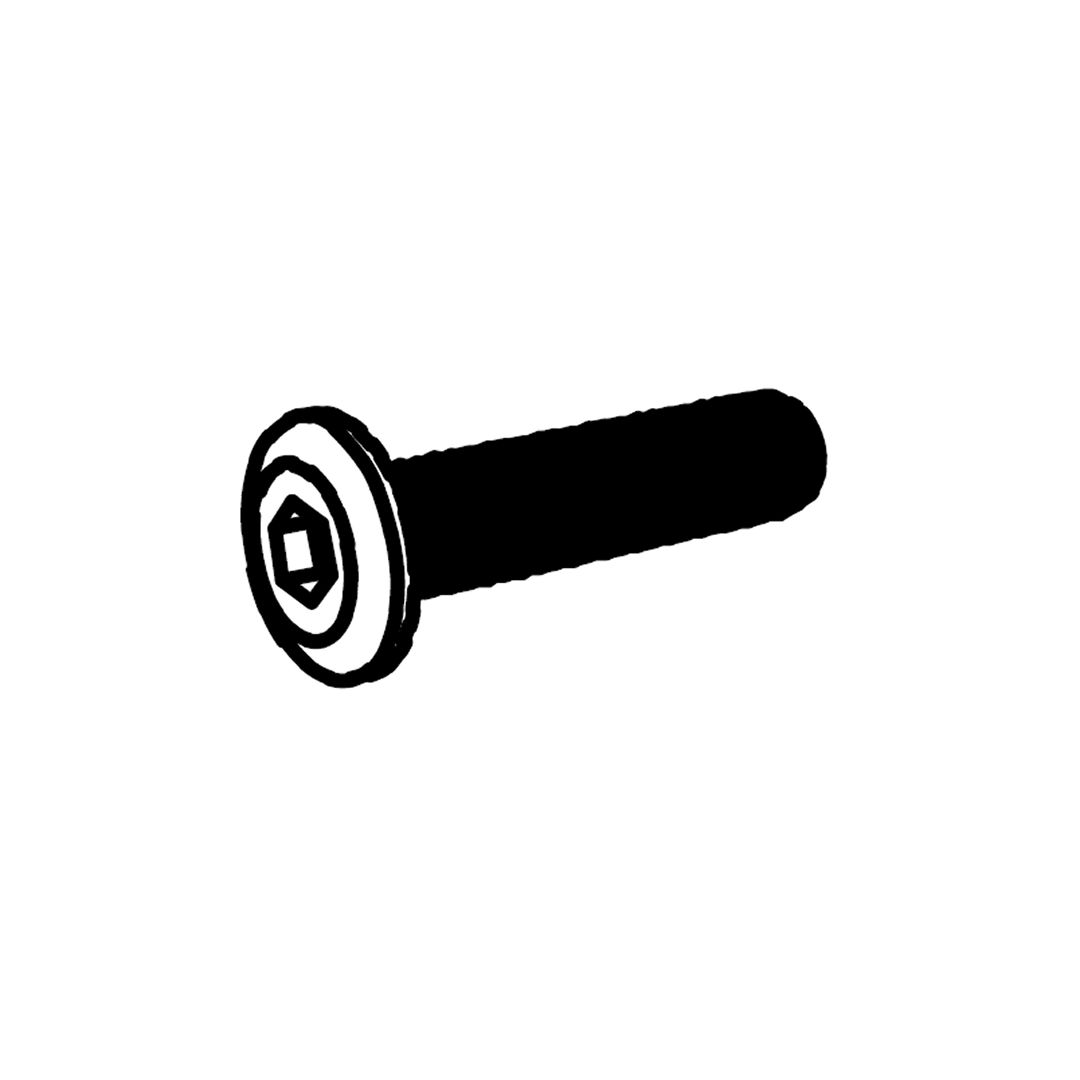

Fix bolts 'A' (upper & lower bolts) into position on wood leg as show.

After that hook the side rail to the bolt and fix center bolts 'A' as shown.

Important note: Do not tighten the bolts yet!
4. Attach Cross Bar

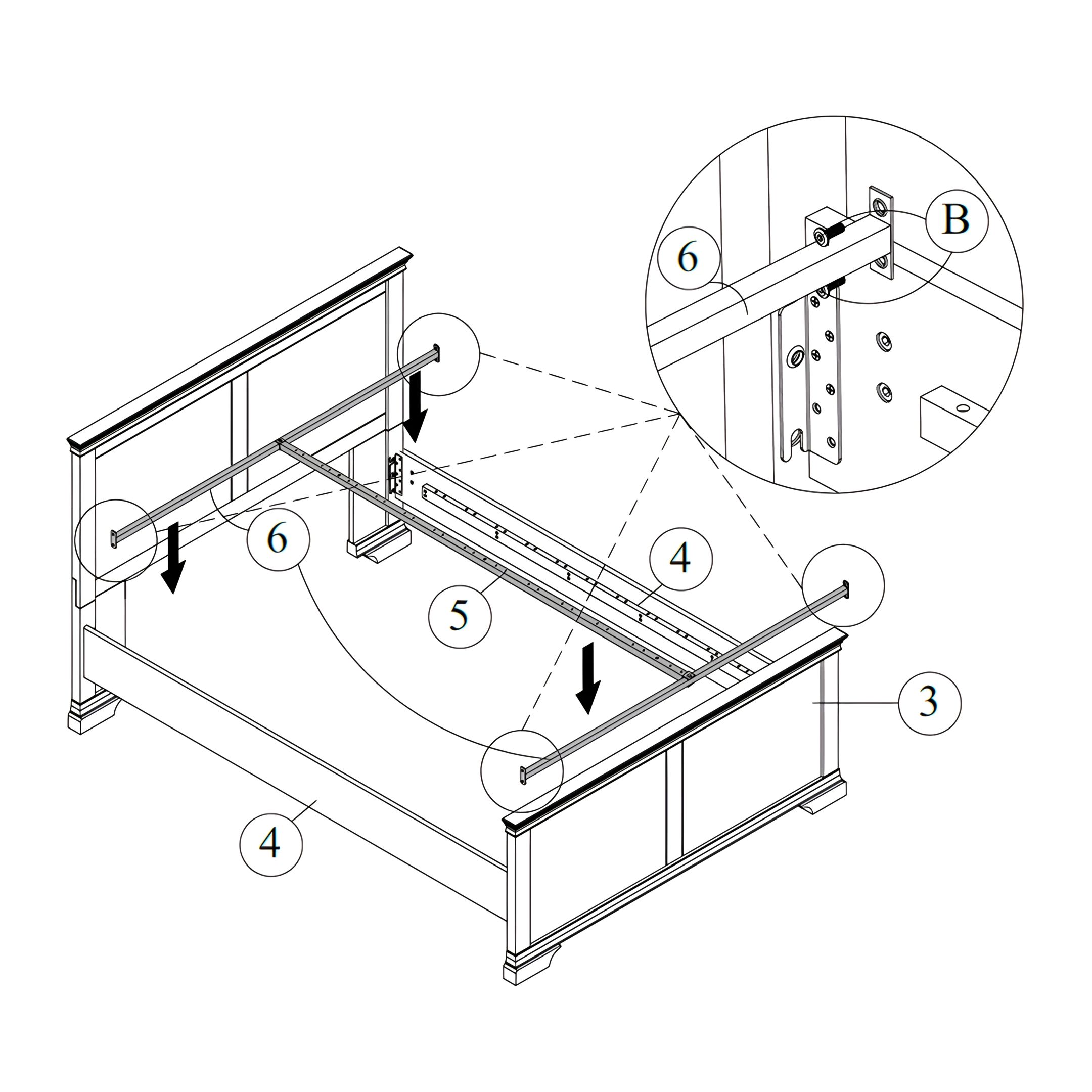

Fix cross bar '6' to the side rail with bolts 'B' as shown.

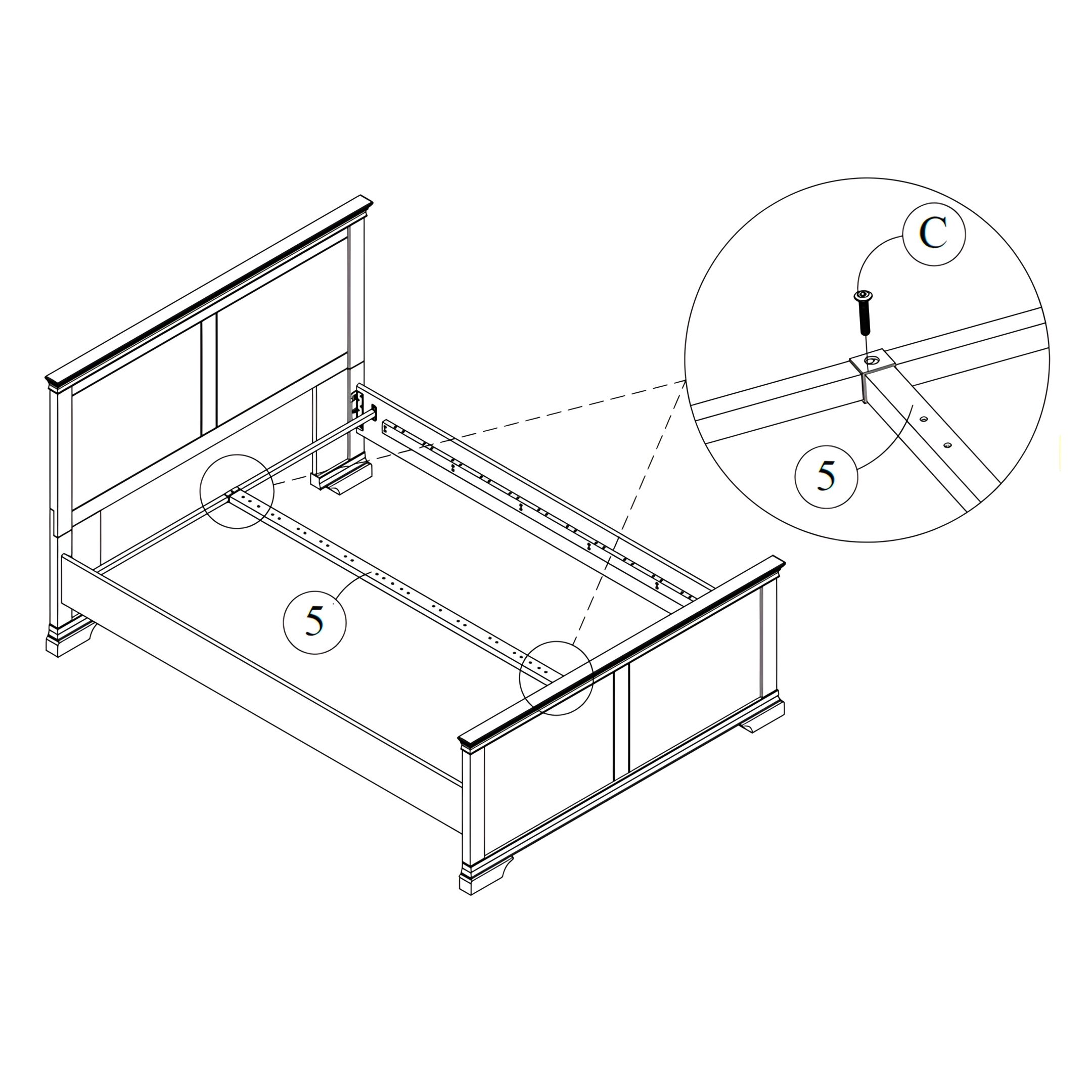

5. Attach Center Bar

Fix center bar '5' to cross bar '6' with bolts 'C' as shown.

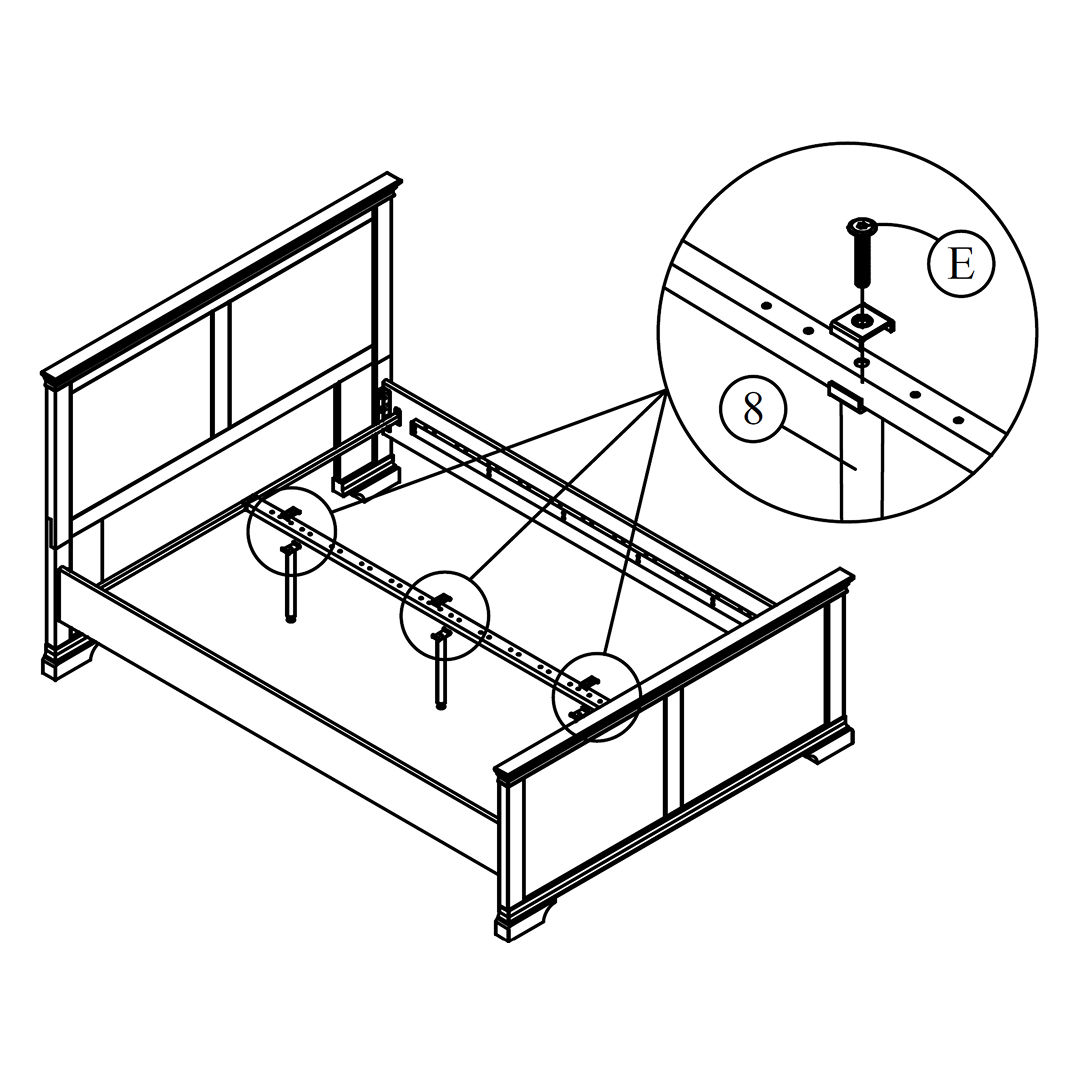

6. Attach Bed Supports

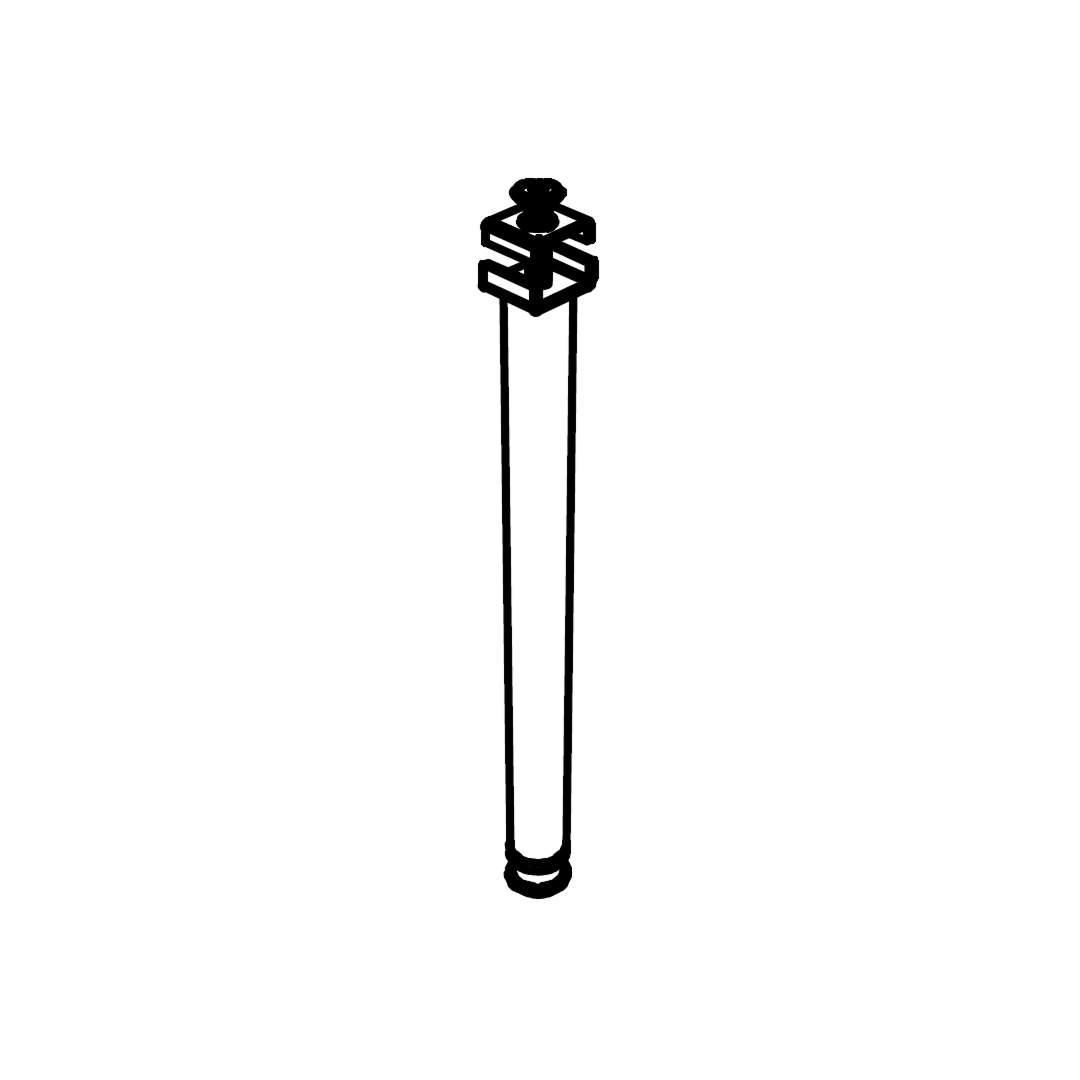

Fix bed support legs as shown and tighten all bolts.

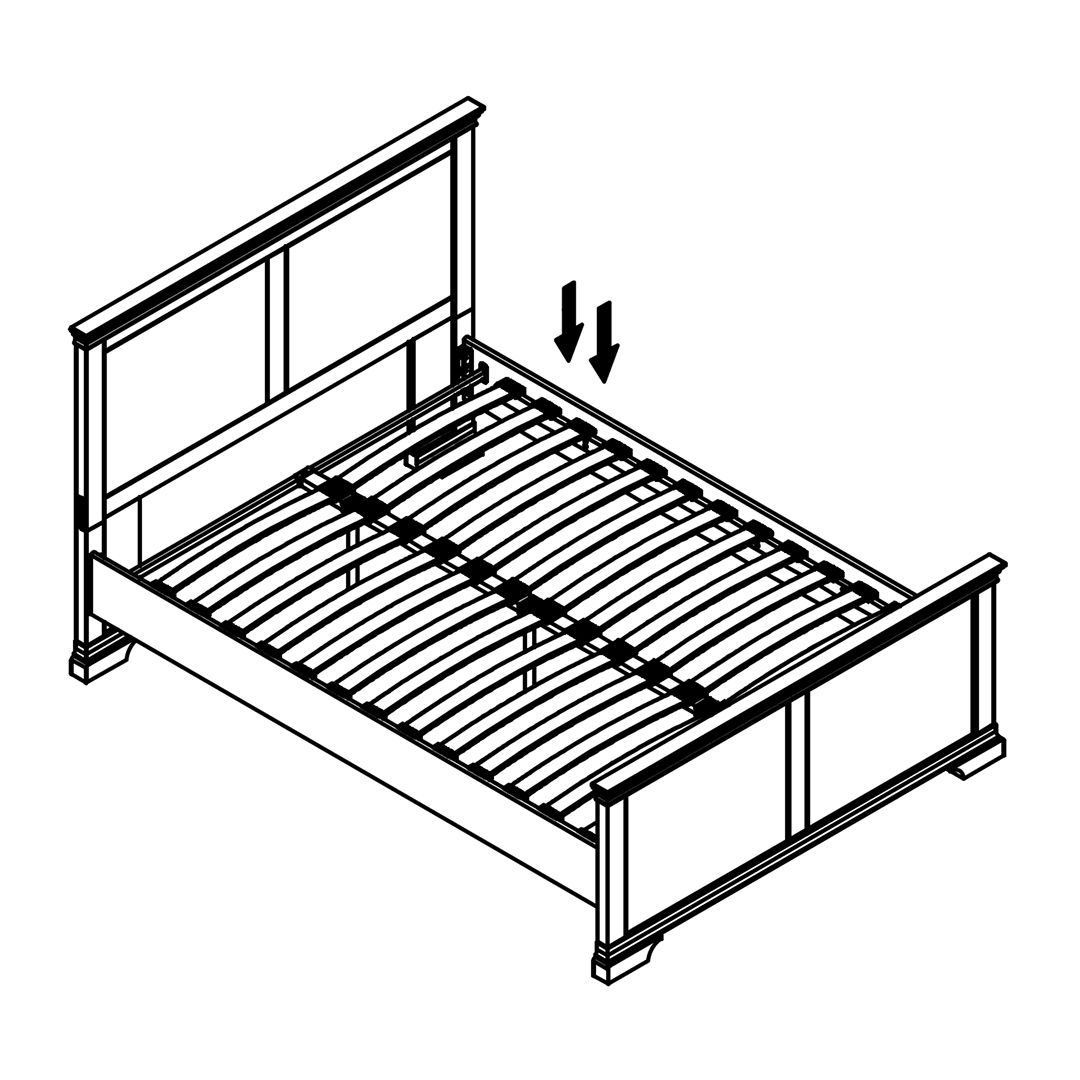

7. Attach the Slats

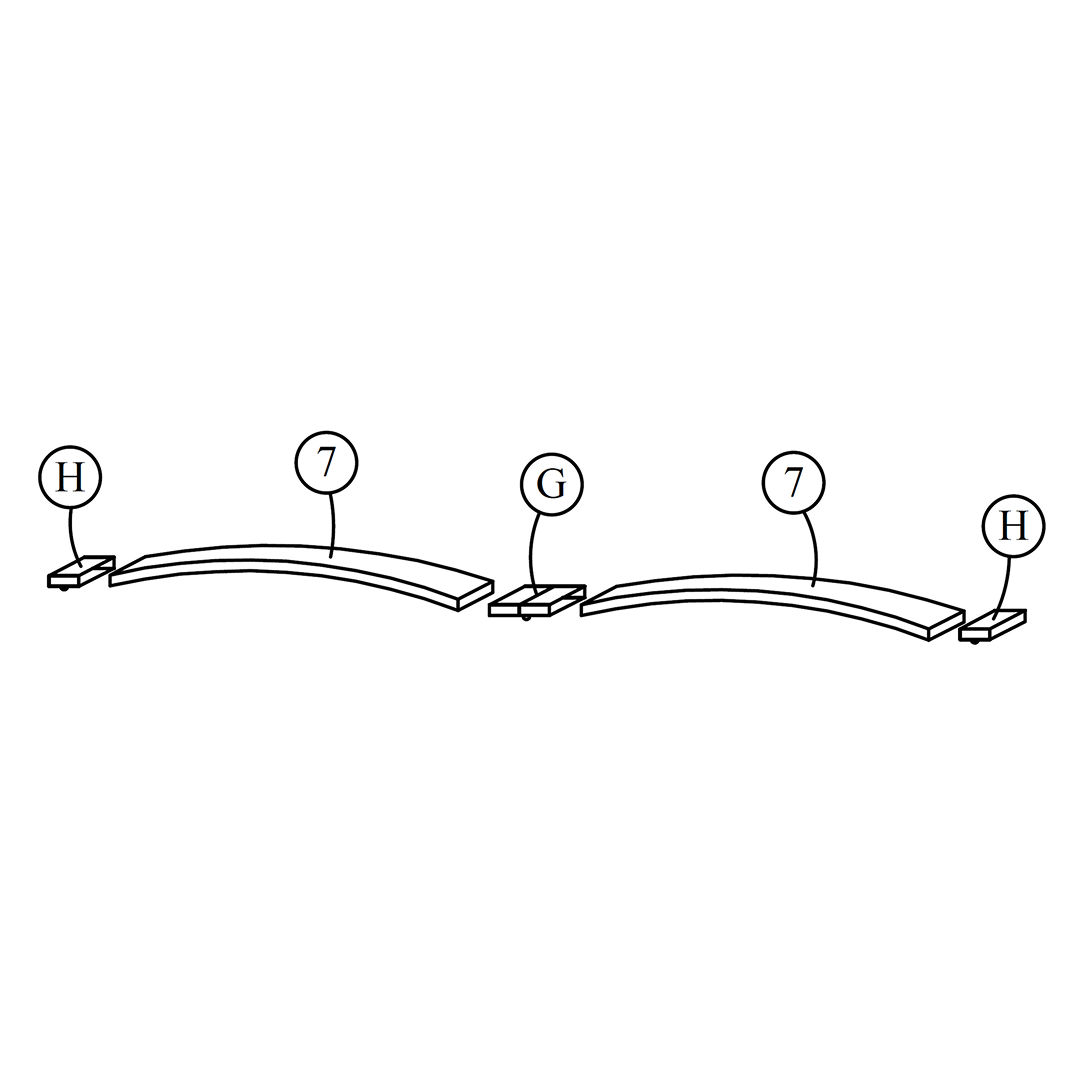

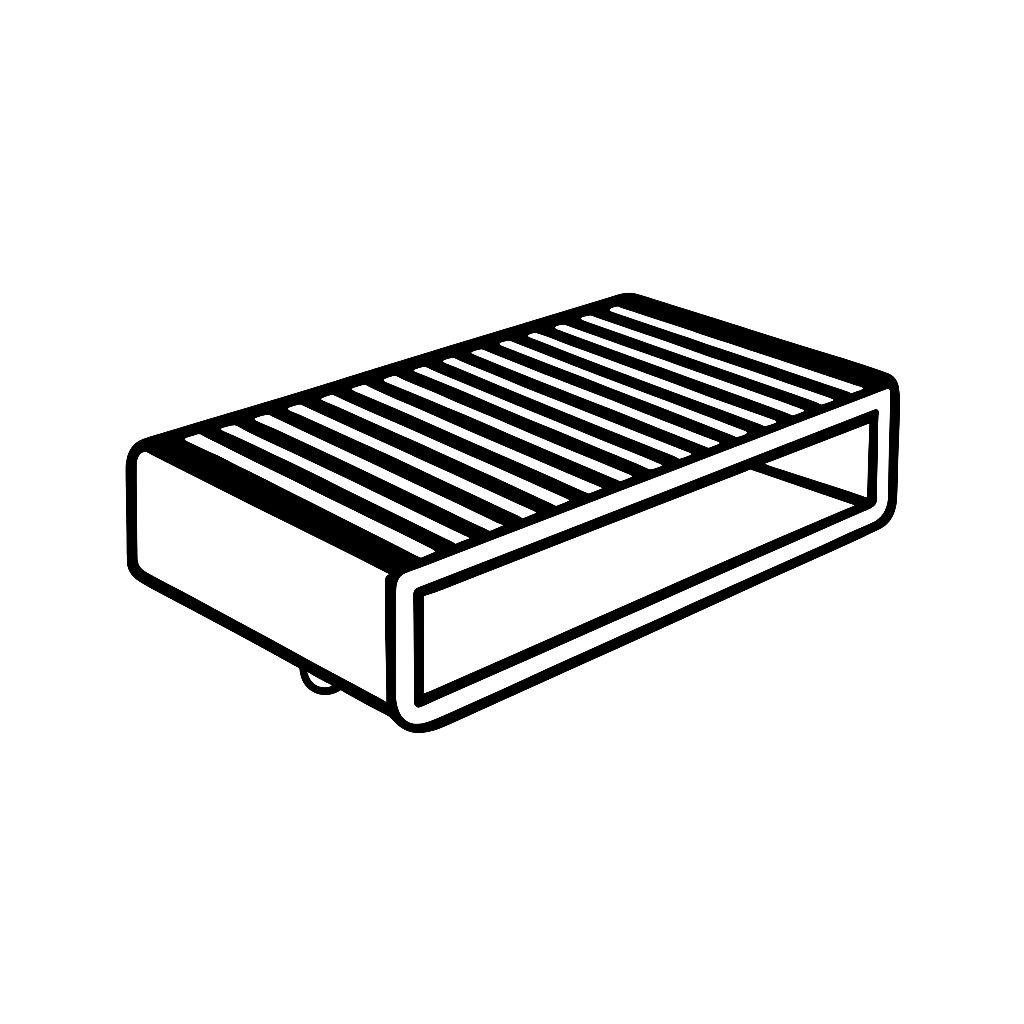

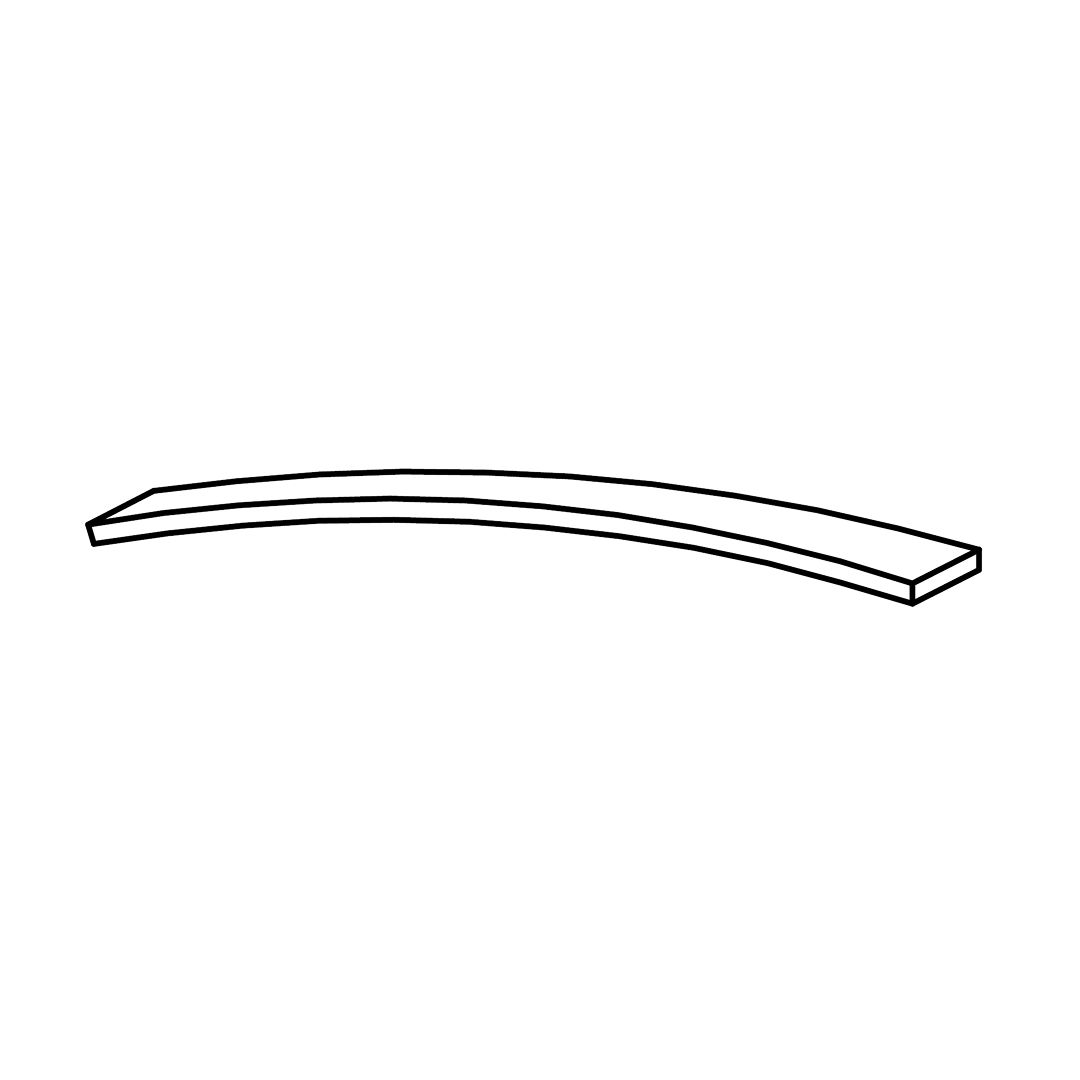

Each wood slat must be inserted with a single end plastic cap and a double end plastic cap as shown on the picture.

Once both wood slats have been inserted with the plastic caps, fix it on the wood side rails and center bar by pressing it accordingly to the default holes. Ensure the plastic cap's pin is aimed to the hole.

At last make sure all screws and bolts are tighten.
