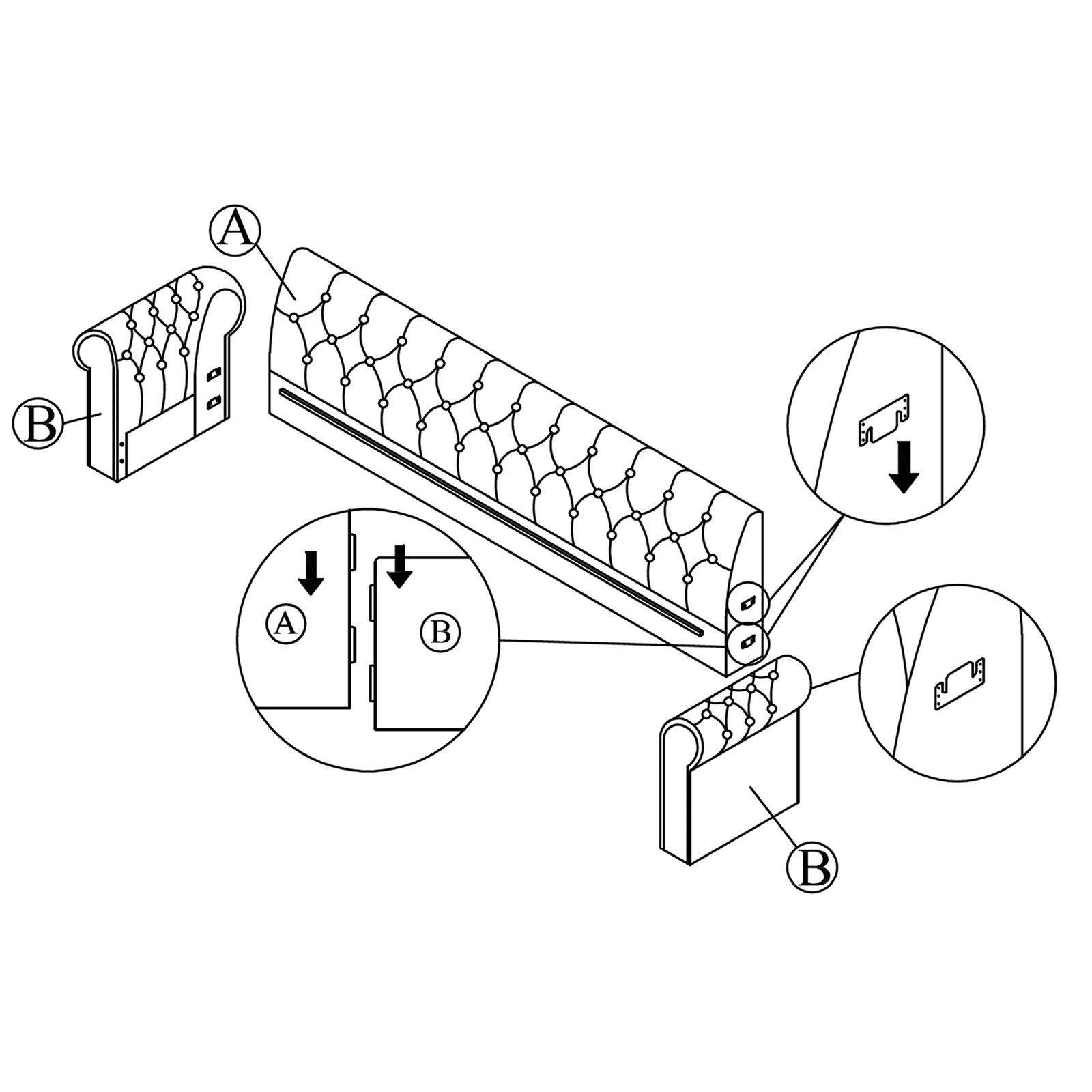

1. Attach Arm to Backrest

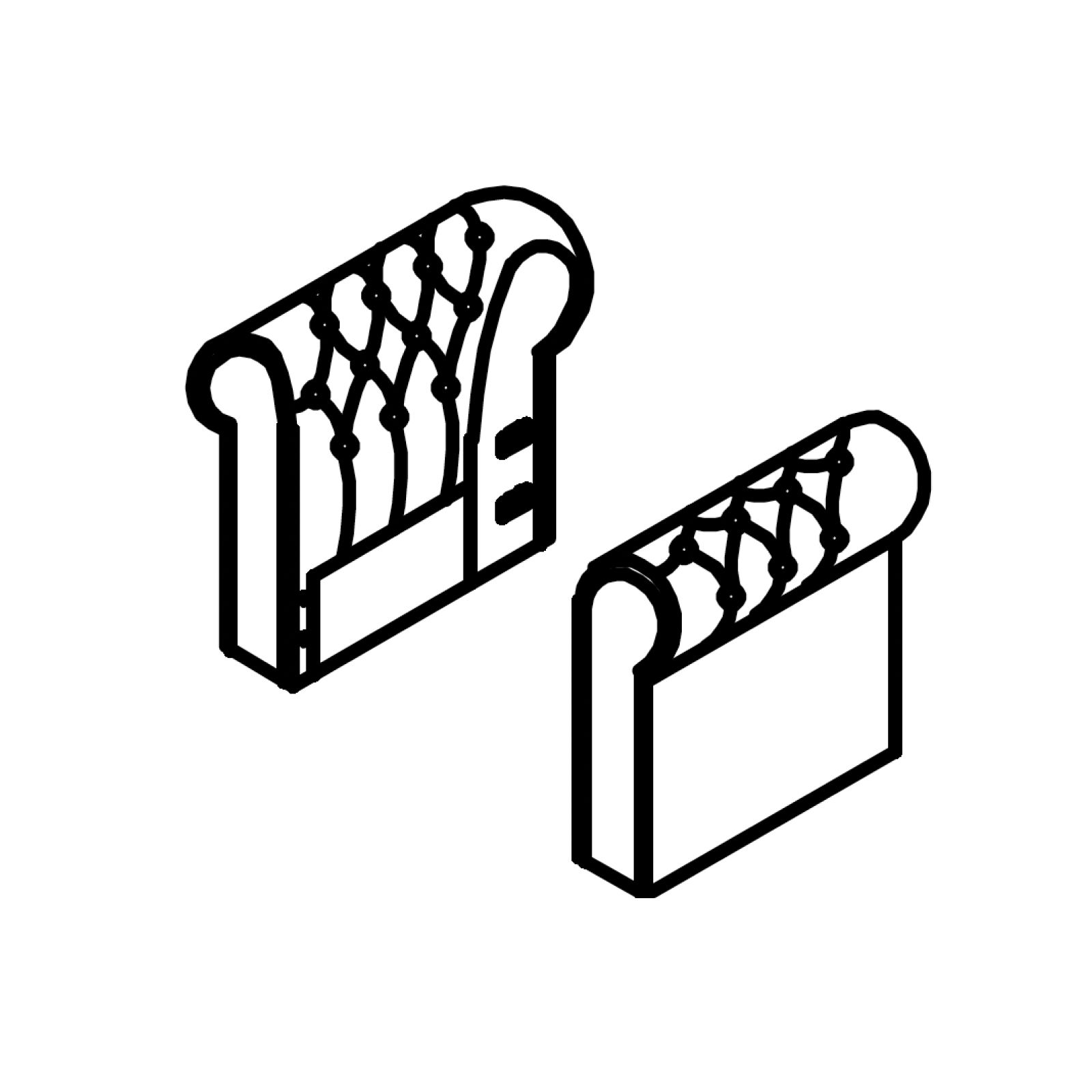

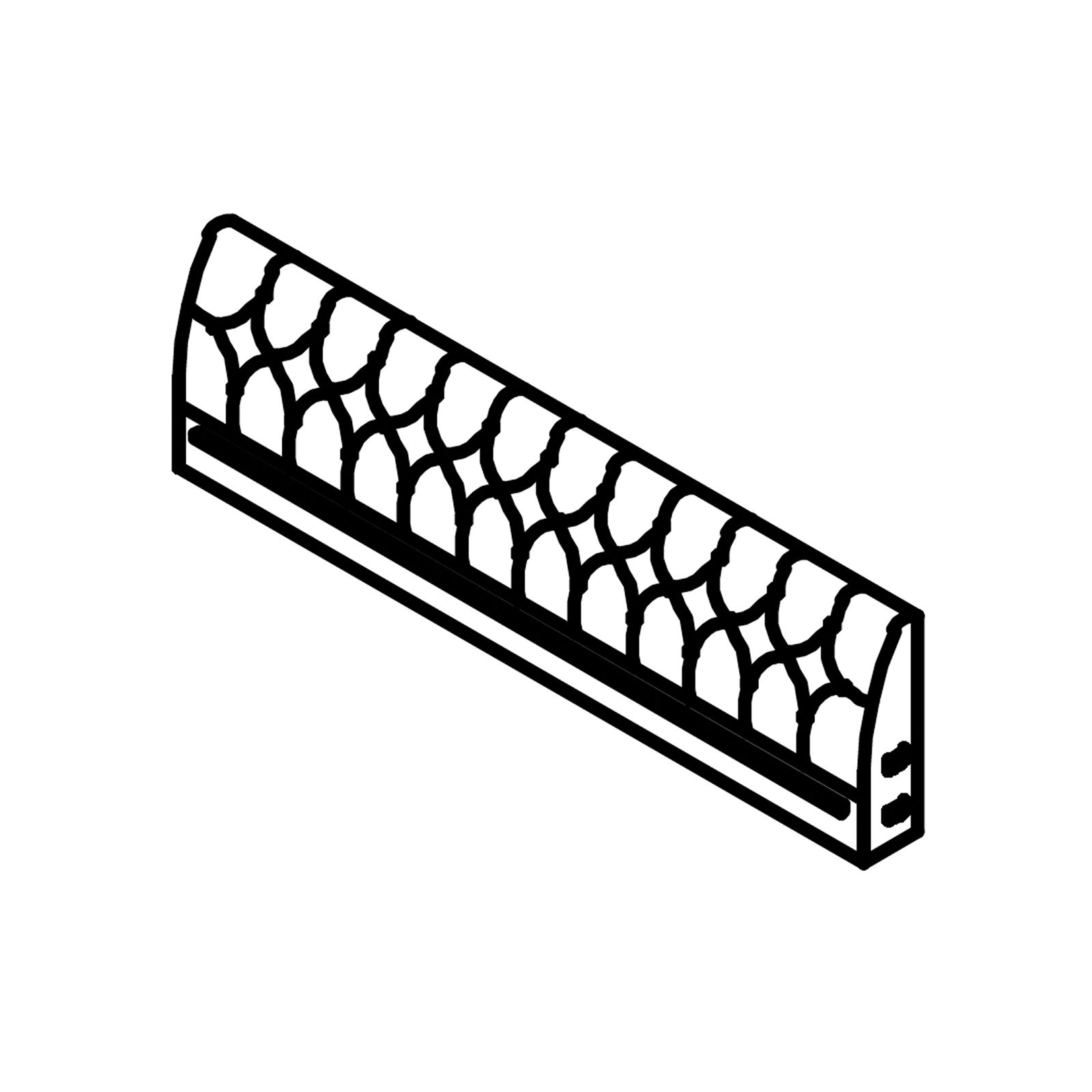

Attach the arm (B) to the back rest (A) by pushing the bracket down to fit it.
Instructions by
time4sleep
Chesterfield 3 Seater Sofa
Assembly instructions for Chesterfield 3 Seater Sofa by Time4Sleep.
Product Information
Chesterfield 3 Seater Sofa
Welcome the enduring charm of the Chesterfield Grey Sofa into your home, a flawless choice to enhance your living environment. With its timeless design, cloaked in a sophisticated grey hue, it seamlessly elevates any living space. Luxuriate in the comfort of its plush, cushioned seating, accentuated by tasteful button detailing, promising a delightful and welcoming seating experience. Available in a 2 seater and 3 seater variation.
- SKU
- ChesterfieldGreyVel3SeaterSofa

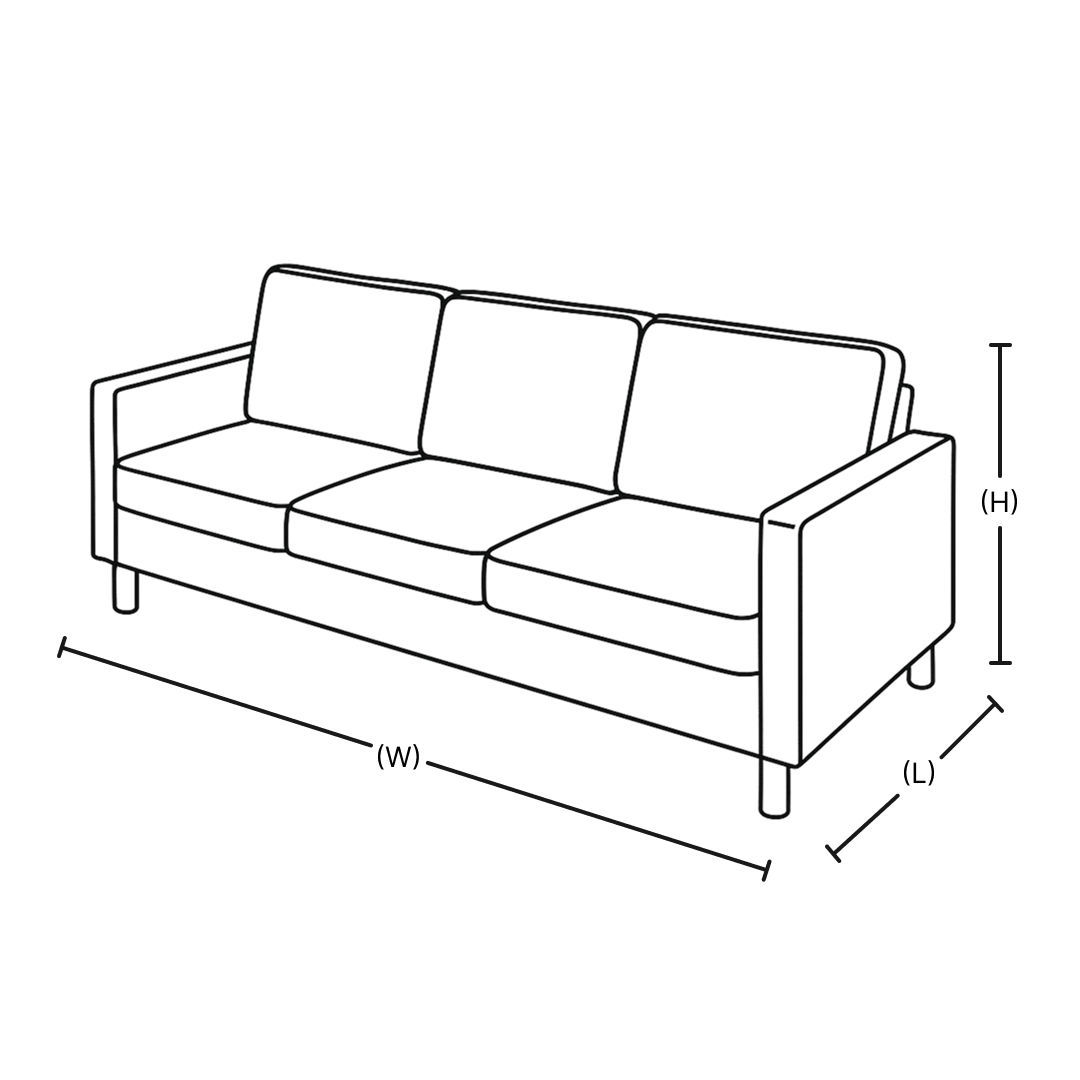

Dimensions
| Width | 200 cm |
| Length | 72 cm |
| Height | 80 cm |
Materials
-
-
2. Connect Side Rail to Arm

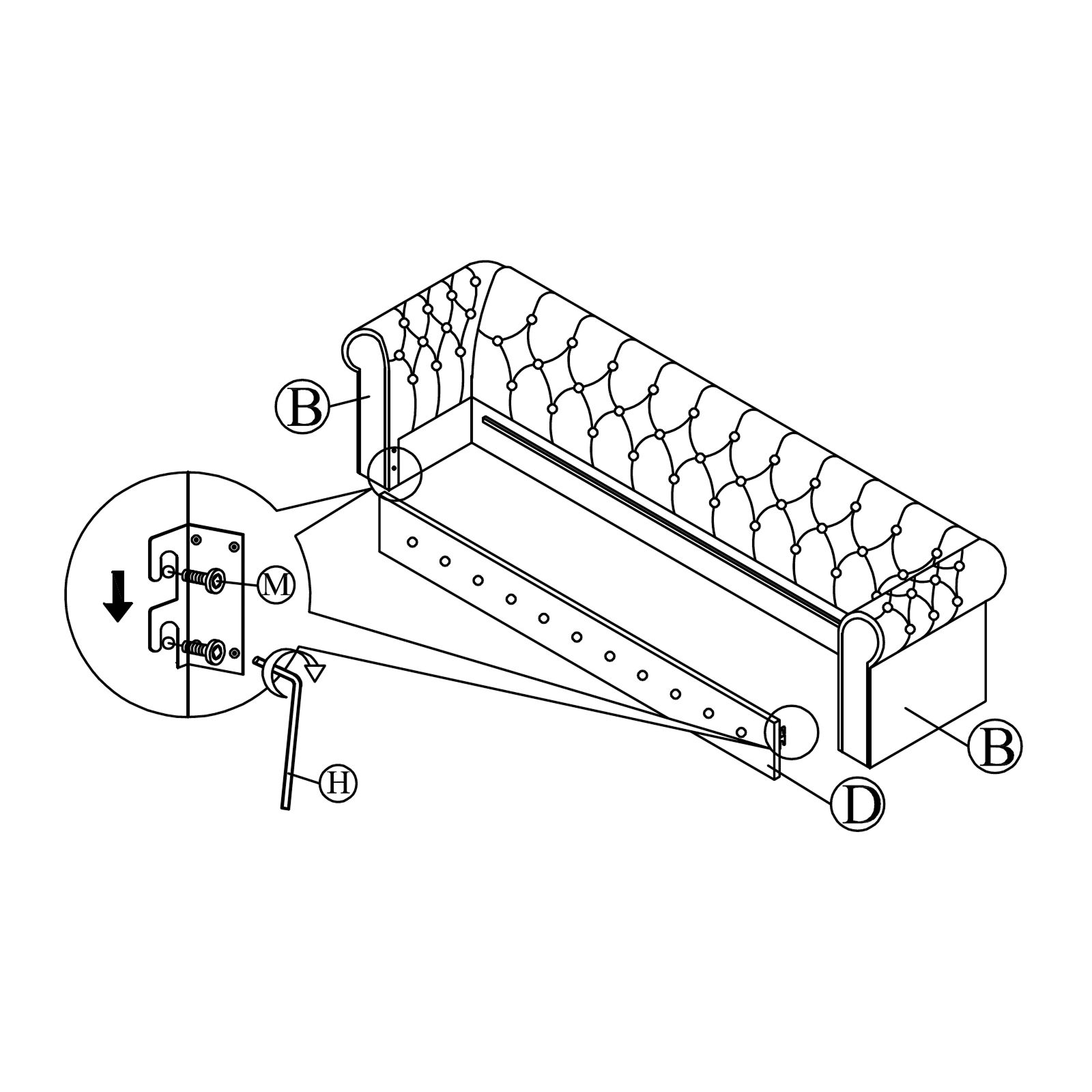

Attach the side rail (D) to the arm (B).
-

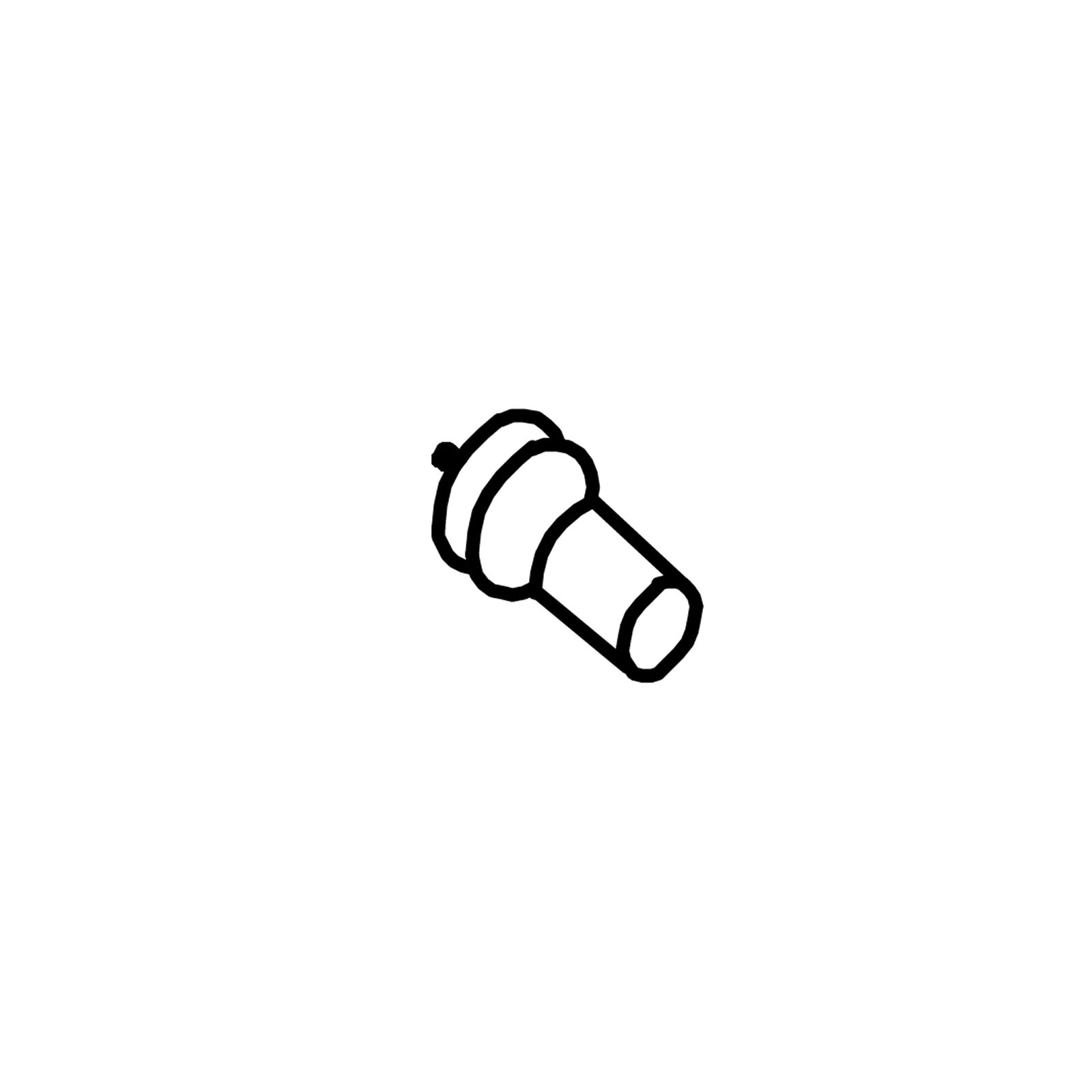

3. Attach Legs to Backrest and Arm

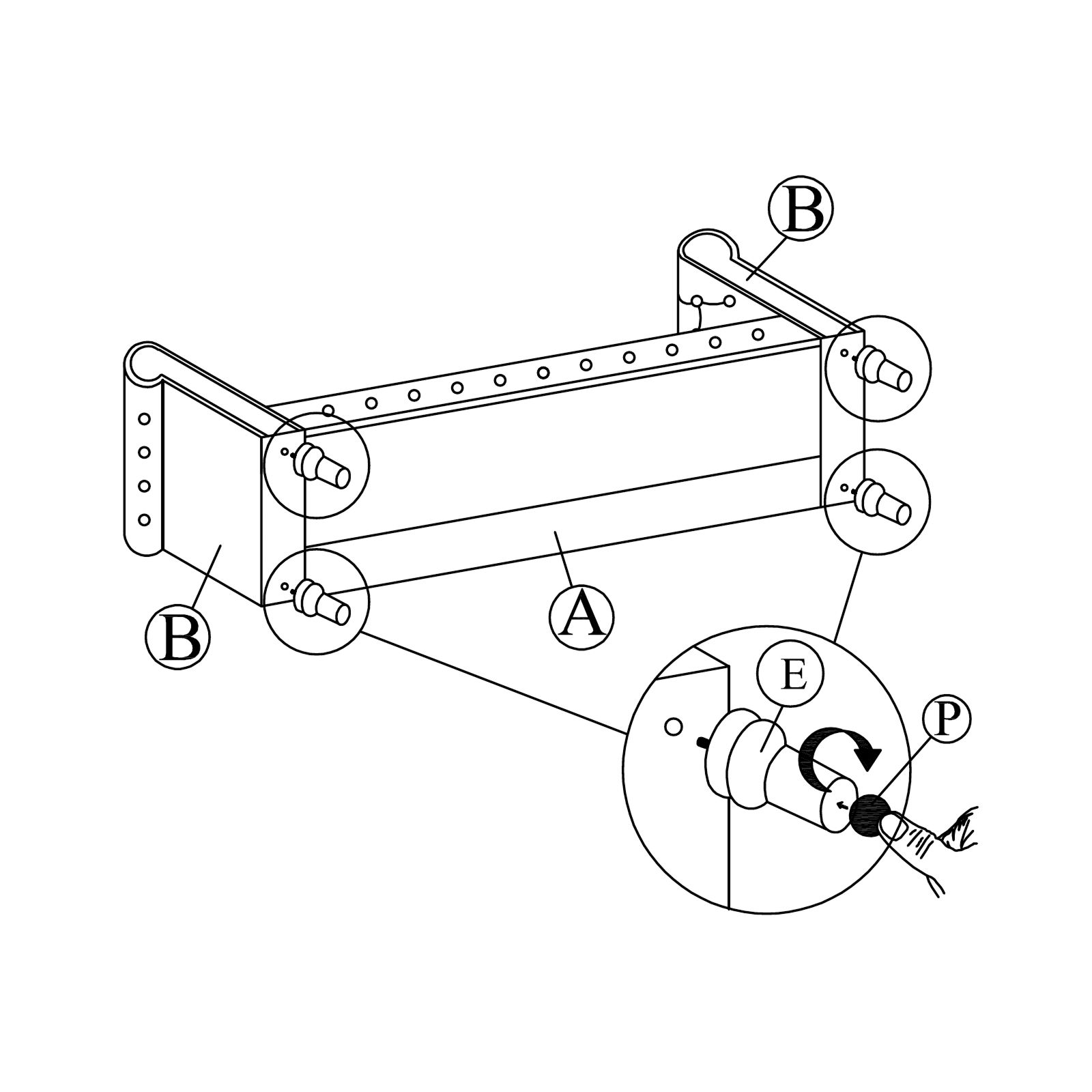

Install the legs (E) to back rest (A) and arm (B).
-

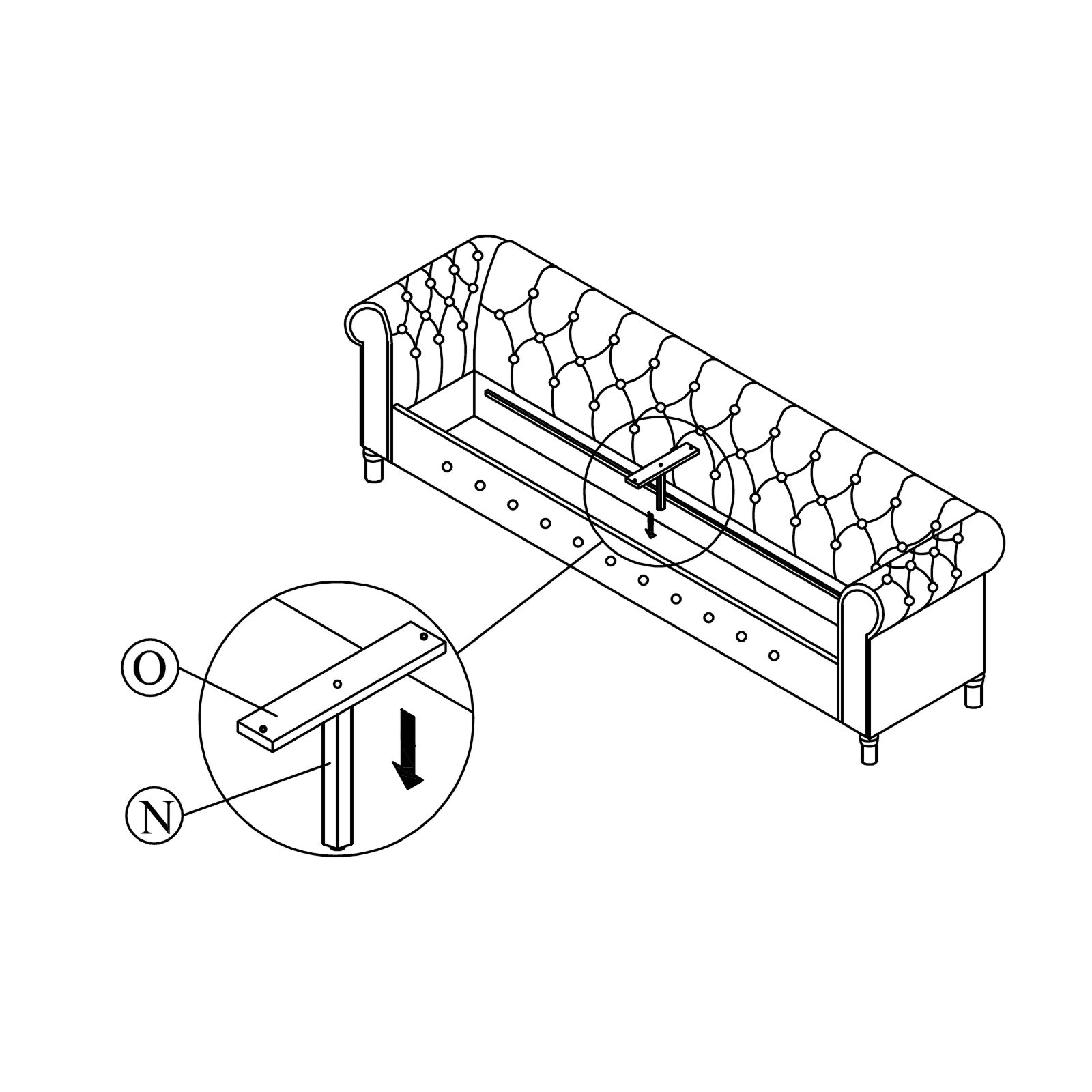

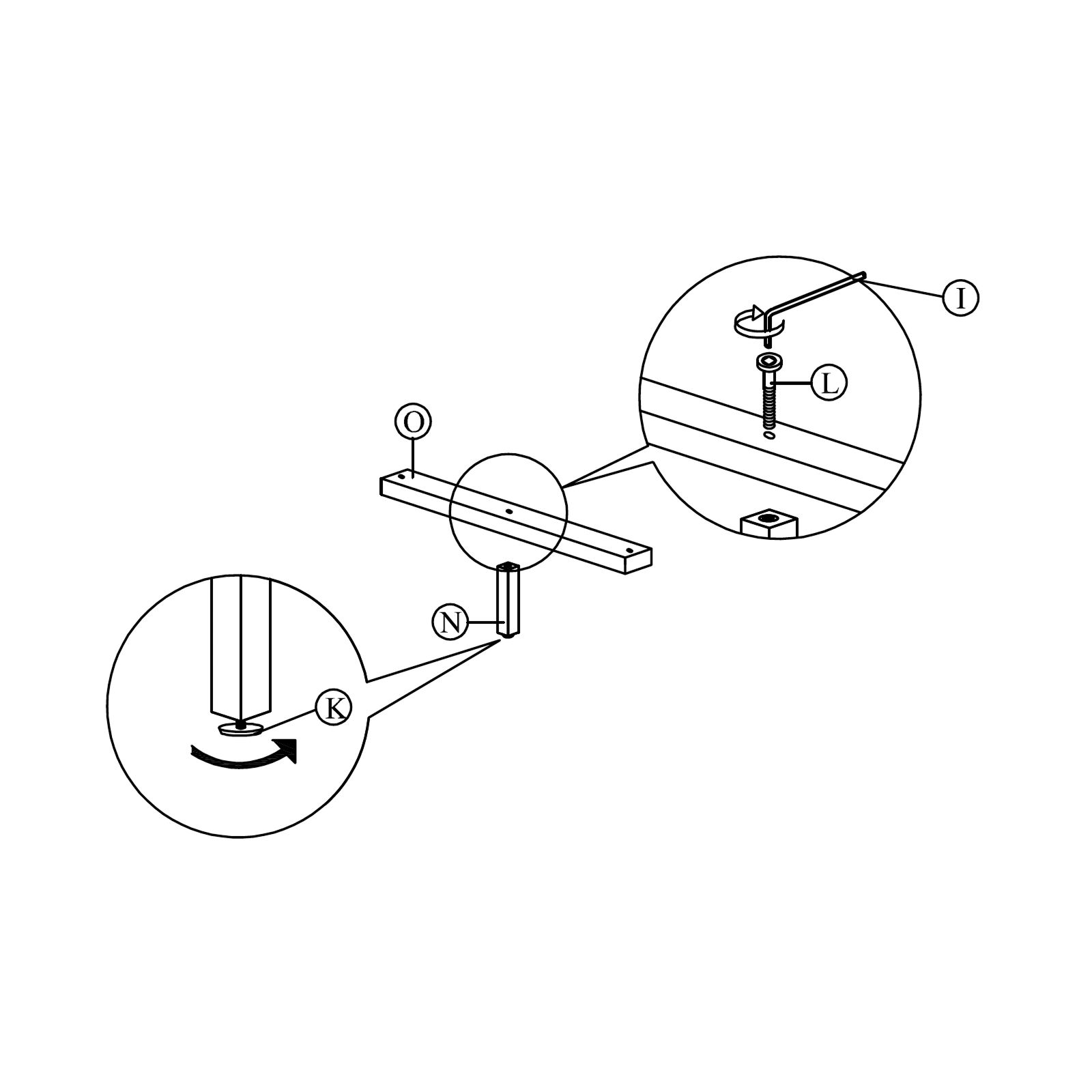

4. Install Legs and Adjust Height

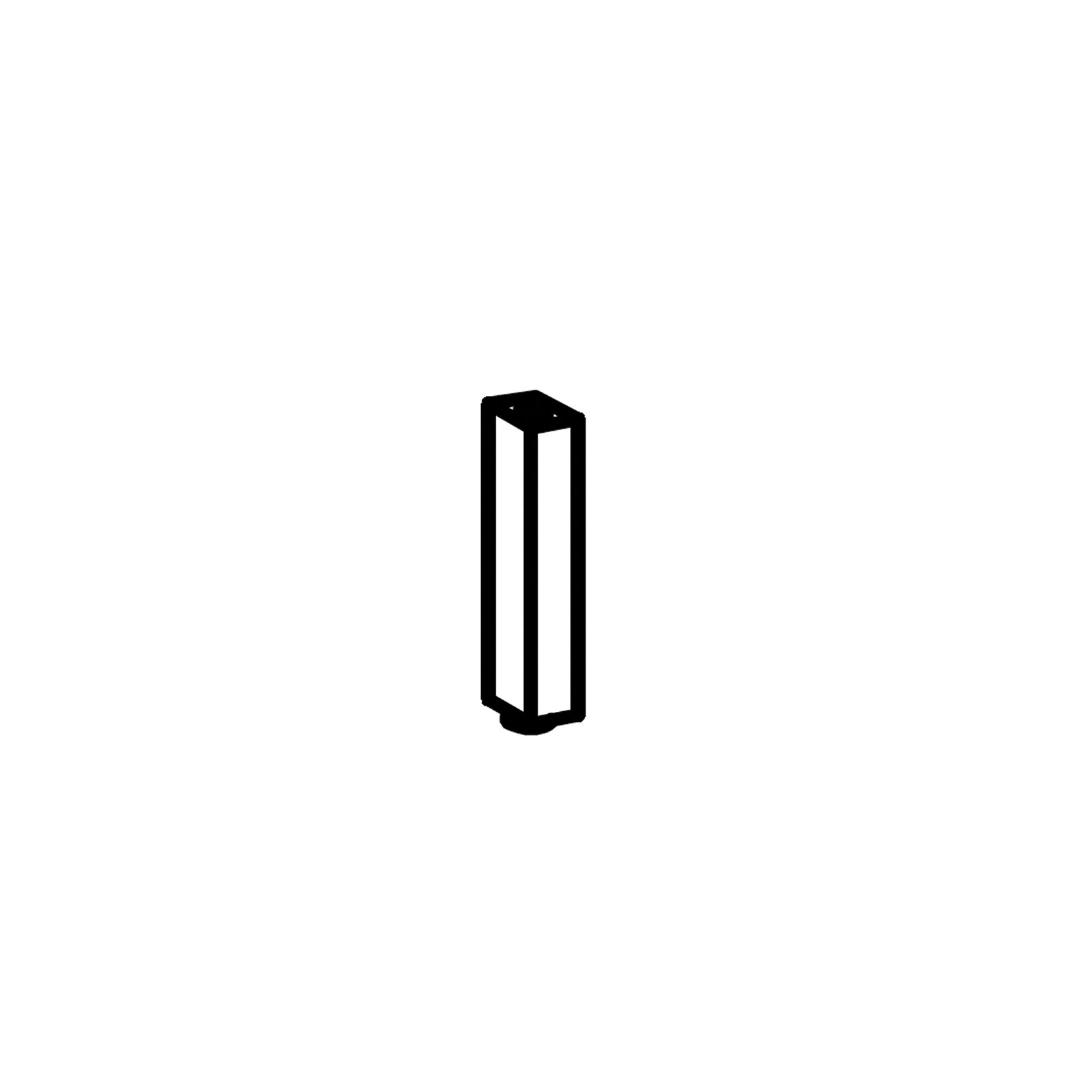

Attach the support legs (N) to the slat (O) of the sofa as shown.
Attention: Please keep the adjuster around 5 to 8 mm distant away from the floor.
-
5. Install Central Slat and Legs
Attach the slat (N) and support legs (O) to the center of back rest (A) and side rail (D).
-

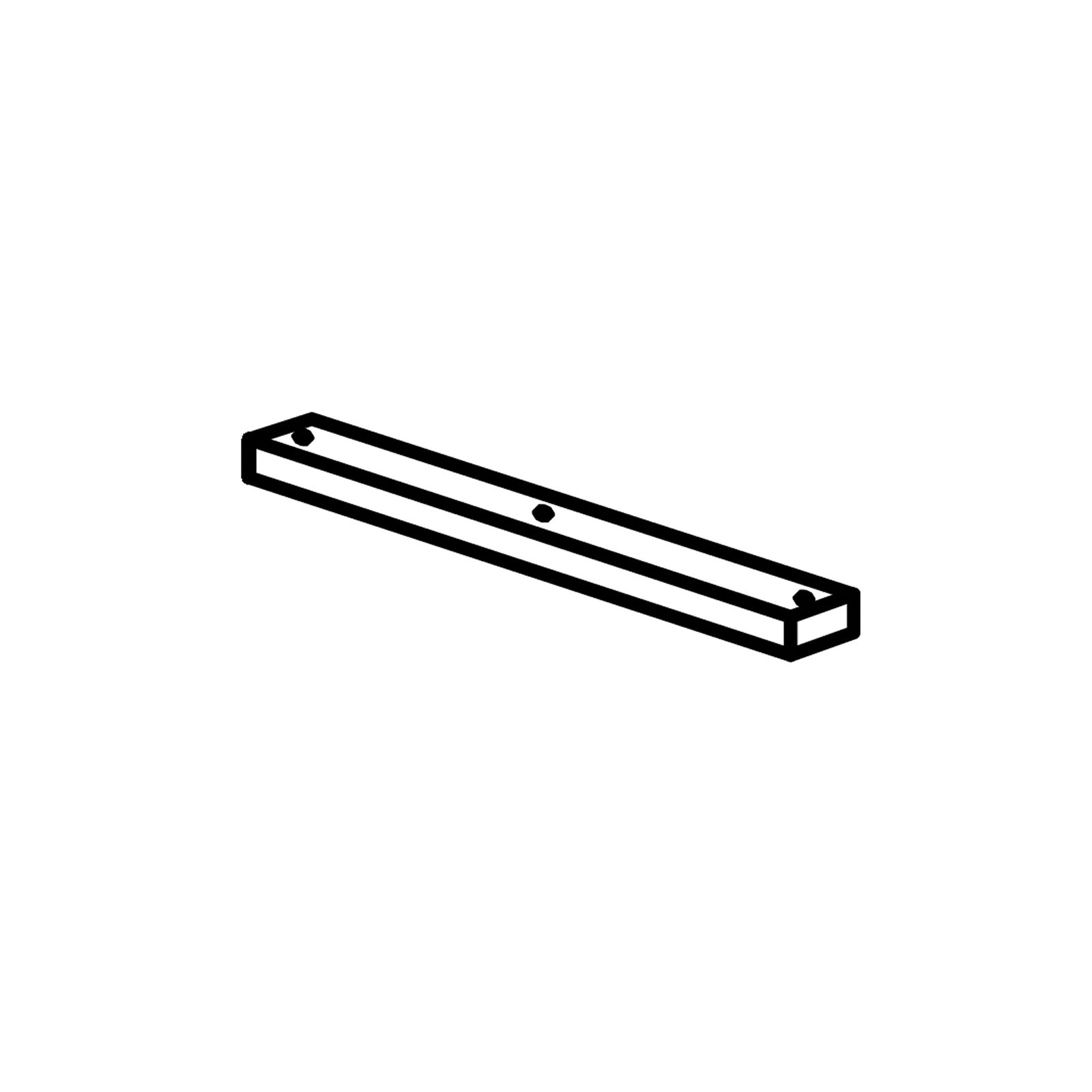

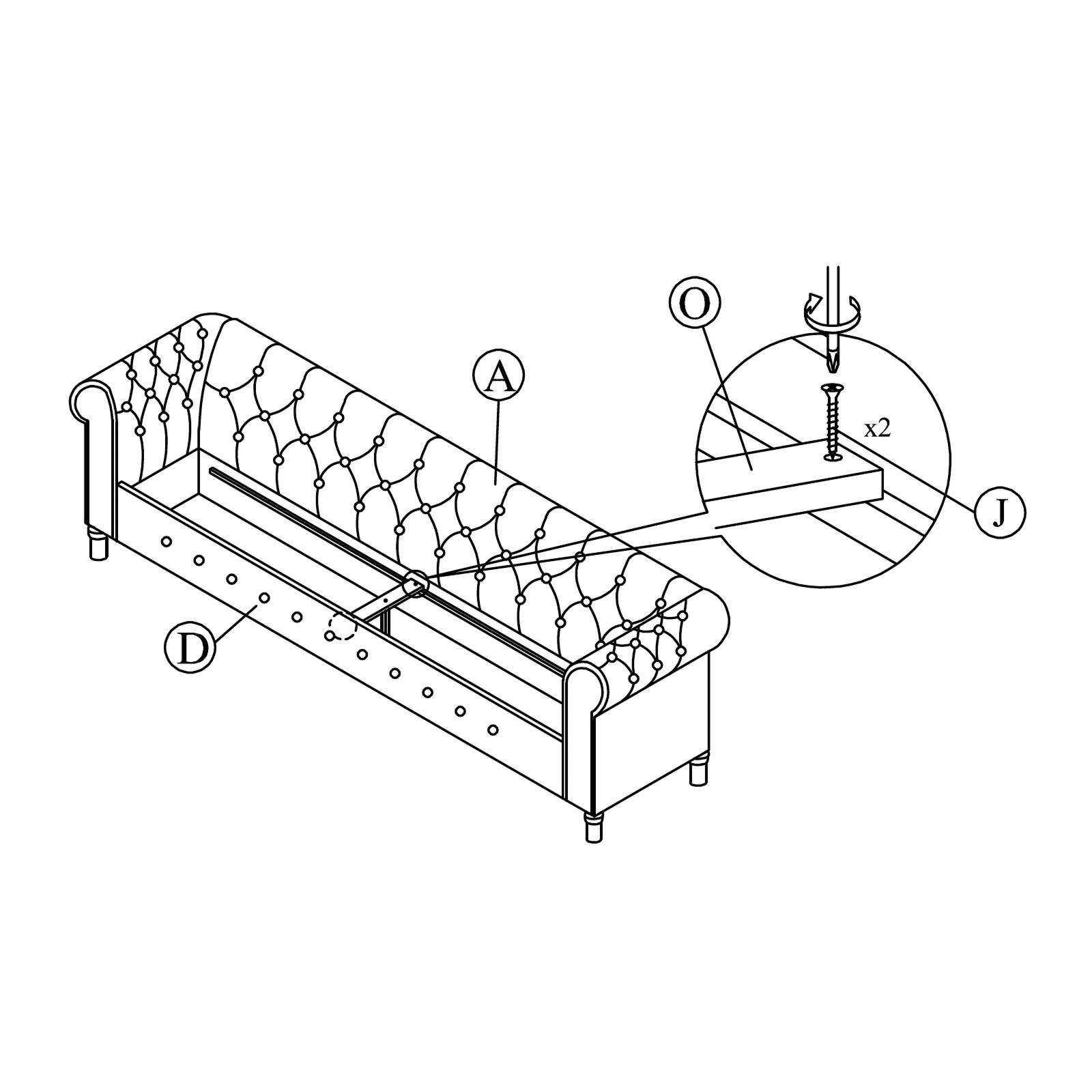

6. Install Slat Between Backrest and Side Rail
Attach the slat (O) to the back rest (A) and side rail (D).
-

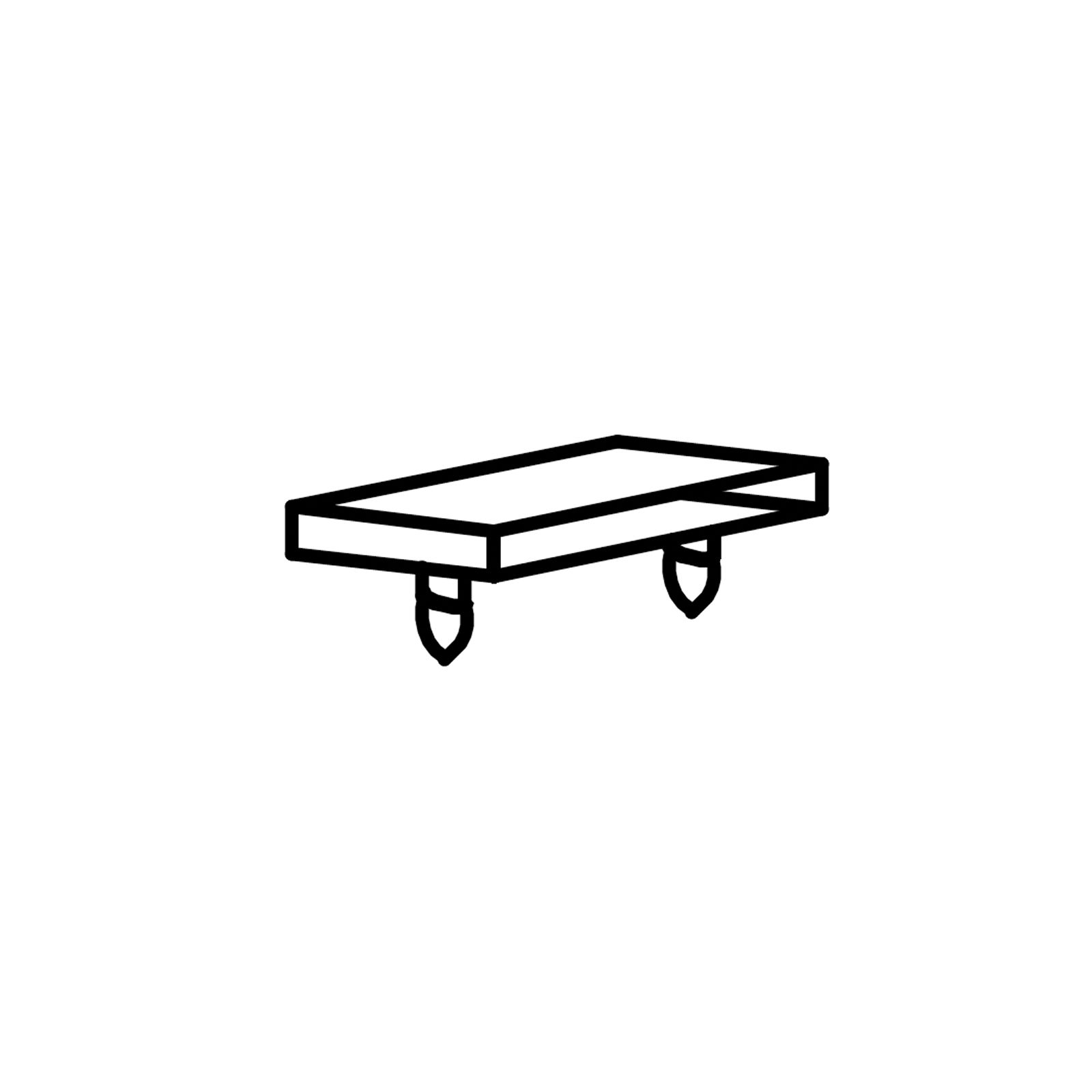

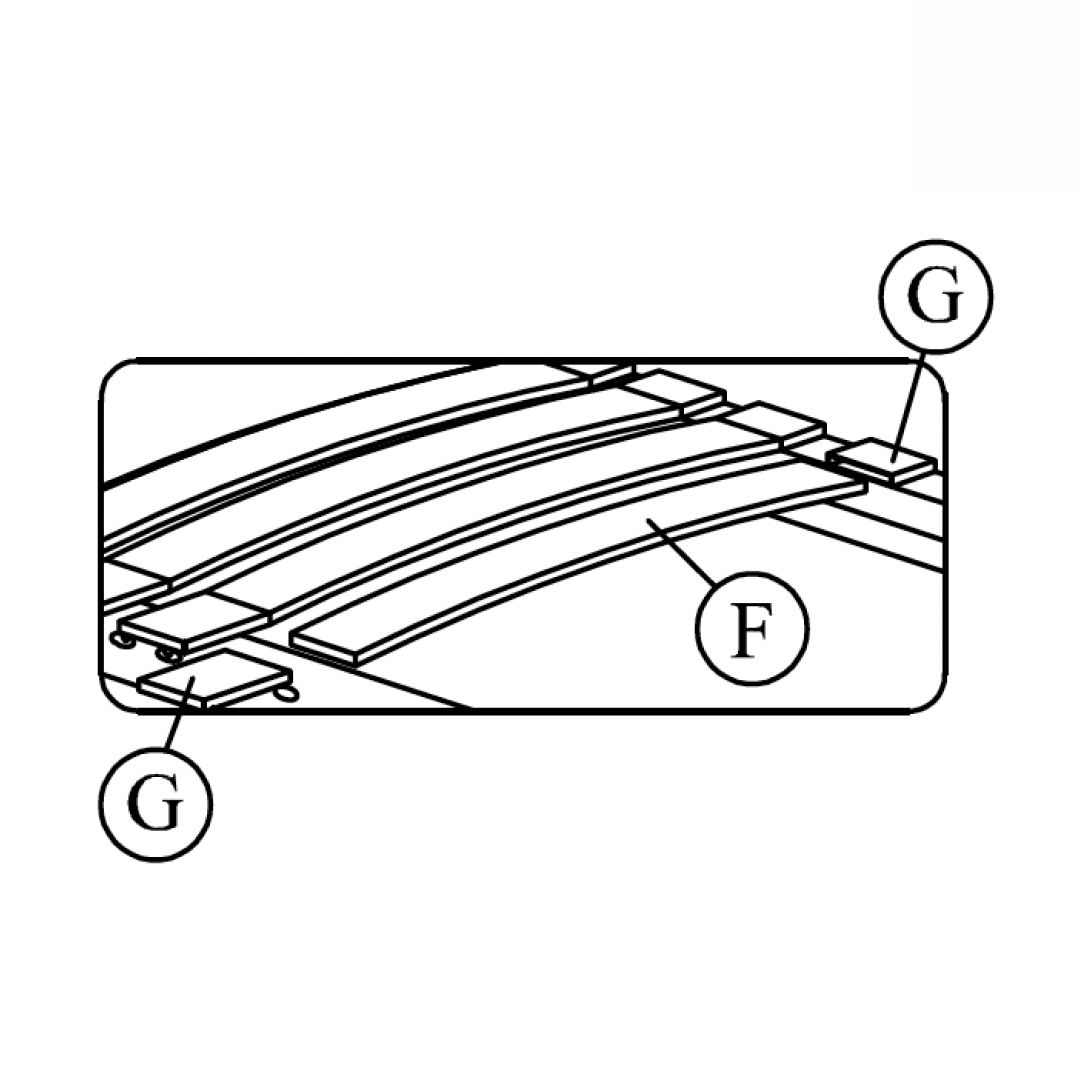

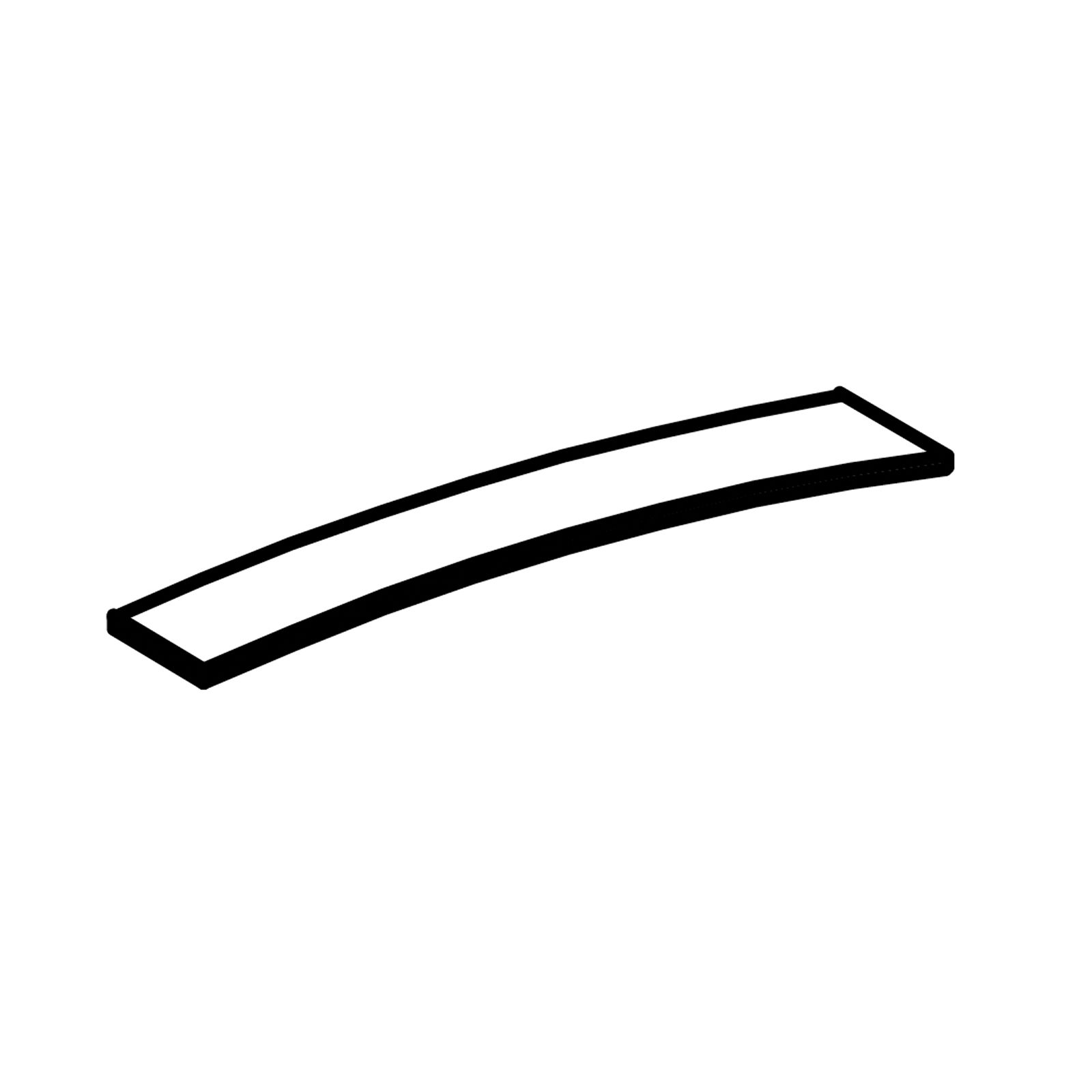

7. Assemble Slats and Fix Sitter to Frame

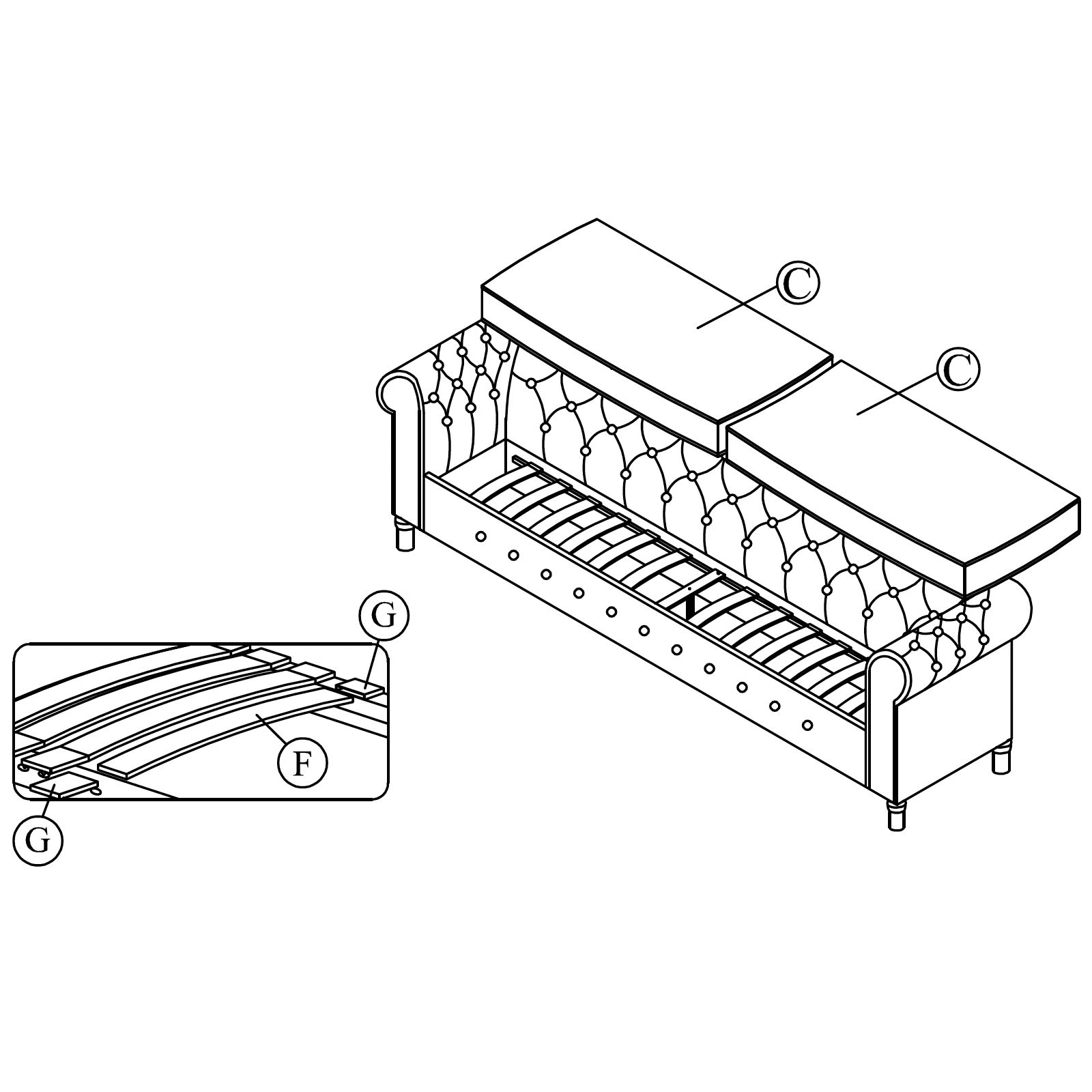

Assembly of the slat holders with LVL slats as shown. Attach the sitter (C) to the arm (B), side rail (D) and back rest (A).
