Chicago Wooden Ottoman Storage Bed

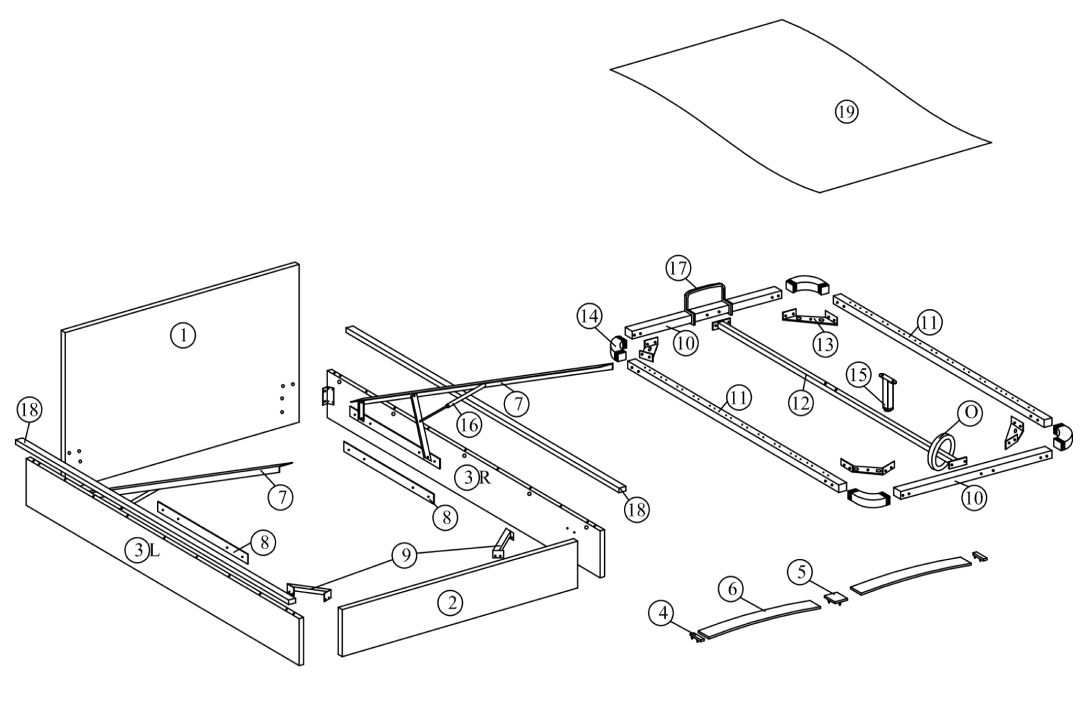

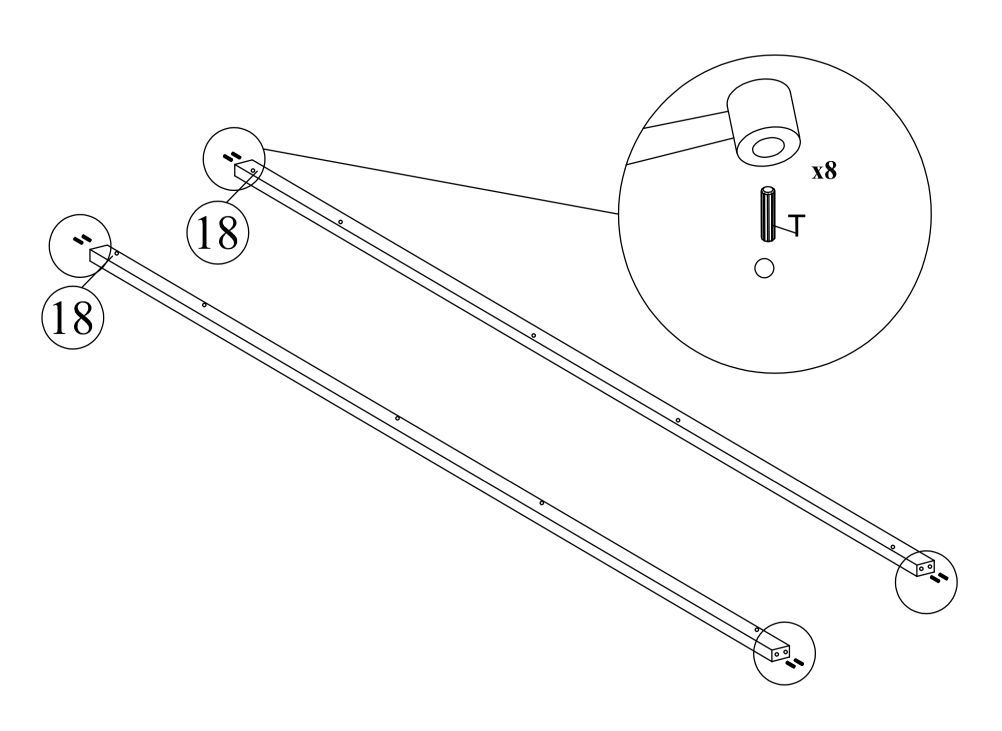

1. Identify the side rails supports.
2. Locate the holes on each end of the side rails.

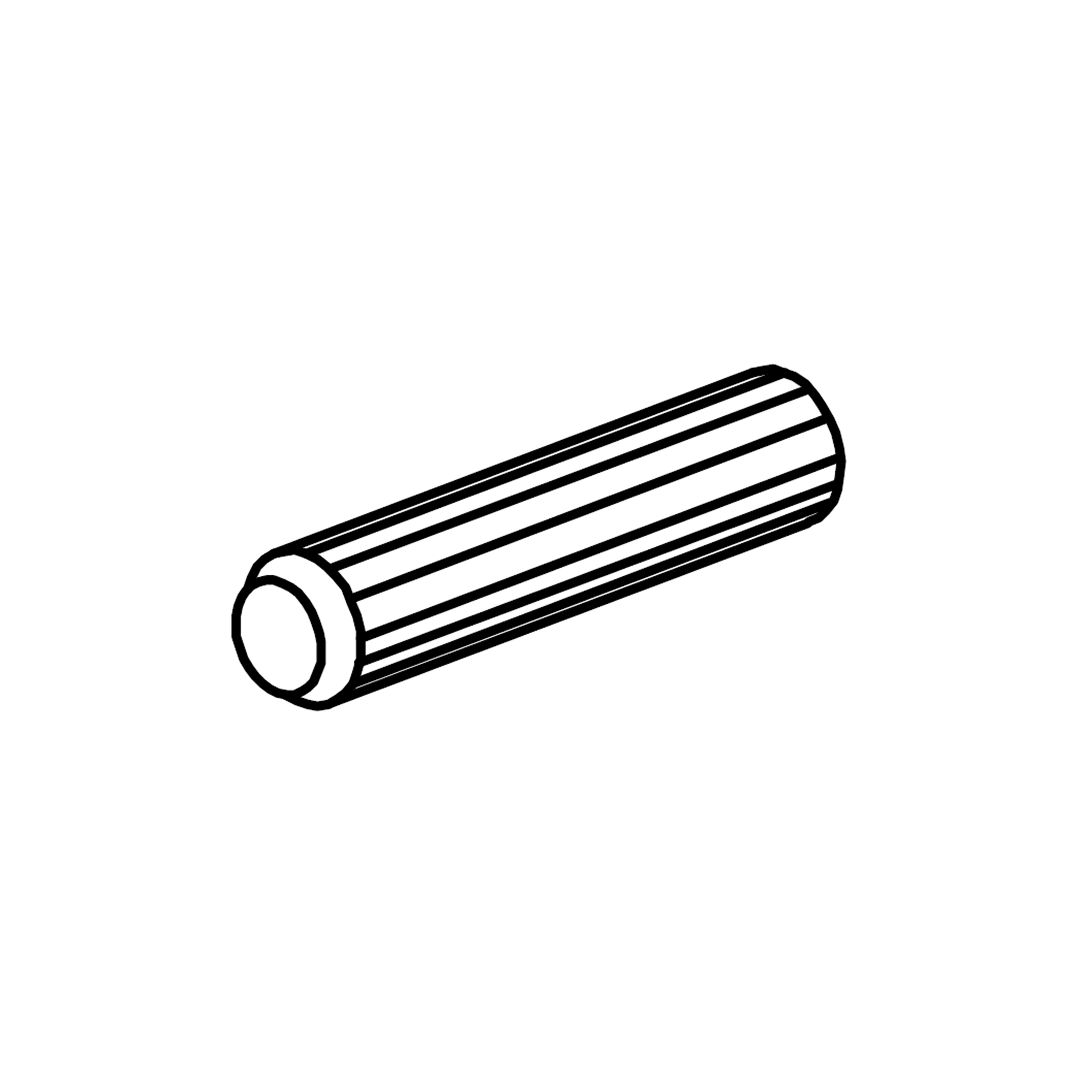

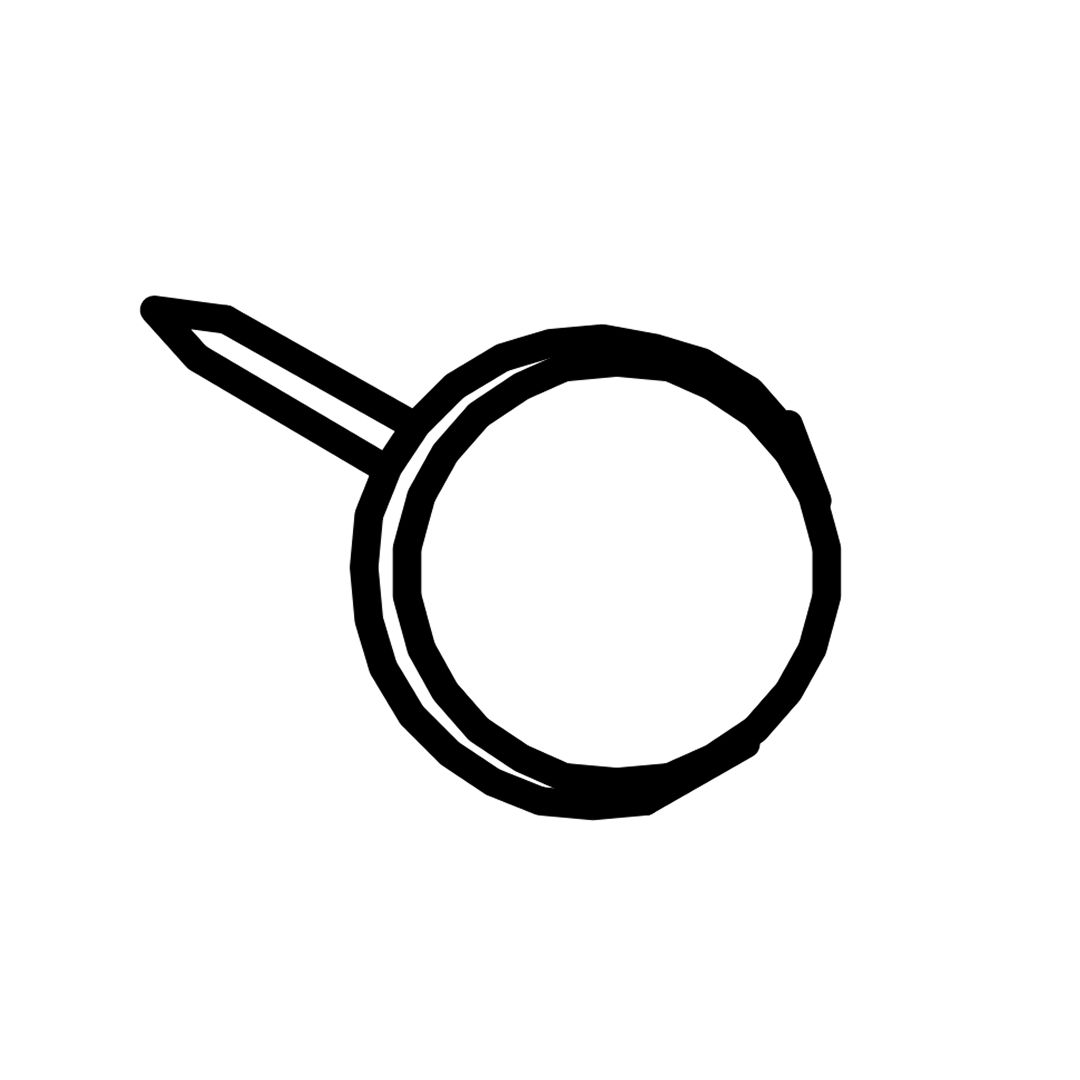

3. Use the provided hardware, specifically the pins shown in the close-up, to secure the ends of the side rails. You will need 8 pins in total.
4. Ensure each pin is inserted correctly into the designated holes to secure the side rails firmly.

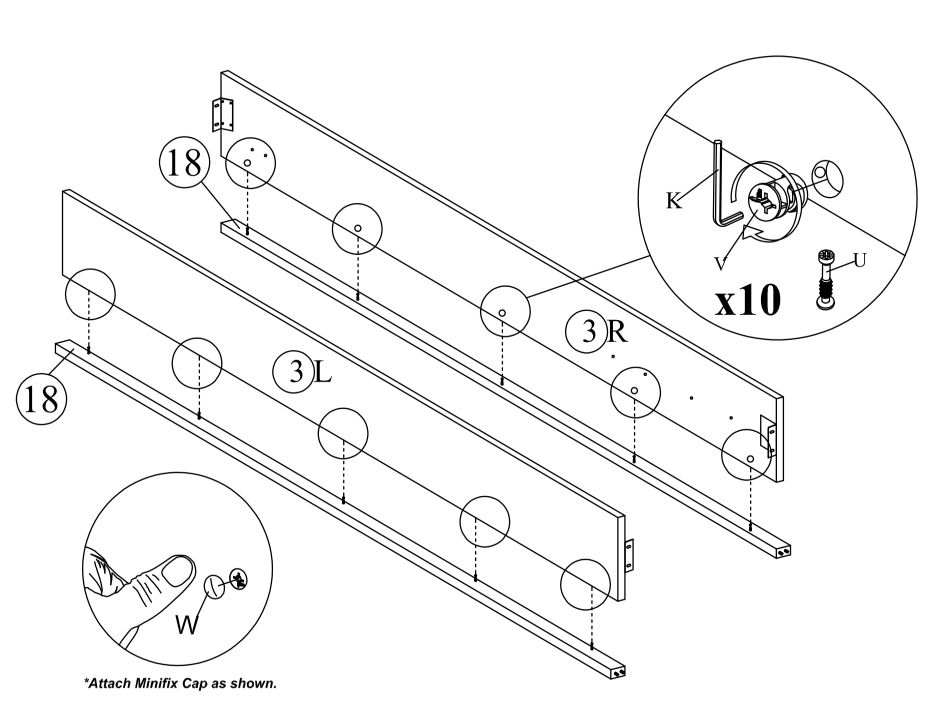

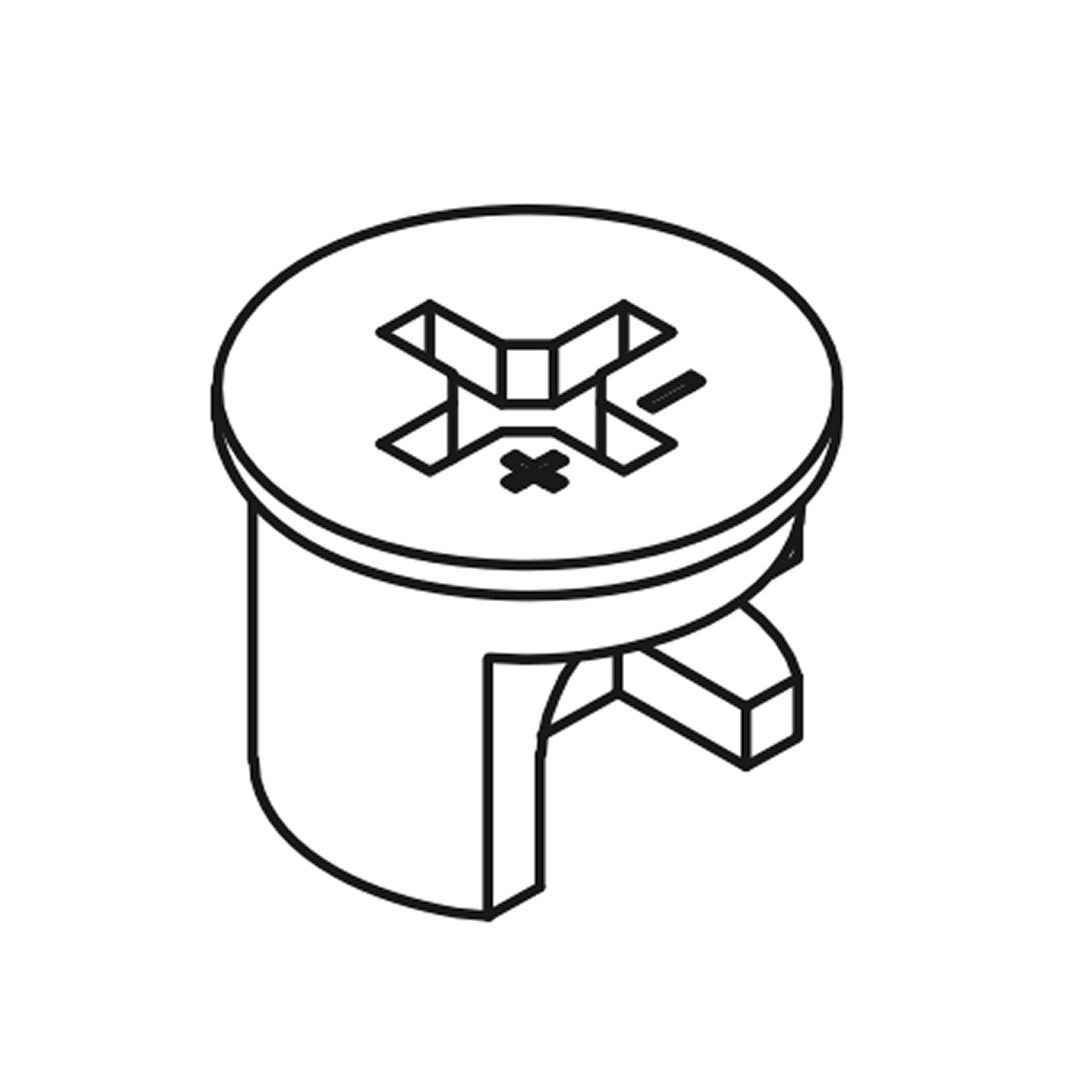

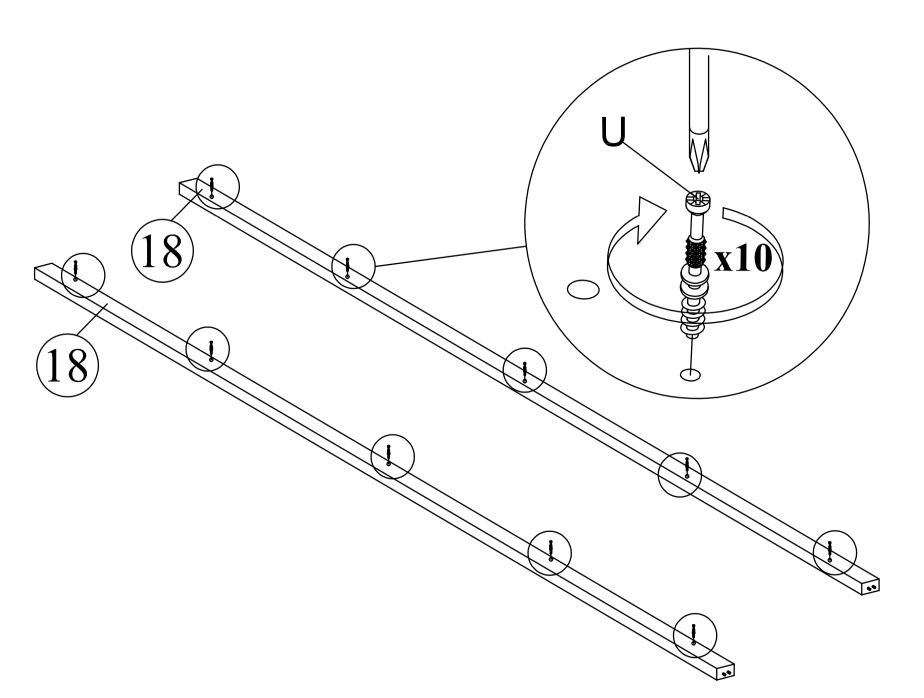

1. Using a screwdriver, insert and tighten the minifix bolts (U) into the designated holes on the side rails.
2. Ensure each side rail has 10 bolts securely fastened.

1. Identify the left (3L) and right (3R) side rails.
2. Align the side rails with the corresponding holes for the minifix bolts (U).
3. Insert the minifix bolts (U) into the designated holes on the side rails.

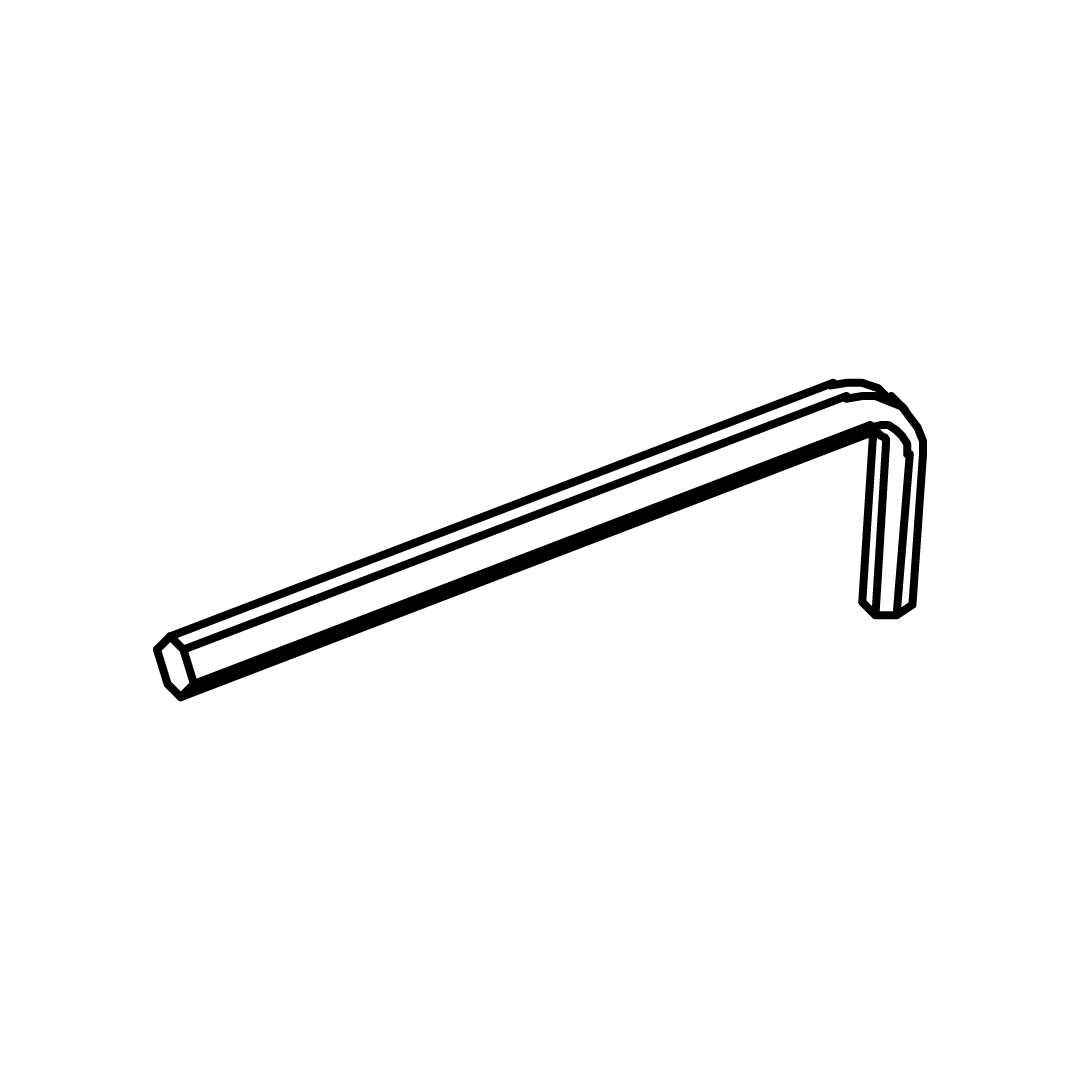

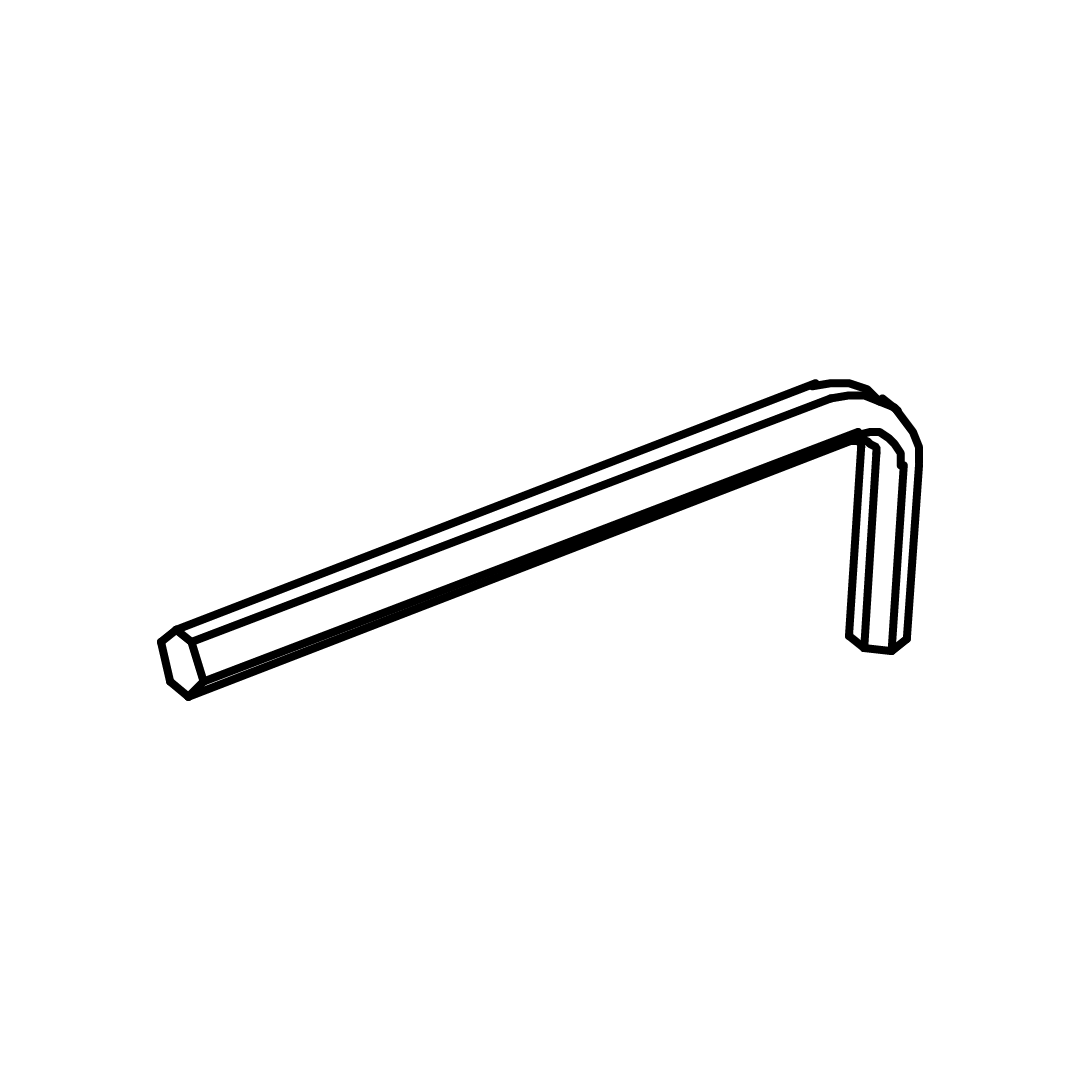

4. Use the provided Allen key (K) to tighten the minifix bolts by turning them clockwise.

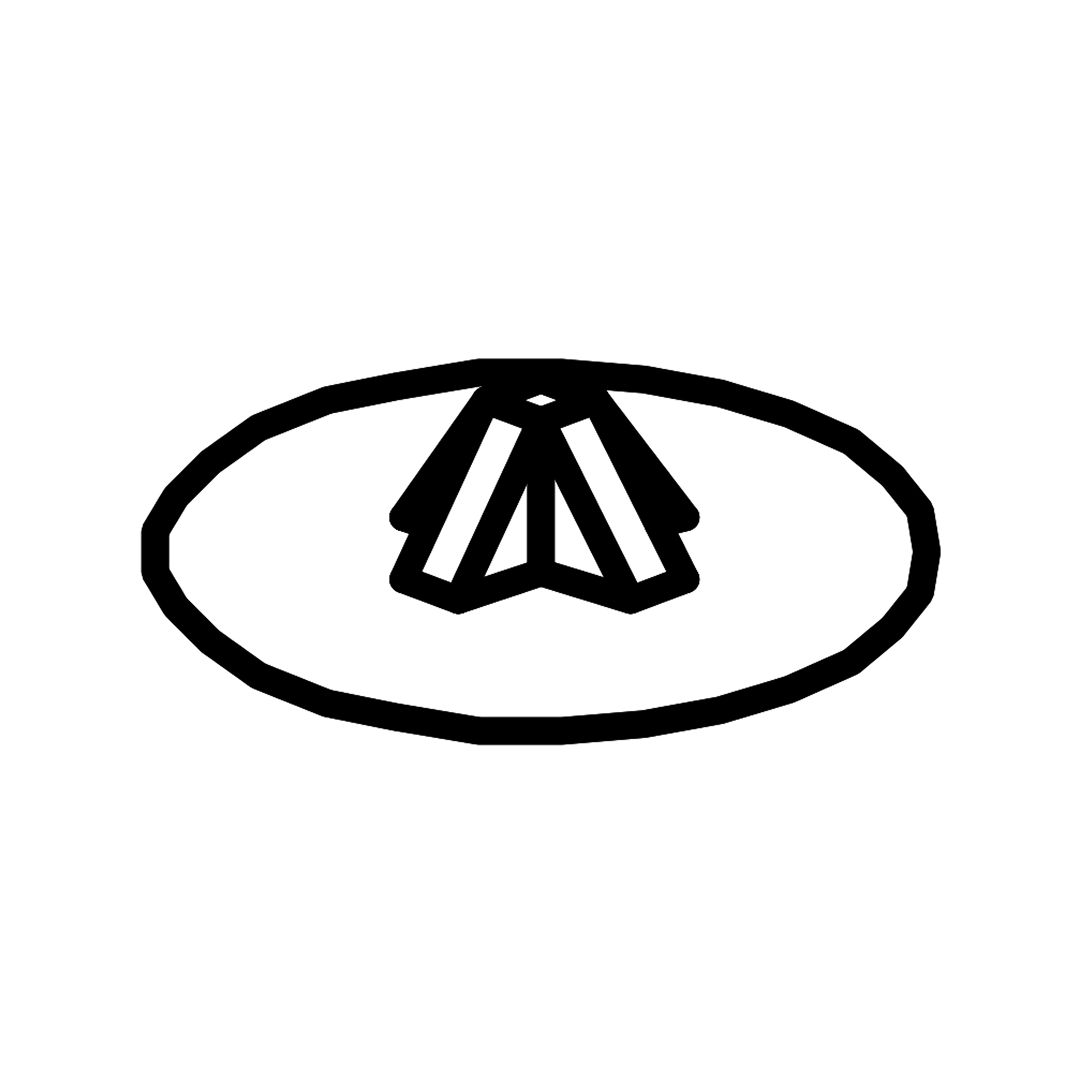

5. Attach the minifix caps (W) as shown to cover the bolt heads for a finished look.
6. Ensure all connections are secure and the side rails are properly aligned.

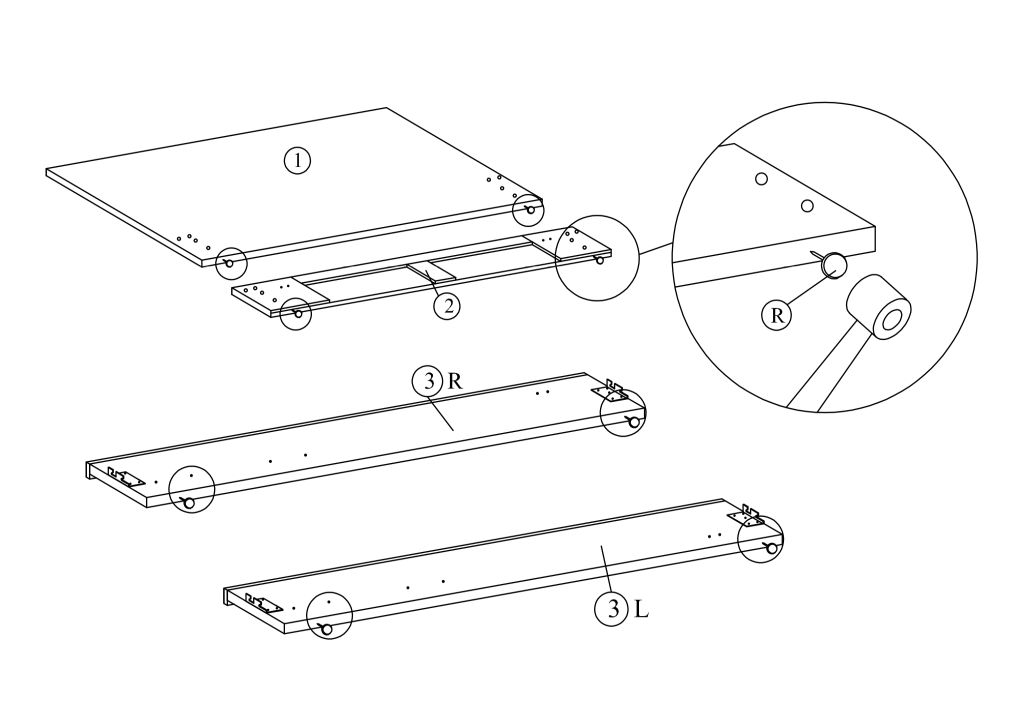

1. Identify the headboard panel (1) and the support frame (2).
2. Secure the support frame (2) to the headboard (1) using the provided screws.
3. Locate the right (3R) and left (3L) side rails. Note the orientation marked on each rail.
4. Attach the side rails to the headboard using the designated connectors.

1. Identify the right and left side rails, labeled as 3R and 3L respectively.
2. Position the right side rail (3R) so that it aligns with the headboard on the right side.
3. Position the left side rail (3L) so that it aligns with the headboard on the left side.

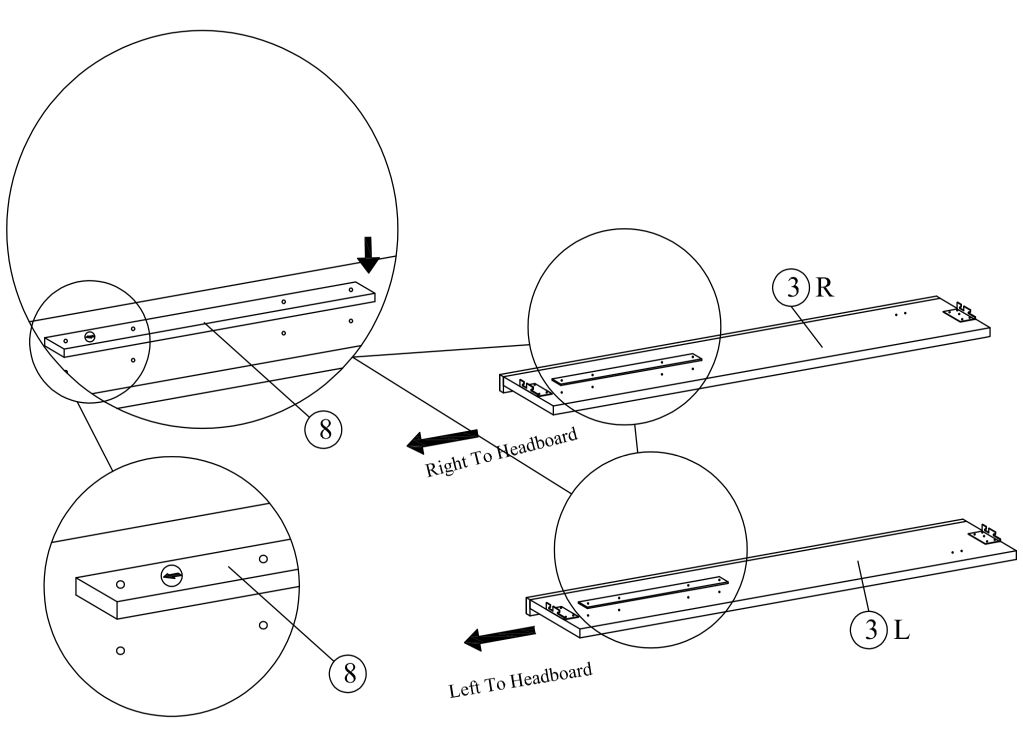

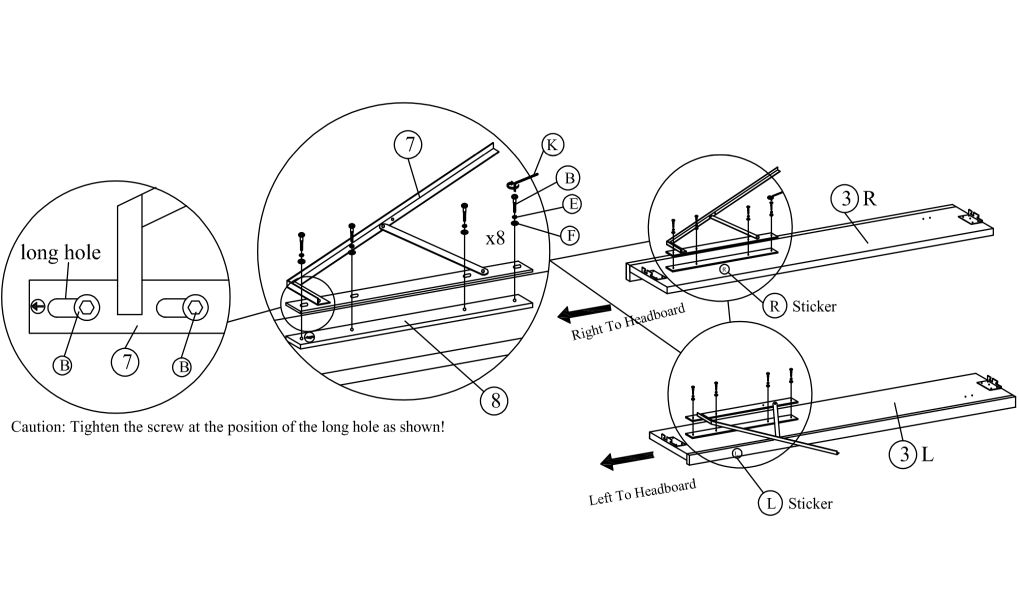

Important: Base bracket (8) must be attached before attaching the pump mounting bracket (7).

1. Identify the side rails labeled 3R (right) and 3L (left)
2. Position the side rails so that they are oriented towards the headboard, as indicated by the arrows.
3. Locate the long holes on the side rails. Insert the screws labeled B through these holes and the washers (E and F).
4. Attach the pump mounting brackets (7) and the bracket base (8) to the side rails using the allen key (K)

1. Secure the headboard (1) to the side rails (3L and 3R) using the provided screws and brackets.
2. Attach the footboard (2) to the side rails (3L and 3R).

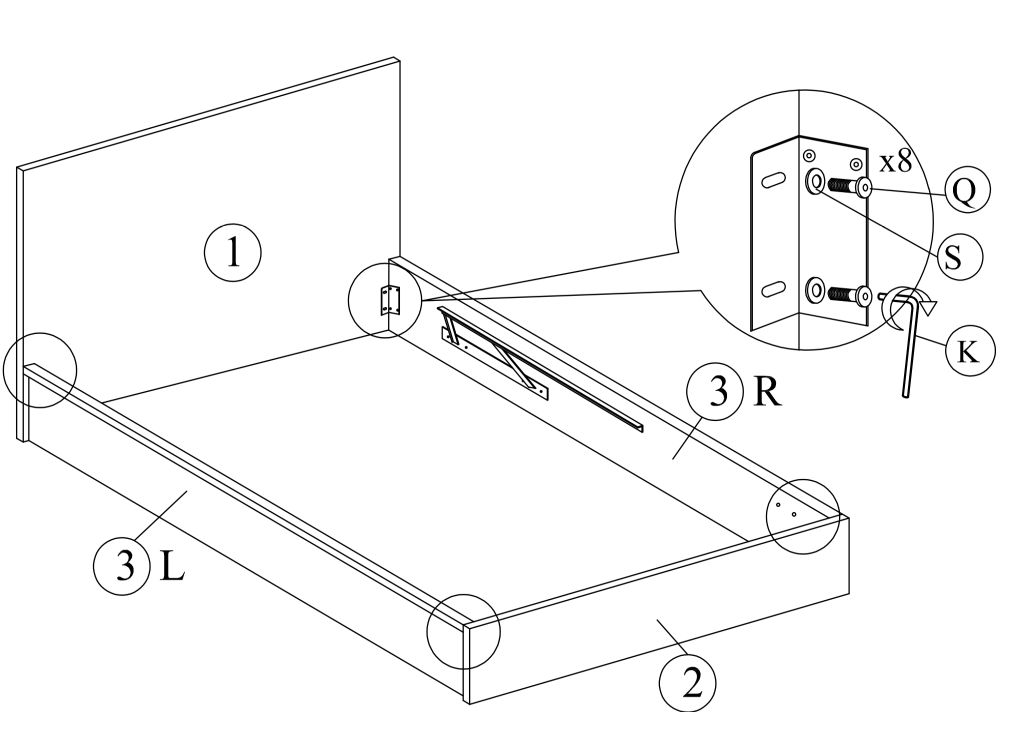

1. Secure the left side rail (3L) and right side rail (3R) to the headboard (1) and footboard (2) using the provided brackets.
2. Use screws (Q) and washers (S) to fasten the brackets securely.
3. Tighten the screws with the Allen key (K) to ensure stability.

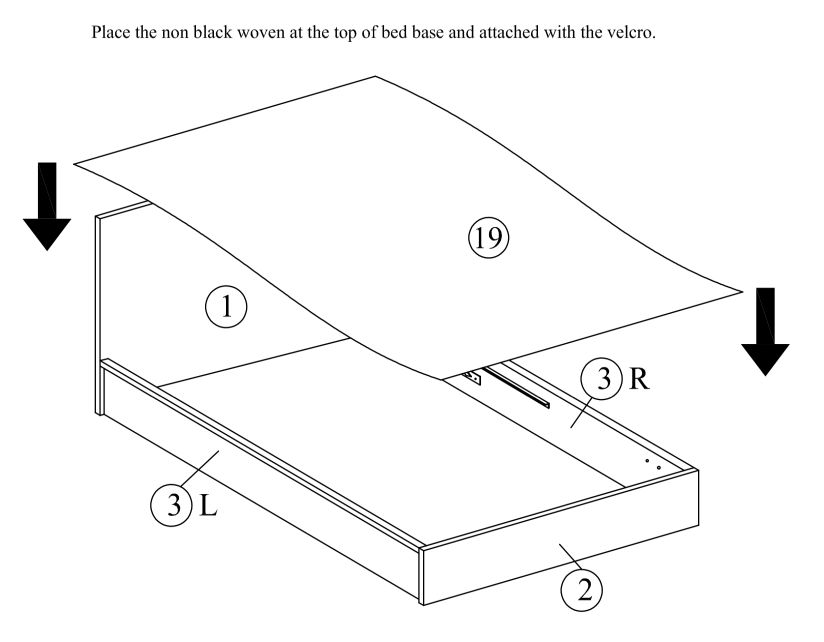

1. Identify the non-black woven fabric piece labeled as 19.
2. Position the fabric at the top of the bed base, ensuring it covers the entire area.
3. Secure the fabric by attaching it with the Velcro strips provided on the bed base.

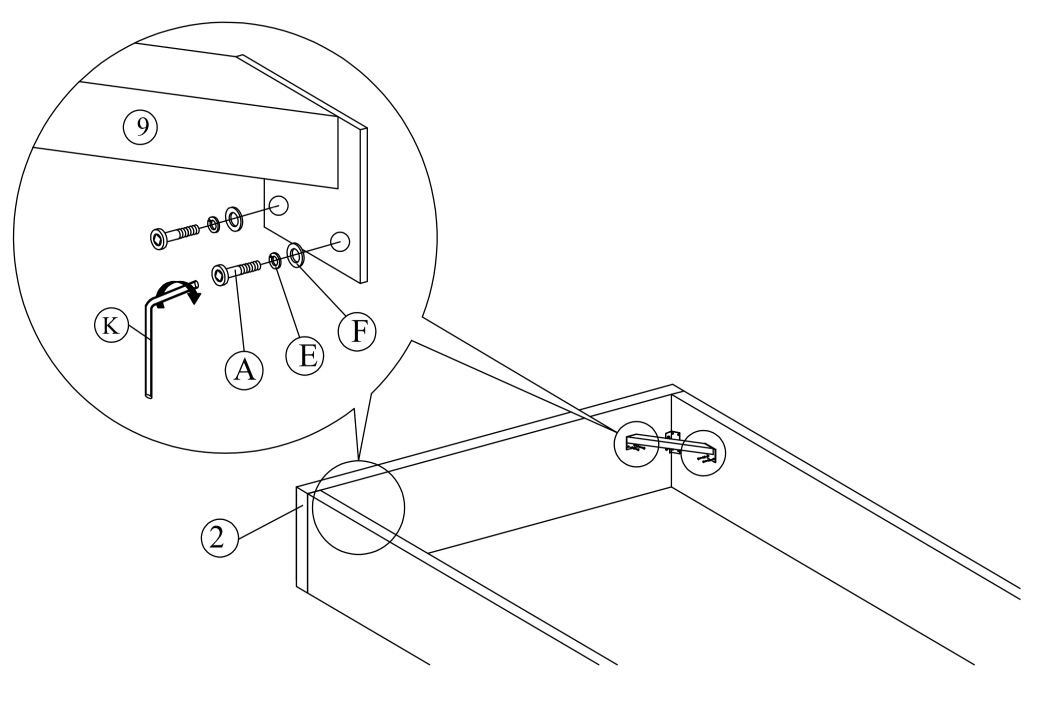

1. Align the angle brackets (9) with the footboard (2).

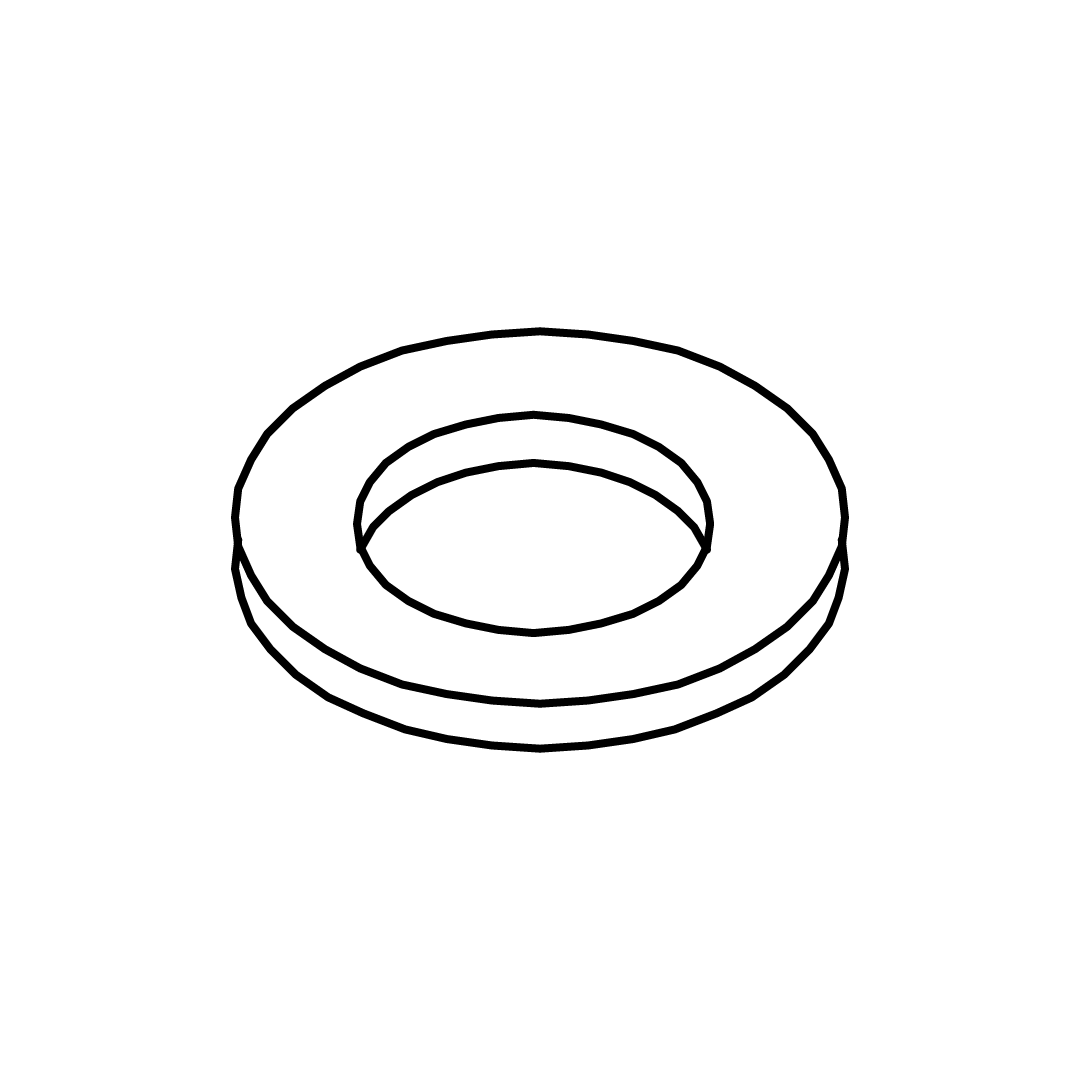

2. Place washers (E and F) onto the screws

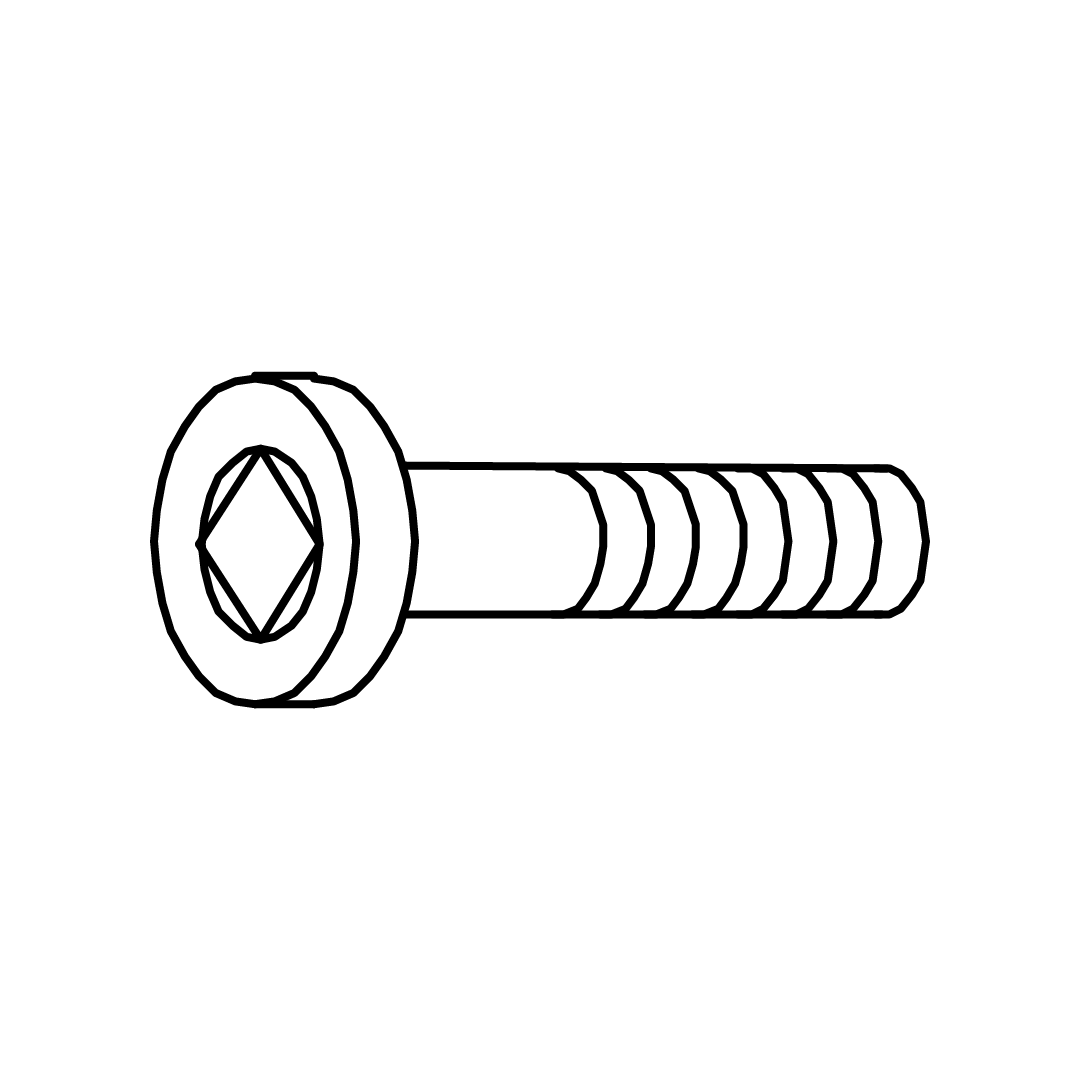

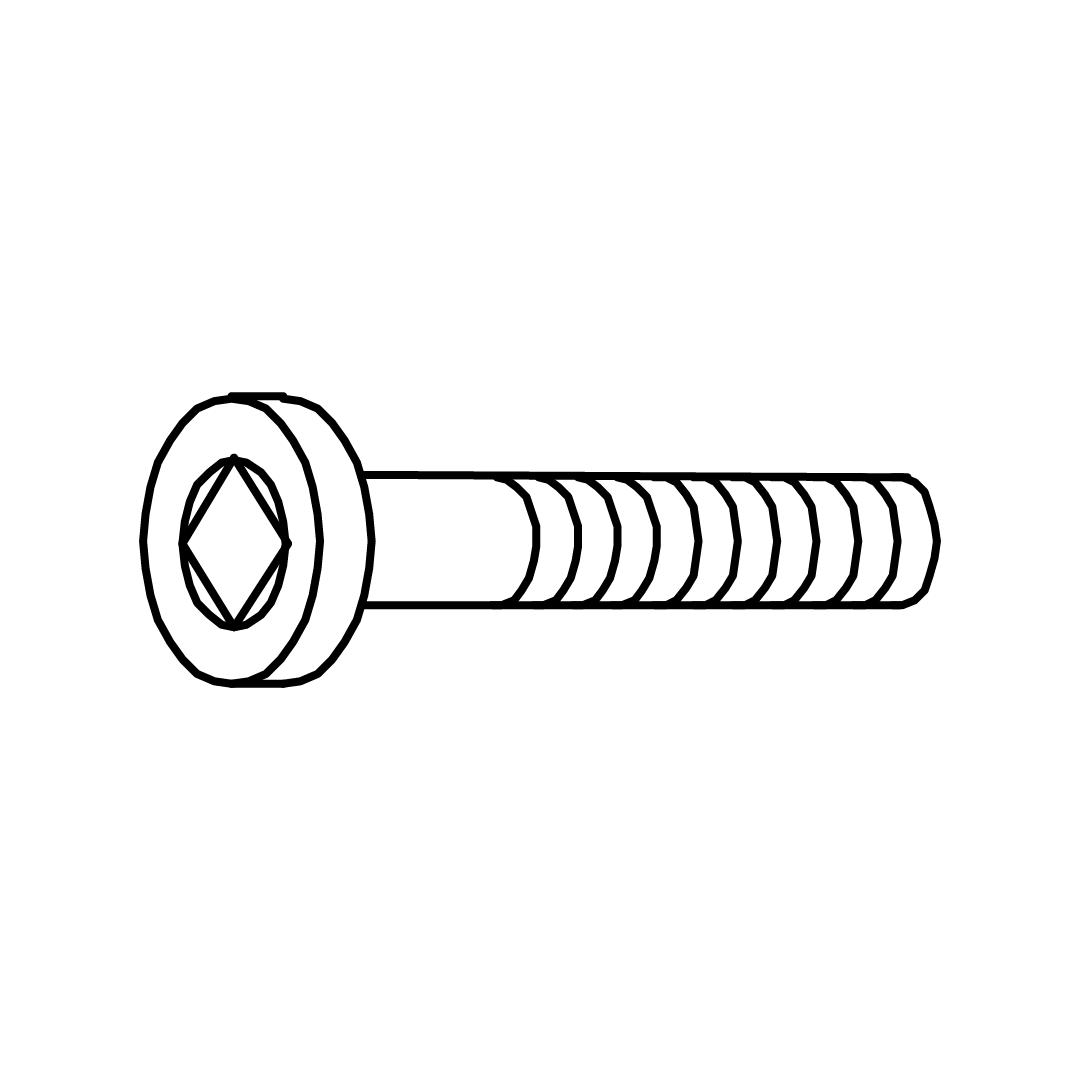

3. Insert screws (A) through the pre-drilled holes in the brackets and into the frames.
4. Use the provided Allen key (K) to tighten the screws securely.

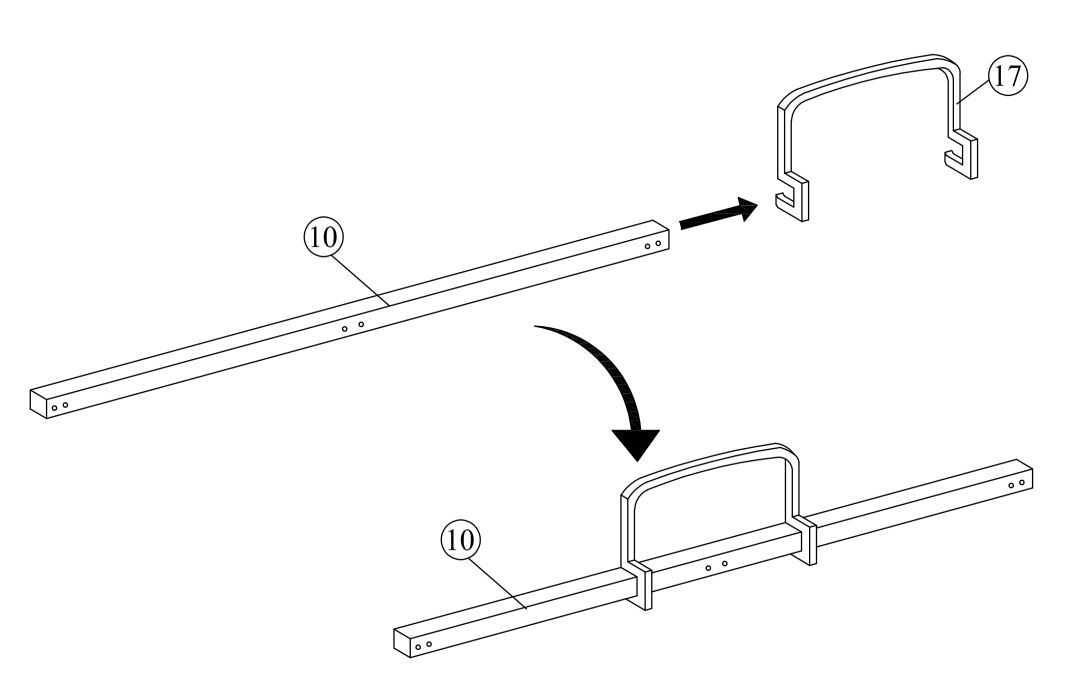

Slide the stopper (17) onto the main frame (10) until it is securely positioned.

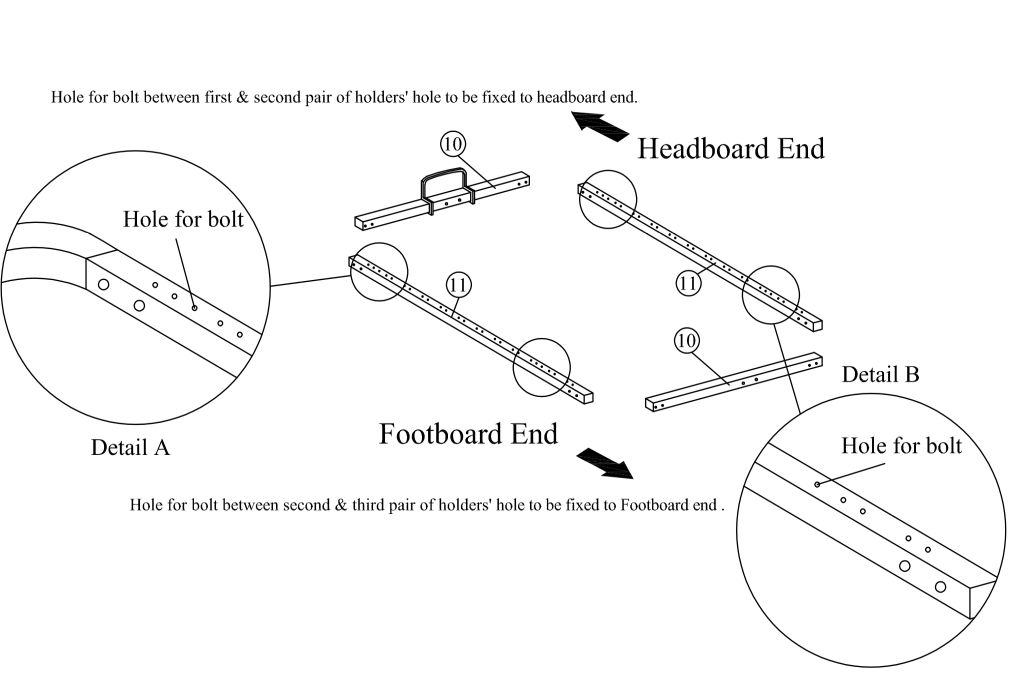

1. Locate the main frame parts (10 and 11)
2.  Align the holes on the side rails with the corresponding holes on the headboard and footboard. Refer to Detail A and Detail B for the correct positioning of the bolt holes.
3.  For the headboard end, use the hole between the first and second pair of holders' holes to secure the side rail.
4.  For the footboard end, use the hole between the second and third pair of holders' holes to secure the side rail.

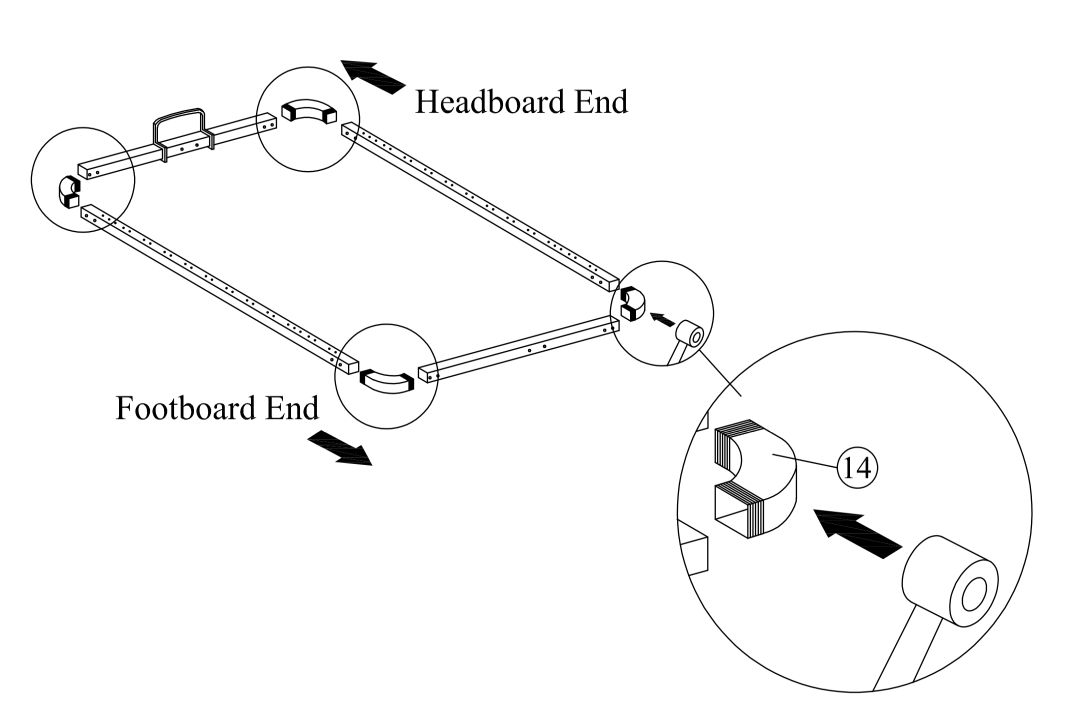

Attach the rubber corner connectors (14) to the frame parts as shown in the diagram.

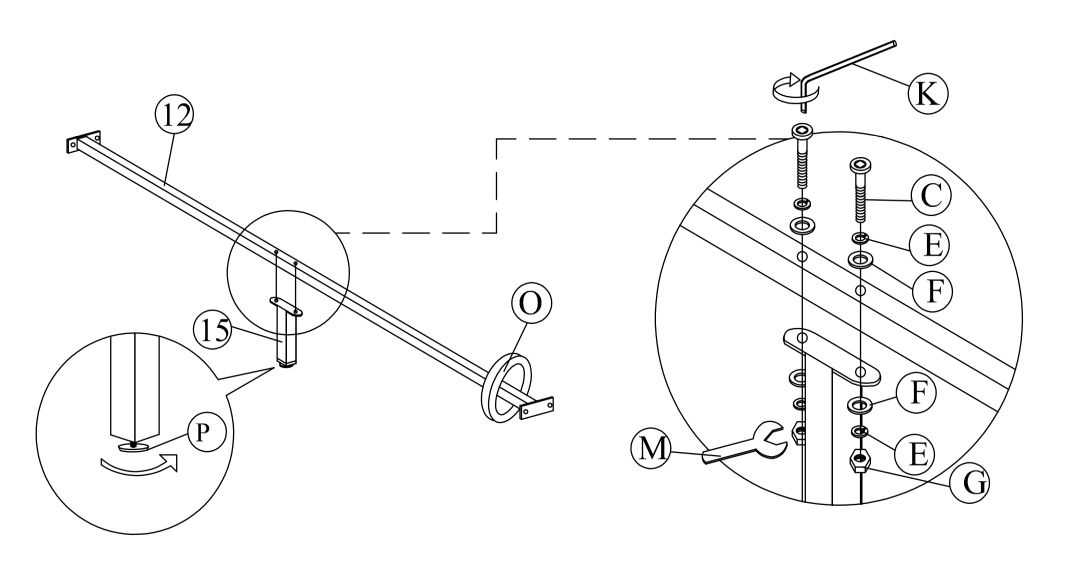

1. Position the crossbar (12) as shown in the diagram.

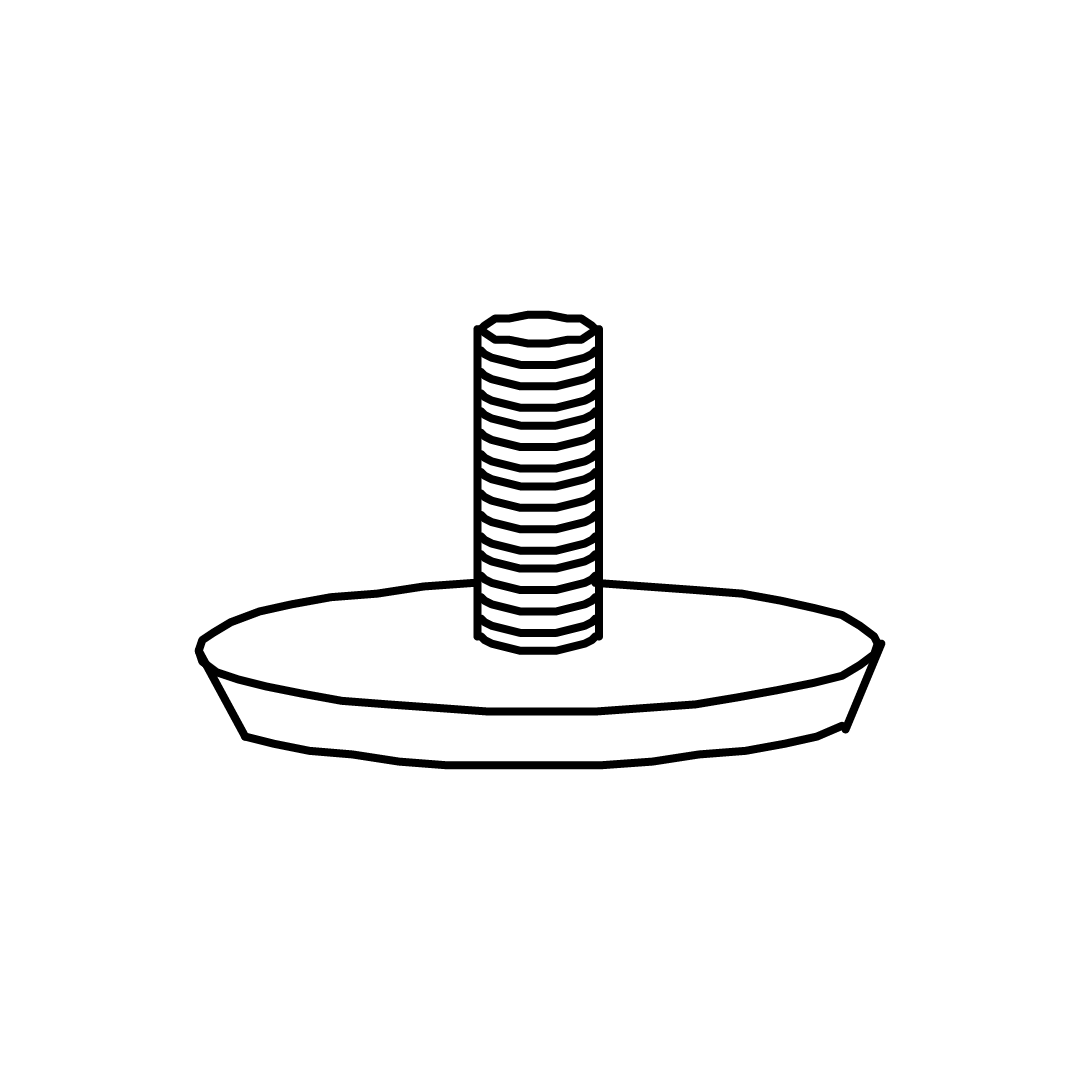

2. Align the support leg (15) with the crossbar and secure it by rotating the leg clockwise (P) until tight.
3. Attach the support leg to the crossbar using the following components in order:

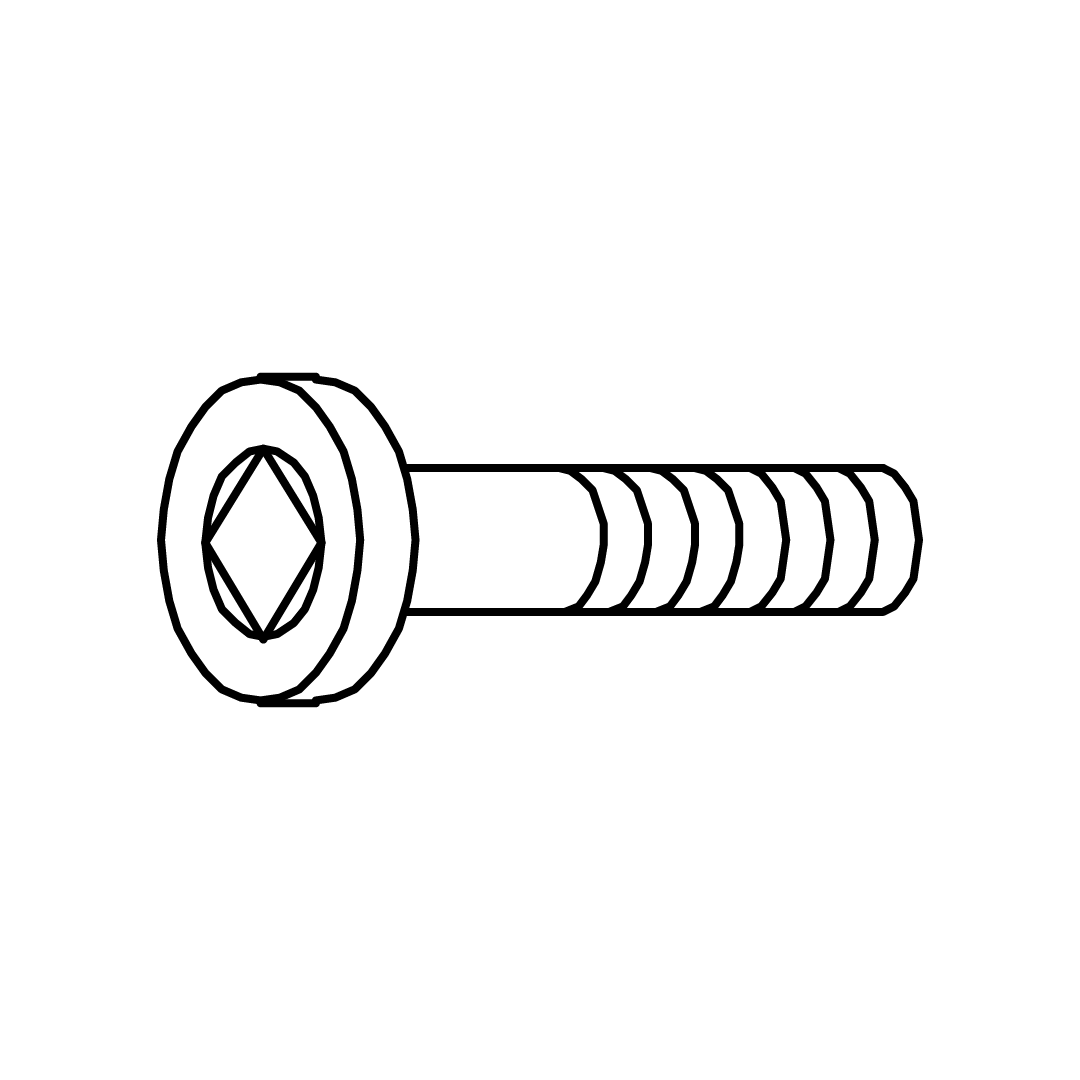

• Insert bolt (C) through the crossbar and frame.

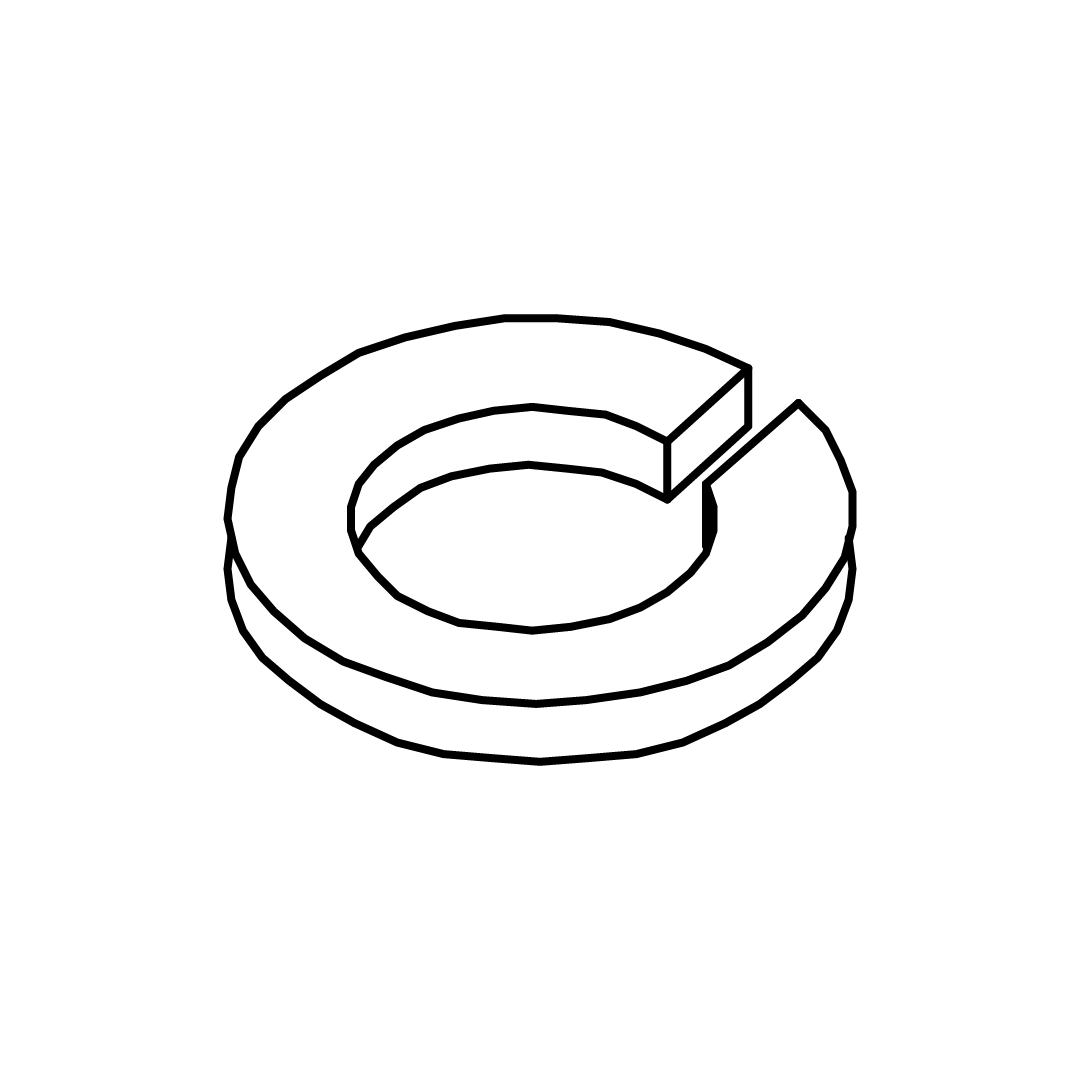

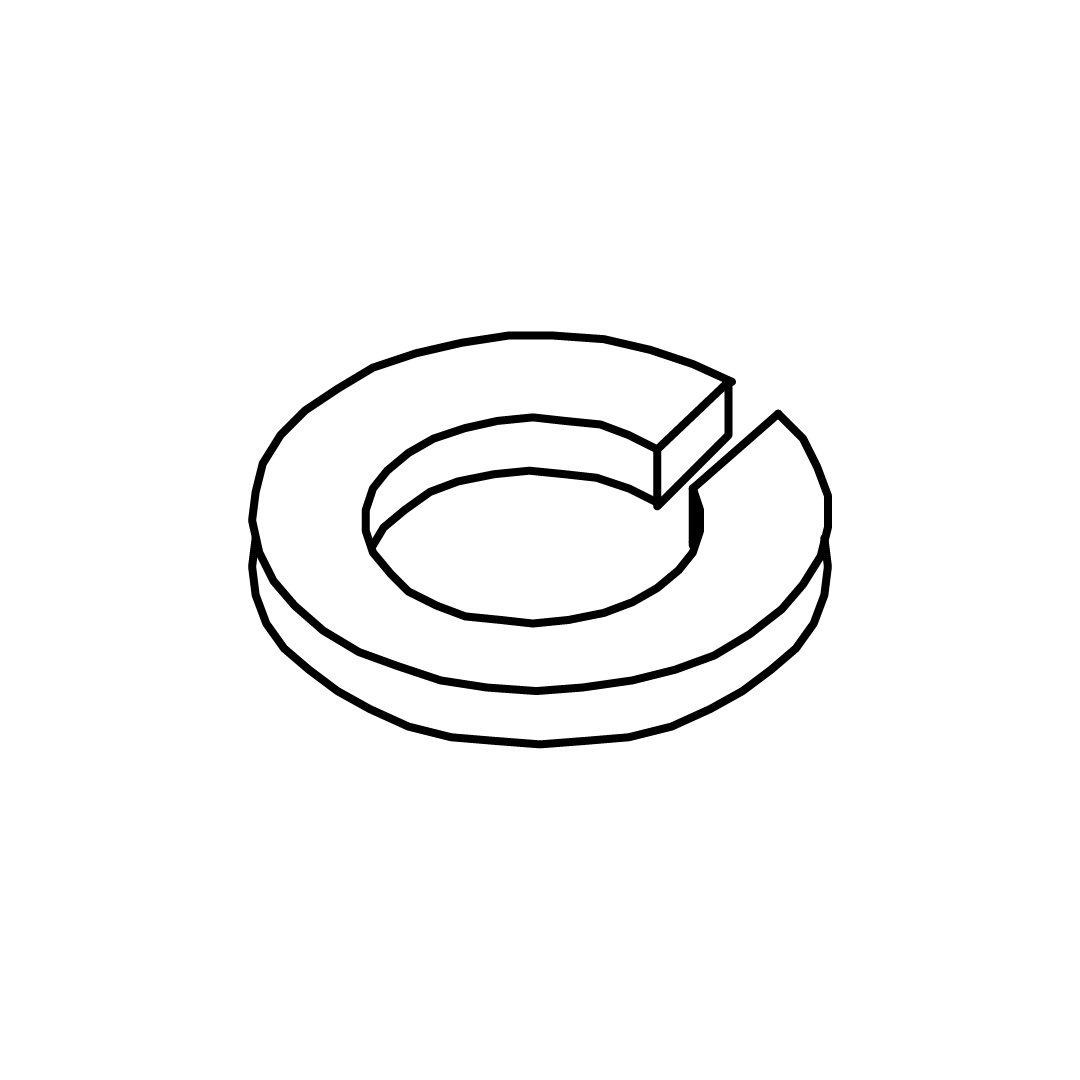

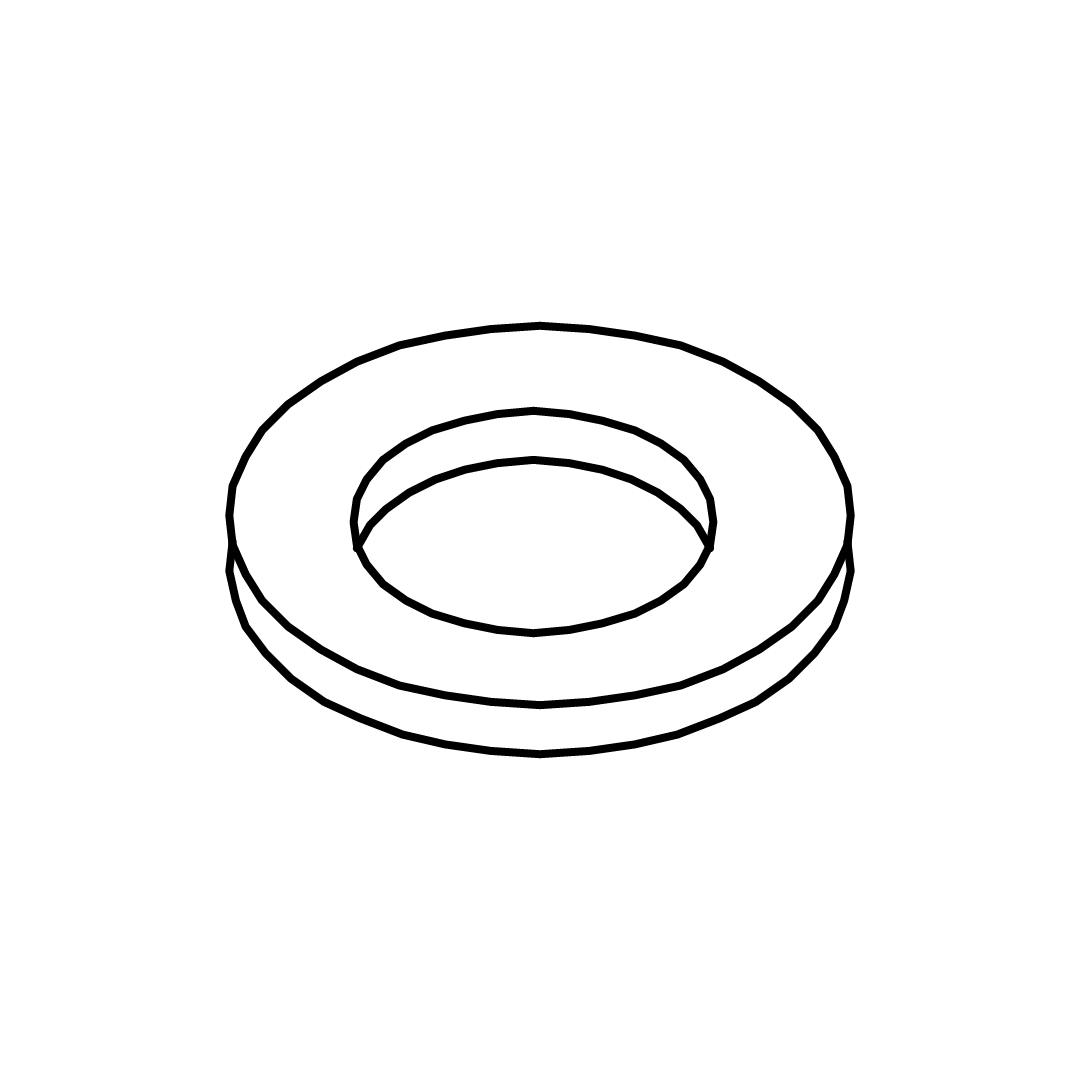

• Add washer (E) and spring washer (F) onto the bolt.

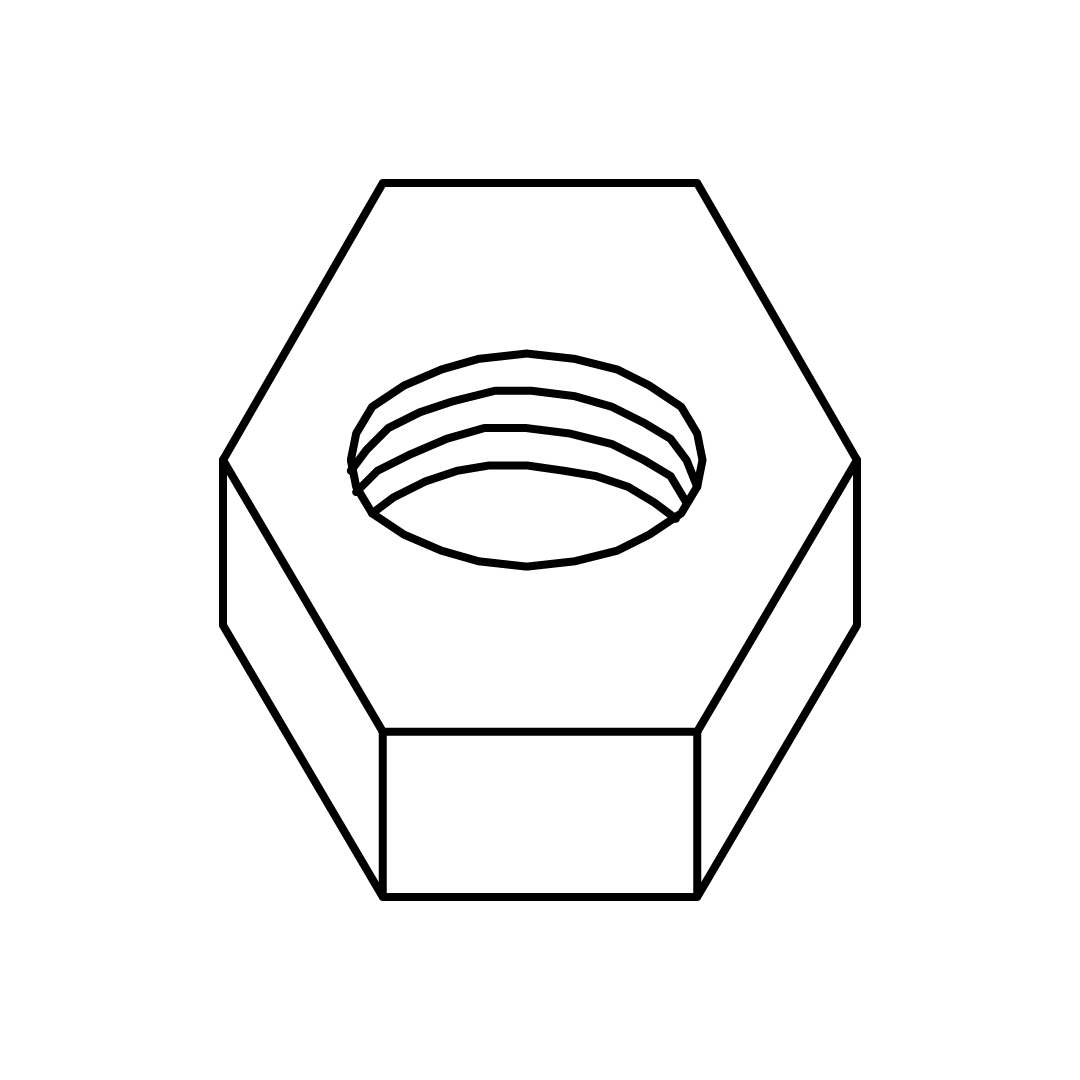

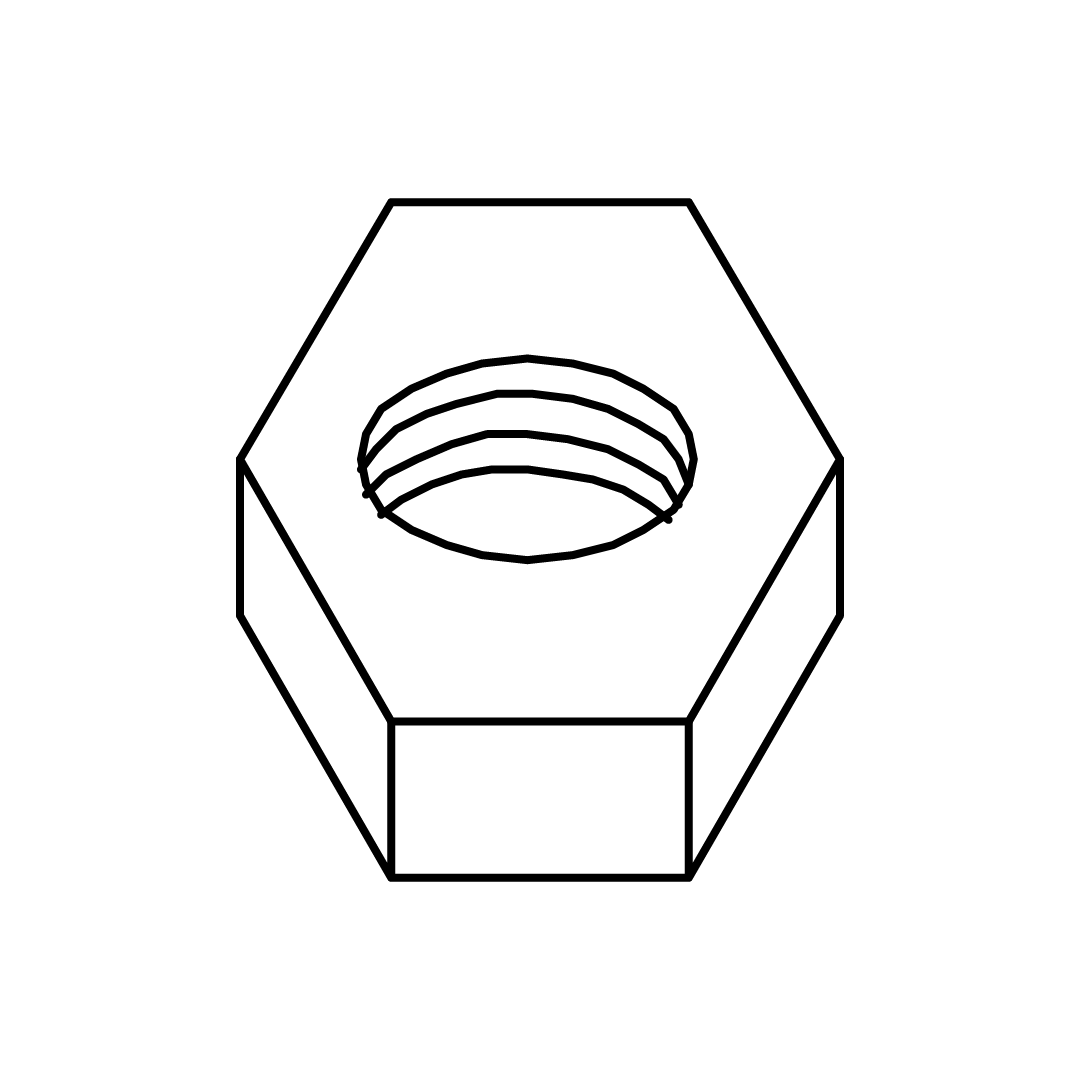

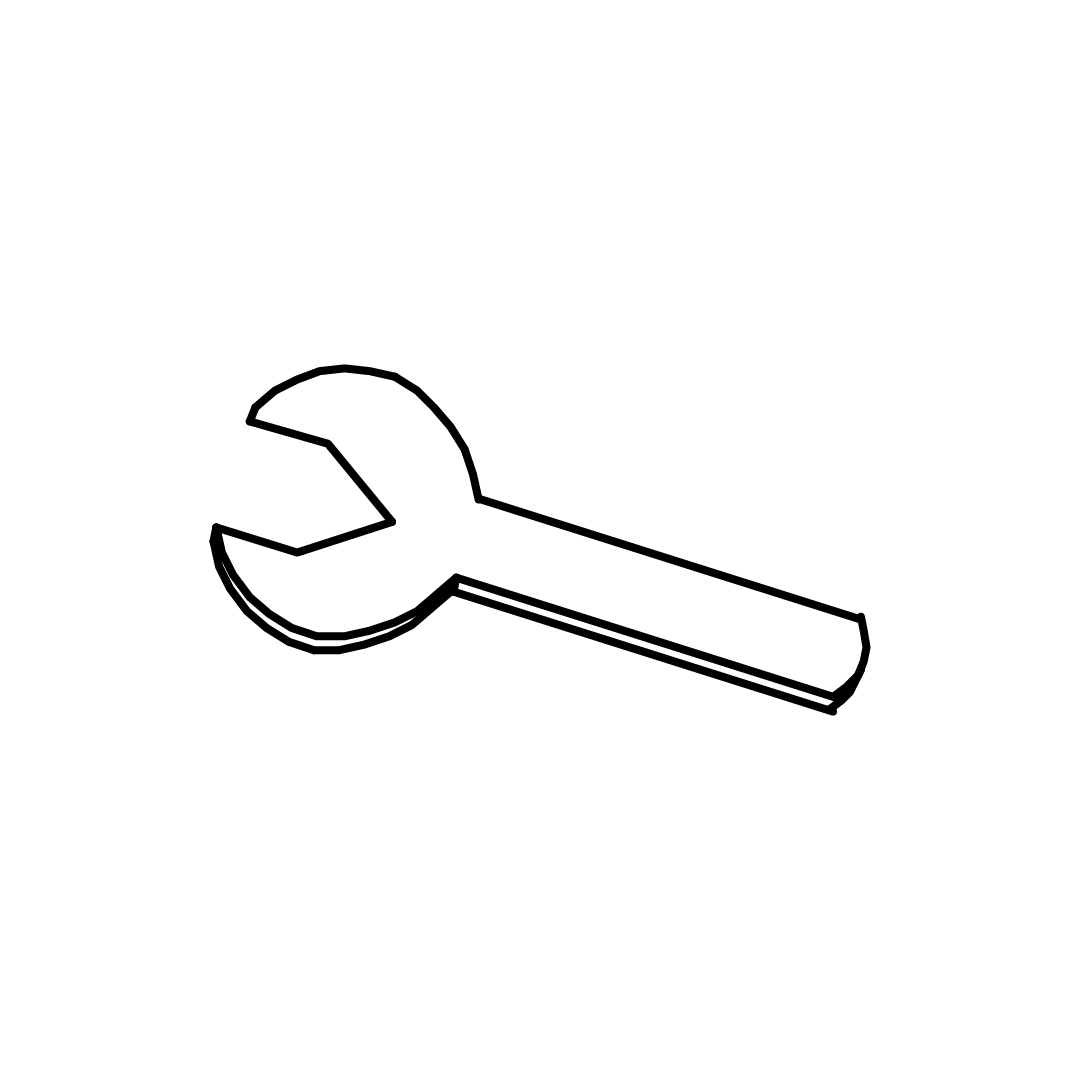

• Secure with nut (G) using the spanner (M).

 Use the Allen key (K) to tighten all bolts securely.

1. Align the metal corner brackets with the main frame, ensuring the correct orientation.
2. Use the provided hardware to secure the side rails:

• Insert bolt D through the aligned holes.
• Place washer H and nut J onto the bolt.
• Tighten using the Allen key L and spanner N.

Repeat the process for all connection points along the side rails.

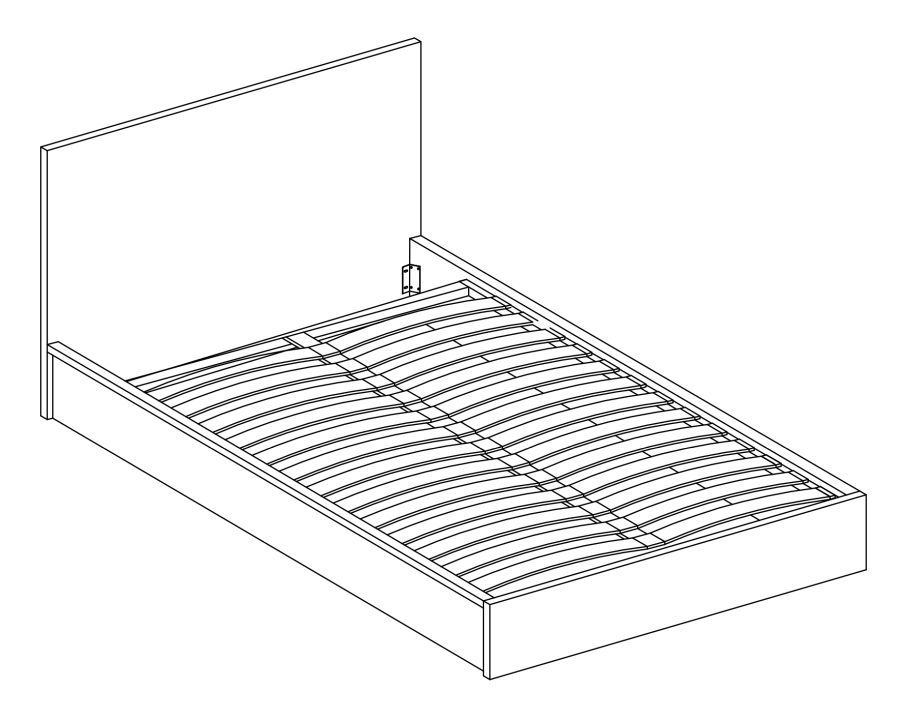

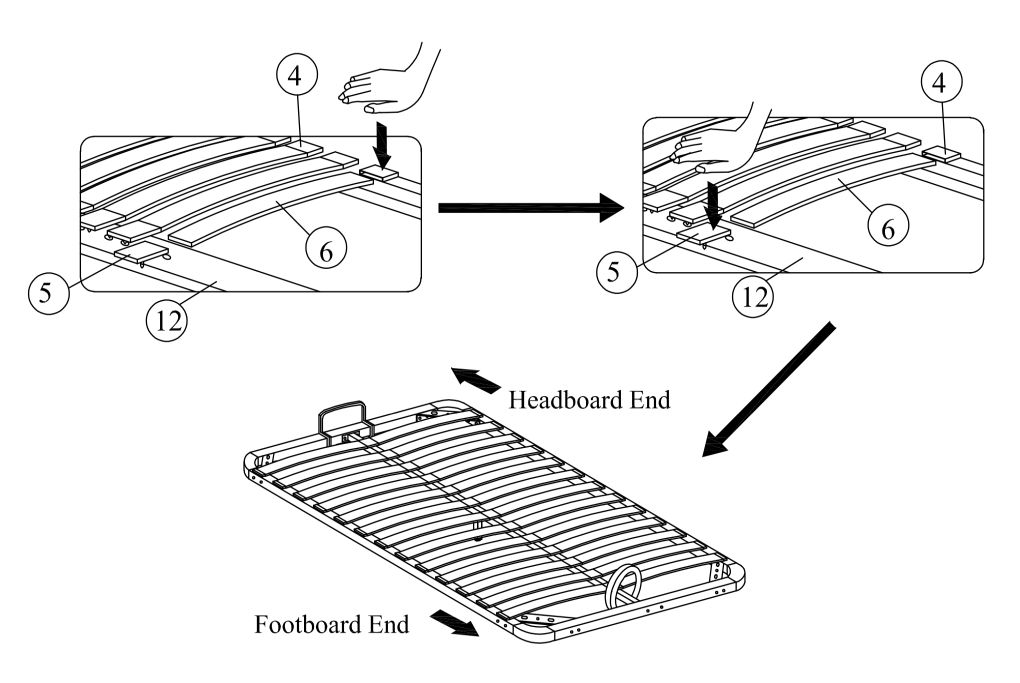

1. Begin by inserting the slats (6) into the designated slots on the frame. Ensure each slat is securely positioned.
2. Press down firmly on end holder (4) to ensure they are locked into place. This will prevent any movement during use.
3. Verify that all slats are evenly spaced and properly aligned between the headboard and footboard ends.

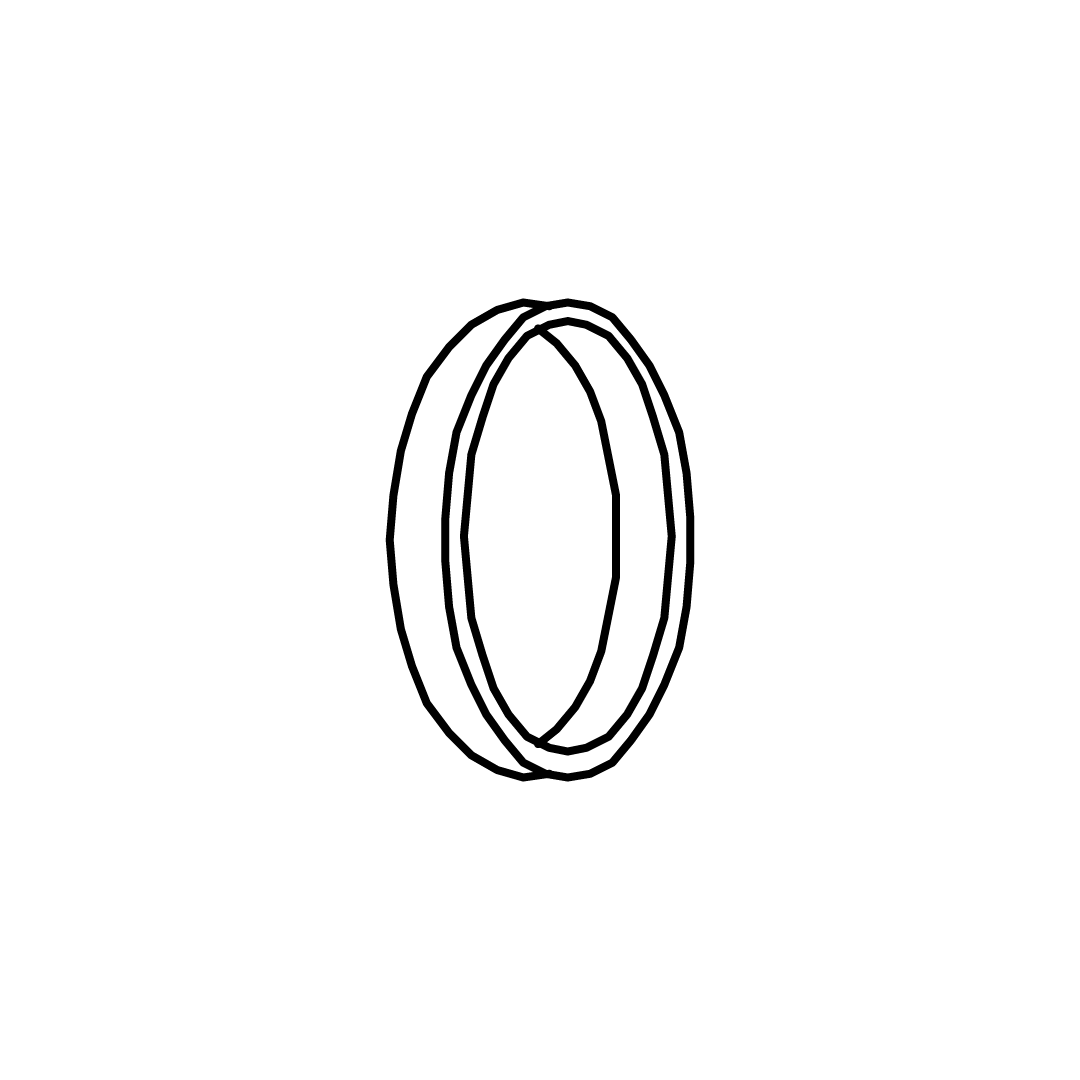

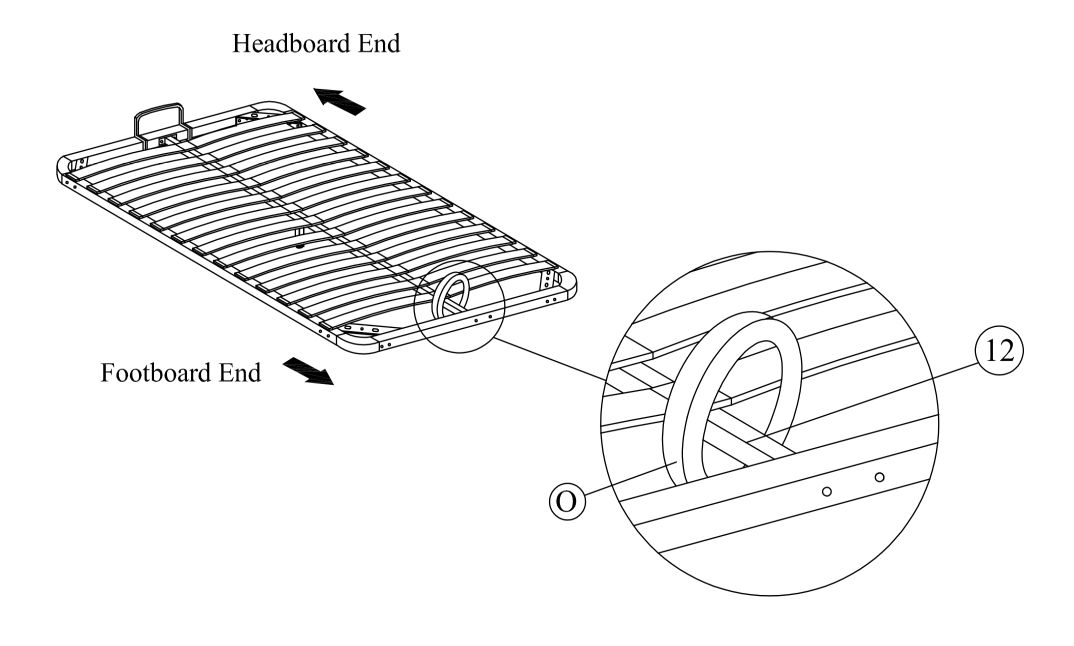

Ensure the frame lifter (12) is positioned correctly between the headboard and footboard ends.

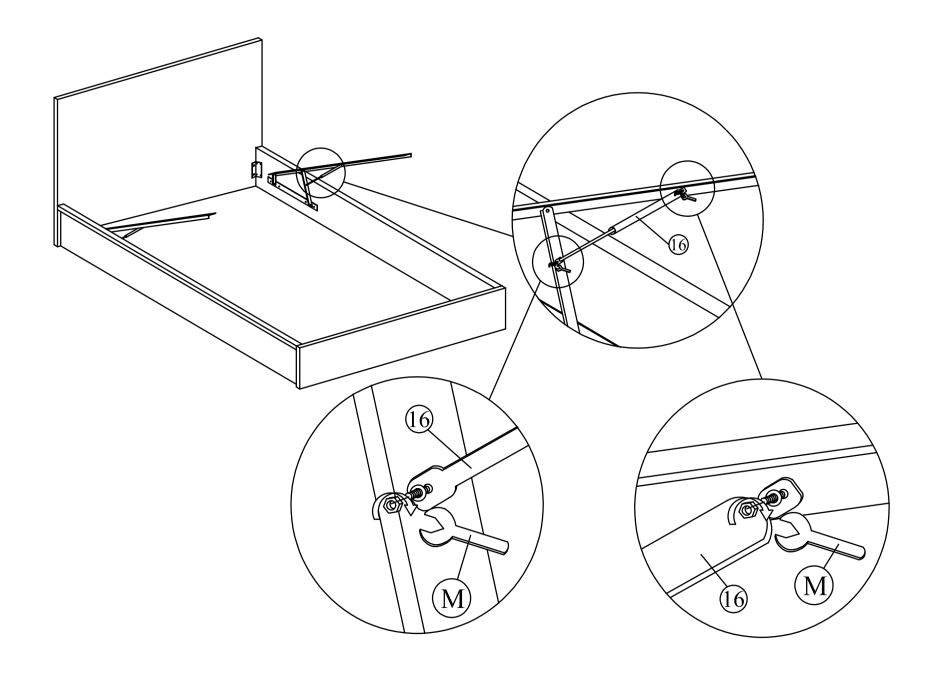

1. Align the Gas Springs (16), position the gas springs at the designated attachment points on the bed frame.
2. Attach each gas spring using the provided bolts and tighten them with the M6 Spanner (M).
3. Ensure both gas springs are securely fixed and aligned correctly for smooth operation.

Important: Do not overtighten the bolts to allow proper movement of the gas springs.

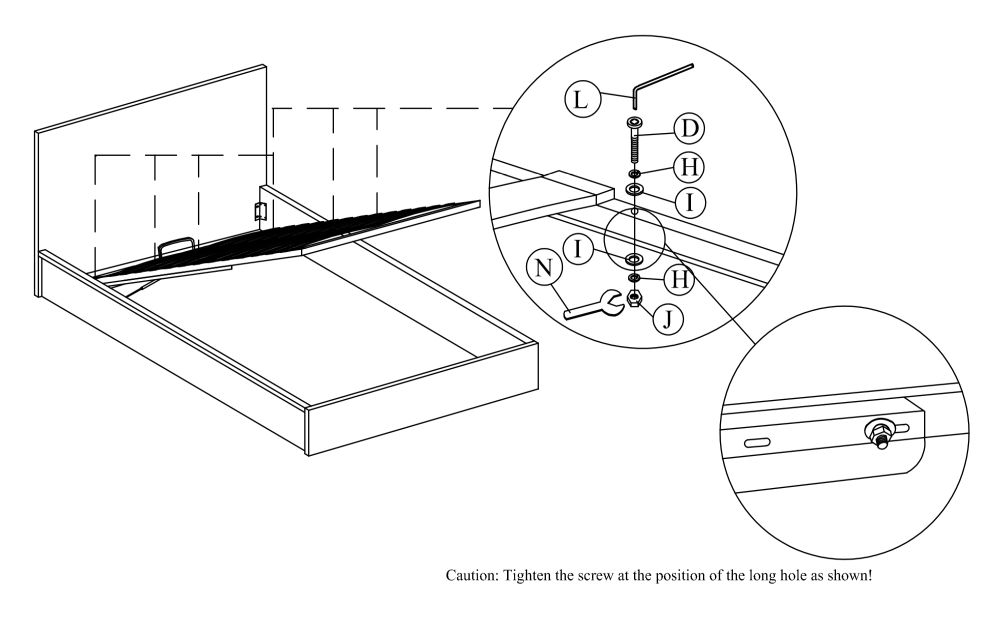

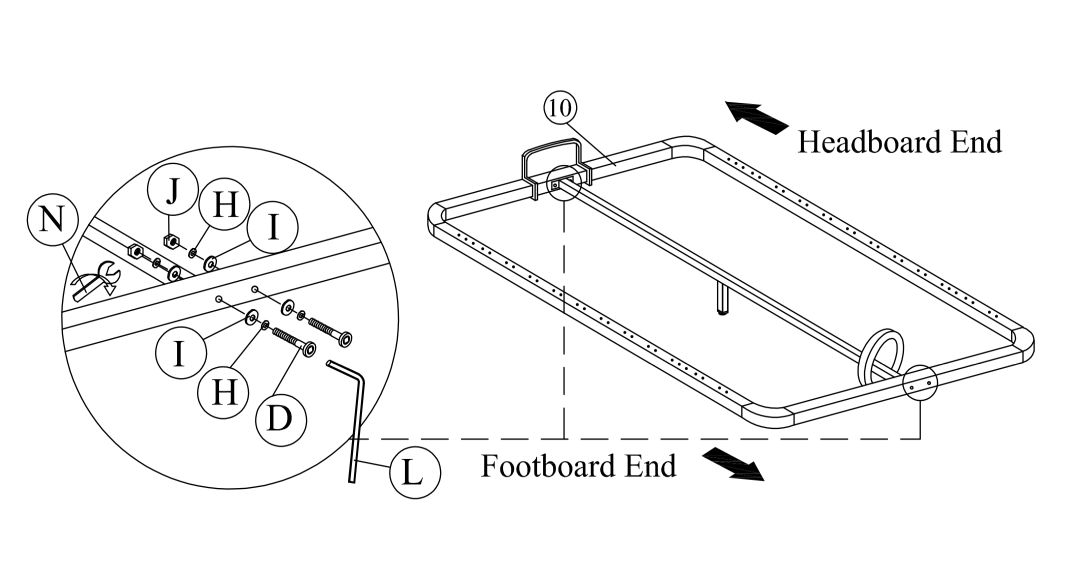

1. Align the gas springs with the designated mounting points on the bed frame.

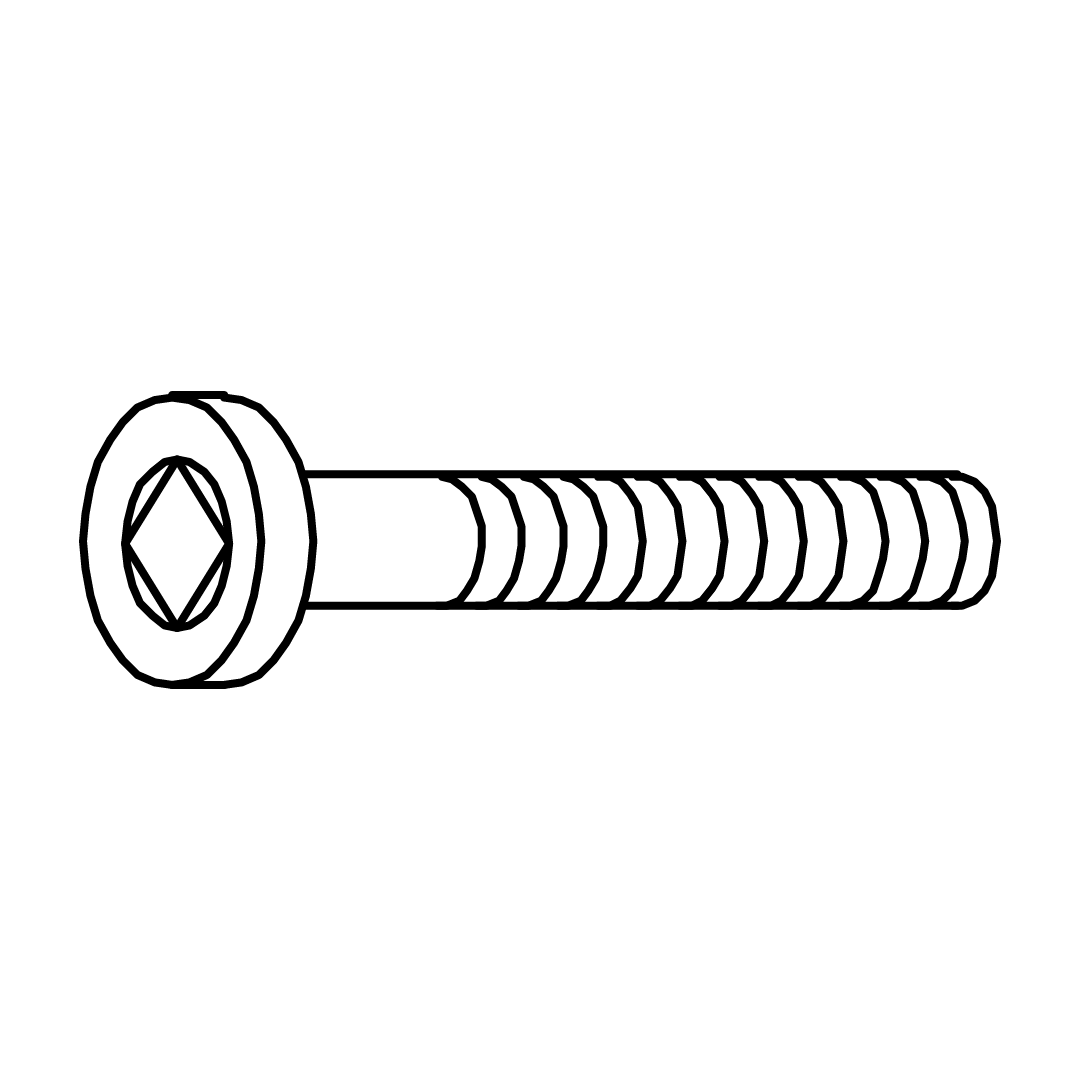

2. Secure with hardware, use JCBB M8 X 50 screws (D), M8 Spring Washers (H), M8 Flat Washers (I), and M8 Hex Nuts (J). Tighten using the M5 Allen Key (L) and M8 Spanner (N).
3. Ensure the gas springs are securely attached and can move smoothly to support the lifting mechanism.

Ensure all components are securely fastened before using the bed.

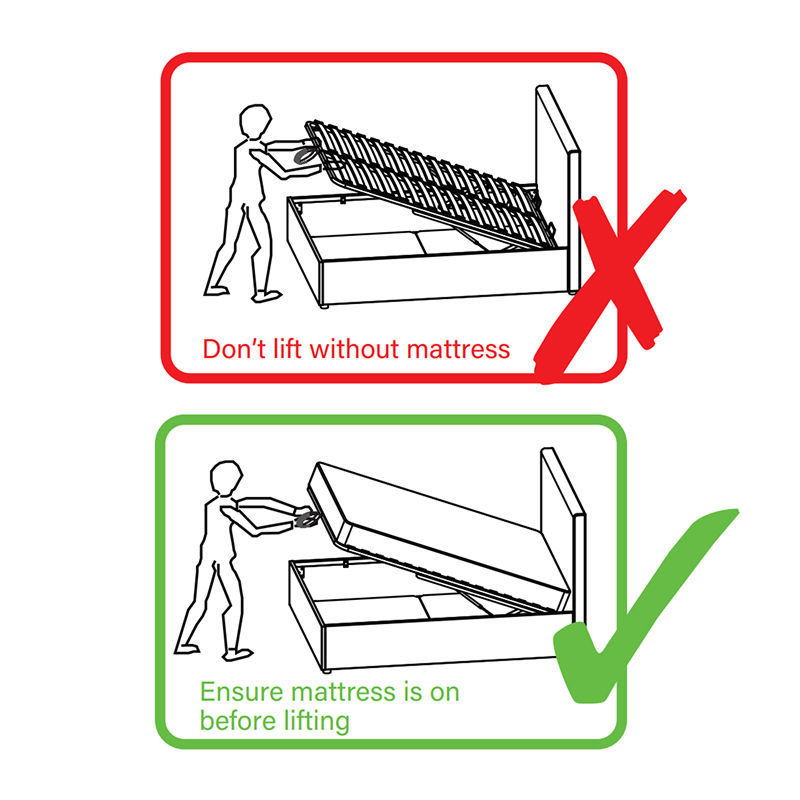

Follow safety guidelines when operating the ottoman storage feature.
