Elegance Upholstered Drawer Bed Frame

Assembly instructions for Elegance Upholstered Drawer Bed Frame by Time4Sleep

Product Information

Elegance Upholstered Drawer Bed Frame

If you’re looking for practicality and style look no further than our Elegance bed frame. The clean vertical stitched winged headboard will work well in traditional or more contemporary design scheme. Upholstered in a plush velvet fabric this bed will help create a luxurious look with out the designer price tag. The bed comes with a wooden slatted base and features practical spacious drawers with one large drawer to the foot and smaller drawers on each side.

View product
SKU
Ele46Beige, Ele50Beige, Ele46Champ, Ele50Champ

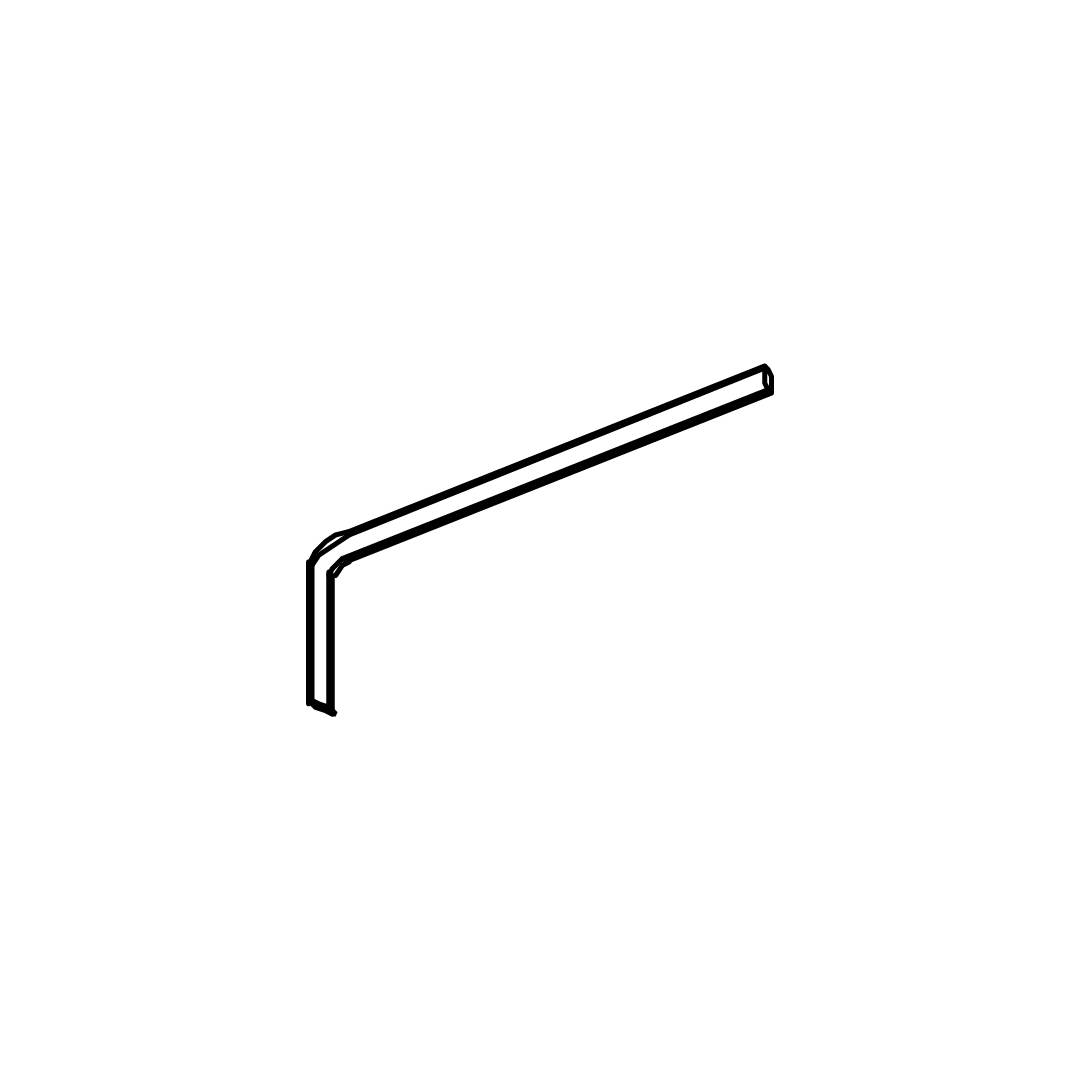

Tools

Materials

  1. 1. Assemble Drawers

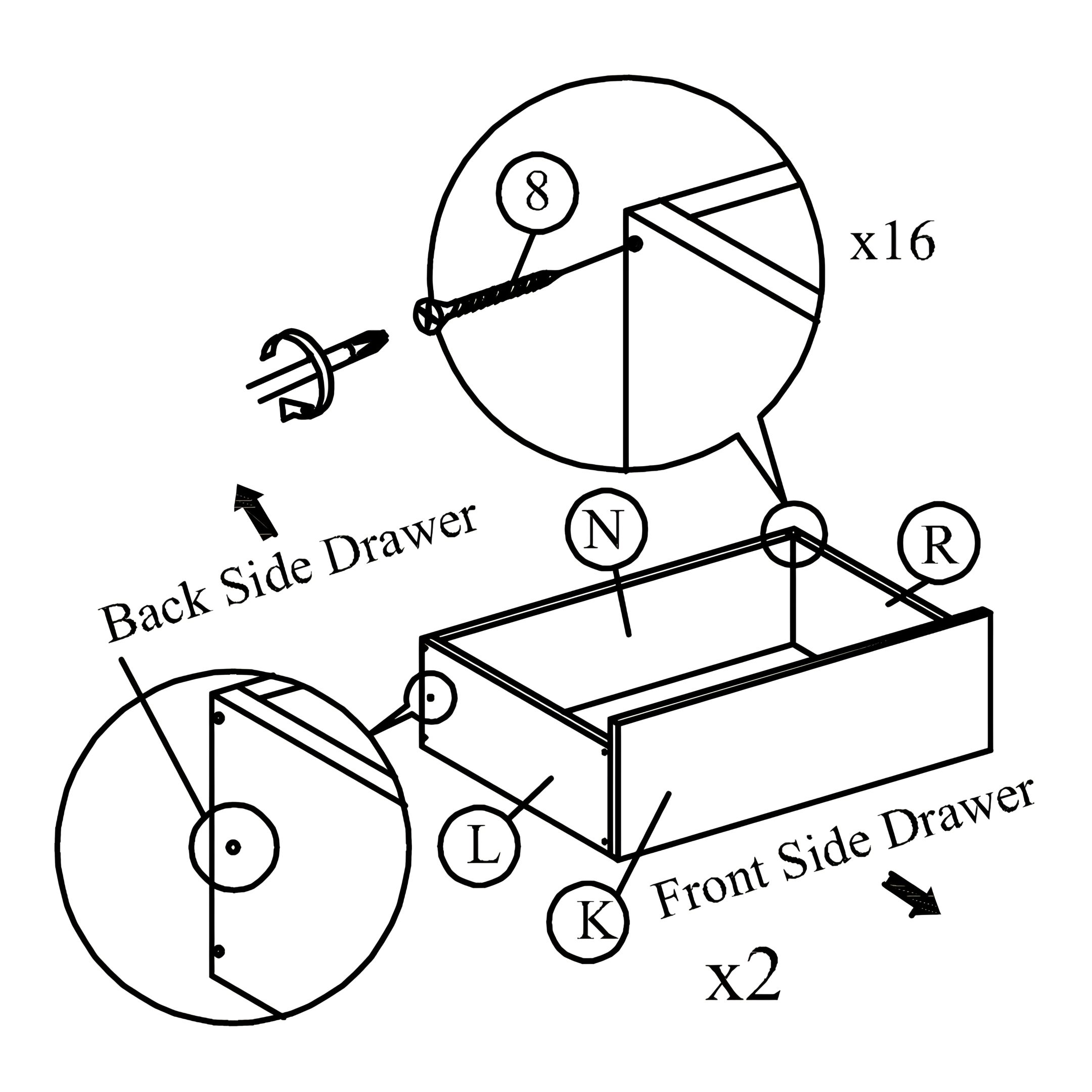

    Side Drawers Assembly:

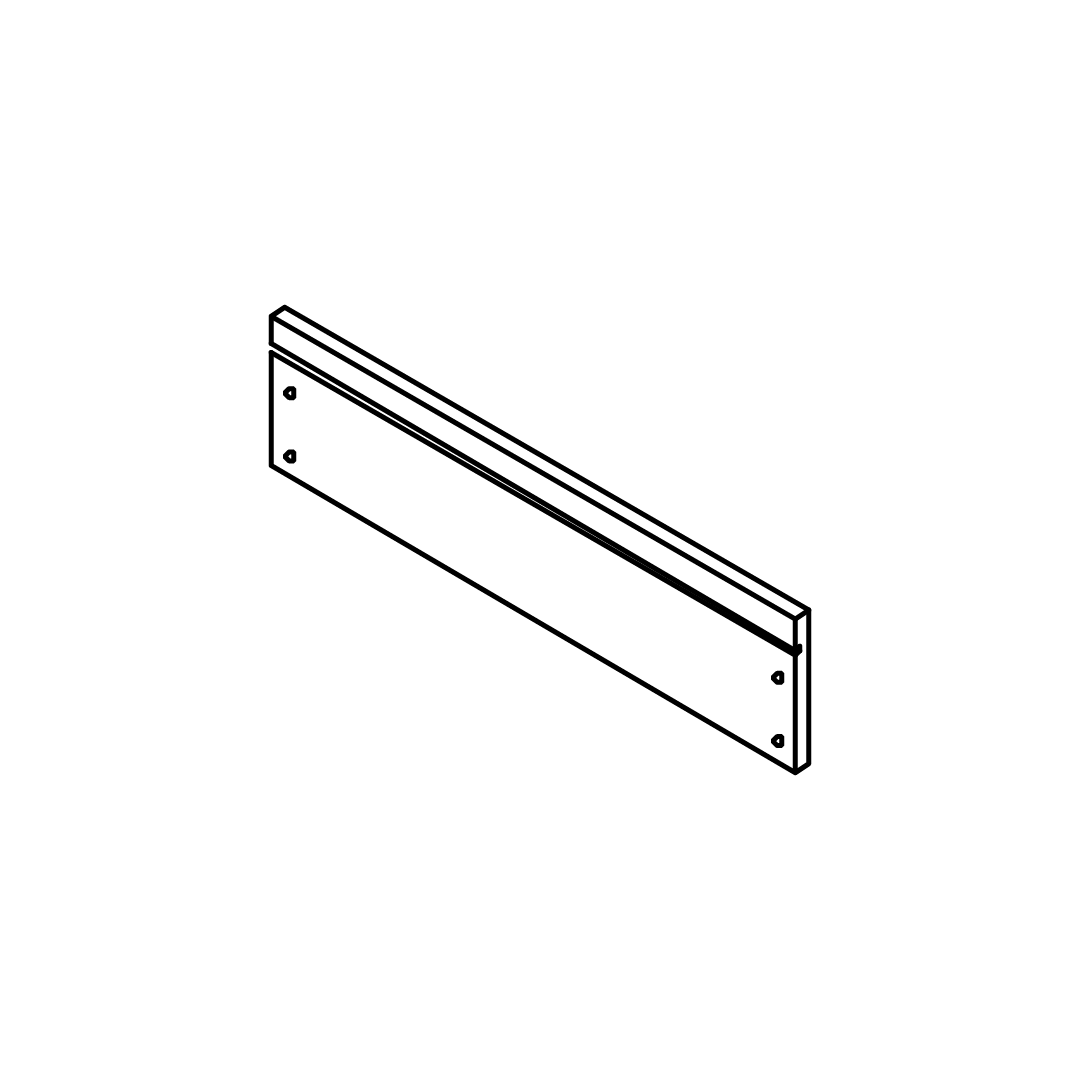

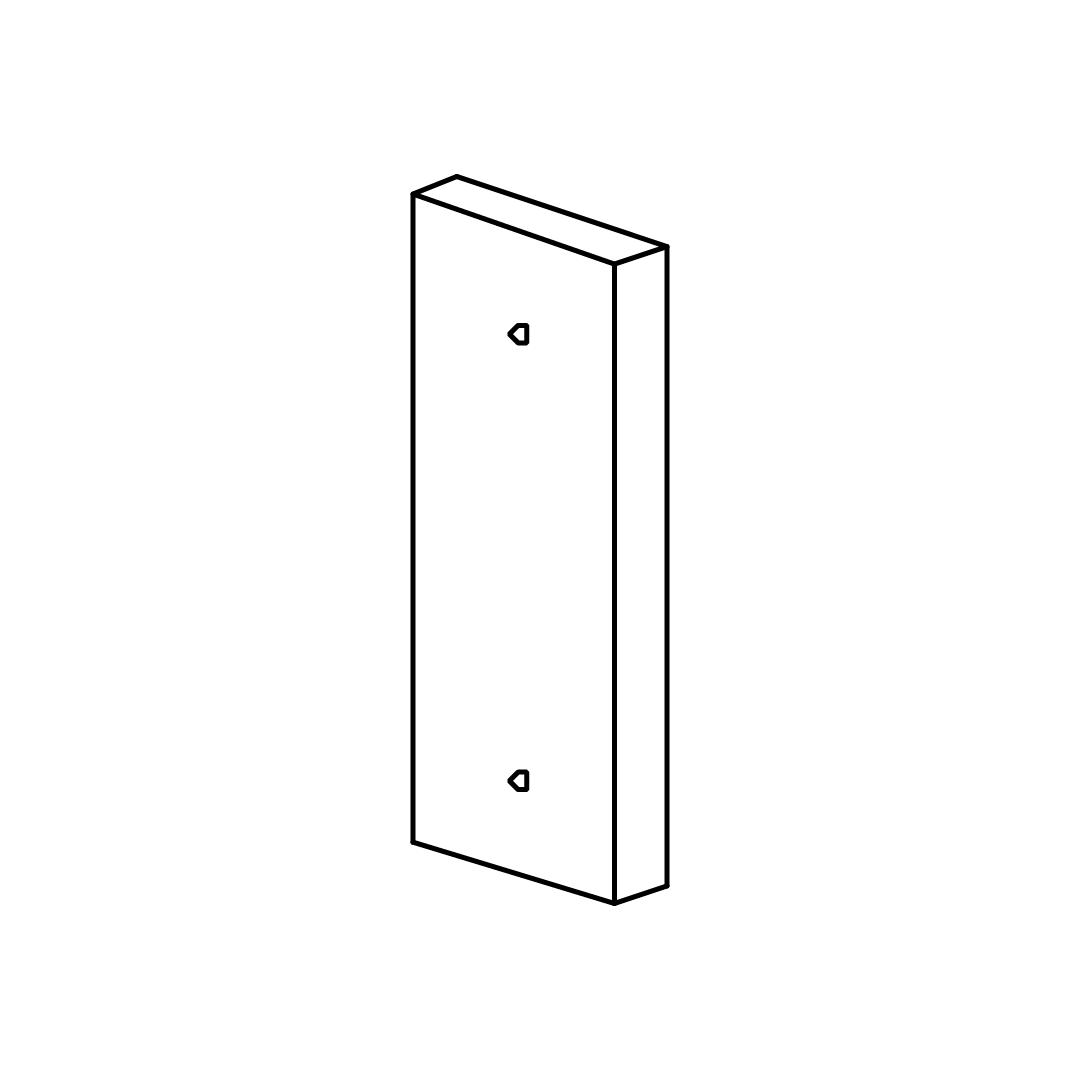

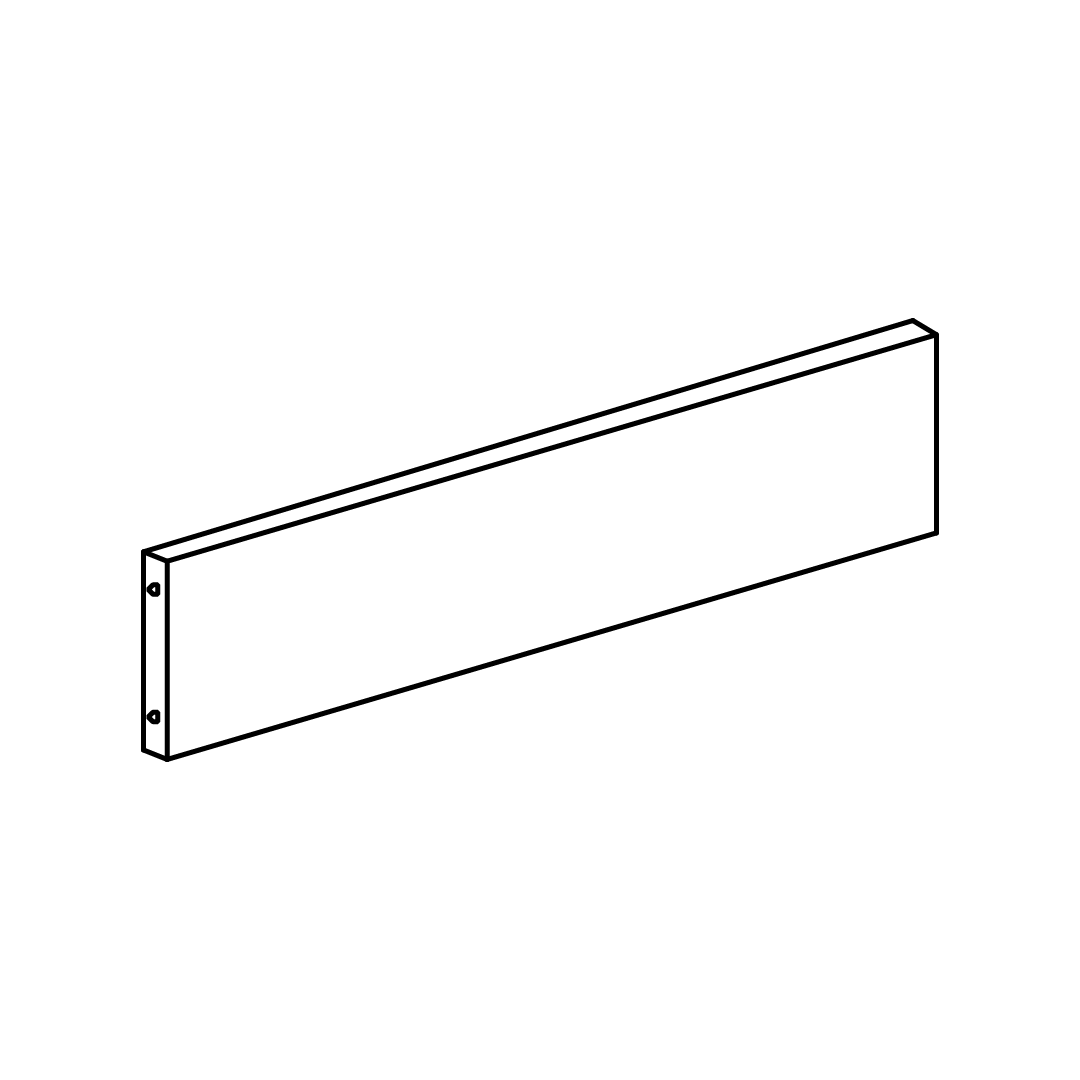

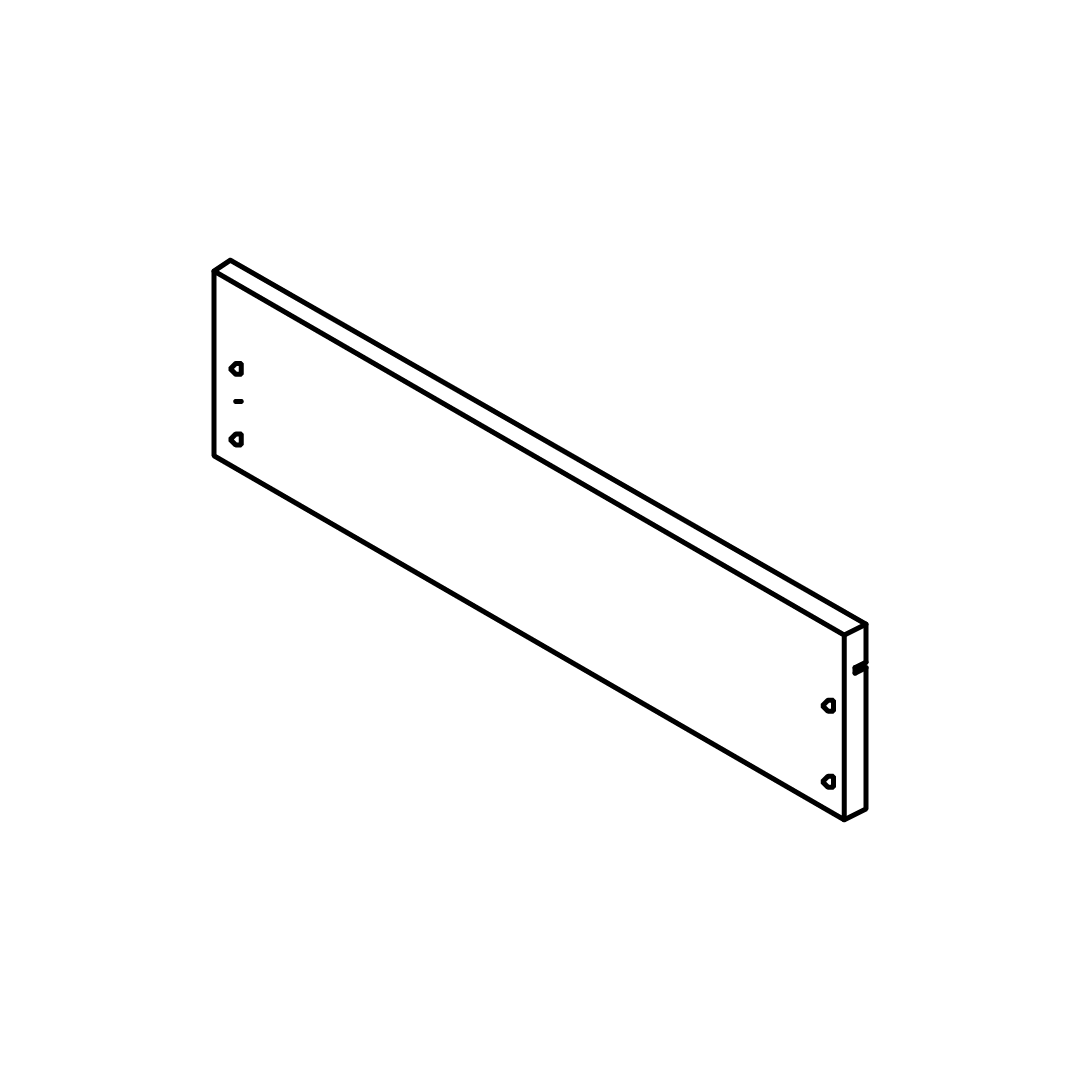

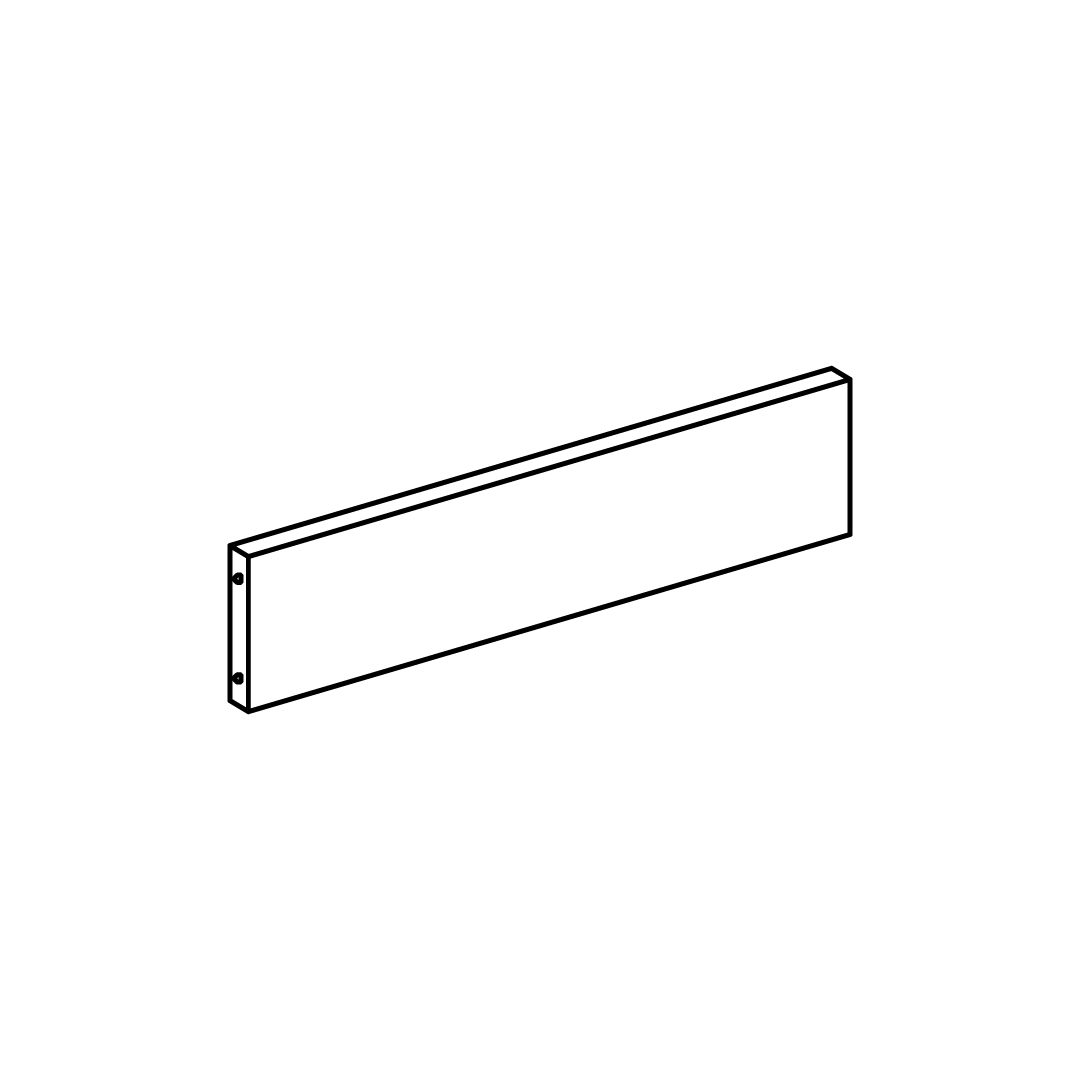

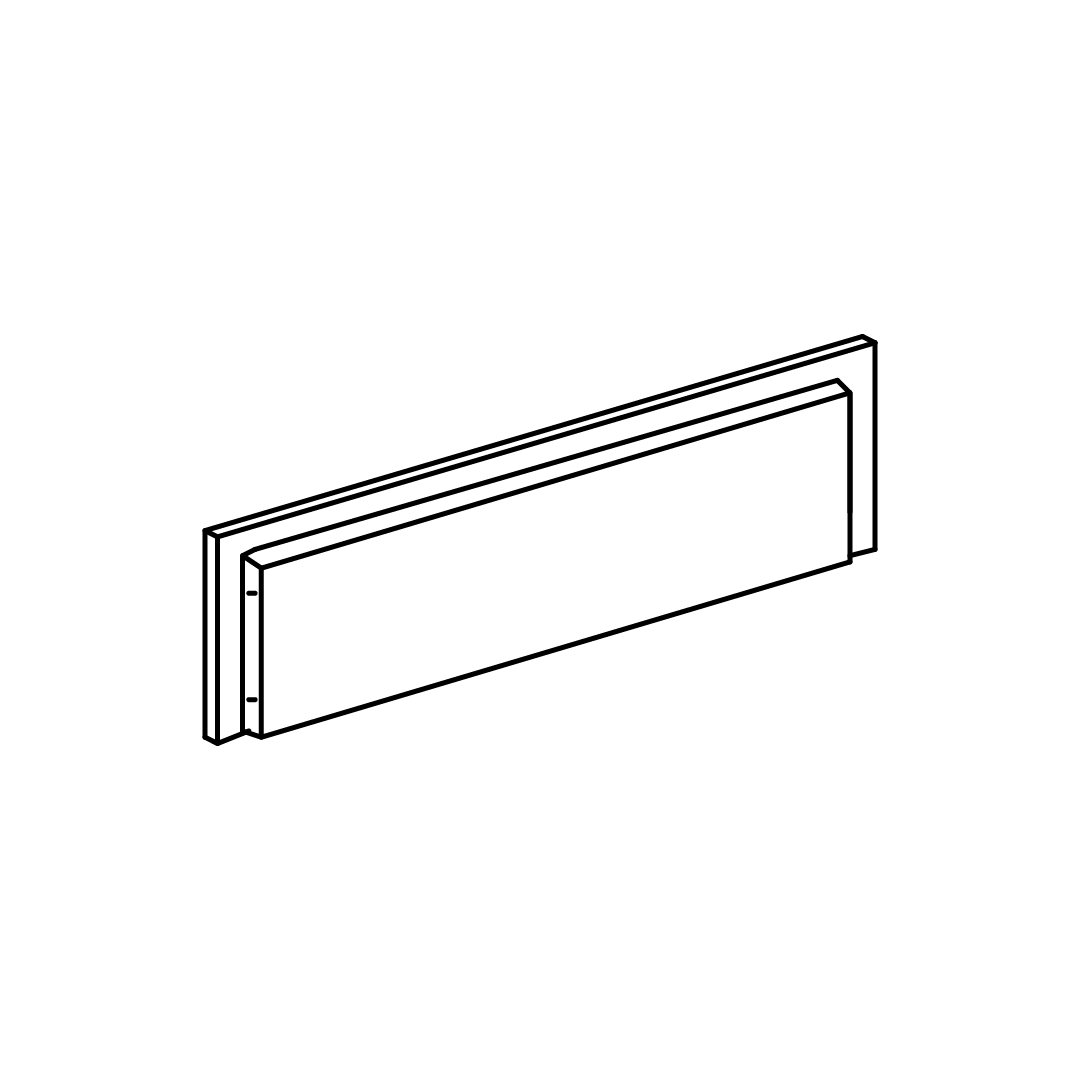

    Identify the components: side rail front panel (K), side rail back Ppanel (N), and both side panels (L and R).

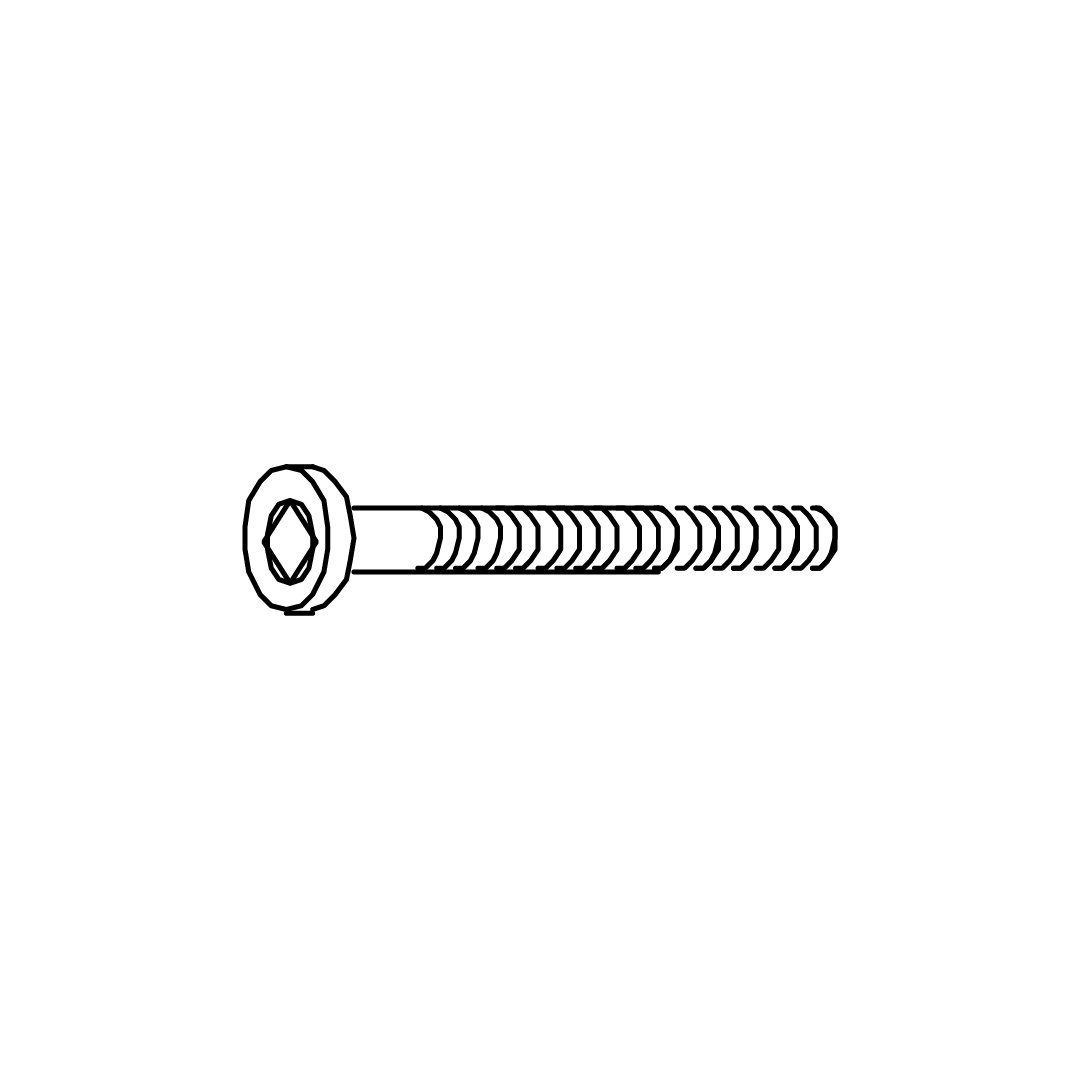

    Use screws (8) to attach the side panels (L and R) to the front (K) and back (N) panels of the drawer.

    Ensure the screws are securely fastened to provide stability to the drawer structure.

    Repeat these steps for the second drawer.

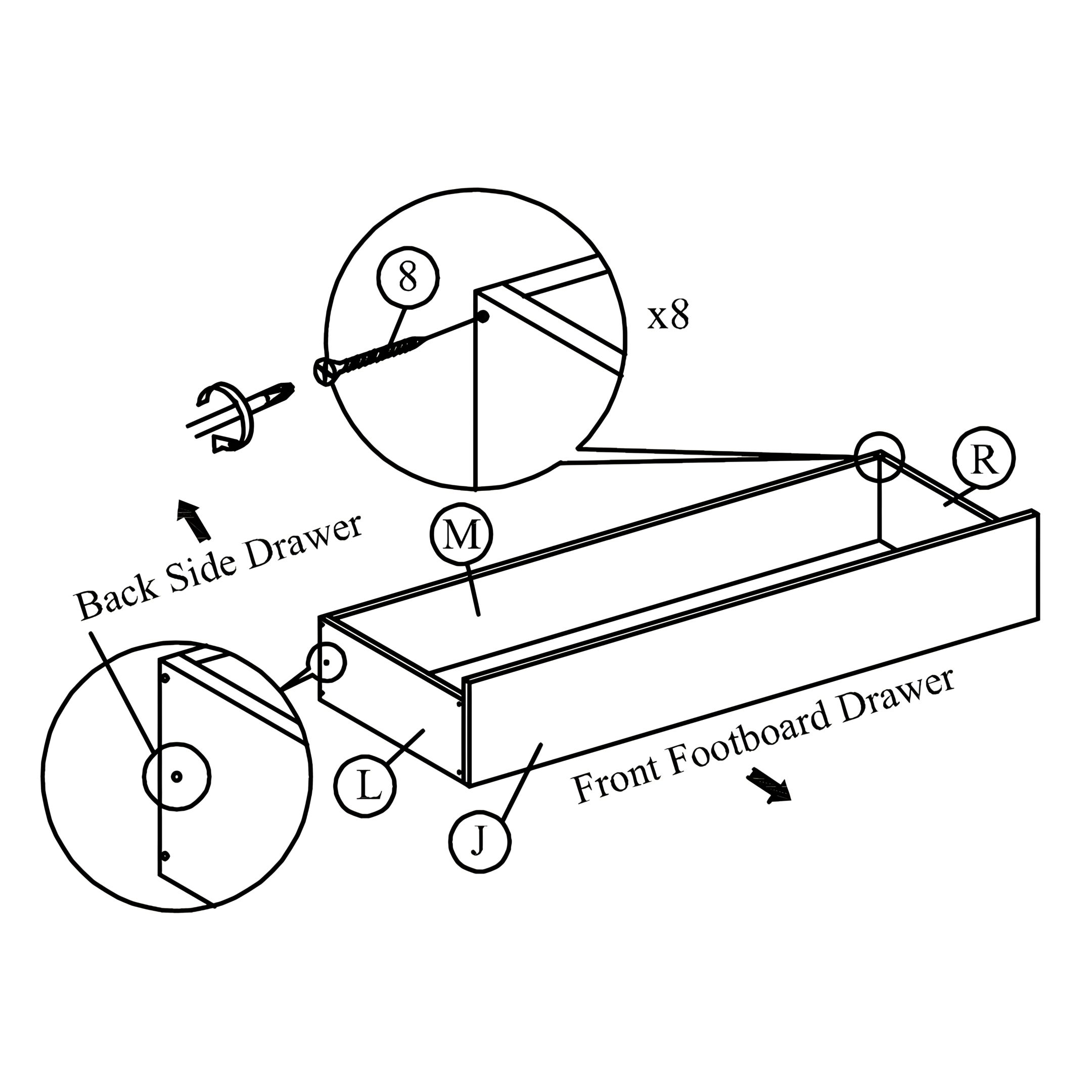

    Footboard Drawer Assembly:

    Identify the components: footboard front panel (J), footboard back panel (M), and side panels (L and R).

    Use screws (8) to attach the side panels (L and R) to the front (J) and back (M) panels of the drawer.

    Ensure the screws are securely fastened to provide stability to the drawer structure.

  2. 2. Add Bottom Panel to Drawers

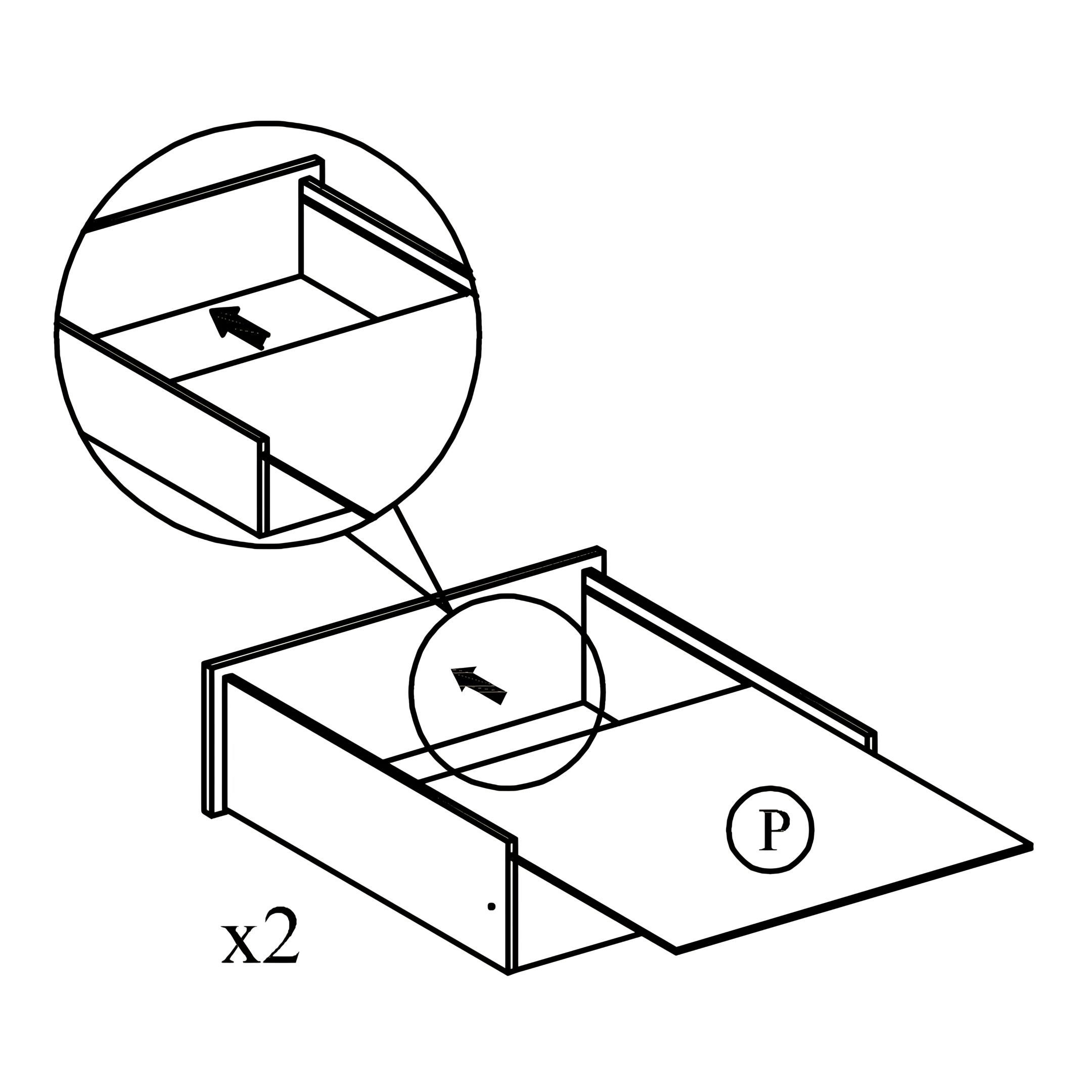

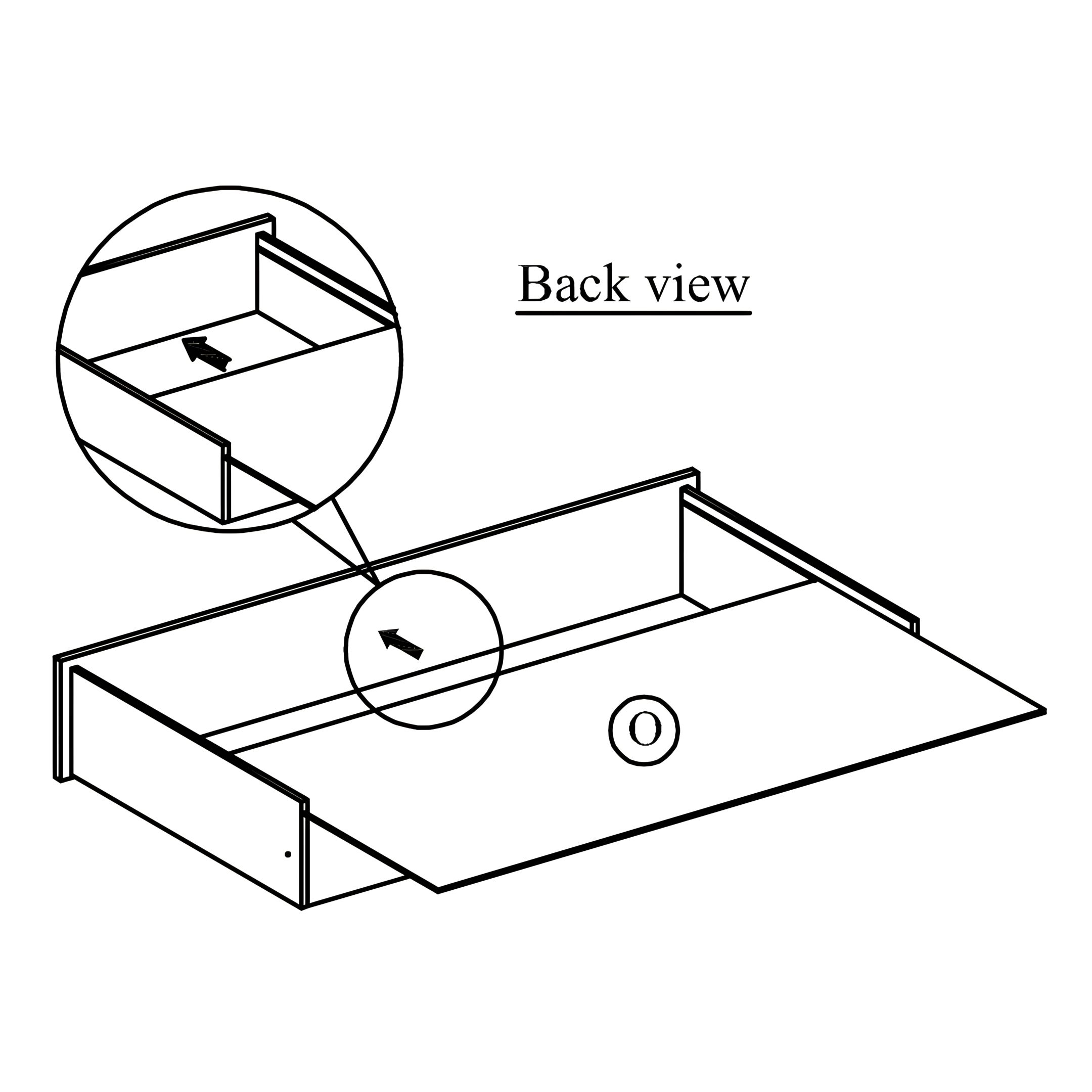

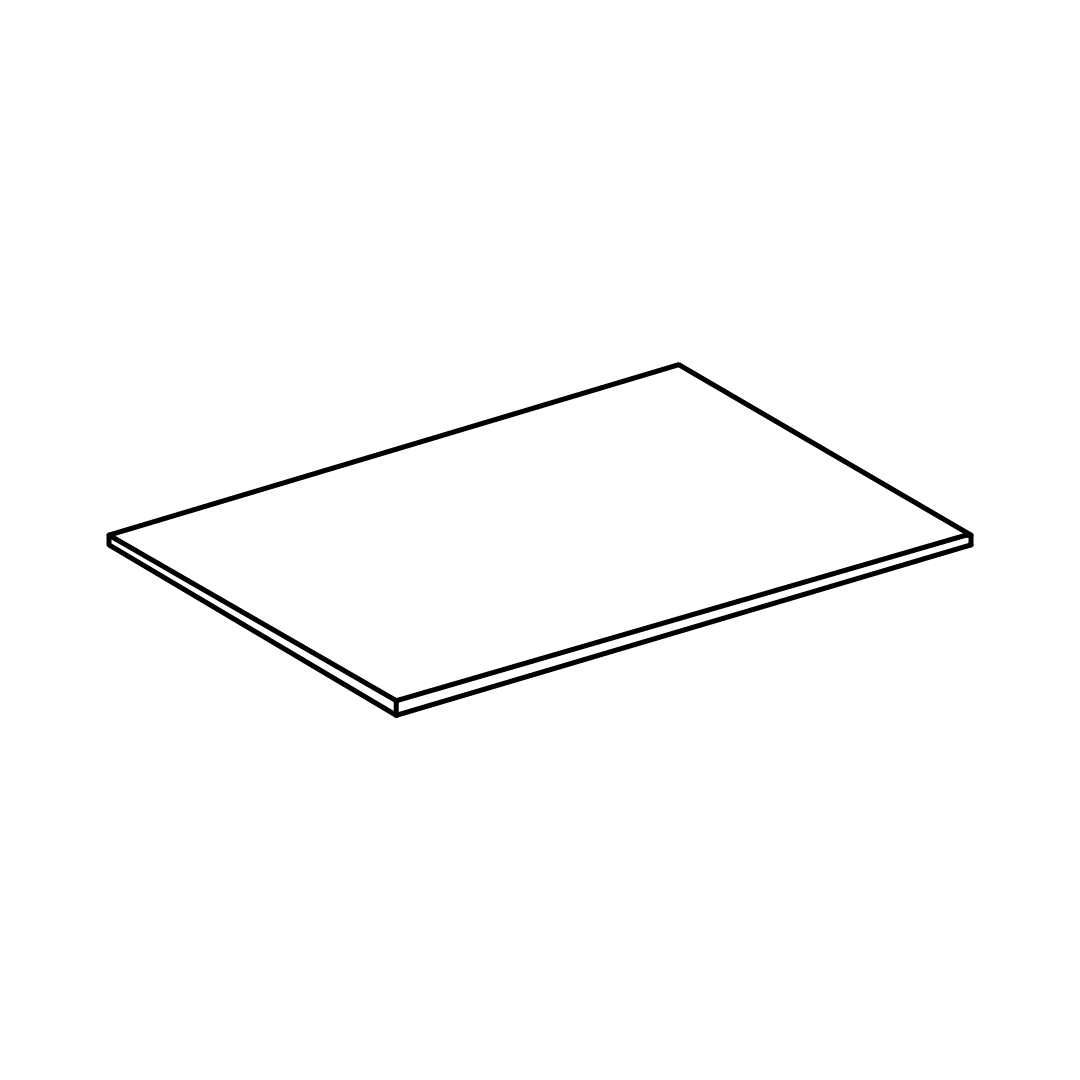

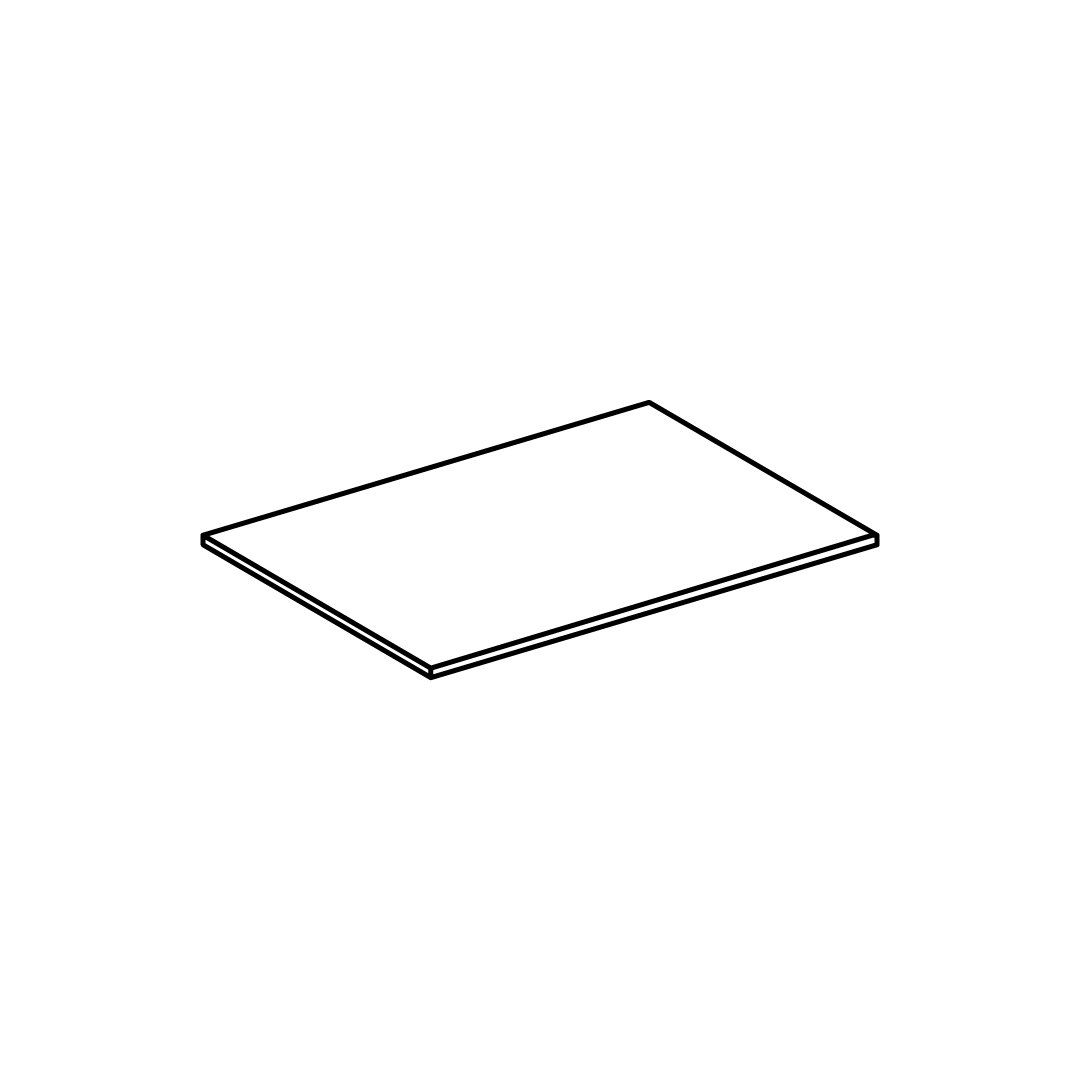

    Slide the footboard bottom panels (O and P) to the set up drawer.

  3. 3. Finish Drawers

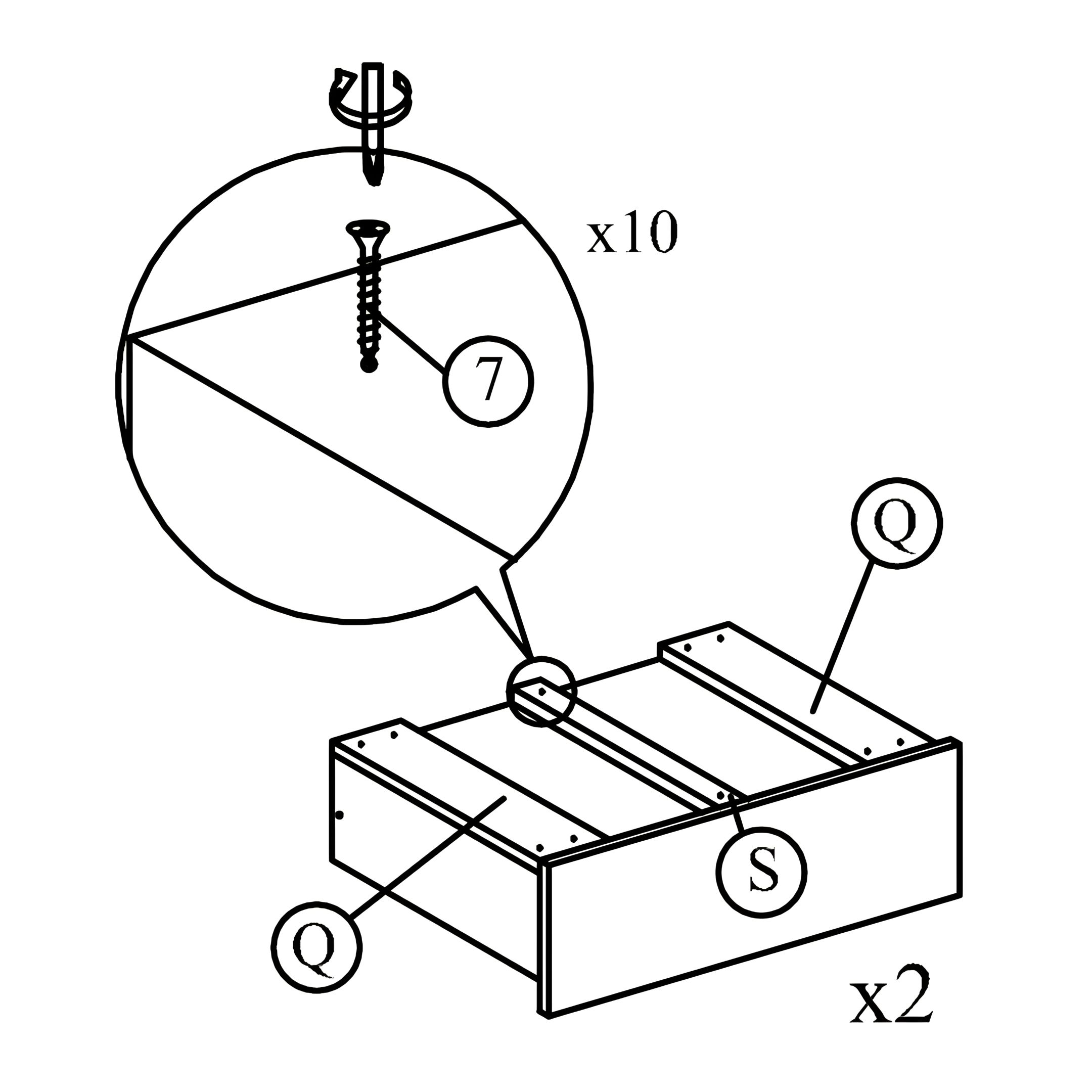

    Tighten the bottom panel supports (Q and S) on both drawers.

    Use screws (7) and tighten with screw driver (not included).

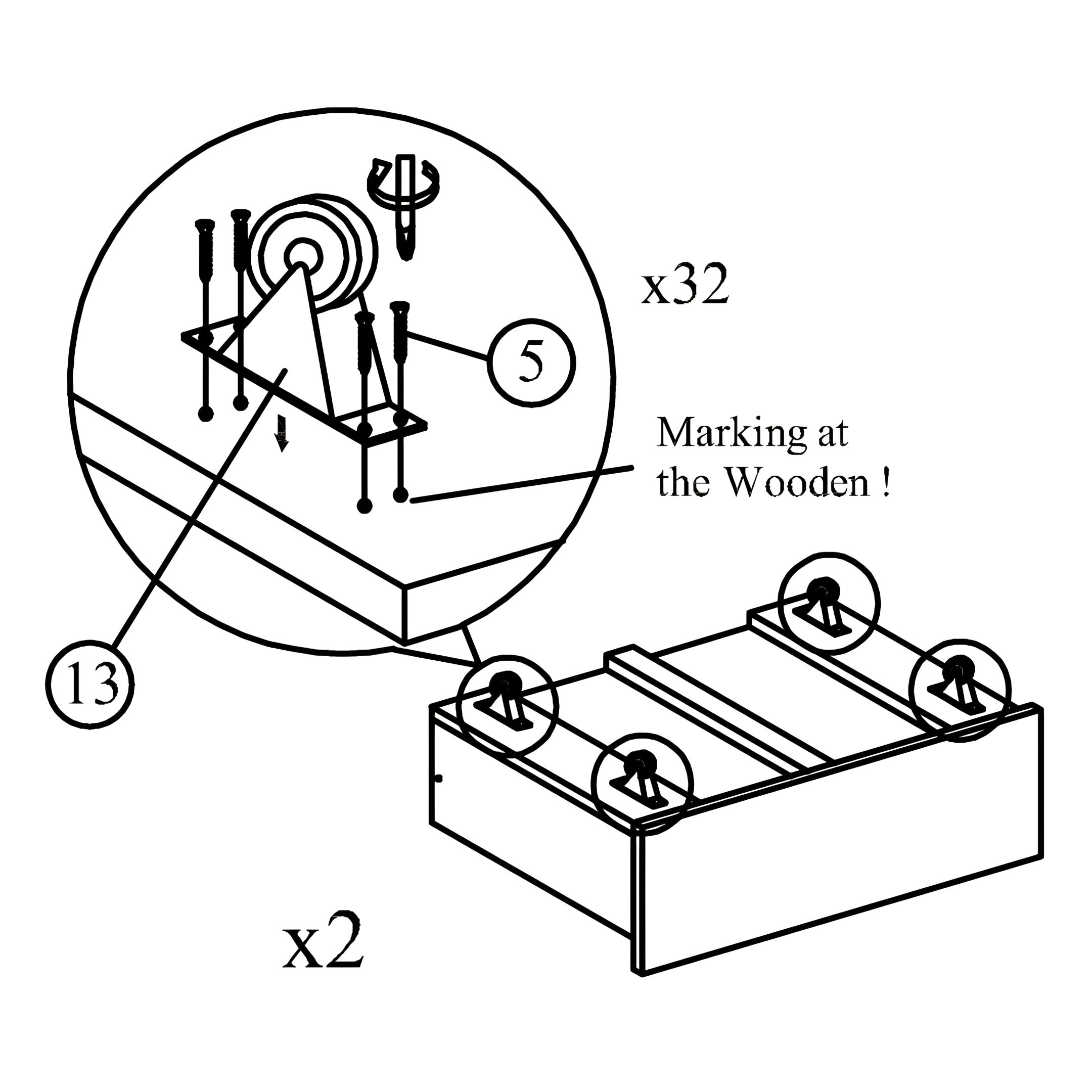

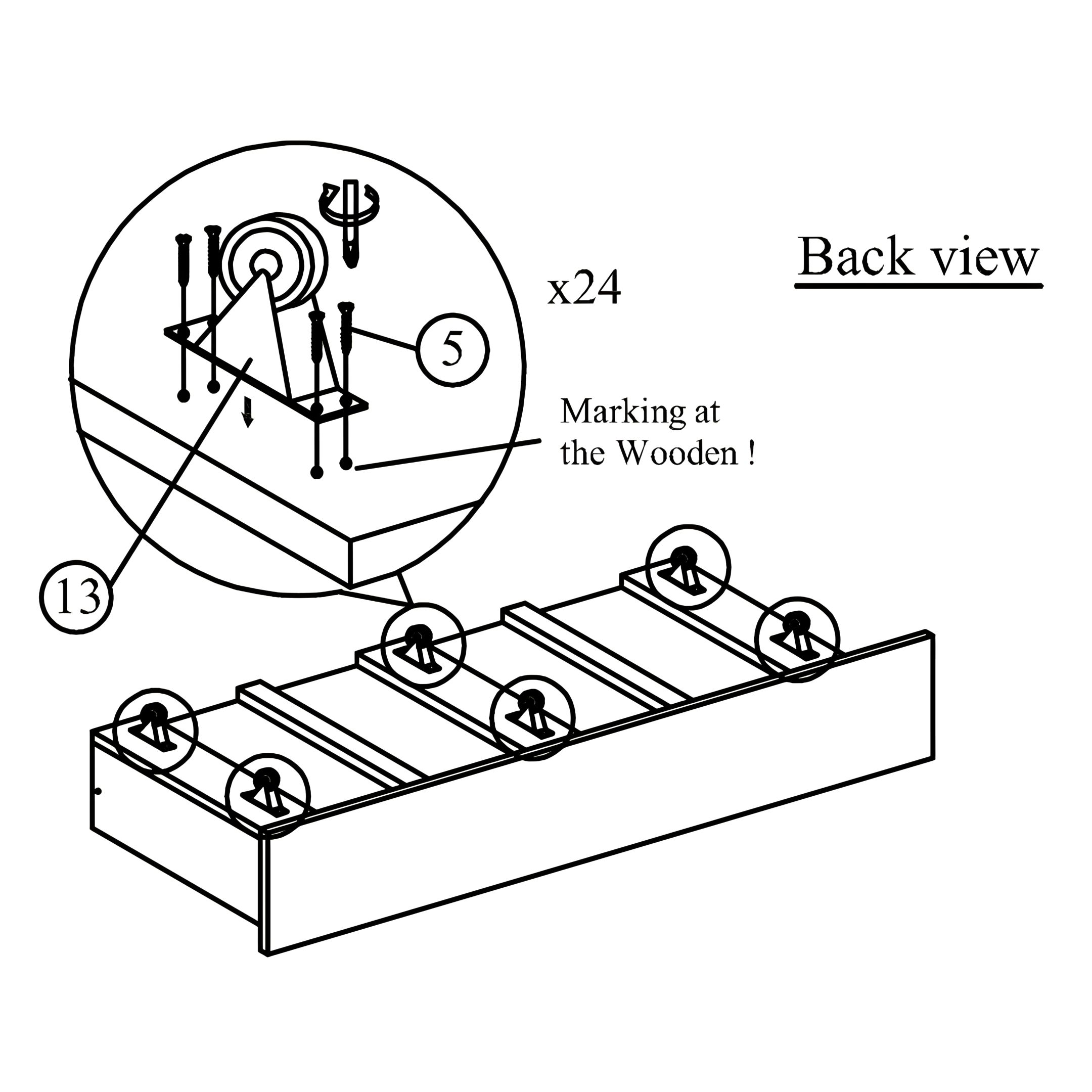

  4. 4. Attach Rollers

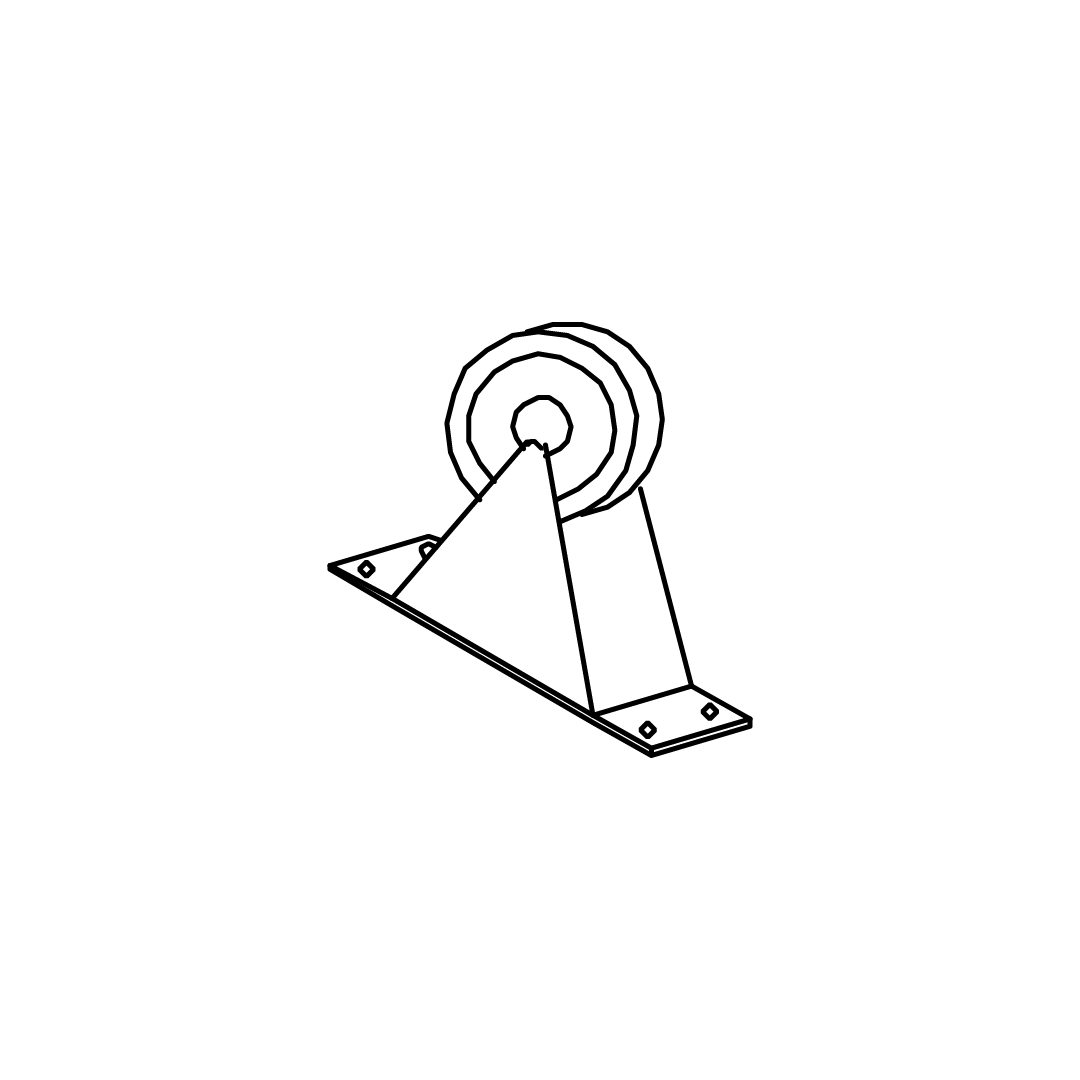

    Tighten the rollers (13) with screws (5) using a screw driver (not included).

  5. 5. Take Out Parts

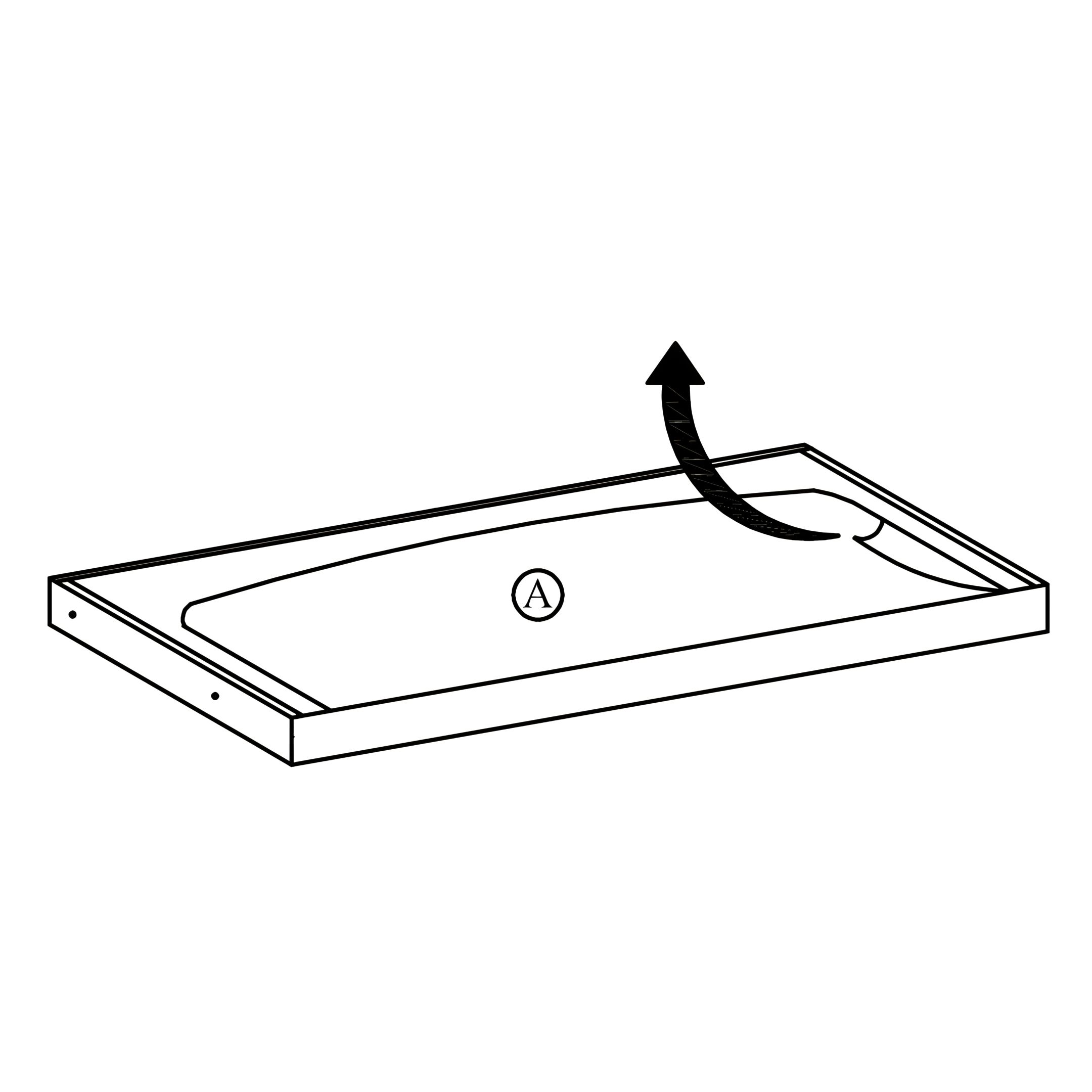

    Open the back fabric cover of the headboard and take out the parts.

    Zip the black non-woven fabric after.

  6. 6. Attach the Side Wings

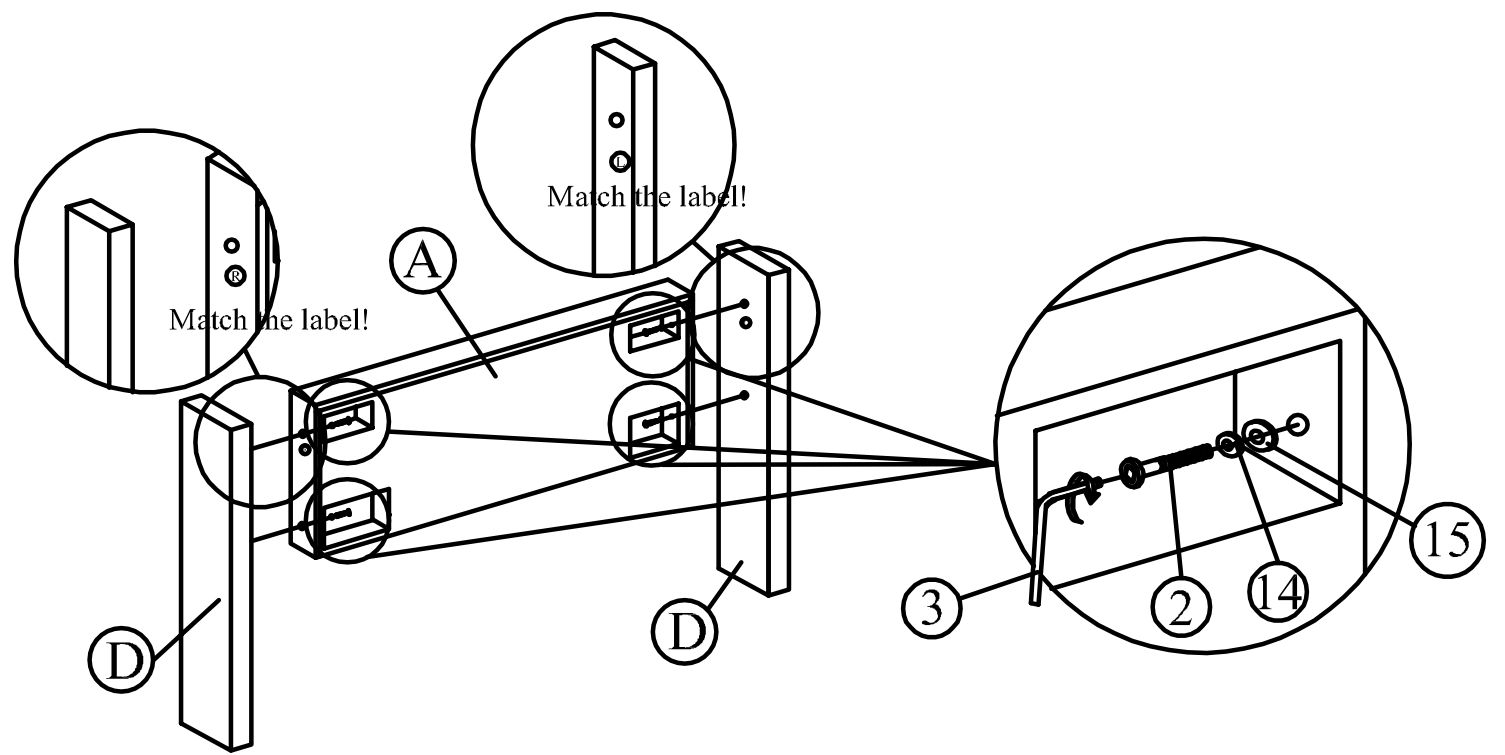

    Tighten the side wings (D) to headboard (A) as shown.

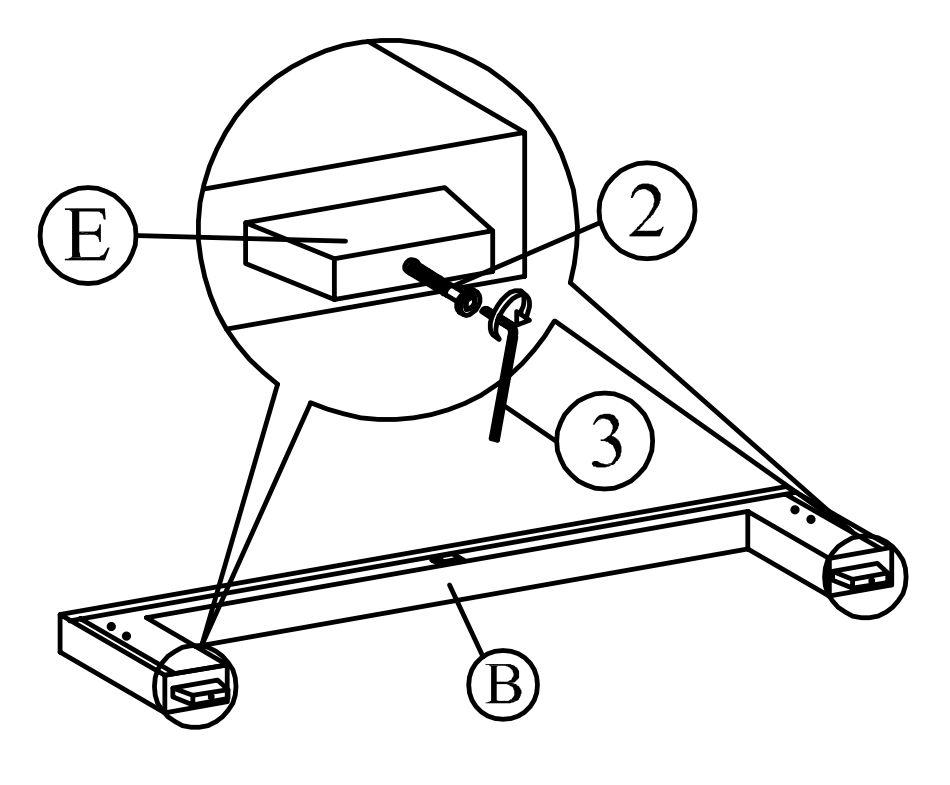

  7. 7. Attach the Legs

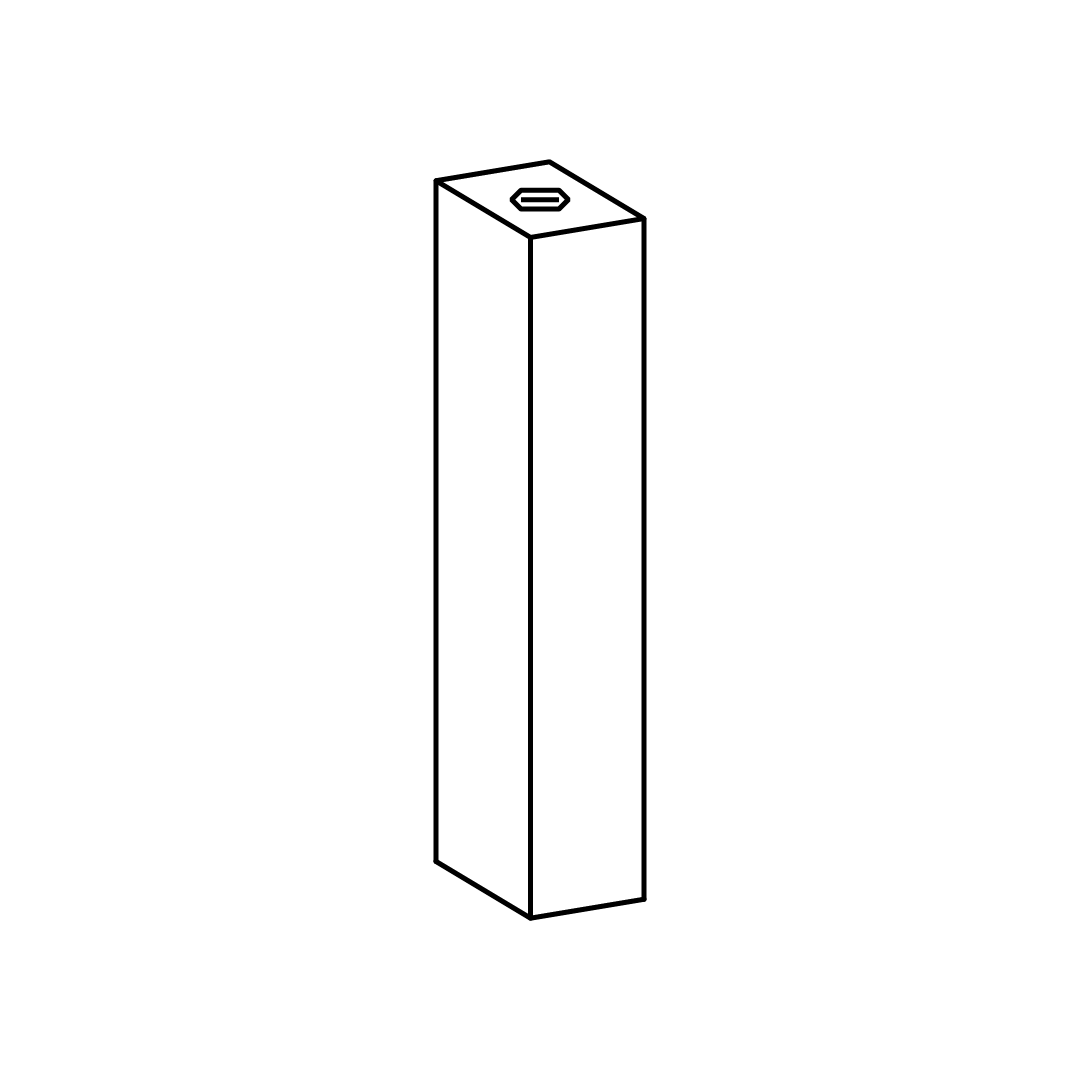

    Tighten the legs (E) to the footboard (G) as shown.

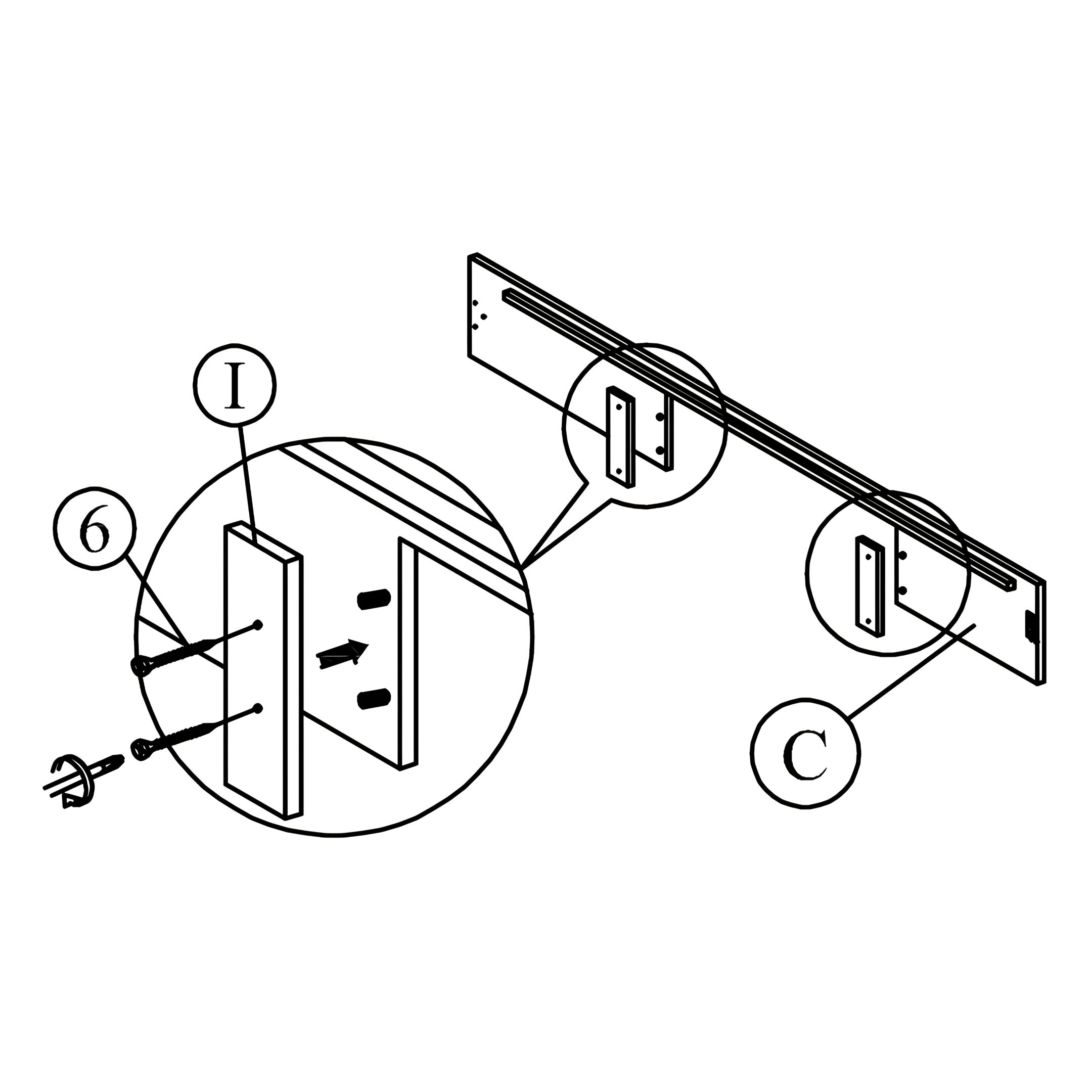

  8. 8. Prepare the Side Rails

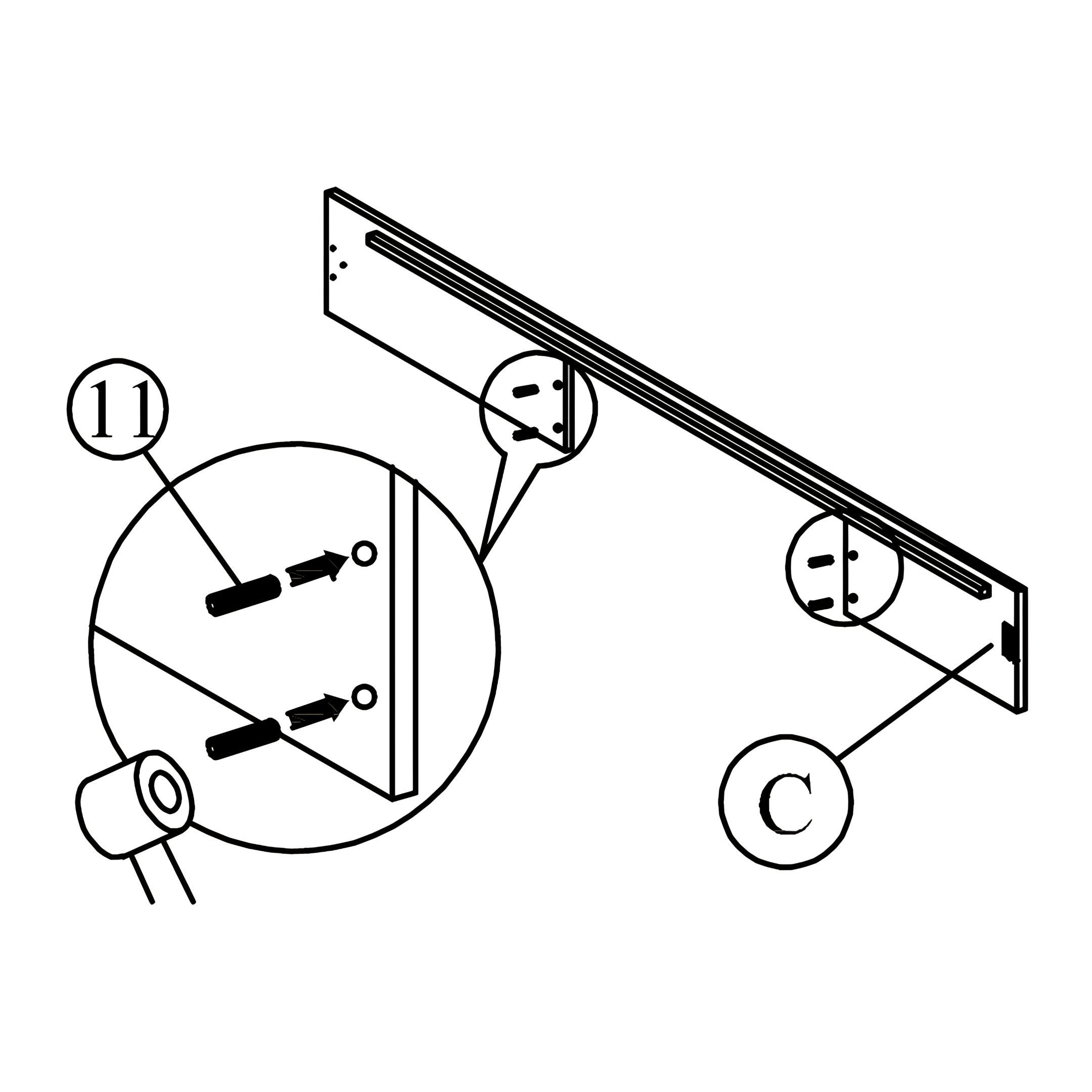

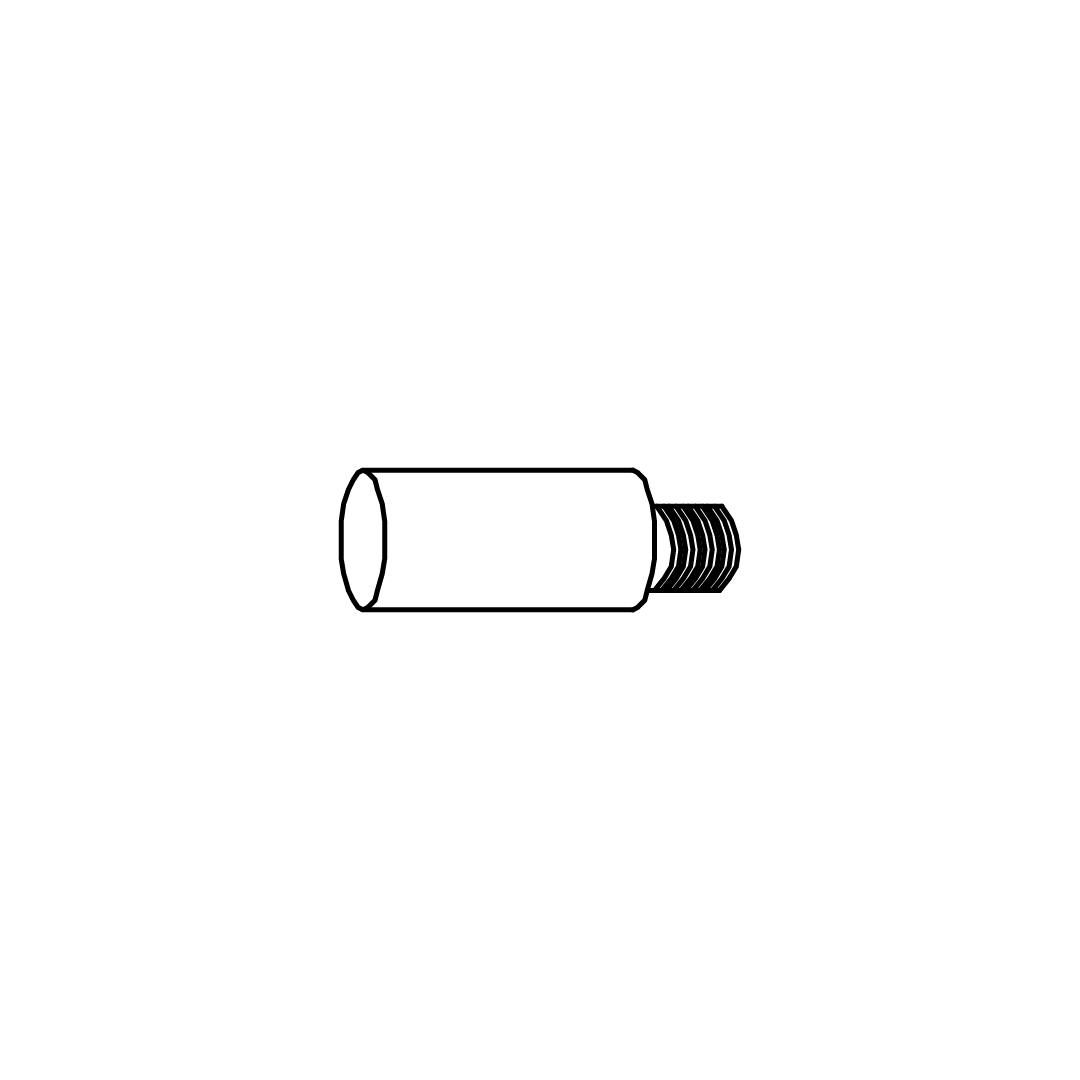

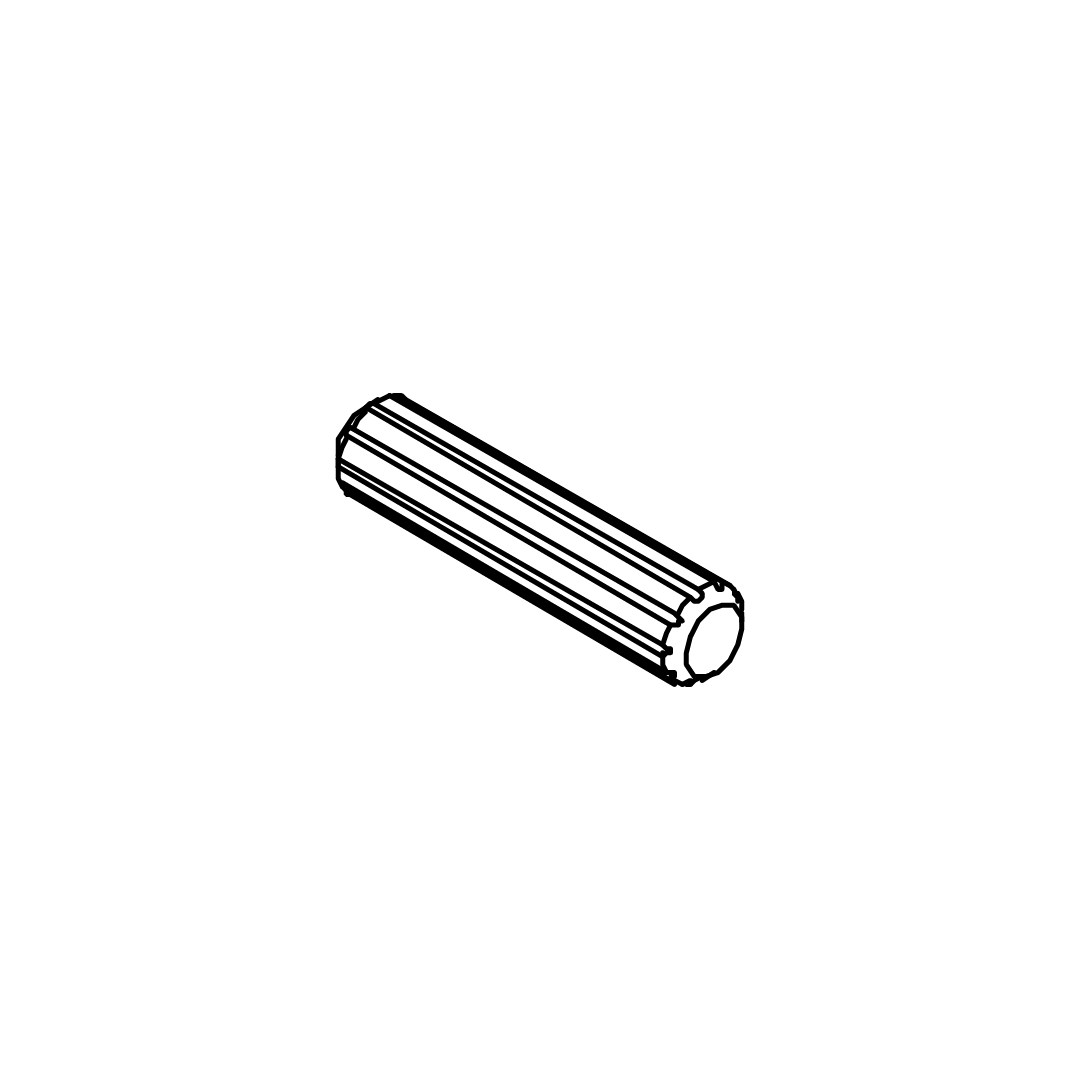

    Attach wood dowel (11) to side rail (C).

    Tighten the side rail support (I) to the side rail (C) with screws (6) using screw driver (not included).

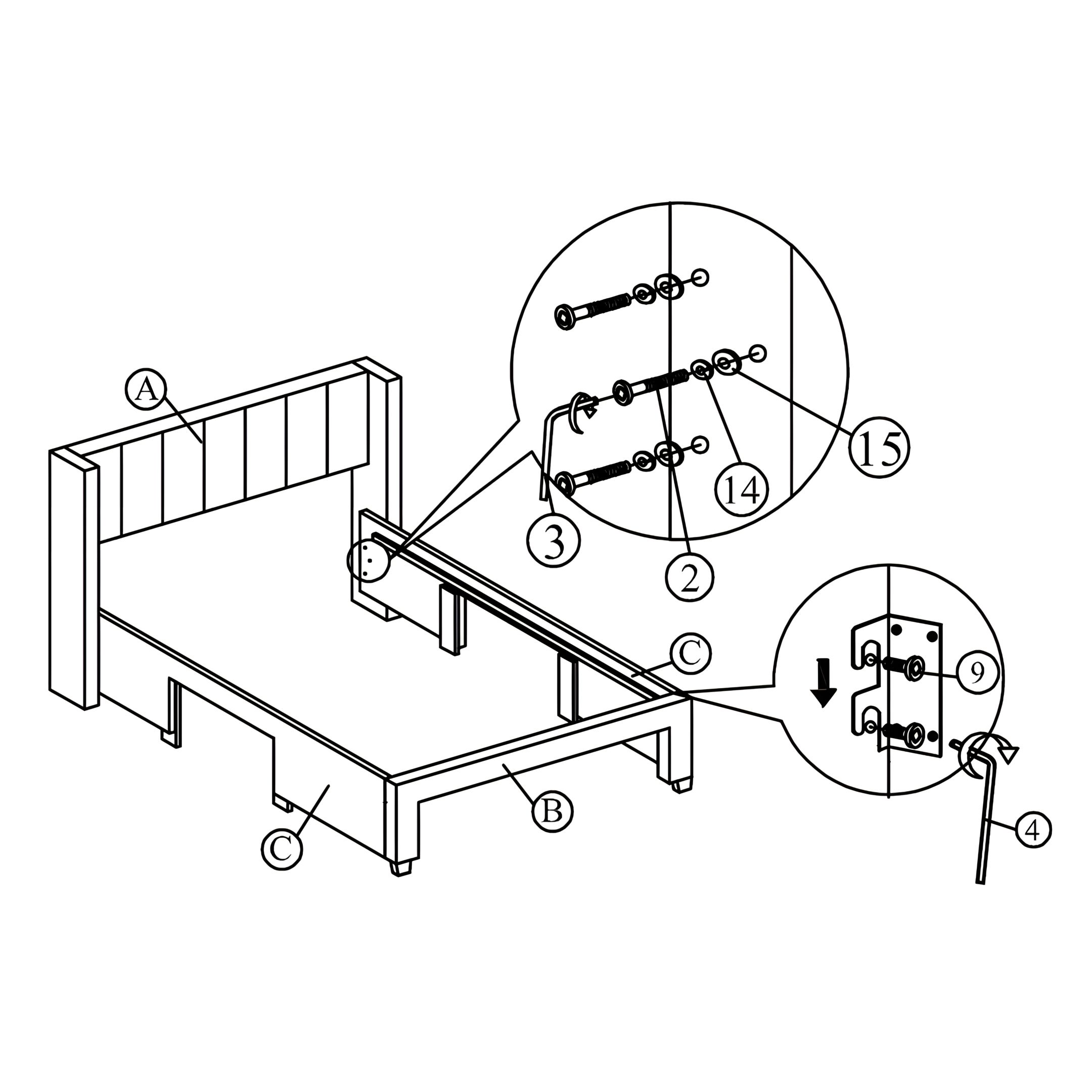

  9. 9. Attach Side Rails and Footboard

    Align the pre-drilled holes on the side rails (C) and the headboard and attach them as shown in the image.

    Attach side rails (C) to the footboard (B) by pushing the bracket down to fit it.

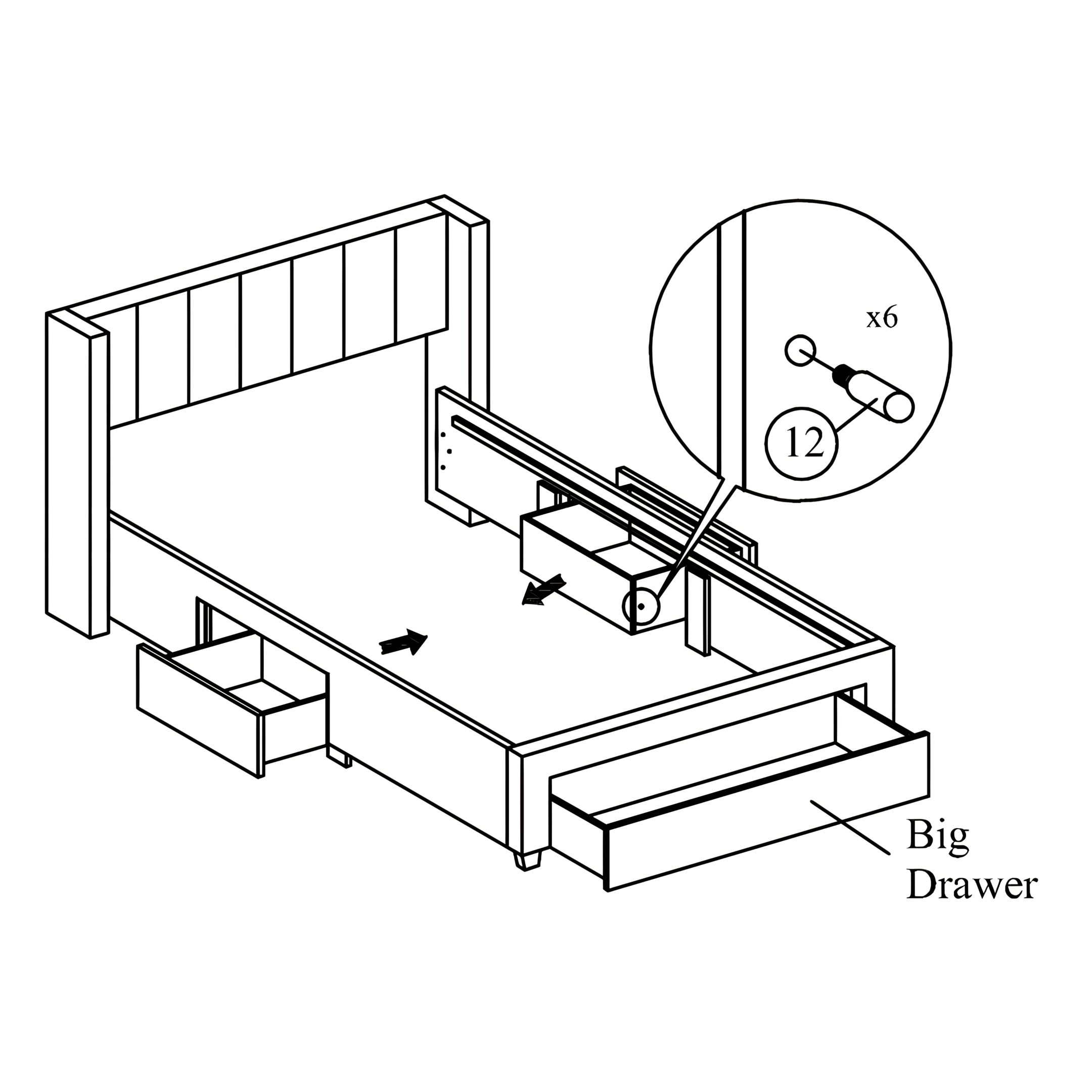

  10. 10. Insert Drawers

    Insert all the drawers on their place

    Add the metal stoppers (12) to the back of the drawers to avoid them being pulled too far.

  11. 11. Install Center Rail and Slats

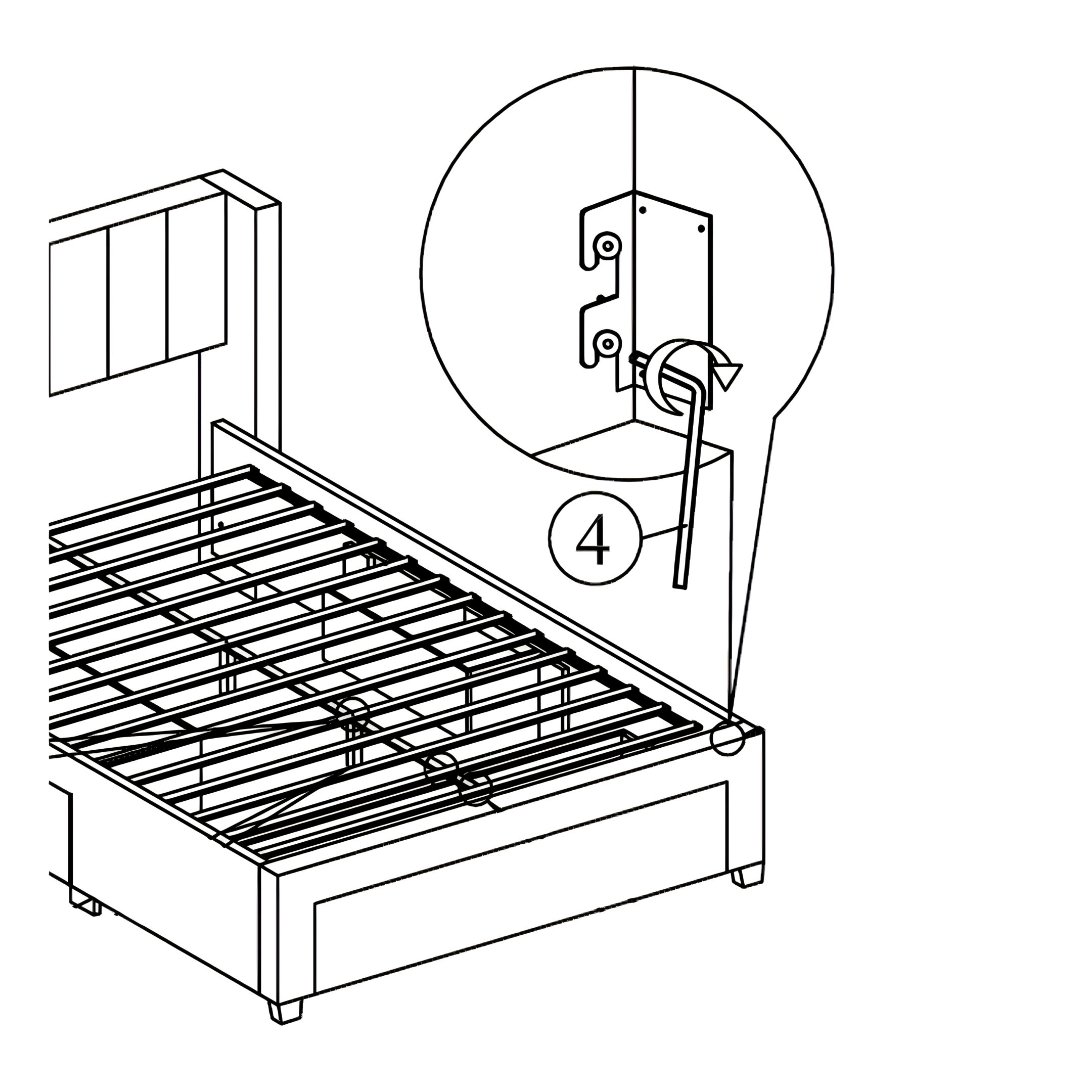

    Tighten the footboard corners.

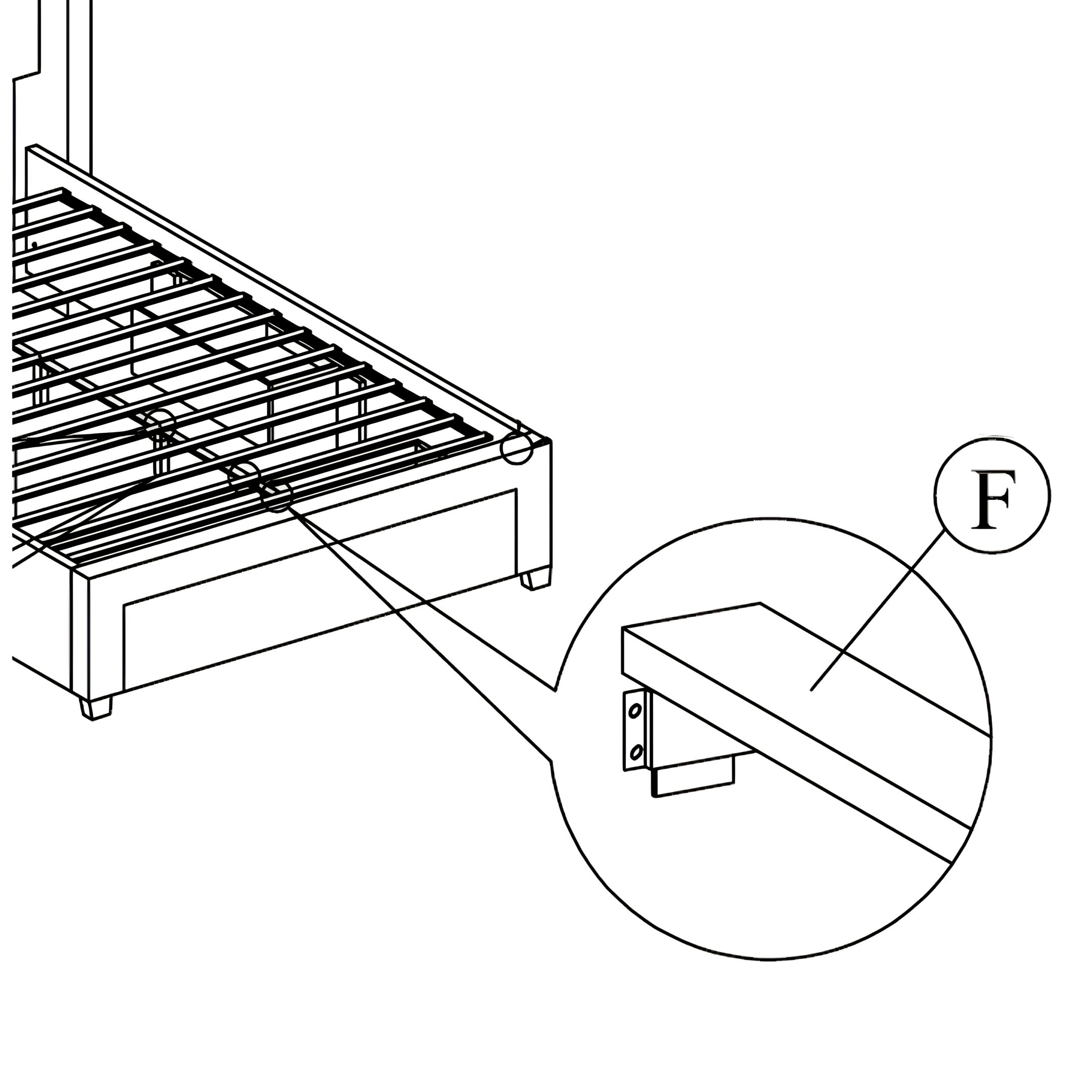

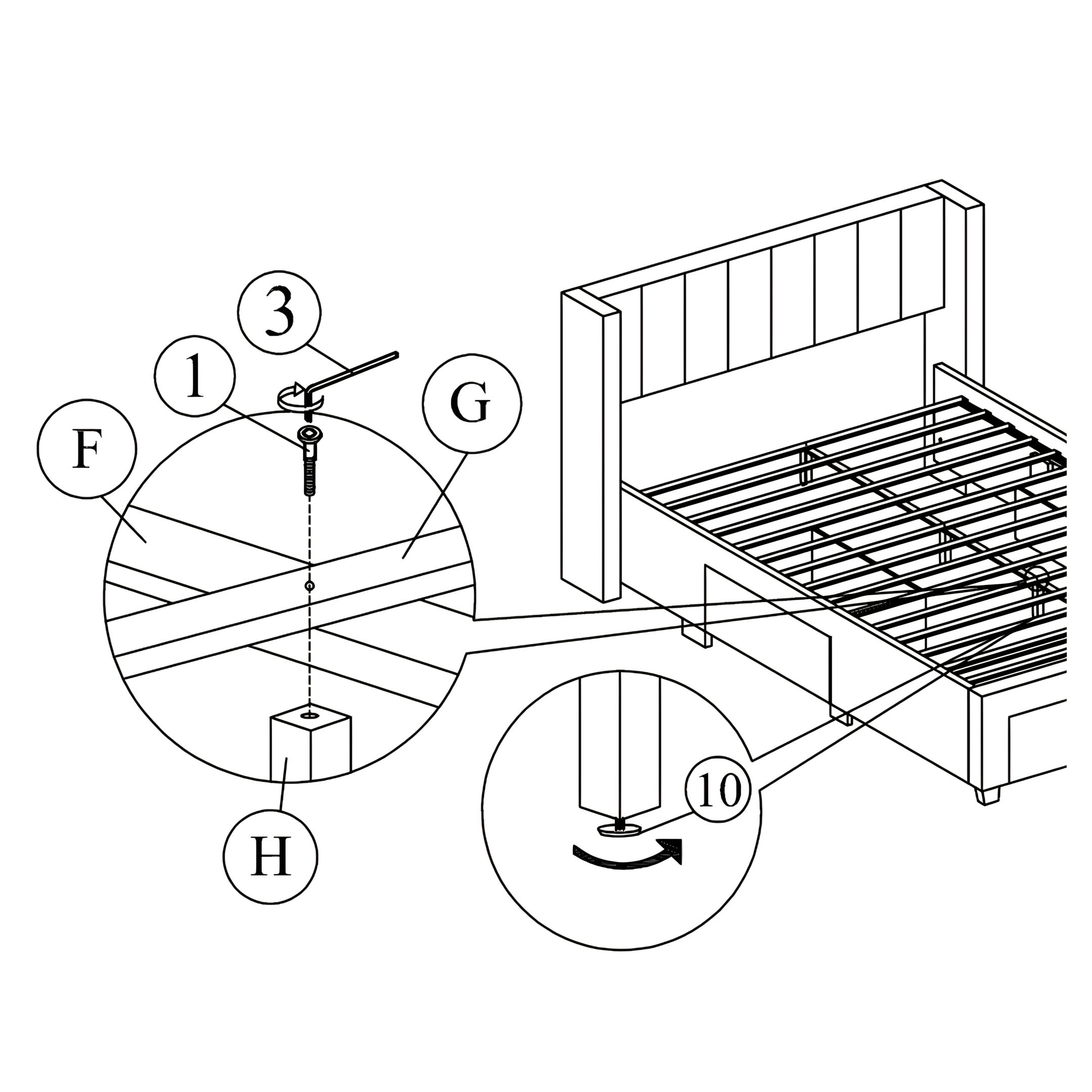

    Slide the center rail (F) to the footboard (B).

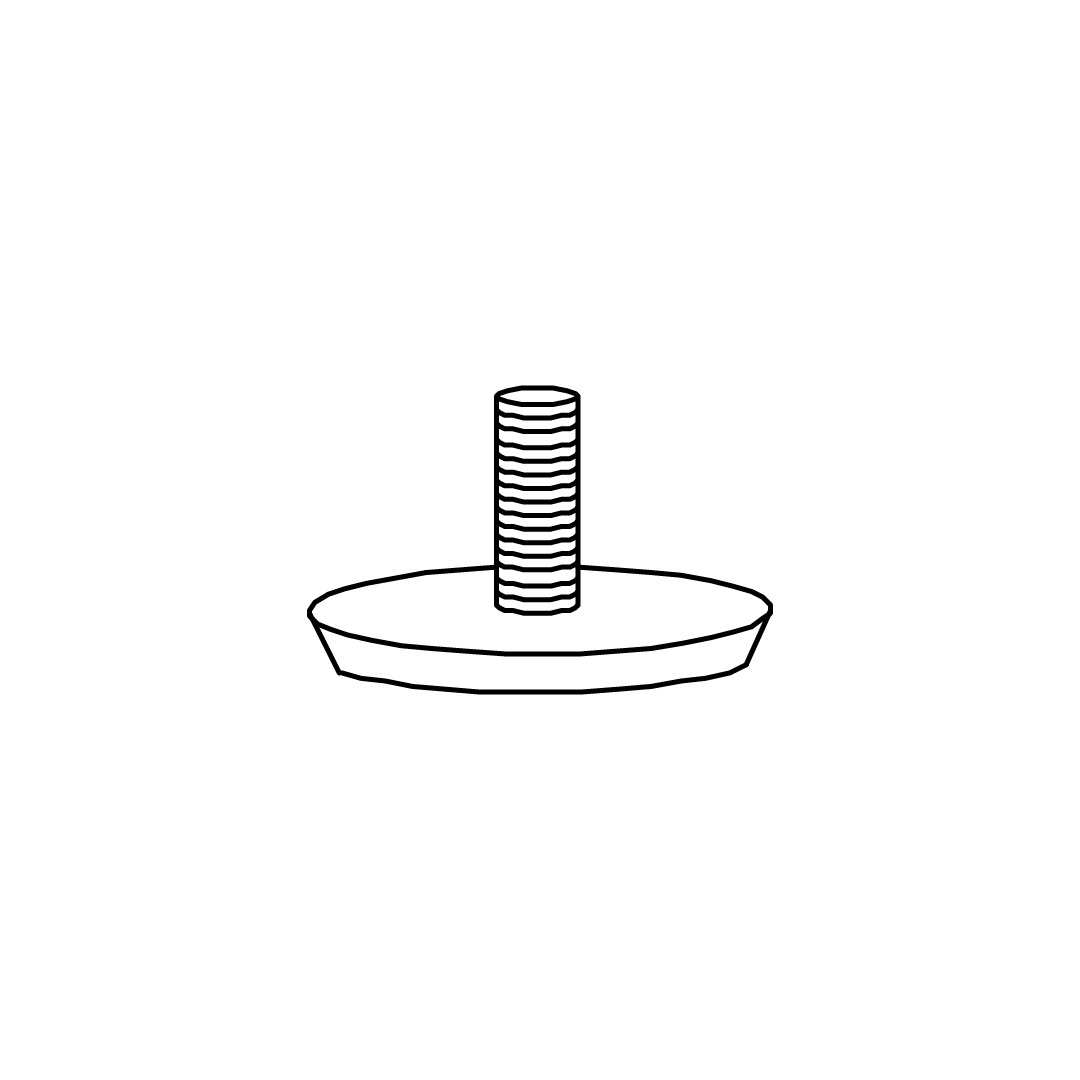

    Attach the small adjuster (10) to the support legs (H).

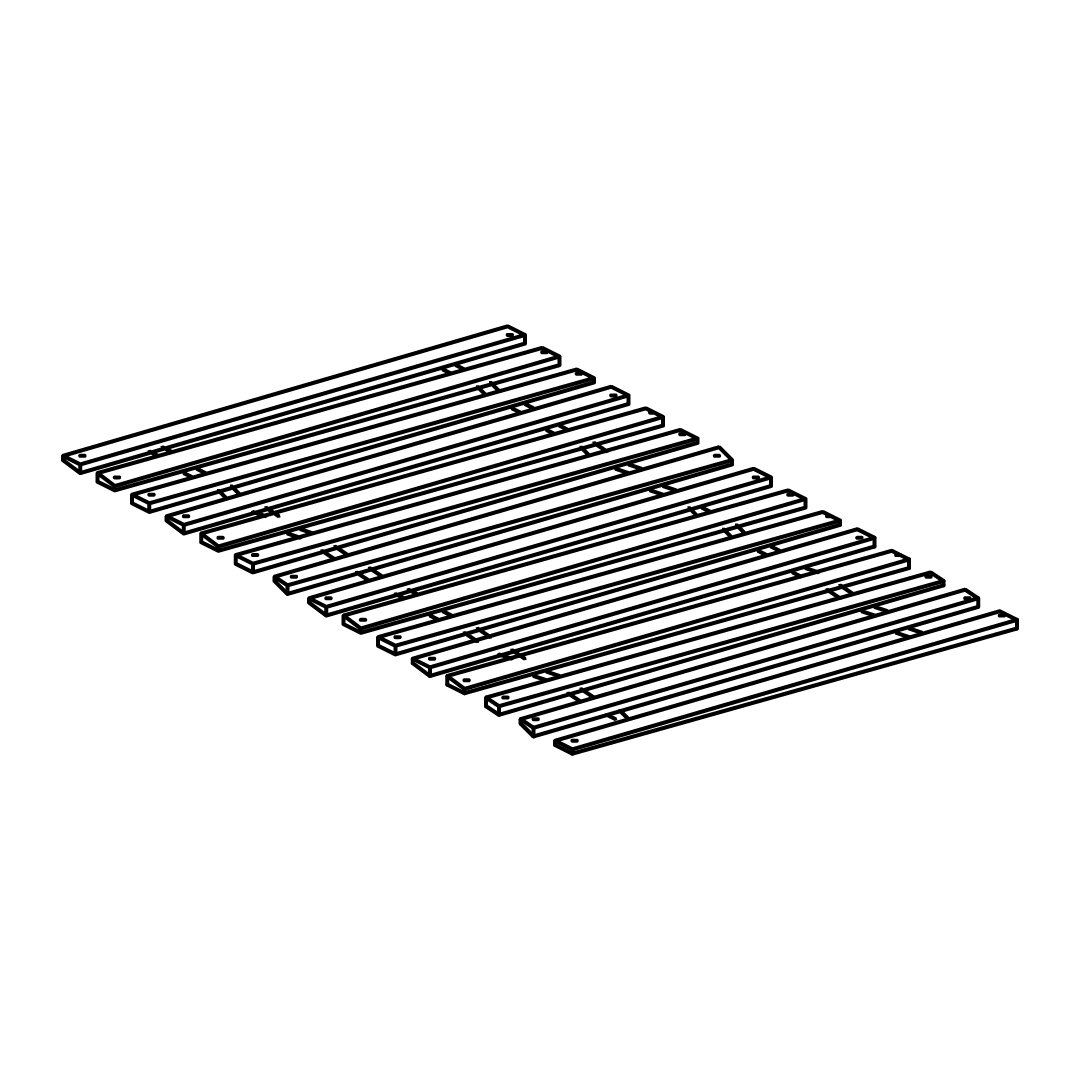

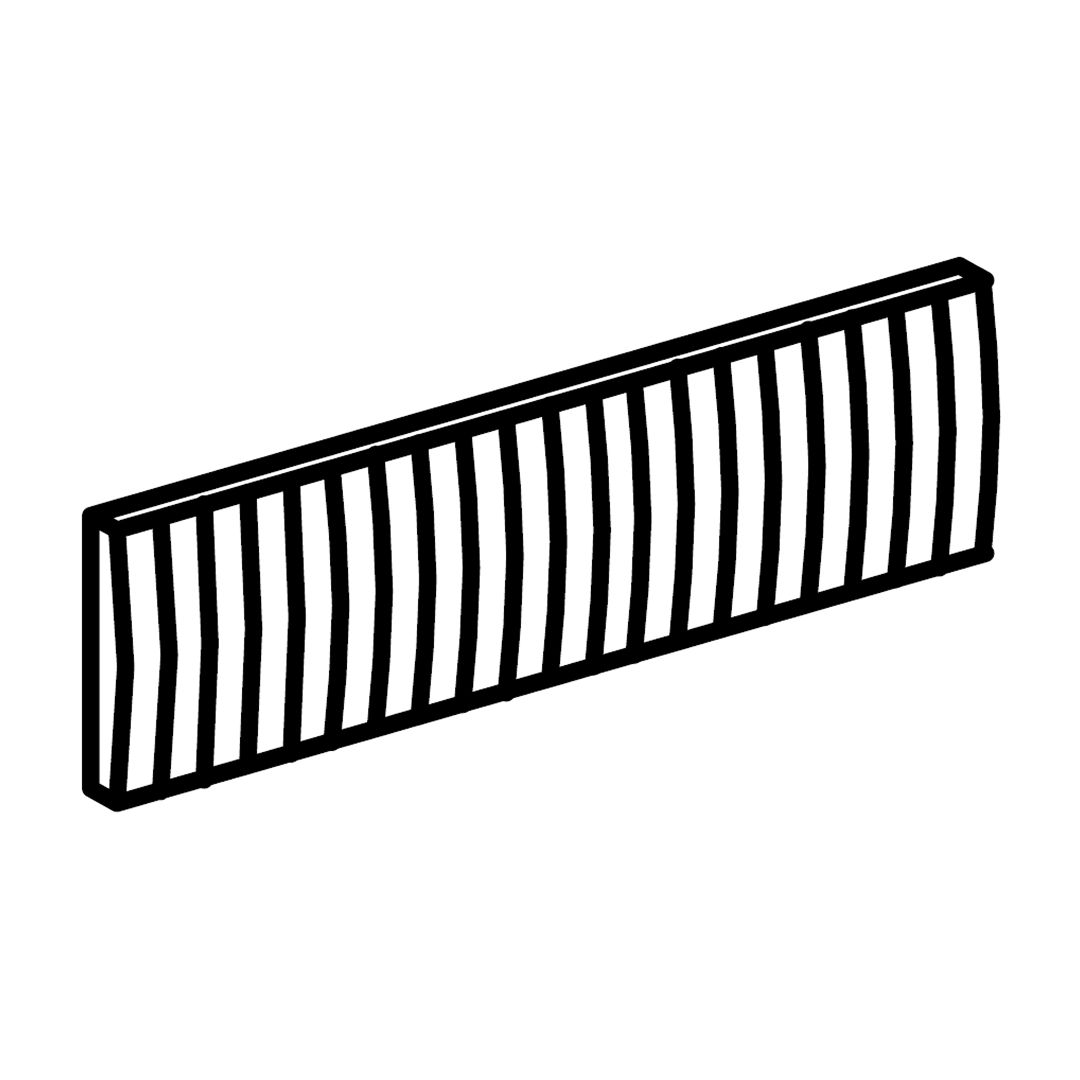

    Affix the slats (G) to the side rail support wood and the center rail (D).

    Attch the legs to the center rail (F) and the slats (G) as shown.

    ATTENTION: Please keep the adjuster around 5 to 8 mm distant away from the floor.
