Essentials White Single Wooden Bunk Bed Frame With Trundle

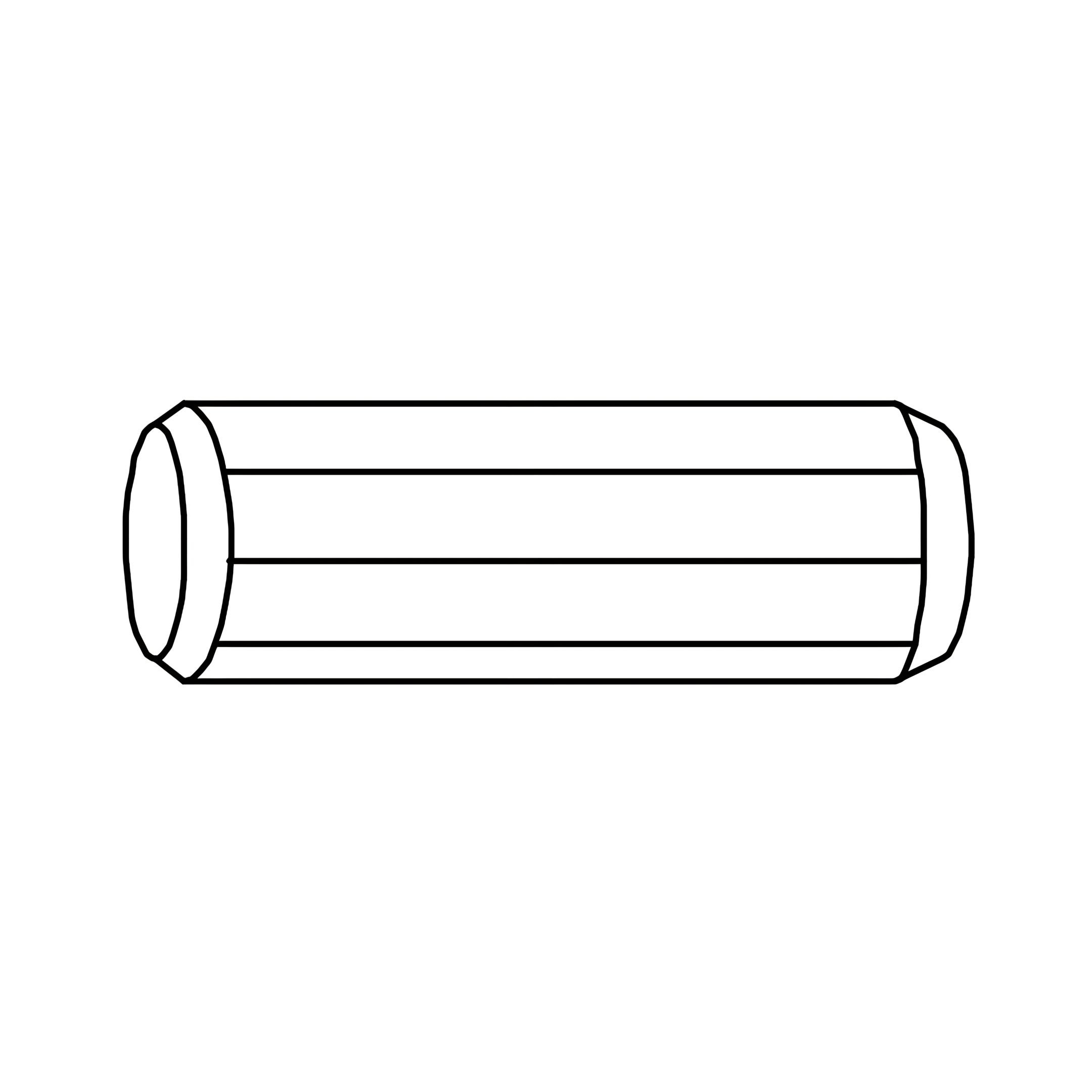

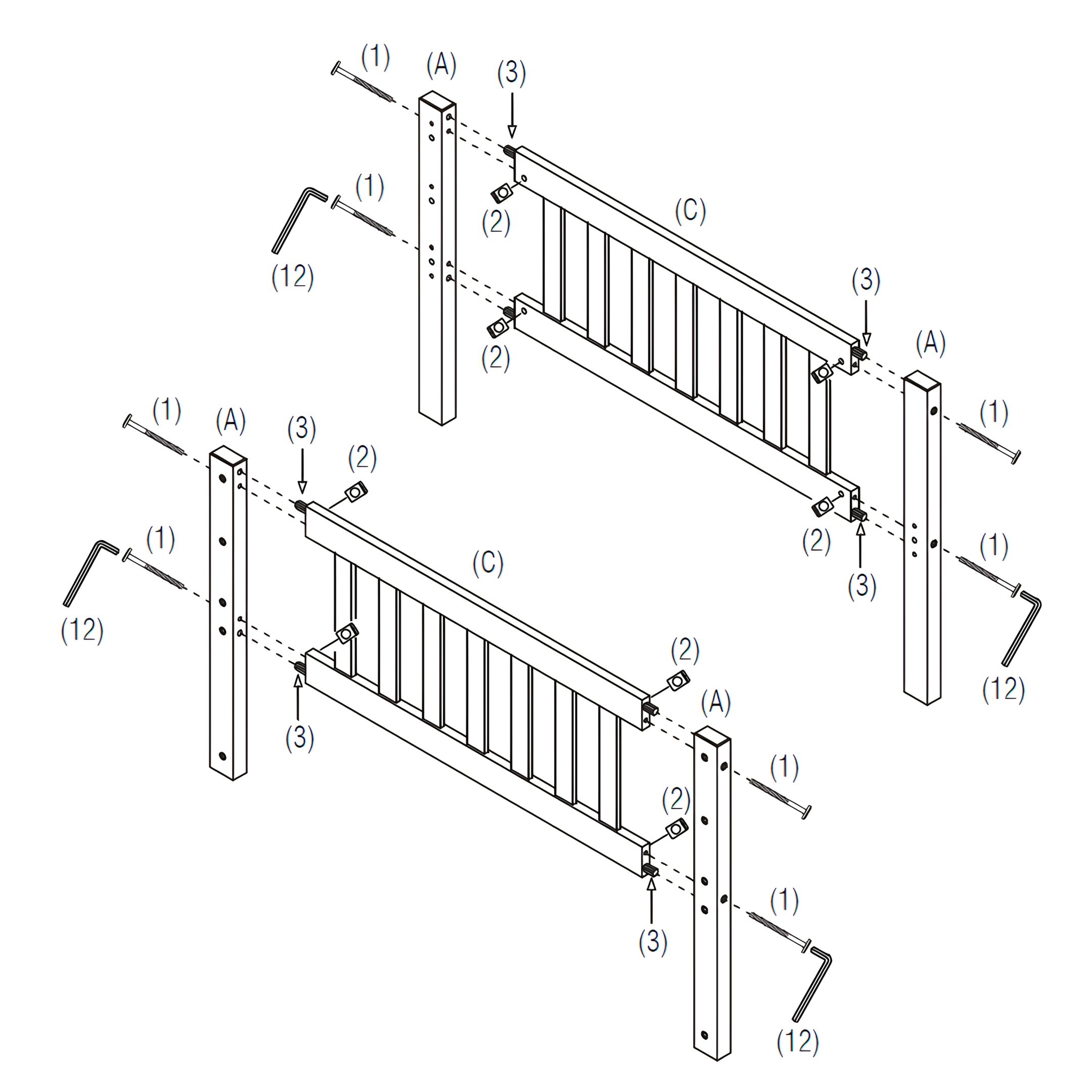

1. Insert (3) Wooden Dowels into the ends of (C) Headboard/Footboard Panels.
2. Align the panels with (A) Upper Posts.

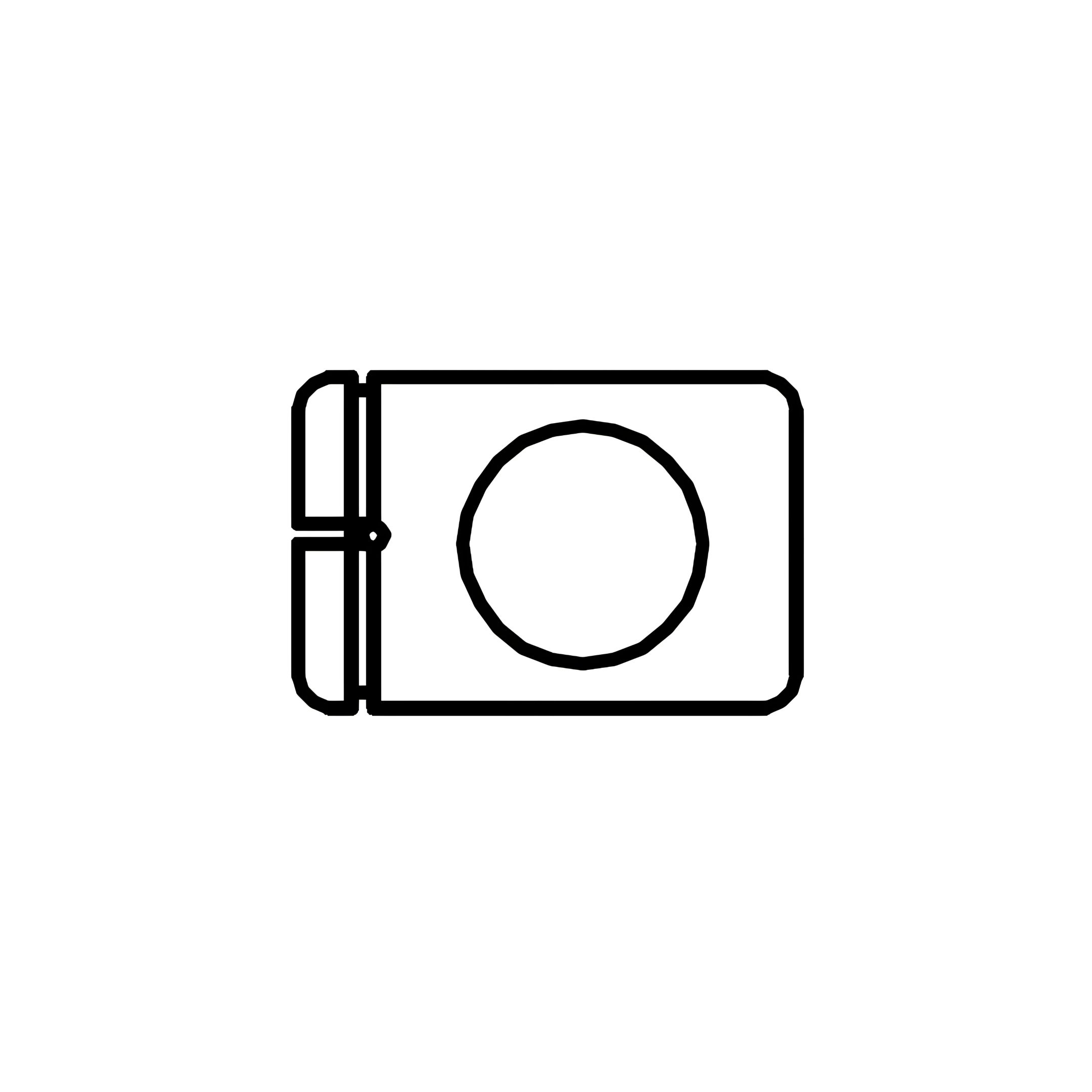

3. Insert (2) Barrel Nuts into the posts.

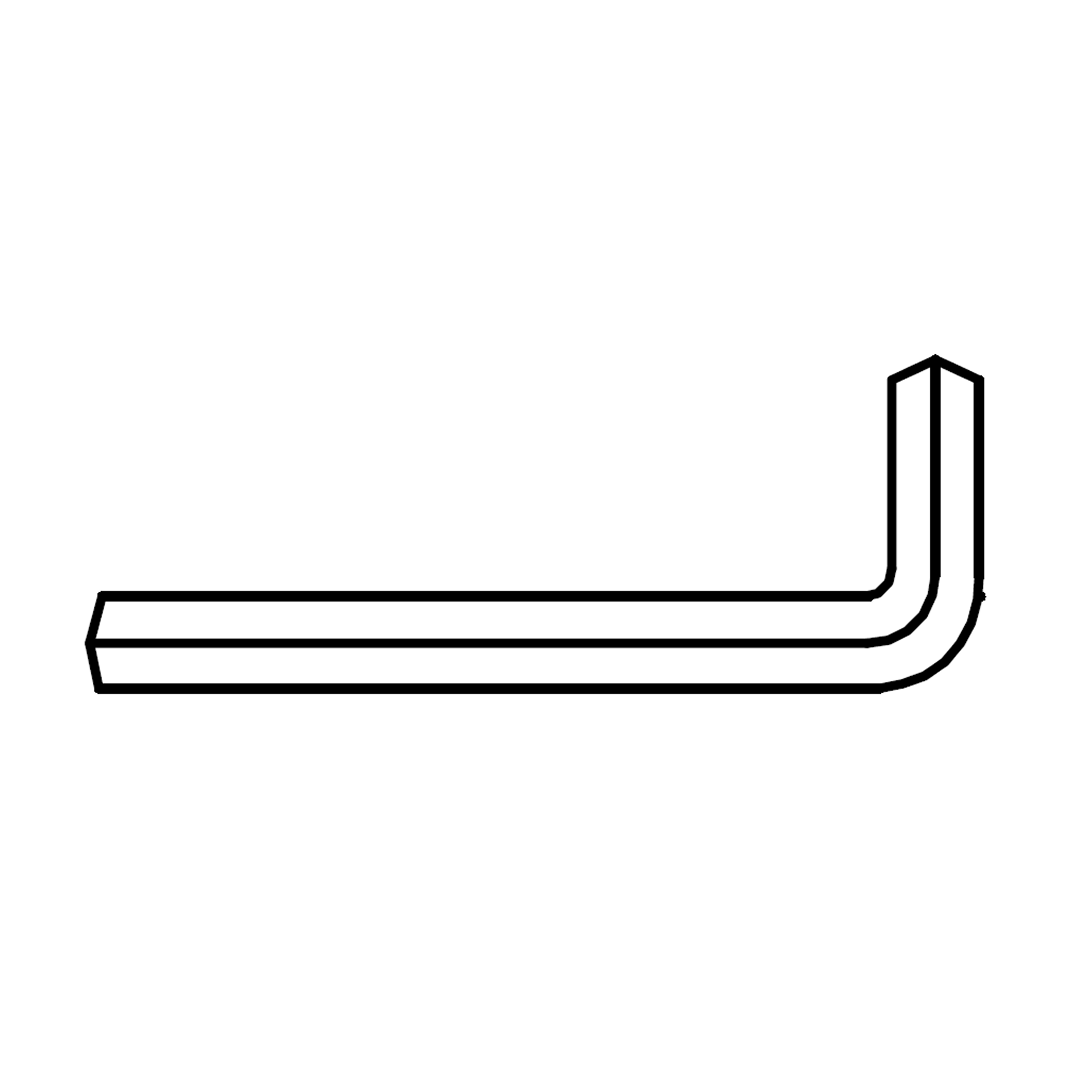

4. Secure with (1) JCBC Bolts and use (12) Allen Key to tighten.

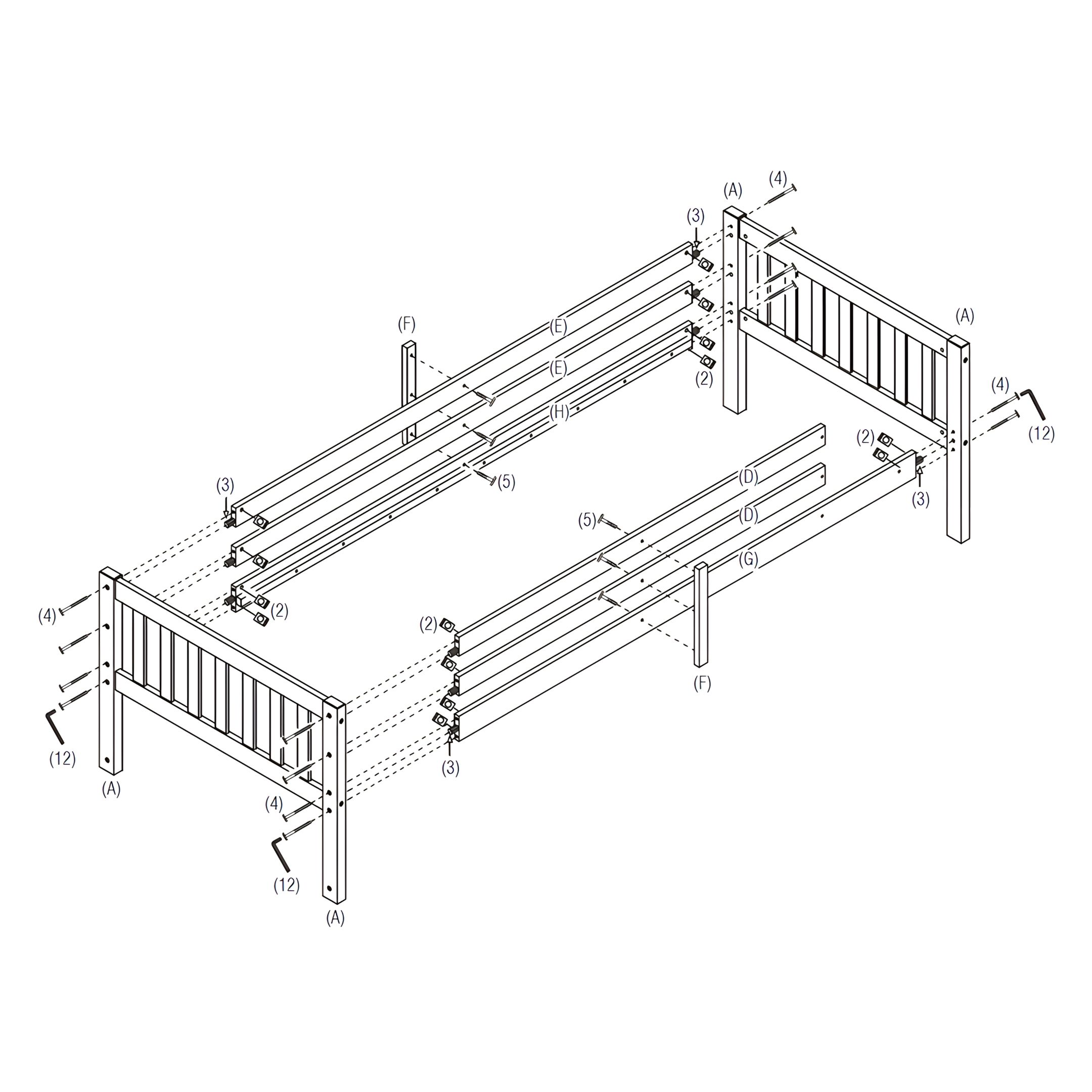

1. Position the assembled Upper Bunk End Frames (A) upright.
2. Insert (3) Wooden Dowels into the ends of (G) Upper Side Rail (Front), (H) Upper Side Rail (Back), (D) Front Upper Guardrail, and (E) Back Upper Guardrail.
3. Attach all pieces to the Upper Bunk End Frames (A) as shown in the image.
4. Insert (2) Barrel Nuts, and secure using (4) JCBC Bolts on each side of every piece.
5. Position (F) Guardrail Spindle at the center of the front and the back guardrail and secure it in place with (5) JCBC Bolts.
6. Use (12) Allen Key to tighten all bolts securely.

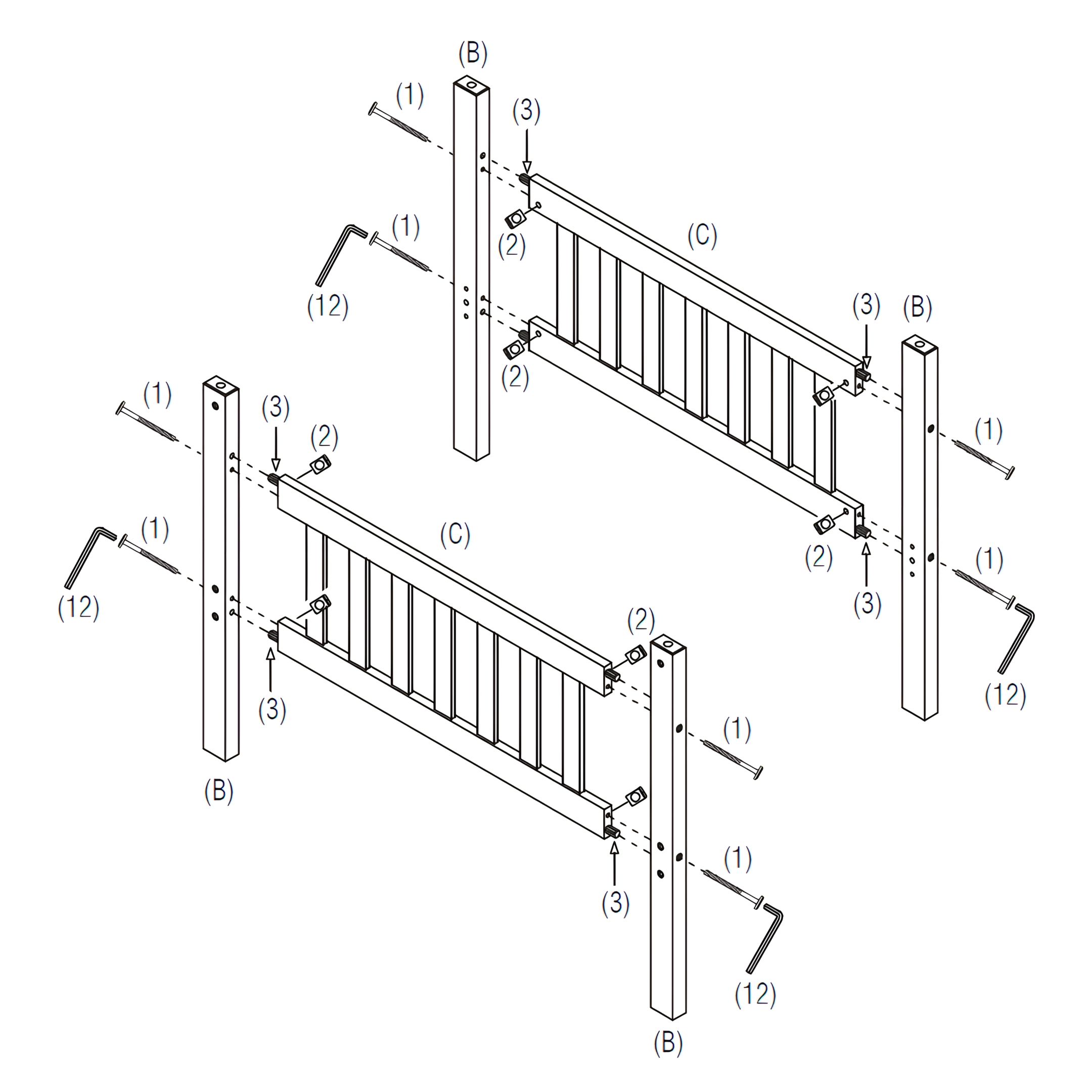

1. Insert (3) Wooden Dowels into the ends of (C) Headboard/Footboard Panels.
2. Align the panels with (B) Lower Posts.
3. Insert (2) Barrel Nuts into the posts.

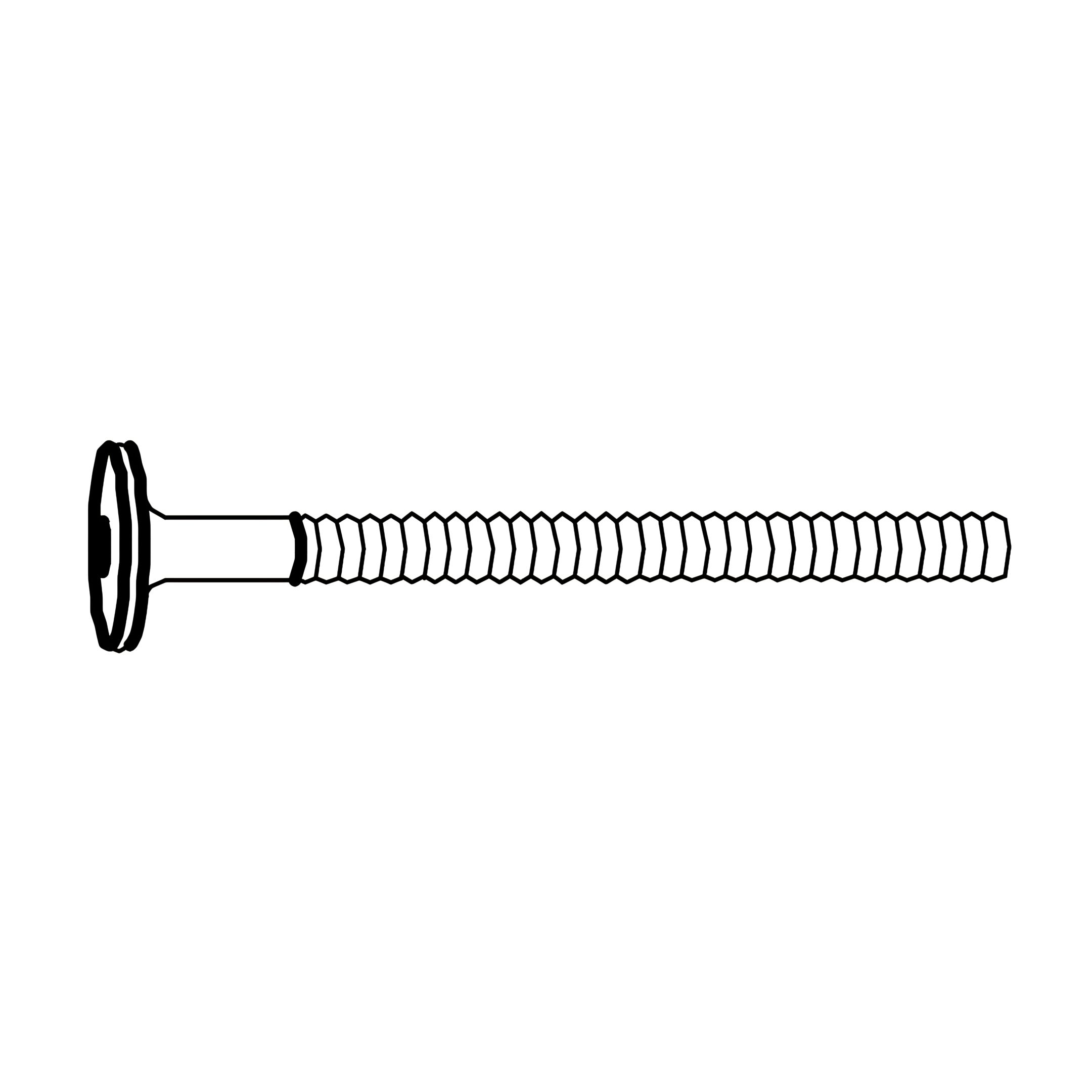

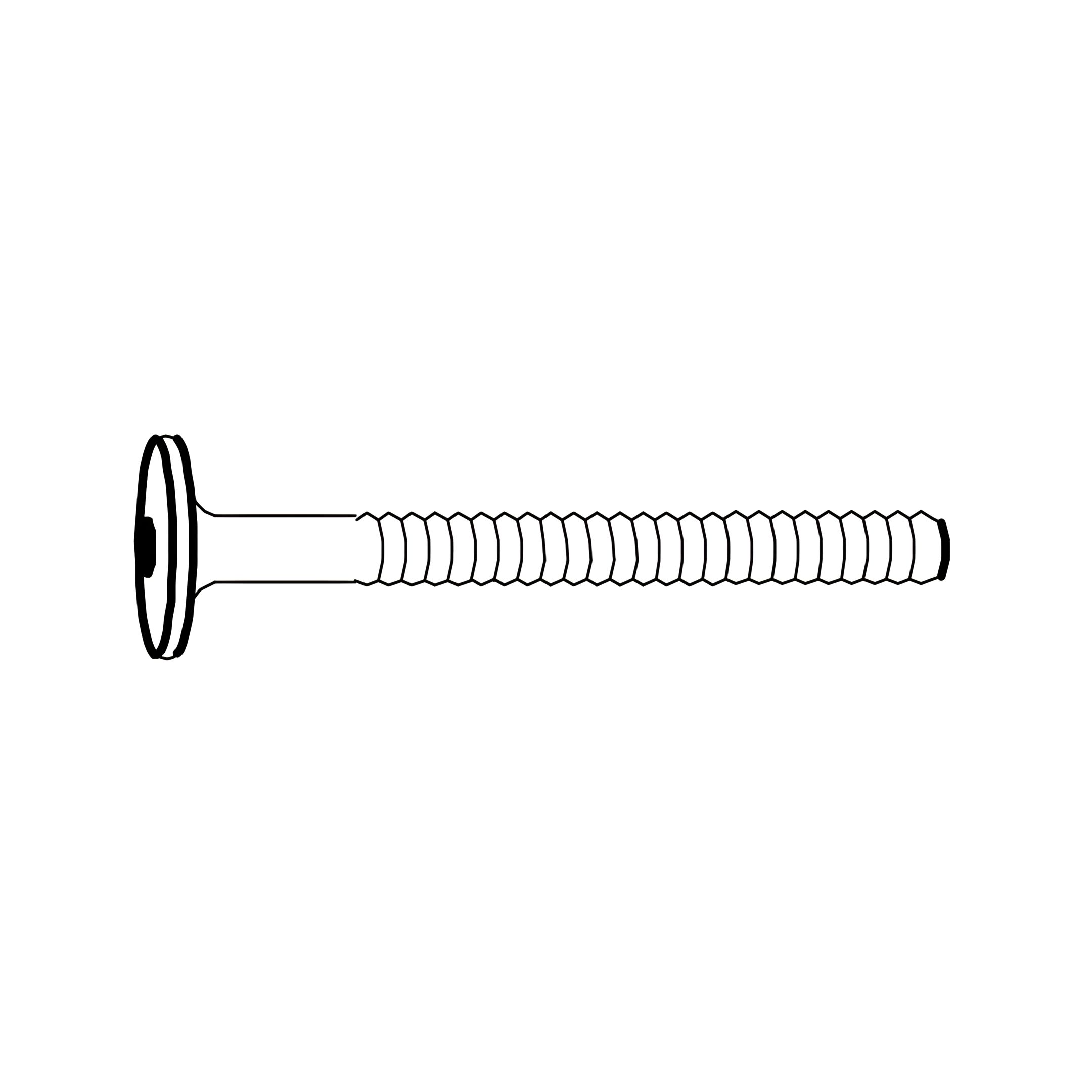

4. Secure with (1) JCBC (M6 x 100mm) Bolts and use (12) Allen Key to tighten.

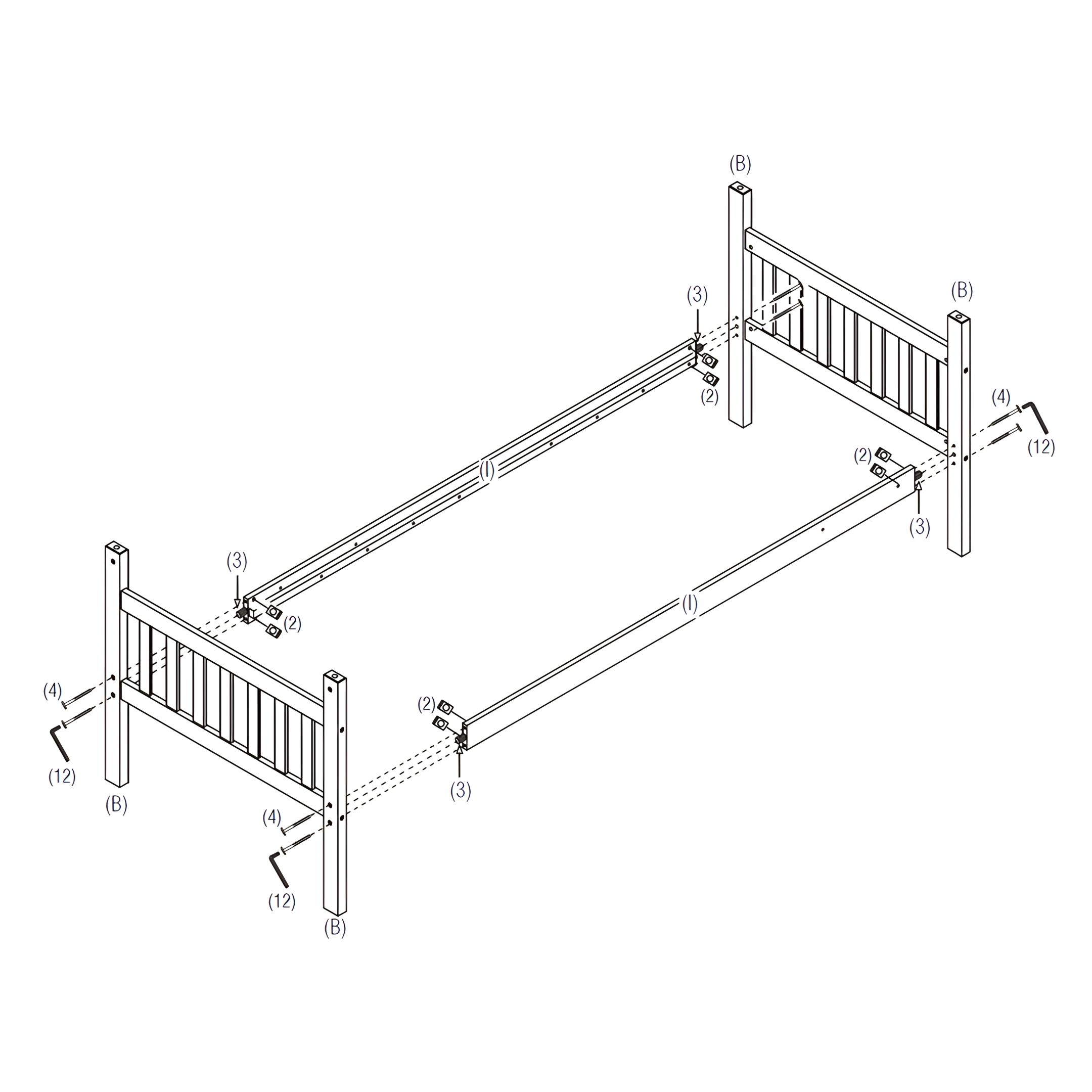

1. Insert (3) Wooden Dowels into the ends of (I) Lower Side Rails (Front & Back).
2. Align the side rails with the (B) Lower Posts and insert (2) Barrel Nuts into each post.
3. Secure the side rails using (4) JCBC Bolts on each side.
4. Use (12) Allen Key to tighten all bolts securely.

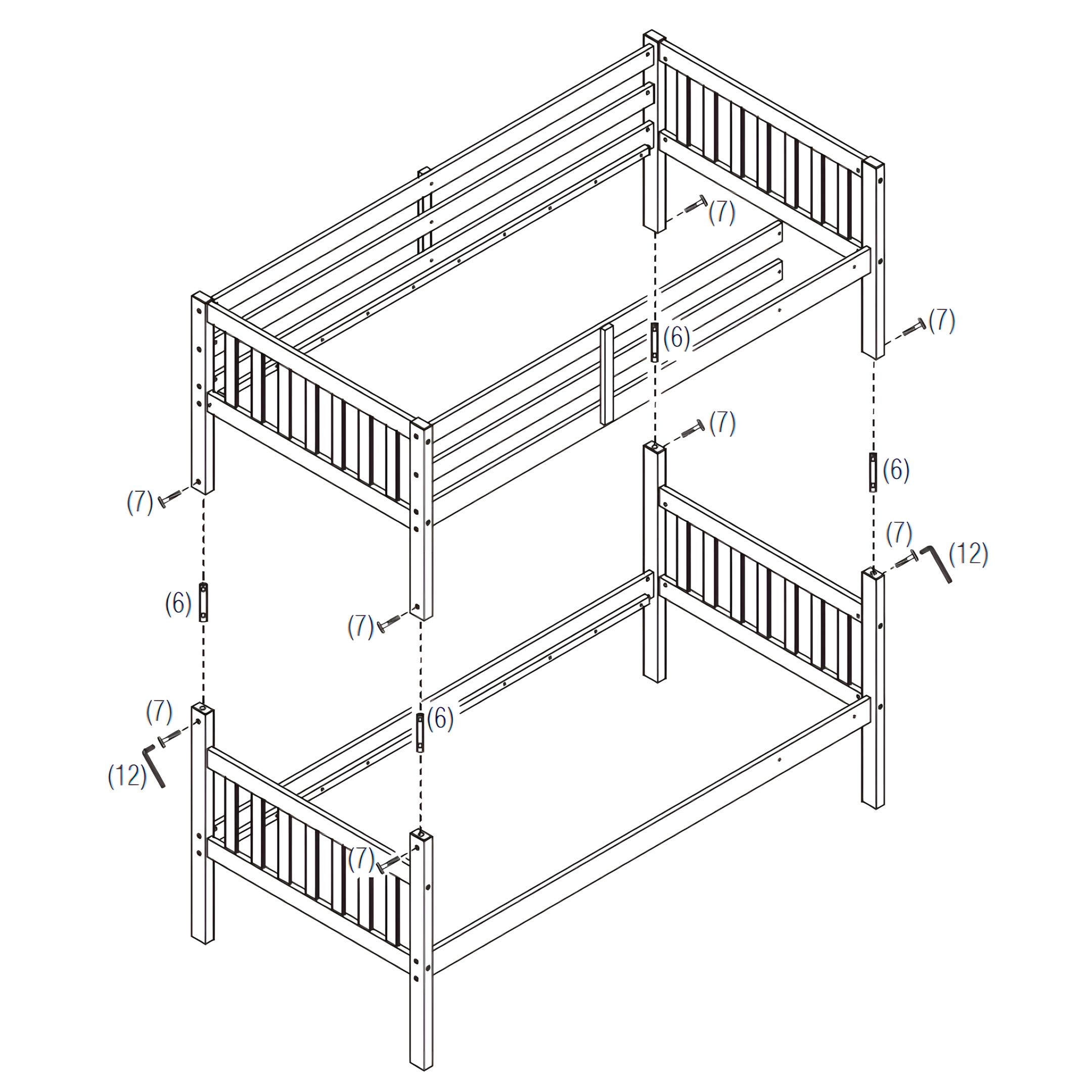

1. Insert (6) Metal Pins into the top of each (B) Lower Post.
2. Carefully lift the Upper Bunk Frame and align it with the Lower Bunk Frame, ensuring the metal pins fit securely into the (A) Upper Posts.

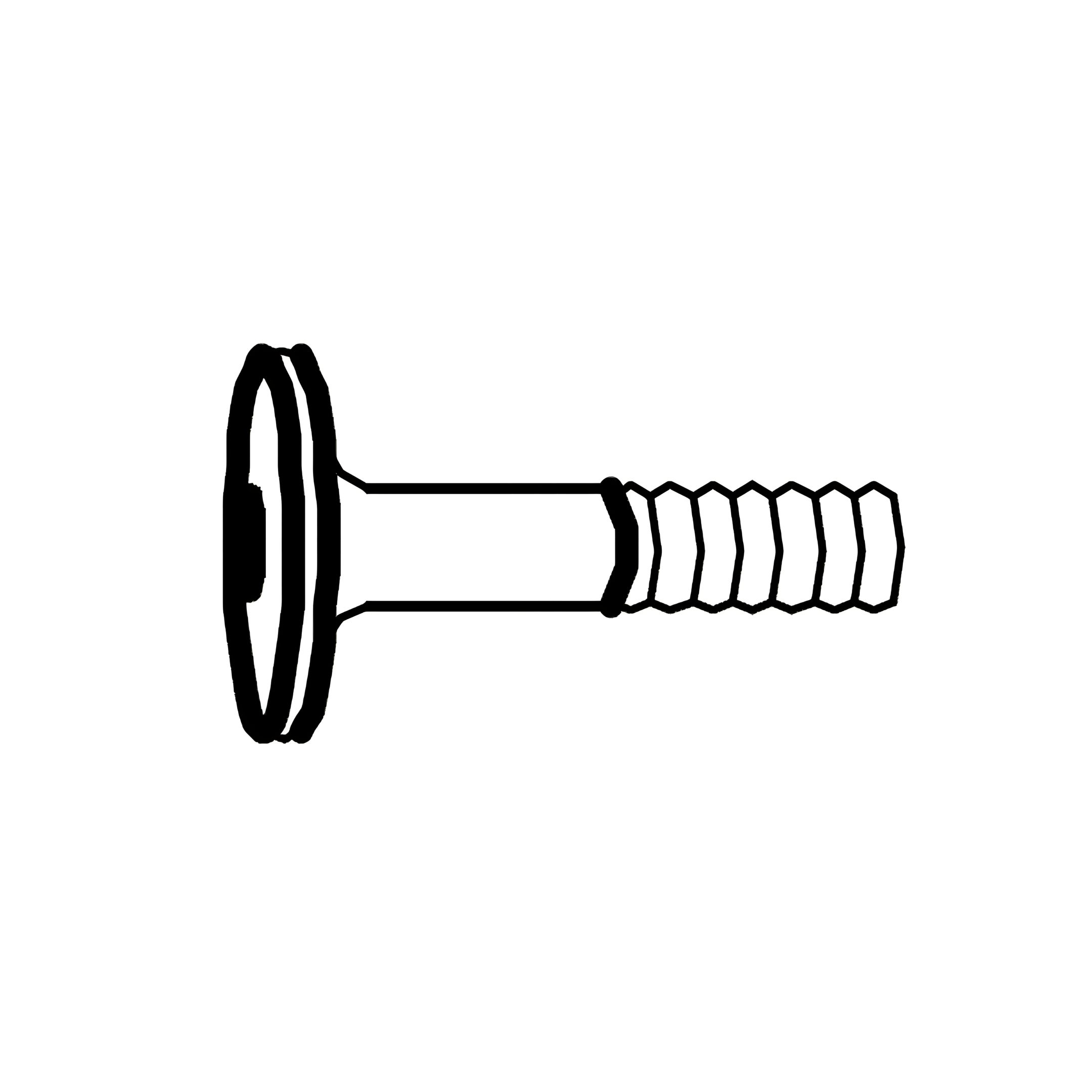

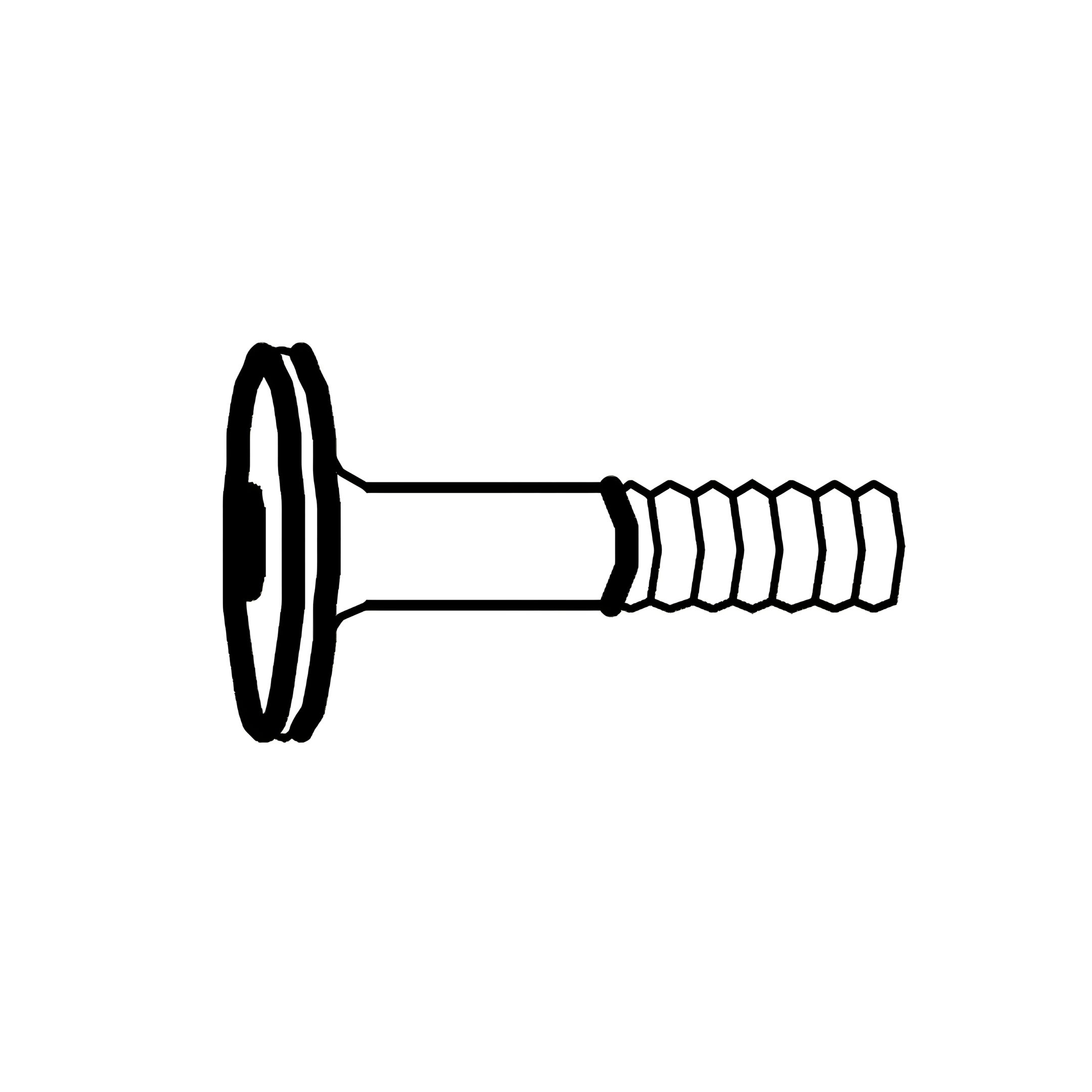

3. Secure the connection using (7) JCBC (M6 x 25mm) Bolts at each post.
4. Use (12) Allen Key to tighten all bolts securely.

1. Insert (3) Wooden Dowels into both ends of each (L) Ladder Step.
2. Align the ladder steps with (J) Ladder Rail (Long) and (K) Ladder Rail (Short).

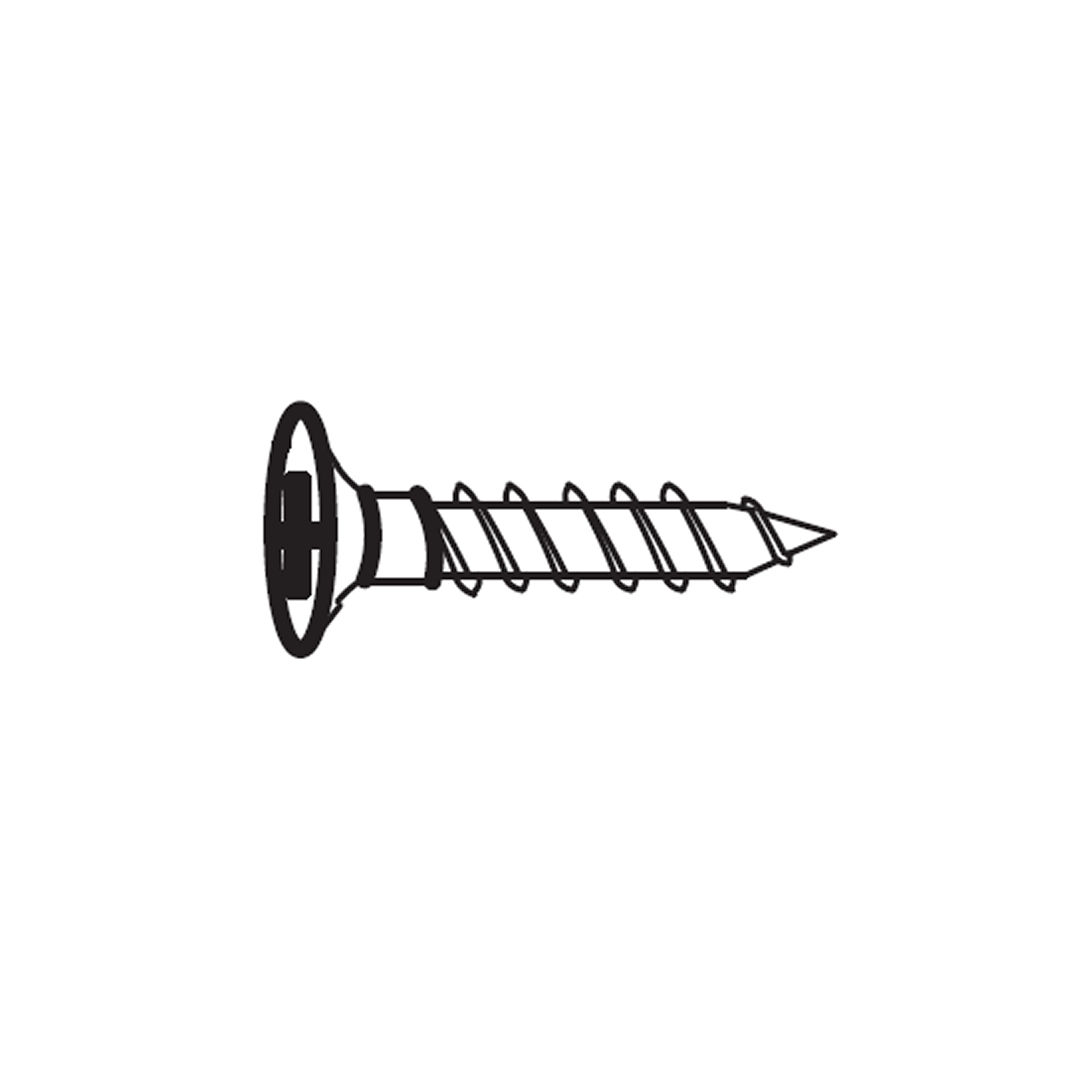

3. Secure each step using (8) JCBC-W Screws.
4. Use (12) Allen Key to tighten all bolts securely

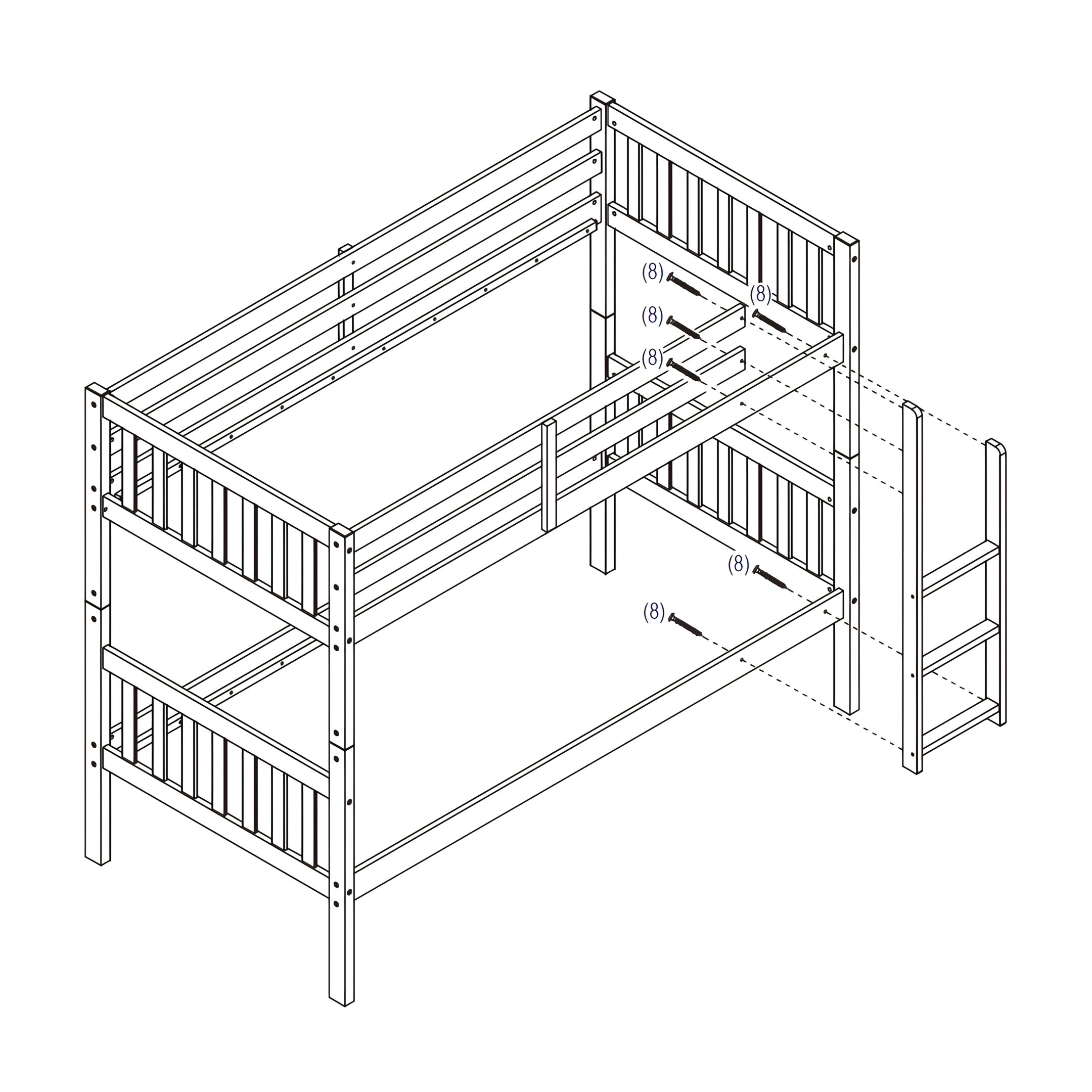

1. Position the assembled Ladder against the bunk bed frame, ensuring it aligns with the designated attachment points.
2. Secure the ladder to the Upper Side Rail (G) and Lower Side Rail (I) using (8) JCBC-W Screws.
3. Use the screwdriver to tighten all bolts securely.

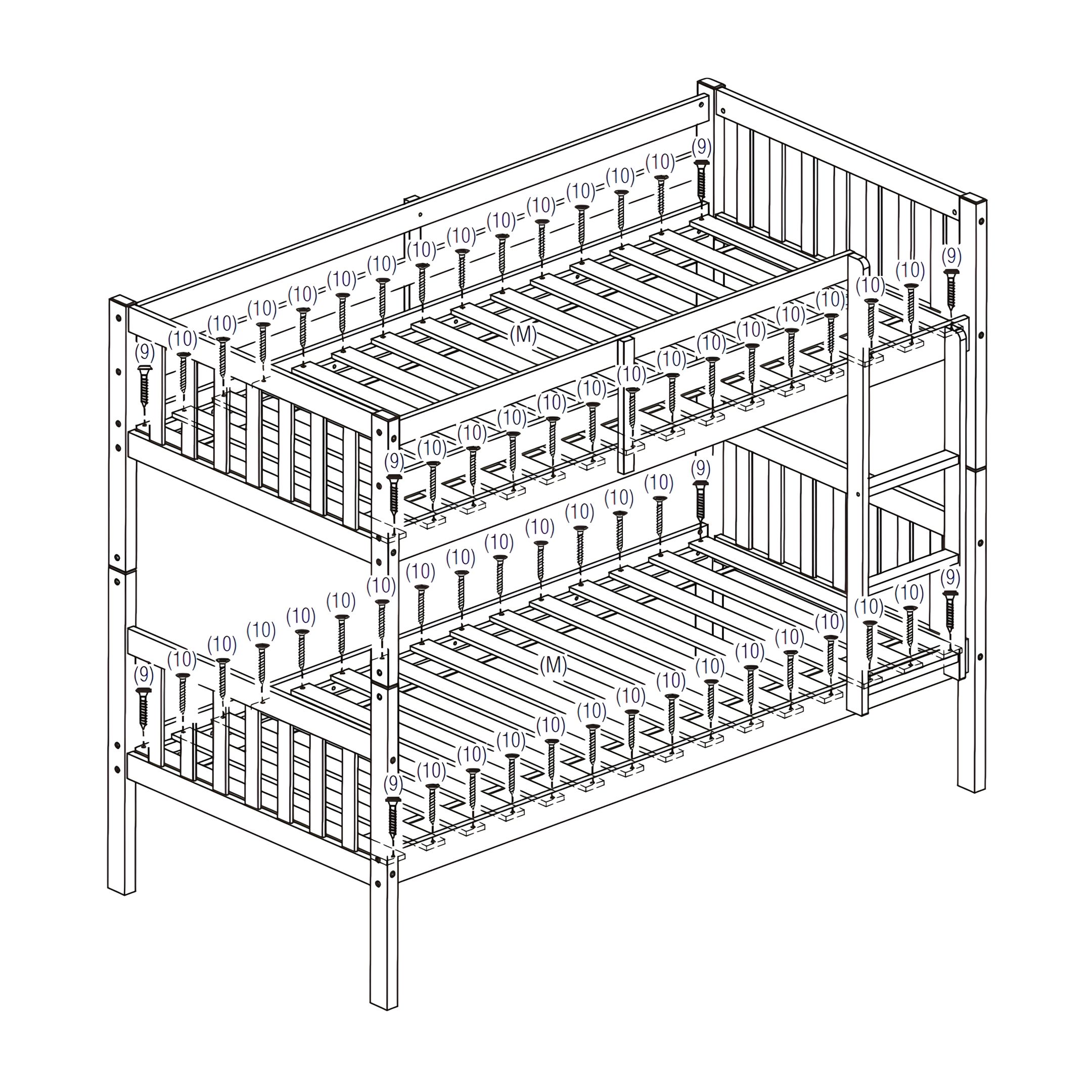

1. Position the (M) Set of Slats evenly across the upper and lower bunk frames.

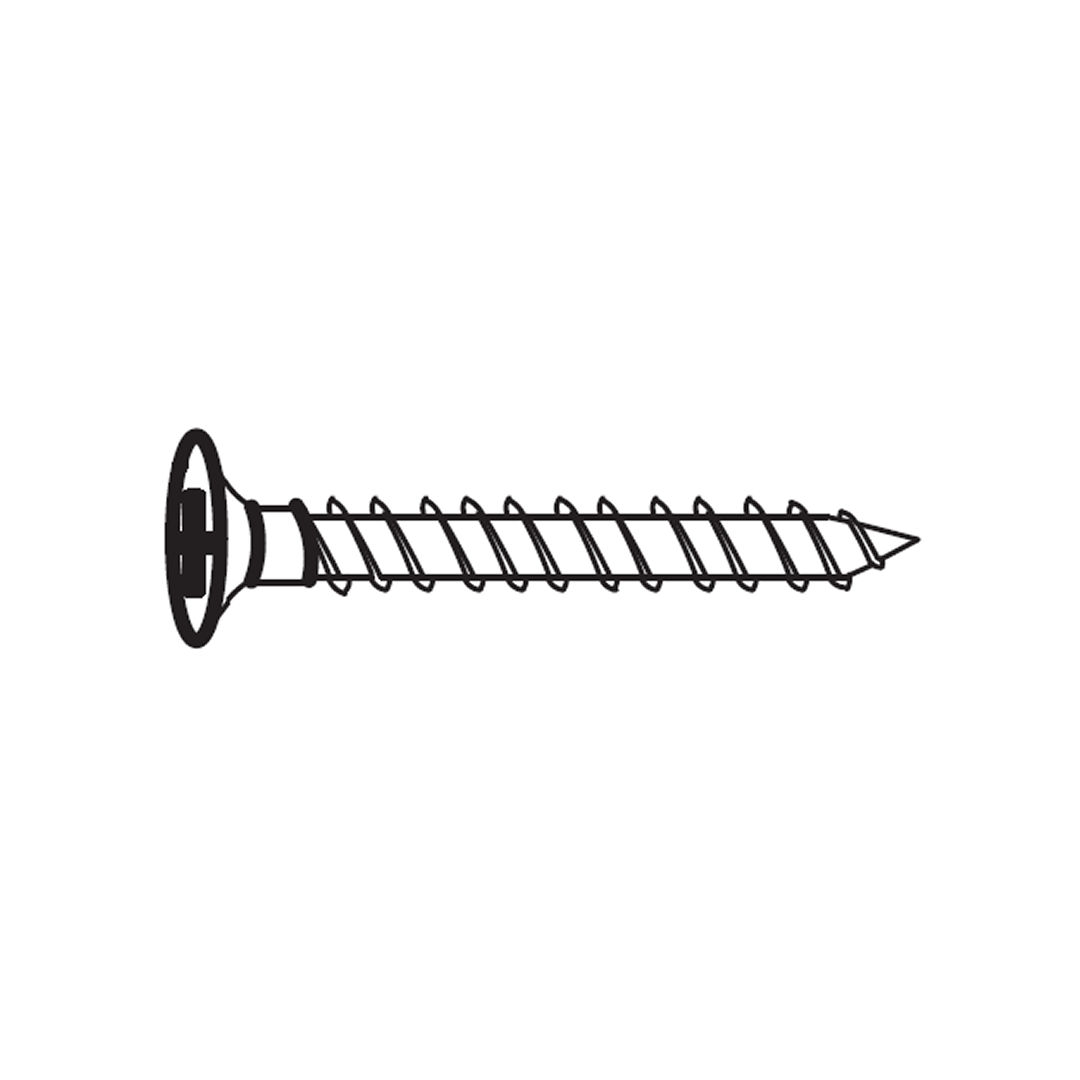

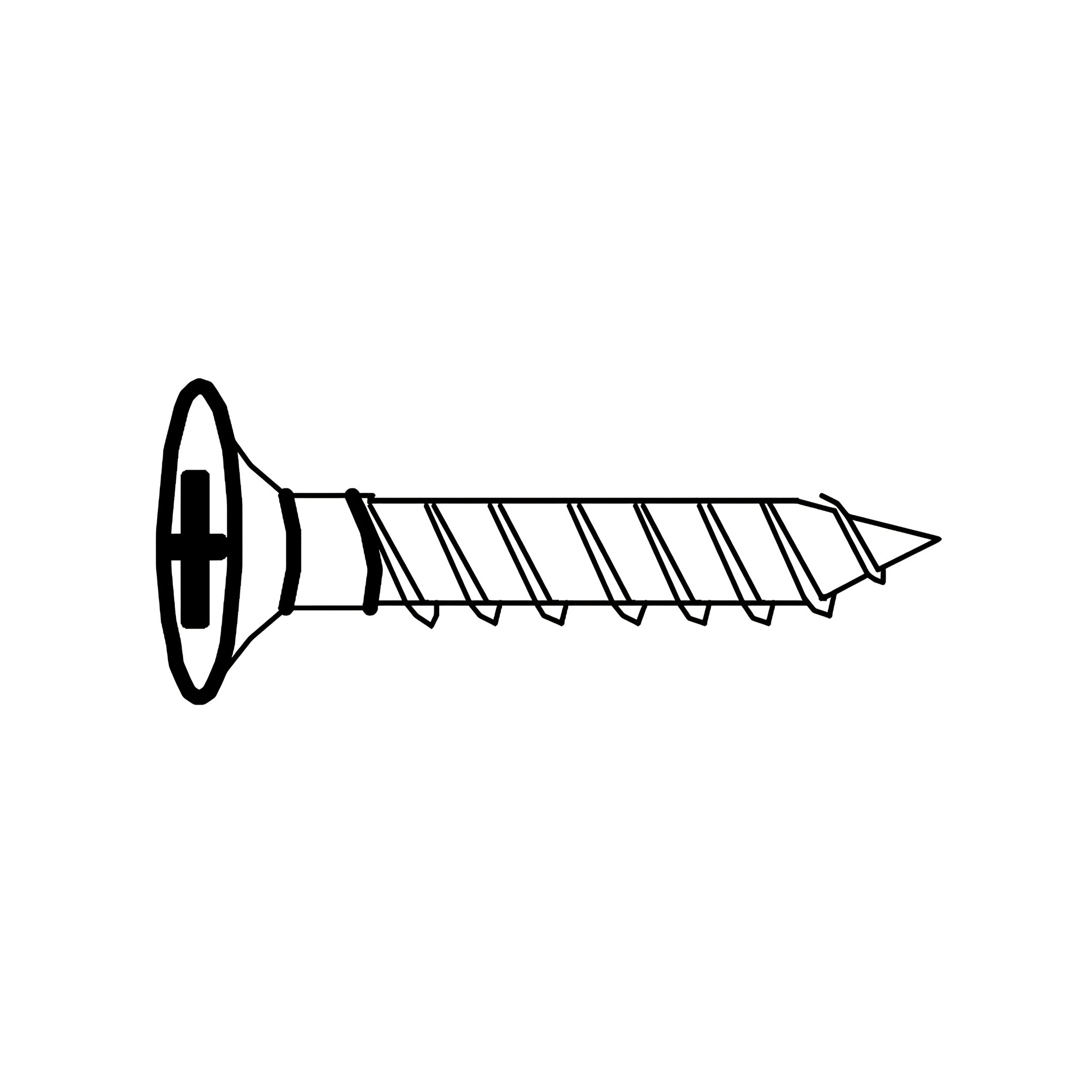

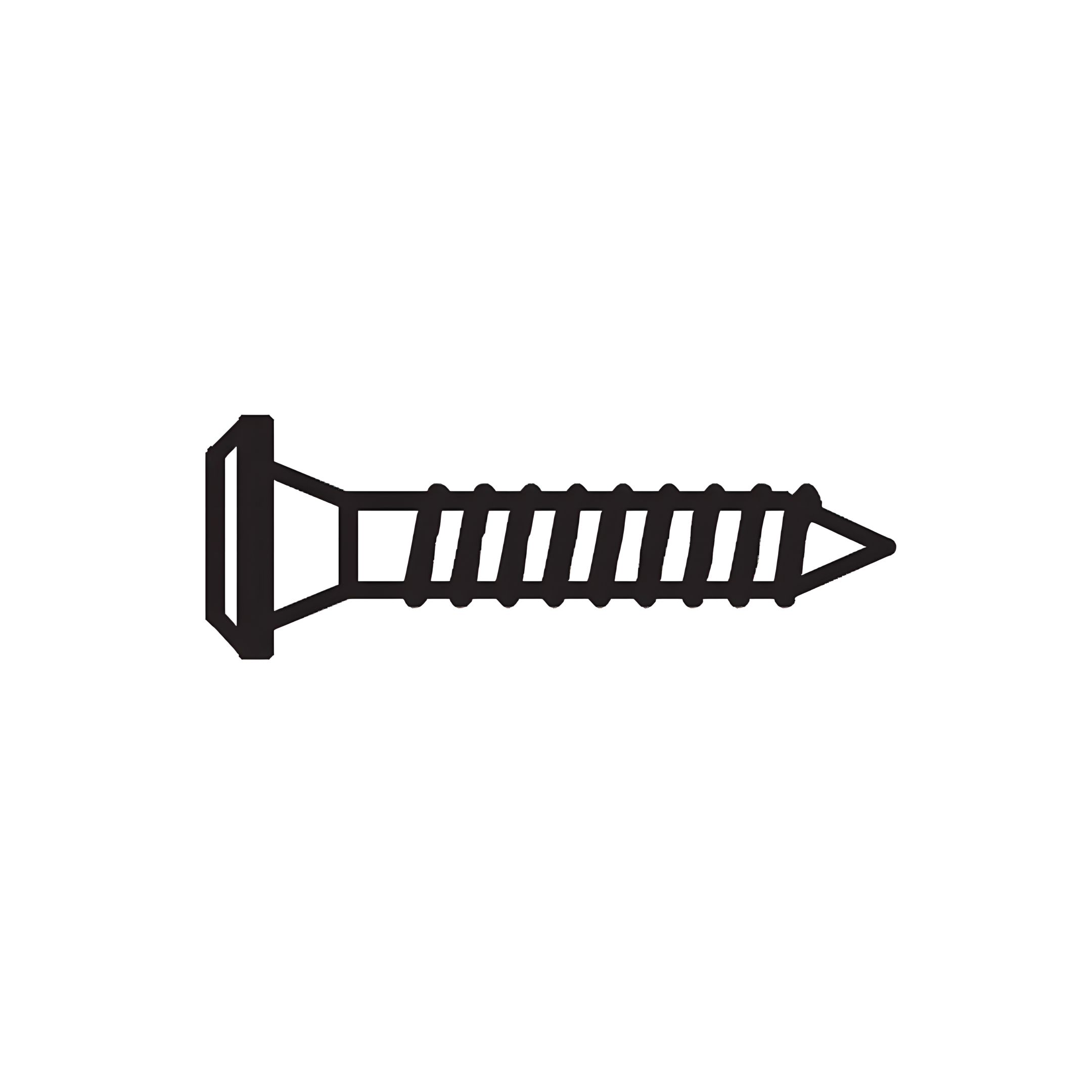

2. Secure each slat using (9) JCBC-W Screws on the corner and (10) CSK Screws on the rest.
3. Ensure all slats are firmly attached before use.
4. Use a screwdriver to tighten all bolts securely.

Start assembling the trundle bed:

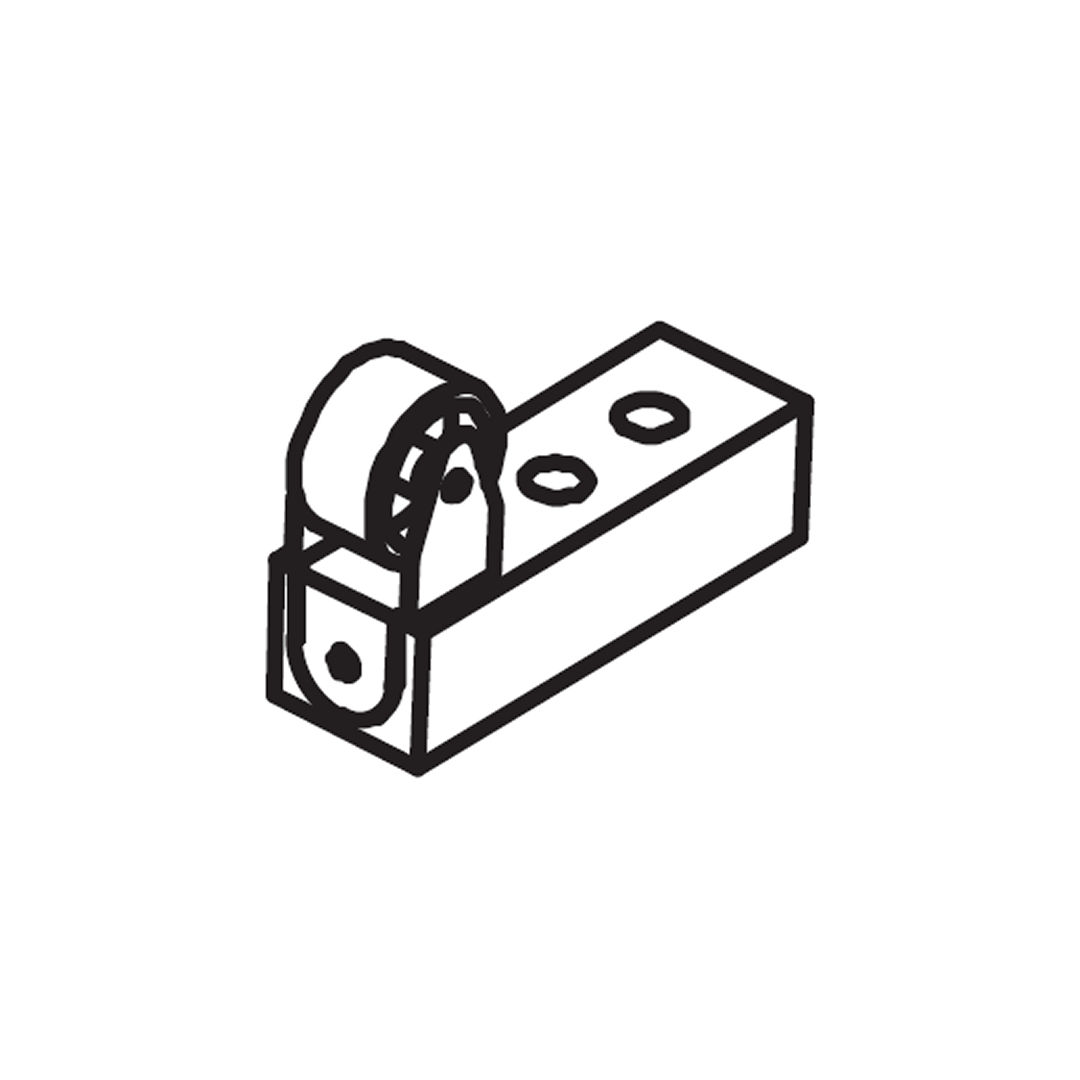

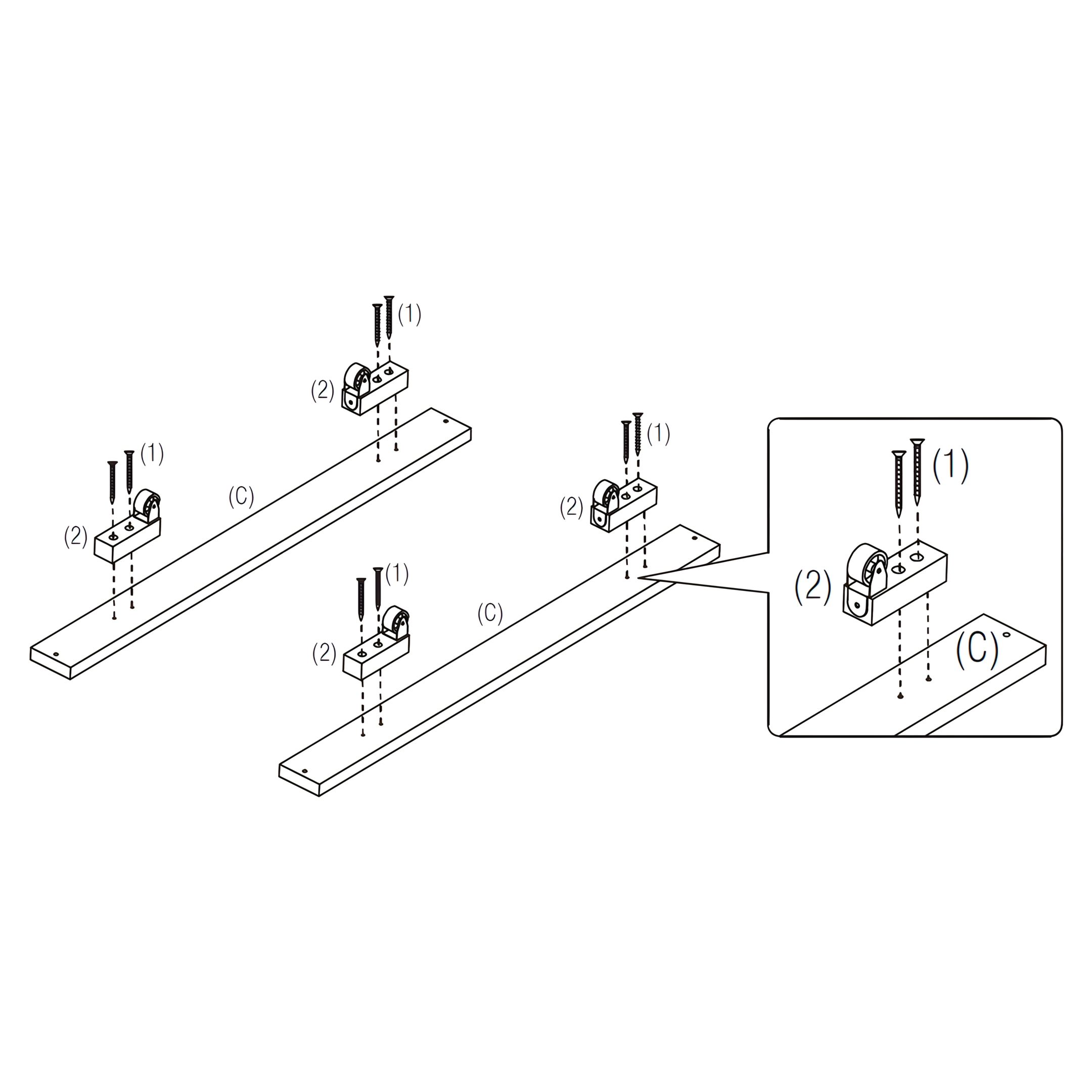

1. Position (2) Casters on each (C) End Slat as shown.
2. Secure each caster using (1) CSK Screws (M4 x 25mm).
3. Ensure all screws are tightened securely.

1. Align (C) End Slats with the (A) Front Panel and (B) Back Panel.

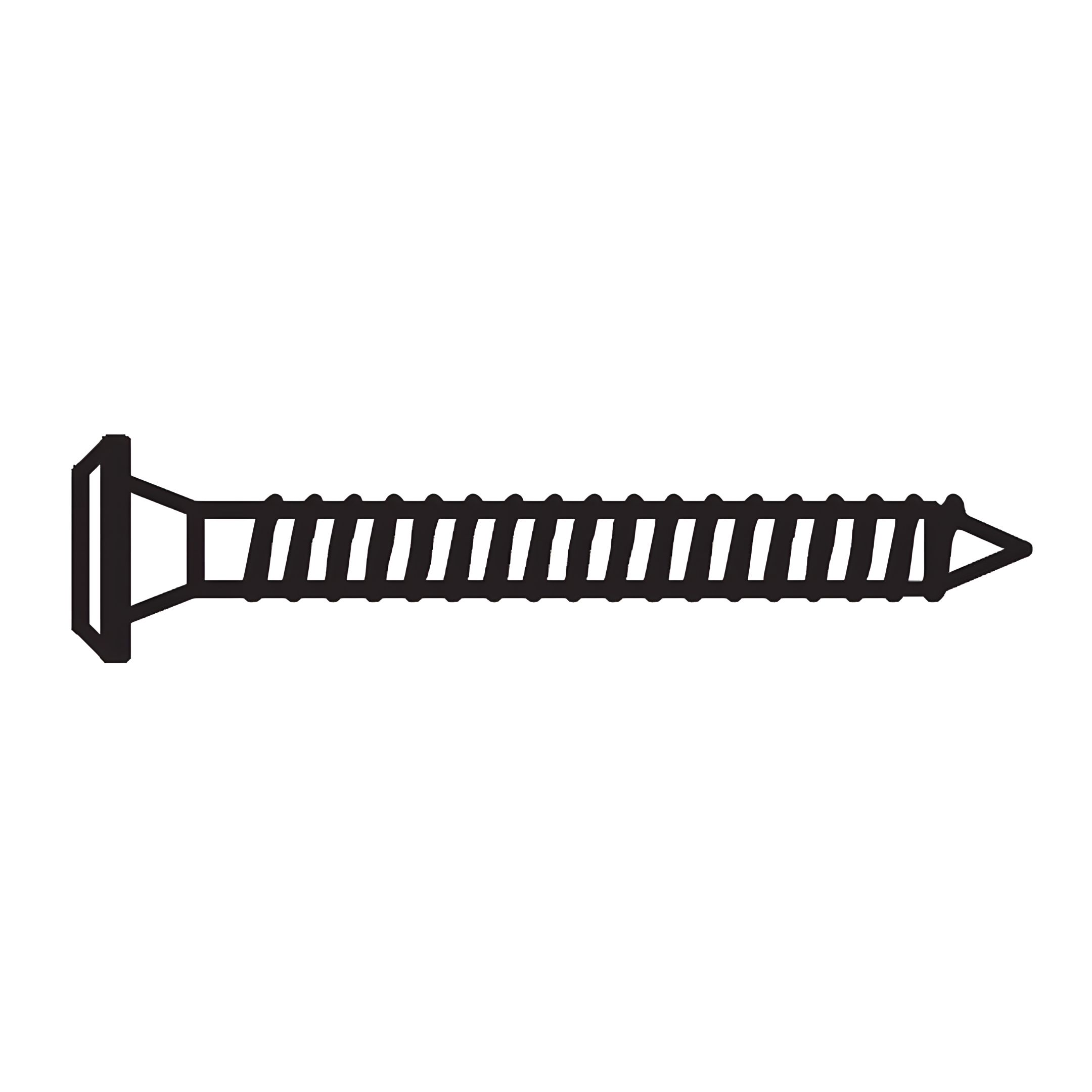

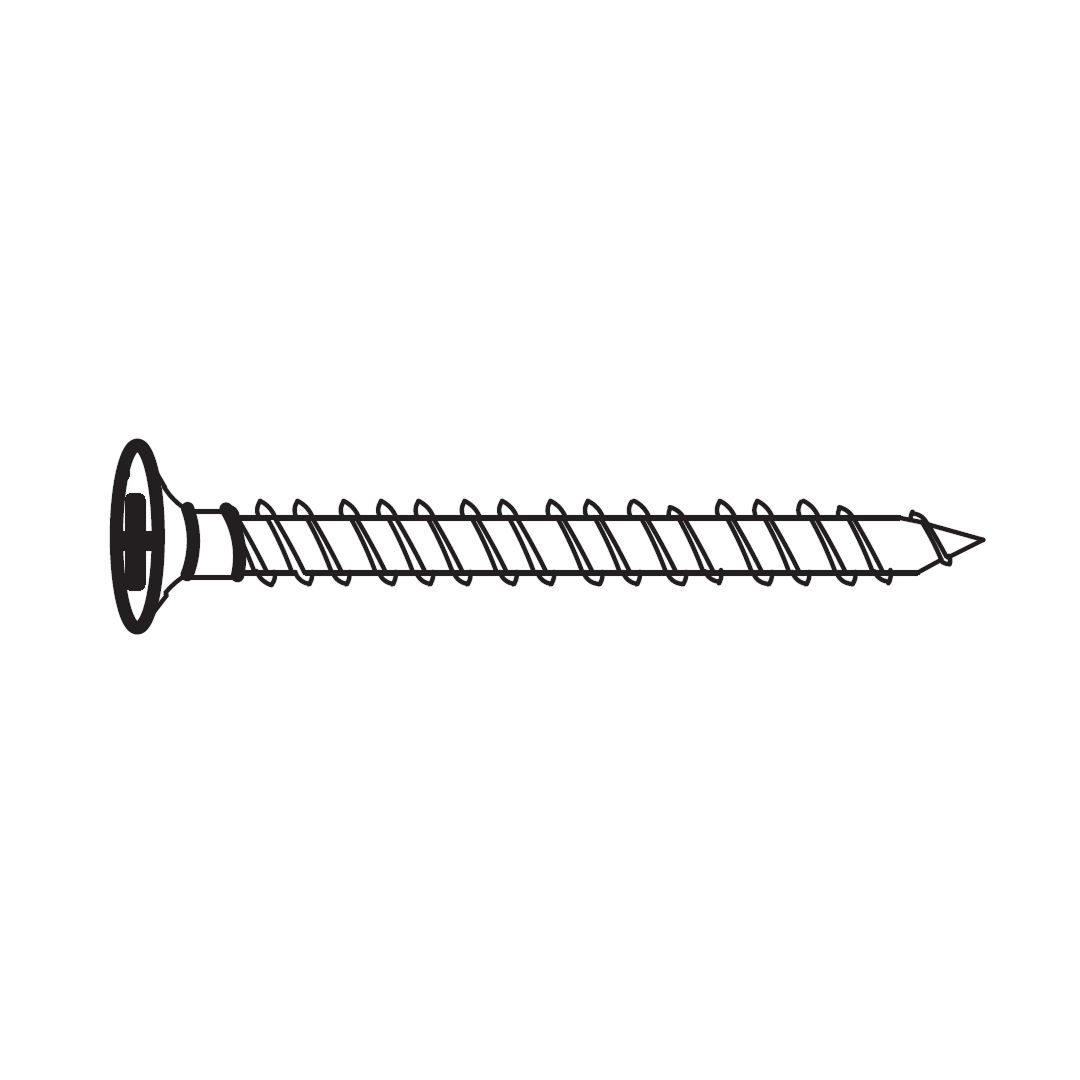

2. Secure each end slat using (5) CSK Screws (M4 x 38mm).
3. Ensure all screws are tightened securely.

1. Position the (D) Set of Slats evenly across the trundle frame.
2. Secure each slat using (1) CSK Screws.
3. Ensure all screws are tightened securely.

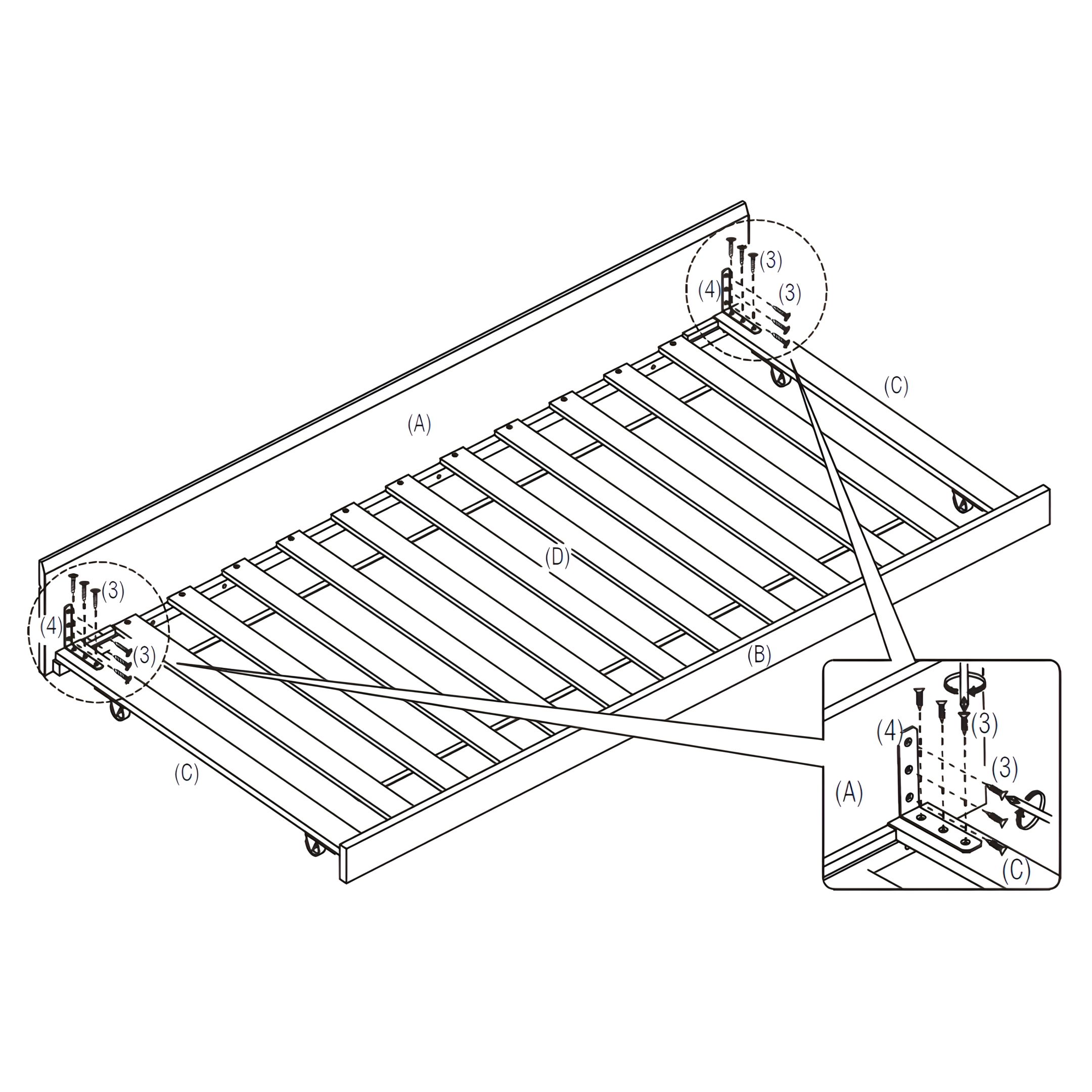

1. Position (4) L-Brackets at the inner corners where the (A) Front Panel, (B) Back Panel, and (C) End Slats meet.
2. Secure each L-Bracket using (3) CSK Screws (M3.5 x 16mm).
3. Ensure all screws are tightened securely for stability.
