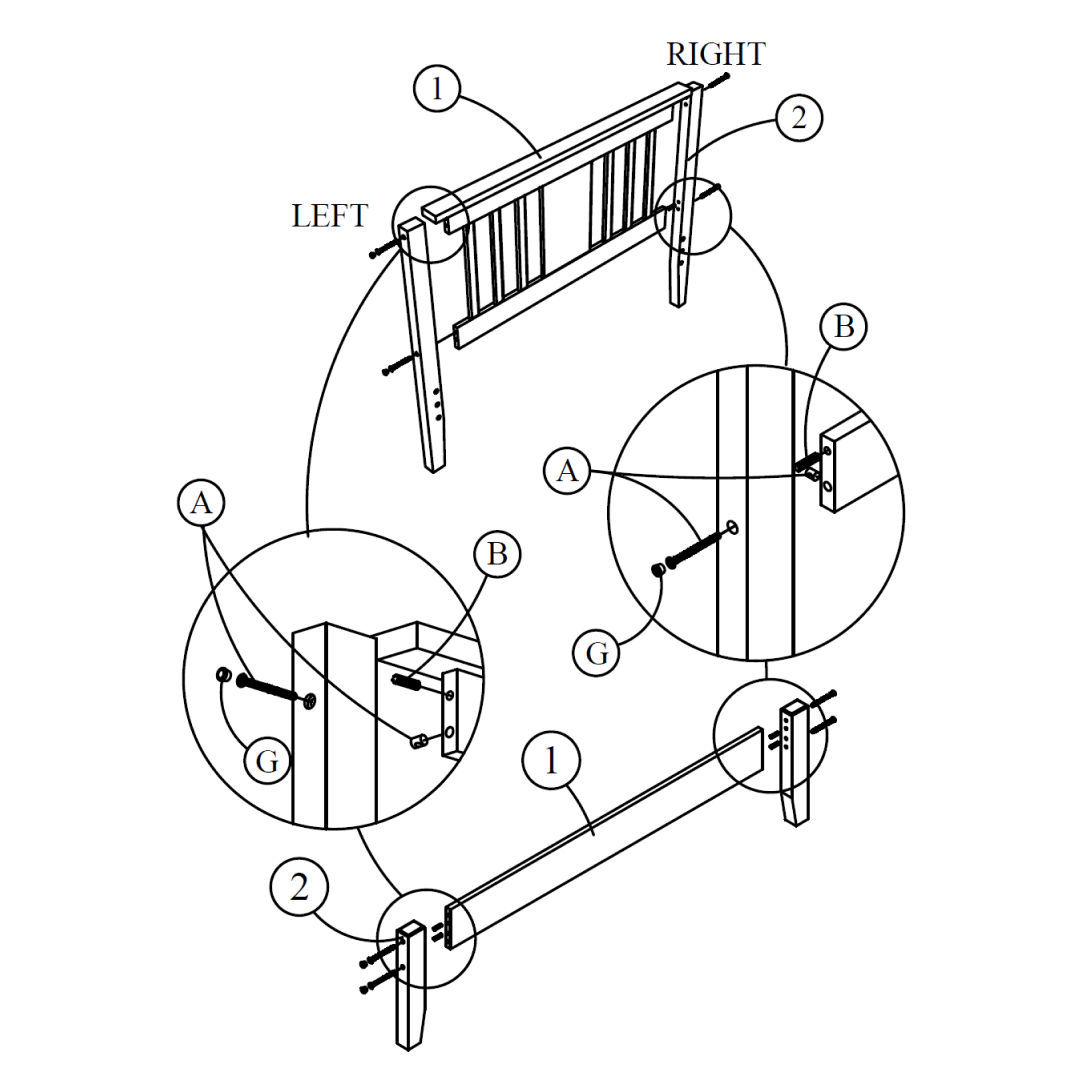

1. Attach Headboard and Footboard
Assemble the bed frame headboard and footboard component as shown and tighten all bolt.
Instructions by
time4sleep
Malmo Solo Wooden Bed Frame
Assembly instructions for Malmo Solo Wooden Bed Frame by Time4Sleep
Product Information
Malmo Solo Wooden Bed Frame
Perfect for both children and adults a like, the Malmo Oak bed is a versatile design that will work well in a range of different interiors. We believe that this bed is simply one of the best, value for money, bed frames on the market and we have added this new additional colour to the range.
The Malmo Oak bed is manufactured from rubber wood which has many of the properties of hardwood and is finished with an Oak stain.
- SKU
- malmooaksolo-1, malmowhitesolo-1

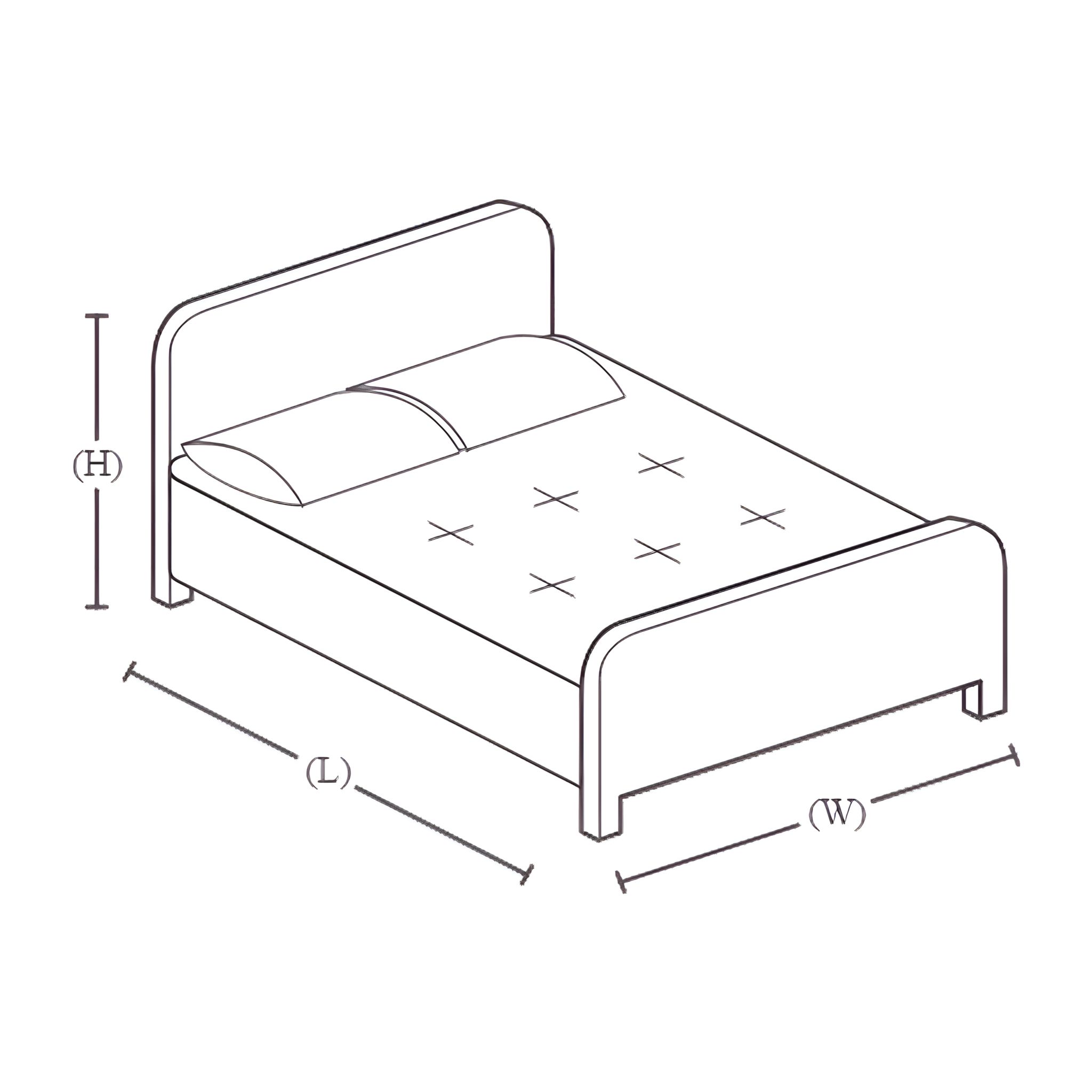

| Width | 101 cm |
| Length | 200 cm |
| Head End Height | 105 cm |
| Foot End Height | 37 cm |

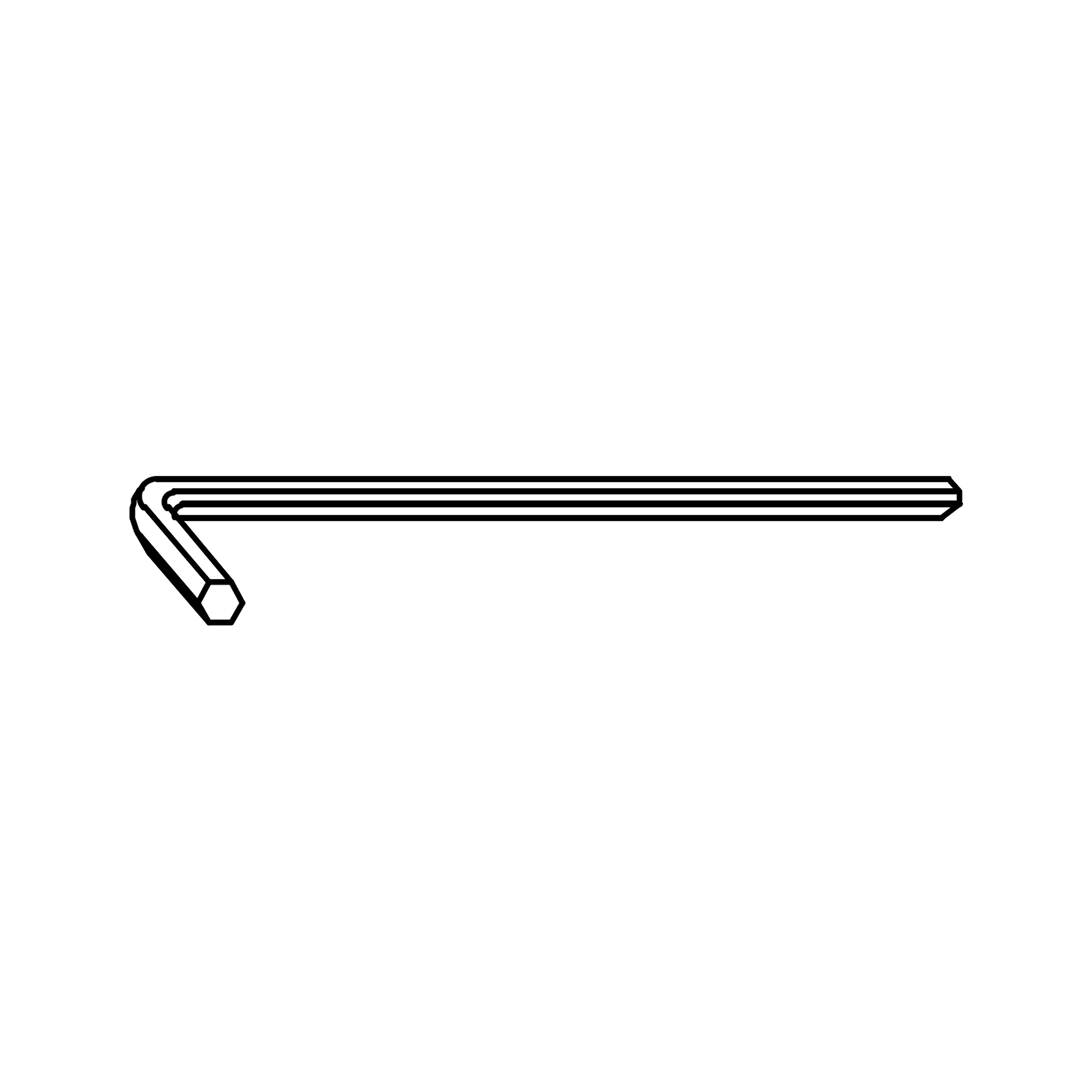

Tools
Materials
-
-

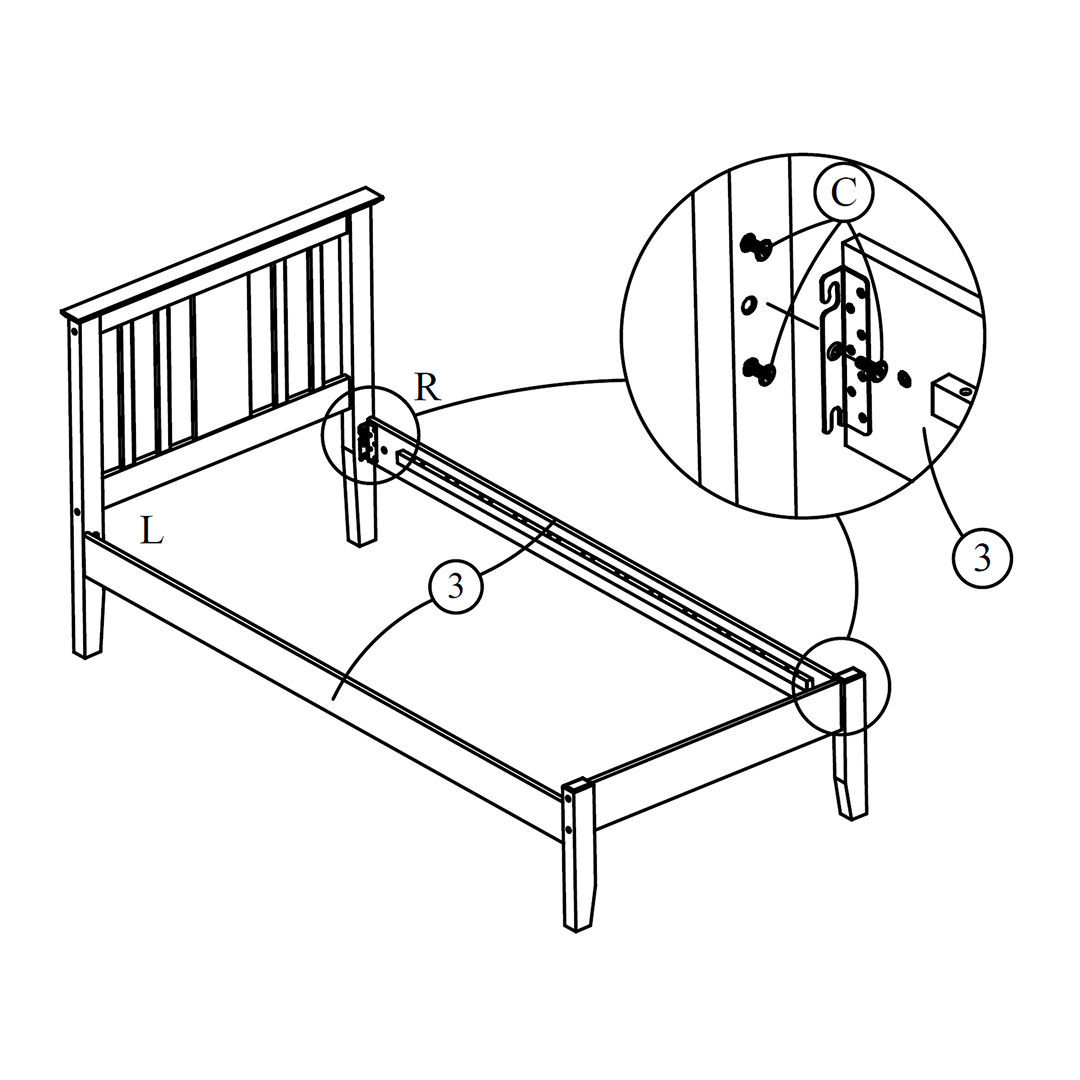

2. Attach Side Rails

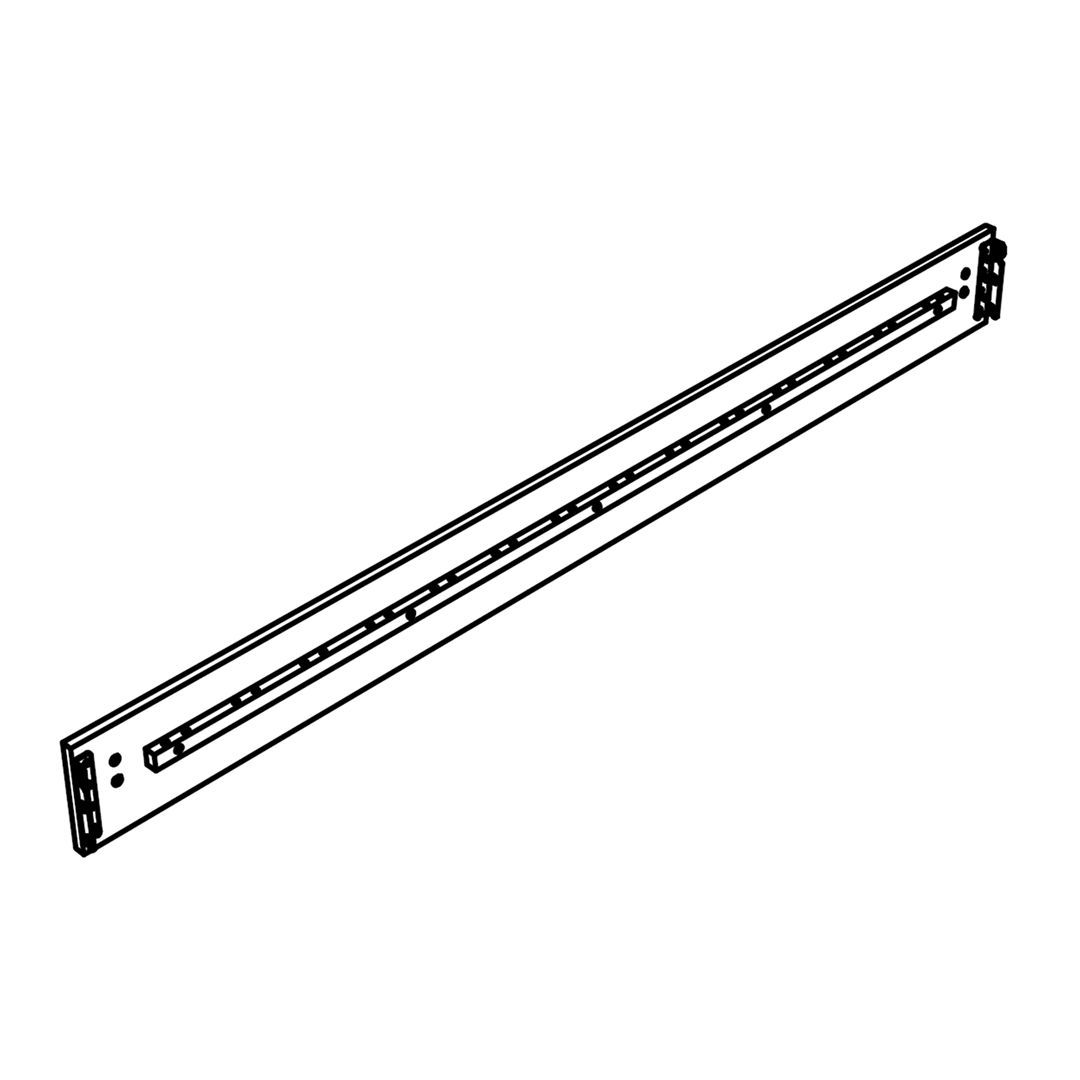

Hook the side rail L & R to bolt as shown and don't tighten the bolt yet.
-

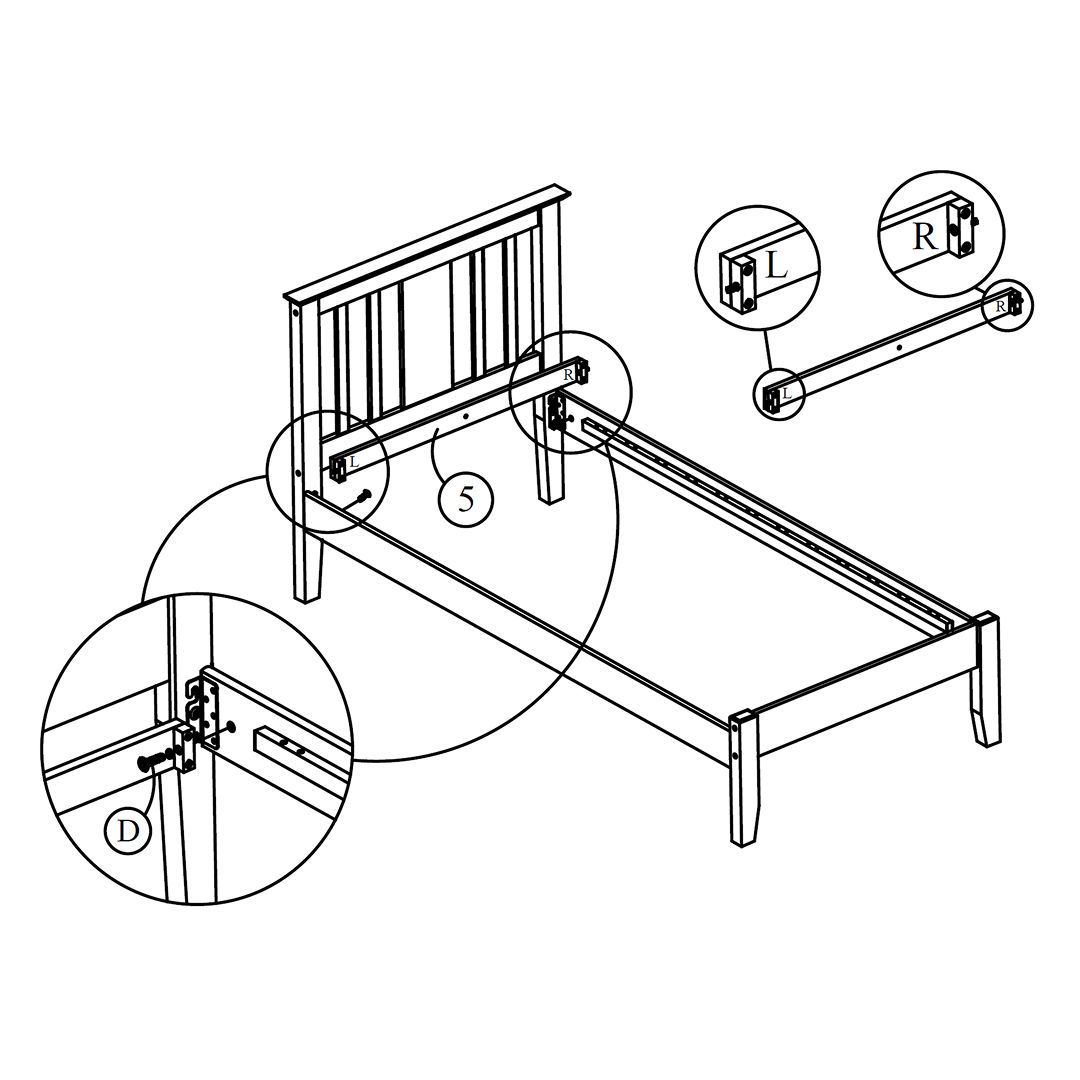

3. Install Cross Bar
Put in cross bars '5' and fix in bolt 'D' as shown in diagram and tighten all bolts.
-

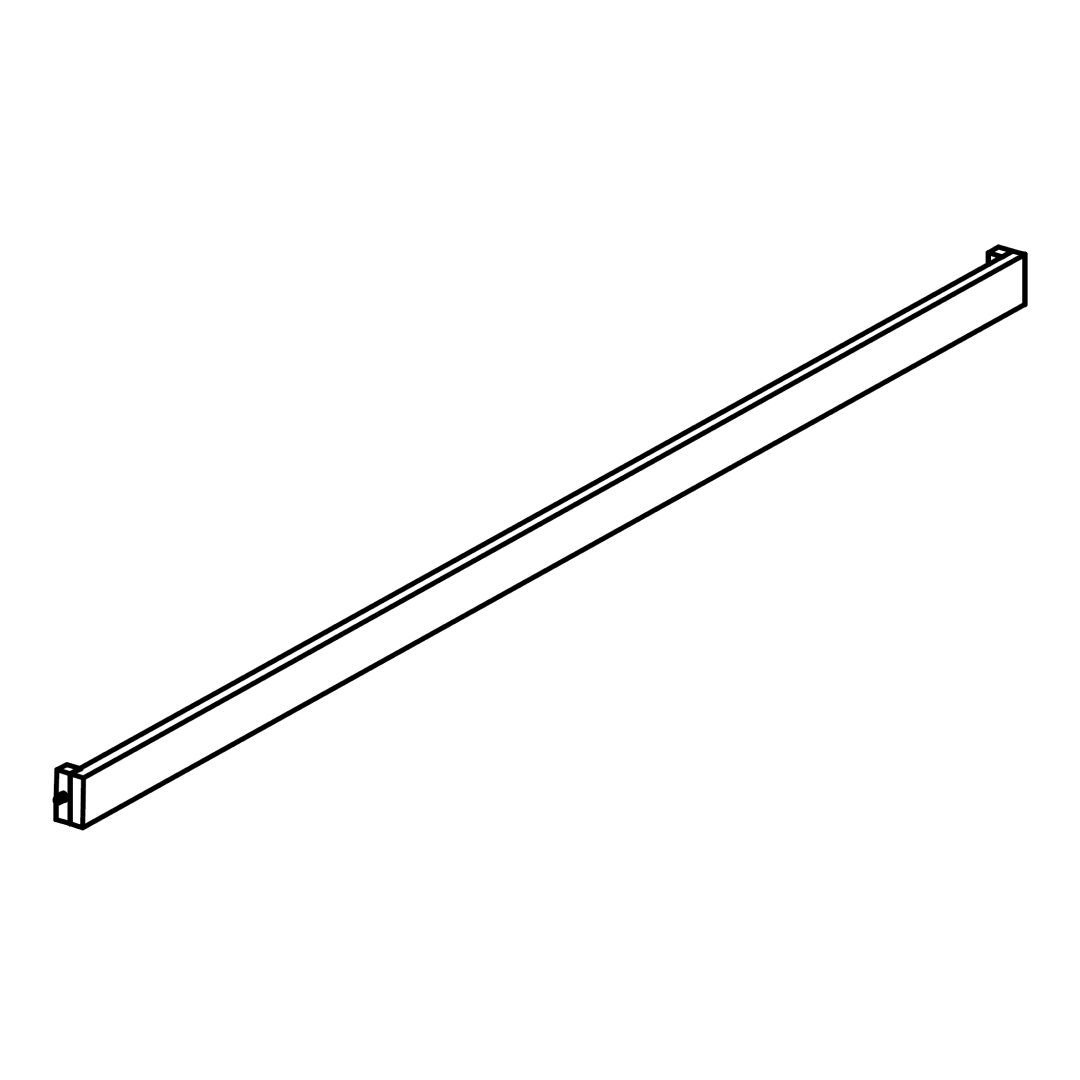

4. Attach Centre Bar

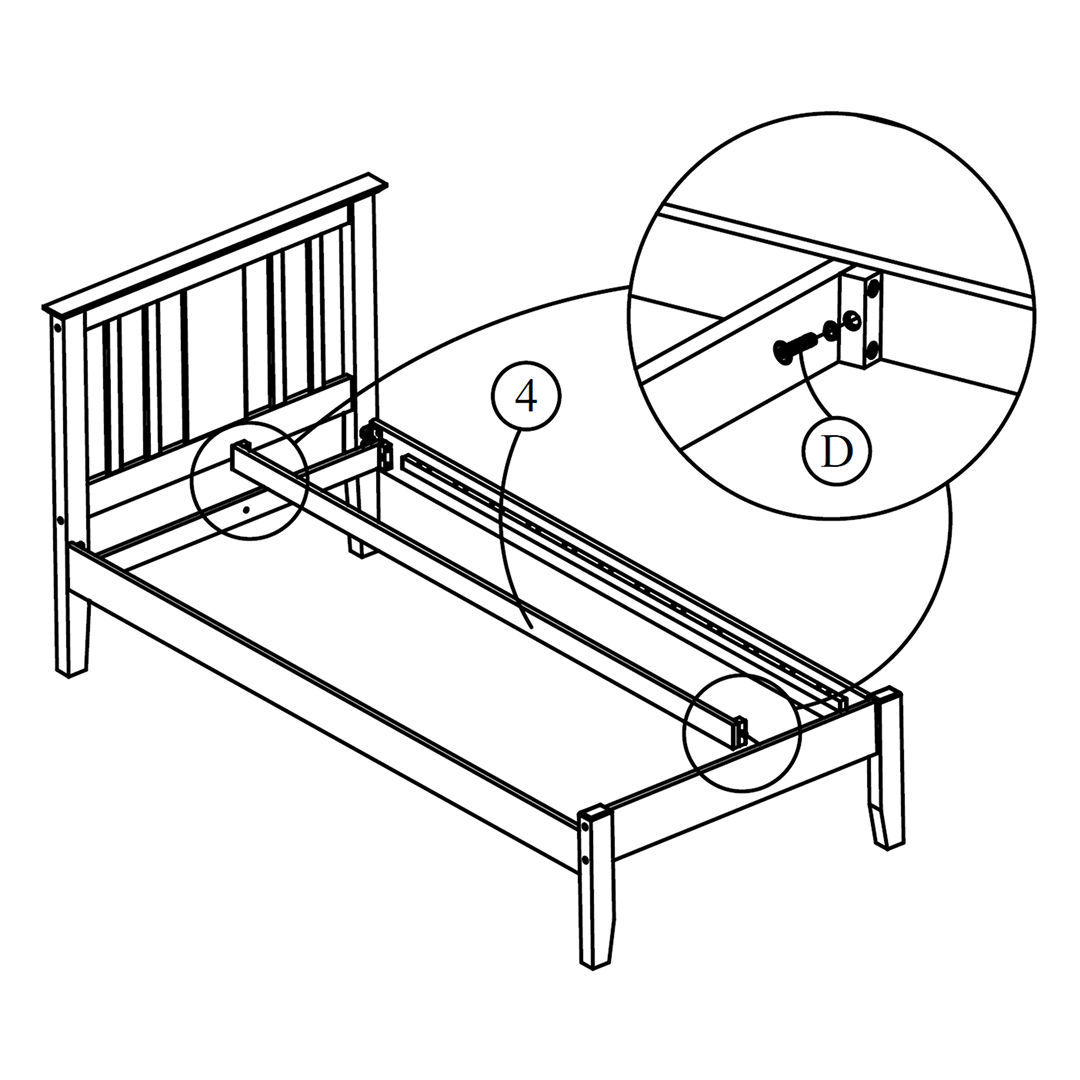

Fix center bar '4' to cross bar '5' by follow like diagram as shown.
-

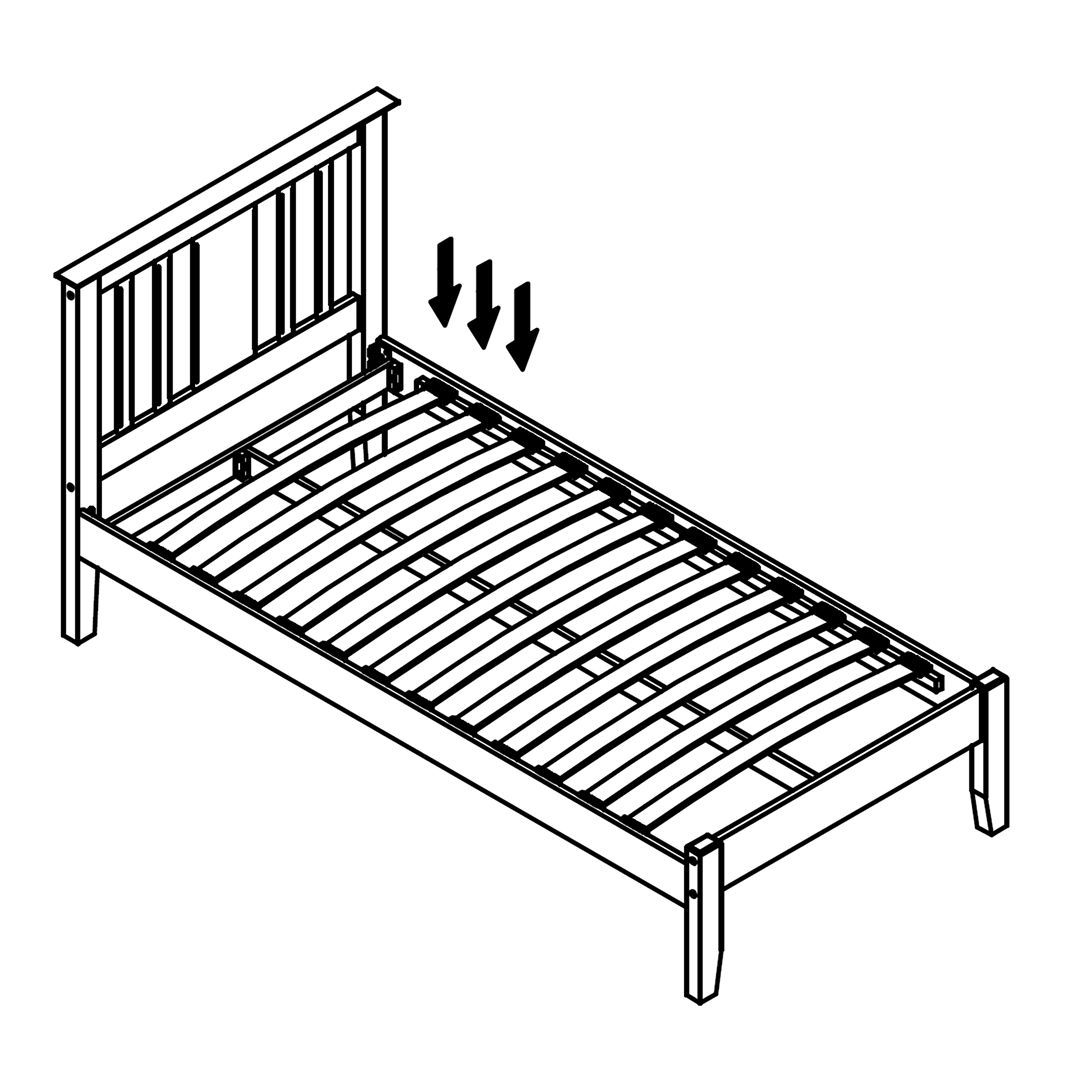

5. Install the Slats

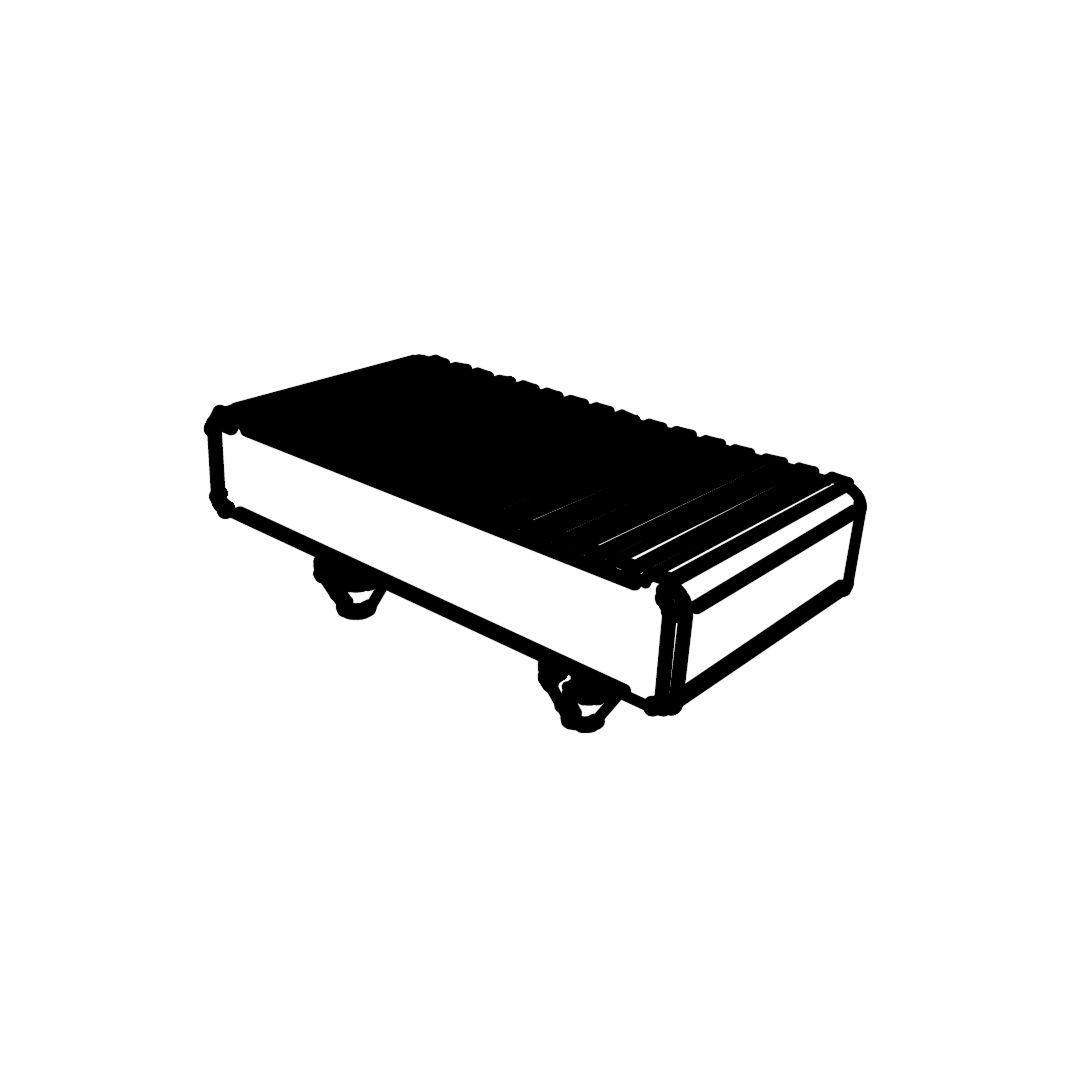

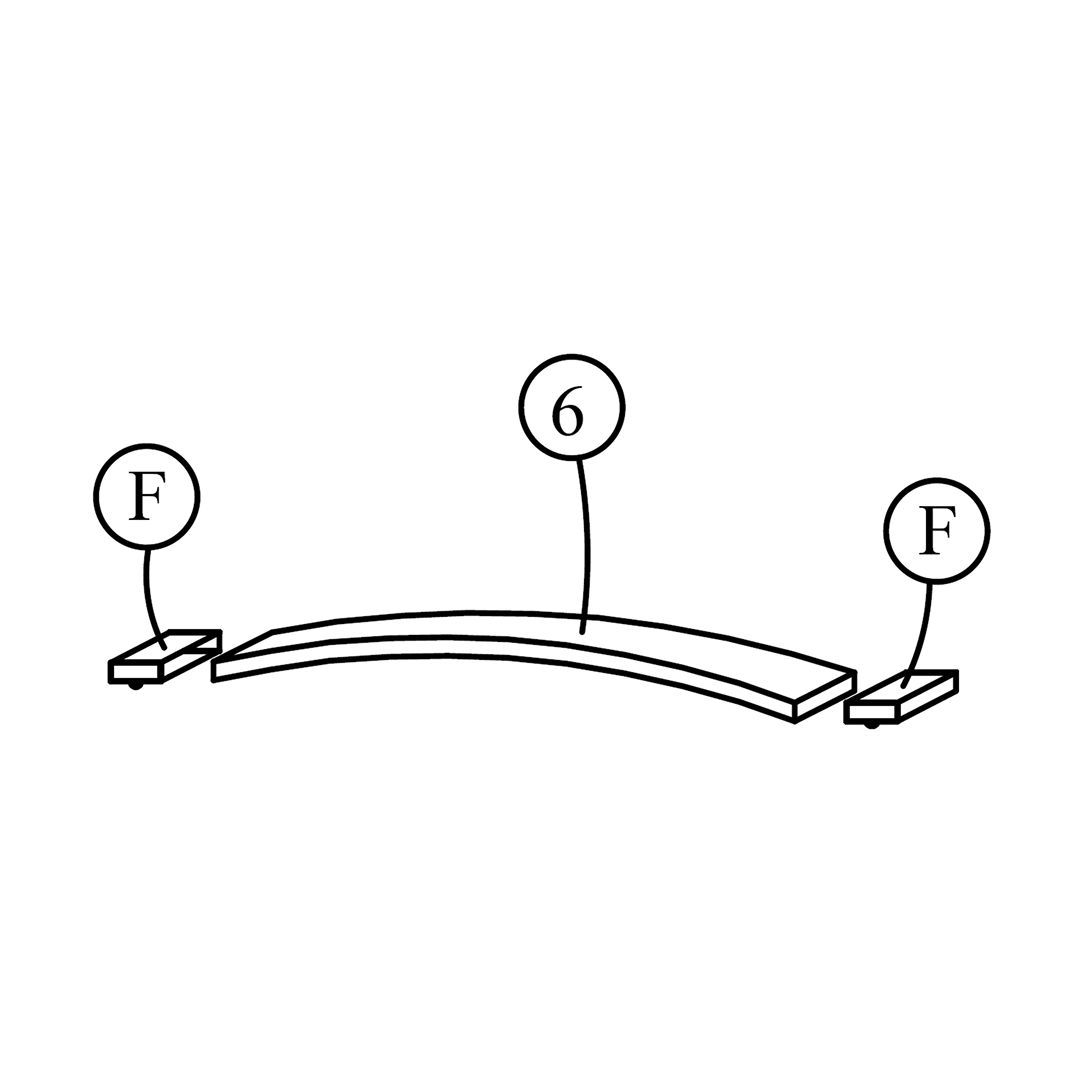

Each wood slat must be inserted with a single end plastic cap and a double end plastic cap as shown on the picture.
-
6. Attach Center Support

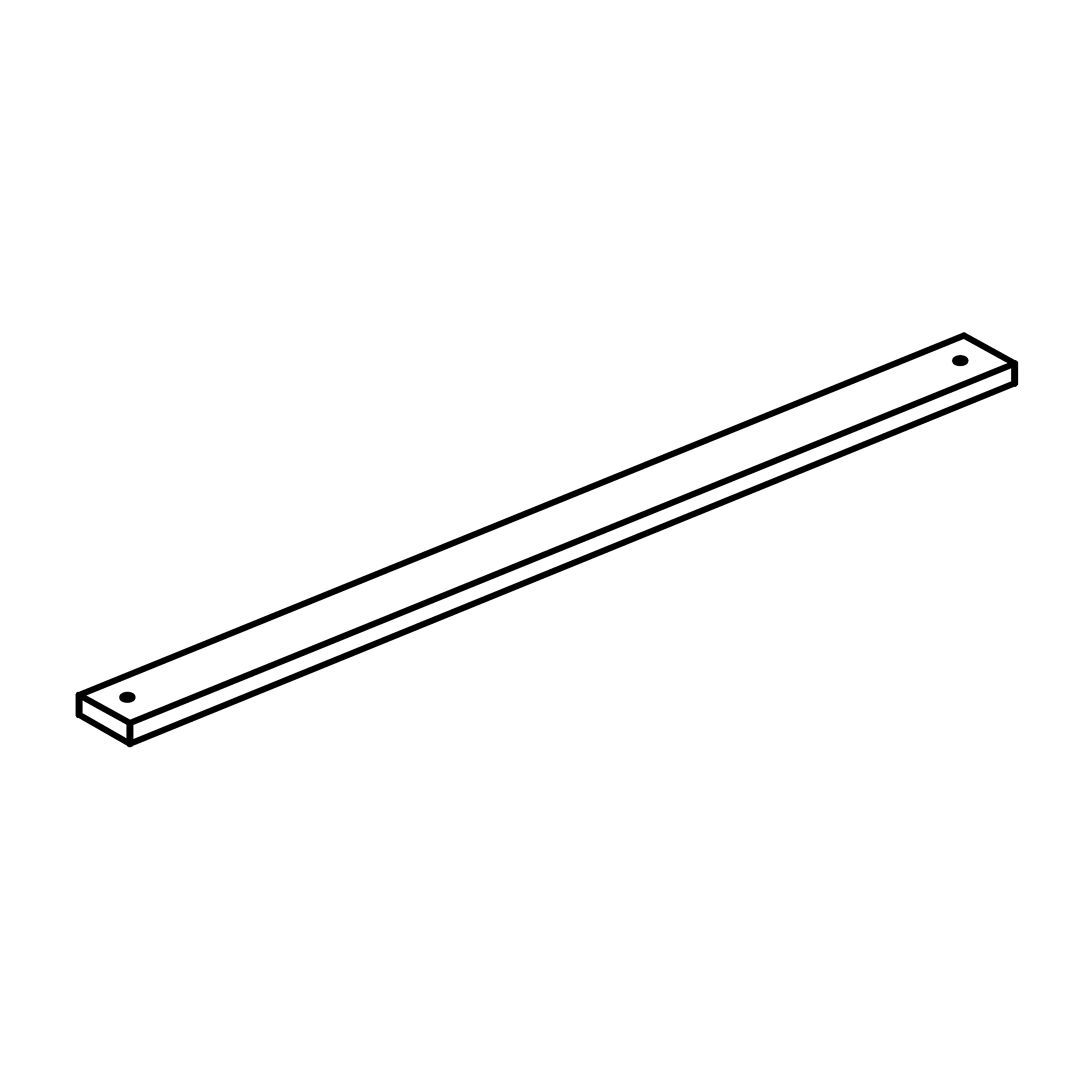

Fix in Center Slat Support '7' at the top of the support bar followed by the arrow sticker with bolt 'E' as shown.
