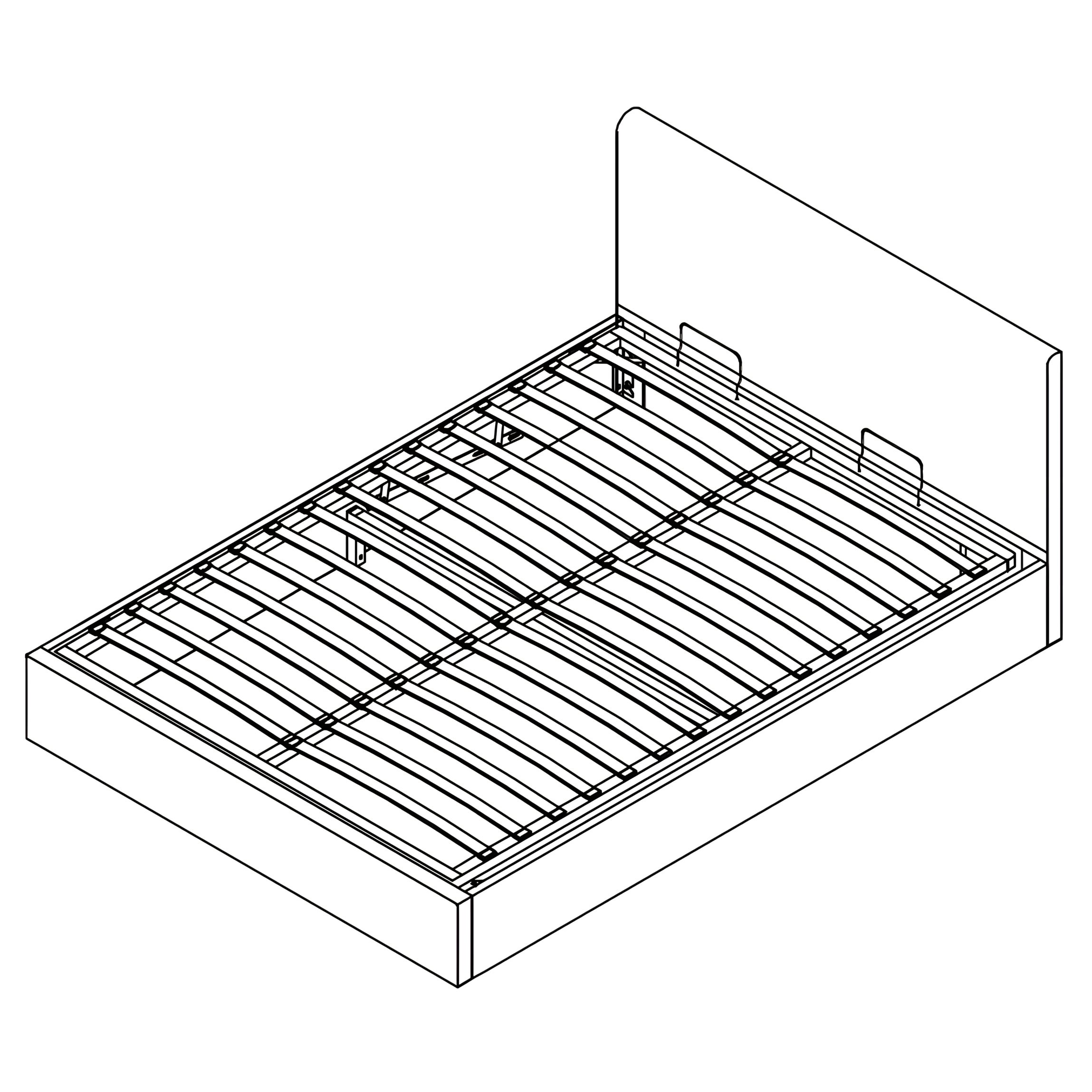

Upholstered Ottoman Bed Frame

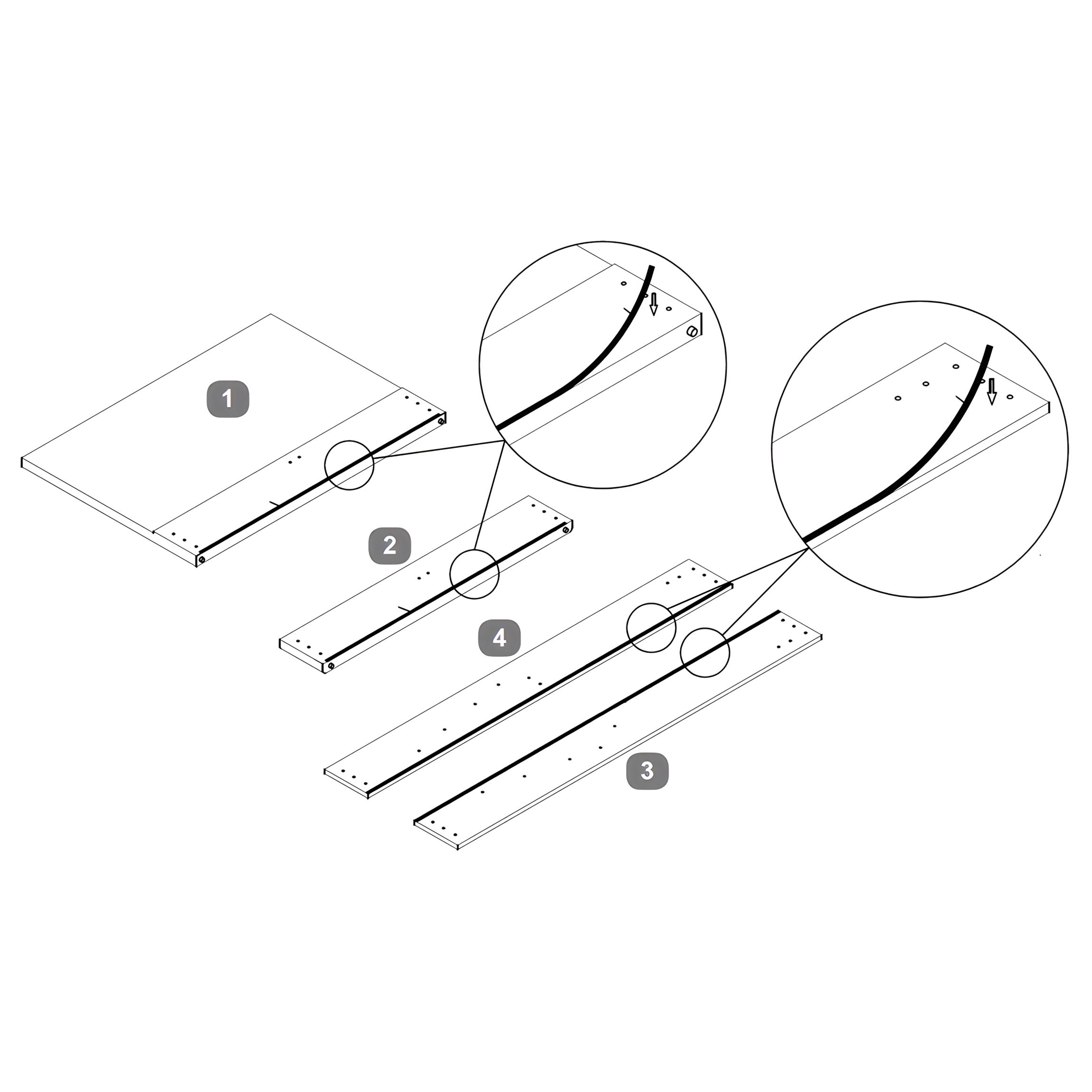

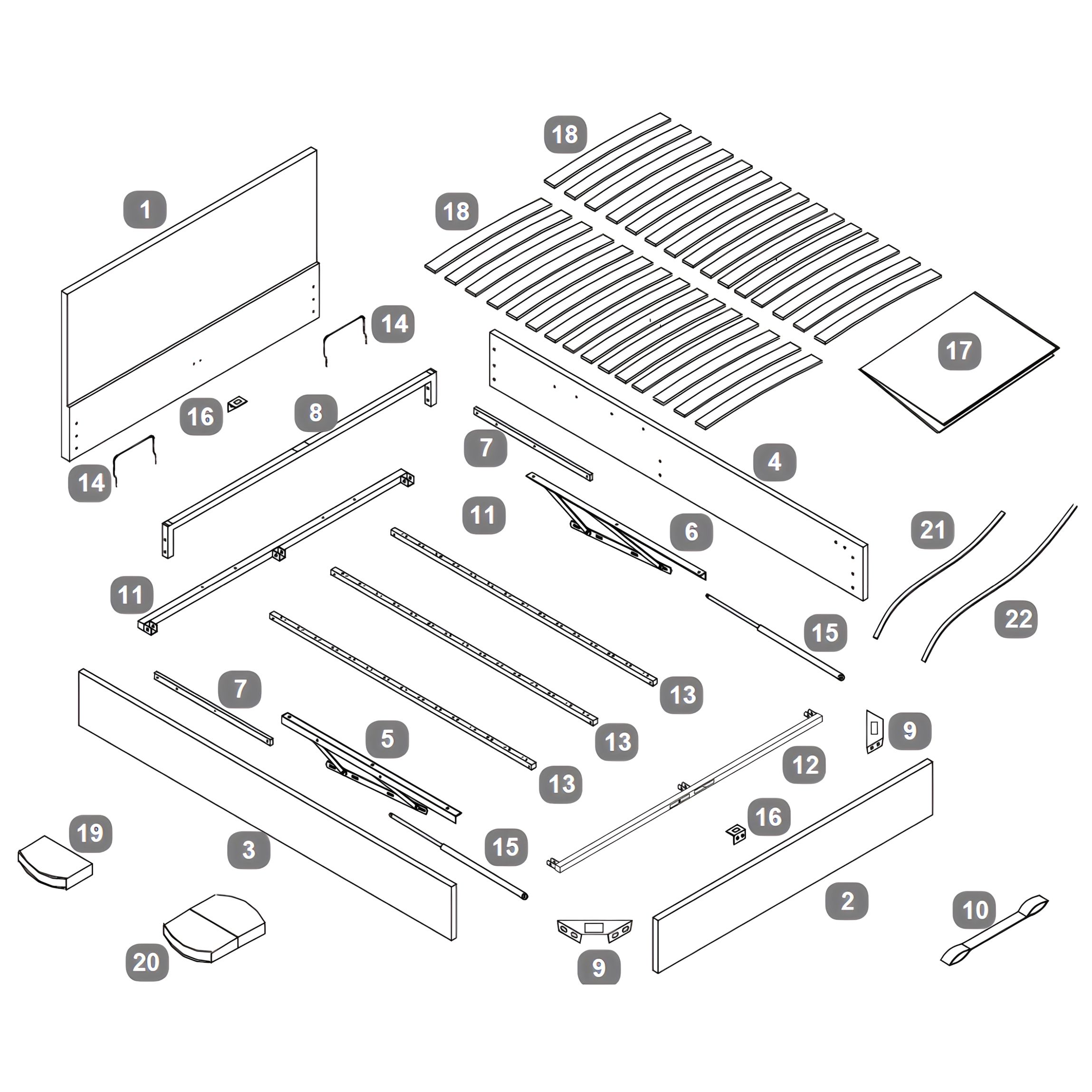

1. Identify the Headboard (1), Footboard (2), Side Rail – LH (3), and Side Rail – RH (4).
2. Fit the Shorter Velcro with Glue (21) to the inner faces of the Headboard (1) and Footboard (2).
3. Fit the Longer Velcro with Glue (22) to the inner faces of the Side Rail – LH (3) and Side Rail – RH (4).
4. Press each strip down firmly to ensure the glued backing adheres securely to the surface.

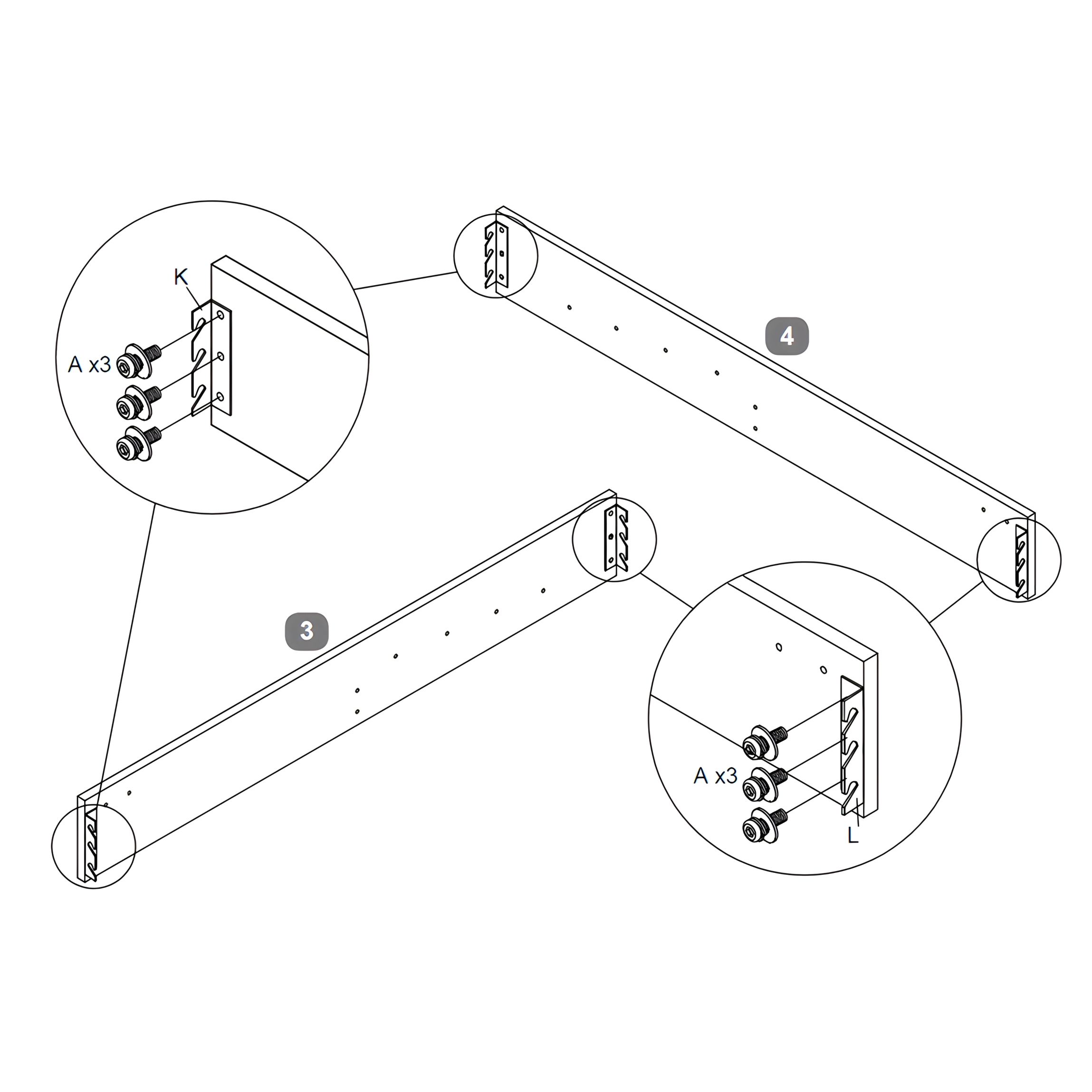

1. Position the Side Rail – LH (3) and Side Rail – RH (4) with the bracket mounting holes facing outward.

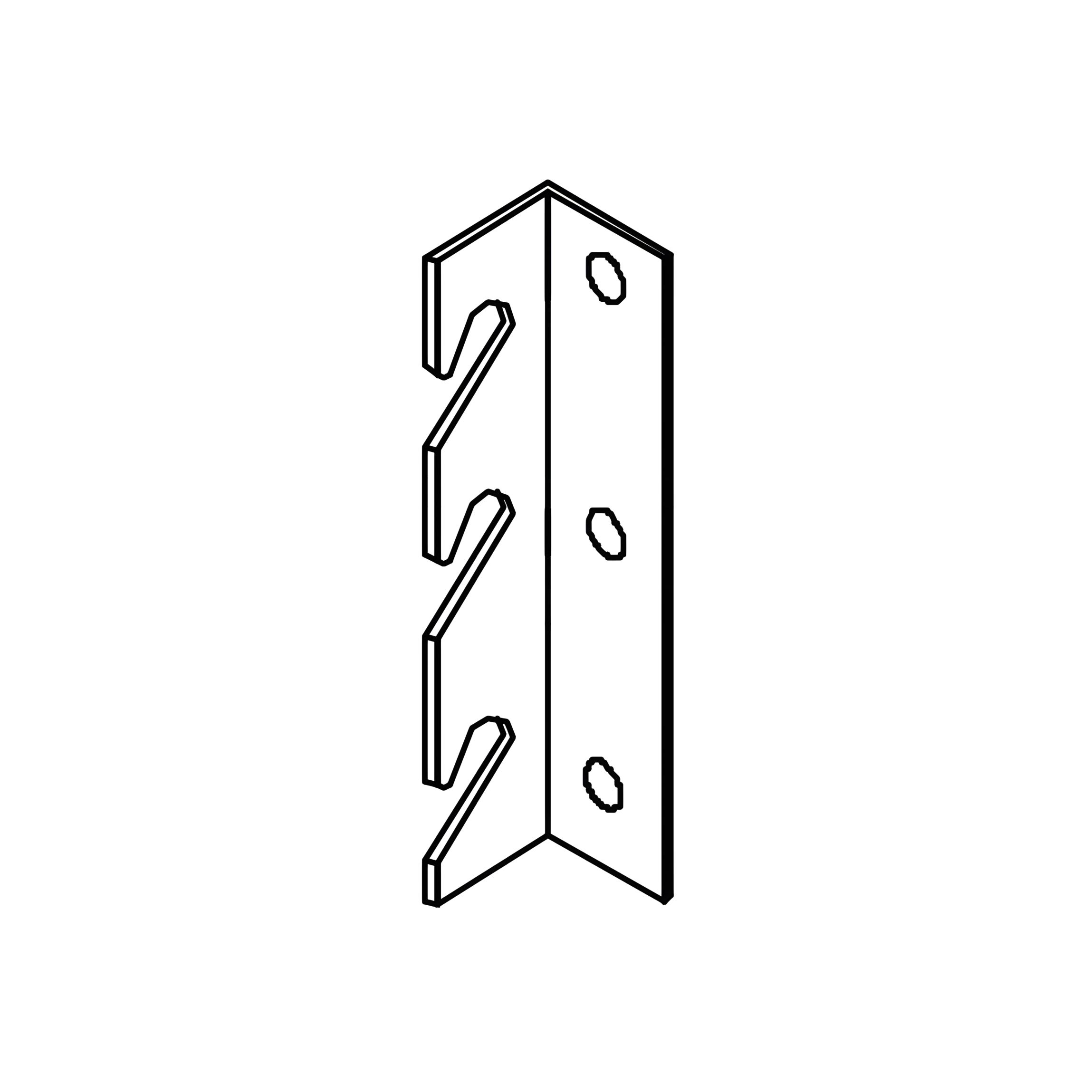

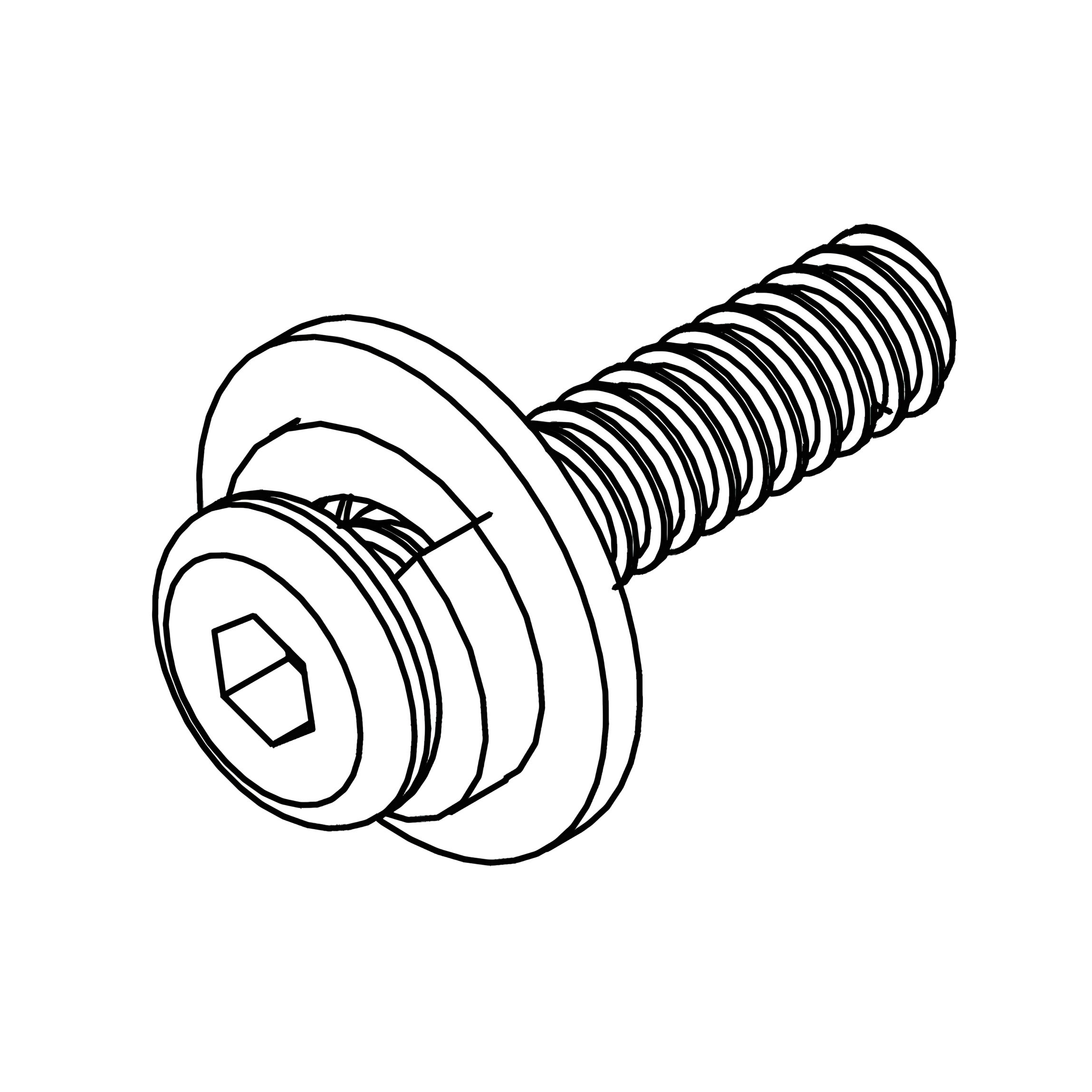

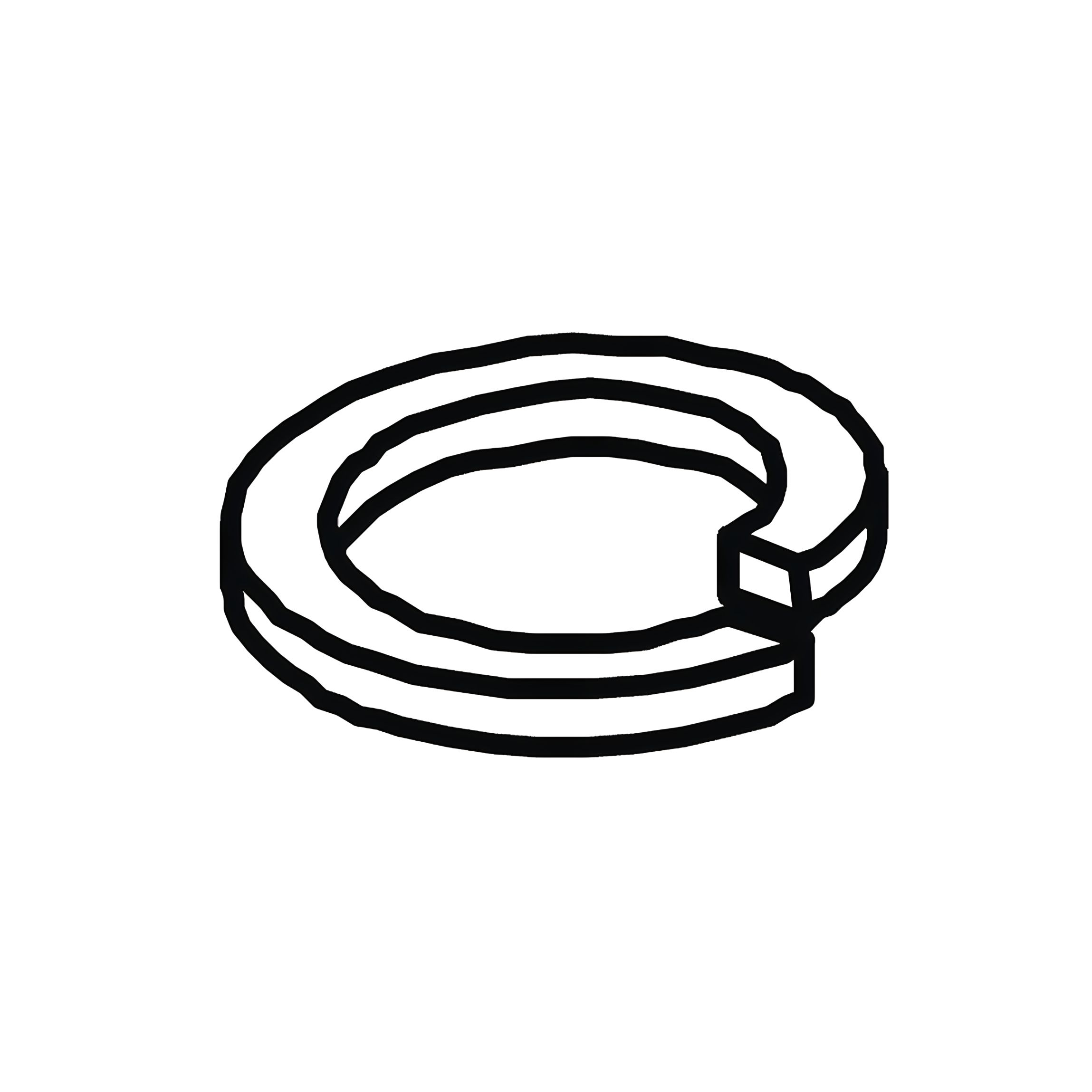

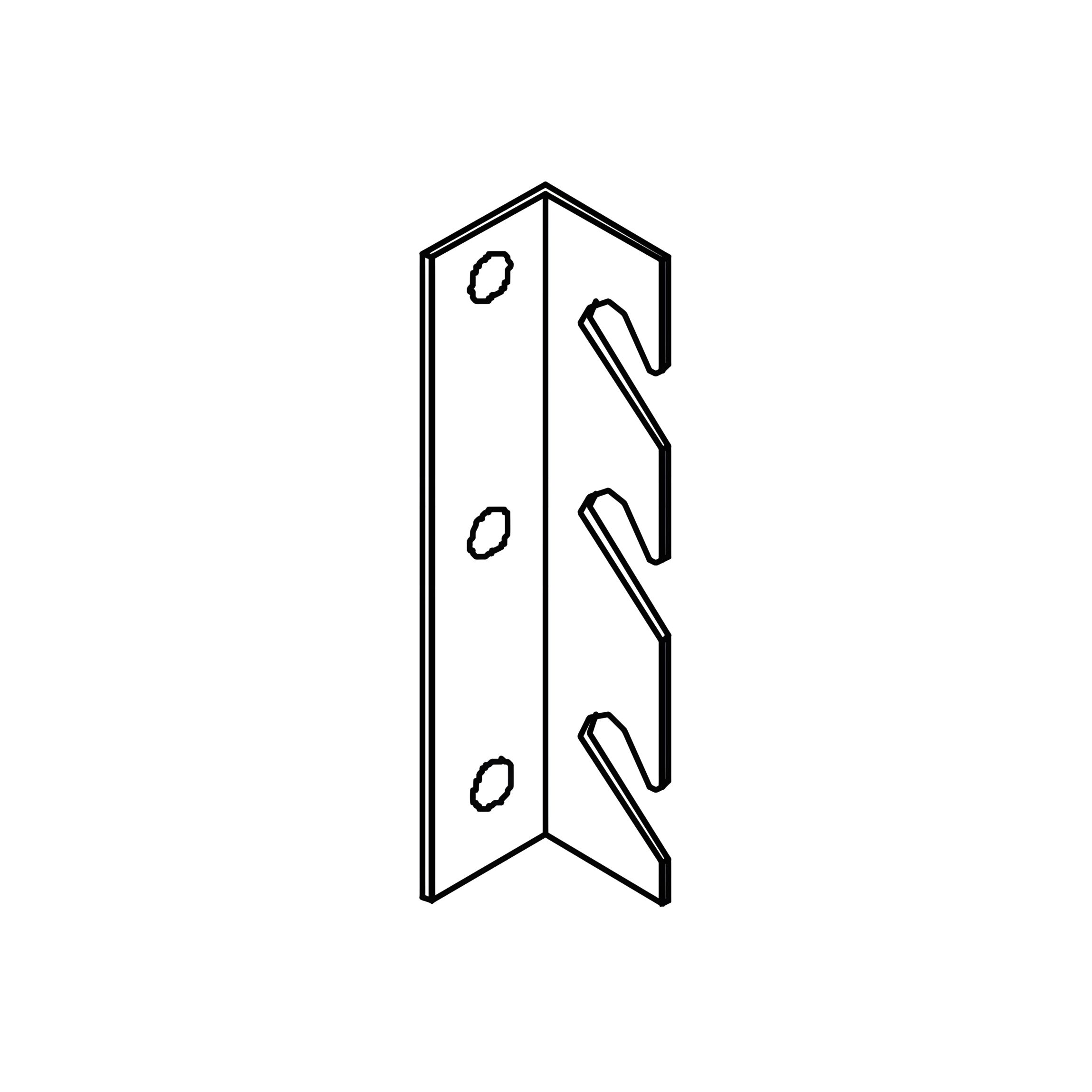

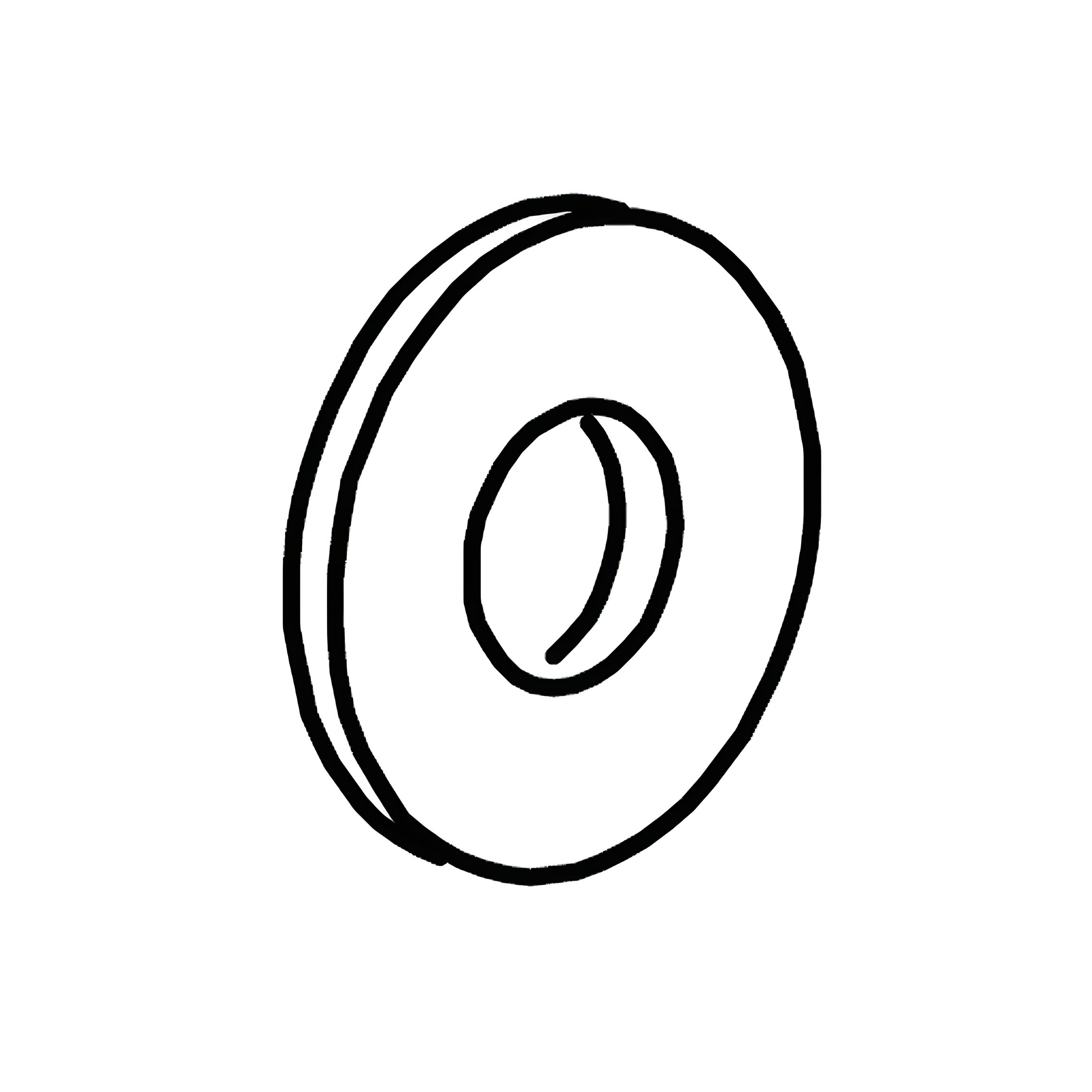

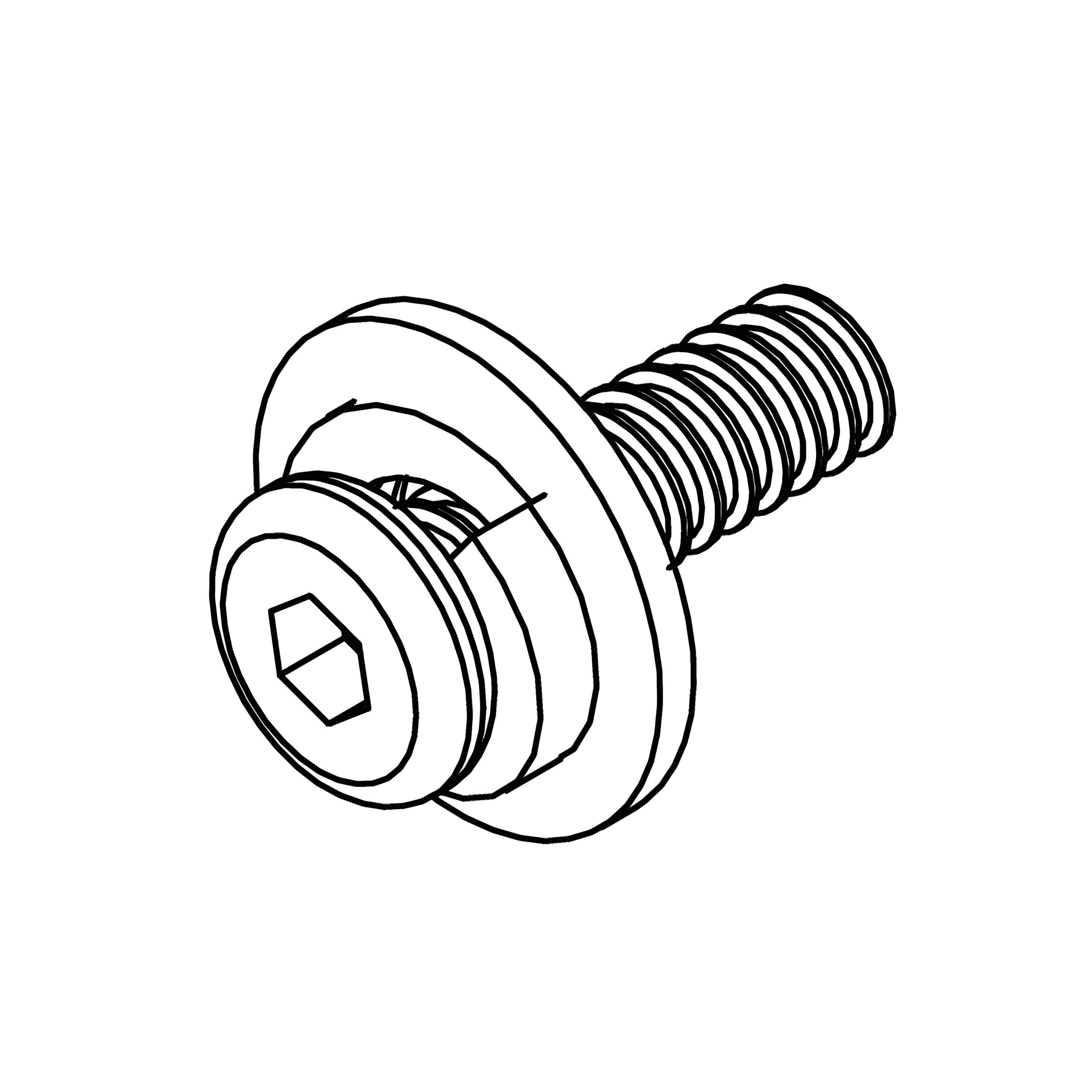

2. Attach one Angle Bracket – LH (K) to each end of Side Rail – LH (3) using 3 × Bolt (A), each with a Flat Washer (G) and a Spring Washer (H).
3. Repeat the process for Side Rail – RH (4), using 3 × Bolt (A) per bracket and securing each Angle Bracket – RH (L).

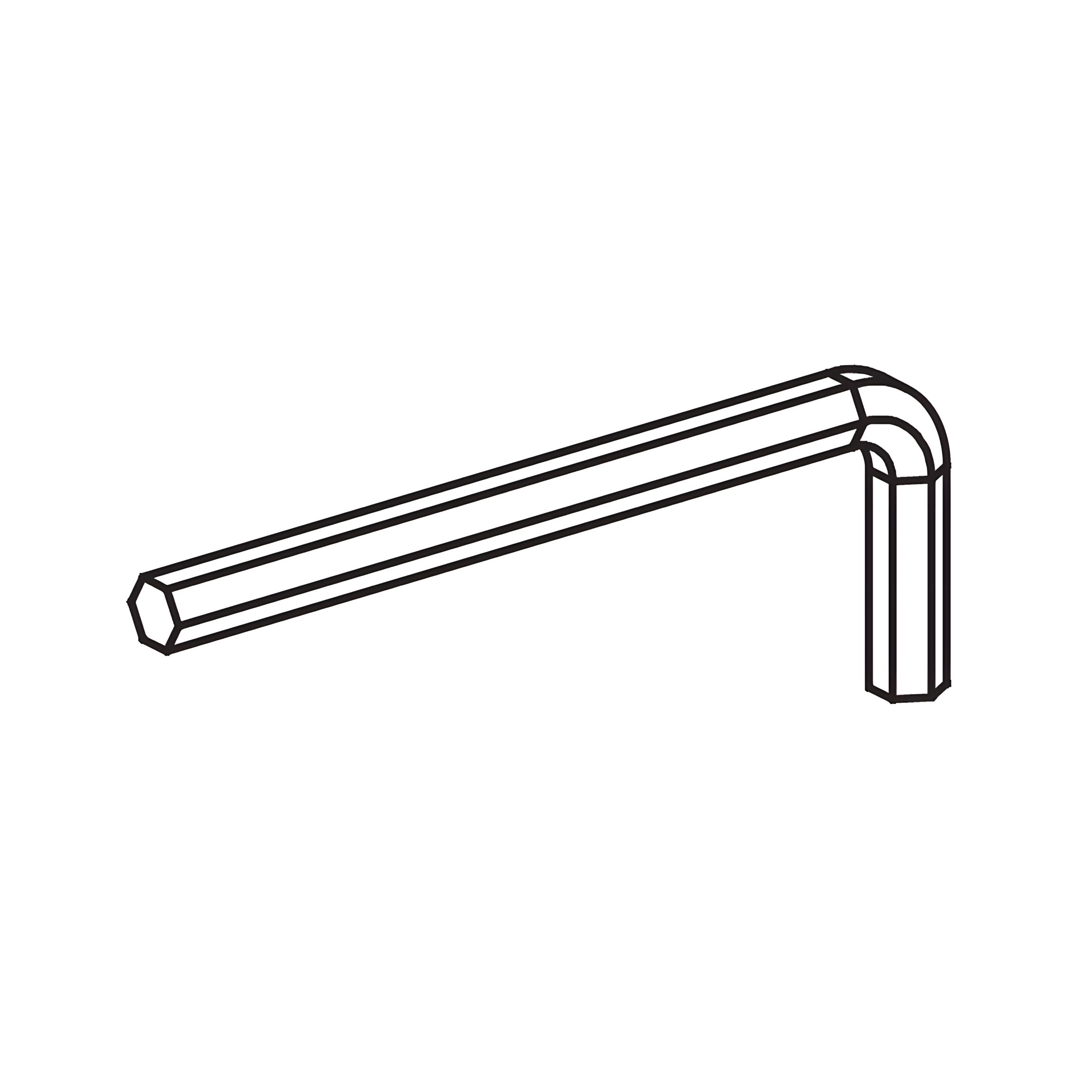

4. Tighten all bolts using the Allen Key (M) until the brackets are firmly secured.

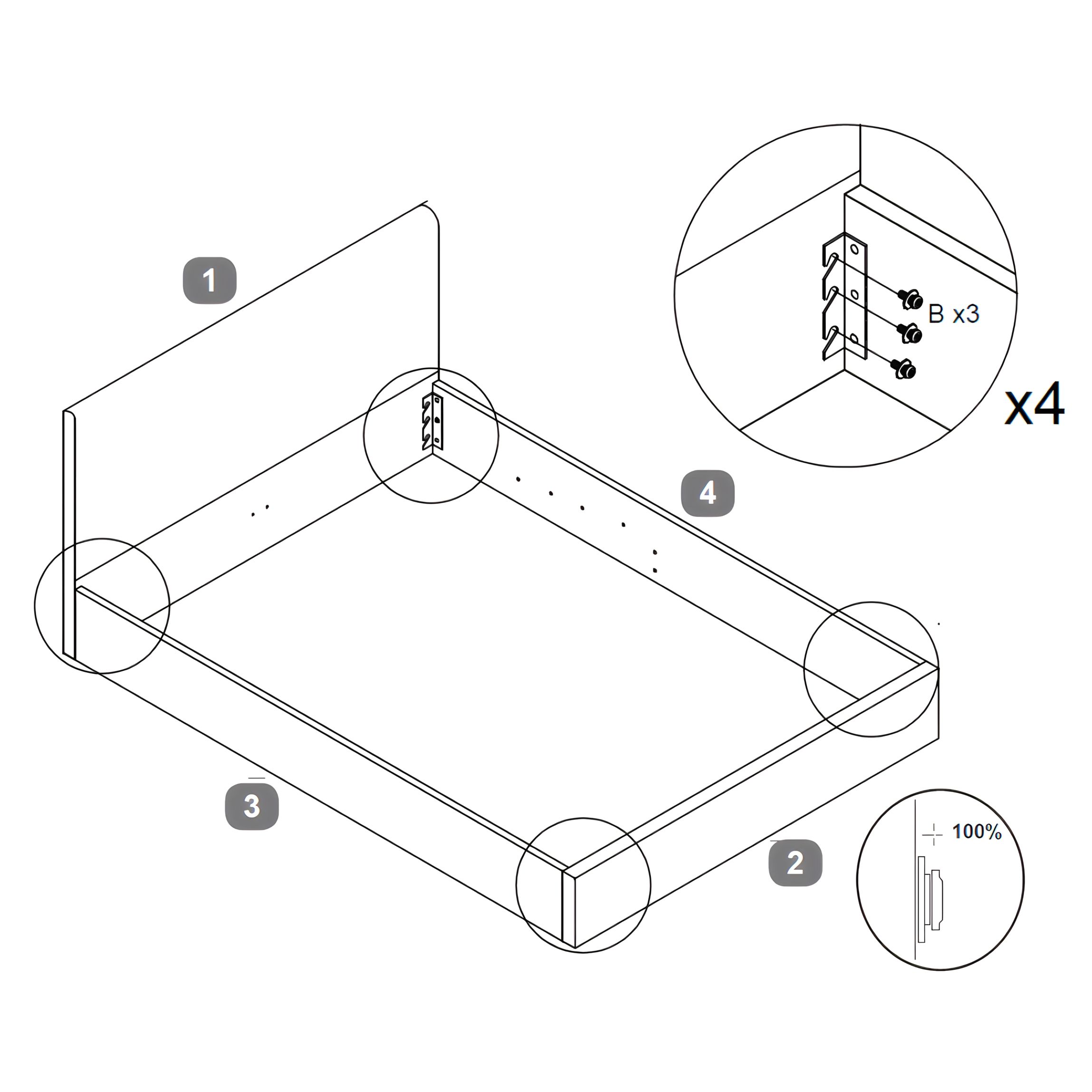

1. Align the Side Rails – LH (3) and RH (4) with the Headboard (1) and Footboard (2).
2. Secure each corner using 3 × Bolt (B) through the mounted Angle Brackets (K & L) into the Headboard and Footboard.

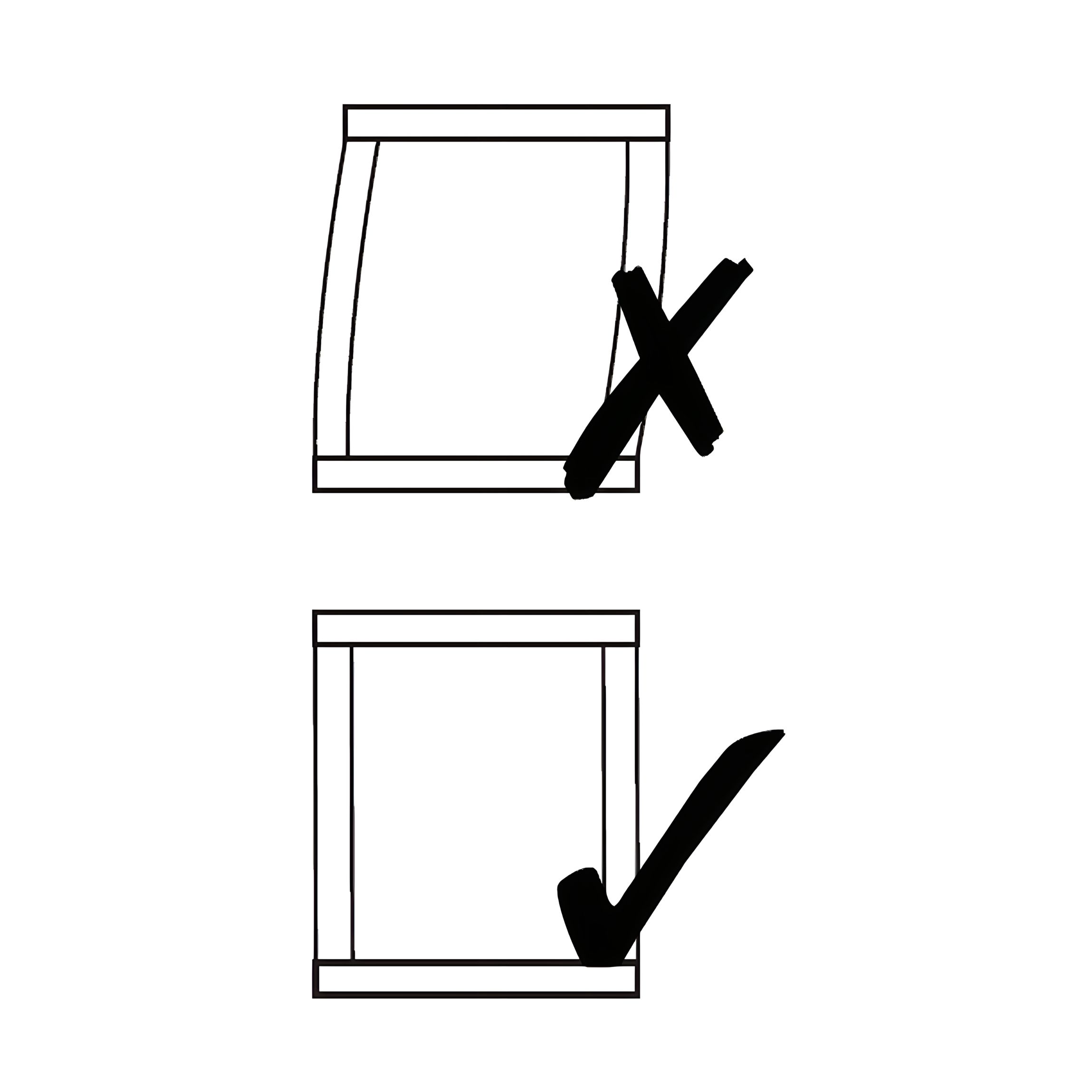

3. Before tightening, ensure the frame is properly squared by checking alignment from a top-down view, as shown in the diagram.
4. Once aligned, fully tighten all bolts to 100% using the Allen Key (M).

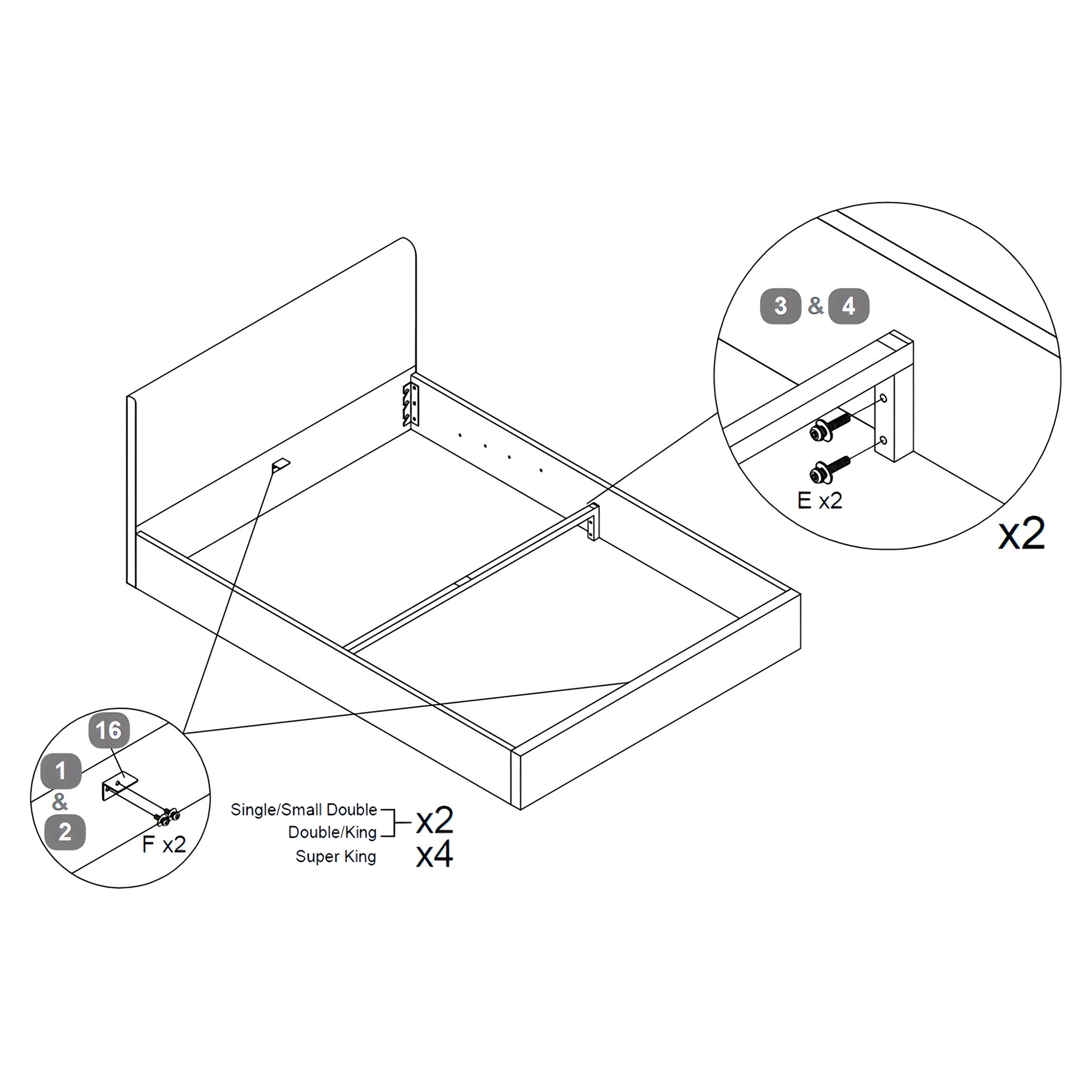

1. Insert the Cross Rail for Metal Slat Frame – HB (11) and FB (12) into the notches on the Side Rails – LH (3) and RH (4).
2. Secure each end of the cross rails using 2 × Bolt (E) per rail. Tighten with the Allen Key (N).
3. Attach the Frame Support Brackets (16) to the center underside of the Headboard (1) and Footboard (2) using Bolt (F).
4. Ensure brackets are aligned vertically for proper load support.

Number of Bolt (F) per size:

• Single / Small Double / Double / King: 4
• Super King: 8

Frame Support Brackets (16) per size:

• Single / Small Double / Double / King: 2
• Super King: 4

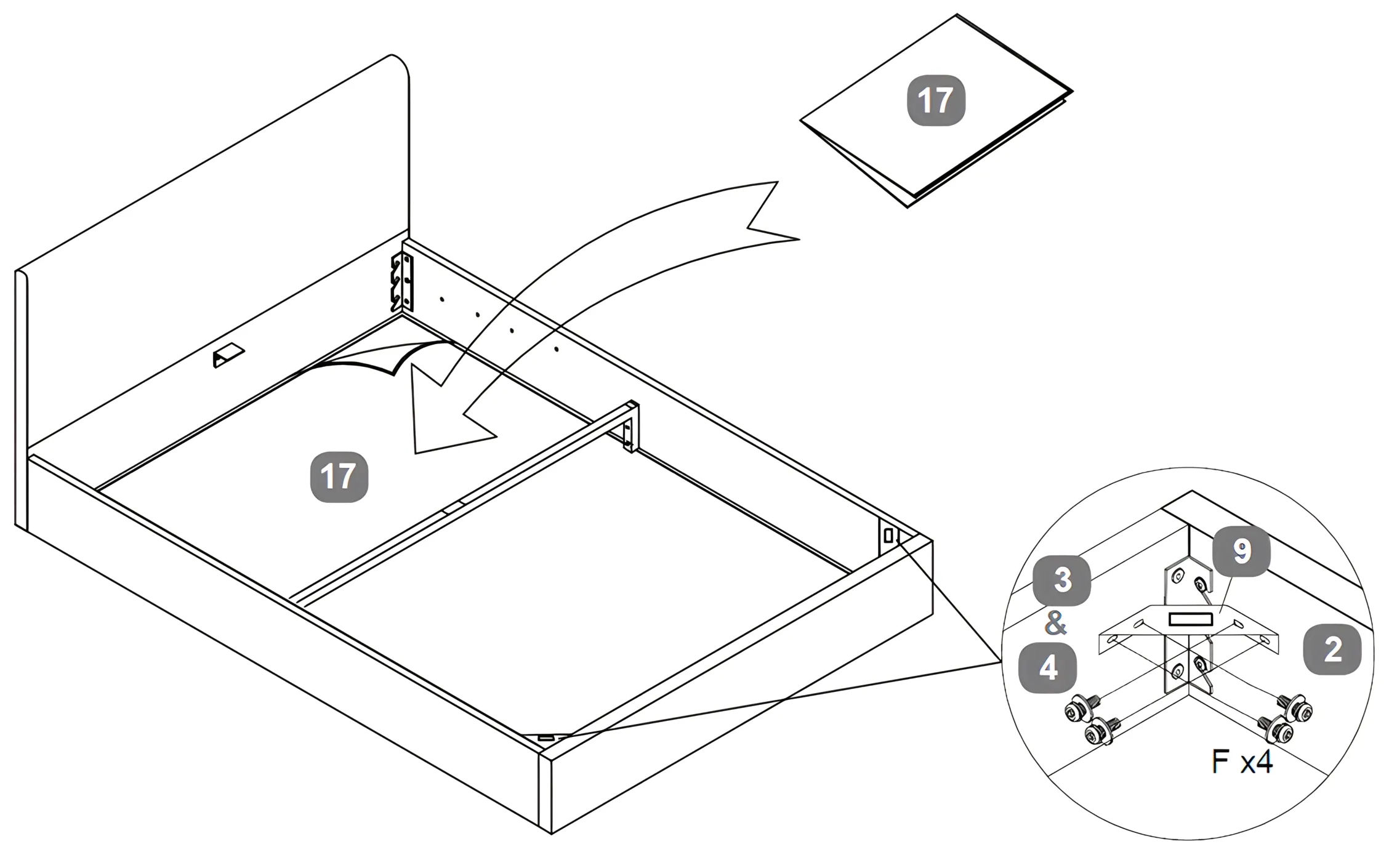

1. Secure one Angled Corner Bracket (9) to each interior corner where the Side Rails – LH (3) and RH (4) meet the Footboard (2), using 2 × Bolt (F) per bracket.
2. Tighten all bolts using the Allen Key (N) to ensure the brackets are firmly fixed.
3. Fit the Fabric Base Cover (17) evenly around the inside of the bed frame, tucking it neatly against the inner edges of the sides.

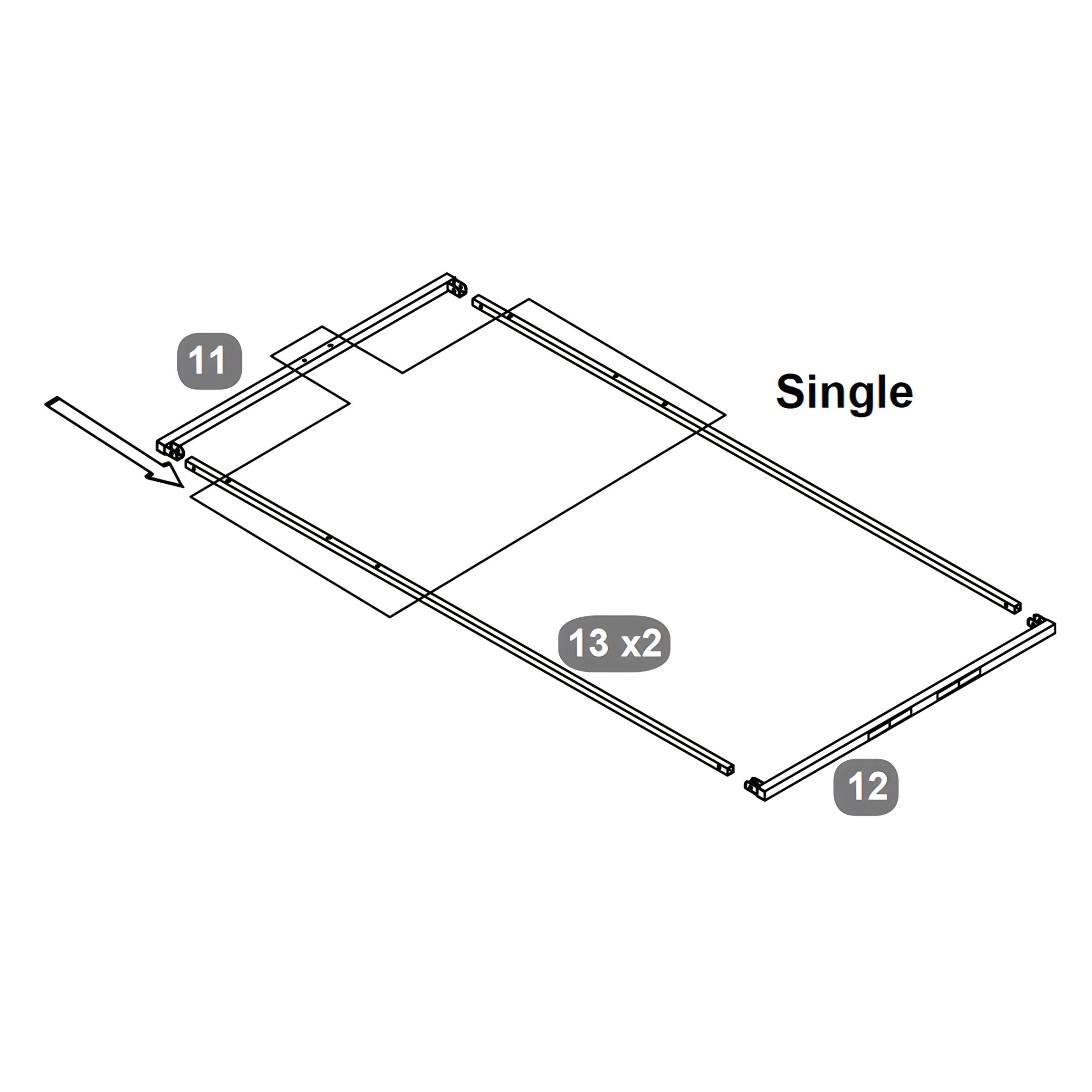

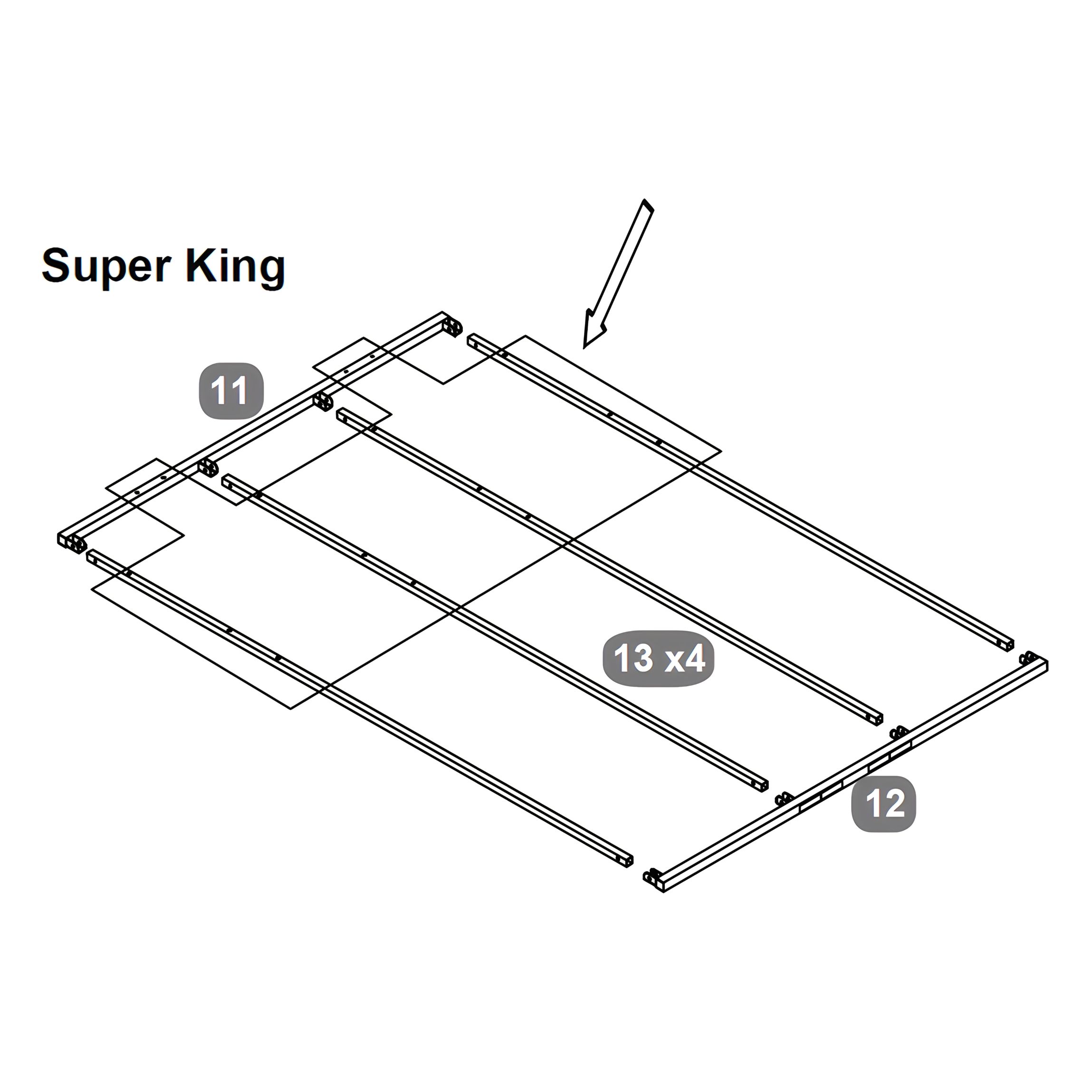

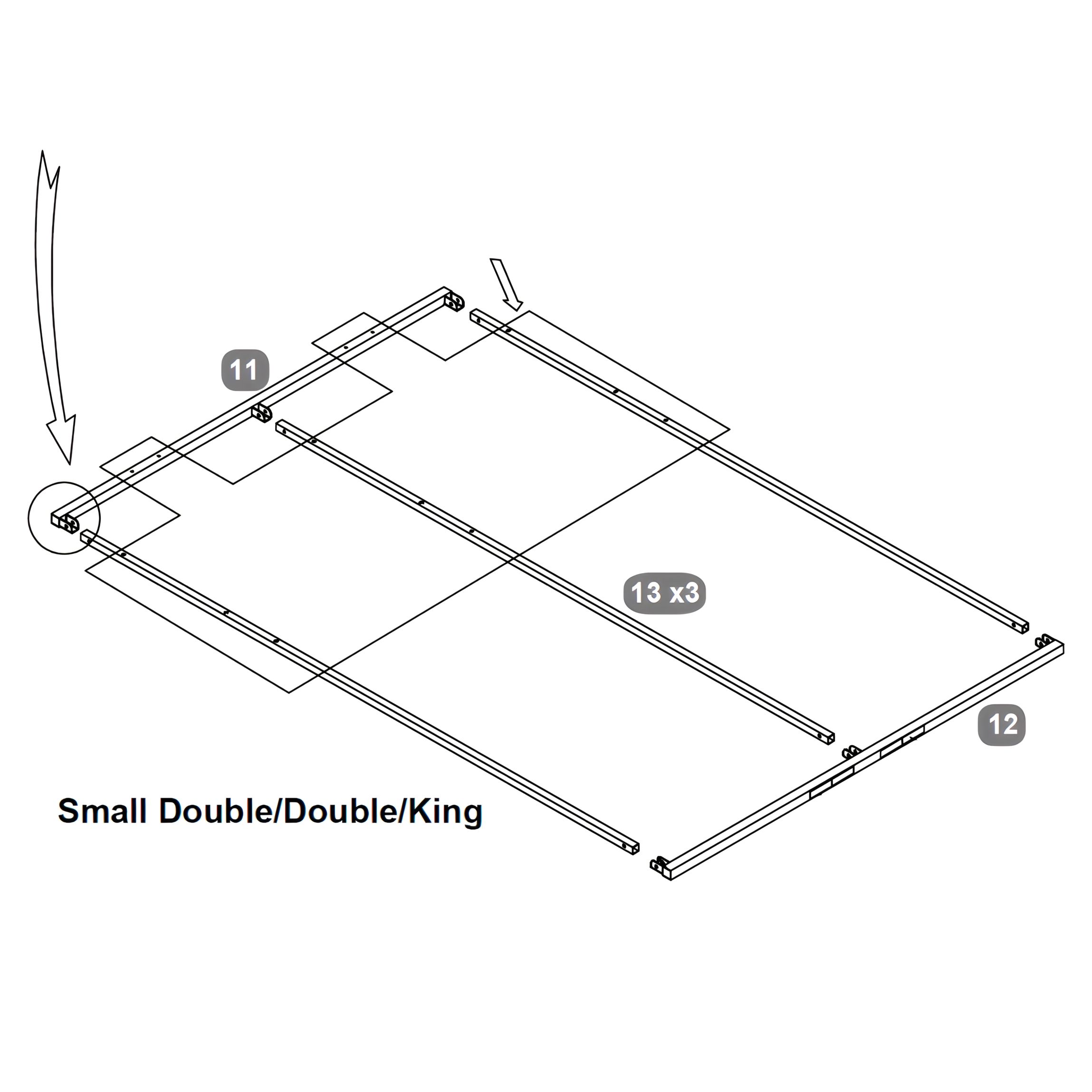

1. Position the Cross Rail for Metal Slat Frame – HB (11) and FB (12) on a flat surface. This view is from underneath the slat frame.
2. Slide the required number of Side Rails for Metal Slat Frame (13) between the cross rails, aligning the holes.
3. In the three or more long tubes (13), the many slat cap holes should face downward, touching the floor. From underneath, you should only see the alignment holes — 13 for Small Double/Double/King, 13 for Single, or 16 for Super King — that are marked within the boxed lines.
4. Ensure that the split joints in the short end tubes (11 & 12) are pointing upward.

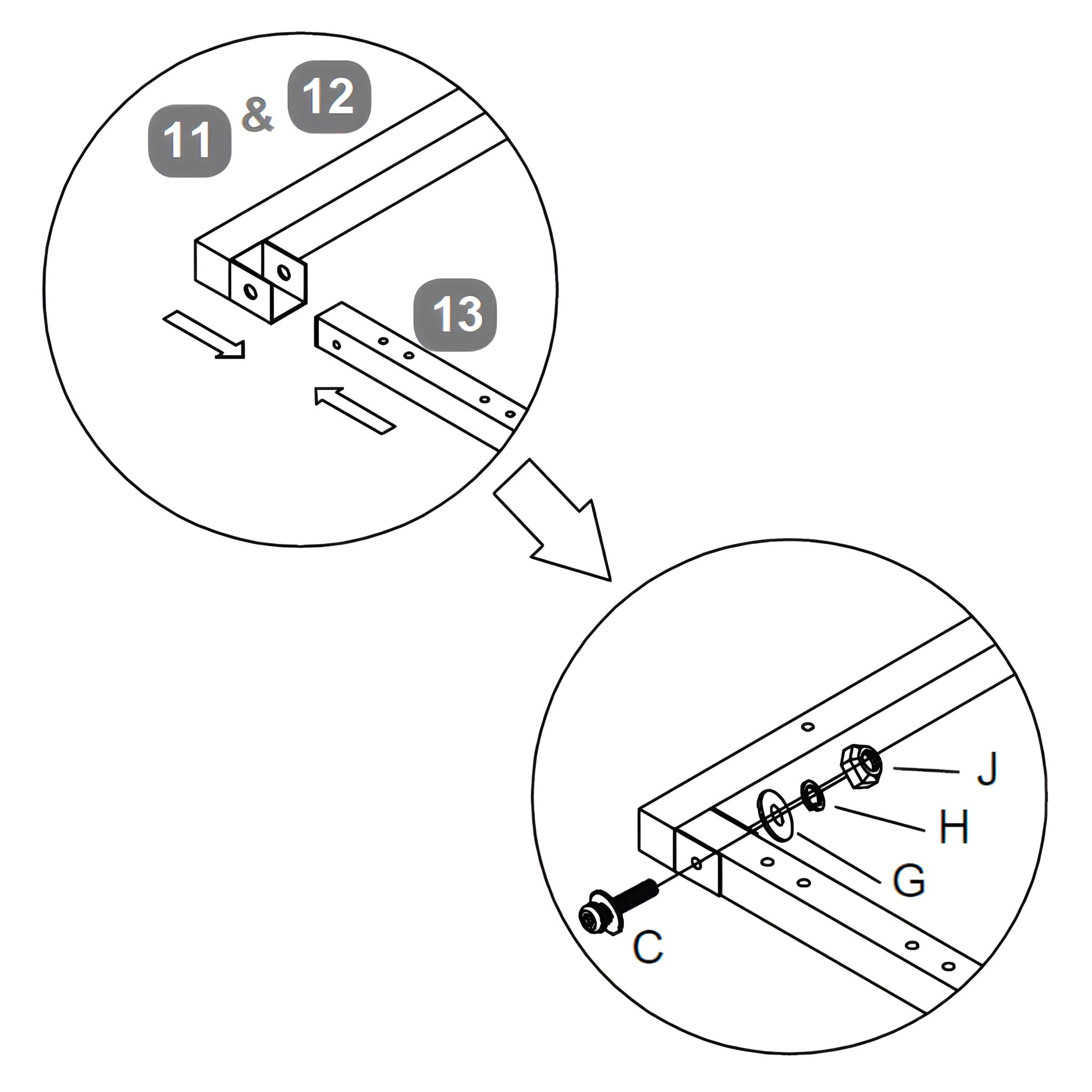

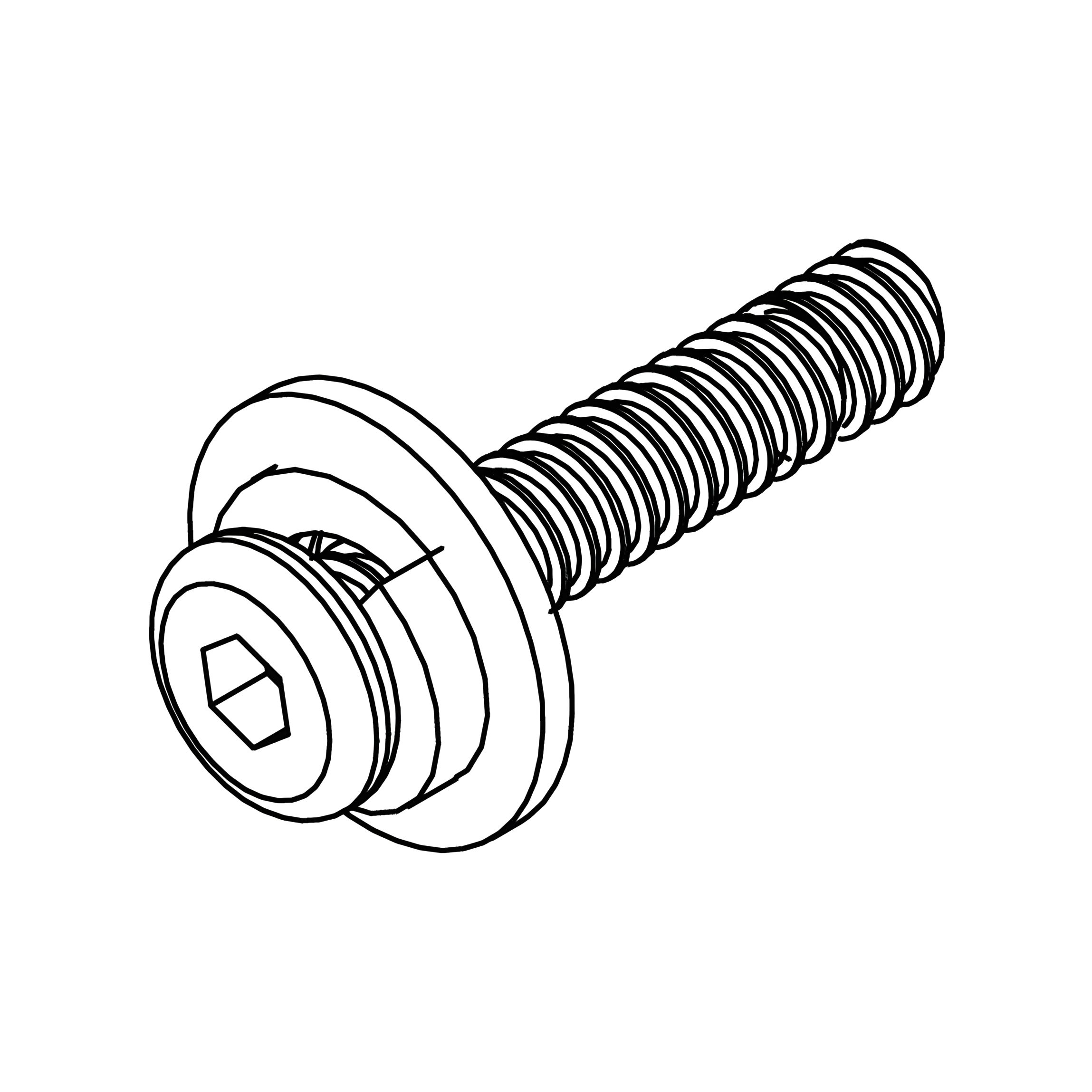

5. Secure each connection using Bolt (C) along with a Flat Washer (G), Spring Washer (H), and Nut (J).
6. Tighten all connections using the Allen Key (M) and Spanner (P) to complete the frame structure

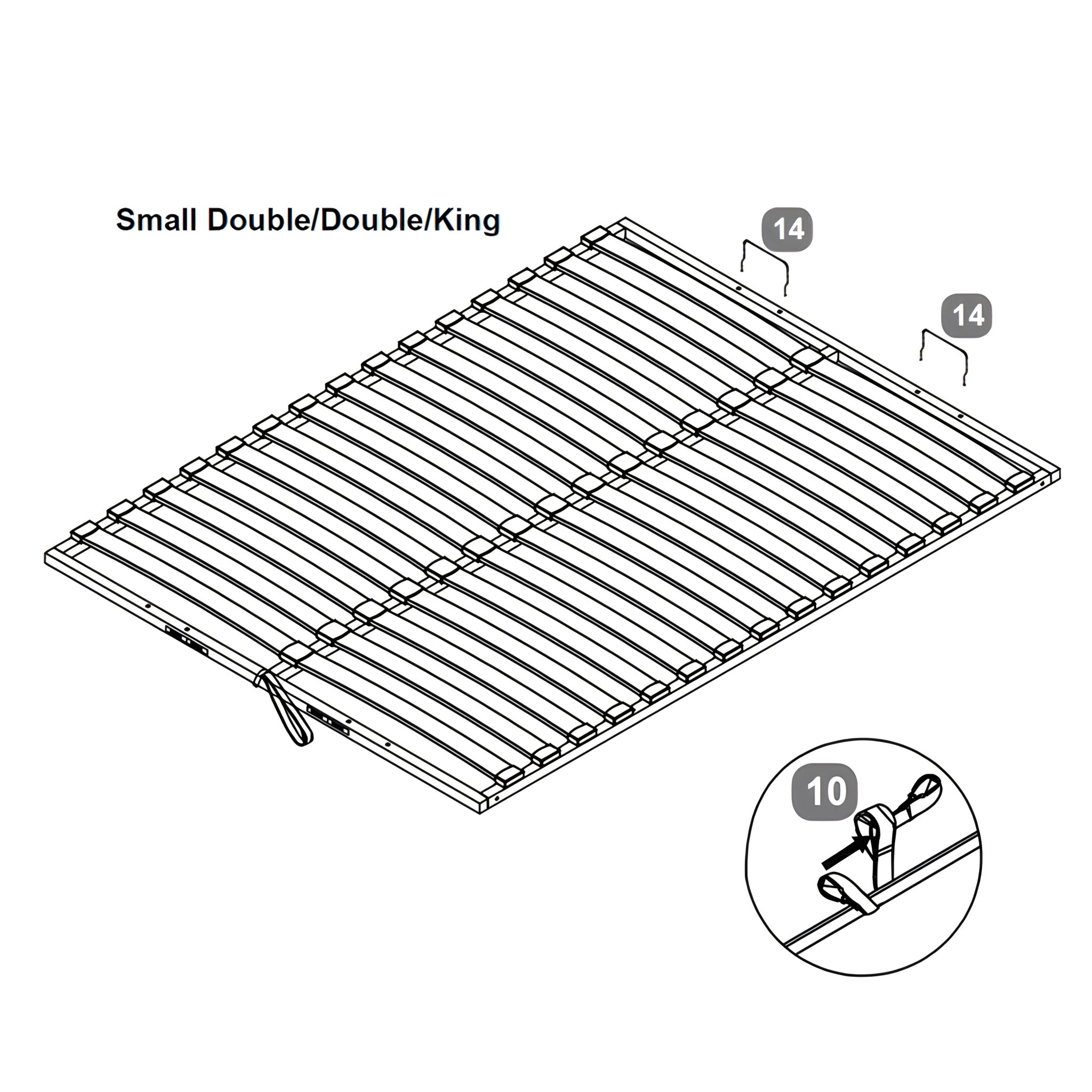

1. After assembling the frame, please turn it over.
2. Fit one Single Plastic Cap (19) to each end of the Bentwood Slats (18) by angling the cap and pressing firmly onto the slat.
3. For middle slats (where applicable), use Double Plastic Caps (20) to connect adjacent slats before pressing them into place.
4. Insert each capped slat into the pre-drilled holes on the metal side rails (13), then press down until securely fixed.
5. Repeat for all slats across the full width of the frame.

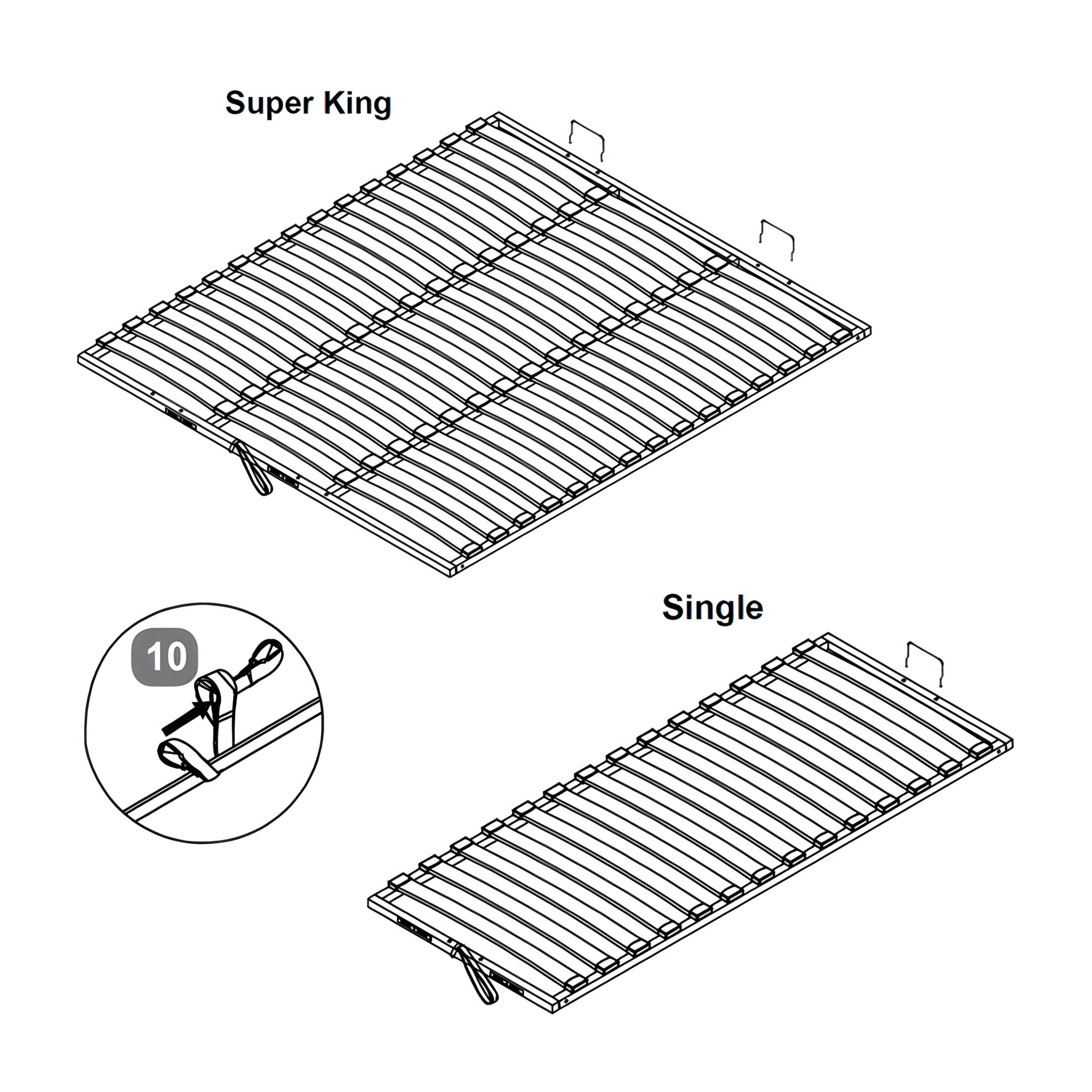

6. Attach the Fabric Hand Strap (10) to the central slat using the designated loop and fixing point.

1. Position the Lift Mechanism – LH (5) and RH (6) inside the bed frame along the inner side rails.
2. Align the lower section of each lift arm with the pre-drilled holes on the Side Rail – LH (3) and RH (4).
3. Place the Spacer Rails (7) between the bed frame and lift mechanism brackets.
4. Secure each bracket using 4 × Bolt (B) per side.
5. Tighten all bolts using the Allen Key (M) to ensure the lift arms and spacer rails are securely attached.

1. Slide the stem of the Gas Lift Piston (15) (marked as x) onto the axle (marked as y) located on the lower section of each lift mechanism arm.

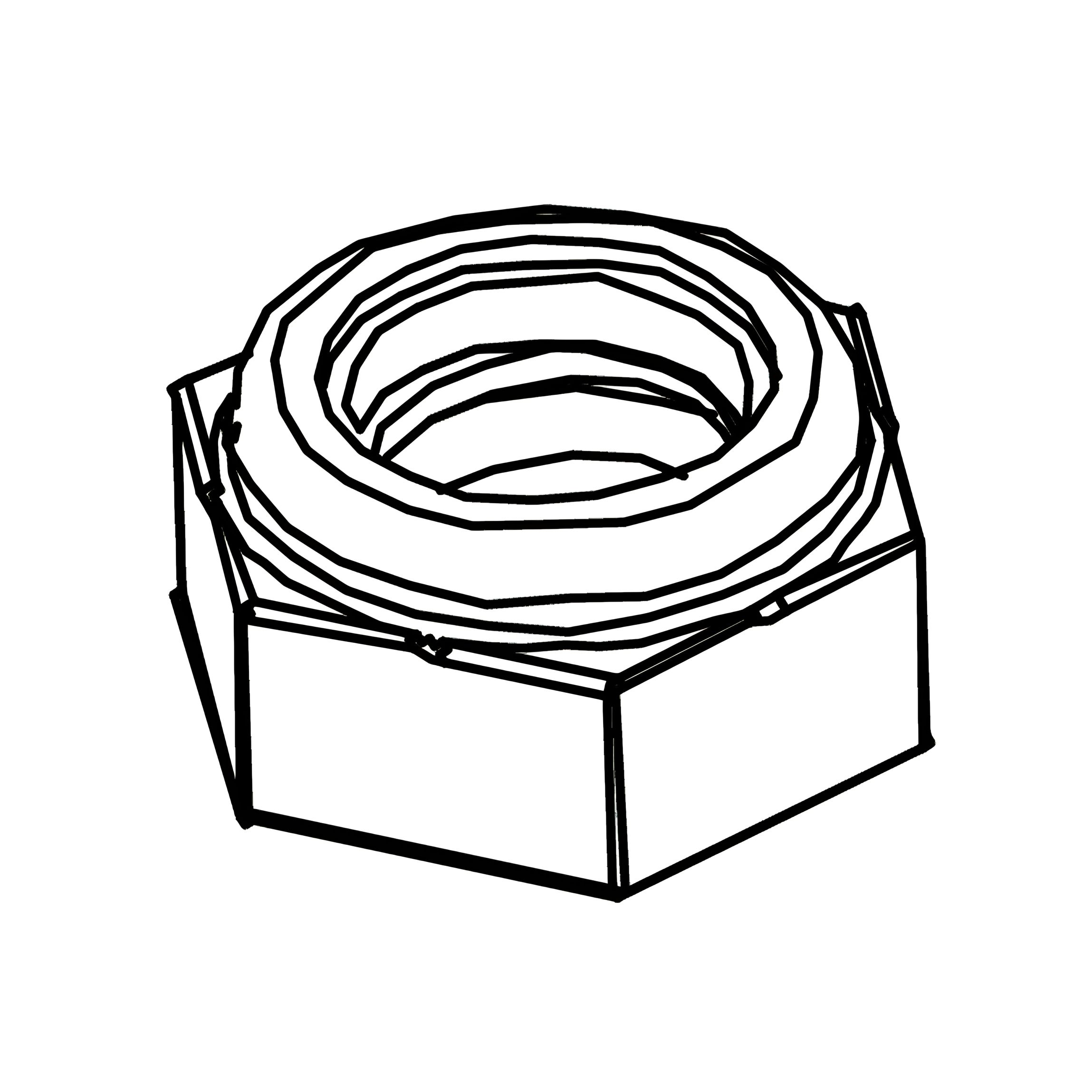

2. Fit a Flange Lock Nut (J) to secure the piston in place.
3. Use the Spanner (P) to tighten the nut — do not over-tighten.
4. Ensure a small gap remains between the nut and the piston stem so the stem can move freely during operation.

This is important for proper functionality. Refer to the image provided to check correct clearance.

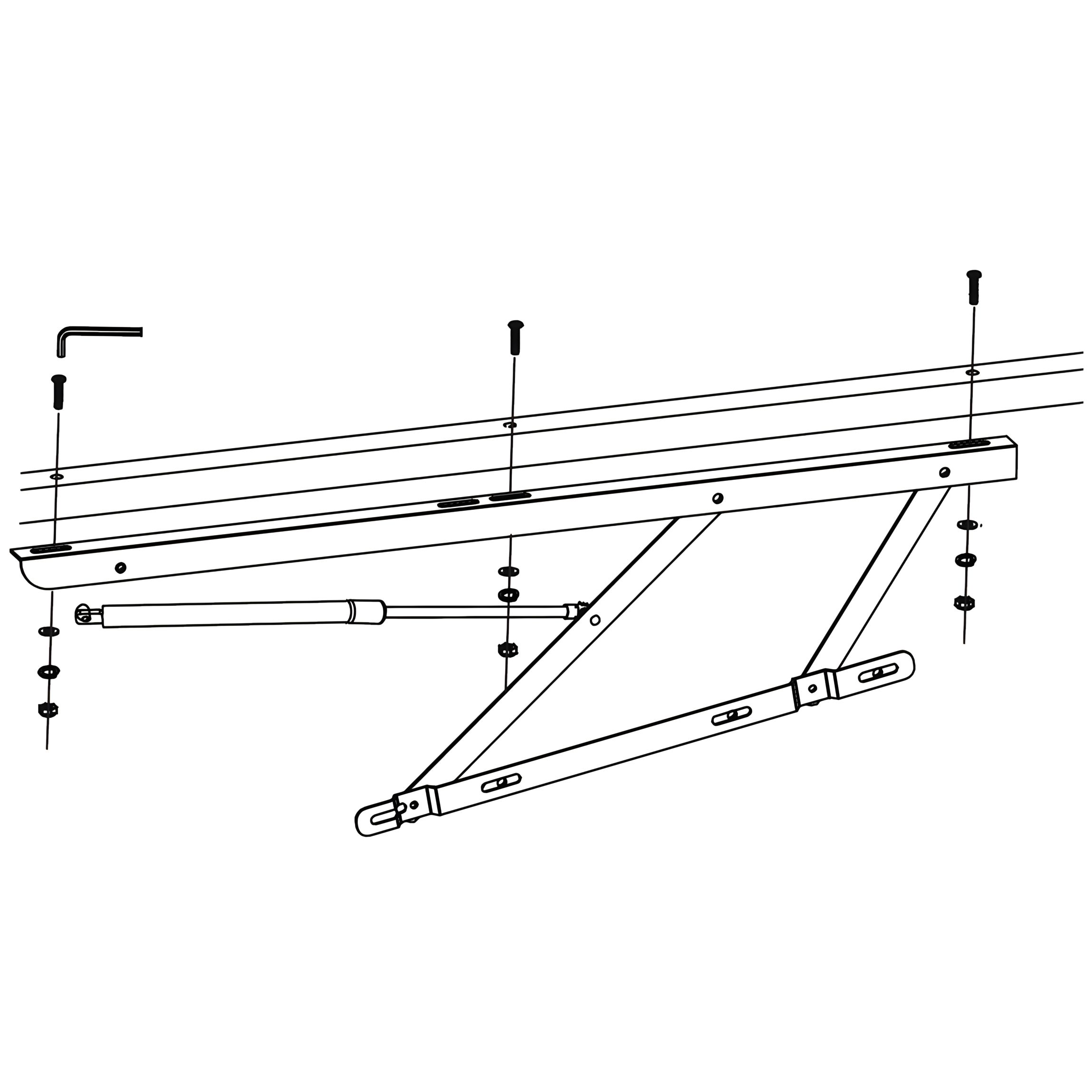

1. Position the assembled slat frame over the lift mechanism arms.

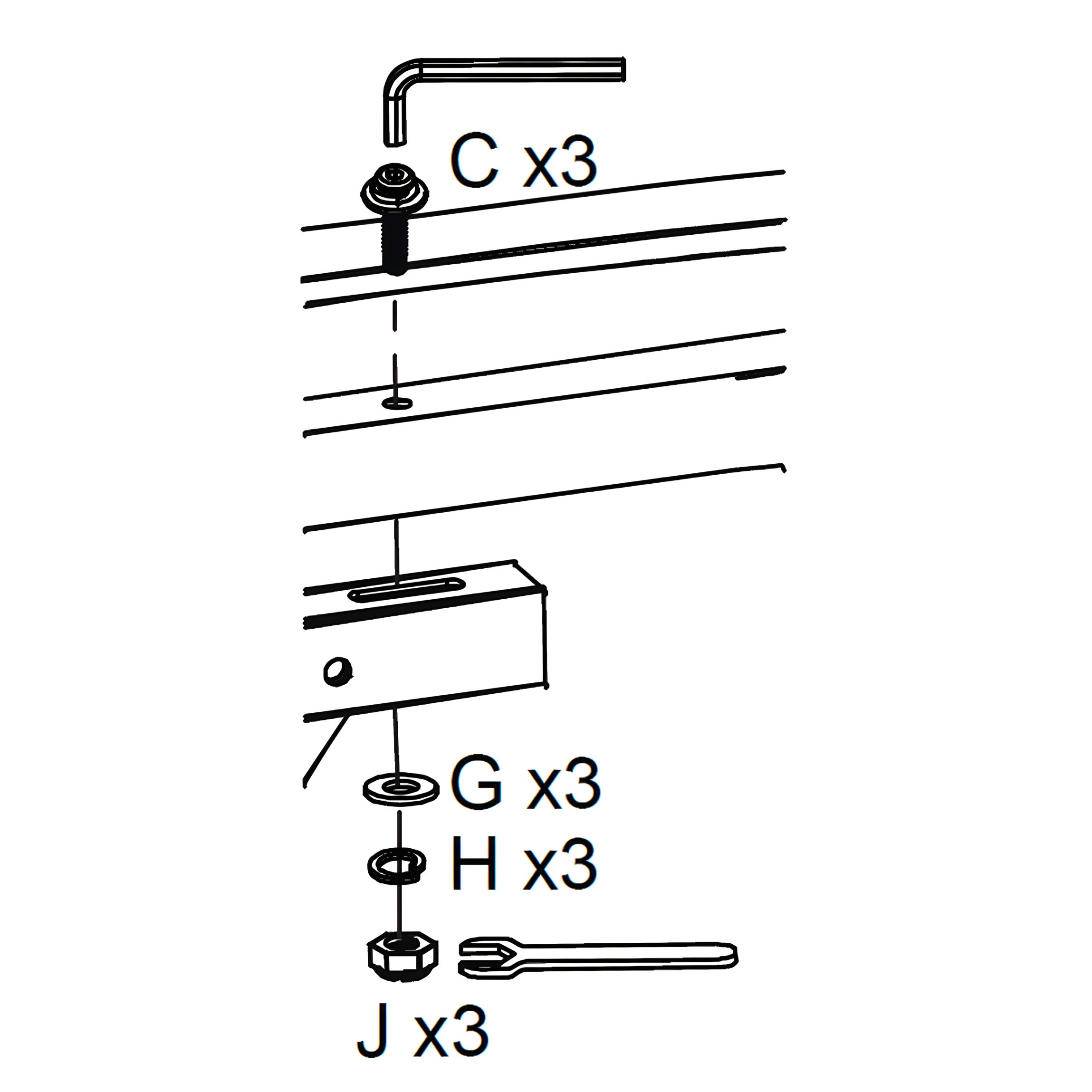

2. Loosely fit 3 sets of Bolt (C), Flat Washer (G), Spring Washer (H), and Nut (J) on each side of the frame using the pre-drilled holes.
3. Carefully hold the slat frame down and align it so there are even gaps on both sides between the frame and bed rails.
4. Once aligned, fully tighten all bolts using the Allen Key (M) and Spanner (P) to ensure the frame is securely attached to the lift arms.

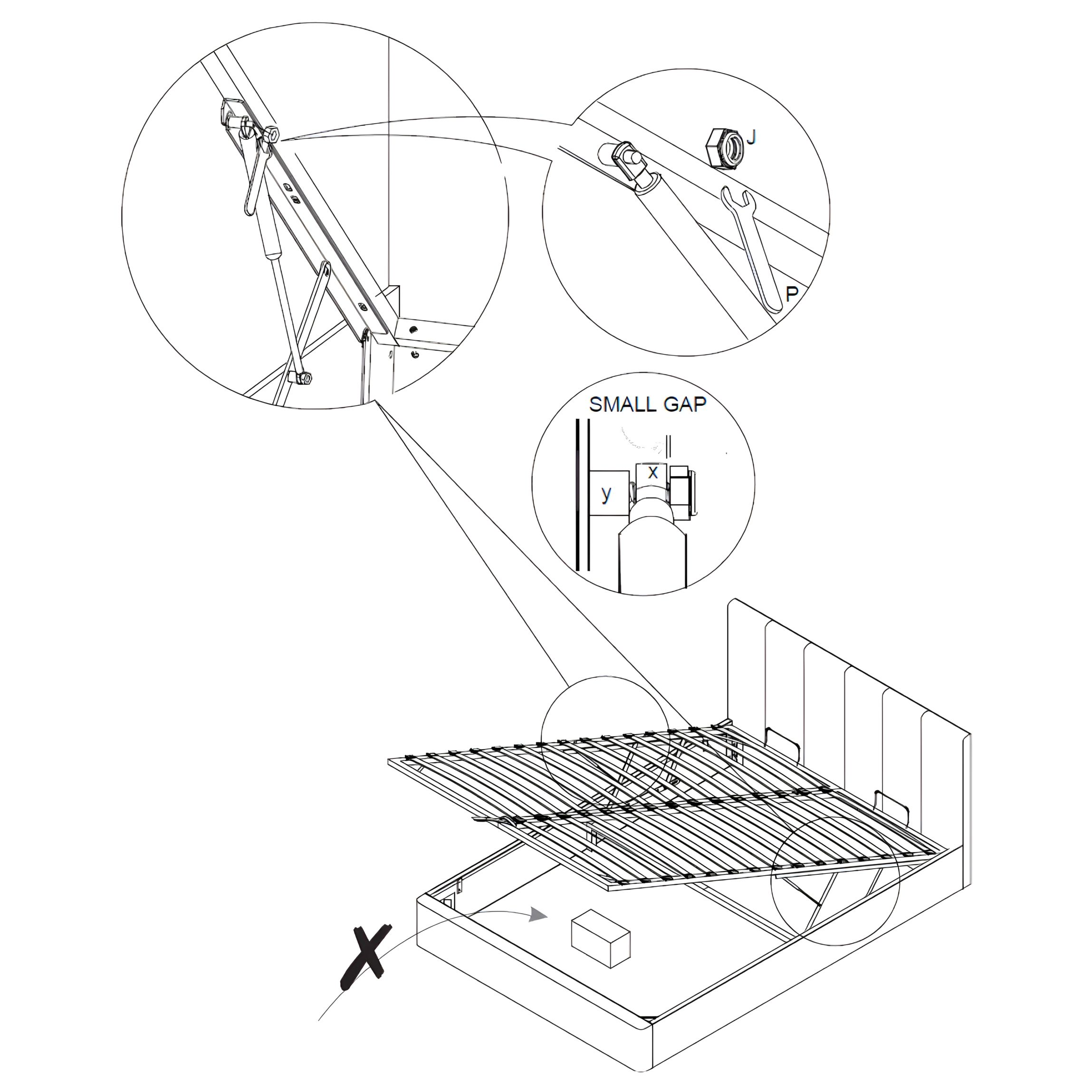

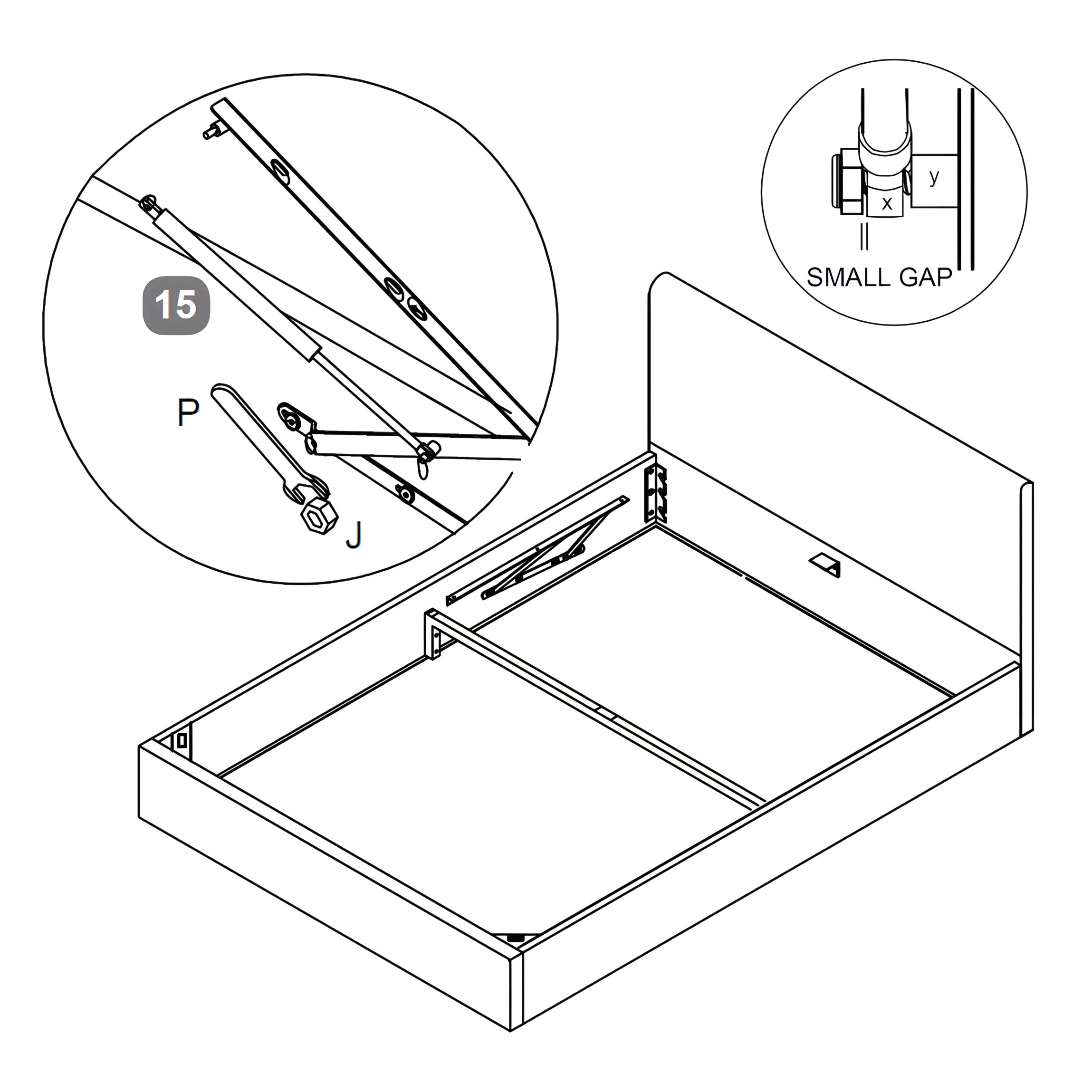

1. Slide the gas-lift cylinder stem (x) onto the axle (y) located on the upper arm of the lift mechanism.
2. Fit a Flange Lock Nut (J) to secure the stem, and tighten it using the Spanner (P) — do not over-tighten.
3. Leave a small gap between the nut and the stem to allow for free movement. This is critical for proper operation — refer to the detailed sketch for correct spacing.
4. Gently test the lifting motion to confirm smooth articulation of the mechanism.

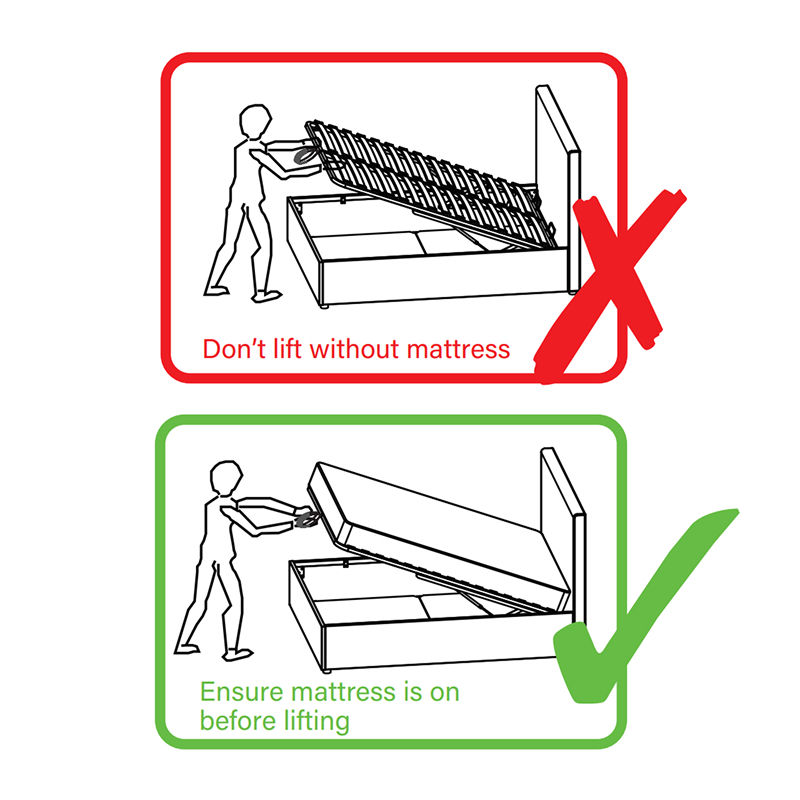

Note:

Be very careful what you store under the bed. The top of stored items (such as a suitcase or box) must not touch the slats, or they may be damaged.

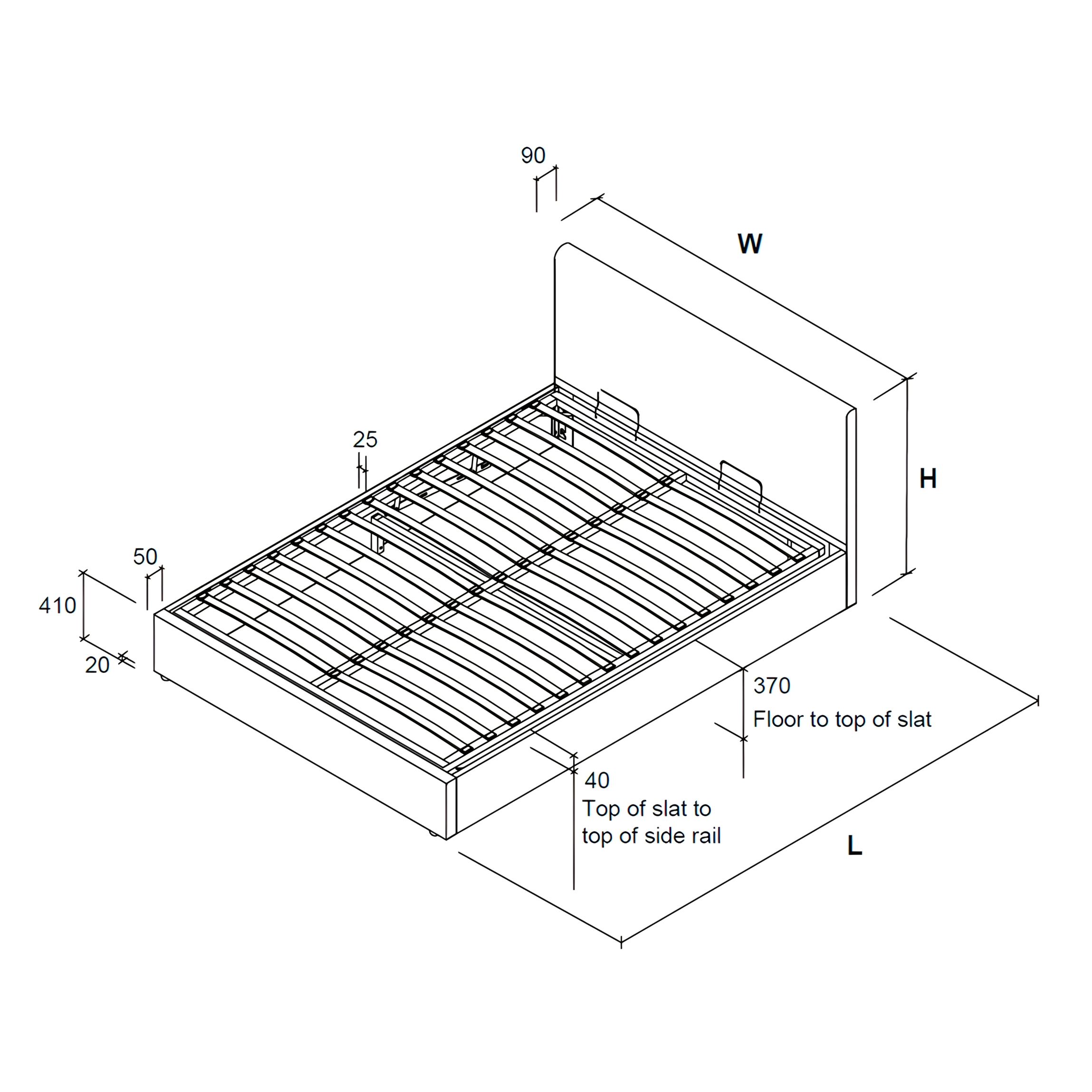

Maximum storage height: 300 mm
