Vancouver Cabin Bed

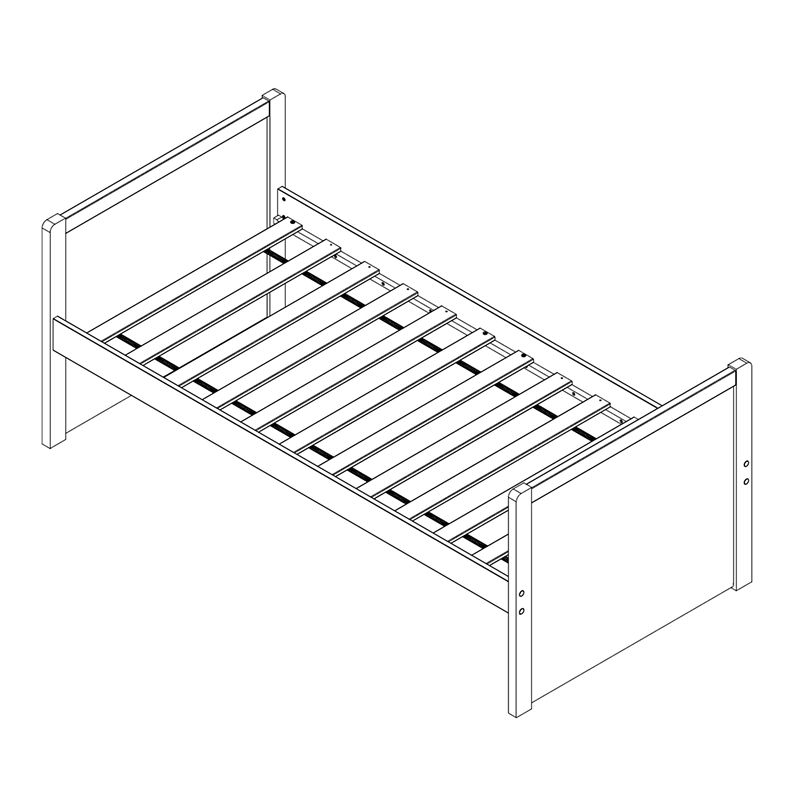

Start by assembling the bed frame

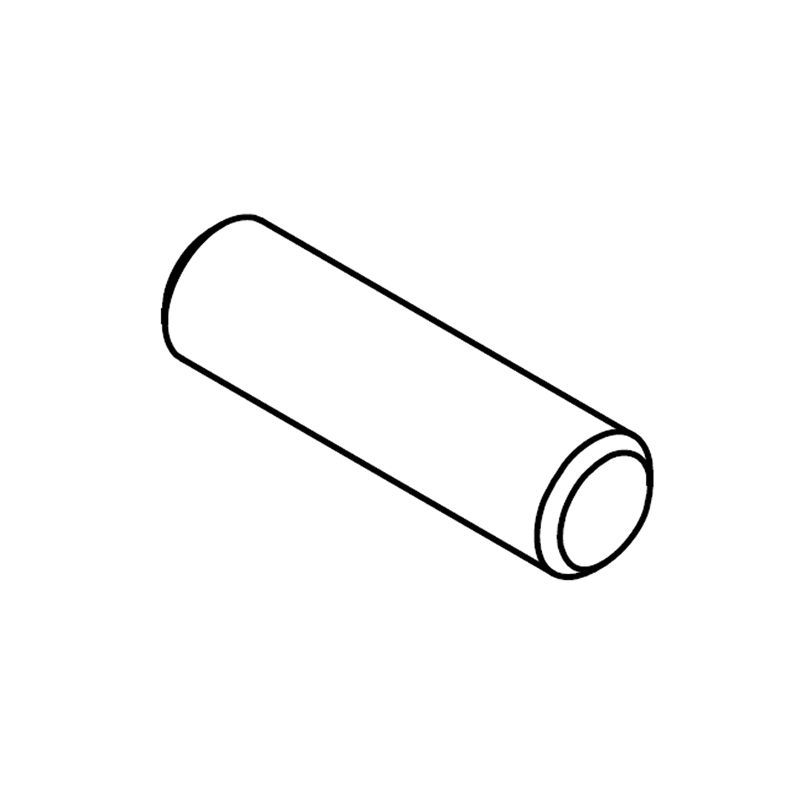

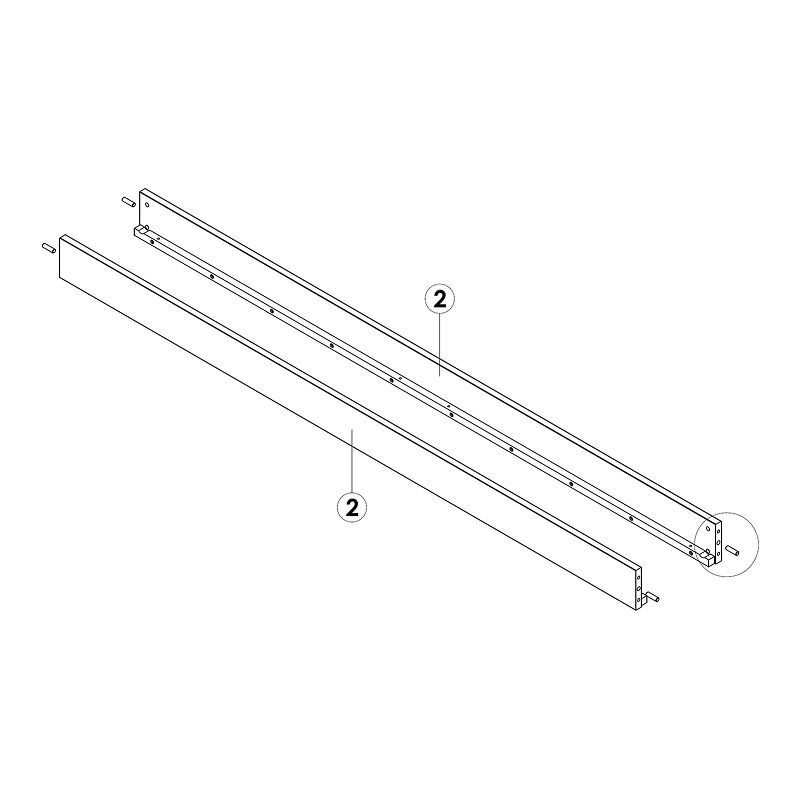

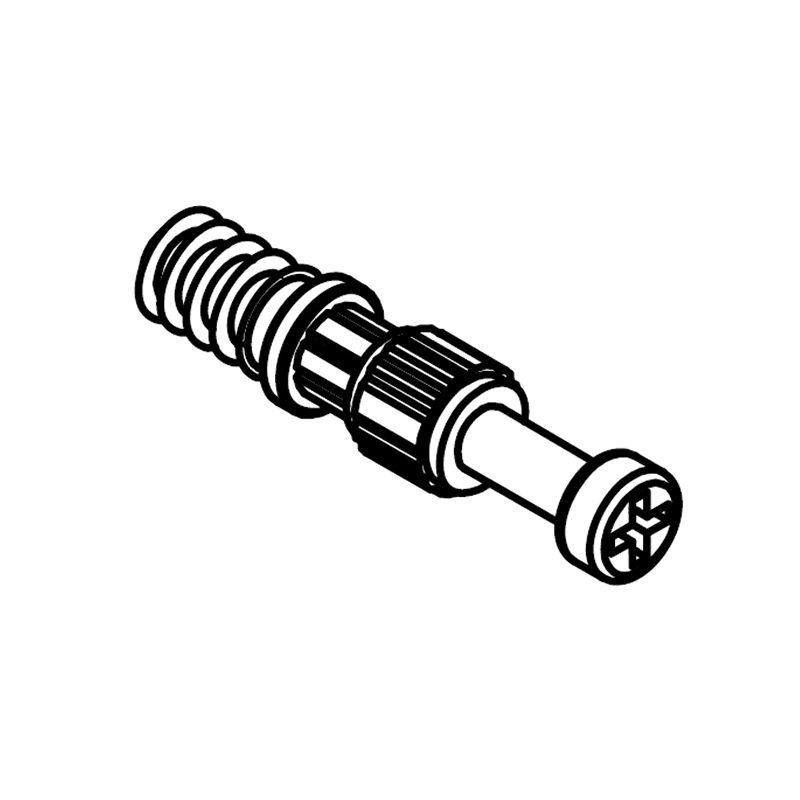

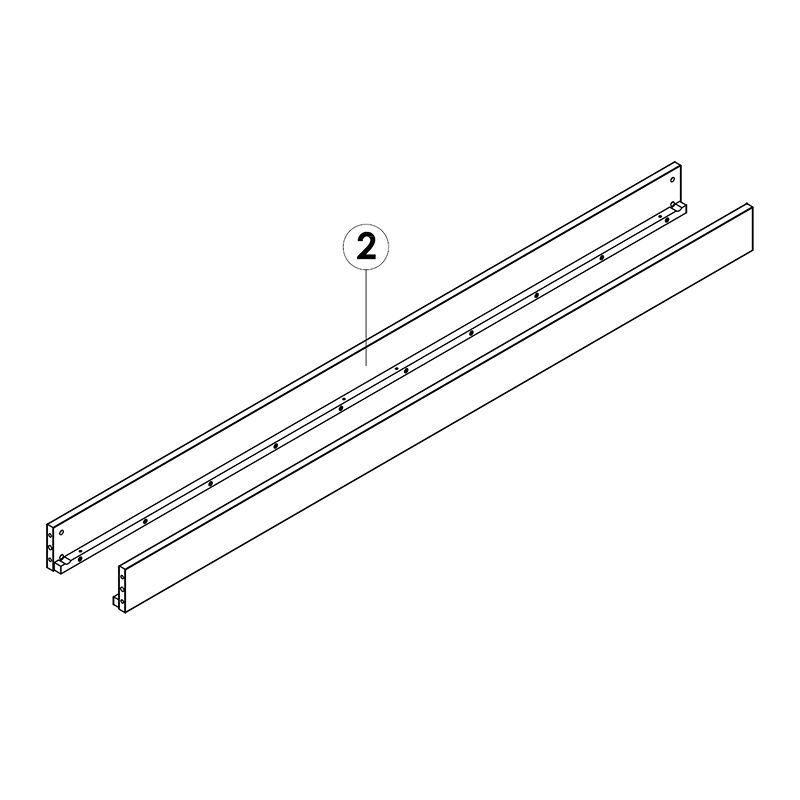

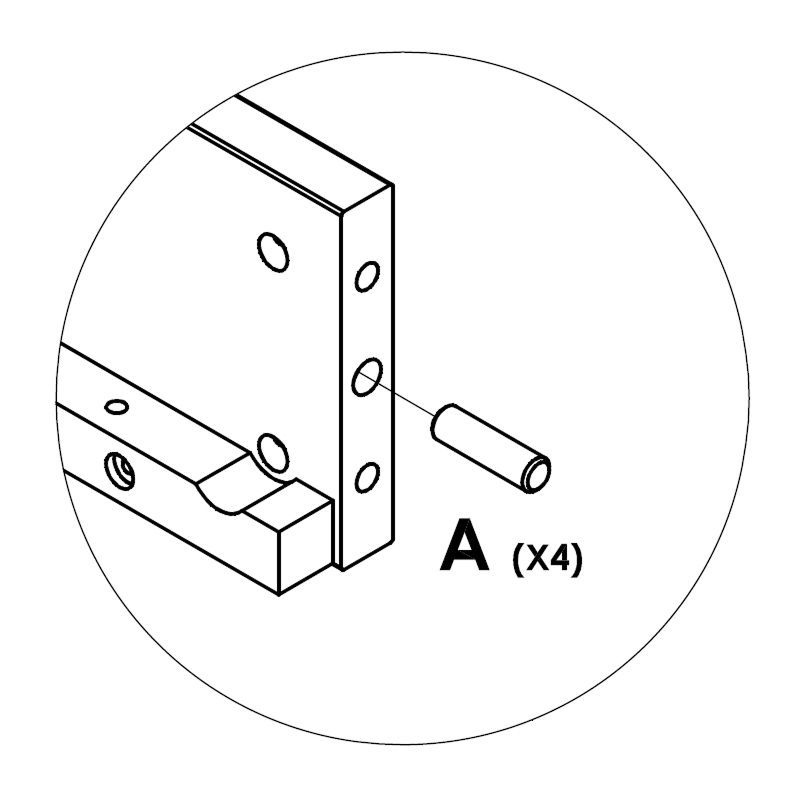

Insert (A) into Ø10MM holes of Side Rail by using a Rubber Hammer.

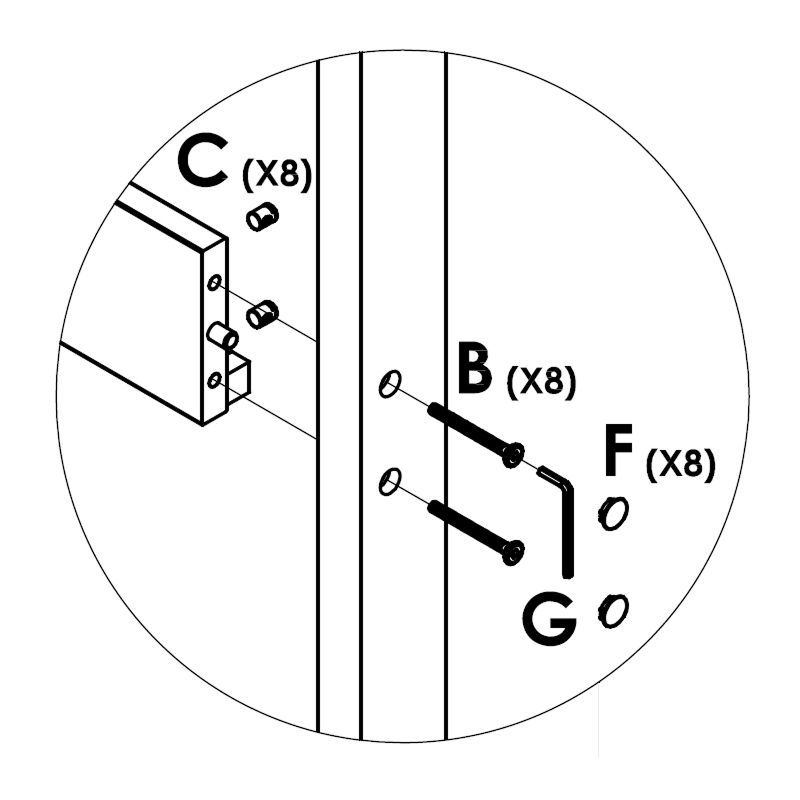

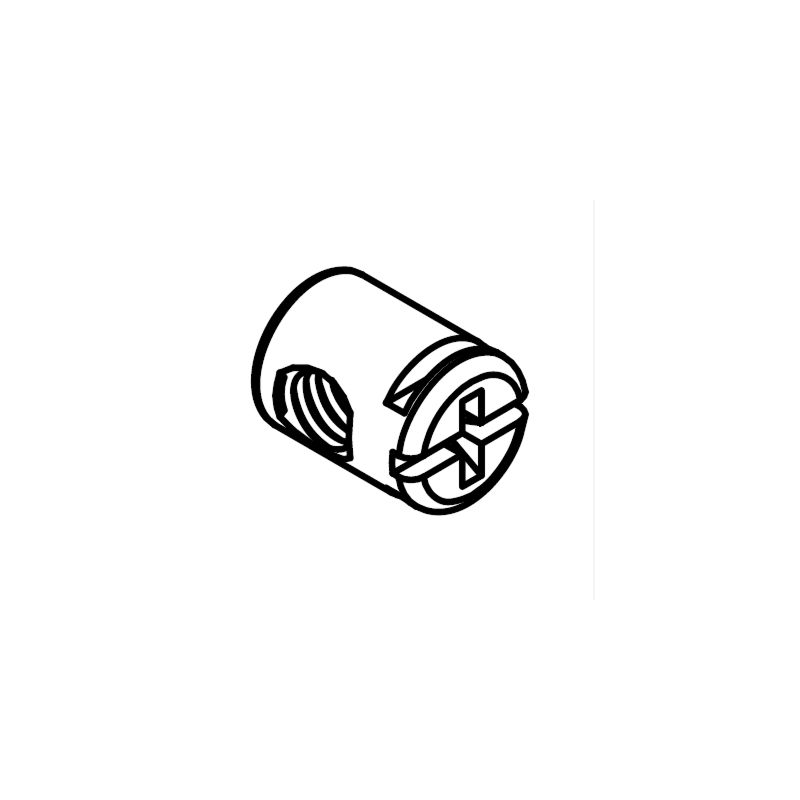

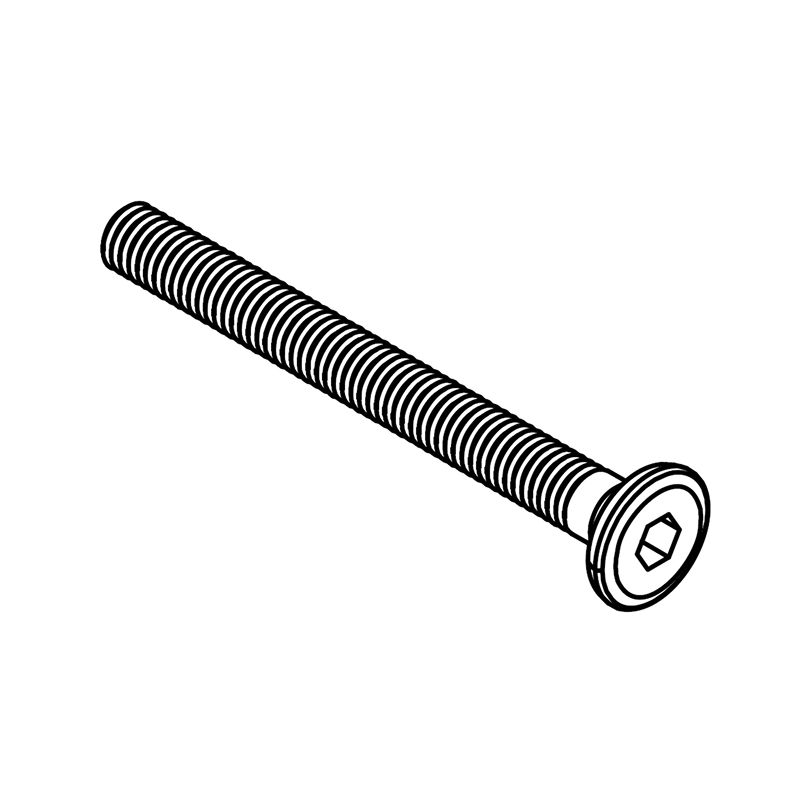

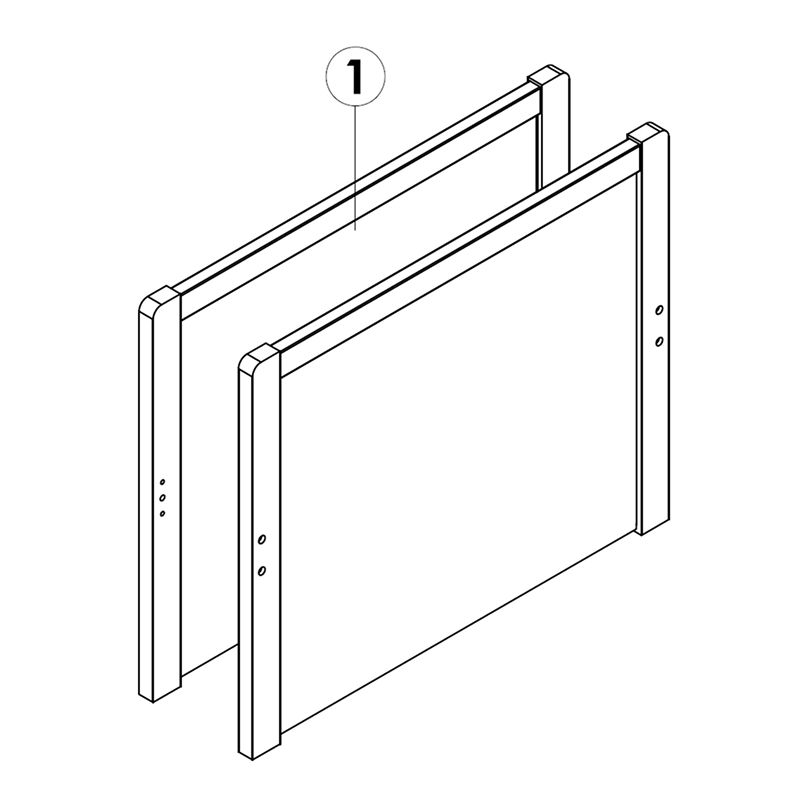

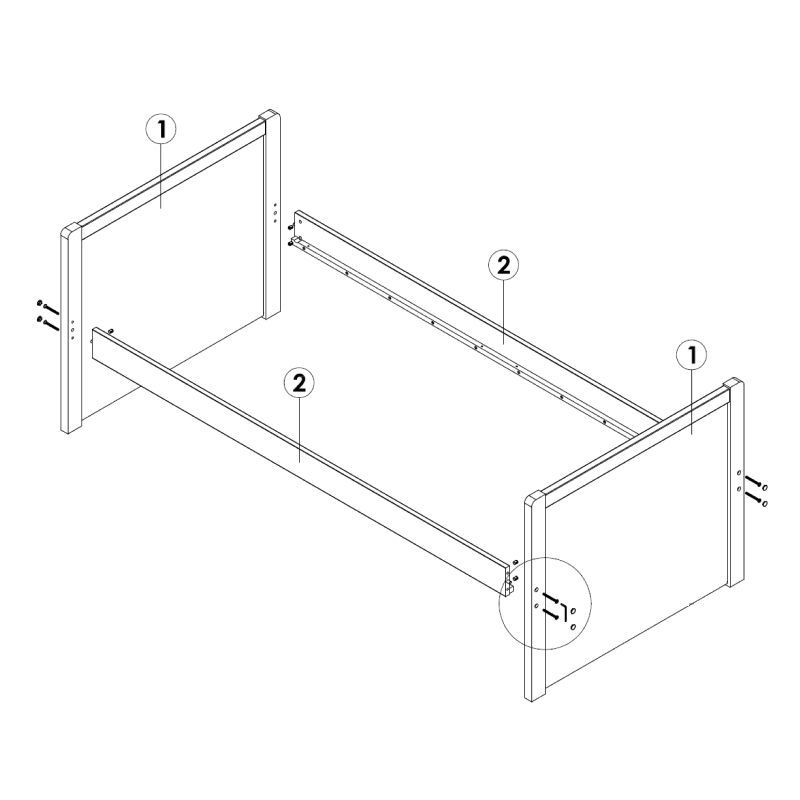

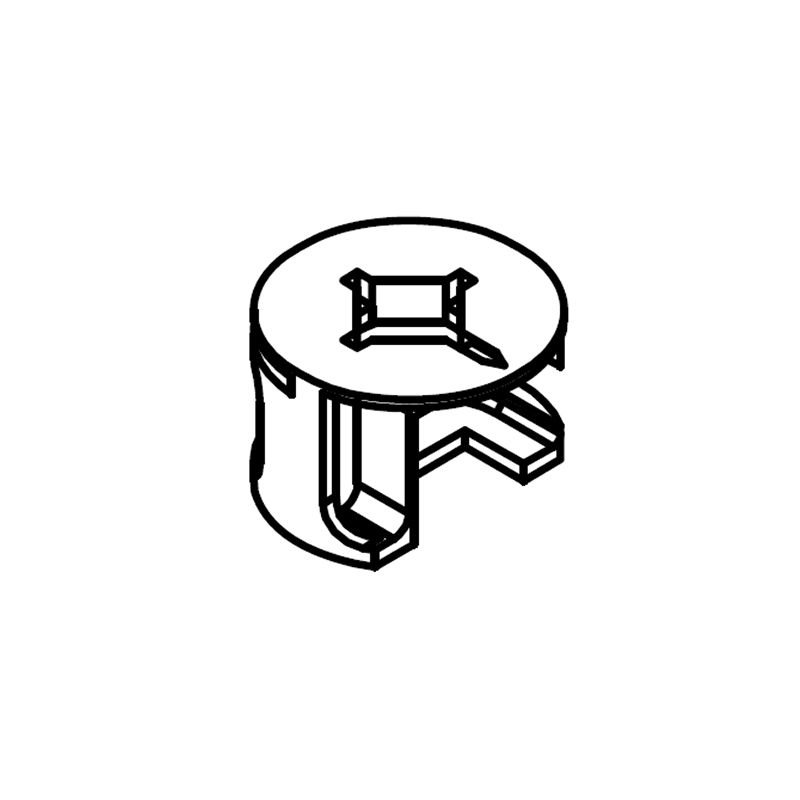

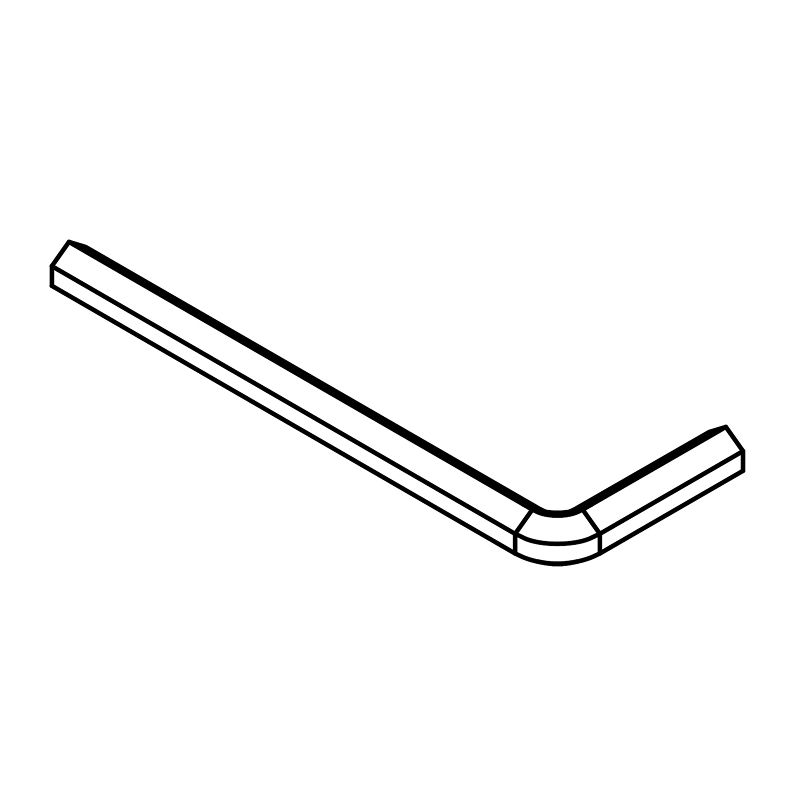

1. Attach Headboard onto Side Rail by using (B) and (C), tighten it up by using (G).
2. Follow it up by attaching (F) into screw holes.

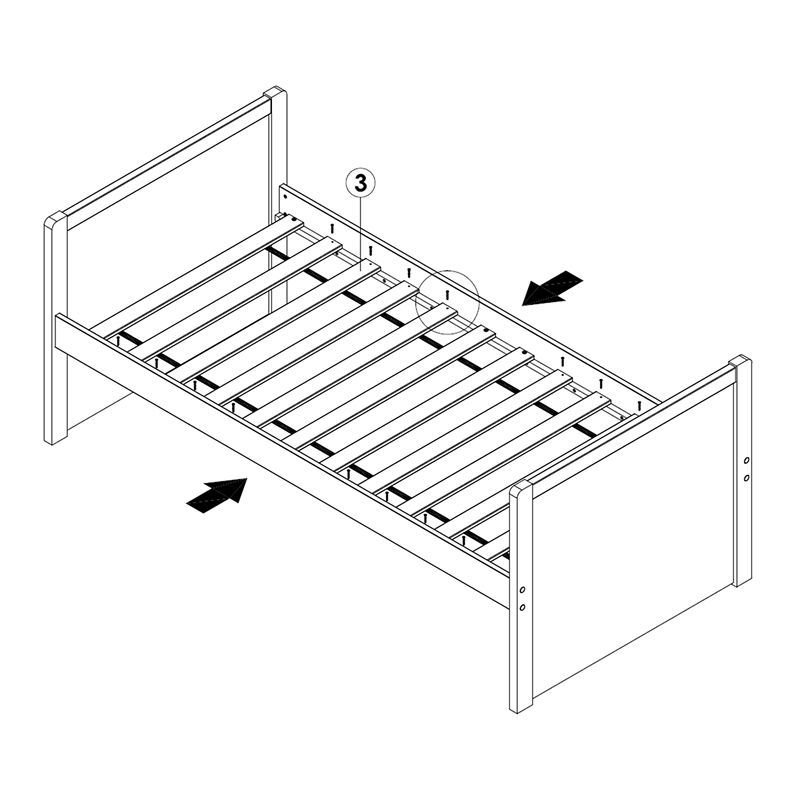

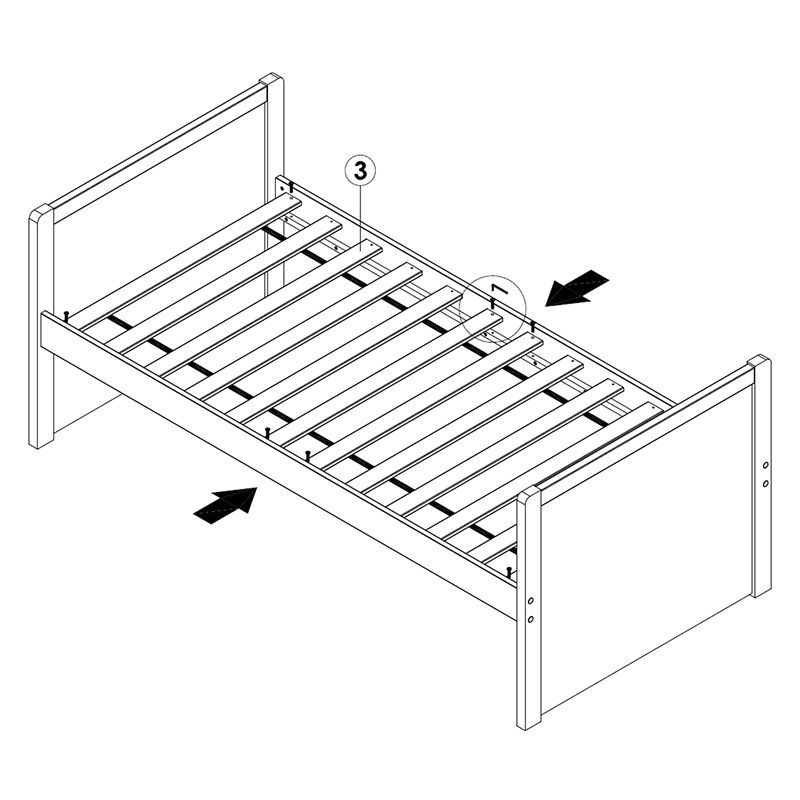

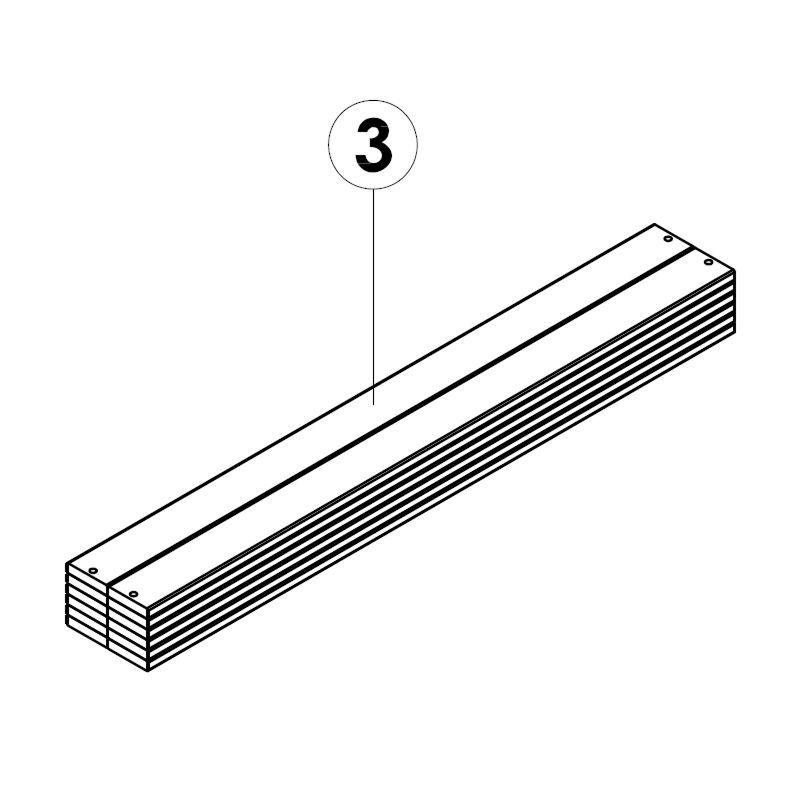

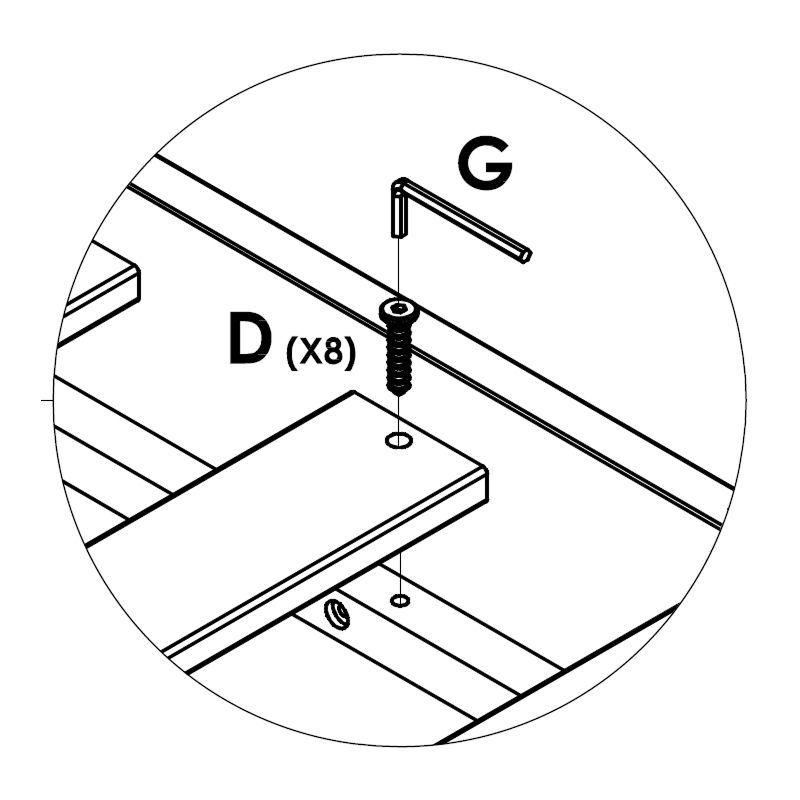

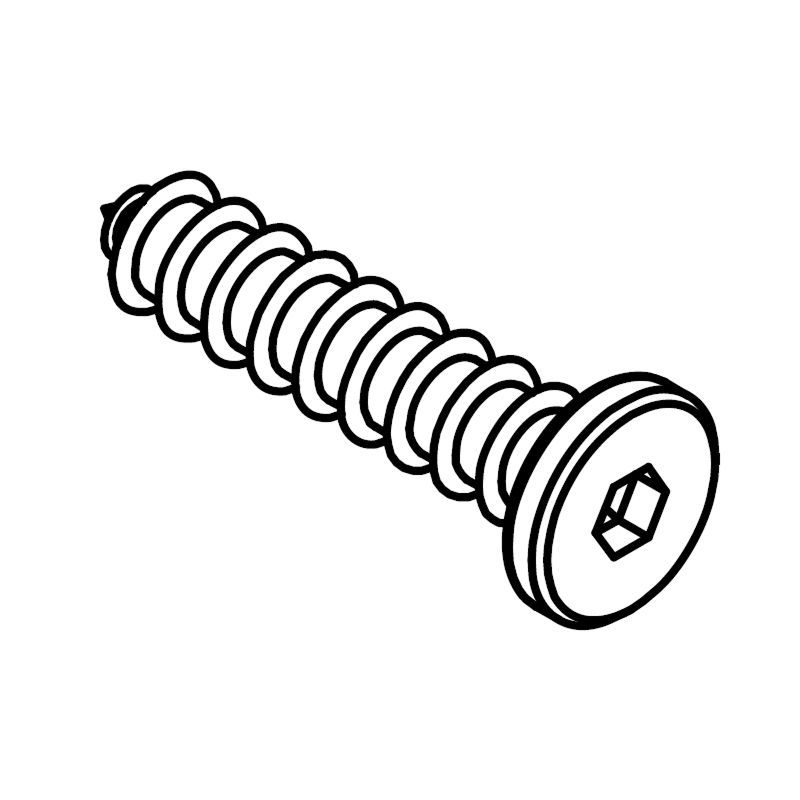

1. Attach centre Wooden Slats onto Side Rail by using (D), tighten it up by using (G). Go on to complete the assembly.
2. Align both Side Rails before tightening the screws.

Note:

• Please lift up one side of headboard to straighten the bed.
• Align the last and first slat and tighten the D screw on both end side.
• Side Rail is flexible, screw on one side of 2 centre slats first by using D Screws, then tighten the other 2 centre slats immediately. If necessary you may need to push the centre of side rail and pull the slat gently toward you at the same time which will close the gap.

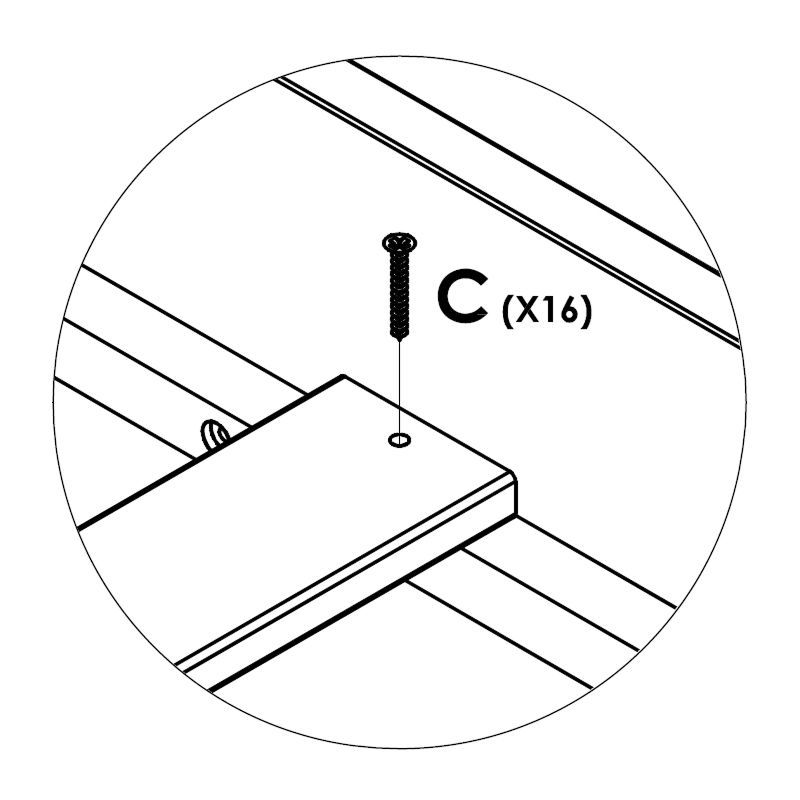

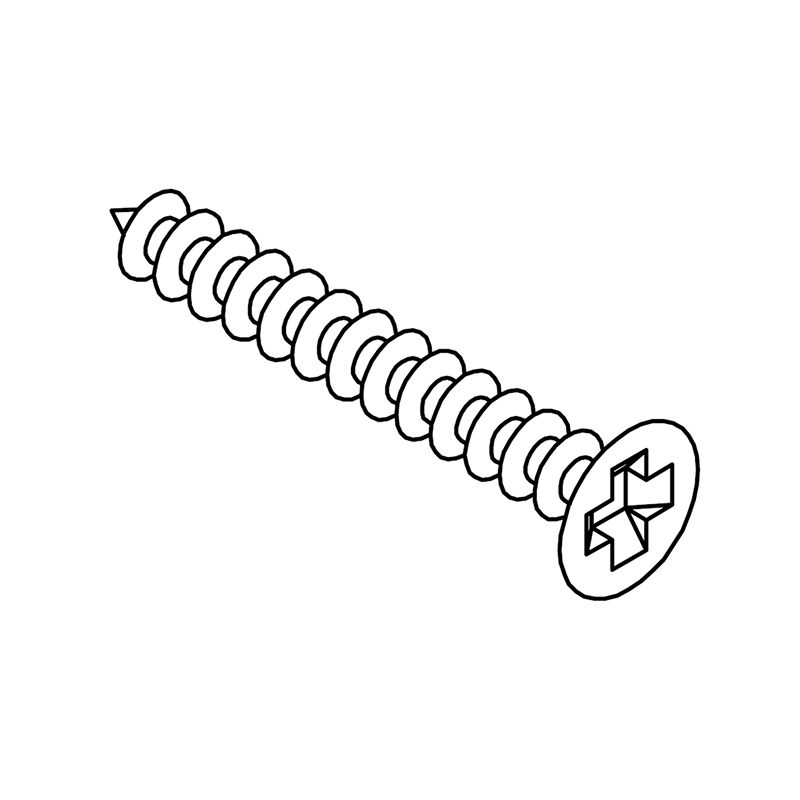

Continue to tighten it up the next of the slat by using (C) tighten it up by using a Crosshead Screw Driver.

Note:

• Tighten the rest of the screw.

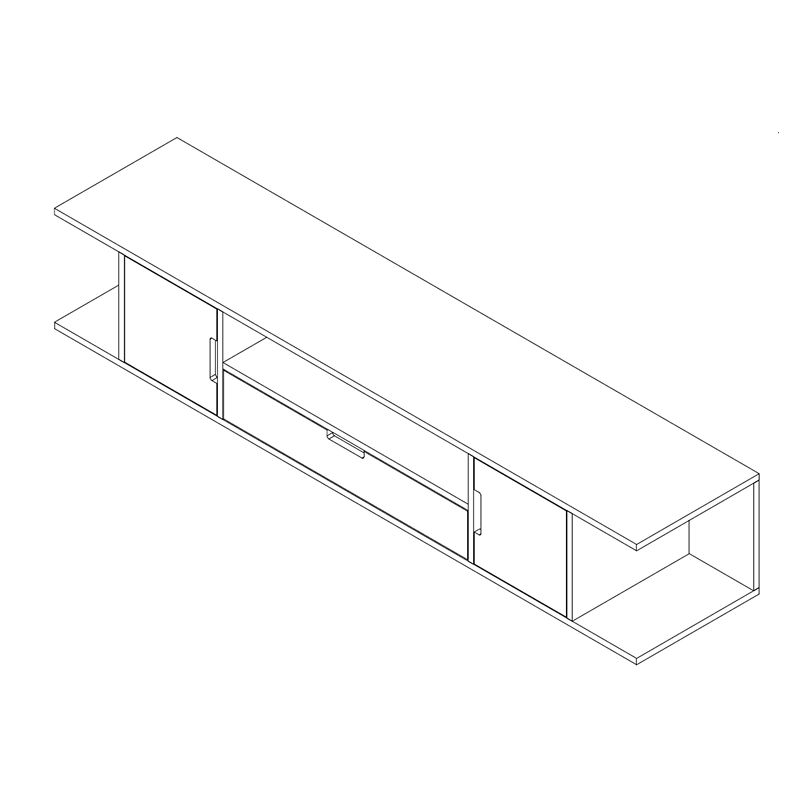

Now assemble the storage section

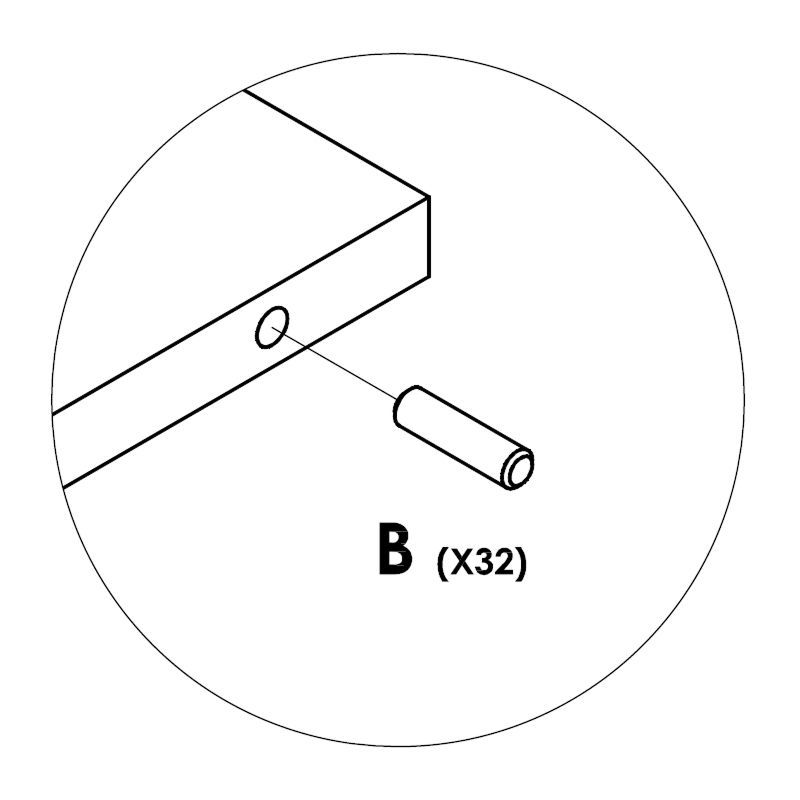

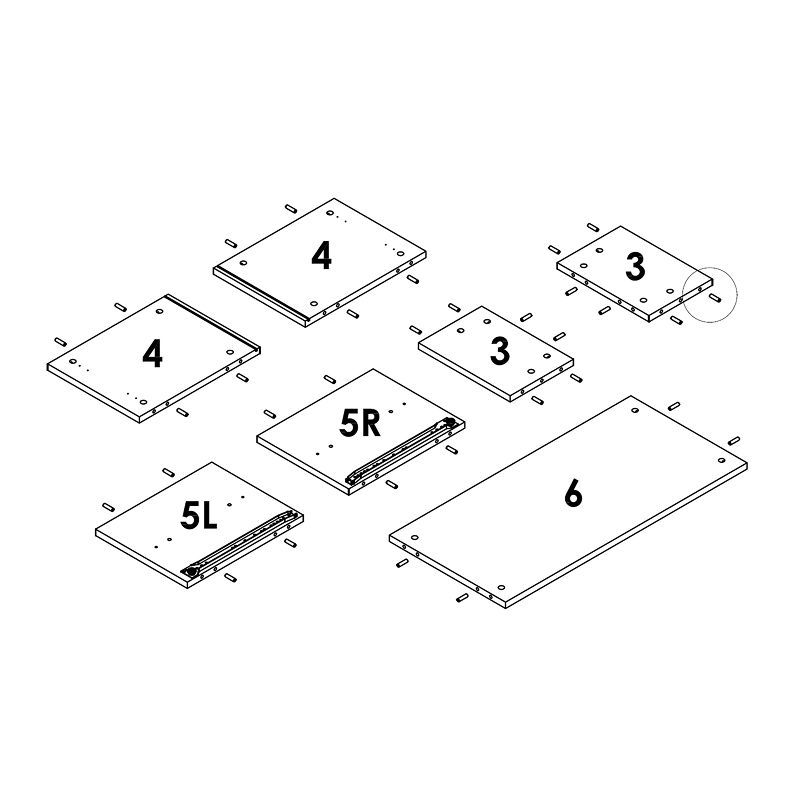

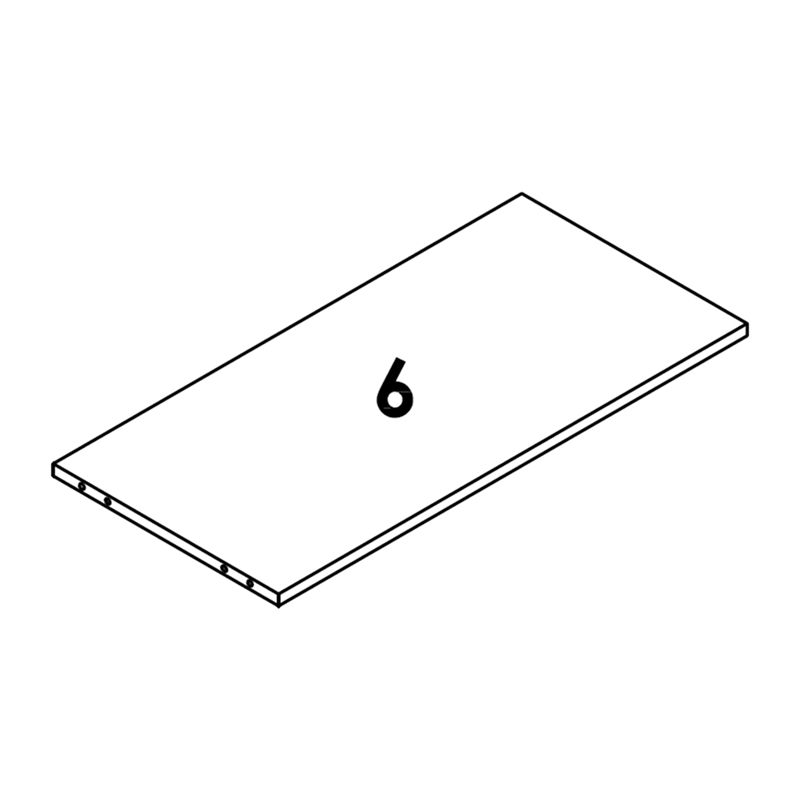

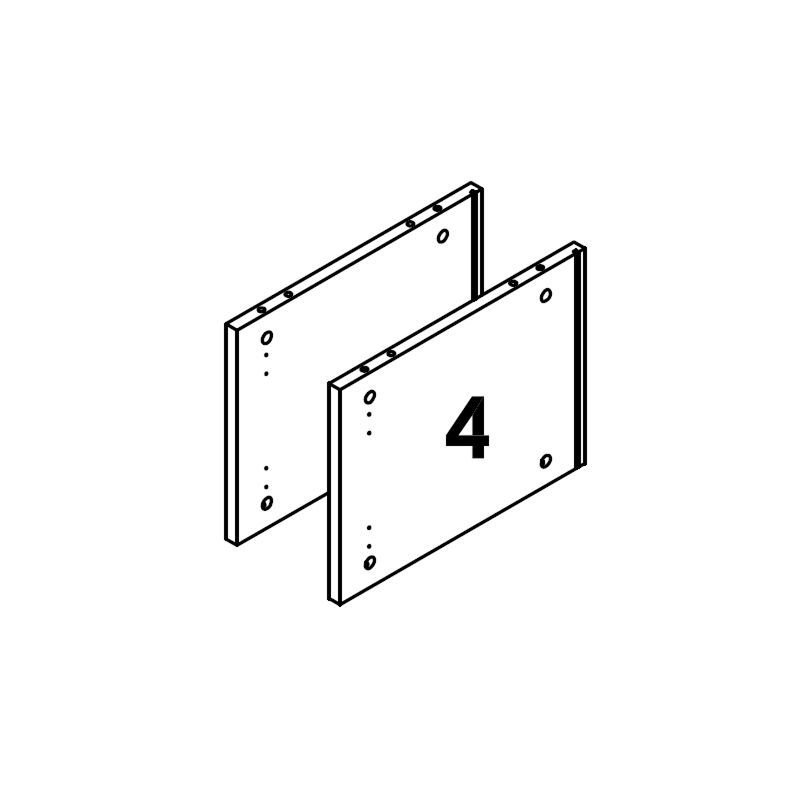

Insert (B) into Ø8MM holes of Side Panel, Door Support Panel, Drawer Support Panel & Shelf Panel by using a Rubber Hammer.

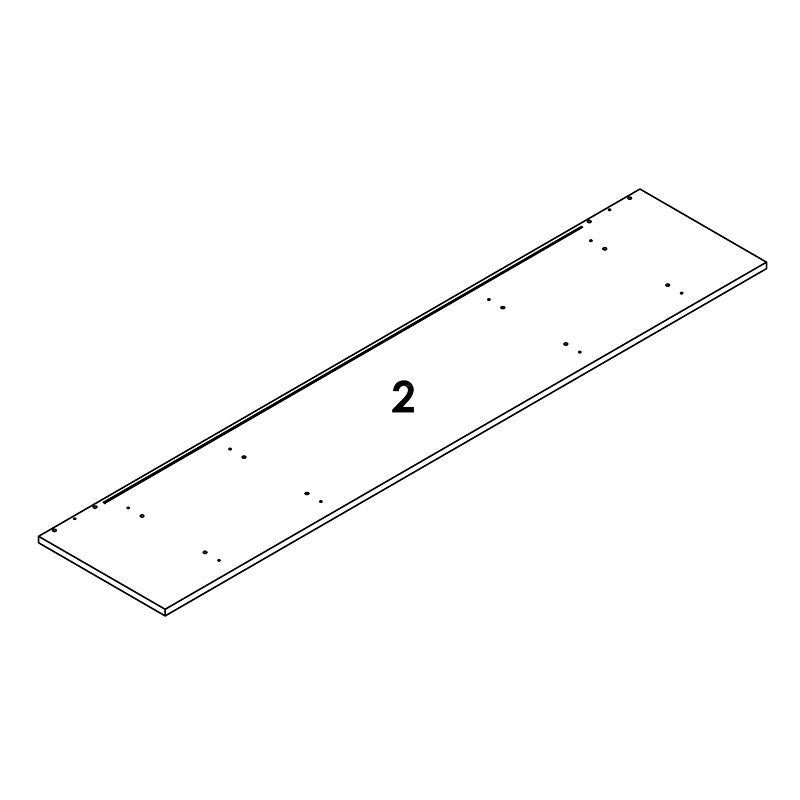

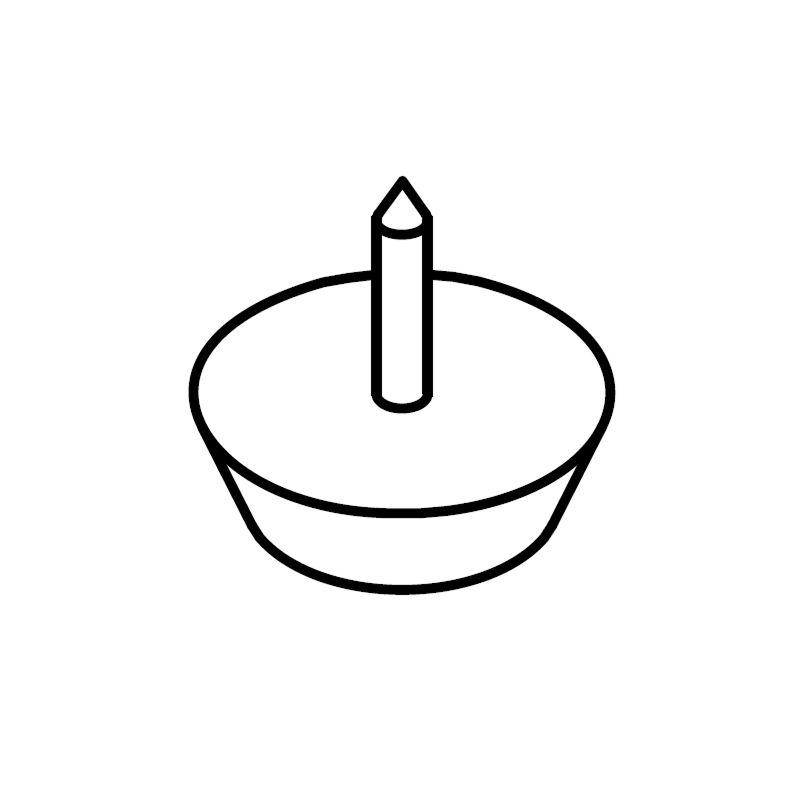

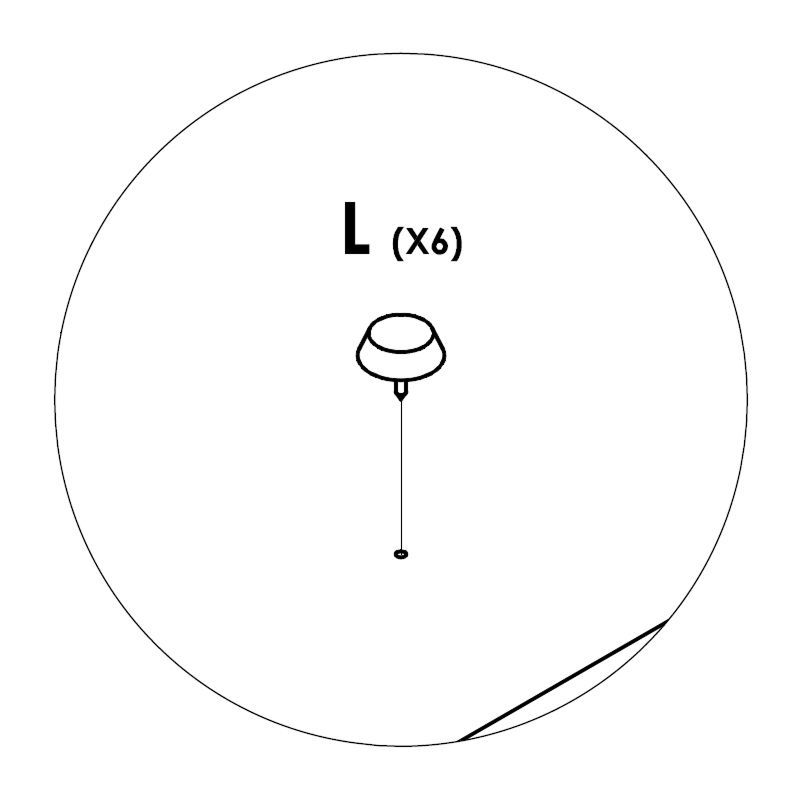

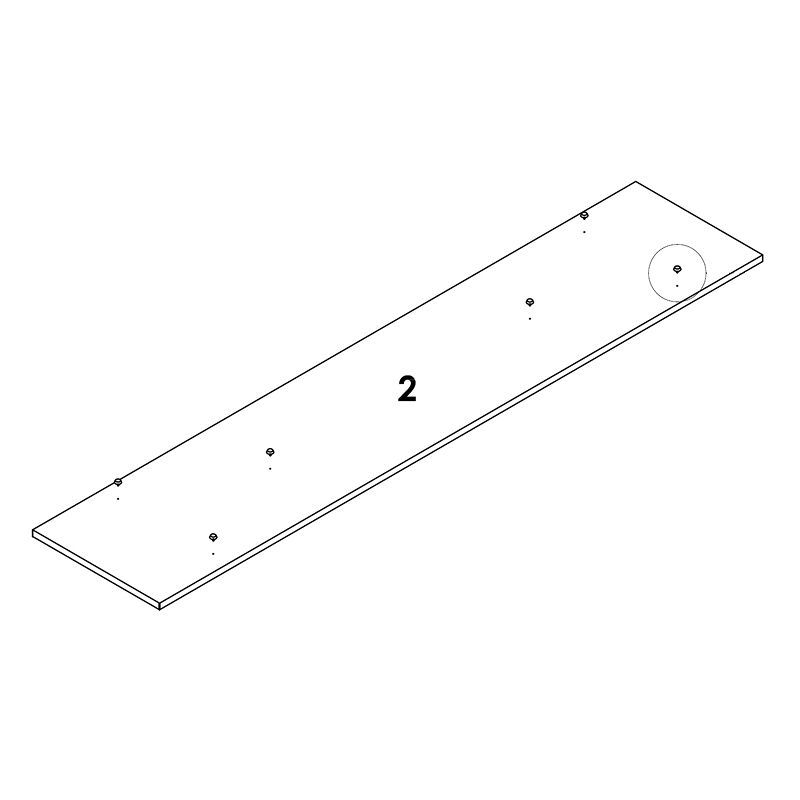

Attach (L) into Bottom Panel based on marking holes given by using a Rubber Hammer.

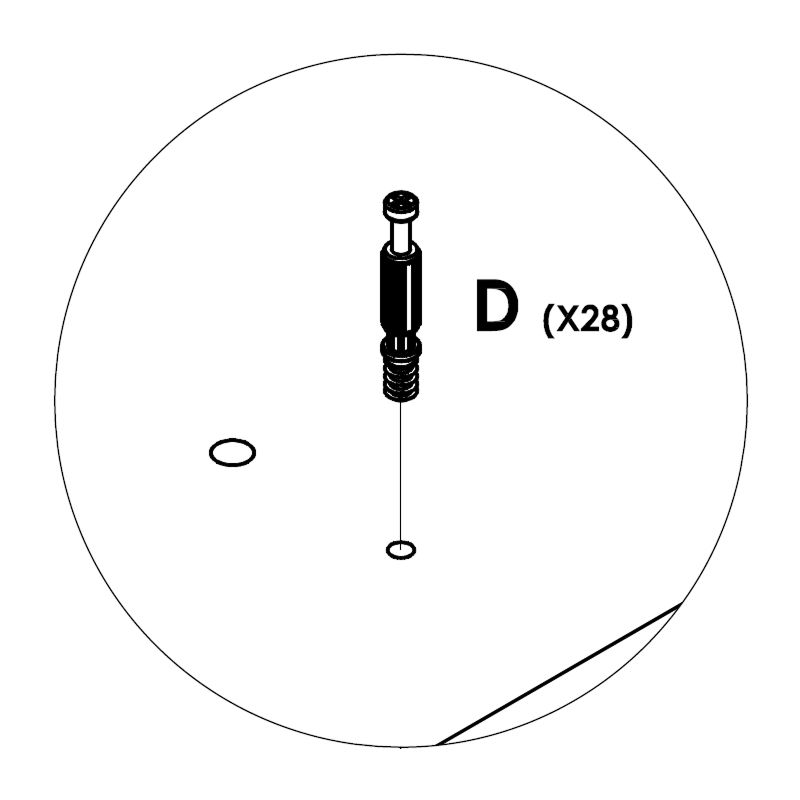

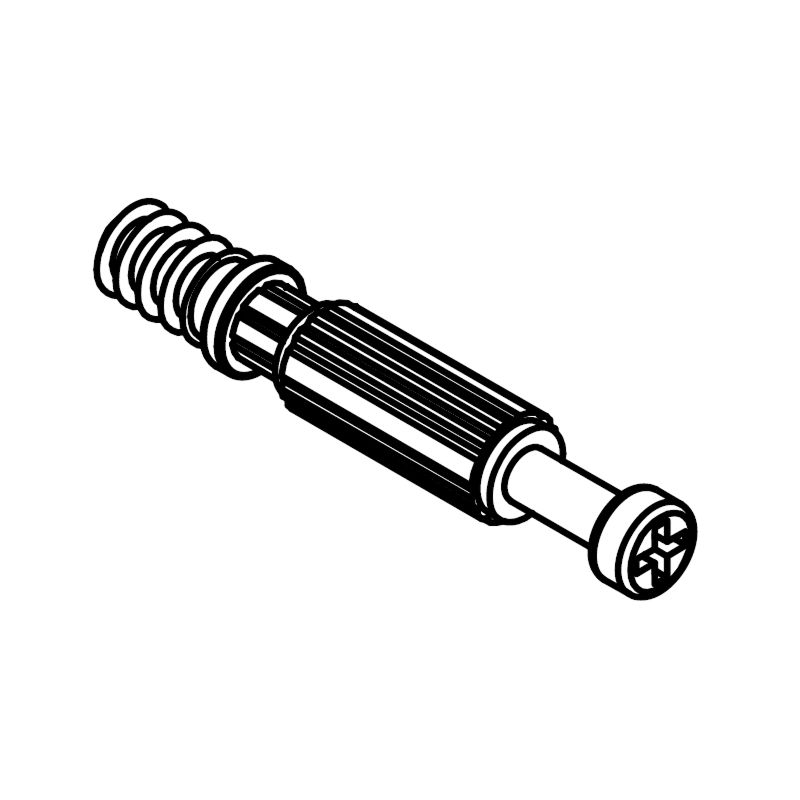

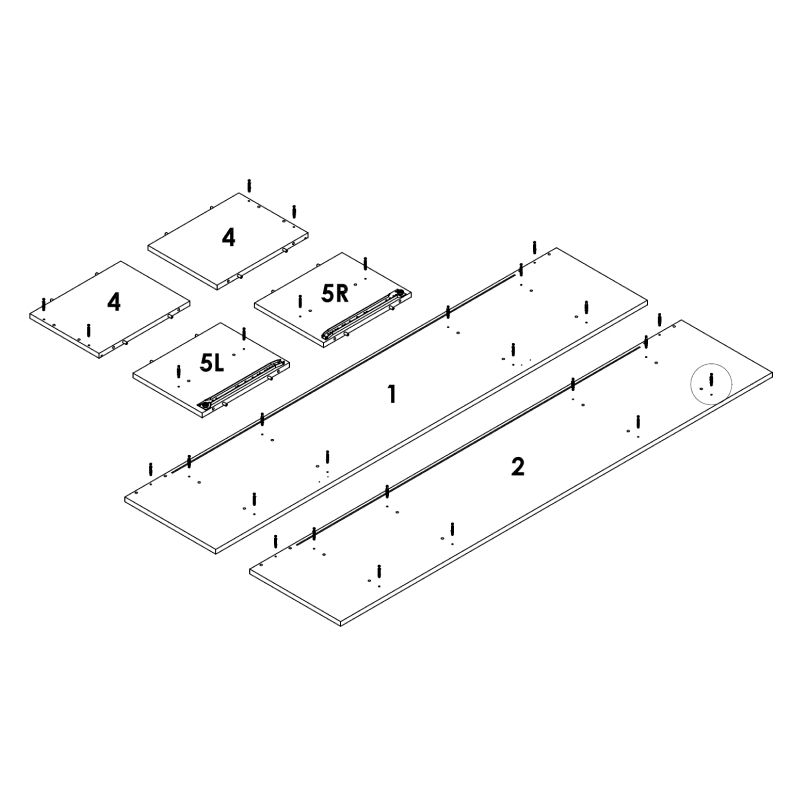

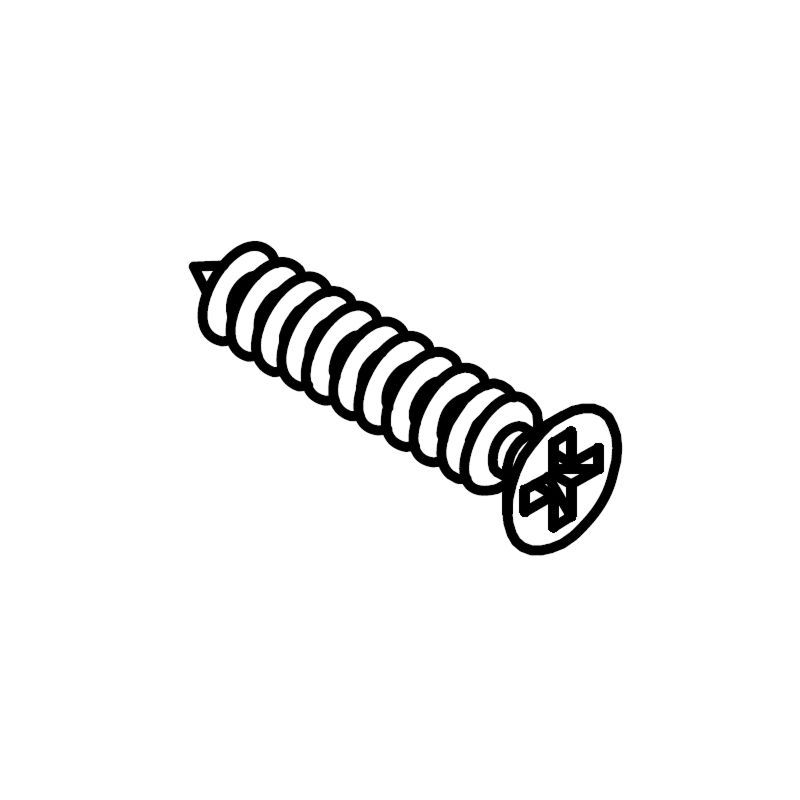

Attach (D) into specified Ø5MM holes on Top & Bottom Panel, Door Support Panel and Drawer Support Panel by using a Crosshead Screw Driver.

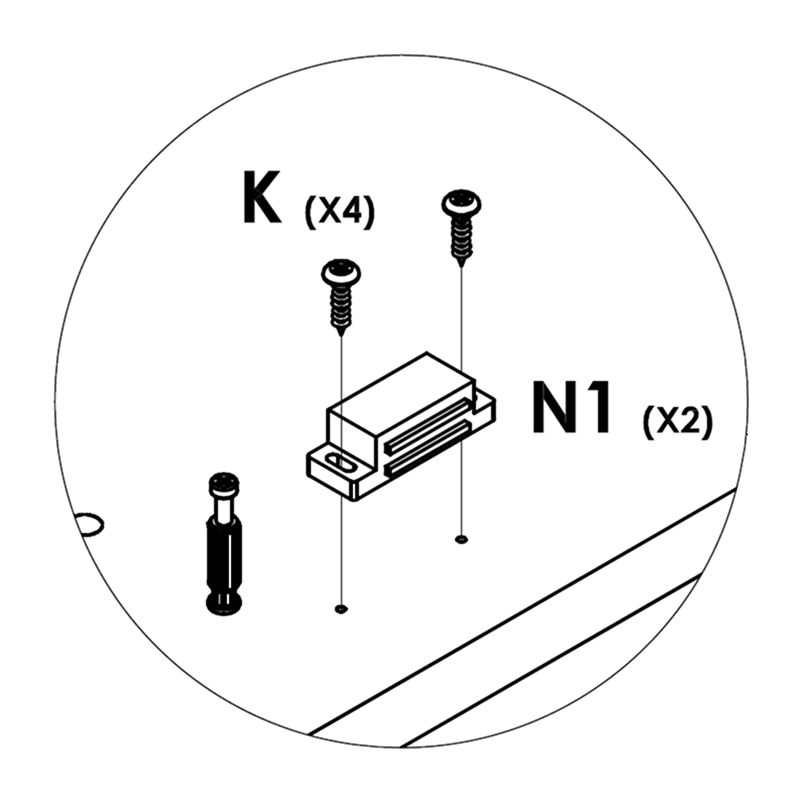

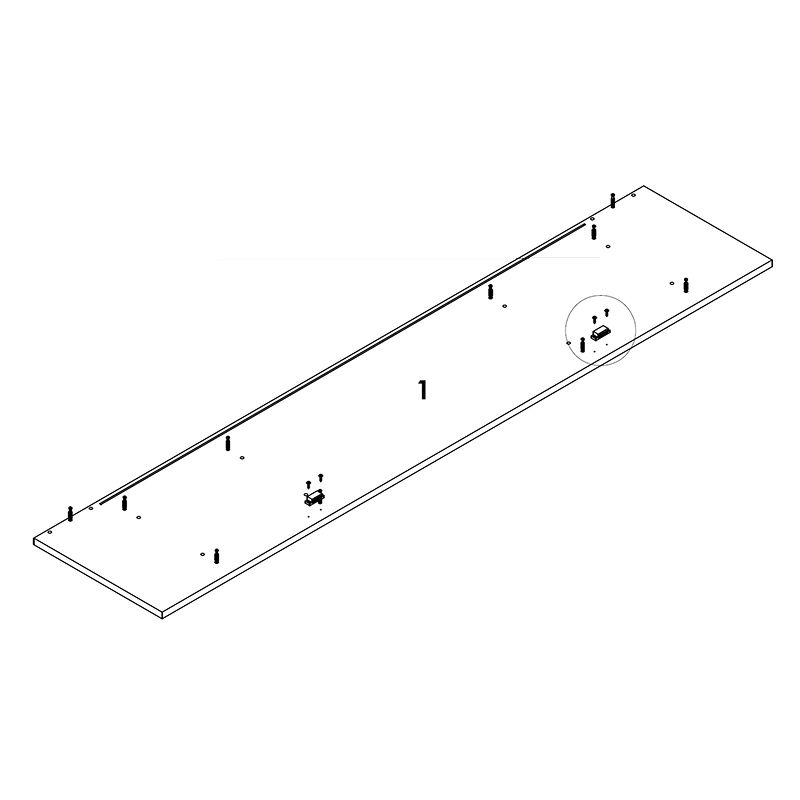

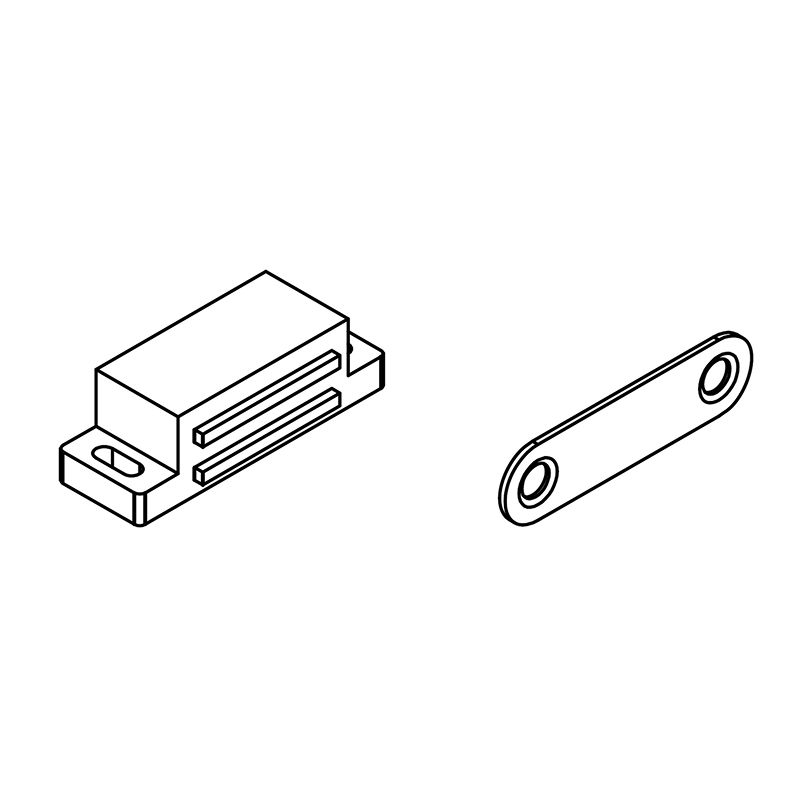

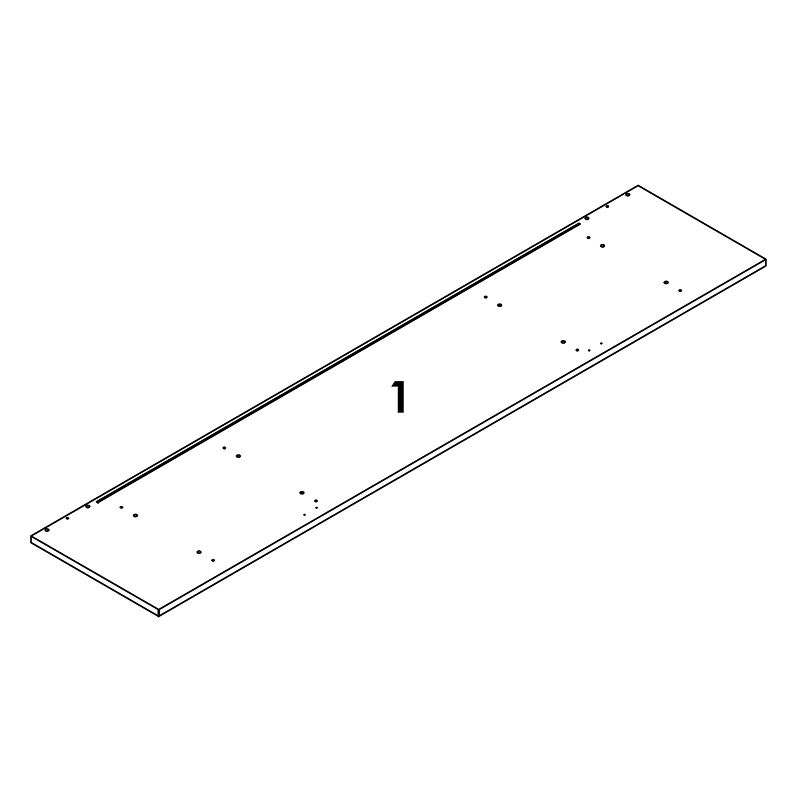

Attach (N1) onto Top Panel by using (K), tighten it up by using a Crosshead Screw Driver.

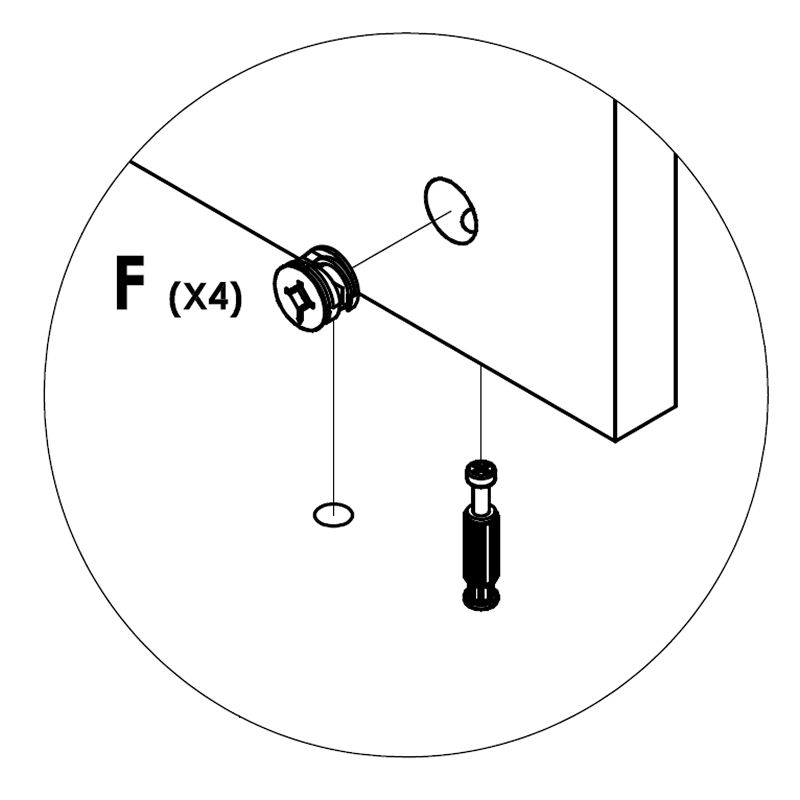

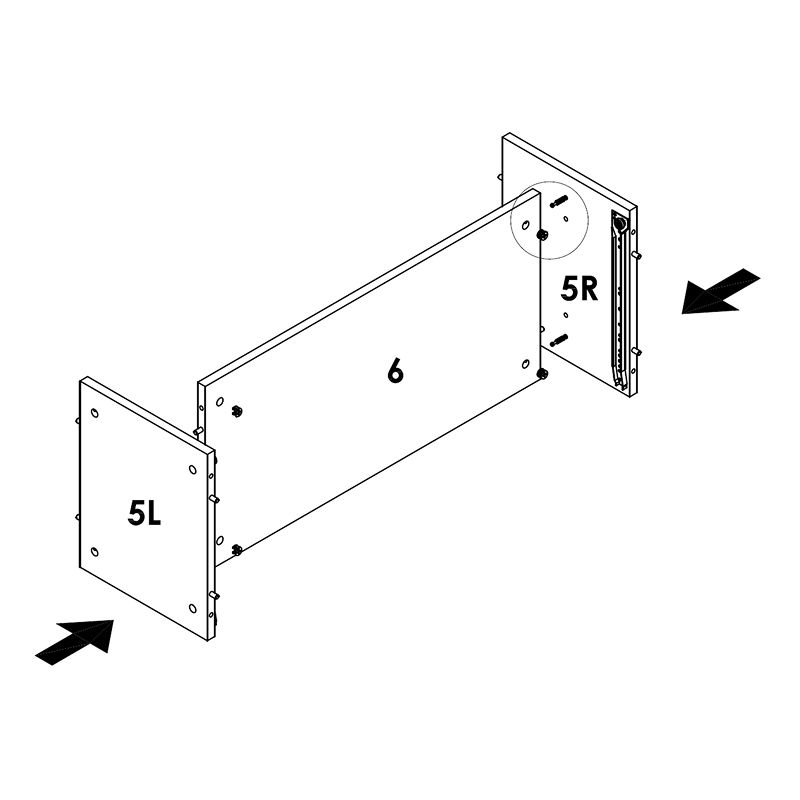

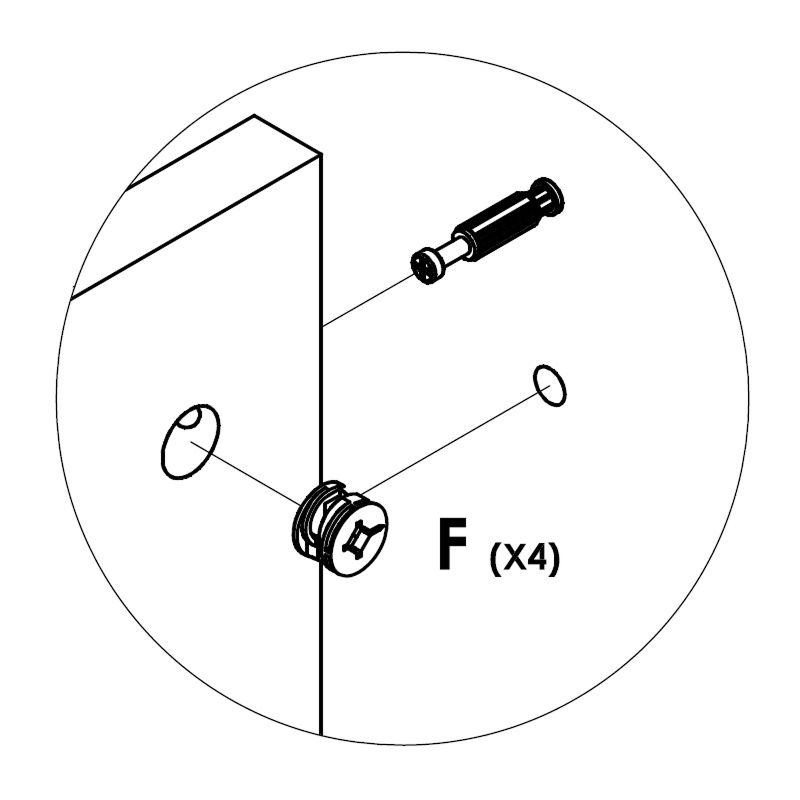

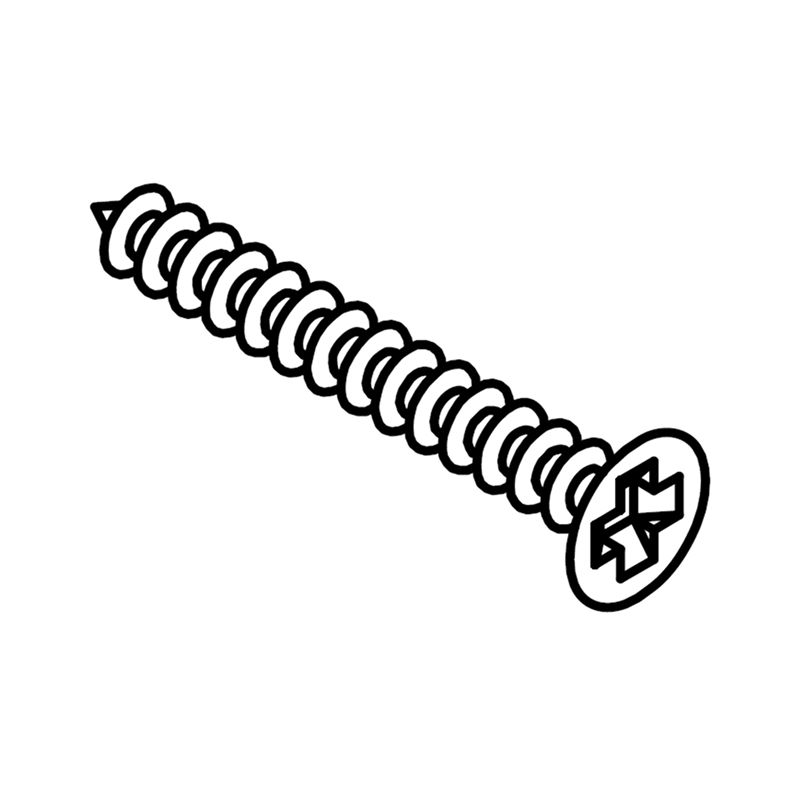

Attach and secure Drawer Support Panels onto Shelf Panel by using (F), tighten it up by using a Crosshead Screw Driver.

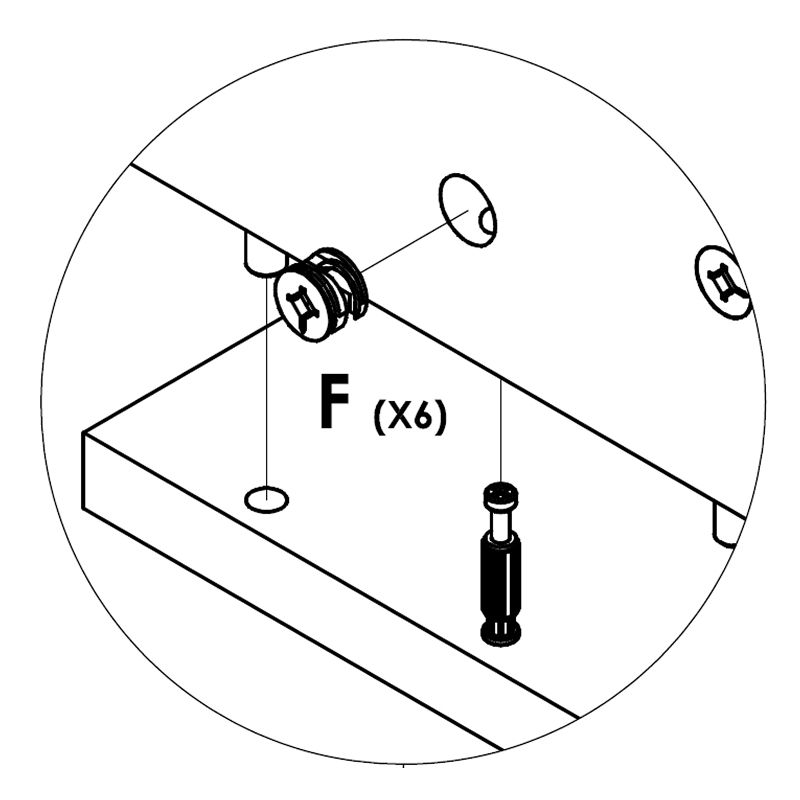

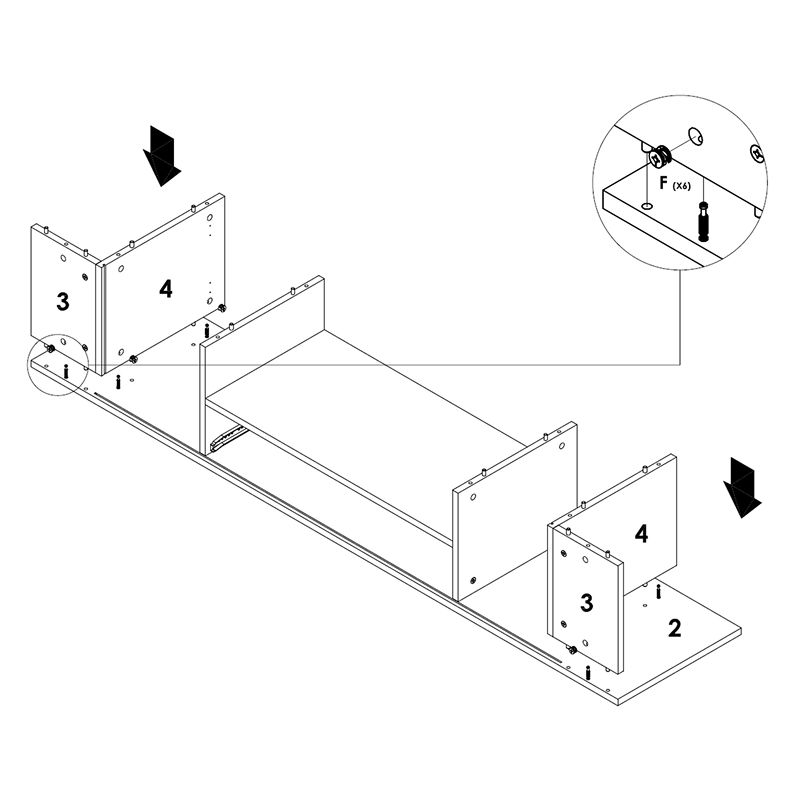

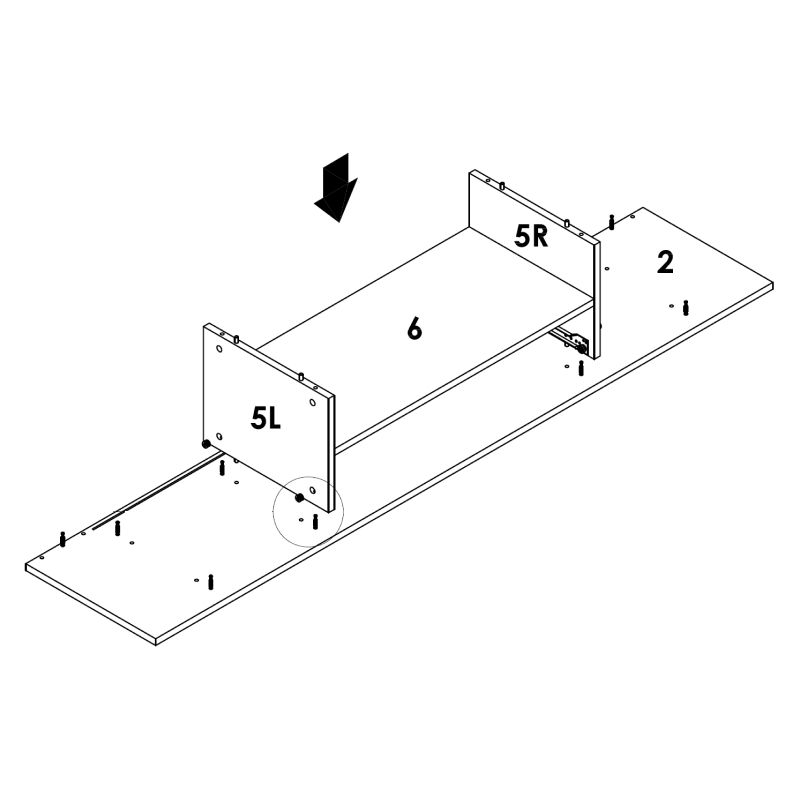

Attach and secure Previous assembly onto Bottom Panel by using (F), tighten it up by using a Crosshead Screw Driver.

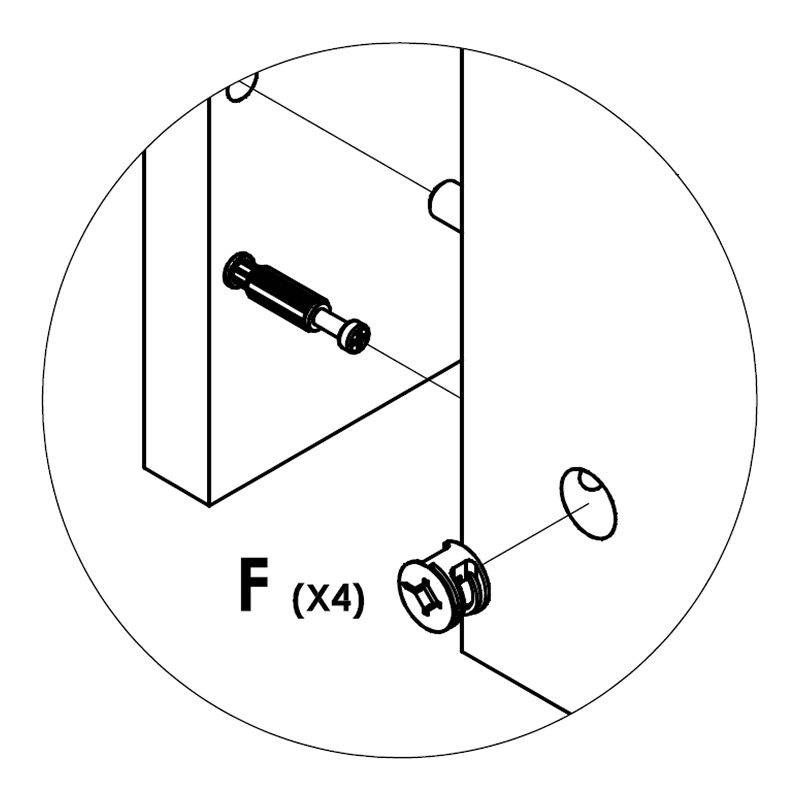

Attach and secure Side Panel onto Door Support Panel by using (F), tighten it up by using a Crosshead Screw Driver.

Attach and secure previous assembly onto Bottom Panel by using (F), tighten it up by using a Crosshead Screw Driver.

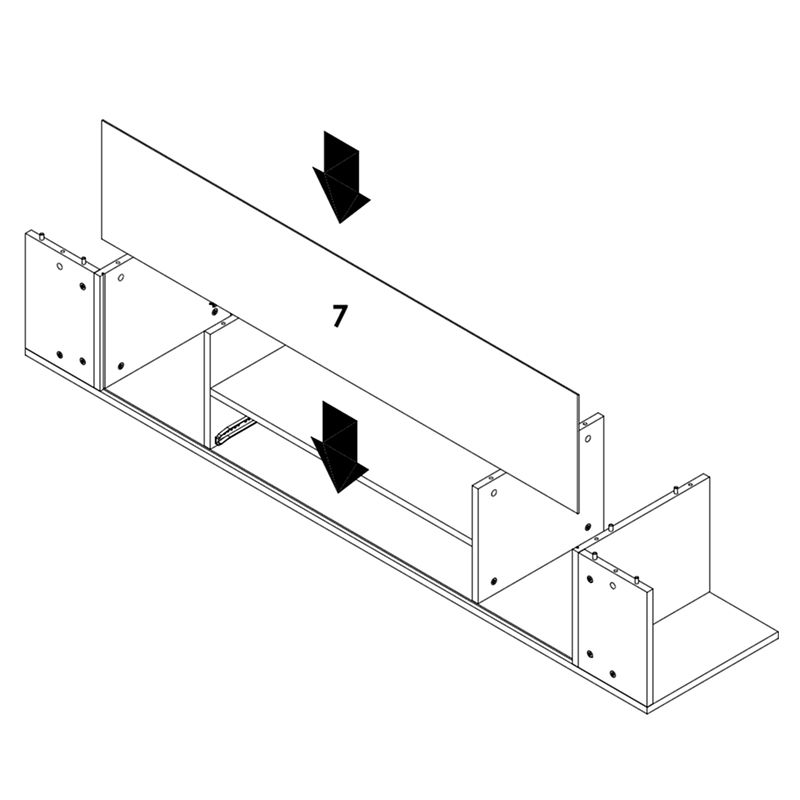

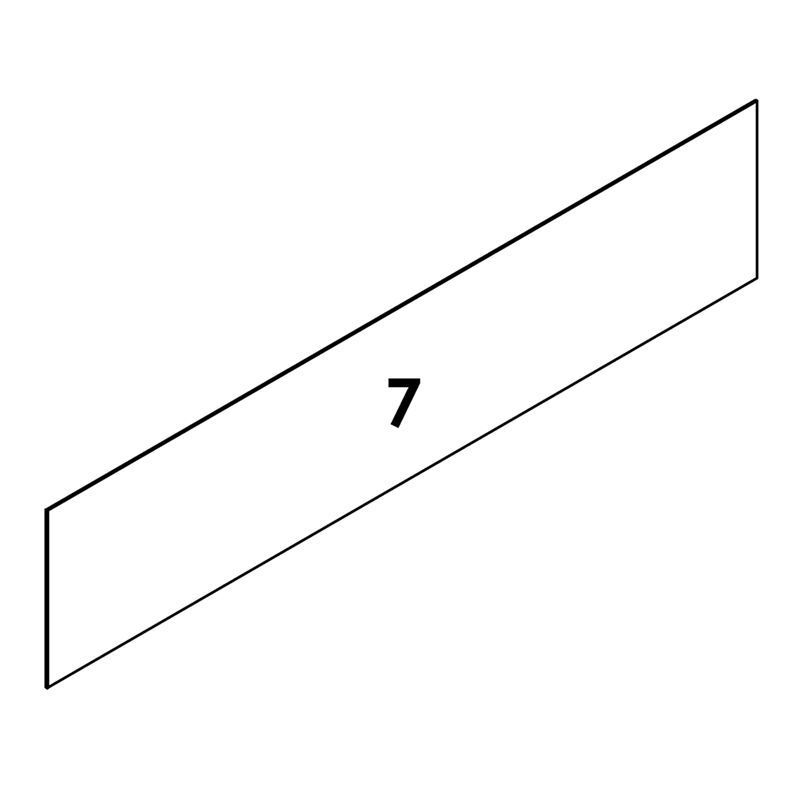

Slide down Back Panel all the way into groove lines found on assembly.

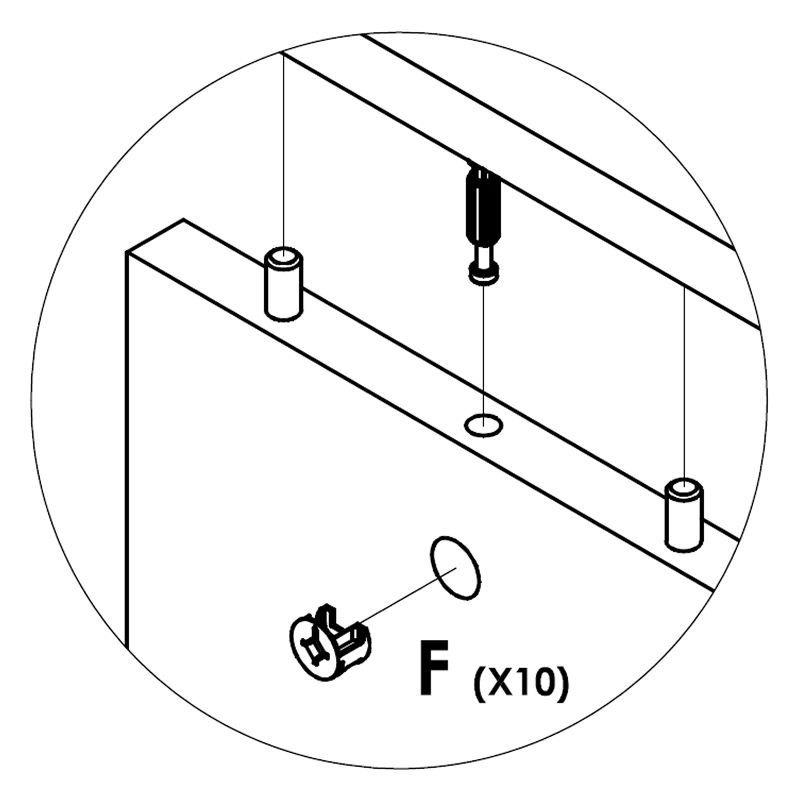

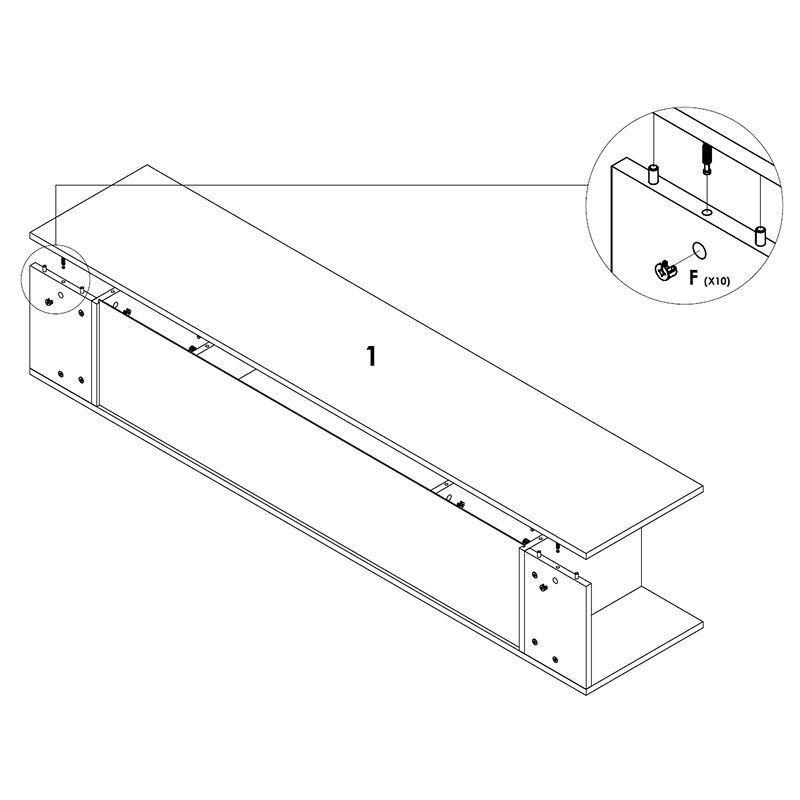

Attach and secure Top Panel onto previous assembly by using (F), tighten it up by using a Crosshead Screw Driver.

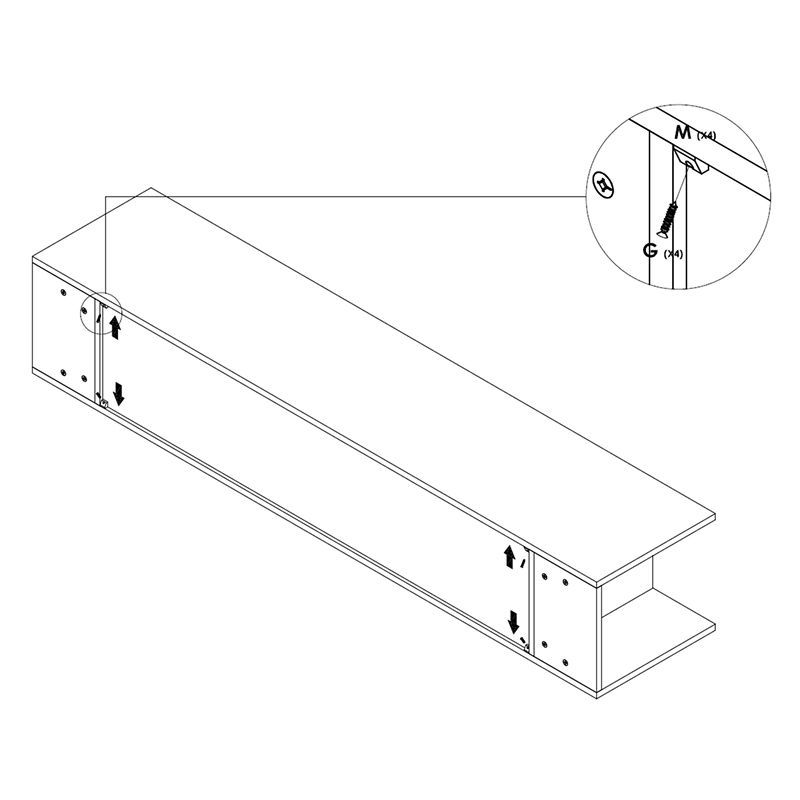

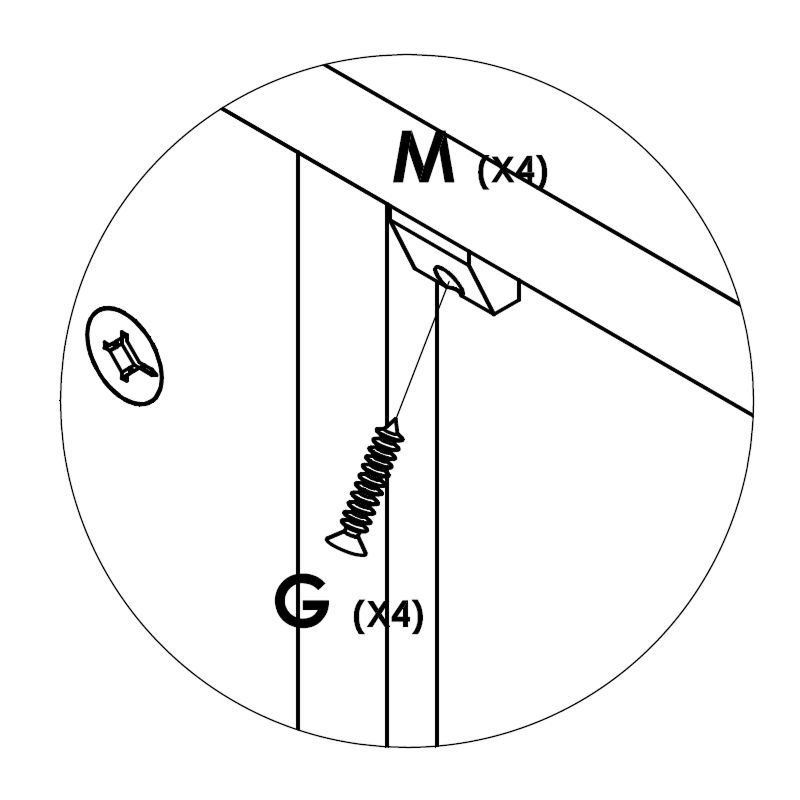

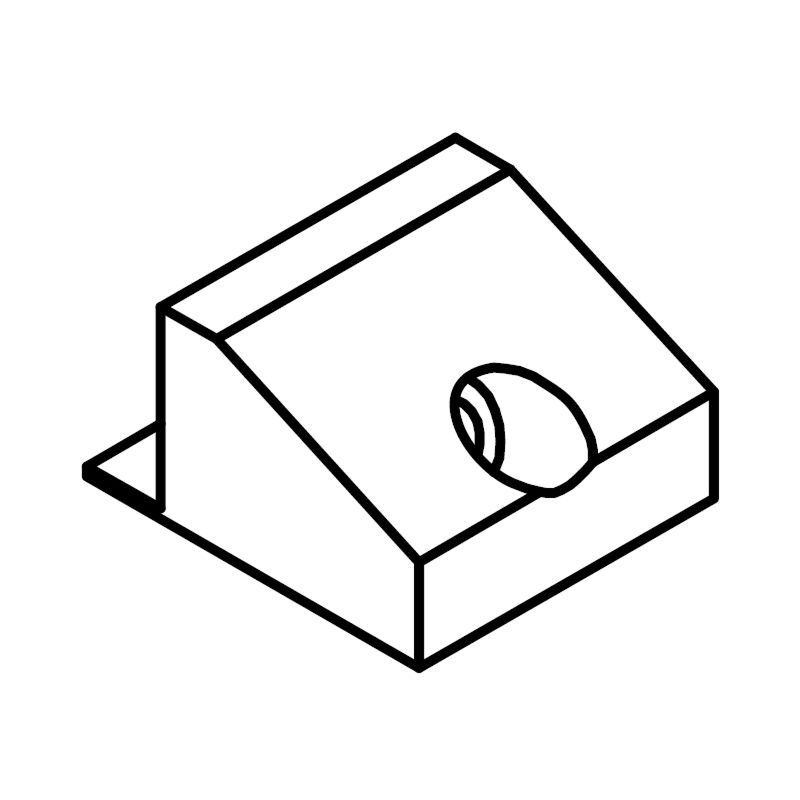

Attach and secure (M) on sides pointed by arrows on the drawing as shown by using (G), tighten it up by using a Crosshead Screw Driver.

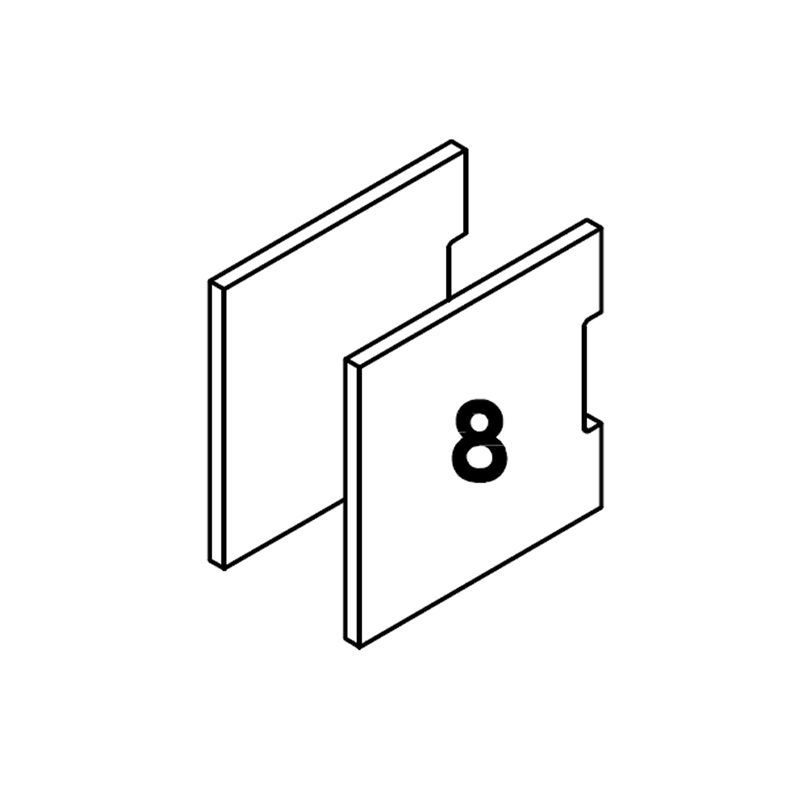

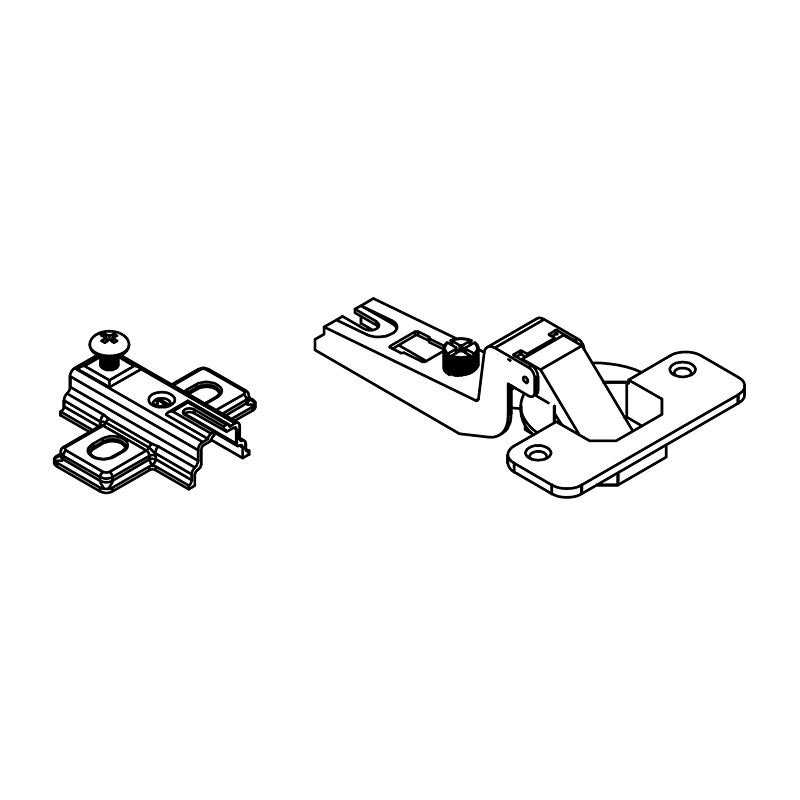

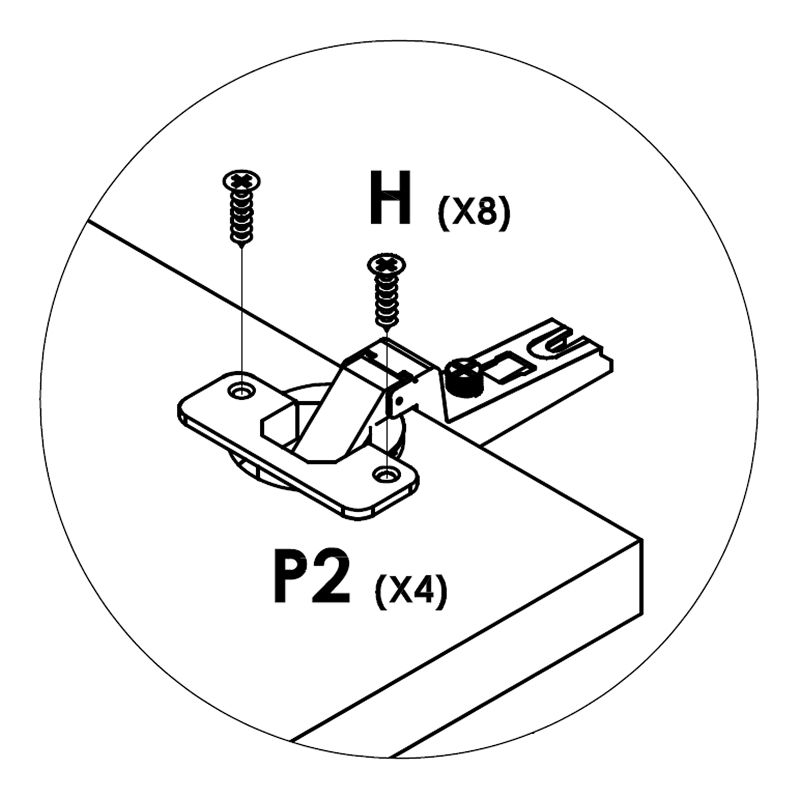

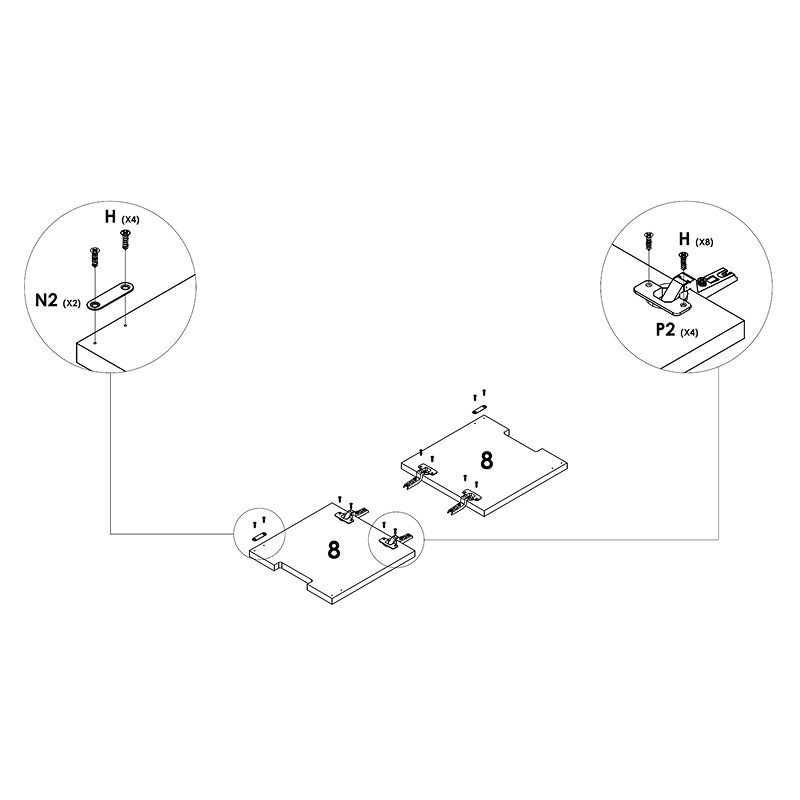

1. Attach and secure (P2) onto Doors by using (H).

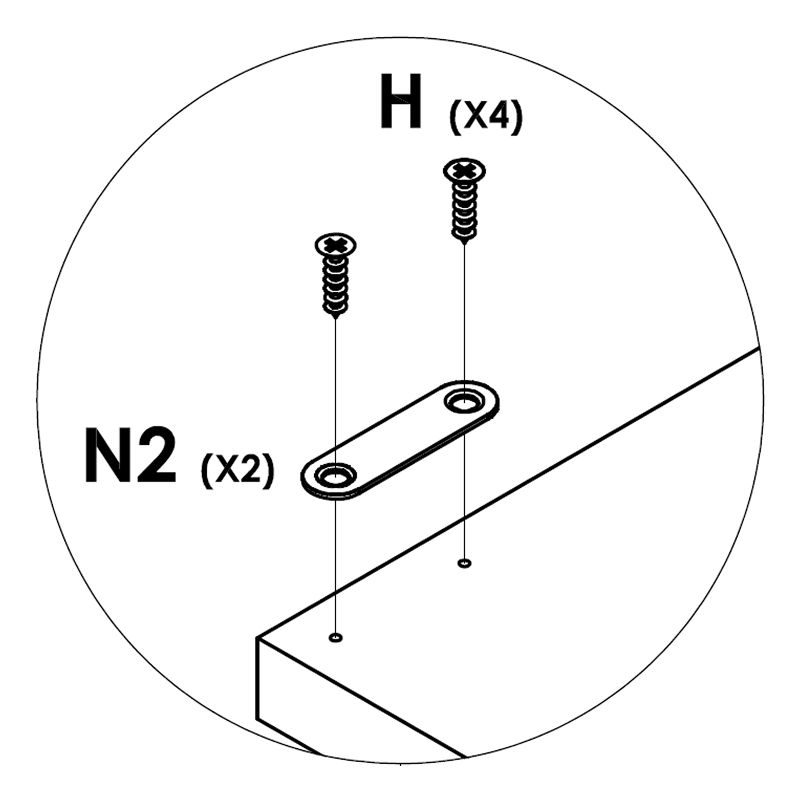

2. Follow it up by attaching (N2) onto Doors based on marking holes given by using (H), tighten both of it up by using a Crosshead Screw Driver.

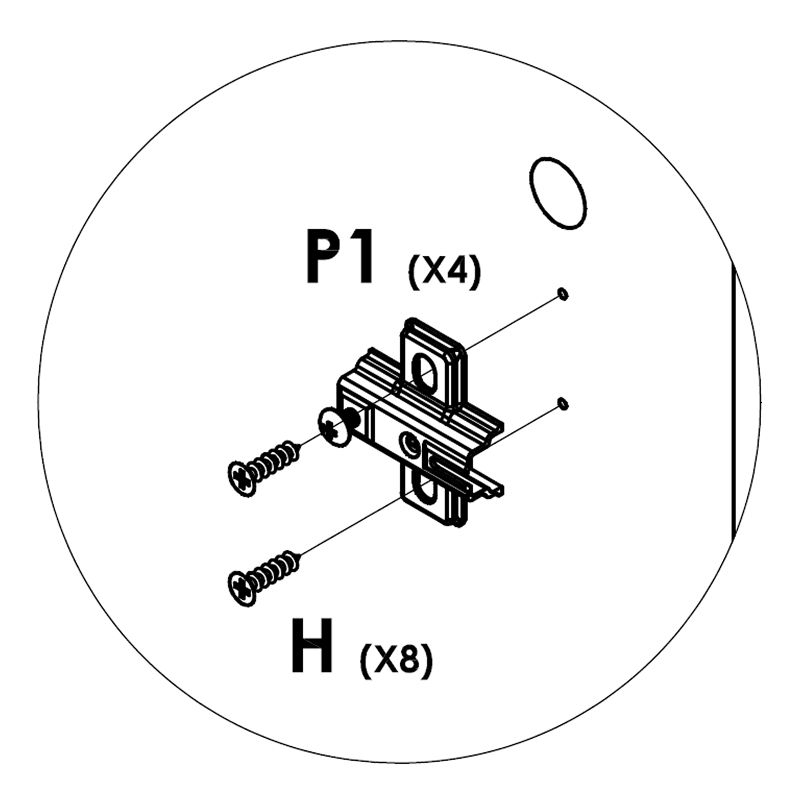

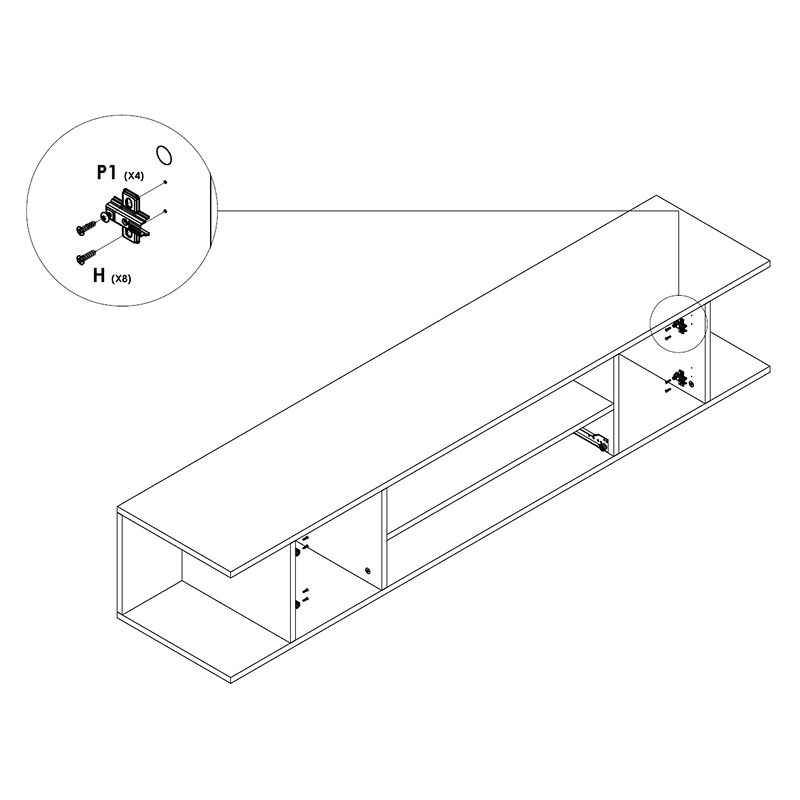

Attach and secure (P1) onto Door Support Panels based on marking holes given by using (H), tighten it up by using a Crosshead Screw Driver.

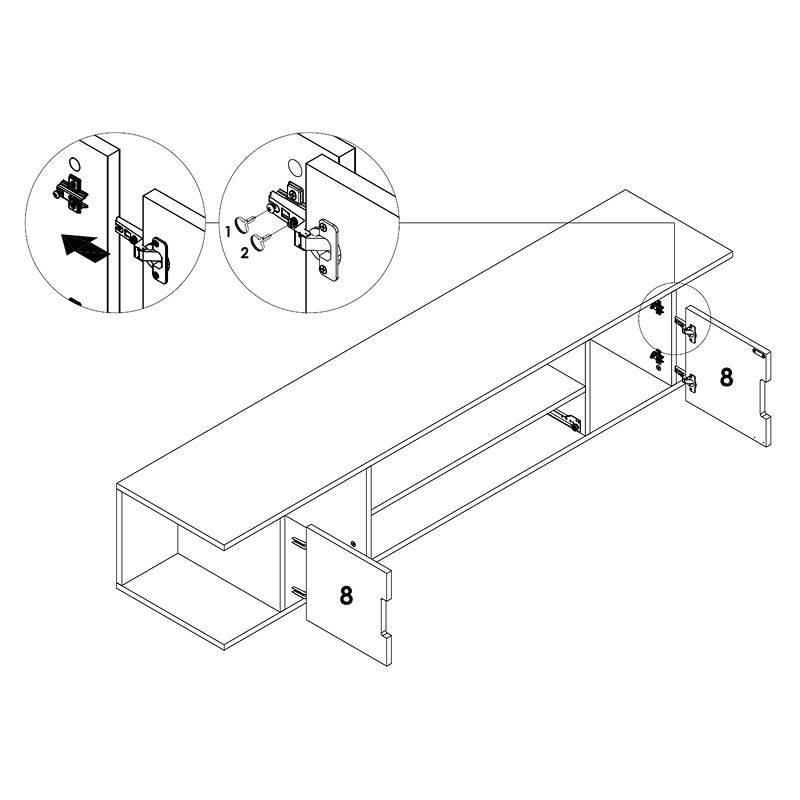

1. Attach both Doors onto assembly. Use a Crosshead Screw Driver to tighten (1) up.
2. Use a Crosshead Screw Driver again on (2) to adjust its alignment.

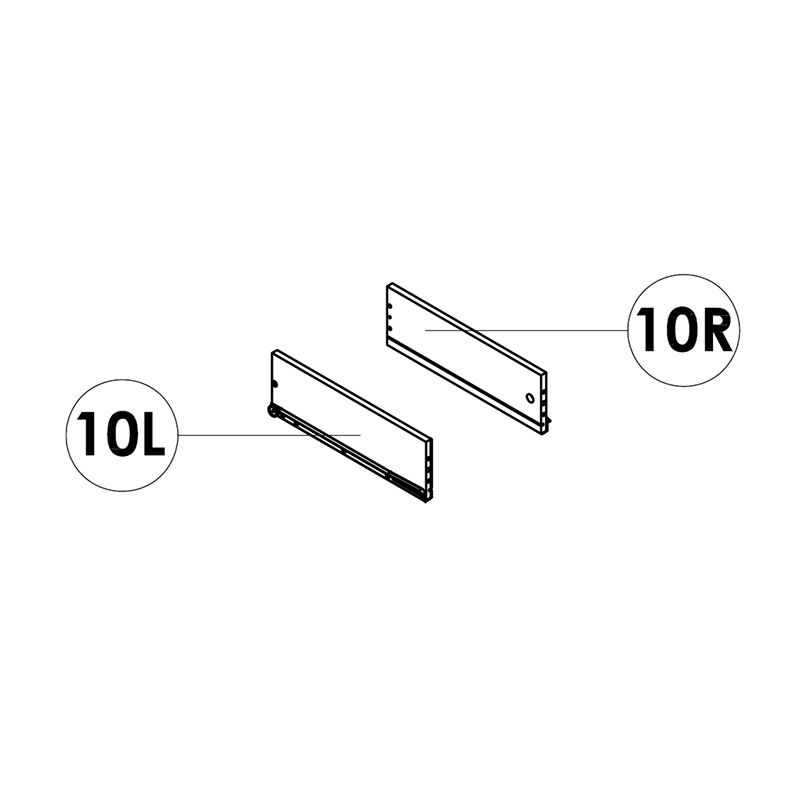

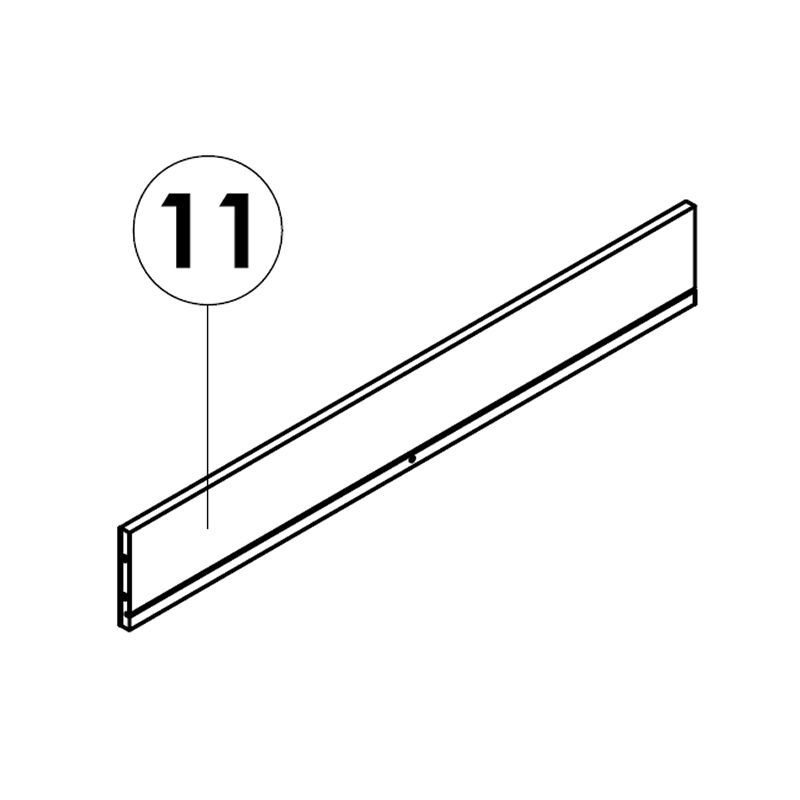

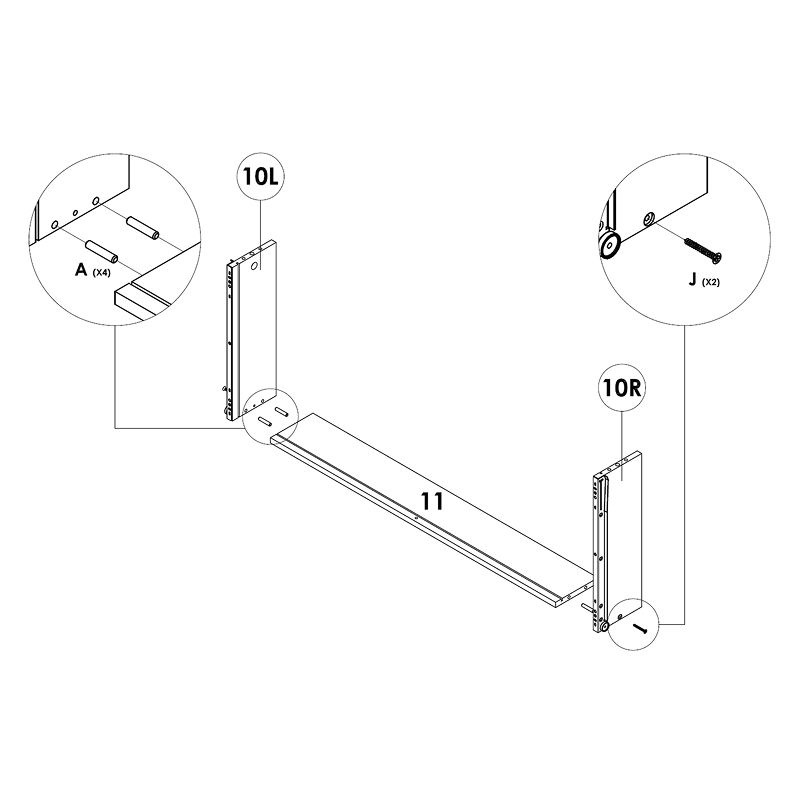

1. Attach and secure Drawer Slde (L/R) onto Drawer Rear by inserting (A) into Ø6MM holes.
2. Follow it up by screwing (J) into pre-drilled holes.
3. Tighten it up by using a Crosshead Screw Driver.

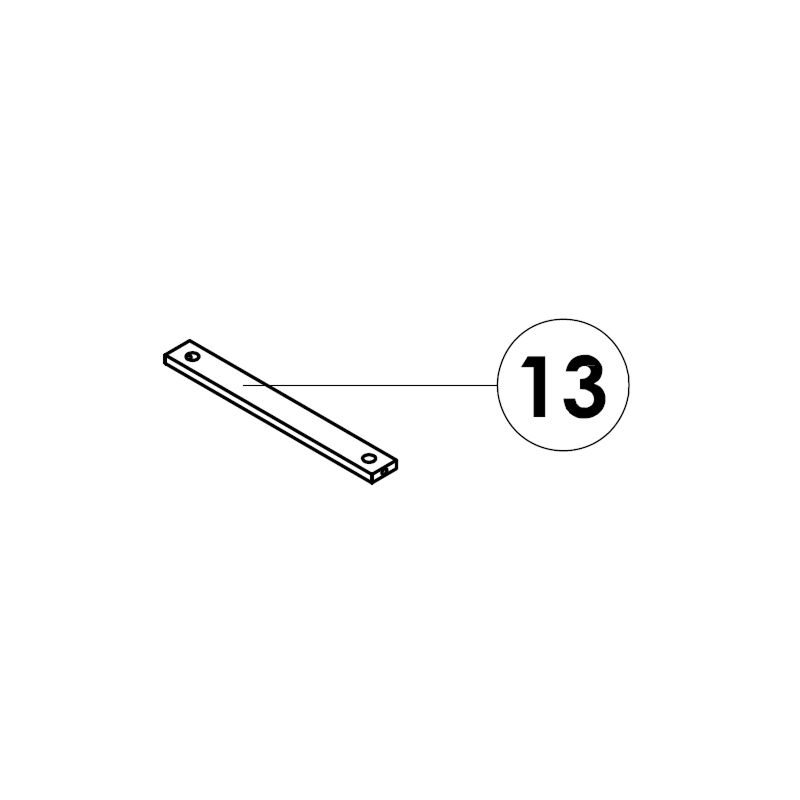

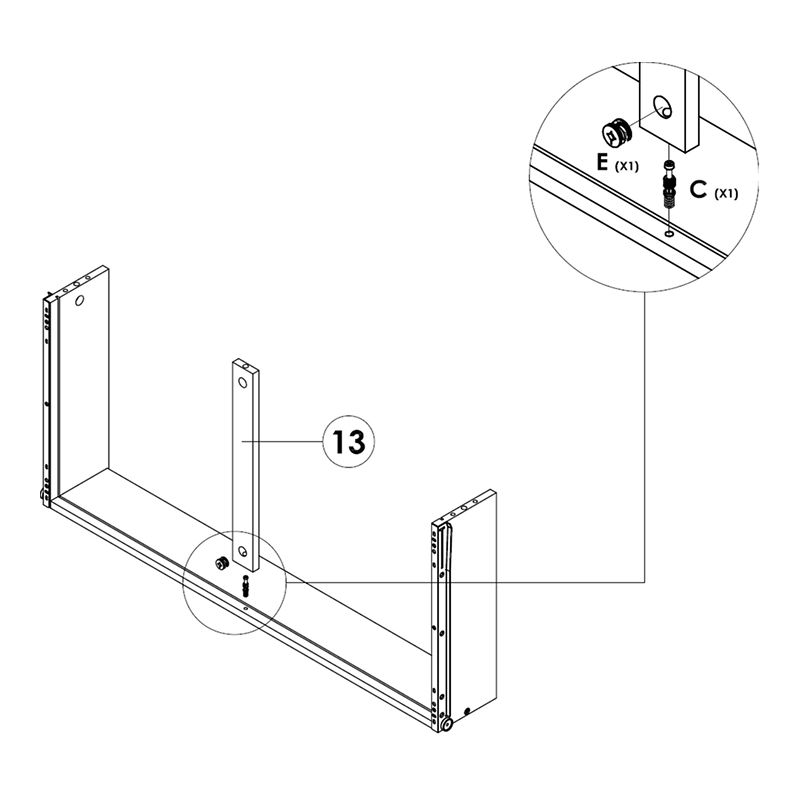

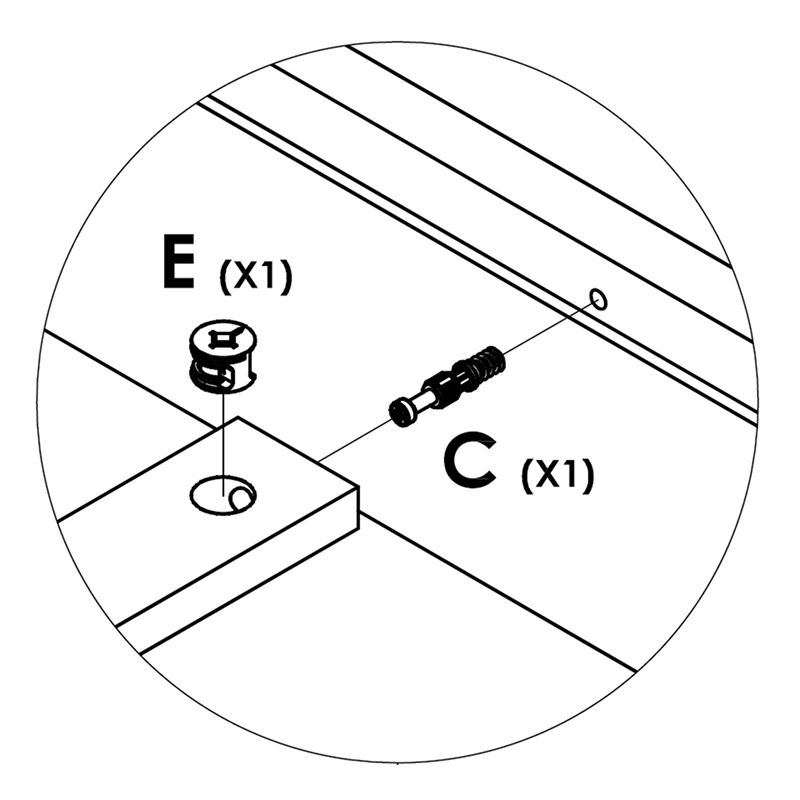

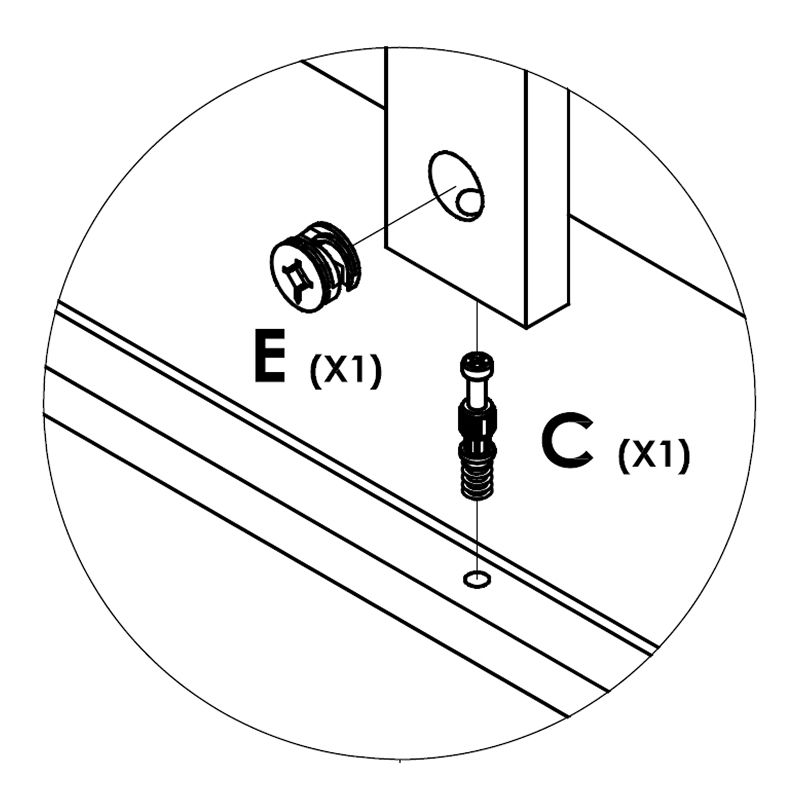

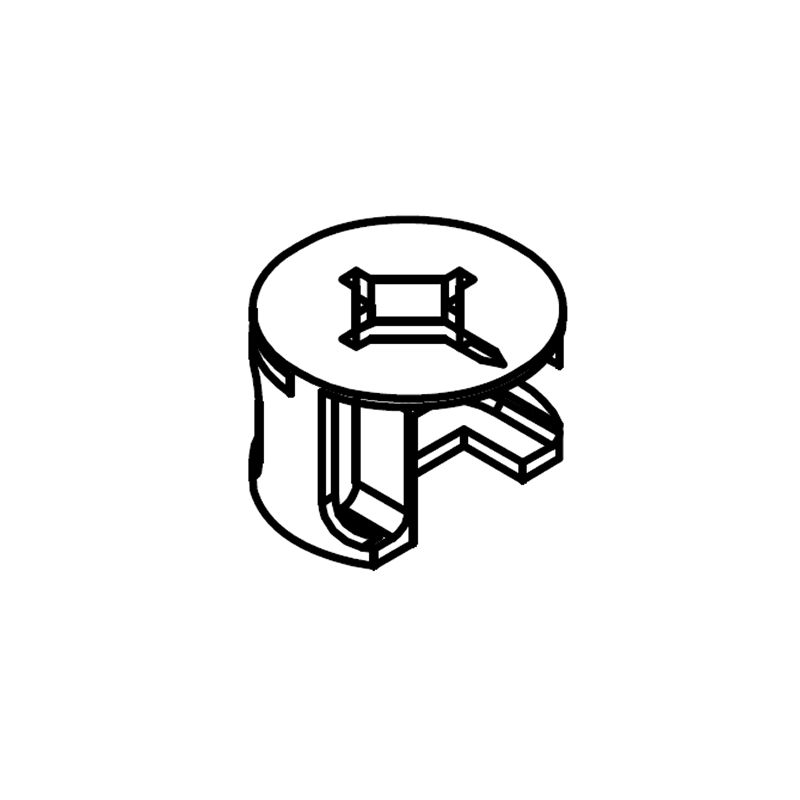

Attach and secure one side of Drawer Base Support onto Drawer Rear by using (C) and (E), tighten it up by using a Crosshead Screw Driver.

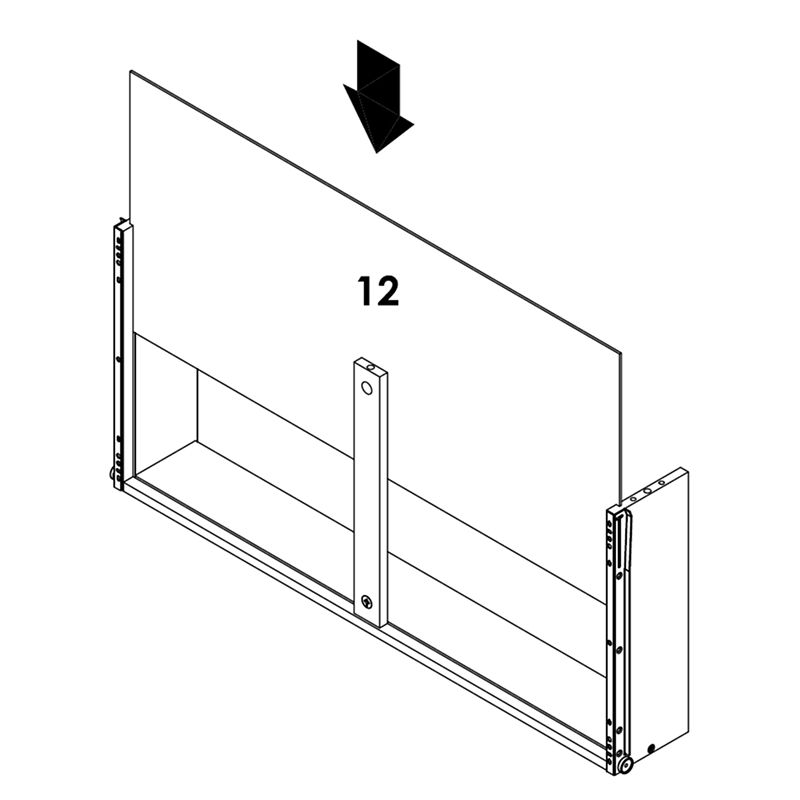

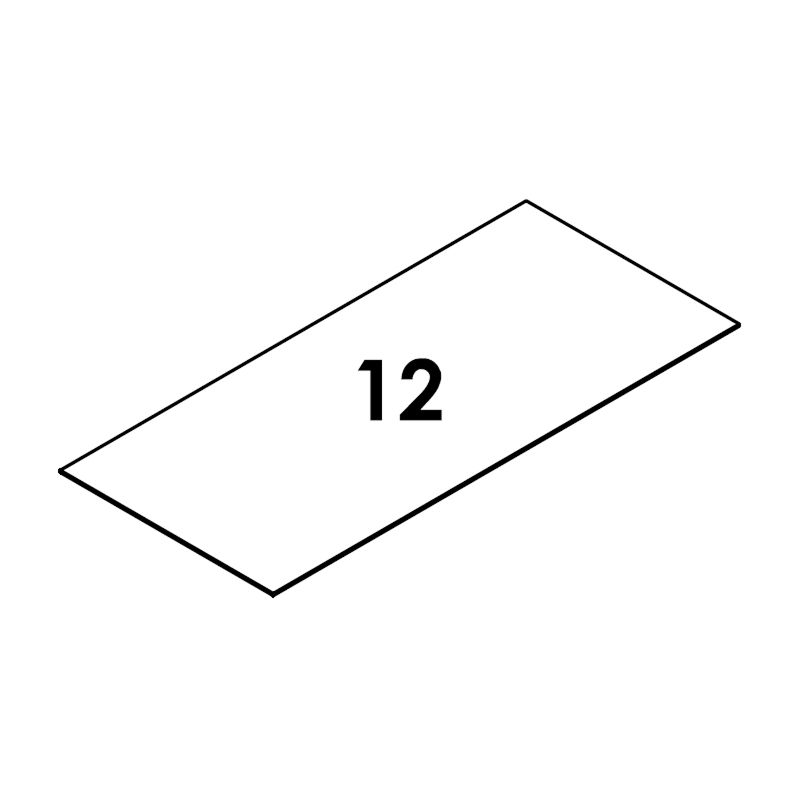

Slot Drawer Base into Drawer assembly.

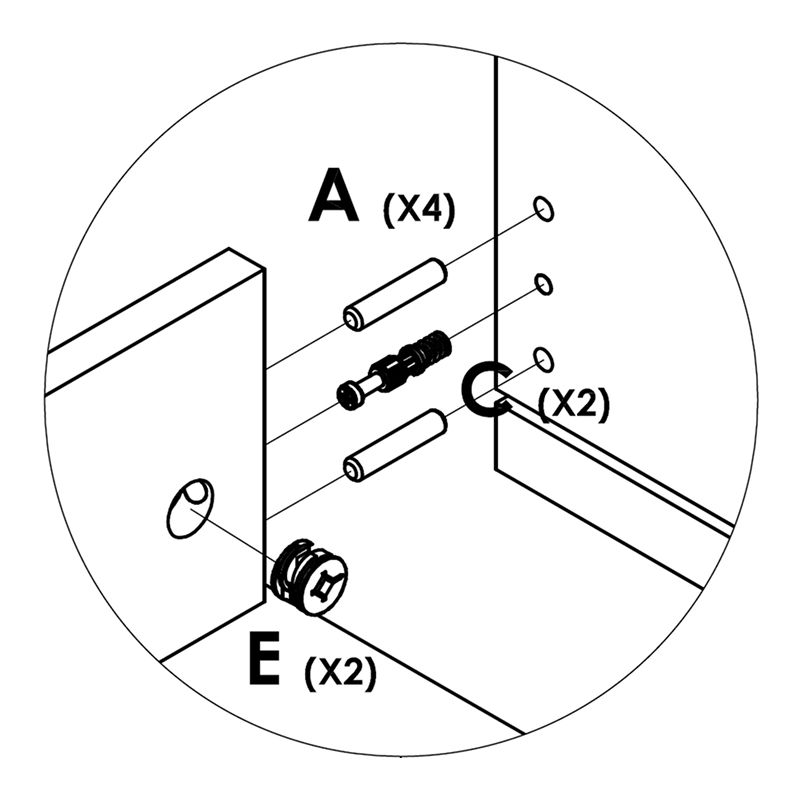

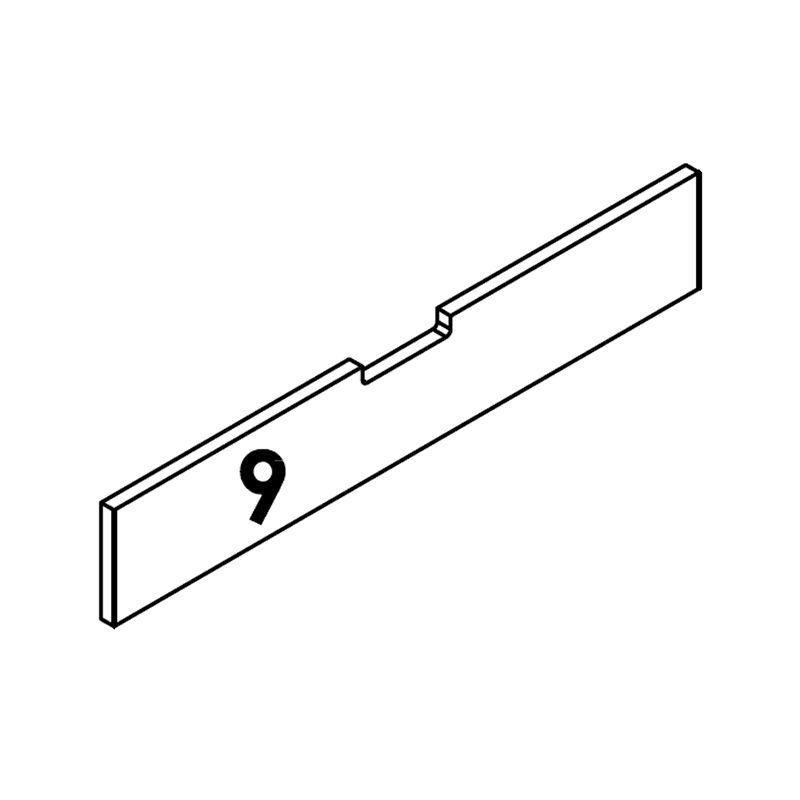

Attach and secure Drawer Face onto Drawer Side (L/R) and another side of Drawer Base Support by inserting (A) into Ø6MM holes, follow that up by using (C) and (E), tighten up all positions by using a Crosshead Screw Driver.

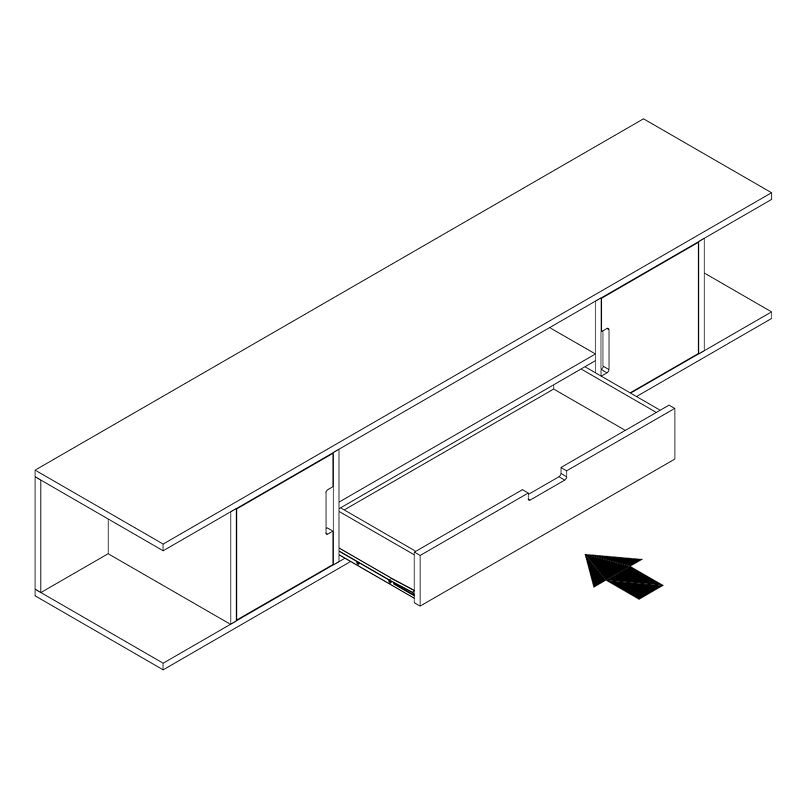

1. Slot Drawer into previous assembly.

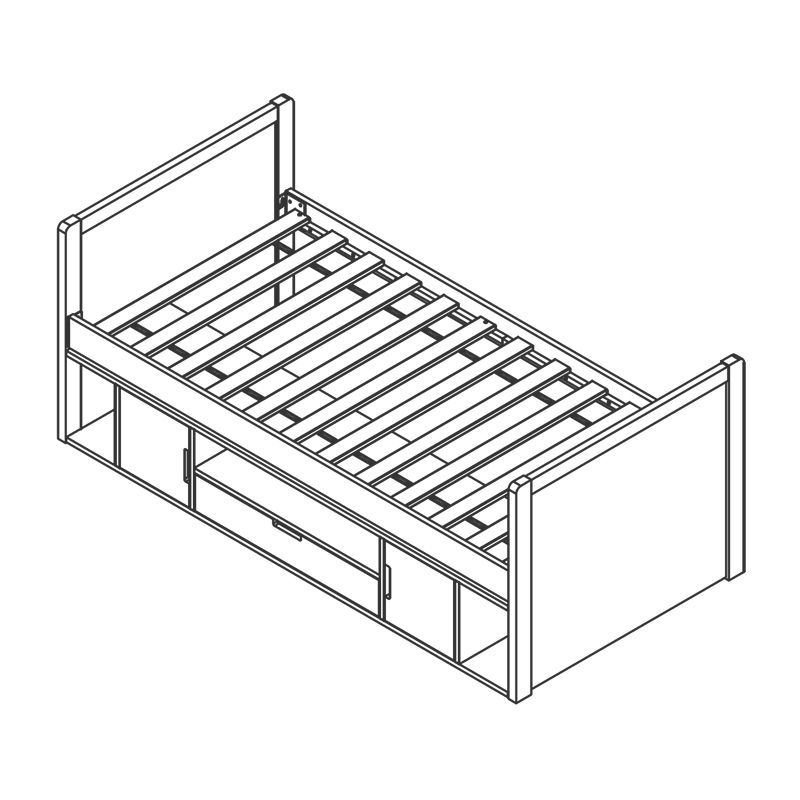

2. Go on to complete the entire assembly.

• Verify that all slats are securely fastened and evenly spaced.
• Check for any loose connections and tighten the screws if necessary.
